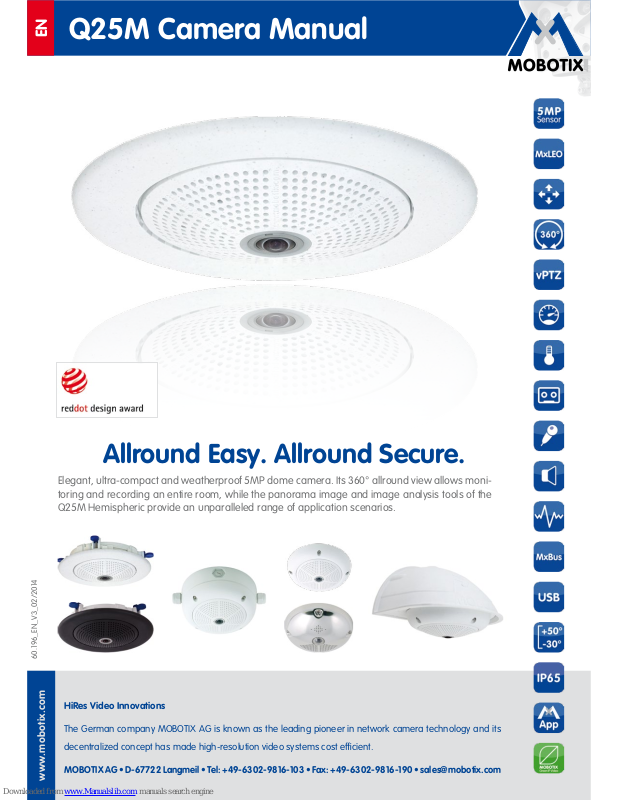

Q25M Camera Manual

Allround Easy. Allround Secure.

Elegant, ultra-compact and weatherproof 5MP dome camera. Its 360° allround view allows monitoring and recording an entire room, while the panorama image and image analysis tools of the Q25M Hemispheric provide an unparalleled range of application scenarios.

Page 2

2/156

www.mobotix.com • sales@mobotix.com

Q25M Camera Manual: Contents

MOBOTIX Seminars

MOBOTIX o ers inexpensive seminars that include workshops and practical exercises.

For more information, visit www.mobotix.com > Seminars.

MOBOTIX

, the MX logo,

MxControlCenter, MxEasy

and

MxPEG

are trademarks of MOBOTIX AG registered in the European Union, the U.S.A., and other countries.

Microsoft, Windows

and

Windows Server

are registered trademarks

of Microsoft Corporation.

Apple

, the Apple logo,

Macintosh, OSX, iOS, Bonjour

, the

Bonjour logo, the Bonjour icon,

iPod

and

iTunes

are trademarks of Apple Inc. registered

in the U.S.A. and other countries.

iPhone, iPad, iPad mini

and

iPod touch

are Apple

Inc. trademarks.

Linux

is a trademark of Linus Torvalds. All other marks and names

mentioned herein are trademarks or registered trademarks of the respective owners.

Download the latest version of this and other manuals as PDF ﬁ les from

www.mobotix.com> Support > Manuals.

THE MOBOTIX INFORMATION CHANNELS

MOBOTIX

Support on the MOBOTIX Website

www.mobotix.com/other/Support

The MOBOTIX Video Tutorials

www.mobotix.com/other/Support/Tutorials

Seminars on MOBOTIX Campus

www.mobotix.com/other/Partners/Seminars

The MOBOTIX YouTube Channel

www.youtube.com/MOBOTIXAG

Page 3

3/156

Contents

www.mobotix.com • sales@mobotix.com

CONTENTS

1 Product Overview 10

1.1 Q25M Hemispheric 10

1.1.1 General Product Characteristics 10

1.1.2 Hemispheric Technology 21

1.1.3 Advantages and New Features 24

1.1.4 Decentralized Video System 26

1.1.5 Green IP Video 28

1.2 Technical Speciﬁcations 30

1.2.1 Lens Options 30

1.2.2 Camera Variants– Lenses, Hardware, Image Formats 32

1.2.3 Camera Variants– Software Features 33

1.2.4 Technical Data 34

1.3 Delivered Parts and Dimensions 36

1.3.1 Q25M Camera 36

1.3.2 Mounting Kits and Mounts 39

1.4 Available Accessories 48

1.4.1 On-Wall Set 48

1.4.2 10° On-Wall Set 48

1.4.3 Vandalism Set 48

1.4.4 In-Ceiling Set 49

1.4.5 Outdoor Wall Mount 49

1.4.6 Corner and Pole Mount 49

1.4.7 Stand/Wall Mount for Camera Tests 49

1.4.8 MiniUSB Cable to MiniUSB (Angled/Straight) 50

1.4.9 MiniUSB Cable to MiniUSB (Angled/Angled) 50

1.4.10 MiniUSB Cable to USB-A Socket 50

1.4.11 Ethernet Patch Cable for Bayonet Catch 50

1.4.12 NPA-PoE-Set 51

1.4.13 MX-Overvoltage-Protection-Box 51

1.4.14 MX-NPA-Box 51

1.4.15 MX-GPS-Box 52

1.4.16 MX-232-IO-Box 52

1.4.17 ExtIO Expansion Module 52

1.4.18 Mx2wire+ Media Converter 53

1.4.19 Other Accessories 53

1.5 MOBOTIX Software 54

1.5.1 Integrated Camera Software (Firmware) 54

1.5.2 MxControlCenter 55

1.5.3 MxEasy 56

1.5.4 MOBOTIX App 57

Page 4

4/156

www.mobotix.com • sales@mobotix.com

Q25M Camera Manual: Contents

2 Installation 58

2.1 Preparing the Installation 58

2.1.1 Wall-Mounted 59

2.1.2 Ceiling-Mounted 62

2.1.3 Mounting Options 65

2.1.4 Network Connection And Power Supply, UPS 68

2.1.5 Preparing the Camera Connections, MX-Overvoltage-Protection-Box 69

2.1.6 Wiring, Fire Prevention, Lightning and Surge Protection 70

2.2 Mounting the Camera Without Accessories 72

2.2.1 Mounting Instructions 72

2.2.2 Procedure 74

2.3 Mounting the Camera with the On-Wall Set 78

2.3.1 Mounting Instructions 78

2.3.2 Procedure 81

2.4 Mounting the Camera with the In-Ceiling Set 83

2.4.1 Mounting Instructions 83

2.4.2 Procedure 86

2.5 Installing the Vandalism Set 88

2.5.1 Mounting Instructions 88

2.5.2 Procedure 89

2.6 Installing the Wall Mount 91

2.6.1 Mounting Instructions 91

2.6.2 Procedure 94

2.7 Installing the Corner and Pole Mount 96

2.7.1 Mounting Instructions 96

2.7.2 Mounting to a Pole 98

2.7.3 Mounting to a Wall or Building Corner 99

2.7.4 Mounting the Wall Mount to the Corner and Pole Mount 100

2.8 Replacing the MicroSD Card 101

2.8.1 Removing the MicroSD Card 101

2.8.2 Inserting a MicroSD Card 102

2.9 Network And Power Connection 103

2.9.1 Notes on Cable Lengths and Power Supply 103

2.9.2 Connecting the Q25M to the Network Using a Patch Cable 103

2.9.3 Power Supply Using a Switch 104

2.9.4 Power Supply When Connected Directly to a Computer 105

2.9.5 Power Supply with Power-Over-Ethernet Products 105

Page 5

5/156

Contents

www.mobotix.com • sales@mobotix.com

2.9.6 Connecting a USB Cable 106

2.9.7 Connecting a Two-Wire MxBus Cable 107

2.9.8 Variable PoE 108

2.9.9 Camera Startup Sequence 109

3 Operating the Camera 110

3.1 Manual and Automatic Operation– Overview 110

3.1.1 Manually Using a Computer in the 10.x.x.x IP Address Range 111

3.1.2 Automatically Using MxControlCenter or MxEasy 112

3.1.3 Automatically Using DHCP 113

3.2 First Images and the Most Important Settings 114

3.2.1 Manually Setting Up the Network Parameters in a Browser 114

3.2.2 First Images and the Most Important Settings in the Browser 116

3.2.3 First Images and Network Parameter Conﬁguration in MxControlCenter 118

3.2.4 First Images and Network Parameter Conﬁguration in MxEasy 123

3.2.5 Starting the Camera with the Factory IP Address 126

3.2.6 Starting the Camera with an Automatic IP Address (DHCP) 127

3.3 Virtual PTZ and Full Image Recording 128

3.3.1 Preparing the Virtual PTZ Function 128

3.3.2 Full Image Recording 130

3.3.3 Special Q25M Conﬁguration in the Browser 132

3.4 MicroSD Card Recording 139

3.4.1 Introduction 139

3.4.2 Formatting the MicroSD Card 141

3.4.3 Activating MicroSD Card Recording 142

3.4.4 Accessing Data on the MicroSD Card 143

3.4.5 Deactivating Card Recording 143

3.4.6 Using a MicroSD Card in a Dierent MOBOTIX Camera 144

3.4.7 Limitations on Warranty When Using Flash Storage Media 144

3.5 Conﬁguration in the Browser 145

3.5.1 Overview 145

3.5.2 General Browser Settings 147

3.6 Additional Notes 149

3.6.1 Weatherproofness 149

3.6.2 Password for the Admin Menu 149

3.6.3 Permanently Deactivating the Microphone 149

3.6.4 Starting the Camera with the Factory IP Address 149

3.6.5 Resetting the Camera to Factory Settings 150

3.6.6 Activating Event Control and Motion Detection 150

3.6.7 Deactivating Text and Logo Options 150

3.6.8 Deactivating the Camera Reboot 150

3.6.9 Browser 151

Page 6

6/156

www.mobotix.com • sales@mobotix.com

Q25M Camera Manual: Contents

3.6.10 Cleaning the Camera and Lens 151

3.6.11 Legal Notes 151

3.6.12 Safety Warnings 151

3.6.13 Online Help in the Browser 152

3.6.14 Declaration of Conformity 153

3.6.15 Disposal 153

3.6.16 Disclaimer 153

Manufacturer 155

Legal Notes

Legal aspects of video and sound recording: You must comply with all data protec-

tion regulations for video and sound monitoring when using MOBOTIX products. Depending on national laws and the installation location of the Q25M, the recording of video and sound data may be subject to special documentation or it may be prohibited. All users of MOBOTIX products are therefore required to familiarize themselves with all valid regulations and comply with these laws. MOBOTIX AG is not liable for any illegal use of its products.

Page 7

7/156

www.mobotix.com • sales@mobotix.com

Safety Warnings

Installation Instructions:

•

This product must not be used in locations exposed to the dangers of explosion.

• Make sure to install this product as shown in

Chapter 2, «Installation»

of this

manual.

•

When installing this product, make sure that you are only using genuine MOBOTIX parts and MOBOTIX connection cables.

• Make sure that you are installing this product on a solid surface that provides for a sturdy installation of the ﬁxing elements used.

Electrical installation: Electrical systems and equipment may only be installed, modiﬁed and maintained by a qualiﬁed electrician or under the direction and super

vision of a qualiﬁed electrician in accordance with the applicable electrical guidelines. Make sure to properly set up all electrical connections.

Electrical surges: MOBOTIX cameras are protected against the eects of small elec

trical surges by numerous measures. These measures, however, cannot prevent the camera from being damaged when stronger electrical surges occur. Special care should be taken when installing the camera outside of buildings to ensure proper protection against lightning, since this also protects the building and the whole network infrastructure.

Max. power consumption of attached extension modules: The power consump

tion of all attached

MxBus modules

must

not exceed 2.5W

. When attaching mod-

ules to the MxBus connector

and

the USB connector, the

power consumption of all

attached modules must not exceed 3W

if the camera is powered by PoE class3

PoE class2

is used,

the power consumption of all attached modules must not

exceed 1W!

Never touch the lens: Due to the high performance of the Q25M, the area of the

image sensor can get quite hot, especially when the ambient temperature is also high. This does not aect the proper functioning of the camera in any way. For this reason, the product must not be installed within the reach of persons without the dome.

Power o before opening the camera: Make sure the power supply is disconnected before opening the camera (i.e., for installing or replacing sensor modules and SD cards).

Network security: MOBOTIX products include all of the necessary conﬁguration options for operation in Ethernet networks in compliance with data protection laws. The operator is responsible for the data protection concept across the entire system. The basic settings required to prevent misuse can be conﬁgured in the software and are password-protected. This prevents unauthorized parties from accessing these settings.

Page 8

8/156

www.mobotix.com • sales@mobotix.com

Q25M Camera Manual

FOREWORD

Dear MOBOTIX customer,

Congratulations on your decision to purchase a professional and modern HiRes

network camera “Made in Germany”! The Q25M provides 360-degree overview

with only one hemispherical lens. This means that you only need one camera

to monitor the entire room right into all four corners. The ﬁsheye distortion

that is typical for this kind of lens is automatically corrected by the camera

software in the live image. Add to that the proven advantages that are

inherent to the MOBOTIX concept, such as the integrated event, alarm and

telephone features and the modern long-term storage directly in the camera

with all of its beneﬁts.

The weatherproof MxBus and MiniUSB interfaces of the camera allow attaching

MOBOTIX interface boxes and standard devices, such as 3G/UMTS modems, external storage devices, etc. The integrated 4 GB SD card ﬂash storage is easily exchanged for larger storage requirements, providing for secure long-term storage.

The introduction of the newest ﬁve-megapixel sensor technology with increased light sensitivity not only generates more brilliant images with more details, it also delivers color images of higher quality under lowlight conditions. Another improvement – The Q25M-Basic now generates HD images (1280x 720 pixels) instead of the VGA images of predecessor models (640x 480 pixels).

You can download the MxEasy and MxControlCenter video management software for MOBOTIX cameras and the manuals from the MOBOTIX website: www.mobotix.com> Support> Software Downloads. For the iPad, iPhone and iPod touch iOS devices, MOBOTIX oers the MOBOTIX App, a free-of-charge mobile solution that is easily found when searching for “MOBOTIX AG” in the App Store.

If you have any questions, our support and international sales sta are available at intl-support@mobotix.com

from Monday to Friday, 8am to 6pm (German time).

We would like to thank you for your trust and wish you all the best with your new MOBOTIX camera Q25M Hemispheric!

Page 9

9/156

www.mobotix.com • sales@mobotix.com

Page 10

10/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1 PRODUCT OVERVIEW

1.1 Q25M Hemispheric

1.1.1 General Product Characteristics

Innovative Hemispherical Technology for the Perfect Room Overview

The MOBOTIX Q25M Hemispheric camera is an elegant, ultra-compact and weatherproof

IP network dome camera with a special hemispheric lens (ﬁsheye). When mounted on the

ceiling, the camera is capable of providing full 360° allround view or a 180° widescreen

panorama when mounted on a wall. The ﬁrst of its kind in the world, this camera is evidence of the MOBOTIX commitment to innovation as the global leader in megapixel video security cameras.

High-Resolution 180° Panorama (Wall-Mounted)

When several cameras are monitoring a single room, it is dicult to understand the room

layout in its single view. This makes it hard to comprehend the overall setting. The new

panorama function of the Q25M delivers a widescreen image of a high-resolution 180° allround view. High image quality is achieved through the use of a ﬁve-megapixel sensor and the new hemispheric lens.

High-resolution 180° panorama

Original Q25M image; Wall mounted at a height of 2.3 m in a bank

Original full image

Page 11

11/156

Q25M Hemispheric

www.mobotix.com • sales@mobotix.com

Panorama Focus – One Camera, Three Views (Wall-Mounted)

Maximum room overview while simultaneously viewing detail in a single image: the Q25M is capable of providing two more views at the same time with the 180° panorama, allowing you to focus on two scenes in parallel ("Panorama Focus" display mode).

Double Panorama for a Simultaneous View in Two Directions (Ceiling-Mounted)

When the camera is mounted in the center of the ceiling of a room, "Double Panorama"

display mode provides a corrected panorama image of both halves of the room. It cor

responds roughly with the situation of personally standing in the middle of the room and being able to look both forwards and backwards at the same time. A superb overview for the user – provided by a single Q25M camera alone.

Panorama Focus: Original Q25M image

Original full image

The Q25M Panorama: one camera - three simultaneous views

High-resolution 180° panorama

Virtual

PTZ 1 Virtual PTZ 2

Double Panorama: Original Q25M image

Original full image

Page 12

12/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Full Image and Normal View

With innovative MOBOTIX Hemispheric Technology, an entire room can be ideally monitored.

For instance, one single, particularly elegant and discreet, Q25M replaces the time-consuming and expensive installation of several standard cameras. The overview image provided by a single Q25M, which may be tailored in a number of ways according to speciﬁc user require

ments, not only reduces the number of required cameras, but also minimizes the system costs by reducing the wiring complexity, emergency power requirements and number of recording devices required.

In addition to Panorama, Double Panorama and Panorama Focus views, the Q25M image

may be displayed on a monitor in the original ﬁsheye version ("Full Image" display mode),

the camera-corrected full image ("Normal" display mode) and in a quad view of all four directions ("Surround" display mode). Switching to a dierent display mode is possible at any time within seconds.

Fisheye Original Image: Full Image

Corrected Image Section: Normal

Page 13

13/156

Q25M Hemispheric

www.mobotix.com • sales@mobotix.com

Surround View: Quad

Surround View (Quad View), Based on the Correct Full Image

The Q25M “Surround” display mode replaces (when ceiling mounted) four cameras, and shows four directions simultaneously on the monitor in a quad view. The preset North

position can be moved to any direction in the image; the camera generates the other three directions (East, South, West) automatically and stores them as separate views.

Each of the four views features a software-controlled pan/tilt/zoom function (virtual PTZ), allowing it to be

customized as necessary.

In order to reduce user workload, the Q25M can store in addition to the North, East, South and West standard

views, a total of 256 user-deﬁned camera views

using the vPTZ function, which can easily be brought up using joystick keys or softbuttons. Besides being able to manually bring up speciﬁc camera views, the camera can also show them automatically by moving

through the North, East, South and West views or by showing the ﬁrst 16 saved camera views (one after

the other like in a slide show).

Complete HiRes Video Solutions by MOBOTIX

As opposed to conventional solutions, MOBOTIX cameras with their decentralized approach oer so much more – state-of-the-art, network-based video security technology that

increases operating eciency and yields a high degree of every-day usefulness.

Original Q25M image: Each of the 4 views can

be individually modied

Original full image

North

West South

East

vPTZ & Zoom

Page 14

14/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Extraordinary Picture Quality

Image quality is the one key criterion of a security camera. Due to their internal video

analysis and data storage capabilities, the decentralized MOBOTIX systems are indepen

dent of the available network bandwidth. As a result, the system provides for eciently storing and managing the video streams of a virtually unlimited number of cameras with

the highest resolution at a reasonable cost.

Five-Megapixel Image Sensors (5MP)

MOBOTIX cameras possess high-resolution image sensors with 5megapixel resolution and excellent light sensitivity, which translates into more details when zooming and more clear-cut advantages for every user. By using the 5MP technology in their color and black&white image sensors, MOBOTIX cameras deliver convincing image quality and details even in bad weather and under lowlight conditions. Another important plus:

thanks to its internal pre-processing of the image data, the camera can generate video streams with up to 30 frames per second.

QXGA Image Format: 2.5 Times More Detail Than Full HD

The 5MP sensor has a resolution of 2592x 1944 pixels on both day and night sensors.

While the image sensor shows its full strength when zooming the live image, the maximum

image size per sensor has the more user-friendly QXGA format.

Low Light Conditions– No Problem

The maximum resolution of the color and black&white image sensors is 5megapixels. The higher light sensitivity of the new color image sensors now allow using MOBOTIX color cameras around the clock even when the illumination is low.

MxLEO: Exposure Optimization and Reduced Image Noise

MxLEO– the MOBOTIX Lowlight Exposure Optimization– is an innovative technology that

provides an entirely new experience in digital image optimization in all cameras running ﬁrmware 4.1.9 and higher. On the one hand, the improved light sensitivity of the MOBOTIX 5MP sensors drastically reduces exposure times. MxLEO, the exposure and image optimi

zation program especially developed for these conditions, on the other hand, generates

perceptibly better and more detailed images especially under low-light conditions below 25Lux. Such conditions are typical at a parking lot at night that is illuminated by regular

lights (approx. 10 to 25Lux). Or in a building after hours, in which the emergency lights are burning (approx. 5Lux). This signiﬁcantly reduces motion blur that is typical of longer exposure times with little light and thus provides much more image detail (faces, license

plates, etc.) for proper identiﬁcation.

Virtual PTZ (vPTZ) – No Motor Required

The vPTZ functionality works dierently depending on the camera operation platform (web browser, MxEasy, MxControlCenter). Virtual zoom, pan and tilt using MxEasy and MxControlCenter is very simple thanks to special software tools and the use of an optional joystick. However, a joystick may also be used even with pure browser-based operation from Internet Explorer (together with an ActiveX plug-in).

vPTZ

Page 15

15/156

Q25M Hemispheric

www.mobotix.com • sales@mobotix.com

Virtual PTZ (vPTZ) – No Motor Required

The Q25M can zoom in on detail as well. These vPTZ functions are a standard

feature in the integrated Q25M camera software. The image from the hemispheric

camera can be enlarged using e.g. the mouse wheel, a joystick or a software-

controlled PTZ panel, and you can "move" the view to any section of the image.

This provides the features of a mechanical PTZ camera without the disadvantages

of maintenance and wear.

The vPTZ functionality works dierently depending on the camera operation platform (web browser, MxEasy, MxControlCenter). Virtual zoom, pan and tilt using MxEasy and

MxControlCenter is very simple thanks to special software tools and the use of an optional joystick. However, a joystick may also be used even with pure browser-based operation from Internet Explorer (together with an ActiveX plug-in).

Quick and easy navigation with a USB joystick

vPTZ

Page 16

16/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Simultaneous Corrected Live Image and Full Image Recording

All conventional, motorized PTZ cameras only store the image that is currently viewed as

the live image (live image recording). This has one serious disadvantage as the record

ing can only show what has happened in the "visible" portion of the image; the rest is lost and cannot be examined later on. For this reason, MOBOTIX has added the new full image recording feature to the Q25M. This will not store the currently viewed image that

reﬂects the pan/tilt position and the zoom setting chosen by the user, but the full sensor

image - without vPTZ settings or image correction. When examining the recorded images, the vPTZ features again come into play, as they allow zooming the visible image and use the pan/tilt features to examine every corner of the recorded full image.

Integrated vPTZ functions allow "analysis" of the complete saved full image at a later point in time (in MxEasy and MxControlCenter)

QXGA full image (2048 x 1536 pixels)

Panorama image at 0.6 megapixels (1280 x 480 pixels)

Page 17

17/156

Q25M Hemispheric

www.mobotix.com • sales@mobotix.com

Example: The people marked by the red circle in the middle area of the image would not have been recorded by a regular PTZ camera; the full image recording of the Q25M allows to determine for example, the exact time at which the people entered the image area recorded by the camera. A Browser (Internet Explorer with MxPEG ActiveX plug-in),

MxControlCenter or MxEasy can be used to examine the recorded sequences.

Maximum Ease of Use

The full image generated by the hemispherical lens (ﬁsheye) can be dicult to evaluate.

MOBOTIX solves this problem with image distortion correction in the camera software that displays perfectly corrected live images. The user PC does not experience any additional

load through this process, as image correction and generation of all desired image views

takes place in the camera itself. The result is that a large number of panoramic cameras may be displayed simultaneously on a single PC.

Highly Ecient, Application-Oriented Image Transfer

While other camera systems must transport the full QXGA image over the network for

further processing, a MOBOTIX camera will only transmit the desired image sections. This means that a Q25M panorama image will only require a small part of the usual data and

bandwidth. Data from up to six times as many MOBOTIX cameras may be transported over the same network compared to “standard” cameras.

Live Image Stored Full Image Full Image Evaluation

The camera software is responsible for image correction, reducing load on the user PC

Corrected image after panorama correction

Economical bandwidth usage due to smaller, in-camera corrected images (no loss of image information)

Page 18

18/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Internal DVR

The Q25M secure models feature direct recording to integrated

MicroSD cards, which makes the camera fully independent of

any external storage media, even for longer periods of time. The camera internally saves high-resolution video with sound, with

out requiring an external storage device or PC, and thus without any network load whatsoever. Old recordings may be overwritten automatically or automatically deleted after a speciﬁed period of

time. A 16GB MicroSD card, for example, allows the camera to store more than a quarter million event images in VGA format (640x480). For security reasons, the camera can even encrypt

the stored data.

Power failures are not an issue, as the video and image sequences remain safely stored on the MicroSD card. Access to stored video sequences is possible at any time from the camera user interface in the browser, MxControlCenter or MxEasy. If you would like to archive sequences, you can store all of the data or only certain parts to a computer or a hard disk.

MxActivitySensor Video Motion Analysis: Secure Detection, Avoiding False Alarms

Regardless if there are large objects in the foreground or small objects in the background–

MxActivitySensor will only trigger video recording and alarm messaging if something

important is happening. Interference such as trees shaking in the wind, moving shadows and clouds and snow falling will no longer lead to false alarms. Since all of this is ﬁltered automatically, all that remains is to set the direction of movement of objects that should

trigger alarms.

Camera Design Creates New Applications

Some application scenarios beneﬁt from a surveillance camera that is present, but without attracting attention. The low-key, elegant appearance of the camera, especially when

installed with the In-Ceiling set, makes the Q25M an optimum solution where discreet design and an inconspicuous look are important. Hotels and restaurants present an

ideal example, but installations in public buildings, waiting rooms and showrooms are also highly suitable.

4 GB MicroSD-card already installed in the camera (Q25M-Secure)

Page 19

19/156

Q25M Hemispheric

www.mobotix.com • sales@mobotix.com

The integrated DVR functionality with long-term storage on a MicroSD card also makes

the camera an ideal solution for mobile applications since it only requires a power supply

via the network cable (standard PoE) for full event-driven recording with video and audio,

thus delivering a complete standalone product. Application examples in this context are installations in public transportation such as busses, trains, aboard ships, airplanes, etc.

Model Versions

The Q25M is available in Secure and Basic models, which come with dierent features.

Both models can also be ordered with an L25 Super Wide-Angle lens with a horizontal image angle of 82°.

Q25M in the In-Ceiling Set (local public transport bus)

Q25M in the In-Ceiling Set with stainless steel ring (elevator)

Page 20

20/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Q25M with 10° On-Wall Set

Q25M with In-Ceiling Set

Page 21

21/156

Q25M Hemispheric

www.mobotix.com • sales@mobotix.com

1.1.2 Hemispheric Technology

Featuring one (S14M) or two hemispheric L12 lenses (S14D), oers all the image views known from MOBOTIX‘ other hemispheric cameras, including

Panorama, Panorama Focus

Double Panorama, Full Image, Normal

and

Surround

. What‘s new on the S14D is that the

selected view can be displayed as a dual image that combines both sensor modules.

The primary components of a hemispheric camera include a ﬁsheye lens, a high-resolution

image sensor, and image correction software that is integrated into the camera. Using an ultra-wide angle lens, the hemispheric camera captures a 180°-hemispheric image of the room and projects it onto a high-resolution image sensor.

When ceiling mounted, the image area of the hemispheric camera covers the entire room. The image in the hemisphere is convex, particularly near the image borders. These image sections are corrected for the viewer by the integrated distortion correction software, allowing a view of the scene from the usual perspective. The virtual PTZ feature allows

you to enlarge or move image sections within the hemisphere just like PTZ camera, yet

without the need for mechanical moving parts. Hemispheric cameras lack mechanical moving parts and require low maintenance. In addition, they are silent when panning and focusing on a speciﬁc image area.

vPTZ 1 vPTZ 2

L12 (ﬁsheye)

Hemispheric panorama view

Page 22

22/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Handling Several Image Sections at Once

One or more image sections can be corrected for perspective in the hemispheric view, allowing you to monitor and record several dierent areas of a room at the same time, something that a mechanical PTZ camera is not capable of doing.

Everything Stored in the Recording

Traditional optical PTZ cameras can only record what is being viewed live. The virtual PTZ

feature from MOBOTIX allows users to pan to other areas at a later stage in the recording

because the entire room can be recorded as a hemispheric image.

Special Hemispheric Image Views

Panorama

The hemispheric image (original full image) can also be transformed into an ultra-wide angle panoramic view if the camera is mounted on a wall, providing a view of the room

without any blind spots from wall to wall. It oers a substantially better view of the scene, compared to other cameras, and it also results in the need for fewer cameras overall.

No Blind Spots From Wall To Wall And From Floor To Ceiling

Page 23

23/156

Q25M Hemispheric

www.mobotix.com • sales@mobotix.com

Panorama Focus

Maximum room overview while simultaneously viewing detail in a single image. A hemi

spheric sensor module can also provide two additional views so that you can focus on

two detail scenes simultaneously in addition to the panorama view.

Double Panorama

When the camera is mounted in the center of the ceiling in a room, the “Double Panorama”

display mode provides a corrected panorama image of both halves of the room. It cor

responds roughly to the situation of personally standing in the middle of the room and

being able to look both forwards and backwards at the same time. This is a superb

overview for the user – provided by a single sensor module.

Original full image

Panorama Focus – three views simultaneously

High-resolution 180° panorama

Virtual PTZ 1 Virtual PTZ 2

Original full image

Page 24

24/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.1.3 Advantages and New Features

The high-resolution Q25M Hemispheric is a universally deployable, highly innovative and easily concealable camera system. A powerful successor to the Q24M, the Q25M features a ﬁve-megapixel image sensor. For technical reasons, the live or recorded images dis-

played by a Q25M sensor have a maximum size of QXGA. However, the Q25M is clearly superior to its predecessor in terms of image quality and frame rate.

Smooth HiRes Video Streams

The modiﬁed hardware of the Q25M transmits the camera‘s video streams even more smoothly than the high-performance Q24M, even when high resolution is required. Since

image streams of 16 frames per second and higher are perceived as smooth video by

the human eye, the maximum frame rate is limited to 30 frames per second (when using

MEGA resolution of 1280x 960) in order to provide sucient camera processing power

for other tasks.

Conclusive Still Images

Thanks to the proprietary MxPEG video codec developed exclusively for MOBOTIX cameras,

the cameras oer the advantage that a recording can be paused at any given point and still provide meaningful and useful snapshots due to the absence of distortion. This is essential for security applications and allows individuals or license plates to be identiﬁed,

for example. In contrast, the H.264 standard, which was developed for feature movies and is favored by some video security providers, cannot achieve this with the required

level of quality.

Good Color Images Even in Low Light

The more light-sensitive an image sensor is, the better the image quality, especially when

the ambient light level is low, such as at dusk and in heavy rainfall. The Q25M oers the best

MOBOTIX image quality that is currently available thanks to the light sensitivity provided by

the ﬁve-megapixel color sensor that is four times higher than that of the previously used

3.1-megapixel color sensor and the new MxLEO exposure control.

More Details When Zooming

The maximum zoom factor of the Q25M is 1.26 times higher than that of the Q24M due

to the use of ﬁve-megapixel technology. This means that the degree of detail provided

by the camera has improved by 26 percent. As a result, a Q25M can now be installed even further away than before from the objects and areas to be monitored. In addition,

this osets the slightly smaller horizontal image angles of the new ﬁve-megapixel sensors as compared to the Q25M.

Page 25

25/156

Q25M Hemispheric

www.mobotix.com • sales@mobotix.com

Black&White Image Sensor with Five Megapixels

You can now order the Q25M with a ﬁve-megapixel night sensor that can deliver black and white images with up to QXGA resolution. This results in larger images than those delivered by the previous 1.3-megapixel sensor with a perceptibly higher degree of details.

Basic Cameras Maximum Image Size Is Now HD Instead of VGA

The Q25M-Basic now generates HD images (1280x 720 pixels) instead of the VGA images of

predecessor models (640x 480 pixels). The special quality advantage of a MOBOTIX-Basic

camera with HD resolution (1280x 720): The HD images of a MOBOTIX are generated by

the high-resolution image sensor with 2592x 1944 pixels and are optimized and scaled down for the HD format. Because of the high-resolution sensor, the generated images– especially with respect to quality and light sensitivity– are noticeably superior than regular

HD cameras that are only using a simple HD sensor with 1280x 720 pixels.

MxActivitySensor

The Q25M provides an activity-controlled image analysis sensor as standard for detecting

the movements of people and objects in a deﬁned surveillance area (full image or section). The MxActivitySensor delivers reliable results particularly in outdoor area applications, in contrast to video motion detection that continues to be available and that registers all

image changes in deﬁned video motion windows. In the monitored area, the camera distinguishes between the continuous movements of vehicles, persons or objects that

trigger an alarm and movements that do not set o an alarm such as shadows, changing

light conditions and trees swaying in the wind.

Low Power Consumption in Accordance with the PoE Standard (IEEE 802.3af)

A Q25M uses no more power than its predecessor (typically 4.5watts), despite the new sensor technology. Adjusting the PoE class via the camera software also enables the use of PoE switches that cannot be operated on all ports with PoE class 3 (up to max. 12.95V).

Page 26

26/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.1.4 Decentralized Video System

Usually, cameras only supply images, while processing and recording take place later on a central PC using video management software. This centralized structure has too many limitations for high-resolution video systems since it requires high network bandwidth and the PC processing power is insucient when using several high-resolution cameras.

Due to the large number of computers and servers required, traditional centralized systems are therefore becoming less suitable and cost eective.

As part of the decentralized

MOBOTIX concept, every camera

features a high-speed processor, and, if necessary, digital long-term

ﬂash memory (MicroSD card) can

be integrated to provide several days of recording time. The com

puter or video control center is required only to view and control

the cameras, not to evaluate and record video. This means that you do not have to rely on expensive, overloaded video management software as most of the important functions that require a large amount of

processing power are integrated into the MOBOTIX cameras themselves.

Integrated sensors enable MOBOTIX cameras such as the Q25M to automatically detect

when an event has occurred. If necessary, the cameras will respond immediately with an alarm sound and will establish a direct video and sound connection to a control room.

The Q25M is equipped with a shock detector as standard (for all IT and Secure models).

For example, if the camera receives a blow to the housing, it can simultaneously take a video of the oender, trigger a sound alarm and notify the security company by a SIP call.

Due to the build quality and absence of moving parts, MOBOTIX cameras are extremely

tough. This typically allows them to stay fully operational especially when they are subject

to strong vibrations.

All MOBOTIX cameras are backlight-proof and are not adversely aected by the glare

from direct sunlight. They deliver meaningful, detailed images at all times as the camera software supports easy programming of independent exposure windows, making them

ideal for rooms with large glass fronts.

In the event of an alarm, MOBOTIX Q25M cameras can also record lip-synchronous audio. The cameras therefore play an important role in analyzing and clarifying a situa

tion. Thanks to an integrated speaker and microphone, each individual camera can also be used for bidirectional communication (two-way video communication), so you can

easily use the MOBOTIX App with your iPhone or iPad on the road.

MOBOTIX camera

CPU

Image analysis

CMOS

5 megapixels

MicroSD

Recording

Page 27

27/156

Q25M Hemispheric

www.mobotix.com • sales@mobotix.com

The decentralized MOBOTIX video solutions are superior to traditional systems in all major aspects. They are also considerably cheaper to operate since they require

• Fewer cameras due to the more accurate detail of panorama images with mega

pixel technology

•

Fewer recording devices because in the decentralized system, ten times the standard number of cameras can be used to record high-resolution HDTV video with sound on one computer/server simultaneously

• Lower network bandwidth because everything is processed in the camera itself and the high-resolution images therefore do not have to be constantly transported for analysis

MOBOTIX System

Decentralized and secure

PC as storage device

Recording soft-

ware

MicroSD integrated

Page 28

28/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.1.5 Green IP Video

The modern, network-based video security technology oers numerous advantages to use energy eciently. Due to the special product and system properties, the decision to

install MOBOTIX video systems is also a decision for Green IP Video: low power consump

tion and environmental friendly because of long life expectancy and minimal amount of

materials involved.

Low Power Consumption

MOBOTIX cameras are cost-eciently supplied via PoE. This reduces the expenses for power and, in addition, saves copper and other important raw material as less power

cabling is necessary.

Robust

MOBOTIX IP65 cameras are highly robust and work – without high-power climate control

and extra protective housing – in a temperature range from –30 to +50°C/–22 to +122°F.

Modern

Integrated into the cameras are high-power processors and ﬂash storage, thus mak

ing energy-consuming servers and storage devices unnecessary. And, of course, the

disposal of waste later.

High Resolution

A hemispheric MOBOTIX camera with two image sensors replaces up to eight standard cameras – including their consumption of energy and resources.

Sustainable

Without mechanical components, MOBOTIX cameras are maintenance-free and stay fully functional, even after years – and are, thus, more sustainable compared to other systems.

Forward-Looking

Even previous camera models can be easily updated and then oer new functionalities. Remote updates via the internet and the fact that the cameras are maintenance-free

reduce trips by car, and, thereby, the negative eect on the environment.

Page 29

29/156

Q25M Hemispheric

www.mobotix.com • sales@mobotix.com

Notes

Page 30

30/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.2 Technical Speciﬁcations

1.2.1 Lens Options

MOBOTIX Q25M cameras come with a standard L12 ﬁsheye lens with a 180° horizontal image angle. The camera is also available with an L25 Super Wide-Angle lens with a horizontal image angle of 82°. The integrated virtual PTZ features of the camera software

or MxControlCenter/MxEasy properly correct the lens distortion that is speciﬁc to each of

the lenses. Both lenses deliver good image quality even when using maximum digital zoom. Since MOBOTIX cameras are backlight-proof, they do not require a mechanical auto iris, making them extremely robust and maintenance free.

Full image with L12 180° ﬁsheye in public transit bus

Page 31

31/156

Technical Speciﬁcations

www.mobotix.com • sales@mobotix.com

Lens Options L12 L25

Original image

35mm equivalent 12mm 25mm

Nominal focal length 1,8mm 4mm

Aperture 2,0 2,0

Horizontal image angle 180° 82°

Vertical image angle 160° 61°

At 1m distance

Image width inﬁnite 1,7

Image height 11 1,2

At 5m distance

Image width inﬁnite 8,7

Image height 55 5,9

At 10m distance

Image width inﬁnite 17,4

Image height 110 11,9

At 20m distance

Image width inﬁnite 34,7

Image height 220 23,7

Notes

The speciﬁed focal lengths of the MOBOTIX lenses do not reﬂect the actual focal length of the lenses, but the focal length (Lxx mm) converted to 35mm camera format. For example, the MOBOTIX L25 Super Wide-Angle lens has an actual focal length of 4mm. This would be the equivalent of 25mm on a 35mm camera. It is therefore referred to as an L25. Since the image sensors in digital cameras have dierent sizes, converting the focal lengths to 35mm camera as a known format allows the

image formats and the ﬁelds of vision of the dierent lenses to be calculated and compared more easily. Another beneﬁt is that you can easily set a 35mm camera (analog or digital) to the same focal length as the MOBOTIX lens (Lxx) to obtain the same ﬁeld of vision. This approach greatly facilitates lens selection.

The focal lengths of MOBOTIX camera lenses refer to standard 35 mm cameras

Page 32

32/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.2.2 Camera Variants– Lenses, Hardware, Image Formats

Camera Model

Q25M-Basic Q25M-SEC

Lenses, Sensors

12mm Hemispheric L12 L12

Super Wide-Angle 25mm L25 L25

Wide-Angle 38mm – –

Wide-Angle 51mm – –

Tele 76mm – –

Tele 160mm – –

CSVario 24 – 54mm – –

Image sensor with individual exposure zones Color Color/BW

Sensor sensitivity in lux at 1/60sand1s 0.25/0.013

0.25/0.013 (Color)

0.05 / 0.0025 (BW)

Hardware Features

IP protection class IP54 IP65

Temp. Internal DVR (MB) 2 64

Internal DVR (MicroSD, up to 64GB) – 4GB included

Microphone/speaker –/• •/•

Passive infrared sensor (PIR) – –

Integrated temperature sensor • •

Shock detector – •

Power consumption in watts (typical) < 4.5 < 4.5

Variable PoE class 2 – 3 2 – 3

Image Formats, Frame Rates and Image Storage

Max. image size HD (1280x720) QXGA (2048x1536)

Max. frame rate (MxPEG, max. resolution) 30fps 20fps

CIF images with 4GB MicroSD DVR – 250,000

VGA images with 4GB MicroSD DVR – 125,000

MEGA images with 4GB MicroSD DVR – 40,000

QXGA images with 4GB MicroSD DVR – 20,000

Page 33

33/156

Technical Speciﬁcations

www.mobotix.com • sales@mobotix.com

1.2.3 Camera Variants– Software Features

Camera Model

Q25M-Basic Q25M-SEC

General Features

Digital zoom (continuous) with panning • •

Motion JPEG/MxPEG/H264 codecs •/•/– •/•/• (SIP video only)

Programmable exposure ones • •

Snapshot rec. (pre-/post-alarm images) 3 50

Terabyte ring buer storage (internal/network) – •

Continuous rec. with sound (0.2 to 30fps) – •

Event recording with sound – •

Time and event control • •

Weekly schedules/holidays – •

Web functionality (FTP, email) • •

Playback/Quad- und MultiView • •

Bidirectional sound in browser – •

Logo generator, animated – •

Flexible event logic – •

Master/Slave arming – •

Several scheduled privacy zones – •

Customized voice messages – •

VoIP telephony (audio/video, alert) – •

Remote alarm notiﬁcation (network msg.) – •

Signal inputs/outputs, RS232 – Via MX-232-IO-Box

Programming interface/HTTP API – •

Security features (HTTPS/SSL, IP-based access control, IEEE 802.1X network authen

tication)

• •

Video Analysis

Video Motion detector – •

MxAnalytics – –

MxActivitySensor – •

Video Management Software

MxEasy, MxCC • •

MOBOTIX App • •

Free-of-charge download from www.mobotix.com or App Store

Page 34

34/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.2.4 Technical Data

Technical Data Q25M

Model variants MX-Q25M-Basic,

MX-Q25M-SEC, MX-Q25M-SEC-Night

Lens options 12 to 25mm format,

horizontal angle 180° to 82°

Sensitivity Color sensor: 0.25lux at 1/60s, 0.013lux at 1s

Black and white sensor: 0.05lux at 1/60s,

0.0025lux at 1/1s MxLEO – MOBOTIX Lowlight Exposure Optimization

Image sensor 1/2.5“ CMOS , 5megapixels, progressive scan

Max. image size Color/Black and white: 2048x1536 (QXGA)

Image formats

2048x1536 (QXGA),

1920x1080 (full HD),

1280x960 (MEGA), 1280x720 (HD), 1024x768, 800x600, 768x576 (D1-PAL),

704x576(TV-PAL), 640x480, 384x288,

320x240, 160x120,

custom formats

Max. frame rate M-JPEG (live/recording)

VGA: 30fps, MEGA: 10fps, QXGA: 4fps

Max. frame rate MxPEG (live and recording including sound)

VGA: 30fps, MEGA: 30fps, QXGA: 20fps

Image compression MxPEG, M-JPEG, JPEG, H.264 (SIP video only)

Internal DVR MicroSD slot inluding 4GB, max. 64GB

External video ring buer

Directly on NAS and computer/server without additio

nal recording software

Software (included) MxEasy video management software,

MxControlCenter control center software, MOBOTIX App for iOS devices with iOS 5.0 and higher

Image processing

Backlight compensation, automatic white balance, image distortion correction, panorama correction, Video Motion detection, MxActivitySensor

Virtual PTZ Digital pan/tilt/zoom, continuous 8X zoom

Alarm/events Video Motion detection, MxActivitySensor, external

signal, temperature sensor, PIR, microphone, shock detector, notiﬁcation over e-mail, FTP, IP telephony (VoIP, SIP), visual/acoustic alarms, pre- and post-alarm images

Mikrophone and speaker Microphone and speaker integrated

Audio features Lip-synchronous audio, two-way communication,

audio recording

Interfaces

10/100 Ethernet, IPv4/IPv6, MiniUSB, MxBus; inputs/ outputs and RS232 via accessories

Video telephony VoIP/SIP, two-way communication, remote controlling

with key code, event notiﬁcation

Functionality depends on camera variant (see

Section 1.2.3, «Camera Variants – Software Features»

Page 35

35/156

Technical Speciﬁcations

www.mobotix.com • sales@mobotix.com

Technical Data Q25M

Security User/group management, HTTPS/SSL, IP address

ﬁlter, IEEE 802.1x, intrusion detection, digital image signature

Certiﬁcations EMC (EN55022, CISPR22, EN55024, EN61000-6-1/2,

FCCpart15B, CFR47, AS/NZS3548)

Power supply Year-round Power-over-Ethernet (IEEE 802.3af); varia

ble PoE class, approx. 4.5W

Operating conditions IP65, –30 to +50°C/–22 to +122°F

Dimensions/weight Q25M

without mounting options

Diameter x H: 160x 48mm (on-wall installation); weight: approx. 450g/1lb (including lens)

Delivered parts Housing (high-resistance composite, PBT), white,

mounting parts, Allen wrench, 50cm patch cable, manual, software, 4GB MicroSD card (only Secure models, pre-installed)

Page 36

36/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.3 Delivered Parts and Dimensions

1.3.1 Q25M Camera

Item Quantity Part Name

1.1 1 Camera

1.2 1 Lens

1.3 1 Lens wrench

1.4 1 MicroSD card (4 GB)*, pre-installed

1.5 1 CAT5 patch cable, 0.5m incl. washer, pre-installed

1.6 1 Allen wrench 3mm

1.7 1 Allen wrench 2mm

1.8 1 Torx wrench

1.9 1 Outer shell

1.10 1 Mounting ring

1.11 4 Universal screw anchors 8 mm

1.12 4 Stainless steel washers Ø 5,3mm

1.13 4 Stainless steel wood screws with hex head 4.5x60mm

1.14 4 Stainless steel Allen screws M4x16 mm

1.15 4 Stainless steel washers Ø 4.3mm

1.16 2 Cable retainer with bayonet catch (patch cable, MiniUSB)

*MicroSD card only available for Q25M-Secure

Page 37

37/156

Delivered Parts and Dimensions

www.mobotix.com • sales@mobotix.com

Camera Housing and Connectors

The MOBOTIX Q25M consists of the camera housing (motherboard and lens), the outer shell and the mounting ring.

Connections

• NET (Ethernet network incl. PoE power supply)

• MiniUSB (e.g. for ExtIO)

• Slot for MicroSD card

Lens unit

Speaker

Microphone (only Q25M-Sec)

LEDs

Slot for MicroSD card (not externally accessible)

MiniUSB (e.g. ExtIO)

Bayonet catch

Network connector

L key

MxBus (for expansion modules)

R key

Page 38

38/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Q25M: Dimensions Without Mounting Options

Mounting Ring Drilling Template (Incl. Space For Wall Outlet)

ø 160mm/2.3in

48mm/1.89in

MxBus

Netzwerk

Find the drilling templates (scale 1:1) at the end of the manual as a fold-out

The blue circle indicates the hole to cut for the wall outlet

Note

Find the folded drilling template at the end of the manual.

Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF ﬁle (enlarged or reduced).

Page 39

39/156

Delivered Parts and Dimensions

www.mobotix.com • sales@mobotix.com

1.3.2 Mounting Kits and Mounts

On-Wall Set

The On-Wall Set must be ordered separately from the MOBOTIX camera.

Item Quantity Part Name

2.1 1 On-Wall set housing

2.2 4 Stainless steel Allen screws M4x35 mm

2.3 4 Stainless steel washers Ø 4.3mm

2.4 4 Foam rubber washers

2.5 4 Lock screws with counter nuts

2.6 2 Cable ﬁtting with counter nut and O-ring cord

Page 40

40/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Drilling Template On-Wall Set

Notes

Use the fold-out template included at the end of the printed manual (valid for both 0° and 10° On-Wall Sets).

Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF ﬁle (enlarged or reduced).

The maximum torque for all screws is 1 to 1.2 Nm.

Find the drilling templates (scale 1:1) at the end of the manual as a fold-out

ø 166 mm/6.54in

mm/2.91in

ø 160 mm/6.3in

85 mm/3.35in

Page 41

41/156

Delivered Parts and Dimensions

www.mobotix.com • sales@mobotix.com

In-Ceiling Set

The In-Ceiling Set must be ordered separately from the MOBOTIX camera.

Item Quantity Part Name

3.1 1 Ceiling mounting ring incl. 4 ﬂat headed screws

3.2 1 Decoration ring

3.3 2 Wrench for In-Ceiling mount

3.4 4 Clamps

Page 42

42/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Drilling Template In-Ceiling Set

Notes

Find the folded drilling template at the end of the manual.

Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF ﬁle (enlarged or reduced).

Find the drilling templates (scale 1:1) at the end of the manual as a fold-out

ø 150mm/5.9in

ø 180 mm/7.09in

24.1 mm/

0.95in

Clamping range

6 to 22 mm/

0.24to 0.86in

The In-Ceiling Set can be used in panels ranging from 6 to 22 mm/0.24 to 0.86 in thickness

Page 43

43/156

Delivered Parts and Dimensions

www.mobotix.com • sales@mobotix.com

Vandalism Set

The Vandalism Set must be ordered separately from the camera.

Item Quantity Part Name

4.1 1 Stainless steel cover 2mm stainless steel

4.2 4 Spacers for Vandalism set

4.3 4 Security screws M4x16 mm

4.4 1 Two-hole driver bit for security screws

4.5 1 Polycarbonate dome incl. washer

4.6 1 Lens wrench

ø 160 mm/6.3in

53 mm/2.01in

Page 44

44/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Available Variants of Vandalism Set:

Stainless steel, polished

Stainless steel, matt

Page 45

45/156

Delivered Parts and Dimensions

www.mobotix.com • sales@mobotix.com

Wall Mount

5.1

5.4

5.2

5.5

5.8

5.3

5.7

5.6

Item Quantity Part Name

5.1 1 Wall Mount

5.2 4 Universal screw anchors 8 mm

5.3 4 Stainless steel washers Ø 6.4mm

5.4 4 Stainless steel wood screws with hex head 6x50 mm

5.5 1 Wall sealing

5.6 8 Stainless steel Allen screws M4x16 mm

5.7 8 Stainless steel washers Ø 4.3mm

5.8 1 Bottom plate

Page 46

46/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Drilling Template Wall Mount

Notes

Find the folded drilling template at the end of the manual.

Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF ﬁle (enlarged or reduced).

Find the drilling templates (scale 1:1) at the end of the manual as a fold-out

Depth: 201 mm/7.91in

Höhe: 125 mm

Width: 216 mm/8.5in

Direct installation

over on-wall and ush-

mounted wall outlets

Page 47

47/156

Delivered Parts and Dimensions

www.mobotix.com • sales@mobotix.com

Corner And Pole Mount

Item

Quantity

Part Name

6.1 1 Pole mount, stainless steel, white, powder-coated

6.2 4 Stainless steel Allen screws M6x20mm

6.3 4 Stainless steel washers Ø 6mm

6.4 4 Stainless steel lock nuts M6

6.5 2 Stainless steel straps

6.6 2 Cable ﬁtting with counter nut and O-ring cord

6.7 4 Wood screws 6x80mm incl. screw anchors and washers

Width: 218 mm/8.58in

Height: 130 mm/5.12in

Depth: 92 mm/3.62in

Page 48

48/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.4 Available Accessories

1.4.1 On-Wall Set

Order no.: MX-OPT-AP

Consists of On-Wall Mount and mounting supplies. Conforms to U.S. installation standards. Reliably protects the cabling and allows integrating additional mod

ules within the On-Wall Mount (WLAN,

battery, ...).

1.4.2 10° On-Wall Set

Order no.: MX-OPT-AP-10DEG

Consists of On-Wall mount and mounting supplies for inclined installation (10°) of a camera. Conforms to U.S. installation standards. Reliably protects the cabling and allows integrating additional mod

ules within the On-Wall Mount (WLAN,

battery, ...).

1.4.3 Vandalism Set

Order no.: MX-Q25-Sec-Vandal-ESPO

Consists of polished stainless steel hous-

ing, lens protector and security screws.

Ideally suited for surveillance at critical

locations.

Order no.: MX-Q25-Sec-Vandal-ESMA

Alternative design featuring matt stain

less steel housing. As above incl. lens protector and security screws.

The polished vandalism protection housing is made from stainless steel 1.5 mm strong

The matt vandalism protection housing is made from stainless steel 1.5 mm strong

Page 49

49/156

Available Accessories

www.mobotix.com • sales@mobotix.com

1.4.4 In-Ceiling Set

Order no.: MX-OPT-IC

For simple installation in false ceiling tiles. Suitable for discreet surveillance. Optionally

available with a stainless steel ring.

1.4.5 Outdoor Wall Mount

Order no.: MX-OPT-WH

Consists of Outdoor Wall Mount and

mounting supplies. Covers RJ45 wall out

lets. Space for expansion modules (battery, UMTS, WLAN, etc.) Easily mounted to poles

using Pole Mount. Weatherproof IP65.

1.4.6 Corner and Pole Mount

Order no.: MX-OPT-MH

Flange for Outdoor Wall Mount. Can be

mounted to wall corners or poles. 3 mm stainless steel, white. Wall Mount may be ordered separately or as a set.

1.4.7 Stand/Wall Mount for Camera Tests

Order no.: MX-OPT-TW-Demo-1

The Stand/Wall Mount is a useful accessory for testing and for ﬁnding the optimum mounting

position of the camera. The set also includes an Allen wrench as well as a Torx screw with

dowel and the corresponding Torx wrench for installing as alternative wall mount for testing.

Can also be used as a wall mount in drywalls

Page 50

50/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Using as a Stand (with/without tripod)

Using this stand, you can now place the camera upright on a

ﬂat surface or mount the whole assembly on a tripod (1/4” tripod

thread at the bottom of the stand).

1.4.8 MiniUSB Cable to MiniUSB (Angled/Straight)

Order no.: MX-CBL-MU-EN-STR-05/2/5 (angled/straight)

MOBOTIX add-on modules (MX-232-IO-Box, ExtIO, CamIO) can be connected directly to the Q25M with this cable, which is up to ﬁve meters long.

1.4.9 MiniUSB Cable to MiniUSB (Angled/Angled)

Order no.: MX-CBL-MU-EN-EN-PG-05/2/5

(angled/angled)

The MOBOTIX ExtIO can be connected directly to the

Q25M with this cable, which is up to ﬁve meters long.

1.4.10 MiniUSB Cable to USB-A Socket

Order no.: MX-CBL-MU-EN-AB-05/2/5

USB-based storage media (for example, USB hard drives)

can be connected directly to the Q25M with this cable,

which is up to ﬁve meters long.

1.4.11 Ethernet Patch Cable for Bayonet Catch

Order no.: MX-OPT-CBL-LAN-1/2/5/10

(length: 1m/2m/5m/10m)

The MOBOTIX-developed special cable can be installed

in a waterproof manner and has an integrated sealing gasket. Every Q25M ships with a 0.5-m-long cable as standard, which can be exchanged for a patch cable up to 10m in length.

Only cables with angled plugs can be used for the Q25M

Page 51

51/156

Available Accessories

www.mobotix.com • sales@mobotix.com

1.4.12 NPA-PoE-Set

Order no.: MX-NPA-PoE-EU and MX-NPA-PoE-INT (Version EU and Version INT) Order no.: MX-CBL-NPA-BAT-2 (battery cable for mobile voltage sources)

This is a multifunctional PoE injector according to the IEEE

802.3af standard– with three connectors (for network,

camera/PoE device, PC), universal power supply unit

with interchangeable adapter plugs and crossover function. The NPA-PoE-Set connects and remotely supplies

a Q25M with power via an Ethernet cable up to 100m

in length. The blue adapter can also be connected to mobile voltage sources from 12 to 57V DC by means of an additionally available battery cable. The “EU” ver

sion of the NPA-PoE-Set is supplied as standard with a European adapter, while the “INT” version includes

four adapters (EU, USA, UK, AUS).

1.4.13 MX-Overvoltage-Protection-Box

Order no.: MX-Overvoltage-Protection-Box-RJ45 Order no.: MX-Overvoltage-Protection-Box-LSA

Weatherproof network connector (protection class IP65,

–30 to +60°C/–22 to +140°F)

with surge protection of up

to 4kV for MOBOTIX IP cameras

, ideal for replacing

the MX-Patch-Box.

At the same time, the MX-Overvoltage-Protection-Box

provides a weatherproof connection of a camera’s patch

cable to a network patch cable (

-RJ45

variant) or a network

installation cable (

-LSA

variant).

1.4.14 MX-NPA-Box

Order no.: MX-OPT-NPA1-EXT

The MX-NPA-Box is a weatherproof PoE injector conforming

to the IEEE 802.3af standard and is designed to connect external voltage sources (12 to 57 V DC) to a MOBOTIX camera.

The MX-NPA-Box is equipped with the Patch-Box’s weatherproof and extremely compact exterior housing (protection class IP65, –30 to +60°C/–22 to +140°F), which means

it can also be installed in the space of the Outdoor Wall

Mount. Interfaces of the MX-NPA-Box: Camera via patch cable, Ethernet via LSA+ and external power supply via

terminal connector (12 to 57VDC possible).

Page 52

52/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.4.15 MX-GPS-Box

Order no.: MX-OPT-GPS1-EXT

The MX-GPS-Box primarily serves as a high-precision time source for systems without an Internet connection. In addi-

tion, it can provide triggering based on GPS events (reaching or moving away from a speciﬁed position; exceeding or not reaching a speciﬁed speed). This interface box can be attached to all MOBOTIX cameras with an MxBus interface.

The MX-GPS-Box is equipped with the same compact housing as the other interface

boxes (protection class IP65, –30 to +60°C/–22 to +140°F). This interface box should not

be installed inside of other wall mounts, but on the exterior of the building with a large section of open sky above it. This ensures the best possible reception from GPS satellites and thereby the highest possible accuracy of the received GPS data. The maximum length of the MxBus wiring (0.8mm diameter wires) is 50m/55yd.

1.4.16 MX-232-IO-Box

Order no.: MX-OPT-RS1-EXT

This box provides the signal inputs and outputs as well as the RS232 (serial) interface. It replaces the connections

that were handled on the older camera models via a

D-Sub 15-HD connector. The MX-232-IO-Box (protection class IP65, –30 to +60°C/–22 to +140°F) can be attached

to all MOBOTIX cameras with an MxBus or USB interface. The maximum length of the

MxBus wiring (0.8mm diameter wires) is 50m/55yd. If the MiniUSB connector is used,

the maximum cable length is 5m/16ft.

1.4.17 ExtIO Expansion Module

Order no.: MX-ExtIO

The device, which is suitable both for on-wall and in-wall

installations, contains a powerful speaker, microphone,

infrared motion sensor, ambient temperature sensor, two

input and two output contacts and two illuminated keys. It

is ideal for door communication, elevators, access control systems, etc. The ExtIO is suitable for use as direct connection to the S15 via a MiniUSB cable (max. 5m), which can be ordered separately, or as a network connection via the PoE switch.

Page 53

53/156

Available Accessories

www.mobotix.com • sales@mobotix.com

1.4.18 Mx2wire+ Media Converter

Order no.: MX-2wirePlus-Set-PW

The Mx2wire+ system allows an Ethernet network with PoE

to be set up via two-wire cables, which saves users from having to lay several hundred meters of Ethernet cable.

For example, an existing two-wire cable of an analog video camera can be reused to connect a high-resolution and modern IP network camera. Mx2wire+ is delivered

in the standard wall outlet frame in dierent designs;

however, it can also be used with the available on-wall socket that is included.

1.4.19 Other Accessories

Since the range of accessories for the MOBOTIX system keeps growing, you should visit

the MOBOTIX website www.mobotix.com in the Products> Accessories section to see

the entire list of available accessories.

THE MOBOTIX INFORMATION CHANNELS

MOBOTIX

Support on the MOBOTIX Website

www.mobotix.com/other/Support

The MOBOTIX Video Tutorials

www.mobotix.com/other/Support/Tutorials

Seminars on MOBOTIX Campus

www.mobotix.com/other/Partners/Seminars

The MOBOTIX YouTube Channel

www.youtube.com/MOBOTIXAG

Page 54

54/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.5 MOBOTIX Software

1.5.1 Integrated Camera Sof tware (Firmware)

MOBOTIX cameras and connected MxBus modules operate with built-in ﬁrmware whose functions are accessed by theMOBOTIX MxControlCenter, MxEasy remote stations and MOBOTIX App.

The Q25M models therefore also feature a variety of functions that are integrated in the ﬁrmware: from motion detection and long-term storage right through to alarm notiﬁcation via video IP telephony. The virtual PTZ functions allow you to continuously zoom into or out of a MOBOTIX camera image using either the mouse wheel or a joystick.

When recording image or video sequences, you can choose to store either the section of the live image that is visible or the full sensor image (full image storage). This also allows you to examine parts of an image or video that had not been visible in the live image

section on display at the time of the recording.

Unlike in the camera systems from other manufacturers, there is no need to buy an install additional software on your computer thanks to the MOBOTIX ﬁrmware that can be accessed directly in a web browser via the camera IP address. Instead of using a web

browser, you can also download the free MxControlCenter or MxEasy video management software from the MOBOTIX website (www.mobotix.com > Support) to quickly display multiple cameras on one monitor or on an entire video wall, switch alarms with sound or conveniently search for an event. The MOBOTIX App for iOS devices (iPhone, iPad, iPad mini, iPod touch, iOS version 5.0 and higher) is also available free of charge from the App

Store for your mobile applications.

Download free of charge from www.mobotix.com

No license fees Free updates

Page 55

55/156

MOBOTIX Software

www.mobotix.com • sales@mobotix.com

1.5.2 MxControlCenter

The MxControlCenter video management software can be used to combine any number of cameras at any locations into a well-structured and powerful video security system

with centralized or local access-protected operation and analysis.

The state-of-the-art software, speciﬁcally tailored to support high-resolution MOBOTIX network cameras, provides a user-friendly user interface and camera image display, convenient video search functions, eective alarm handling, automatic camera integra

tion, video storage on ﬁle servers as well as useful conﬁguration and update wizards.

MxControlCenter –Professional Video Management

•

Proven worldwide in the most demanding video applications thousands of times over

• Unlimited number of users and cameras

• No license fees

• Individual user interface, adaptable to each individual user

• Simplest installation and complete use on any standard PC

• Convenient layout editor for integrating real building plans

• Integration of conventional network and analog cameras as well

• For Microsoft Windows

Several hundred cameras can be managed on

a standard computer

Download free of charge from www.mobotix.com

No license fees Free updates

Page 56

56/156

Q25M Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.5.3 MxEasy

MxEasy makes it simple to operate the most important functions of the camera thanks

to its intuitive user interface and represents a new approach to viewing and controlling

MOBOTIX cameras. The clear design allows you to manage up to 16 cameras, and the application can show up to four cameras at the same time.

All settings selected in MxEasy (for example, virtual camera position, zoom, brightness, volume, microphone sensitivity, image storage, signal outputs) can be used immediately and are stored instantly in the conﬁguration of the corresponding camera. The calendar

functions integrated in the Alarm Planner provide an innovative tool for the scheduled settings of one or more cameras. This tool not only controls video and sound recording

based on certain time and date information, but also allows features like video motion detection, image brightness and the microphone to be activated/deactivated based on a date and time schedule.

MxEasy – Simple Operation of the Most Important Camera Functions

• Cameras can be installed without any knowledge of networks

• Supports up to 16 MOBOTIX cameras

• Time- or event-controlled recording

• Time-controlled motion detection, image brightness and microphone

• For Microsoft Windows and Mac OS X

Suitable for up to 16 MOBOTIX cameras

Download free of charge from www.mobotix.com

No license fees Free updates

Page 57

57/156

MOBOTIX Software

www.mobotix.com • sales@mobotix.com

1.5.4 MOBOTIX App

Premium solution: There for you whenever and wherever you need it, the MOBOTIX App

serves as the perfect remote mobile station that uses intelligent detailed solutions to increase security and convenience for users on a daily basis. The controls are optimized for use with

touchscreen devices and feature three main views (Live, Player, Events), self-explanatory symbols, large software buttons, multifunctional sliders developed by MOBOTIX as well as simple gestures like swipe and tap, making it easy for newcomers and older users to

work with professional security equipment. In addition, using mobile devices to operate

the various functions such as door opening, activating the voice mailbox, switching the door bell o at night and switching a light on/o, creates added value in the form of greater convenience and security in every day life.

MOBOTIX App – Mobile Remote Station for MOBOTIX Cameras and Door Stations

• Bandwidth-optimized remote access via WLAN (WiFi) or the Internet

• Live images and recordings in the best MOBOTIX HiRes quality

• Two-way communication, door opening and video mailbox access

• Doorbell and alarm notiﬁcations, protection of privacy

• Convenient search functions, playback of external MxPEG videos

• Grouping of cameras and ﬁltering of events

• Free from the App Store for the iPad, iPad mini, iPhone and iPod touch

Free download from the App Store

No license fees Free updates

Page 58

58/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2 INSTALLATION

The Q25M is primarily designed for installation on walls or ceilings. The supplied L12 180° lens captures the entire room, practically from wall to wall and from ﬂoor to the ceiling. See

Section 2.2, «Mounting the Camera Without Accessories»

and the following sections for information on the dierent installation options; the drilling templates can be found at the end of the manual.

2.1 Preparing the Installation

Before mounting the MOBOTIX Q25M, the following questions should be answered:

1. Where will the camera be mounted?

Mounting to a ceiling or wall; see

Section 2.1.1

and

Section 2.1.2

2. Which other mounting options are available?

On-wall mounting, in-ceiling mounting, vandalism protection, wall mounting, pole mounting, see

Section 2.1.3

3. How is the camera connected to network and how is power supplied?

MX-NPA-PoE or other PoE components (IEEE 802.3af), see

Section 2.1.4

4. How are the connections furnished from the building?

Wall outlets, see

Section 2.1.5

5. What cabling considerations are necessary?

Wiring, see

Section 2.1.6

and

Section 2.9

The following sections contain a brief answer to each of these questions, as well as references to the relevant sections in this manual. For more information on the MOBOTIX Q25M and available accessories, please see www.mobotix.com.

Wall installation with On-Wall Set 10°

Page 59

59/156

Preparing the Installation

www.mobotix.com • sales@mobotix.com

2.1.1 Wall-Mounted

To make optimal use of the high-resolution 180° panorama functionality of the Q25M, the camera must be mounted on an internal or external wall. The entire hemisphere of the room directly in front of the camera is then eectively monitored, from the wall on the left of the camera to the wall on the right. Corresponding ﬁne-tuning in the user interface software allows the displayed panorama image to be adjusted to dierent practical appli

cations (see

Section 3.3

The Q25M Panorama: one camera - three simultaneous views

High-resolution 180° panorama

Virtual PTZ 1 Virtual PTZ 2

Wall installation with On-Wall Set 10°

The camera should preferably be mounted in the middle of the room to be monitored using the 10° On-Wall Set

Original image from the camera shown above using the 10° On-Wall Set (Panorama Focus View)

Page 60

60/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

Selecting an Appropriate Camera Position

The Q25M is primarily suited to providing an excellent overview, and less suitable for more exact details. For active operation, the camera should be mounted at a (out of direct reach) height ranging from 2.5 to 3.5 m. People, for example, may be identiﬁed very well at distances of up to 1.5m, and with sucient detail at up to 3m. Objects can be recognized even at distances of 5 m and more from the camera. During installation, ensure that the camera is focused on the most important areas of the room as directly as possible, in order to provide the desired level of detail recognition. For wall installation, use of the 10° On-Wall Set is ideal in many cases.

Hint: The Q25M should always be installed on a wall such that the arrow on the camera housing marked OBEN / TOP points towards the ceiling of the room.

1.50m/5ft

3m/10ft

2.5 to 3.5m/8 to 11.5ft

5m/16.4ft

Identiﬁcation Recognition Perception

Camera focus (best image quality) - standard installation

2.5 to 3.5m/8 to 11.5ft

Mounting at the center of the wall

Wall Mount: Mounting the camera at the center of the wall

The OBEN / TOP label is only visible when the outer shell is removed

Page 61

61/156

Preparing the Installation

www.mobotix.com • sales@mobotix.com

Wall Installation with the 10° On-Wall Set for Image Optimization

An on-wall set, available as an accessory in 0° and 10° inclinations, may also be used for installation. While the 0° set primarily oers easier installation and more storage space for cables and add-on modules (WLAN, connectors, etc.), the 10° set may also increase the image quality in certain cases. In particular for wall installations which must be carried out at greater heights for technical or other reasons (over doors, windows, etc.,) adding a slight tilt to the camera, and thus also the lens, will return better results, as the center of the lens is then focused more directly on the center of activity in the room (optimal utilization of lens capabilities).

Wall Mounting Over a Wall Outlet

Professional wall or ceiling installation of a Q25M is generally possible without accessories. However, due to elevation of the rear casing of the camera caused by connections and holders, a wall outlet should be installed prior to camera installation (see drilling template Q25M). This provides perfect protection to the cabling, ensuring that it cannot be seen or damaged from outside.

2.5 to 3.5m/8 to 11.5ft

Camera focus (best image quality) - optimized with 10° On-Wall Set

Optimized image quality through wall installation with On-Wall Set 10°

Page 62

62/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.1.2 Ceiling-Mounted

Thanks to its hemispherical lens, a single Q25M can monitor an entire room right into each of the four corners (360° Panorama View). The camera's should ideally be posi

tioned on the ceiling in the center of the room. Due to its inherent physical and optical properties, the precision of the lens decreases as the distance from the lens grows. This means that the maximum usable image area varies greatly depending on the intended purpose of the camera. Rooms with a square ﬂoor area of up to approx. 40m² in general allow recognizing details even at the borders of the full image. If you would only like to know if persons enter a room, or to monitor speciﬁc objects, rooms of up to 100m² ﬂoor area can be monitored using a single Q25M.

Outdoors, the Q25M is usually mounted on a building wall, corner or pole instead of the ceiling. For this situation, we recommend the use of the practical wall mount from the

range of accessory products (see

Section 2.6

) or an extension.

The image quality (precision) diminishes as the distance of an object to the camera focus point

increases: 1 very good, 2 good, 3 satisfactory

Discreet ceiling installation using the In-Ceiling Set

Page 63

63/156

Preparing the Installation

www.mobotix.com • sales@mobotix.com

Non-Square Rooms

When viewing a 360° (full) image in the browser, you will notice that the top and bottom of the image is not fully visible, i.e. some image information has been clipped. This is not a fault of the camera, but intended behavior that aims at achieving the best possible uti

lization of the image sensor by the camera software. Bearing this in mind, it is advisable to install the Q25M in rectangular room ceilings so that the arrow marked OBEN/ TOP points towards one of the longer walls of the room as shown in the ﬁgure.

Original full image from the Q25M (ceiling installation in a rectangular room)

Page 64

64/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

Lowered Mounting or Mounting on Extensions

When mounting the camera in rooms with a high ceiling , or outdoors, it may be advisable to mount the camera in a lower position. This reduces the distance between the camera and the objects that are to be monitored, which in turn increases the recognizability of details. One practical solution would be to install the camera on a base plate attached to a suitable extension (metal tube) hanging from the ceiling. The network cable can be hidden from view by running through the interior of the tube.

Similar to lowered mounting from the ceiling, you can also attach the camera to an extension mounted to a wall to better use the 360° image of the camera (e.g. outside, above a portal). Such an installation would use the pole mount accessory (MX-D22-OPT-MH) in conjunction with the wall mount (MX-D22-OPT-WH) as a sturdy base for the camera, which is then mounted to the extension pole.

MOBOTIX does not recommend attaching the camera directly to metal carriers, especially when mounting the camera outdoors or when the ambient temperature varies greatly. As an additional measure to protect the camera against condensation, you should use either the On-Wall set (MX-D22-OPT-AP) or the Wall Mount (MX-D22-OPT-WH).

Installation on Building Corners with the Corner and Pole Mount

This is a special method of Q25M installation, oering substantial advantages for the outdoor surveillance of buildings.

The hemispherical lens of a single Q25M can cover the entire 270° range from one building wall to the other, for an "around the corner" view!

For the installation on building corners, the Corner and Pole Mount and a Wall Mount will be needed

Never mount the camera to metal surfaces (condensation may damage the camera): MOBOTIX recommends using an On-Wall Mount or the Wall Mount

Page 65

65/156

Preparing the Installation

www.mobotix.com • sales@mobotix.com

2.1.3 Mounting Options

On-Wall Installation (MX-OPT-AP)

The On-Wall Set can reliably protect external cables if the cables cannot be fed in the center below the camera housing. The On-Wall mount also provides ample space for extra modules.

On-Wall Installation with 10° Inclination (MX-OPT-AP-10DEG)

This On-Wall Set is identical to the regular On-Wall Set, except that the mounted camera is tilted by 10 degrees. The inclination makes it possible for the camera to deliver the best images even in demand

ing situations.

In-Ceiling Installation (MX-OPT-IC)

The In-Ceiling Set allows the Q25M camera to be installed in suspended ceilings, for example. This type of installation provides optimum protection for the camera and reduces the visible proﬁle to a minimum, since the camera only protrudes 24mm from the ceiling.

Vandalism Set (MX-Q25M-OPT-VANDAL)

The Vandalism Set provides added protection for Q25M cameras. The set consists of a robust stainless steel cover (matt or polished) and an impact-resistant polycarbonate dome. A camera equipped with the Vandalism Set is perfectly suited for applications in demanding environments (such as prisons, trouble areas, train stations, etc.).

Wall Mount (MX-OPT-WH)

The Q25M/D25M Wall Mount is the ideal solution for mounting the to walls for indoor and outdoor applications. The camera is absolutely dustproof and resistant against water jets (IP65). The wall mount also covers RJ45 wall outlets and has ample space for additional modules.

Corner and Pole Mount (MX-OPT-MH)

The MOBOTIX Corner and Pole Mount is the ideal choice when mounting the MOBOTIX Q25M to a pole or building corner (Panorama View covering approx 270°). This mount can only be used in conjunction with the wall mount. For poles with a diameter ranging from 60 to 180 mm.

On-Wall Set (IP65, for outdoor applications)

On-Wall Set 10° (IP65, for outdoor applications)

Discreet in-ceiling installation; decorative outer ring also available in stainless steel

Vandalism Set (IP65)

Wall Mount made from sturdy PBT-30GF (IP65)

Outdoor Corner and Pole Mount made from stainless steel (in conjunction with Wall Mount)

Page 66

66/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

Stand/Wall Mount for Camera Tests (MX-OPT-TW-Demo-1)

The Stand/Wall Mount is a useful accessory for testing and for ﬁnding the optimum mounting position of the camera. The set also includes an Allen wrench as well as a Torx screw with dowel and the corresponding Torx wrench for installing as alternative wall mount for testing.

Using as a Stand (with/without tripod)

Using this stand, you can now place the camera upright on a ﬂat surface or mount the whole assembly on a tripod (1/4” tripod thread at the bottom of the stand).

Converting to a wall mount (simulation of On-Wall set with 10 deg. tilt)

1. If required, release the two stainless steel Allen screws and remove the camera from the stand/wall mount.

2. Place the camera with the two upper body screws exactly into the two receptacles of the Stand/Wall Mount. Note: The print on the camera back is legible.

Installation hint: The print on the camera back is legible.

Page 67

67/156

Preparing the Installation

www.mobotix.com • sales@mobotix.com

Mount the camera to the stand using the two stainless steel Allen screws.

4. Use the Torx screw to fasten the mount onto the wall. Make sure that the head of the screw is not tight against the wall, but that it still has 5mm/0.2in to go.

5. Slide the entire assembly from above over the Torx screw in the wall.

6. Properly tighten the Torx screw to secure the assembly in the desired position. There is a special hole in the Stand/ Wall Mount to access the Torx screw.

Caution

The Stand/Wall Mount has been only designed used for testing purposes. Make sure that you replace this mount by a proper wall mount before bringing the system into service.

5 mm/

0.20in

Page 68

68/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.1.4 Network Connection And Power Supply, UPS

Power Over Ethernet (PoE Conforming to IEEE 802.3af)

All Q25M models are supplied with power using the PoE standard. The Network Power Adapter (MX-NPA-PoE-Set) may be used for smaller installations. For larger installations, it is worth investing in a PoE capable supply device available on the market.

The maximum length of the network cable for power supply over an Ethernet cable is

100m. The Mx2wire+ media converter set (available as an accessory) can be used to

extend the range of an Ethernet connection up to 500m in length (maximum transmission speed for a 500-m cable: 45Mbps and 12W for the PoE device).

Note

The MOBOTIX Q25M can be powered by switches or routers which support the PoE (Power-over-Ethernet) standard and conform to IEEE 802.3af.

Advantages of PoE power supply:

• Allows setting up centralized backup power supply via the network.

• Reduces energy consumption.

• No extra network connection for camera required.

PC or POWER

CAMERA

PoE Adapter

MX-NPA-PoE

LAN or POWER

The Q25M supports the Power over Ethernet standard IEEE 802.3af (PoE)

The Network Power Adapter replaces the crossover cable when directly connecting to a computer

Page 69

69/156

Preparing the Installation

www.mobotix.com • sales@mobotix.com

Using Uninterruptible Power Supplies (UPS)

You should install an uninterruptible power supply (UPS) in order to maintain a continuous power supply even when utility power fails. These devices also provide full protection against electrical surges and voltage ﬂuctuations, enhancing the reliability of the system as a whole.

When using a more powerful 19” rack-mounted UPS, you can also protect all other network components (for example, switches, routers, PoE switches, etc.).

Since MOBOTIX cameras do not require any heating, even during winter, the average power consumption of approx. 3.5watts is very low. This, in turn, means that you can centralize the UPS-protected power supply by injecting power into the Ethernet cables (max. 100m). This kind of protected power supply can be used either with MOBOTIX PoE products (MX-NPA-PoE + Universal Power Supply) or with PoE-compliant switches according to IEEE 802.3af.

2.1.5 Preparing the Camera Connections, MX-Overvoltage-Protection-Box

Once the camera position, the position of the cable outlets and the method of power supply have been decided upon, the cabling can be installed. Before installing the MOBOTIX Q25M, you should make sure that the network connections have been properly tested so that the proper functioning of the camera is guaranteed.

If the camera is to be installed outdoors, you should also install the MOBOTIX MX-Overvoltage-Protection-Box (optional accessory). This interface box not only provides

overvoltage protection of up to 4kV for MOBOTIX IP cameras

, it also provides simple

and weatherproof connection of the cameras to a network patch cable (

-RJ45

variant) or

a network installation cable (

-LSA

variant).

For additional information on the MX-Overvoltage-Protection-Box, open the

Products>

Accessories> Interface Boxes

section on www.mobotix.com.

UPS units not only protect the camera against power failures, they also protect all other connected network devices against damage from voltage peaks and lows

PoE switch

PC/server

RAID

UPS

Page 70

70/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.1.6 Wiring, Fire Prevention, Lightning and Surge Protection

When installing the wiring inside or outside of buildings, make sure you always adhere to the relevant regulations on wiring, ﬁre prevention and protection against lightning.

MOBOTIX cameras are protected against the eects of small electrical surges by a range of measures. These measures, however, cannot prevent the camera from being damaged when stronger electrical surges occur. Particular care should be taken when installing the camera outside to ensure proper protection against lightning, as this also protects the building and the entire network infrastructure.

MOBOTIX recommends having MOBOTIX cameras installed only by certiﬁed specialists accustomed to installing network devices and having proper respect for the applicable regulations regarding lightning protection and ﬁre prevention as well as the current tech

nology for preventing damages from electrical surges.

Guidelines for Wiring

•

Data cable: Make sure you only use double-shielded CAT5 or higher cable (S/STP) for Ethernet connections.

•

Outdoors: Installing the camera outdoors requires special

precautions and measures regarding the cables as well as lightning and surge protection (see below).

• Wire lengths: The cable segments must not exceed the maximum allowed cable lengths in order to ensure proper data transfer (see

Section 2.9

• Avoiding induction: When running data cables parallel to existing regular power lines or high-voltage wires, make sure you observe the minimum distances to the power cables.

Fire Prevention

When installing the power lines to the camera, make sure you always adhere to the country-speciﬁc regulations (e.g. VDE in Germany, IEEE in the USA) in eect on wiring and ﬁre prevention at the site of the installation.

Page 71

71/156

Preparing the Installation

www.mobotix.com • sales@mobotix.com

Lightning and Surge Protection

In order to avoid damage to MOBOTIX cameras from overvoltages, you should always install the MX-Overvoltage-Protection-Box. This competitively priced and weatherproof network connector provides reliable protection against overvoltages of up to 4kV; the box is easily installed in the Outdoor Wall Mount, for example (see

Section 1.4.13, «MX-Overvoltage-

Protection-Box»

More information is available at an institution such as the International Electrotechnical Commission (IEC, www.iec.ch) or at a manufacturer of protection devices against light

ning and electrical surges, such as Dehn (www.dehn.de).

Page 72

72/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.2 Mounting the Camera Without Accessories

2.2.1 Mounting Instructions

The Q25M, being an overview camera, is primarily designed for installation on walls or ceilings. Direct installation of the camera without any accessories is, in general, always

possible, however - due to elevation of the rear casing of the camera where connections and their holders are - a ﬂush-mounted wall outlet should be installed ﬁrst.

The drilling template also includes a blue circle marking the minimum size and position of this wall outlet, in addition to the drilling holes. To guarantee maximum coverage of the room by the camera, the Q25M should be positioned on the wall or ceiling as close to the middle of the room as possible.

Installation over a stan-

dard ush-mounted wall

outlet (minimum installation depth 20 mm/8 in)

Page 73

73/156

Mounting the Camera Without Accessories

www.mobotix.com • sales@mobotix.com

Required Tools

Please check that all components supplied with the camera are present in the original packaging ﬁrst (see

Section 1.3.1

The Following Additional Tools Are Required for Installation:

• Any additional materials for fastening the camera to a ceiling/wall, if necessary – 4 wood screws incl. screw anchors and washers are included in the original packaging.

• Screwdriver

• Power drill for screw anchor holes needed for ceiling/wall mounting

• MOBOTIX Drilling Templates (at the end of this manual)

• Scissors to cut out the template

• Pen to mark the drill holes

•

Materials and any tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable.

• Wall outlet and tools to install the outlet in the wall/ceiling (keyhole saw)

• Soft cotton cloth to clean the front of the lens

Q25M seen from the side with cable bent properly

Due to the space required for cable and connectors, we recom-

mend a ush-mounted

wall outlet with an installation depth of at least 20 mm/8 in

Page 74

74/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.2.2 Procedure

1. Install and prepare the network connection.

2. Install the ﬂush-mounted wall outlet: The pre-installed cable attached to the camera must be connected with the on-site network cable. For installation without acces

sories, a ﬂush-mounted wall outlet must be installed ﬁrst, in order to provide a connection. The cabling is perfectly protected and cannot be seen or damaged. The camera cannot be mounted directly on top of protruding wall outlets. Use the supplied camera drilling template (fold-out at the end of this manual) to mark the position of the wall outlet for the desired camera position.

3. Remove the outer shell: Remove all four Allen screws using the supplied Allen wrench and lift o the outer shell.

4. Drill the holes: Drill the holes for the supplied screw anchors (see drilling template). Remember to take the proper direction of the camera into consideration (OBEN / TOP arrow pointing upwards for wall installation, or in the direction of the longer wall for ceiling installation in rectangular rooms).

5. Connect the cable: Connect the on-site network cable to the camera patch cable using a standard connector.

RJ45 patch cable: 50 cm (19.7 in) cable incl., other lengths available from MOBOTIX as accessories

Due to the space required for cable and connectors, we recom-

mend a ush-mounted

wall outlet with an installation depth of at least 20 mm/8 in

Page 75

75/156

Mounting the Camera Without Accessories

www.mobotix.com • sales@mobotix.com

6. Mount the camera: Use the (included) screws to ax the mounting ring and the camera at the designated position.

7. Install the rubber seal: Place the rubber seal with the groove around the edge of the black mounting ring of the camera.

8. Attach the outer shell: Replace the outer shell and screw all four Allen screws tight using the supplied Allen wrench. Ensure that the rubber seal is properly positioned.

Clean the lens: If necessary, gently clean the front of the lens with a soft cotton cloth. Do not apply excessive pressure to the surface of the glass when cleaning the lens.

10. Establish a connection to the camera, check the image: Establish a connection to the camera as described in

Sec tion 3.1

and the following sections. The live image from the camera should be visible on the computer monitor. Check image sections on the computer monitor as well.

Caution

The maximum torque for all screws is 1 to 1.2 Nm.

Only use the factory pre-installed network cable supplied with the MOBOTIX camera. Always ensure that the cable retainer with bayonet catch is closed properly around the network cable. All openings at the back of the camera housing except the pres

sure equalization element need to be sealed properly with the rubber plugs. This is the only way to guarantee that the camera remains weatherproof.

Page 76

76/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

Note

Note on fastening cables leading in to the camera:

Cables passing in to the back of the camera (patch cable for the network connection and ExtIO cable) are secured using a special cable retainer with bayonet catch.

When replacing this cable, ensure that the cable is properly seated in the connector and that the retainer with the blue bayonet catch is locked (short clockwise turn until it clicks into place).

Removing the Cable Retainer

Rotate the bayonet catch anti-clockwise to the "open circle" symbol (see diagram). The catch may be removed from the side. The cable can now be pulled out of the camera.

Open the cable retainer by rotating the bayonet catch to the marked position

Bayonet catch open

Page 77

77/156

Mounting the Camera Without Accessories

www.mobotix.com • sales@mobotix.com

Caution

Only use original MOBOTIX cables to connect the camera. Standard cables purchased from other suppliers do not meet the necessary speciﬁcations for proper retention (no IP54 or IP65 weather protection).

MiniUSB cableEthernet patch cable

Attaching the Cable Retainer

Insert the cable into the receptacle on the camera. Position the bayonet catch from the side (opening points to the right). Rotate the bayonet catch clockwise to the "ﬁlled circle" symbol (see image). The cable is now properly retained.

Close the cable retainer by rotating the bayonet catch to the marked position

Bayonet catch closed

Page 78

78/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.3 Mounting the Camera with the On-Wall Set

2.3.1 Mounting Instructions

On-Wall sets available in 0° and 10° inclinations allow fast and simple installation of the Q25M on a wall or room ceiling. When using the set outdoors (IP65), ensure that the screw holes on the rear of the camera housing are sealed with the included foam rubber washers.

It is not possible to install the on-wall set directly above an on-wall or ﬂush-mounted outlet.

Installation using the 10° On-Wall Set is often the right choice if a Q25M is to be used as a panorama camera installed at a greater than usual height (3 m or higher). Tilting the lens in the direction of the center of activity in the room maximizes image quality. Consider the desired camera position carefully during installation!

If discreet appearance of the Q25M is of particular importance, the In-Ceiling Set for ceiling installation is the best possible choice (see

Section 2.6

The network connection and drill holes must be prepared correctly before installing the On-Wall Set (both indoors and outdoors):

• Network connection: You can use any one of the four openings in the On-Wall set to guide the cabling into the camera. The network cable must be fed through the opening without a connector. An additional connector to connect to the camera cable is required. When preparing for installation, keep in mind that the camera must later be positioned in the correct orientation, according to its purpose (OBEN / TOP arrow pointing upwards for wall installation, or in the direction of the longer wall for ceiling installation in rectangular rooms).

• Preparing the drill holes: Use the supplied drilling template for the Q25M On-Wall Set (fold-out at the end of this manual) to mark the position for drilling the anchor holes with regard to the camera position.

Caution

When using the On-Wall Set outdoors, ensure that the screw holes on the rear of the camera housing are sealed with the foam rubber washers included in delivery (IP65).

Page 79

79/156

Mounting the Camera with the On-Wall Set

www.mobotix.com • sales@mobotix.com

Drilling Template On-Wall Set

Notes

Use the fold-out template included at the end of the printed manual (valid for both 0° and 10° On-Wall Sets).

Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF ﬁle (enlarged or reduced).

The maximum torque for all screws is 1 to 1.2 Nm.

Find the drilling templates (scale 1:1) at the end of the manual as a fold-out

ø 166 mm/6.54in

mm/2.91in

ø 160 mm/6.3in

85 mm/3.35in

Page 80

80/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

Required Parts

Please check that all components supplied with the On-Wall Set are present in the original packaging ﬁrst. The following additional tools are required for installation:

• Suitable materials for ceiling/wall installation: 4 wood screws incl. screw anchors and washers (e.g. from the original camera packaging).

• Screwdriver

• Power drill for screw anchor holes needed for ceiling/wall mounting

• MOBOTIX Drilling Templates (at the end of this manual)

• Scissors to cut out the template

• Pen to mark the drill holes

• Materials and tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable.

• Soft cotton cloth to clean the front of the lens

Page 81

81/156

Mounting the Camera with the On-Wall Set

www.mobotix.com • sales@mobotix.com

2.3.2 Procedure

1. Attach washers: Prior to installation, stick a black foam rubber washer around each of the four screw holes on the rear side of the on-wall housing (remove the adhe

sive foil and press into place, surface must be clean and free of grease). This prevents water from entering the housing.

2. Prepare the cabling: Insert the seal into the cable opening of the On-Wall Set such that the black rubber seal is on the outside. Fix it in place from the inside using a small hexagonal nut.

3. Mount the On-Wall Set: Mount the On-Wall Set (with

out the camera) at the intended position using e.g. the wood screws (included with Q25M camera, Pos. 1.13). Make sure the OBEN / TOP arrow points in the correct direction.

4. Cable feeding: Attach the counternut to the network cable, pass it through the seal from the outside and tighten the nut. The network cable is now screwed into the On-Wall Set, weatherproof. All unused openings must be sealed with the included sealant plugs. The cable passing into the housing must always be installed using the supplied three-part ﬁttings.

5. Remove the camera outer shell: Unscrew all four Allen screws with the supplied Allen wrench. Remove the outer shell.

Page 82

82/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

Remove the mounting ring: Separate the black mounting ring from the camera housing (lift the spring clip). This ring is not required when mounting the camera to the On-Wall set.

Connect the cable: Connect the on-site network cable to the network cable passing through the On-Wall Set using a standard connector. Excess cable can be stored easily within the On-Wall mount.

8. Attach the camera to the mount: The camera must be seated ﬁrmly within the On-Wall mount. The tapered guides at the back of the camera housing ﬁt exactly into the openings of the On-Wall mount. Once, again, ensure that OBEN / TOP arrow points in the correct direction.

Attach the outer shell: Position the outer shell without the rubber seal and tighten all four Allen screws using the included Allen wrench.

10. Clean the lens: If necessary, gently clean the front of the lens with a soft cotton cloth. Do not apply excessive pressure to the surface of the glass when cleaning the lens.

11. Establish a connection to the camera, check the image: Establish a connection to the camera as described in

Sec tion 3.1

and the following sections. The live image from the camera should be visible on the computer monitor. Check image sections on the computer monitor as well.

Page 83

83/156

Mounting the Camera with the In-Ceiling Set

www.mobotix.com • sales@mobotix.com

2.4 Mounting the Camera with the In-Ceiling Set

2.4.1 Mounting Instructions

The In-Ceiling Set oers the most stylish installation option for the Q25M. When properly installed, the only visible component is a particularly sleek and discreet hemispheric camera, while most of the remaining components are concealed inside the ceiling.

For these reasons, the Q25M installed with the In-Ceiling Set is the preferred option for most indoor spaces frequented by customers or the general public (e.g. hotels, restaurants, banks, retail stores, public buildings, etc.).

The common use of suspended ceilings in commercial and public buildings is an additional reason to place a preference on in-ceiling installation. The installation process is also simpliﬁed, as the network cable may be laid without diculty and only a 15cm diameter hole must be cut in the ceiling or ceiling component.

Before installing the MOBOTIX Q25M to an indoor location using the In-Ceiling Set, you must prepare the network connection and drill a hole for the camera:

• Network connection: The network cable is fed through the ceiling directly above the camera.

When preparing for installation, keep in mind (particularly with regard to cable slack) that the camera may later need to be repositioned in the correct orientation, according to its speciﬁc purpose (OBEN / TOP arrow pointing in the direction of the longer wall for ceiling installation in rectangular rooms).

• Cut a hole for installation: The hole should have a diameter of 150mm (see drilling template at the end of the manual).

The decorative ring is available in different colors and in stainless steel

See

Section 2.4, «Mounting the Camera with the In-Ceiling Set»

for a detailed description

Page 84

84/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

Drilling Template In-Ceiling Set

Notes

Find the folded drilling template at the end of the manual.

Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF ﬁle (enlarged or reduced).

Find the drilling templates (scale 1:1) at the end of the manual as a fold-out

ø 150mm/5.9in

ø 180 mm/7.09in

24.1 mm/

0.95in

Clamping range

6 to 22 mm/

0.24to 0.86in

The In-Ceiling Set can be used in panels ranging from 6 to 22 mm/0.24 to 0.86 in thickness

Page 85

85/156

Mounting the Camera with the In-Ceiling Set

www.mobotix.com • sales@mobotix.com

Required Parts

Please check that all components supplied with the In-Ceiling Set are present in the original packaging ﬁrst. The following additional tools are required for installation:

• Power drill with matching hole saw (150 mm diameter) or jigsaw

• MOBOTIX Drilling Templates (at the end of this manual)

• Scissors to cut out the template

• Pen to mark the hole positions

• Two blue In-Ceiling wrenches from the In-Ceiling Set

• Materials and tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable.

• Soft cotton cloth to clean the front of the lens

Page 86

86/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.4.2 Procedure

1. Prepare the network connection: Run the network cable above the suspended ceiling and ensure that enough cable slack is available.

2. Cut a hole for installation: Cut a round hole for cam

era installation (e.g. with a 150 mm hole saw). Use the supplied cutting template of the In-Ceiling Set (fold-out at the end of the manual).

3. Remove the outer shell: Remove all four Allen screws using the supplied Allen wrench and lift o the outer shell.

4. Remove the mounting ring: Separate the mounting ring from the camera housing. This ring is not required when mounting the camera in the In-Ceiling Set.

5. Place the camera in the In-Ceiling Set: The dovetail guides at the back of the camera housing ﬁt exactly into the openings of the In-Ceiling mounting ring.

Connect the cable: Connect the on-site network cable to the camera network cable using a standard connector.

Page 87

87/156

Mounting the Camera with the In-Ceiling Set

www.mobotix.com • sales@mobotix.com

Insert the camera and the In-Ceiling Set into the hole: Make sure that all winged cams are retracted before placing the In-Ceiling Set with the camera into the hole. Pay attention to the orientation: the OBEN / TOP arrow should point in the direction of the longer wall for ceiling installation in rectangular rooms. Tightening the screws of the In-Ceiling Set extends the winged cams, thus ﬁrmly holding the set in place.

Install the decorative ring: Use the two wrenches from the In-Ceiling Set to place the ring on the set as shown in the ﬁgure and turn the ring clockwise until it stops.

The two wrenches from the In-Ceiling Set may also be used for dismounting. Insert them as shown and turn the ring counter-clockwise. Loosen the screws of the In-Ceiling Set; this will automatically retract the winged cams. You can now remove the In-Ceiling Set, with the camera still attached, from the ceiling.

Clean the lens: If necessary, gently clean the front of the lens with a soft cotton cloth.

Do not apply excessive pressure to the surface of the glass when cleaning the lens.

10. Establish a connection to the camera, check the image: Establish a connection to the camera as described in

Sec tion 3.1

and the following sections. The live image from the camera should be visible on the computer monitor. Check image sections on the computer monitor as well.

The blue winged cams (see left) automatically secure the In-Ceiling Set in the ceiling when tightening the screws

Installing the decorative ring: turn clockwise

Removing the decorative ring: turn counter-clockwise - only relevant when completely removing the camera

Page 88

88/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.5 Installing the Vandalism Set

2.5.1 Mounting Instructions

The Vandalism Set serves to provide additional security and protection for Q25M cameras. It may be installed with little eort and at low cost. This set is recommended for use under particularly demanding conditions (such as prisons, trouble areas, train stations, etc.). The set consists of a robust stainless steel cover for the camera housing (matt or polished) and an impact-resistant dome cover made of reinforced plastic.

To install the Vandalism Set, simply mount the stainless steel cover and the included security screws (with the four mounted spacers) over the standard housing.

Scope of Delivery and Required Parts

Please check that all components supplied with the Vandalism Set are present in the original packaging ﬁrst. The following additional tools are required for installation:

• Allen wrench for removing the standard outer shell (included in Q25M packaging)

• Screwdriver with bit receptacle for the two-hole driver bit

• Clean and soft cotton cloth

Page 89

89/156

Installing the Vandalism Set

www.mobotix.com • sales@mobotix.com

2.5.2 Procedure

In order to install the Vandalism Set, replace the white plastic outer shell of the Q25M, including the Allen screws, with the stainless steel cover, the security screws and the four spacers of the Vandalism set.

1. Remove the outer shell: Remove all four Allen screws using the supplied Allen wrench and lift o the outer shell.

2. Remove the lens gasket: Unscrew the lens using the lens wrench (included with the camera) and remove the lens gasket.

Replace the lens: Screw the lens back in using the lens wrench.

4. Adjust the live image: Establish a connection to the camera as described in

Sec tion 3.1

and the following sections. The live image from the camera should be visible on the computer monitor. Select the highest available image resolution. Check image sections (image center and focus) on the computer monitor and adjust the lens with the lens wrench if necessary.

5. Clean the lens: If necessary, gently clean the front of the lens with a soft cotton cloth. Caution: Do not apply excessive pressure to the surface of the glass when cleaning the lens!

Page 90

90/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

6. Mount the dome: Screw the dome on in a clockwise direction using the supplied wrench. If required, clean the dome gently using a soft cotton cloth before com

pleting installation. Check the sharpness of the camera image again, and correct it if necessary.

7. Mount the spacers: Place the four spacers on the mounting ring.

8. Mount the stainless steel cover: Position the stainless steel cover as shown and tighten the security screws using the included two-hole driver bit.

Lens wrench for installing the dome

Spacers for Vandalism set

Maximum torque for all screws is 1 to 1.2 Nm

Security screw and two-hole driver bit

Stainless steel cover must be positioned correctly to line up with the LED openings

Page 91

91/156

Installing the Wall Mount

www.mobotix.com • sales@mobotix.com

2.6 Installing the Wall Mount

2.6.1 Mounting Instructions

The Wall Mount allows you to easily mount Q25M cameras to walls or extensions, both indoors and outdoors. The camera remains IP65 weatherproof (dust-proof and resistant to water jets). The Wall Mount also covers RJ45 wall outlets and has ample space for additional modules (WLAN, batteries, etc.).

Before mounting the MOBOTIX Q25M with the Wall Mount, you must prepare the network connection and drill the holes for the ﬁxtures:

•

The on-site network cabling is passed through the opening in the back of the wall mount. The cable and the required (standard) connector for the camera cable (patch cable) are ideally protected by a robust wall sealing made from foam rubber. Nothing is visible or accessible from the outside. The Wall Mount may be mounted directly on top of ﬂush or protruding wall outlets. Maximum width x height of the outlet: 88 mm x 80 mm.

•

Only use the Q25M factory installed patch cable (50 cm cable length) or a MOBOTIX cable of dierent length available from the range of accessories.

• All openings of the camera housing need to be closed o properly. This is the only way to guarantee that the camera remains weatherproof.

• The included screw anchors should be used for the drill holes in the wall. Use the supplied drilling template for the Q25M Wall Mount (fold-out at the end of this manual) to mark the position for drilling the holes and the holes through which the cables will later be fed.

Direct installation

over on-wall and ush-

mounted wall outlets

Page 92

92/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

Drilling the Holes for the Wall Mount

Notes

Find the folded drilling template at the end of the manual.

Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF ﬁle (enlarged or reduced).

Find the drilling templates (scale 1:1) at the end of the manual as a fold-out

Depth: 201 mm/7.91in

Höhe: 125 mm

Width: 216 mm/8.5in

Direct installation

over on-wall and ush-

mounted wall outlets

Page 93

93/156

Installing the Wall Mount

www.mobotix.com • sales@mobotix.com

Scope of Delivery and Required Parts

Please check that all components supplied with the Wall Mount Set are present in the original packaging ﬁrst.

The Following Additional Tools Are Required for Installation:

• Power drill for screw anchor holes

• Screwdriver

• MOBOTIX Drilling Templates (at the end of this manual)

• Scissors to cut out the template

• Pen to mark the hole positions

• Materials and tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable.

• Clean and soft cotton cloth

Page 94

94/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.6.2 Procedure

1. Remove the camera housing: Remove all four Allen screws using the supplied Allen wrench and lift o the outer shell. The screws and outer shell will be needed again shortly.

Remove the camera mounting ring: Separate the black mounting ring from the camera housing. This ring is not required when mounting the camera to the Wall Mount.

Separate the bottom plate from the Wall Mount: The bottom plate is used to hold the camera and is only attached and screwed into place during a later step.

Pass the camera cable up through the bottom of the bottom plate: Ensure the orientation is correct. The

spring clips should be on the underside of the bottom plate.

5. Snap the camera into place on the bottom plate: Firmly push the camera into the Wall Mount. The plastic spring clips will snap into place when the trapezoidal elements on the rear of the camera housing exactly match up with the corresponding openings on the Wall Mount. Pay attention to the direction of the camera (OBEN / TOP arrow pointing in the direction of the lon

ger wall for ceiling installation in rectangular rooms).

Page 95

95/156

Installing the Wall Mount

www.mobotix.com • sales@mobotix.com

6. Mount the Wall Mount (without camera): Stick the black wall sealing to the back of the Wall Mount (remove the adhesive foil ﬁrst, the surface must be clean and free of grease). Pass the network cable through the large square opening and into the Wall Mount. Use the included screws to install the Wall Mount (without the camera) at the intended position. Pass the network cable through the large square opening on back side of the Wall Mount.

7. Connect the cable: Prepare the on-site network cable for connection with the camera patch cable using a standard connector. Excess cable can be stored easily within the Wall Mount.

8. Install the bottom plate with the camera in the Wall Mount: Connect the camera patch cable to the network cable. Then mount the bottom plate with the camera in the slots from below and ﬁx it in place on the Wall Mount using the 4 Allen screws (Allen wrench included).

Attach the outer shell: Position the outer shell (without the rubber seal) and tighten all four Allen screws using the included Allen wrench.

10.

Clean the lens: If necessary, gently clean the front of the lens with a soft cotton cloth. Do not apply excessive pressure to the surface of the glass when cleaning the lens.

11. Establish a connection to the camera, check the image: Establish a connection to the camera as described in

Sec tion 3.1

and the following sections. The live image from the camera should be visible on the computer monitor. Check image sections on the computer monitor as well.

Page 96

96/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.7 Installing the Corner and Pole Mount

2.7.1 Mounting Instructions

The Corner and Pole Mount is made from stainless steel and is extremely robust and rustproof. It is used in combination with the Wall Mount described in

Section 2.6

, in the case that a Q25M is to be installed on a pole or building corner. The Wall Mount required for complete installation must be ordered separately.

The mounting pole should have a diameter between 60 and 180 mm. Thanks to the 360° panorama view from above, installing the camera on the corner of a building makes it possible to monitor a range of approximately 270° from one building wall to the other (around the corner) with one single Q25M camera.

By design, the Corner and Pole Mount cannot be mounted above a wall outlet for the camera cabling.

Page 97

97/156

Installing the Corner and Pole Mount

www.mobotix.com • sales@mobotix.com

Required Parts

Please check that all components supplied with the Corner and Pole Mount Set are present in the original packaging ﬁrst.

The following additional tools are required for installation as a pole mount:

• Screwdriver

• Materials and tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable.

The following additional tools are required for installation of the corner mount:

• Power drill for screw anchor holes

• Screwdriver

• Scissors to cut out the template

• Pen to mark the hole positions

• Materials and tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable.

Page 98

98/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.7.2 Mounting to a Pole

Use the supplied stainless steel straps to ax the Corner and Pole Mount to a pole.

• Guide the supplied stainless steel straps through the openings in the Corner and Pole Mount as shown in the diagram. Make sure that you are using the slots of the mount that ﬁt best for the thickness of the pole. The stainless steel straps allow attaching the mount to poles with diameters between 60 and 180mm.

• Guide the on-site network cable from behind through one of the large round holes of the Corner and Pole Mount. In order to properly protect the cabling, it is best to pass the cabling from the inside of the pole through the Corner and Pole Mount directly into the camera (concealed cabling). Note: The cable length from the

pole should be at least 80cm!

• Tighten the stainless steel straps on the Pole Mount with a screwdriver. If necessary, the ends of the straps can be cut o.

Page 99

99/156

Installing the Corner and Pole Mount

www.mobotix.com • sales@mobotix.com

2.7.3 Mounting to a Wall or Building Corner

Use the included screw anchors, screws and washers to ax the Corner and Pole Mount to a building corner.

• Mark the four screw anchor holes on the corner of the building, ensuring that the arrows on the mount point upwards. Drill the holes with a 10 mm wall drill.

•

Pass the on-site network cable through one of the large round holes at the back of the Corner and Pole Mount, then through one of the 16mm diameter holes on the front of the mount. In order to properly protect the cabling, you should let the cabling run from the inside of the building through the Corner and Pole Mount directly into the camera (concealed cabling). Note: The

cable length from the building corner should be at least 80cm!

• Place the included wall anchors in the drilled holes and screw the Corner and Pole Mount into place on the corner of the building using the wood screws and washers. Use the supplied drilling template (fold-out at the end of this manual) to mark the positions for drilling the holes.

• Next, install the Wall Mount on the Corner and Pole Mount (see next section).

Page 100

100/156

Q25M Camera Manual: Installation

www.mobotix.com • sales@mobotix.com

2.7.4 Mounting the Wall Mount to the Corner and Pole Mount

• Feed the cables through the appropriate hole at the back of the Outdoor Wall Mount. The wall sealing on

the Wall Mount must be in place already (see

Section 2.6,

«Installing the Wall Mount»

•

Use the 6 x 20mm Allen screws, Ø6mm washers and M6 nuts included with the Corner and Pole Mount and

attach the Wall Mount to the Corner and Pole Mount.

•

Then continue with the remaining work steps described in

Section 2.6.2

Mobotix Q25M User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
