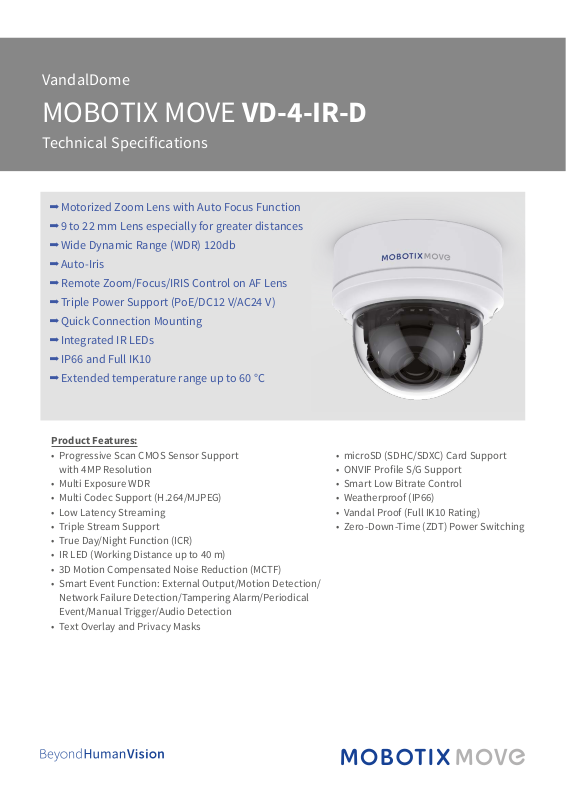

Mobotix Mx-VD1A-4-IR-D Specsheet

VandalDome

MOBOTIX MOVE VD-4-IR-D

Technical Specications

Motorized Zoom Lens with Auto Focus Function

9 to 22 mm Lens especially for greater distances

Wide Dynamic Range (WDR) 120db

Auto-Iris

Remote Zoom/Focus/IRIS Control on AF Lens

Triple Power Support (PoE/DC12 V/AC24 V)

Quick Connection Mounting

Integrated IR LEDs

IP66 and Full IK10

Extended temperature range up to 60 °C

Product Features:

• Progressive Scan CMOS Sensor Support
with 4MP Resolution

• Multi Exposure WDR

• Multi Codec Support (H.264/MJPEG)

• Low Latency Streaming

• Triple Stream Support

• True Day/Night Function (ICR)

• IR LED (Working Distance up to 40 m)

• 3D Motion Compensated Noise Reduction (MCTF)

• Smart Event Function: External Output/Motion Detection/

Network Failure Detection/Tampering Alarm/Periodical
Event/Manual Trigger/Audio Detection

• Text Overlay and Privacy Masks

• microSD (SDHC/SDXC) Card Support

• ONVIF Prole S/G Support

• Smart Low Bitrate Control

• Weatherproof (IP66)

• Vandal Proof (Full IK10 Rating)

• Zero-Down-Time (ZDT) Power Switching

Technical Specications: VandalDome MOBOTIX MOVE VD-4-IR-D

Sensor

Auto Focus

The MOBOTIX MOVE VandalDome VD-4-IR-D can
perform fast, reliable auto focus and can adapt to
dierent indoor and outdoor scenes through its
unique algorithm. As auto focus can be done by
camera itself, no on-site focus adjustment is re

-

quired.

IK10 Rating

The MOBOTIX MOVE VandalDome VD-4-IR-D is ful­ly protected against punishing weather, vandals,
vibration and shock. Its durability translates into
better reliability and usability by reducing mainte
nance time.

-

Lens Movement









Technical Specications

MOBOTIX MOVE VandalDome VD-4-IR-D

MOBOTIX Order Number Mx-VD1A-4-IR-D

Image Sensor 4MP

1/3” Progressive CMOS

Eective Pixels

Pixel Size

Frame Rate (Maximum) H.264: WDR 4MP@30 fps + d1@30 fps

Lens

Minimum Illumination Color

H x V = 2688 x 1512 (4MP)

2.0 μm

MJPEG: 1080p@30 fps

B/W

0.1 lux

0.01 lux

Lens Motorized Zoom Lens

Focal Length
Horizontal (Field of View) Vertical
(Field of View)

Focus, Zoom, DC Iris,
F1.6 9 to 22 mm
35 ° (Wide), 15 ° (Tele)
20 ° (Wide), 9 ° (Tele)

Camera

Day and Night

Shutter Time 1 to 1/10K sec.

WDR

EIS No
Zoom Optical Zoom, Digital Zoom ready by Lens Type

Settings

Corridor Mode 90 °, 180 °, 270 ° Rotation

Video Codec

Compression H.264/MJPEG

Streaming Up to 3 individually congurable Streams in H.264/MJPEG

Audio Codec

Compression G.711/G.726/AAC/LPCM
Streaming 2-Way
Audio Input Line in

Automatically removable IR-cut Filter

Yes

Color, Brightness, Sharpness, Contrast White Balance,
Exposure Control 2DNR, 3DNR, NR by Motion
Masking, Text Overlay

Congurable Resolution/Frame Rate/Bandwidth LBR/VBR/CBR
in H.264

Audio Output Line out

Network

Interface 10/100 Mbps Ethernet
Security User Authentication/HTTPS/IP Filter/IEEE 802.1x
Supported

Protocols
ONVIF Prole S/G/Q conformant

System Integration

Analytics Motion Detection/Tampering/Audio Detection
Event Triggers External Input, Analytics, Network Failure Detection,

Event Actions External Output Activation

ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP,
SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS

Periodical Event, Manual Trigger

Video and Audio Recording to Edge Storage File Upload:
FTP, Network Share and Email Notication: HTTP, FTP, Email

Technical Specications: VandalDome MOBOTIX MOVE VD-4-IR-D

General

Casing Metal and Plastic
Power PoE IEEE802.3af

or DC 12 V, 2.12 A or AC 24 V;
max 13.68 W

Connectors RJ45

Alarm in x4, Alarm out x2, Terminal Block
DC12 V Terminal Block
AC24 V Terminal Block
Audio in Terminal Block
Audio out Terminal Block
CVBS Connector

IR Illumination

Storage Support for microSD/microSDHC/microSDXC card

Protection Class IP66/Full IK10
Operating Conditions –30 °C to 60 °C (–22 °F to 140 °F)

Storage Conditions –20 °C to 70 °C (–4 °F to 158 °F)
Approvals EMC

Dimensions ø 133.8 x 117.4 mm
Weight 760 g

Illumination Distance: up to 40 m

Support for Recording to NAS

10 % to 90 %, no Condensation

CE/FCC
Safety
Environment

LVD

IP66, IK10

EN_07/2019
