Mobotix Mx-VD1A-4-IR Specsheet

VandalDome

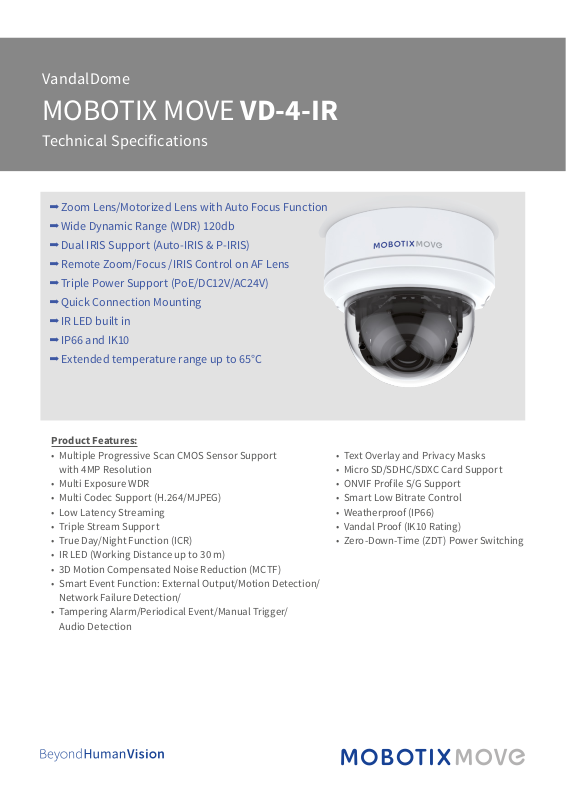

MOBOTIX MOVE VD-4-IR

Technical Specifications

Zoom Lens/Motorized Lens with Auto Focus Function

Wide Dynamic Range (WDR) 120db

Dual IRIS Support (Auto-IRIS & P-IRIS)

Remote Zoom/Focus /IRIS Control on AF Lens

Triple Power Support (PoE/DC12V/AC24V)

Quick Connection Mounting

IR LED built in

IP66 and IK10

Extended temperature range up to 65°C

Product Features:

• Multiple Progressive Scan CMOS Sensor Support
with 4MP Resolution

• Multi Exposure WDR

• Multi Codec Support (H.264/MJPEG)

• Low Latency Streaming

• Triple Stream Support

• True Day/Night Function (ICR)

• IR LED (Working Distance up to 30 m)

• 3D Motion Compensated Noise Reduction (MCTF)

• Smart Event Function: External Output/Motion Detection/
Network Failure Detection/

• Tampering Alarm/Periodical Event/Manual Trigger/
Audio Detection

• Text Overlay and Privacy Masks

• Micro SD/SDHC/SDXC Card Support

• ONVIF Profile S/G Support

• Smart Low Bitrate Control

• Weatherproof (IP66)

• Vandal Proof (IK10 Rating)

• Zero-Down-Time (ZDT) Power Switching

Technical Specifications: VandalDome VD-4-IR

Sensor

Auto Focus

The MOBOTIX MOVE VandalDome VD-4-IR can per­form fast, reliable auto focus and can adapt to
dierent indoor and outdoor scenes through its
unique algorithm. As auto focus can be done by
camera itself, no on-site focus adjustment is re­quired.

IK10 Rating

The MOBOTIX MOVE VandalDome VD-4-IR is pro­tected against punishing weather, vandals, vibra­tion and shock. Its durability translates into better
reliability and usability by reducing maintenance
time.

Lens Movement









MOBOTIX MOVE VandalDome VD-4-IR – Specification:

MOBOTIX MOVE VandalDome VD-4-IR

MOBOTIX Order Number Mx-VD1A-4-IR

Image Sensor 4MP

1/3” Progressive CMOS

Eective Pixels

Pixel Size

Frame Rate (Maximum) H.264: WDR 4MP@30fps + d1@30fps

Lens: 30X Zoom Lens

Minimum Illumination Color

H x V = 2688 x 1512 (4MP)

2.0 μm

MJPEG: 1080p@30fps

B/W

0.1 lux

0.01 lux

Lens Zoom Lens

Focal Length
Horizontal (Field of View)
Vertical (Field of View)

Focus, Zoom, P-Iris, Auto-Iris,
F1.7 3 to 9 mm
103° (Wide), 35° (Tele)
53° (Wide), 23° (Tele)

Camera

Day and Night

Shutter Time 1 to 1/10K sec.

WDR

EIS No
Zoom Optical Zoom, Digital Zoom ready by Lens Type

Settings

Corridor Mode 90°, 180°, 270° Rotation

Video Codec

Compression H.264/MJPEG

Streaming Up to 3 individually configurable Streams in H.264/MJPEG

Audio Codec

Compression G.711/G.726/A AC/LPCM
Streaming 2-Way
Audio Input Line in

Automatically removable IR-cut Filter

Yes

Color, Brightness, Sharpness, Contrast White Balance,
Exposure Control 2DNR, 3DNR, NR by Motion
Masking, Text Overlay

Configurable Resolution/Frame Rate/Bandwidth LBR/VBR/CBR
in H.264

Audio Output Line out

Network

Interface 10/100 Mbps Ethernet
Security User Authentication/HTTPS/IP Filter/IEEE 802.1x
Supported

Protocols
ONVIF Profile S/G/Q conformant

System Integration

Analytics Motion Detection/Tampering/Audio Detection
Event Triggers External Input, Analytics, Network Failure Detection,

Event Actions External Output Activation

ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP,
SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS

Periodical Event, Manual Trigger

Video and Audio Recording to Edge Storage File Upload:
FTP, Network Share and Email Notification: HTTP, FTP, Email

Technical Specifications: VandalDome VD-4-IR

General

Casing Metal and Plastic
Power

Connectors RJ45

IR Illumination

Storage Support for microSD/microSDHC/microSDXC card

Protection Class IP66/ IK10
Operating Conditions -30°C to 65°C (-22°F to 131°F) without Heater

Storage Conditions -20°C to 70°C (-4°F to 158°F)
Approvals EMC

Dimensions Ø133.8 x 117.4 mm
Weight 760 g

PoE IEEE802

.3af,
or DC 12 V, 2.12 A or AC 24 V;
max 13.68 W

Alarm in x4, Alarm out x2, Terminal Block
DC12V Terminal Block
AC24V Terminal Block
Audio in Terminal Block
Audio out Terminal Block
CVBS Connector

Illumination Distance: up to 30 m

Support for Recording to NAS

-55°C to 65°C (-67°F to 131°F) with Heater
10 % to 90 %, no Condensation

CE / FCC
Safety
Environment

LVD

IP66, IK10

EN_05/18
