Mobotix Mx-VB1A-4-IR-D, Mx-VB1A-4-IR Specsheet

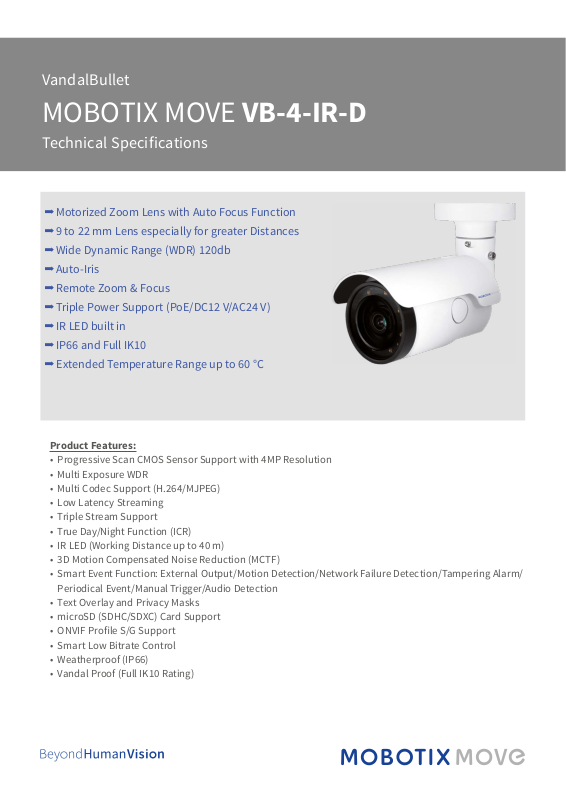

VandalBullet

MOBOTIX MOVE VB-4-IR-D

Technical Specications

Motorized Zoom Lens with Auto Focus Function

9 to 22 mm Lens especially for greater Distances

Wide Dynamic Range (WDR) 120db

Auto-Iris

Remote Zoom & Focus

Triple Power Support (PoE/DC12 V/AC24 V)

IR LED built in

IP66 and Full IK10

Extended Temperature Range up to 60 °C

Product Features:

• Progressive Scan CMOS Sensor Support with 4MP Resolution

• Multi Exposure WDR

• Multi Codec Support (H.264/MJPEG)

• Low Latency Streaming

• Triple Stream Support

• True Day/Night Function (ICR)

• IR LED (Working Distance up to 40 m)

• 3D Motion Compensated Noise Reduction (MCTF)

• Smart Event Function: External Output/Motion Detection/Network Failure Detection/Tampering Alarm/

Periodical Event/Manual Trigger/Audio Detection

• Text Overlay and Privacy Masks

• microSD (SDHC/SDXC) Card Support

• ONVIF Prole S/G Support

• Smart Low Bitrate Control

• Weatherproof (IP66)

• Vandal Proof (Full IK10 Rating)

Technical Specications: MOBOTIX MOVE VandalBullet VB-4-IR-D

Lens Movement Sensor

Auto Focus

The MOBOTIX MOVE VandalBullet VB-4-IR-D can per­form fast, reliable auto focus and can adapt to dier­ent indoor and outdoor scenes through its unique al­gorithm. As auto focus can be done by camera itself,
no on-site focus adjustment is required.

IK 10

The MOBOTIX MOVE VandalBullet VB-4-IR-D is fully
protected against punishing weather, vandals, vibra
tion and shock. Its durability translates into better re­liability and usability by reducing maintenance time.

-









Technical Specications

MOBOTIX MOVE VandalBullet VB-4-IR-D

MOBOTIX Order Number Mx-VB1A-4-IR-D

Sensor

Eective Pixels HxV = 2720x1536(4M)

Pixel Size 2.0 μm

Frame Rate (Maximum) H.264 4M @30 fps + d1 @30 fps

Lens

Minimum Illumination Color

Lens Motorized Zoom Lens

4MP
1/3“ Progressive CMOS

MJPEG 1080p @30 fps

B/W

Focal Length
Horizontal (Field of View)
Vertical (Field of View)

0.1 lux

0.01 lux

Focus, Zoom, DC Iris,
F1.6 9 to 22 mm
35 ° (Wide), 15 ° (Tele)
20 ° (Wide), 9 ° (Tele)

Camera

Day and Night Automatically removable IR-cut Filter
Shutter Time 1 to 1/10K sec.

HDR

EIS No
Zoom Optical Zoom, Digital Zoom ready by Lens Type

Settings

Corridor Mode 90 °, 180 °, 270 ° Rotation

Video Codec

Compression H.264/MJPEG
Streaming Up to 3 individually congurable streams in H.264/

Audio Codec

Compression G.711/G.726/AAC/LPCM
Streaming 2-Way
Audio Input Line in

Yes

Color, Brightness, Sharpness, Contrast White Balance,
Exposure Control 2DNR, 3DNR, NR by Motion Masking,
Text Overlay

MJPEG
Congurable resolution/frame rate/bandwidth LBR/
VBR/CBR in H.264

Audio Output Line out

Network

Interface 10/100 Mbps Ethernet
Security User Authentication/HTTPS/IP Filter/IEEE 802.1x
Supported

Protocols

ONVIF Prole S/G/Q conformant

System Integration

Analytics Motion Detection/Tampering/Audio Detection
Event Triggers External Input, Analytics, Network Failure Detection,

Event Actions External output Activation

General

Casing Metal
Power

ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP,
UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP,
DDNS

Periodical Event, Manual Trigger

Video and audio recording to edge storage
File Upload : FTP, network share and email
Notication : HTTP, FTP, email

PoE IEEE802.3af, class 0
DC12 V, 1.14 A, max 13.68 W
AC24 V, max 13.68 W

Technical Specications: MOBOTIX MOVE VandalBullet VB-4-IR-D

Connectors RJ45

Alarm in x2, Alarm out x1, Terminal Block
DC12 V Terminal Block
AC24 V Terminal Block
Audio in 3.5 mm Jack
Audio out 3.5 mm Jack
CVBS Connector

IR Illumination

Storage Support for microSD/microSDHC/microSDXC card

Protection Class IP66/Full IK10
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F)

Storage Conditions -20 °C to 70 °C (-4 °F to 158 °F)
Approvals EMC

Dimensions Ø105x233.8 mm
Weight 1210 g

Illumination Distance: up to 40 m

Support for recording to NAS

10 % to 90 %, no Condensation

CE/FCC
Safety
Environment

LVD

IP66, IK10

EN_04/2019
