Mobotix Mx-V16A-6N6N079, Mx-V16A-6N6N041, Mx-V16A-6D6N079, Mx-V16A-6D6N041, Mx-V16A-6D6D079 Specsheet
...

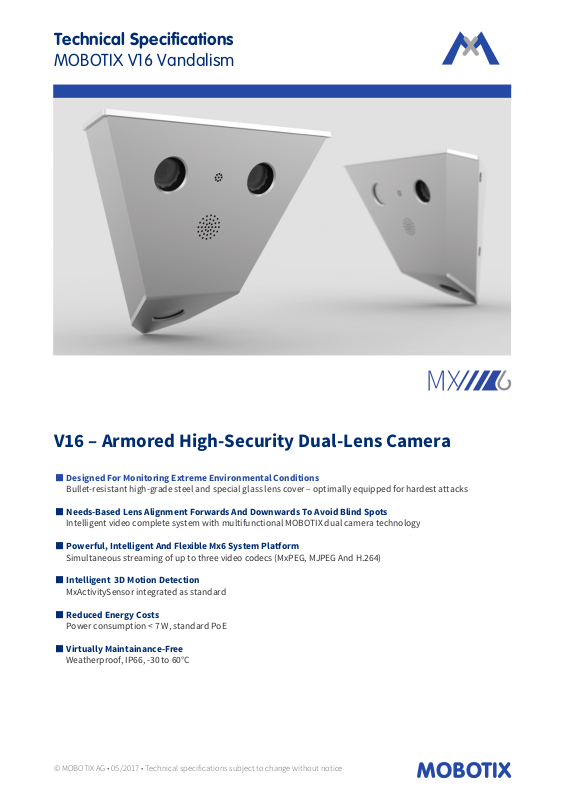

Technical Specifications
MOBOTIX V16 Vandalism
V16 – Armored High-Security Dual-Lens Camera
◼︎ Designed For Monitoring Extreme Environmental Conditions
Bullet-resistant high-grade steel and special glass lens cover – optimally equipped for hardest attacks
◼︎ Needs-Based Lens Alignment Forwards And Downwards To Avoid Blind Spots
Intelligent video complete system with multifunctional MOBOTIX dual camera technology
◼︎ Powerful, Intelligent And Flexible Mx6 System Platform
Simultaneous streaming of up to three video codecs (MxPEG, MJPEG And H.264)
◼︎ Intelligent 3D Motion Detection
MxActivitySensor integrated as standard
◼︎ Reduced Energy Costs
Power consumption < 7 W, standard PoE
◼︎ Virtually Maintainance-Free
Weatherproof, IP66, -30 to 60°C
© MOBOTIX AG • 05/2017 • Technical specifications subject to change without notice
Camera Variants
V16 1x Day
V16 Day & Night
V16 2x Day /2x Night
Specialties
Built To Order: The production of the V16 is based on confirmed orders only, lead time
up to three months. In case of the V16 with two image sensors, both lenses can be
mounted in parallel next to each other at the top, or alternatively at the top and at the
bottom (indicate when ordering).
Lenses, Sensors (Integrated Into Sensor Modules)
V16 1x Day
V16 Day & Night
V16 2x Day /2x Night
6MP Moonlight sensor, with Super Wide Lens B041
(90° x 67°)
Mx-V16A-6D041
Mx-V16A-6D6N041
Mx-V16A-6D6D041
Mx-V16A-6N6N041
6MP Moonlight sensor, with Standard Lens B079
(45° x 34°)
Mx-V16A-6D079
Mx-V16A-6D6N079
Mx-V16A-6D6D079
Mx-V16A-6N6N079
Hardware
V16 1x Day
V16 Day & Night
V16 2x Day /2x Night
Image sensor with individual exposure zones
Color
Black and White (B/W)
Color & B/W
Light sensitivity in lux at 1/60 s and 1/1 s
0.1/0.005
0.1/0.005 (Color)
0.02/0.001 (B/W)
Image sensor (color or B/W sensor)
1/1.8“ CMOS, 6MP (3072 x 2048), Progressive Scan
Microprocessor
i.MX 6 Dual Core incl. GPU (1 GB RAM, 512 MB Flash)
H.264 Hardware Codec
Yes, bandwidth limitation available; output image format up to QXGA
Protection classes
IP66 andd IK10+
IP66 andd IK10+
Intended use
Not for use in hazardous areas (Ex area); corner mounting
Ambient temperature (range, incl. storage)
-30 to 60°C/-22 to 140°F
-30 to 60°C/-22 to 140°F
Internal DVR, ex works
4 GB (microSD)
4 GB (microSD)
Microphone/speaker
Yes/Yes
Yes/Yes
16bit/16kHz HD wideband audio (Opus codec)
Yes (live and audio messages)
Yes (live and audio messages)
Passive infrared sensor (PIR)
No
No
Temperature sensor
Yes
Yes
Shock detector (tamper detection)
Yes (with future soware update)
Power consumption (typical)
< 7 watts
< 7 watts
PoE Class (IEEE 802.3af)
Class 2 or 3 (variable), factory setting: class 3
Interfaces Ethernet 100BaseT/MxBus/USB
Yes (MxRJ45 and LSA+ rail)/No/Yes
Interface RS232
With accessory (MX-232-IO-Box)
Mounting options
Corner mounting only
Corner mounting only
Dimensions (height x width x depth)
196 x 260 x 180 mm
196 x 260 x 180 mm
Weight
4.680 g
4.680 g
Housing
Stainless high-grade steel, thickness 3 to 5 mm, color: unpainted/gray
Standard accessory
Security screws with bit, 2 allen wrenches, module key, 0.5 m ethernet patch cable,
Quick Install
Quick Install
Detailed technical documentation
www.mobotix.com > Support > Manuals
Online version of this document
www.mobotix.com > Support > Spec Sheets
MTBF
> 80,000 hours
> 80,000 hours
Certifications
EN55032:2012
EN55022:2010; EN55024:2010; EN50121-4:2015
EN61000-6-1:2007; EN 61000-6-2:2005
EN61000-6-3:2007+A1:2011
EN61000-6-4:2007+A1:2011
AS/ NZS CISPR22:2009+A1:2010
CFR47 FCC part15B
EN55032:2012
EN61000-6-3:2007+A1:2011
EN61000-6-4:2007+A1:2011
CFR47 FCC part15B
Technical Specifications
MOBOTIX V16 Vandalism
© MOBOTIX AG • 05/2017 • Technical specifications subject to change without notice
