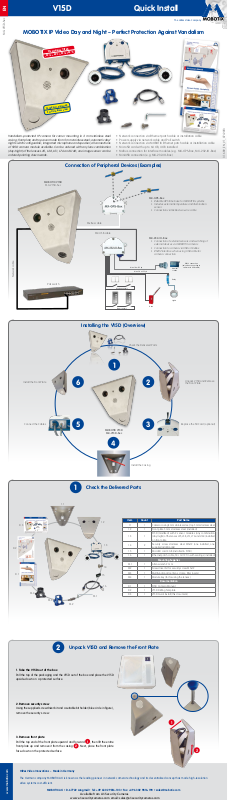

V15D Quick Install
The HiRes Video Company
MX-V15D-Sec
Weatherproof (IP65)
–30 to +60°C (–22 to 140°F)
Vandalism-Protected
5mm stainless steel
Vandalism-protected IP camera for corner mounting in 3mm stainless steel casing; front plate and top cover made from 5mm stainless steel; automatic day/ night switch configurable; integrated microphone and speaker; all connections of S15D camera module available. Can be ordered with any lens combination (day/night) of the lenses L25, L38, L51, L76 and L160; one image sensor can be ordered pointing downwards.
• Network connection via Ethernet patch cable or installation cable
• Power supply via network cable and PoE switch
• Network connection via MOBOTIX Ethernet patch cable or installation cable
• MicroSD card with up to 64GB, 4GB installed
• MxBus connection for interface modules (e.g. MX-GPS-Box, MX-232-IO-Box)
• MiniUSB connection (e.g. MX-232-IO-Box)
31.689_EN_V1_07/2013
Network cable
MOBOTIX V15D
MX-V15D-Sec
PoE switch
Connection of Peripheral Devices (Examples)
MX-GPS-Box
MxBus cable
MX USB cable
MX-232-IO-Box
Max. 10m/55yd
Max. 50m/55yd
Window sensors
Reliable GPS time base for MOBOTIX systems Includes external temperature and illumination sensor Connection via MxBus two-wire cable
Connection of external sensors and switching of external devices via MOBOTIX cameras Connection to camera via USB or MxBus RS232 interface when using USB cable for camera connection
RS232 connection
(only when connecting to
camera via USB cable)
Weather
station
Relay
Install the Front Plate
Door sensors
Installing the V15D (Overview)
Check the Delivered Parts
1
6
Gate
2
Lights
Unpack V15D and Remove the Front Plate
D.2
Connect the Cables
D.3
D.1
M.4
M.3
1.1
M.2
5
1
MOBOTIX V15D
MX-V15D-Sec
4
Install the Casing
Check the Delivered Parts
1.2
1.3
1.4
1.5
1.6
M.1
Item Count Part Name
1.1 1
1.2 1 Front plate 5mm stainless steel (installed)
1.3 1
1.4 2
1.5 1 MicroSD card 4GB (installed in S15D)
1.6 1 Ethernet patch cable, 50cm/19.7in with sealings (installed)
M.1 1 Allen wrench 2mm
M.2 1 Screwdriver bit for security screw M5x12
M.3 1 Multifunctional tool (lens, dome, filter insets)
M.4 1 Module key (for focusing the lenses)
D.1 1 S15D Camera Manual
D.2 1 V15D Drilling Template
D.3 1 V15D Quick Install (this document)
3
Camera casing 3mm stainless steel, top 5mm stainless steel
S15D (modified) with 2sensor modules (any combination (day/night) of the lenses L25, L38, L51, L76 and L160) installed on front plate
Security screw stainless steel M5x12 (one installed, one supplied additionally)
Mounting Supplies
Documentation
Replace the SD Card (optional)
2
1. Take the V15D out of the box
Pull the top of the packaging and the V15D out of the box and place the V15D upside-down on a protected surface.
2. Remove security screw
Using the supplied screwdriver bit and a suitable bit holder (blue circle in figure), remove the security screw.
3. Remove front plate
Pull the top end of the front plate upward and forward front plate up and remove it from the casing face-down on the protected surface.
Unpack V15D and Remove the Front Plate
1
, then lift the entire
2
. Next, place the front plate
1
2
HiRes Video Innovations– Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution
video systems cost-ecient.
www.mobotix.com
MOBOTIX AG • D-67722 Langmeil • Tel: +49 6302 9816-103 • Fax: +49 6302 9816-190 • sales@mobotix.com
EN
Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com
V15D Quick Install
The HiRes Video Company
3
1. Remove screws of the S15D camera module
Remove the three Allen screws (red arrows in the figure) from the back plate using the supplied 2mm Allen wrench (item M.1). When doing this, make sure that you are not damaging the two-wire microphone cable.
2. Replace SD card
Place the S15D camera module on a suitable object. Next, replace the SD card (4GB) by a suitable MicroSD card (max. 64GB), as described in the
Manual
, in
Section 2.2.9, "Replacing the MicroSD Card"
3. Fasten S15D camera module
Place the S15D camera module in its original position, insert the Allen screws and tighten them (torque 0.85Nm).
Replace the SD Card (optional)
S15 Camera
.
Click!
Do not damage
microphone and speaker
cables!
1. Mark the holes for drilling (if required)
Mark the holes for the dowels using the drilling template. To do so, fold the template or cut it at the dashed line. Then mark the holes at the left-hand side, turn the template over and mark the holes on the right-hand side. If you do not want to use the drilling template, you can use the casing itself to mark the holes for drilling.
If the cables are led to the camera from behind, make sure that you place the cut-out over the spot where the cables are exiting.
www.mobotix.com> Support> Manuals
Drilling templates for other MOBOTIX wall mounts:
2. Drill the holes for the dowels (if required)
Drill the holes for the dowels with a suitable drill bit. Next, fully push the dowels into the holes you drilled.
3. Install the casing
Make sure that you are guiding all cables to the camera module through the cut-out at the back of the casing. Properly fasten the casing using suitable screws and washers.
Make sure not to over-tighten the fastening screws since over-tightening may warp the casing!
4
2013 • Declaration of Conformity: www.mobotix.com> Support> MX Media Library> Certificates
Install the Casing

Cables from above
5
1. Replace the network cable (optional)
Turn the blue bayonet catch of the S15D to the left, then remove the catch and the installed patch cable (Pos. 1.6). Insert the new MOBOTIX patch cable into the network connector and fasten the cable using the blue bayonet catch.
2. Connect the network cable
Guide the other end of the patch cable through the cut-out and then into a weatherproof connector (e.g. the MX-Patch-Box) or into a switch. For additional information on this topic, see the
2.5.1, "Network Cabling for S15 With Patch Cables"
3. Connect additional cables (optional)
Connect additional cables (e.g. for MxBus modules) by pushing the individual wires into the 8-wire plug (red circle in the figure). For additional information on this topic, see the supplied
Modules"
, and in
S15 Camera Manual
Section 2.2.8, "External Audio Support"
S15 Camera Manual
.
in
Section 2.2.7, "Using MxBus
Connect the Cables*
in
Section
.
*For additional information on attaching a network installation cable directly to an S15D, see the included
S15D Camera Manual
.
4. Take care when routing the cables
Make sure that all cables are routed in such a way that they are not damaged between the front plate and the casing when inserting and closing the front plate. For example, you can use a cable tie (red circle in figure) to hold the cables together.
6
1. Prepare closing the front plate
Prepare this step by inserting the supplied screwdriver bit into the bit holder and placing the security screw onto the bit. Keep the bit holder and screw within reach when installing the casing.
2. Insert the front plate
Insert the front plate into the casing upward in the direction of the red arrows
1
. Push the front plate at the bottom towards the casing 2 and secure
the front plate with one hand.
Install the Front Plate
1
3. Close the front plate
Push the security screw upwards into the thread and fasten the screw (torque 1Nm).
Initial Operation Technical Specifications
Since the V15D contains a modified version of the S15D, the initial operation of the V15D is identical with the initial operation of a S15D (see
Chapter3, "Operating the Camera"
The following dierences apply:
No Hemispheric Features
with L12 lenses, the Hemispheric features and certain display modes (Panorama, Panorama/Focus, ...) are not available.
Using distortion correction
distortion correction. Access the browser interface of the camera and open the Admin Menu> Lens Configuration dialog and select the corresponding value (e.g., L25
).
).
: Since this version of the S15D cannot be operated
: Specific lenses of this camera (e.g., L25) allow using
261mm/10.3in
S15 Camera Manual
The technical data of the V15D are – to the most part – identical to those of the S15D (see
,
the technical data of the S15D are shown in the table below:
Dimensions Width x height x depth: 261x196x180mm
Weight Approx. 4,680g
Standard Delivery
S15 Camera Manual, Section1.8, "Technical Data"
Technical Data V15D Vandalism (MX-V15D-Sec)
Casing 3mm stainless steel, top and front plate 5mm stainless steel S15D with 2sensor modules (day/night) of the lenses L25, L38, L51, L76 and L160 installed on front plate (one image sensor can be ordered pointing downwards), 50cm patch cable (installed), lens wrench, Allen wrench 2mm, S15D Camera Manual, V15D Quick Install, Drilling Template
). The dierences to
2
View from front
HiRes Video Innovations– Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution
video systems cost-ecient.
www.mobotix.com
MOBOTIX AG • D-67722 Langmeil • Tel: +49 6302 9816-103 • Fax: +49 6302 9816-190 • sales@mobotix.com
196mm/7.7in
View from top
220mm/8.7in
261mm/10.3in
180mm/7.9in
