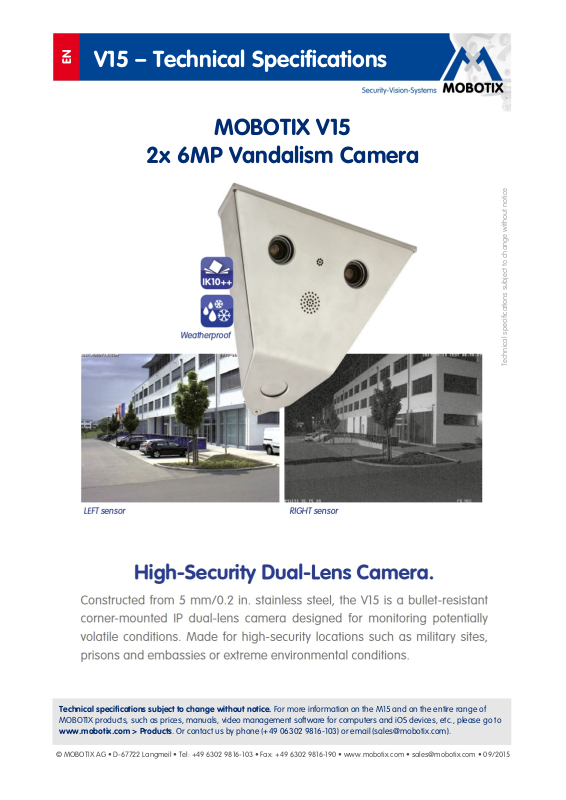

MOBOTIX V15
2x 6MP Vandalism Camera
V15 – Technical Specifications
EN
© MOBOTIX AG • D-67722 Langmeil • Tel: +49 6302 9816-103 • Fax: +49 6302 9816-190 • www.mobotix.com • sales@mobotix.com • 09/2015
Technical specifications subject to change without notice. For more information on the M15 and on the entire range of
MOBOTIX products, such as prices, manuals, video management software for computers and iOS devices, etc., please go to
www.mobotix.com > Products. Or contact us by phone (+49 06302 9816-103) or email (sales@mobotix.com).
Technical specifications subject to change without notice
Page 2
V15 – Bullet-Resitant For High-Risk Installations
The V15 is the most sturdy MOBOTIX camera to-date. Specifically designed for high-risk areas, it offers unmatched
protection against attacks. Nonetheless, it’s still a camera with MOBOTIX technology and the full array of
possibilities to connect external sensors and actuators.
V15 – Technical Specifications
EN
© MOBOTIX AG • D-67722 Langmeil • Tel: +49 6302 9816-103 • Fax: +49 6302 9816-190 • www.mobotix.com • sales@mobotix.com • 09/2015
Page 3
Camera Variants
V15 Day
V15 Night
V15 DNight (Day & Night)
Specialties
The Production of V15 is based on confirmed orders only, lead time up to
3 months. In the case of the V15D with two image sensors, both lenses
can be mounted in parallel next to each other at the top, or alternatively
at the top and at the bottom (please indicate on order form).
Lenses, Sensors Of Pre-Installed V15 Models
V15 with one or two Super Wide lenses B041 (90° x
67°), integrated into the 6MP sensor module
MX-V15M-Sec-D22-6MP-F1.8
MX-V15D-Sec-D22D22-6MP-F1.8
MX-V15D-Sec-Night-
N22N22-6MP-F1.8
MX-V15D-Sec-DNight-
D22N22-6MP-F1.8
V15 with one or two Standard lenses B079
(45° x 34°), integrated into the 6MP sensor module
MX-V15M-Sec-D43-6MP-F1.8
MX-V15D-Sec-D43D43-6MP-F1.8
MX-V15D-Sec-Night-
N43N43-6MP-F1.8
MX-V15D-Sec-DNight-
D43N43-6MP-F1.8
Image sensor with individual exposure zones
Color
B/W
Color + B/W
Sensor sensitivity in lux at 1/60 s /1 s
0,1/0,005
0,02/0,001
0,1/0,005 (color)
0,02/0,001 (B/W)
Image sensor resolution (color or B/W sensor)
6MP (3072 x 2048)
6MP (3072 x 2048)
Hardware Functions
Protection class V15
IP65 and IK10++
IP65 and IK10++
Ambient temperature (range)
-30 to 60°C/-22 to 140°F
-30 to 60°C/-22 to 140°F
Temporary internal DVR
64 MB
64 MB
Internal DVR, ex works
4 GB (microSD)
4 GB (microSD)
Microphone/speaker
•/•
•/•
Passive infrared sensor (PIR)
–
–
Camera optics with Long-Pass Filter (LPF)
–
• (optional on request)
• (optional on request)
Integrated temperature sensor
•
•
Shock detector••
Power consumption (typical)
< 7 watts
< 7 watts
Variable PoE class (factory default: 3)
2 or 3
2 or 3
Interfaces Ethernet/MxBus/USB
•/•/•
•/•/•
Interfaces IO and RS232
With accessory (e.g, MX-232-IO-Box)
Image Formats, Frame Rates, Image Storage
Maximum image format (dual image from both
sensors)
2x 6MP (6144 x 2048)
2x 6MP (6144 x 2048)
Maximum frame rate (MxPEG, max. resolution)
8 fps (6MP), 4 fps (2x 6MP)
8 fps (6MP), 4 fps (2x 6MP)
CIF images with 4 GB MicroSD DVR
250,000
250,000
VGA images with 4 GB MicroSD DVR
125,000
125,000
HD images with 4 GB MicroSD DVR
40,000
40,000
QXGA images with 4 GB MicroSD DVR
20,000
20,000
V15 – Technical Specifications
EN
© MOBOTIX AG • D-67722 Langmeil • Tel: +49 6302 9816-103 • Fax: +49 6302 9816-190 • www.mobotix.com • sales@mobotix.com • 09/2015
Page 4
Camera Variants
V15 Day
V15 Night
V15 DNight (Day & Night)
General Functions
Digital zoom (continous) with panning
•••
Codecs: Motion-JPEG/MxPEG/H.264 for SIP
•/•/•
•/•/•
•/•/•
Programmable exposure zones
•••
Snapshot recording (pre/post-alarm images)
505050
Terabyte ring buffer storage (internal/network)
•••
Continous recording with soand (0.2 to 30 fps)
•••
Event recording with soand
•••
Time and event control/flexible event logic
•/•
•/•
•/•
Weekly schedules/holidays
•••
Web functionality (FTP, email)
•••
Playback/QuadView and MultiView
•/•
•/•
•/•
Bidirectional soand in browser
•••
Logo generator, animated
•••
Master/Slave arming••
•
Several scheduled privacy zones
•••
Customized voice messages
•••
VoIP telephony (audio/video, alert)
•••
Remote alarm notification (network message)
•••
Signal inputs/outputs and RS232 via MxBus module
•••
Security Features
(HTTPS/SL, IP-based access control, IEEE 802.1X
network authentification)
•••
Security Features
(HTTPS/SL, IP-basierte Zugriffsbeschränkung,
Netzwerk-Authentifizierung IEEE 802.1X)
•••
Video Analysis
Video motion detector••
•
MxAnalytics––
–
MxActivitySensor••
•
Video Management Software
MxManagementCenter/MxControlCenter/MxEasy
•••
MOBOTIX App (iOS)••
•
• available ex works
– not available
V15 – Technical Specifications
EN
© MOBOTIX AG • D-67722 Langmeil • Tel: +49 6302 9816-103 • Fax: +49 6302 9816-190 • www.mobotix.com • sales@mobotix.com • 09/2015
Page 5
(Excerpts from the technical documentation: www.mobotix.com > Support > Manuals)
V15 – Technical Specifications
EN
© MOBOTIX AG • D-67722 Langmeil • Tel: +49 6302 9816-103 • Fax: +49 6302 9816-190 • www.mobotix.com • sales@mobotix.com • 09/2015
Page 6
(Excerpt from the technical documentation: www.mobotix.com > Support > Manuals)
