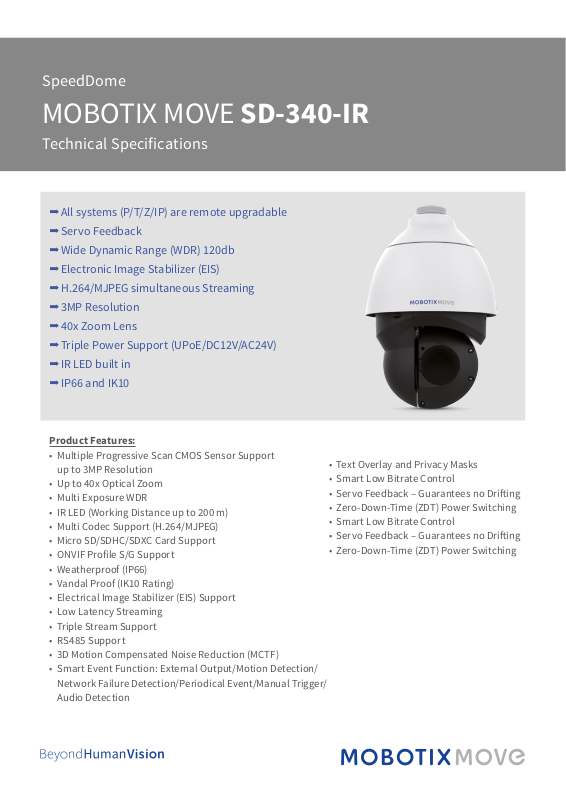

Mobotix Mx-SD1A-340-IR Specsheet

SpeedDome

MOBOTIX MOVE SD-340-IR

Technical Specifications

All systems (P/T/Z/IP) are remote upgradable

Servo Feedback

Wide Dynamic Range (WDR) 120db

Electronic Image Stabilizer (EIS)

H.264/MJPEG simultaneous Streaming

3MP Resolution

40x Zoom Lens

Triple Power Support (UPoE/DC12V/AC24V)

IR LED built in

IP66 and IK10

Product Features:

• Multiple Progressive Scan CMOS Sensor Support
up to 3MP Resolution

• Up to 40x Optical Zoom

• Multi Exposure WDR

• IR LED (Working Distance up to 200 m)

• Multi Codec Support (H.264/MJPEG)

• Micro SD/SDHC/SDXC Card Support

• ONVIF Profile S/G Support

• Weatherproof (IP66)

• Vandal Proof (IK10 Rating)

• Electrical Image Stabilizer (EIS) Support

• Low Latency Streaming

• Triple Stream Support

• RS485 Support

• 3D Motion Compensated Noise Reduction (MCTF)

• Smart Event Function: External Output/Motion Detection/
Network Failure Detection/Periodical Event/Manual Trigger/
Audio Detection

• Text Overlay and Privacy Masks

• Smart Low Bitrate Control

• Servo Feedback – Guarantees no Driing

• Zero-Down-Time (ZDT) Power Switching

• Smart Low Bitrate Control

• Servo Feedback – Guarantees no Driing

• Zero-Down-Time (ZDT) Power Switching

Technical Specifications: SpeedDome SD-340-IR

Return immediately

All Systems (P/T/Z/IP) are remote upgradable

The MOBOTIX MOVE SpeedDome SD-340-IR is remote up­gradable for its software systems, including IP system, pan,
tilt and z
costs can be greatly reduced and new features can be add­ed instantly.

oom block. With this feature, the maintenance

Servo Feedback

The MOBOTIX MOVE SpeedDome SD-340-IR features Servo
Feedback technology. When encountering external force,
such as vandalism, or environmental vibration, the PTZ can
return immediately to its original position.

Remote upgradable System

- IP

-Pan

-Tilt

-Zoom

Tampered

MOBOTIX MOVE SpeedDome SD-340-IR – Specification:

MOBOTIX MOVE SpeedDome SD-340-IR

MOBOTIX Order Number Mx-SD1A-340-IR

Image Sensor 3MP

1/2.8” Progressive CMOS

Eective Pixels H x V = 2065 x 1553 (3MP)

Pixel Size 2.5 μm

Frame Rate (Maximum) H.264: 3MP@30fps (with and without WDR)

MJPEG 1080p@30fps

Lens: 30X Zoom Lens

Minimum Illumination Color

B/W

0.04 lux

0.002 lux

Lens Zoom Lens

Focal Length

Horizontal (Field of View)

Vertical (Field of View)

Focus, Zoom, P-Iris, Auto-Iris

F1.6, 4.3 to 170 mm
62° (Wide), 2° (Tele)

9° (Wide), 1° (Tele)

4

Camera

Day and Night

Shutter Time 1 to 1/10K sec.

WDR

EIS Yes
Zoom Optical Zoom, Digital Zoom ready

Settings

Corridor Mode 90°, 180°, 270° Rotation

Video Codec

Compression H.264/MJPEG

Streaming

Audio Codec

Compression G.711/G.726/A AC/LPCM
Streaming 2-Way
Audio Input Line in

Automatically removable IR-cut Filter

Yes

Color, Brightness, Sharpness, Contrast White Balance,
Exposure Control 2DNR, 3DNR, NR by Motion Masking,
Text Overlay

Up to 3 individually configurable Streams in H.264/MJPEG
Configurable Resolution/Frame Rate/Bandwidth LBR/VBR/
CBR in H.264

Audio Output Line out

Network

Interface 10/100 Mbps Ethernet
Security User Authentication/HTTPS/IP Filter/IEEE 802.1x
Supported

Protocols
ONVIF Profile S/G conformant

System Integration

Analytics Motion detection/Audio detection
Event Triggers External Input, Analytics, Network Failure Detection,

Event Actions External Output Activation

ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP,
UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS

Periodical Event, Manual Trigger

Video and Audio Recording to Edge Storage
File Upload: FTP, Network Share and Email Notification:
HTTP, FTP, Email

Technical Specifications: SpeedDome SD-340-IR

General

Casing Metal and Plastic
Power

Connectors RJ45

Storage Support for microSD/microSDHC/microSDXC card

Protection Class IP66/ IK10
Operating Conditions

orage Conditions -20°C to 70°C (-4°F to 158°F)

St
Approvals EMC

Dimensions Ø207.4 x 300.4 mm with Sunshield
Weight 3800 g

UPoE (Universal Power over Ethernet)
or DC 12 V, 3.25 A or AC 24 V; max 39 W

Alarm in x4, Alarm out x2, Terminal Block
DC12V Terminal Block
AC24V Terminal Block
Audio in Terminal Block
Audio out Terminal Block
CVBS Connector
RS485 Terminal Block

Support for Recording to NAS

-40°C to 55°C (-40°F to 1

31°F) without Heater

10 % to 90 %, no Condensation

CE / FCC
Safety
Environment

LVD

IP66, I

EN_05/18
