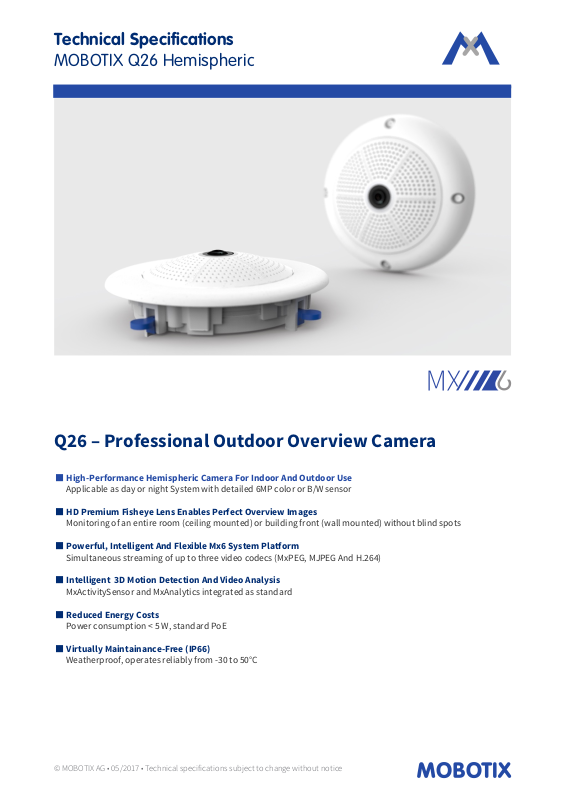

Page 1
Technical Specifications
MOBOTIX Q26 Hemispheric
Q26 – Professional Outdoor Overview Camera
◼︎ High-Performance Hemispheric Camera For Indoor And Outdoor Use
Applicable as day or night System with detailed 6MP color or B/W sensor
◼︎ HD Premium Fisheye Lens Enables Perfect Overview Images
Monitoring of an entire room (ceiling mounted) or building front (wall mounted) without blind spots
◼︎ Powerful, Intelligent And Flexible Mx6 System Platform
Simultaneous streaming of up to three video codecs (MxPEG, MJPEG And H.264)
◼︎ Intelligent 3D Motion Detection And Video Analysis
MxActivitySensor and MxAnalytics integrated as standard
◼︎ Reduced Energy Costs
Power consumption < 5 W, standard PoE
◼︎ Virtually Maintainance-Free (IP66)
Weatherproof, operates reliably from -30 to 50°C
© MOBOTIX AG • 05/2017 • Technical specifications subject to change without notice
Page 2
Camera Variants
Q26 Day
Complete Camera
Q26 Night
Complete Camera
Specialties
Factory-assembled Q26 Day or Night camera with sharply focused
fisheye special lens
Lenses
Q26 Day
Complete Camera
Q26 Night
Complete Camera
Fisheye Lens MX-B016 (f/2.0, Hemispheric 180° x 180°)
Mx-Q26A-6D016
Mx-Q26A-6N016
Hardware
Q26 Day
Complete Camera
Q26 Night
Complete Camera
Image sensor with individual exposure zones
Color
Black & White
Light sensitivity in lux at 1/60 s and 1/1 s
0.1/0.005
0.02/0.001
Image sensor (color or B/W sensor)
1/1.8“ CMOS, 6MP (3072 x 2048), Progressive Scan
Microprocessor
i.MX 6 Dual Core incl. GPU (1 GB RAM, 512 MB Flash)
H.264 Hardware Codec
Yes, bandwidth limitation available; output image format up to QXGA
Protection classes
IP66 and IK10 (IK10 with Vandalism Set)
Intended use
Not for use in hazardous areas (Ex area)
Ambient temperature (range, incl. storage)
-30 to 50°C/-22 to 122°F
Internal DVR, ex works
4 GB (microSD)
Microphone/speaker
Yes/Yes
16bit/16kHz HD wideband audio (Opus codec)
Yes (live and audio messages)
Passive infrared sensor (PIR)
No
Temperature sensor
Yes (live and audio messages)
Shock detector (tamper detection)
Yes (with future soware update)
Power consumption (typical)
< 5 watts
PoE Class (IEEE 802.3af)
Class 2 or 3 (variable), factory setting: class 3
Interfaces Ethernet 100BaseT/MxBus/USB
Yes (MxRJ45)/No/Yes
Interface RS232
With accessory (MX-232-IO-Box)
Mounting options
Wall, ceiling or floor
Dimensions (height x diameter)
48 x 160 mm
Weight
350 g
Housing
Fixed Dome, PBT-30GF, color: white
Standard delivery
Screws, dowels, allen wrench, Torx wrench,
0,5 m Ethernet patch cable, Quick Install
Detailed technical documentation
www.mobotix.com > Support > Manuals
Online version of this document
www.mobotix.com > Support > Spec Sheets
MTBF
> 80,000 hours
Certifications
EN55022:2010; EN55024:2010; EN50121-4:2006
EN61000-6-1:2007; EN 61000-6-2:2005
EN61000-6-3:2007+A1:2011
EN61000-6-4:2007+A1:2011
AS/ NZS CISPR22:2009+A1:2010
CFR47 FCC part15B
Protocols
IPv4, IPv6, HTTP, HTTPS, FTP, SFTP, RTP, RTSP, UDP, SNMP, SMTP, DHCP
(client and server), NTP (client and server), SIP (client and server) G.711
(PCMA and PCMU) and G.722
Technical Specifications
MOBOTIX Q26 Hemispheric
© MOBOTIX AG • 05/2017 • Technical specifications subject to change without notice
Page 3
Image Formats, Frame Rates, Image Storage
Q26 Day
Complete Camera
Q26 Night
Complete Camera
Available video codecs
MxPEG/MJPEG/H.264
Image formats
Freely configurable format 4:3, 8:3, 16:9 or customized format (Image
Cropping), such as 2592x1944 (5MP), 2048x1536 (QXGA), 1920x1080 (Full-
HD), 1280x960 (MEGA)
Multistreaming
Yes
Multicast stream via RTSP
Yes
Max. image format
6MP (3072 x 2048)
Max. frame rate (fps, only single core used)
MxPEG: 42@HD(1280x720), 34@Full-HD, 24@QXGA, 15@5MP, 12@6MP
MJPEG: 26@HD(1280x720), 13@Full-HD, 9@QXGA, 5@5MP, 4@6MP
H.264: 25@Full-HD, 20@QXGA
Number of images with 4 GB microSD (internal DVR)
CIF: 250.000, VGA: 125.000, HD: 40.000, QXGA: 20.000, 6MP: 10.000
General Functions
Q26 Day
Complete Camera
Q26 Night
Complete Camera
Digital zoom and pan
Yes
ONVIF compatibility
Yes, complete ONVIF Profile S supported by future soware update
Genetec protocol integration
Yes
Programmable exposure zones
Yes
Snapshot recording (pre/post-alarm images)
Yes
Continuous recording with audio
Yes
Event recording with audio
Yes
Time controlled flexible event logic
Yes
Weekly schedules for recordings and actions
Yes
Event video and image transfer via FTP and email
Yes
Playback and QuadView via web browser
Yes
Bidirectional audio in browser
Yes
Technical Specifications
MOBOTIX Q26 Hemispheric
© MOBOTIX AG • 05/2017 • Technical specifications subject to change without notice
Page 4
General Functions
Q26 Day
Complete Camera
Q26 Night
Complete Camera
Animated logos on the image
Yes
Master/Slave functionality
Yes
Privacy zone scheduling
Yes
Customized voice messages
Yes
VoIP telephony (audio/video, alert)
Yes
Remote alarm notification (network message)
Yes
Programming interface (HTTP-API)
Yes
DVR
Inside camera via microSD card, externally via USB device and NAS,
different streams for live image and recording, MxFFS with archive
function, pre-alarm an post-alarm images, monitoring recording with
failure reporting
Camera and data security
User and group management, SSL connections, IP-based access control,
IEEE802.1x, intrusion detection, digital image signature
MxMessageSystem:
Sending and receiving of MxMessages
Yes
Video Analysis
Q26 Day
Complete Camera
Q26 Night
Complete Camera
Video Motion Sensor
Yes
MxActivitySensor
Yes
MxAnalytics
Yes (Heatmaps, counting corridors and behavioural detection)
Video Management Soware
Q26 Day
Complete Camera
Q26 Night
Complete Camera
MxManagementCenter
Yes
Mobile MOBOTIX App
Yes
Technical Specifications
MOBOTIX Q26 Hemispheric
© MOBOTIX AG • 05/2017 • Technical specifications subject to change without notice
Page 5
Technical Specifications
MOBOTIX Q26 Hemispheric
Dimensions in mm
© MOBOTIX AG • 05/2017 • Technical specifications subject to change without notice
