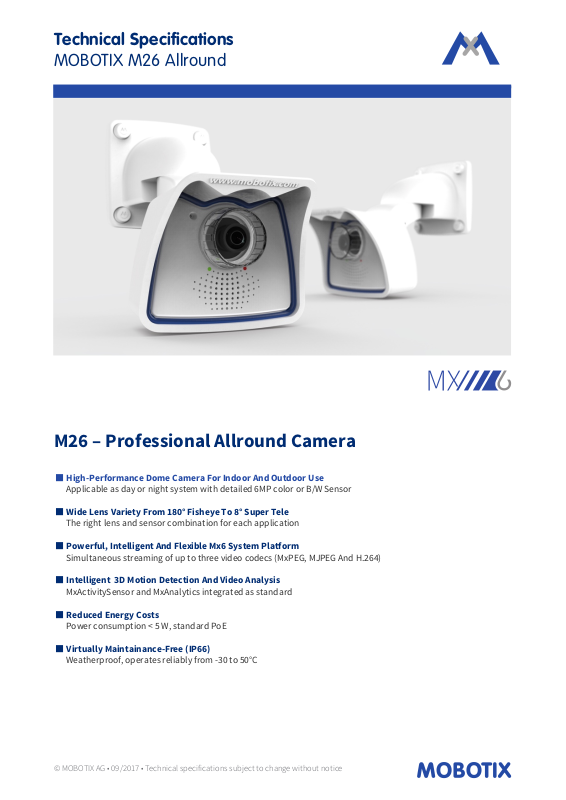

Page 1
Technical Specifications
MOBOTIX M26 Allround
M26 – Professional Allround Camera
◼︎ High-Performance Dome Camera For Indoor And Outdoor Use
Applicable as day or night system with detailed 6MP color or B/W Sensor
◼︎ Wide Lens Variety From 180° Fisheye To 8° Super Tele
The right lens and sensor combination for each application
◼︎ Powerful, Intelligent And Flexible Mx6 System Platform
Simultaneous streaming of up to three video codecs (MxPEG, MJPEG And H.264)
◼︎ Intelligent 3D Motion Detection And Video Analysis
MxActivitySensor and MxAnalytics integrated as standard
◼︎ Reduced Energy Costs
Power consumption < 5 W, standard PoE
◼︎ Virtually Maintainance-Free (IP66)
Weatherproof, operates reliably from -30 to 50°C
© MOBOTIX AG • 09/2017 • Technical specifications subject to change without notice
Page 2
Camera Variants
M26 Body Day Or Night
Lens For Self-Assembly
M26 Day
Complete Camera
M26 Night
Complete Camera
Specialties
M26 Body with 6MP Day or
Night sensor Mx-M26A-6D
or Mx-M26A-6N;
all lenses (except MX-B016)
available separately for self-
assembly
Factory-assembled M26 Day or Night cameras
with sharply focused lens (only fisheye lens variants
available in the Americas)
Lenses
M26 Body Day Or Night
Lens For Self-Assembly
M26 Day
Complete Camera
M26 Night
Complete Camera
Fisheye-Objektiv MX-B016 (f/2.0, 180° x 180°)
Not for M26 Body
Mx-M26A-6D016
Mx-M26A-6N016
Ultraweitwinkel-Objektiv MX-B036 (f/1.8, 103° x 77°)
Mx-M26A-6D036
Mx-M26A-6N036
Superweitwinkel-Objektiv MX-B041 (f/1.8, 90° x 67°)
Mx-M26A-6D041
Mx-M26A-6N041
Weitwinkel-Objektiv MX-B061 (f/1.8, 60° x 45°)
Lens selection for
Mx-M26A-6D061
Mx-M26A-6N061
Standard-Objektiv MX-B079 (f/1.8, 45° x 34°)
Lens selection for
M26 Body Day/Night
Mx-M26A-6D079
Mx-M26A-6N079
Teleobjektiv MX-B119 (f/1.8, 31° x 23°)
Lens selection for
M26 Body Day/Night
Body Day: Mx- M26A-6D
Body Night: Mx-M26A-6N
Mx-M26A-6D119
Mx-M26A-6N119
Distanz-Teleobjektiv MX-B237 (f/1.8, 15° x 11°)
Lens selection for
M26 Body Day/Night
Body Day: Mx- M26A-6D
Body Night: Mx-M26A-6N
Mx-M26A-6D237
Mx-M26A-6N237
Super-Teleobjektiv MX-B500 (f/2.5, 8° x 6°)
Lens selection for
M26 Body Day/Night
Body Day: Mx- M26A-6D
Body Night: Mx-M26A-6N
Mx-M26A-6D500
Mx-M26A-6N500
Hardware
M26 Body Day Or Night
Lens For Self-Assembly
M26 Day
Complete Camera
M26 Night
Complete Camera
Image sensor with individual exposure zones
Color or Black & White (B/W)
Color
B/W
Light sensitivity in lux at 1/60 s and 1/1 s
0.1/0.005 (Color)
0.02/0.001 (B/W)
0.1/0.005 (Color)
0.02/0.001 (B/W)
Image sensor (color or B/W sensor)
1/1.8“ CMOS, 6MP (3072 x 2048), Progressive Scan
Microprocessor
i.MX 6 Dual Core incl. GPU (1 GB RAM, 512 MB Flash)
H.264 Hardware Codec
Yes, bandwidth limitation available; output image format up to QXGA
Protection classes
IP66 and IK10
IP66 and IK10
Intended use
Not for use in hazardous areas (Ex area)
Ambient temperature (range, incl. storage)
-30 to 50°C/-22 to 122°F
-30 to 50°C/-22 to 122°F
Internal DVR, ex works
4 GB (microSD)
4 GB (microSD)
Microphone/speaker
Yes/Yes
Yes/Yes
16bit/16kHz HD wideband audio (Opus codec)
Yes (live and audio messages)
Yes (live and audio messages)
Passive infrared sensor (PIR)
No
No
Temperature sensor
Yes
Yes
Shock detector (tamper detection)
Yes (with future soware update)
Power consumption (typical)
< 5 watts
< 5 watts
PoE Class (IEEE 802.3af)
Class 2 or 3 (variable), factory setting: class 3
Interfaces Ethernet 100BaseT/MxBus/USB
Yes (MxRJ45)/No/Yes
Yes (MxRJ45)/No/Yes
Interface RS232
With accessory (MX-232-IO-Box)
Mounting options
Wall, ceiling or pole (pole mount: MOBOTIX accessory)
Dimensions (Height x Width x Depth)
189 x 140 x 220 mm
189 x 140 x 220 mm
Weight
350 g
350 g
Housing
Fixed Network, PBT-30GF, color: white
Standard accessory
Screws, dowels, allen wrenches, VarioFlex wall and ceiling mount, rubber sealing
0,5 m Ethernet patch cable, Quick Install
Technical Specifications
MOBOTIX M26 Allround
© MOBOTIX AG • 09/2017 • Technical specifications subject to change without notice
Page 3
Hardware
M26 Body Day Or Night
Lens For Self-Assembly
M26 Day
Complete Camera
M26 Night
Complete Camera
Detailed technical documentation
www.mobotix.com > Support > Manuals
Online version of this document
www.mobotix.com > Support > Spec Sheets
MTBF
> 80,000 hours
> 80,000 hours
Certifications
EN55032:2012
EN55022:2010; EN55024:2010; EN50121-4:2015
EN61000-6-1:2007; EN 61000-6-2:2005
EN61000-6-3:2007+A1:2011
EN61000-6-4:2007+A1:2011
AS/ NZS CISPR22:2009+A1:2010
CFR47 FCC part15B
EN55032:2012
EN61000-6-3:2007+A1:2011
EN61000-6-4:2007+A1:2011
CFR47 FCC part15B
Protocols
IPv4, IPv6, HTTP, HTTPS, FTP, SFTP, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and
server), NTP (client and server), SIP (client and server) G.711 (PCMA and PCMU) and G.722
Image Formats, Frame Rates, Image Storage
M26 Body Day Or Night
Lens For Self-Assembly
M26 Day
Complete Camera
M26 Night
Complete Camera
Available video codecs
MxPEG/MJPEG/H.264
MxPEG/MJPEG/H.264
Image formats
Freely configurable format 4:3, 8:3, 16:9 or customized format (Image Cropping), such as
2592x1944 (5MP), 2048x1536 (QXGA), 1920x1080 (Full-HD), 1280x960 (MEGA)
Multistreaming
Yes
Yes
Multicast stream via RTSP
Yes
Yes
Max. image format
6MP (3072 x 2048)
6MP (3072 x 2048)
Max. frame rate (fps, only single core used)
MxPEG: 42@HD(1280x720), 34@Full-HD, 24@QXGA, 15@5MP, 12@6MP
MJPEG: 26@HD(1280x720), 13@Full-HD, 9@QXGA, 5@5MP, 4@6MP
H.264: 25@Full-HD, 20@QXGA
H.264: 25@Full-HD, 20@QXGA
Number of images with 4 GB microSD (internal DVR)
CIF: 250,000, VGA: 125,000, HD: 40,000, QXGA: 20,000, 6MP: 10,000
General Functions
M26 Body Day Or Night
Lens For Self-Assembly
M26 Day
Complete Camera
M26 Night
Complete Camera
Digital zoom and pan
Yes
Yes
ONVIF compatibility
Yes, complete ONVIF Profile S supported by future soware update
Genetec protocol integration
Yes
Yes
Programmable exposure zones
Yes
Yes
Snapshot recording (pre/post-alarm images)
Yes
Yes
Continuous recording with audio
Yes
Yes
Event recording with audio
Yes
Yes
Time controlled flexible event logic
Yes
Yes
Technical Specifications
MOBOTIX M26 Allround
© MOBOTIX AG • 09/2017 • Technical specifications subject to change without notice
Page 4
General Functions
M26 Body Day Or Night
Lens For Self-Assembly
M26 Day
Complete Camera
M26 Night
Complete Camera
Weekly schedules for recordings and actions
Yes
Yes
Event video and image transfer via FTP and email
Yes
Yes
Playback and QuadView via web browser
Yes
Yes
Bidirectional audio in browser
Yes
Yes
Animated logos on the image
Yes
Yes
Master/Slave functionality
Yes
Yes
Privacy zone scheduling
Yes
Yes
Customized voice messages
Yes
Yes
VoIP telephony (audio/video, alert)
Yes
Yes
Remote alarm notification (network message)
Yes
Yes
Programming interface (HTTP-API)
Yes
Yes
DVR
Inside camera via microSD card, externally via USB device and NAS, different streams for
live image and recording, MxFFS with archive function, pre-alarm an post-alarm images,
monitoring recording with failure reporting
Camera and data security
User and group management, SSL connections, IP-based access control, IEEE802.1x,
intrusion detection, digital image signature
MxMessageSystem:
Sending and receiving of MxMessages
Yes
Yes
Video Analysis
M26 Body Day Or Night
Lens For Self-Assembly
M26 Day
Complete Camera
M26 Night
Complete Camera
Video-Bewegungssensor
Yes
Yes
MxActivitySensor
Yes
Yes
MxAanlytics
Yes (Heatmaps, counting corridors)
Video Management Soware
M26 Body Day Or Night
Lens For Self-Assembly
M26 Day
Complete Camera
M26 Night
Complete Camera
MxManagementCenter
Yes
Yes
Mobile MOBOTIX App
Yes
Yes
Technical Specifications
MOBOTIX M26 Allround
© MOBOTIX AG • 09/2017 • Technical specifications subject to change without notice
Page 5
Technical Specifications
MOBOTIX M26 Allround
Dimensions in mm
© MOBOTIX AG • 09/2017 • Technical specifications subject to change without notice
