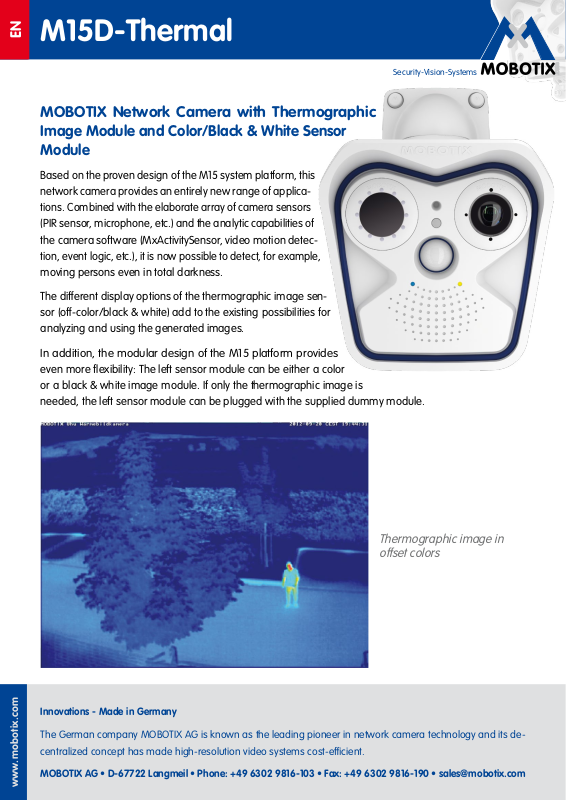

M15D-Thermal

Q24

MOBOTIX Network Camera with Thermographic
Image Module and Color/Black & White Sensor
Module

Based on the proven design of the M15 system platform, this
network camera provides an entirely new range of applica­tions. Combined with the elaborate array of camera sensors
(PIR sensor, microphone, etc.) and the analytic capabilities of
the camera software (MxActivitySensor, video motion detec­tion, event logic, etc.), it is now possible to detect, for example,
moving persons even in total darkness.

Security-Vision-Systems

The dierent display options of the thermographic image sen
sor (o-color/black & white) add to the existing possibilities for
analyzing and using the generated images.

In addition, the modular design of the M15 platform provides
even more flexibility: The left sensor module can be either a color
or a black & white image module. If only the thermographic image is
needed, the left sensor module can be plugged with the supplied dummy module.

-

Thermographic image in
oset colors

Innovations - Made in Germany

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its de-

centralized concept has made high-resolution video systems cost-ecient.

MOBOTIX AG • D-67722 Langmeil • Phone: [phone] • Fax: [phone] • [e-mail]

www.mobotix.com

EN

M15D-Thermal

Security-Vision-Systems

Technical Specifications M15D-Thermal

Model Variants MX-M15D-Thermal-L43/L65/L135

Lens options
Thermal image sensor (right)

Lens options MX sensor
module (left, optional)

Sensitivity
Thermal image sensor (right)

Temp. measuring range
Thermal image sensor (right)

Sensitivity
MX sensor module (left)

Image sensor
Thermal image sensor (right)

Image sensor
MX sensor module (left)

Max. image size
Thermal image sensor (right)

Max. image size
MX sensor module (left)

Image formats
Thermal image sensor (right)
MX sensor module

When displaying dual images (thermo image sensor and MX sensor

module), the frame rate is reduced to 9fps

*

Max. frame rate
Thermal image sensor (right)

Max. frame rate MxPEG
(Live/recording with sound)
MX sensor module (left)

Image compression MxPEG, M-JPEG, JPEG, H.264 (SIP video only)

Internal DVR MicroSD slot including 4GB, max. 64GB

External
video ring buer

Software (included) MxEasy video management software,

Image Processing Backlight compensation, automatic white

Virtual PTZ Digital pan/tilt/zoom, continuous up to 8X

Alarm/events Video Motion detection, MxActivitySensor, external

Microphone and speaker Microphone and speaker integrated

45°, 25°, 17° horizontal field of view

180° to 13° horizontal field of view

NETD typ. 50mK, <79mK, IR range 7.5 to 13.5μm

–40 to +550°C/–40 to 1,022°F

Color sensor: 0.25Lux at 1/60s, 0.013Lux at 1s
black & white sensor: 0.05 Lux at 1/60s,

0.0025 Lux at 1s,
MxLEO– MOBOTIX Lowlight Exposure Optimization

Uncooled micro bolometer, 336x252 pixels

1/2.5“ CMOS, 5MP (2592x1944 pixels), progressive
scan

Can be scaled up to 2048x1536 (QXGA), automati
cally scaled to size of MX sensor module

Color/Black & White 2048x1536 (QXGA)

2048x1536 (QXGA), 1920x1080 (Full HD), 1280x960
(MEGA), 1280x720 (HD), 1024x768, 800x600,
768x576 (D1-PAL), 704x576 (TV-PAL), 640x480,
384x288, 320x240, 160x120, custom formats

*

9fps

VGA: 30fps, MEGA: 30fps, QXGA: 20fps,
Dual image: 9fps

Up to 4TB directly on NAS and PC/Server, no
additional recording software required

MxControlCenter control center software,
MOBOTIX App for iOS devices version 5.0 and
higher

balance, image distortion correction, panorama
correction, video sensors (video motion detec
tion/MxActivitySensor), optional o-color/black &
white display of thermographic sensor

signals, temperature sensor, PIR, microphone,
shock detector, notification via e-mail, FTP, IP
telephony (VoIP, SIP), visual/acoustic alarms, pre­and post-alarm images

Technical Specifications M15D-Thermal

Audio features Lip-synchronous audio, two-way communication,

Interfaces Ethernet 10/100, IPv4/IPv6, MiniUSB, MxBus;

Video telephony VoIP/SIP, two-way communication, remote control

Security User/group management, HTTPS/SSL, IP address

-

Certifications EMV (EN55022, CISPR22, EN55024, EN61000-6-

Power supply Year-round Power-over-Ethernet (IEEE 802.3af);

Power consumption
without MX sensor module

Max. power consumption of
attached MxBus modules

-

Operating conditions IP66, –30 to +60°C/–22 to +140°F

Shock resistance

Dimensions/weight
M15D-Thermal without MX
sensor module

Weights
MX sensor modules

Standard Delivery Housing (high-resistance composite, PBT), white,

Thermal image sensor

audio recording

inputs/outputs and RS232 via accessories

ling using key codes, event notification

filter, IEEE 802.1x, intrusion detection, digital image
signature

1/2, FCCPart15B, CFR47, AS/NZS3548)

PoE class3 required

Typ. <5W

3W
MxBus and USB: 4W

IK06 (IEC62262/EN50102)

W x H x D with wall mount: 158 x 244 x 239mm;
W x H x D with ceiling mount: 158 x 210 x 207mm;
Weight with wall mount: approx. 1,210g
Weight with ceiling mount: approx. 1,160g

L12: 85g
L25, L51: 111g
L38, L76, L160: 122g

shock-resistant dome for L12 sensor module,
coated glass pane for all other sensor modules,
accessories for installation on wall and ceiling,
Allen wrench, 50 cm patch cable, manual,
software, 4GB MicroSD card (built-in)

MX sensor module
(Color/Black & White),

optional

-

Innovations - Made in Germany

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its de-

centralized concept has made high-resolution video systems cost-ecient.

MOBOTIX AG • D-67722 Langmeil • Phone: [phone] • Fax: [phone] • [e-mail]

www.mobotix.com

EN

M15D-Thermal

Security-Vision-Systems

M15D-Thermal Standard Delivery

Item Count Part Name

1.1 1 Camera housing with mainboard and wall mount

1.2 1 Front element with one thermographic image sensor,

1.3 1 Transport plugs (installed)

1.4 1 Dummy module (must be installed when using only

1.5 4 Inner housing cover (installed)

1.6 4 Stainless steel Allen screw with flat head M4x8 for

1.7 2 Cable lock black with bayonet catch (Ethernet patch

1.8 2 Single wire plug, blue (MxBus, USB, mounted)

1.9 1 MicroSD card 4GB (installed)

1.10 1 Ethernet patch cable, 50cm/19.7in with sealing

1.11 2 Sensor module cable 15cm/6in (installed in camera)

1.12 1 I/O cable with red clips to front element 15cm/6in

1.13 1 Hinged ferrite for Ethernet cable (installed)

1.14 1 Hinged ferrite for sensor module cable (installed)

1.15 2 Rubber plug for covering mounting screws, white

1.16 3 Stainless steel Allen screw M6x30 (installed)

1.17 3 Stainless steel washer Ø 6.4mm (installed)

1.18 1 Stainless steel spring washer Ø 6.4mm (wall/ceiling

1.19 1 Stainless steel lock nut M6 (wall/ceiling mount,

(installed)

germanium disc and additional sensors (installed)

one sensor module)

inner housing cover (installed)

cable, USB, one mounted, one supplied)

(installed)

(installed)

mount, installed)

installed)

1.1

M.11

M.10

M.9

M.7

M.8

1.4

M.6

1.6

M.5

M.4

1.8

M.3

M.2

M.1

1.19

1.18

1.17

1.15

1.12

1.14

1.13

1.16

For accessories and additional information see the M15 documentation
(www.mobotix.com> Support> Manuals).

1.2

1.3

1.5

1.7

1.9

1.10

1.11

Remarks

• Delivery time for single unit: None
Delivery time for projects: 8 to 12 weeks

• MTBF >80,000 hours

Attention – Special Export Laws Apply!

Cameras with thermal image sensors (“thermal cameras”) are subject to the special export regulations of the U.S.A. and the ITAR
(International Trac in Arms Regulation):

• According to the currently applicable export regulations of the U.S.A. and the ITAR, cameras with thermal image sensors

or parts thereof must not be exported to countries embargoed by the U.S.A. or the ITAR. At present, this applies to the
following countries: Syria, Iran, Cuba, North Korea and Sudan. The same export ban applies to all persons and institutions
listed in “The Denied Persons List” (see

• Under no circumstances can the camera itself or its thermal image sensors be used in the design, the development or in the

production of nuclear, biological or chemical weapons or in the weapons themselves.

www.bis.doc.gov> Policy Guidance> Lists of Parties of Concern).

All measurements in mm.
