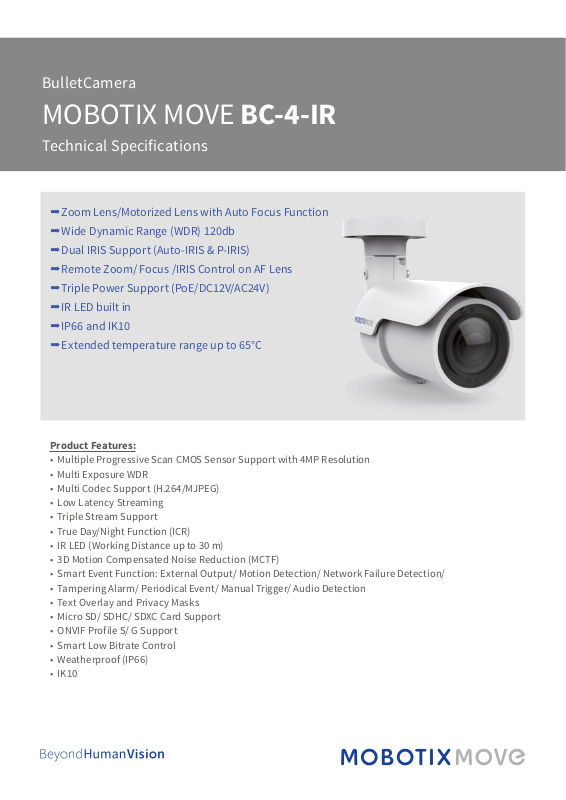

Mobotix Mx-BC1A-4-IR Specsheet

BulletCamera

MOBOTIX MOVE BC-4-IR

Technical Specifications

Zoom Lens/Motorized Lens with Auto Focus Function

Wide Dynamic Range (WDR) 120db

Dual IRIS Support (Auto-IRIS & P-IRIS)

Remote Zoom/ Focus /IRIS Control on AF Lens

Triple Power Support (PoE/DC12V/AC24V)

IR LED built in

IP66 and IK10

Extended temperature range up to 65°C

Product Features:

• Multiple Progressive Scan CMOS Sensor Support with 4MP Resolution

• Multi Exposure WDR

• Multi Codec Support (H.264/MJPEG)

• Low Latency Streaming

• Triple Stream Support

• True Day/Night Function (ICR)

• IR LED (Working Distance up to 30 m)

• 3D Motion Compensated Noise Reduction (MCTF)

• Smart Event Function: External Output/ Motion Detection/ Network Failure Detection/

• Tampering Alarm/ Periodical Event/ Manual Trigger/ Audio Detection

• Text Overlay and Privacy Masks

• Micro SD/ SDHC/ SDXC Card Support

• ONVIF Profile S/ G Support

• Smart Low Bitrate Control

• Weatherproof (IP66)

• IK10

Technical Specifications: BulletCamera BC-4-IR

Lens Movement Sensor

Auto Focus

The MOBOTIX MOVE BulletCamera BC-4-IR can per­form fast, reliable auto focus and can adapt to dier­ent indoor and outdoor scenes through its unique al­gorithm. As auto focus can be done by camera itself,
no on-site focus adjustment is required.

4MP WDR

The MOBOTIX MOVE BulletCamera BC-4-IR utilizes
state of the art image processing technology, provid­ing 4MP resolution high quality video. Its WDR capa­bility captures more image detail under challenging
light conditions, such as entrance area, warehouse
loading bay or parking lot.









MOBOTIX MOVE BulletCamera BC-4-IR – Specification:

MOBOTIX MOVE BulletCamera BC-4-IR

MOBOTIX Order Number Mx-BC1A-4-IR

Sensor

Eective Pixels

Pi

xel Size 2.0 μm

Frame Rate (Maximum) H.264: WDR 4MP@30fps + d1@30fps

Lens

Minimum Illumination Color

Lens Zoom Lens

4MP
1/3“ Progressive CMOS

H x V = 2688 x 1512 (4MP)

MJPEG: 1080p@30fps

B/W

Focal Length
Horizontal (Field of View) Vertical
(Field of View)

0.1 lux

0.01 lux

Focus, Zoom, P-Iris,
Auto-Iris, F1.7 3 to 9 mm
103° (Wide), 35° (Tele)
53° (Wide), 23° (Tele)

Camera

Day and Night

Shutter Time 1 to 1/10K sec.

WDR

EIS No
Zoom Optical Zoom, Digital Zoom ready by Lens Type

Settings

Corridor Mode 90°, 180°, 270° Rotation

Video Codec

Compression H.264/MJPEG

Streaming Up to 3 individually configurable Streams in H.264/

Audio Codec

Compression G.711/G.726/A AC/LPCM
Streaming 2-Way
Audio Input Line in

Automatically removable IR-cut Filter

Yes

Color, Brightness, Sharpness, Contrast White Balance,
Exposure Control 2DNR, 3DNR, NR by Motion Masking,
Text Overlay

MJPEG Configurable Resolution/Frame Rate/Band­width LBR/VBR/CBR in H.264

Audio Output Line out

Network

Interface 10/100 Mbps Ethernet
Security User Authentication/HTTPS/IP Filter/IEEE 802.1x
Supported

Protocols

ONVIF Profile S/G conformant

System Integration

Analytics Motion Detection/Tampering/Audio Detection
Event Triggers External Input, Analytics, Network Failure Detection,

Event Actions External Output Activation

ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP,
UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP,
DDNS

Periodical Event, Manual Trigger

Video and Audio Recording to Edge Storage
File Upload:
FTP, Network Share and Email Notification:
HTTP, FTP, Email

Technical Specifications: BulletCamera BC-4-IR

General

Casing Metal and Plastic
Power

Con

nectors RJ45

IR Illumination

Storage Support for microSD/microSDHC/microSDXC card

Protection Class IP66/ IK10
Operating Conditions -30°C to 65°C (-22°F to 131°F) without Heater

Storage Conditions -20°C to 70°C (-4°F to 158°F)
Approvals EMC

Dimensions Ø92 x 220 mm
Weight 780 g

PoE IEEE802.3

af

or DC 12 V, 2.12 A
or AC 24 V;

max 13.68 W

Alarm in x4, Alarm out x1, Terminal Block
DC12V Terminal Block
AC24V Terminal Block
Audio in 3.5 mm Jack
Audio out 3.5 mm Jack

Illumination Distance: up to 30 m

Support for Recording to NAS

-55°C to 65°C (-67°F to 131°F) with Heater
10 % to 90 %, no Condensation

CE / FCC
Safety
Environment

LVD

IP66

EN_05/18
