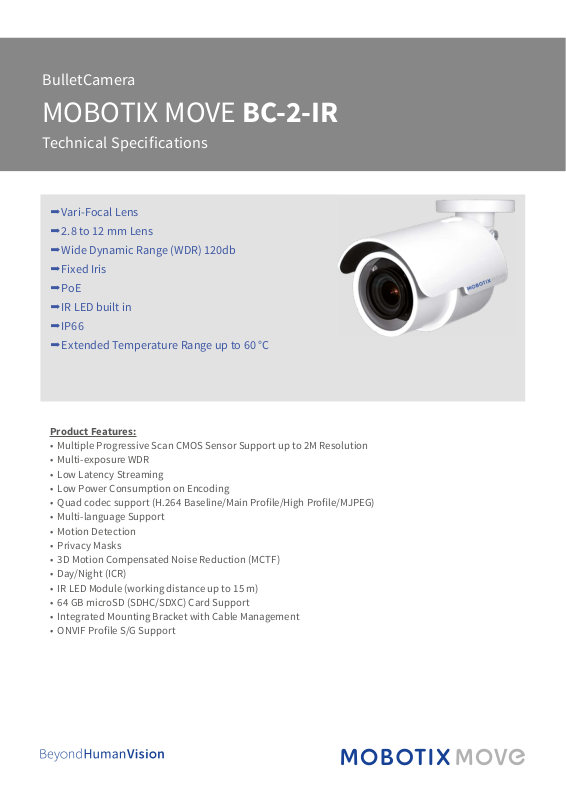

Page 1
BulletCamera
MOBOTIX MOVE BC-2-IR
Technical Specications
Vari-Focal Lens
2.8 to 12 mm Lens
Wide Dynamic Range (WDR) 120db
Fixed Iris
PoE
IR LED built in
IP66
Extended Temperature Range up to 60 °C
Product Features:
• Multiple Progressive Scan CMOS Sensor Support up to 2M Resolution
• Multi-exposure WDR
• Low Latency Streaming
• Low Power Consumption on Encoding
• Quad codec support (H.264 Baseline/Main Prole/High Prole/MJPEG)
• Multi-language Support
• Motion Detection
• Privacy Masks
• 3D Motion Compensated Noise Reduction (MCTF)
• Day/Night (ICR)
• IR LED Module (working distance up to 15 m)
• 64 GB microSD (SDHC/SDXC) Card Support
• Integrated Mounting Bracket with Cable Management
• ONVIF Prole S/G Support
Page 2
Technical Specications: BulletCamera MOBOTIX MOVE BC-2-IR
BulletCamera MOBOTIX MOVE BC-2-IR
MOBOTIX Order Number Mx-BC1A-2-IR
Image Sensor 1/3” Progressive CMOS
Eective Pixels 1920(H) x 1080 (V)
Minimum Illu
mination
Shutter Speed 1 ~ 1/10000 sec.
S/N ratio > 50 dB
Lens
Lens Manual Vari-Focal Lens
Focal Length 2.8-12 mm
F Number F1.4
FOV 91.61 º(Wide); 34.3 º (Tele)
Operation
Multiple Languages
Color 0.1 lux
-
B/W 0.01 lux
English/French/German/Italian/Japanese/Korean/Portu
guese/Russian/Simplied Chinese/Spanish/Traditional Chinese
Iris Control Fixed Iris
Backlight Compensation On/O
White Balance Auto/Manual/ATW/One Push
-
Event Setting
Noise Reduction 3DNR/2DNR/ColorNR
Wide Dynamic Range Shutter WDR On/O (120 dB)
Privacy Mask On/O
Privacy Mask Type Black
Brightness Manual
Exposure Auto/Manual
Sharpness Manual
Contrast Manual
Saturation Manual
Hue Manual
Digital Zoom Support
ICR Auto/Smart/Day/Night
ICR + IR LED Auto/LED On/LED O/Smart IR/Light Sensor/Day/Night
Motion Detection By Schedule/On/O
Tampering Alarm By Schedule/On/O
Page 3
Network
Interface RJ-45, 10/100 Mbps Ethernet
Video Compression H.264 (MPEG-4 Part 10/AVC)/MJPEG
2M @ 25/30 fps + SVGA @ 25/30 fps
Video Streaming Dual Streams
H.264
Video Resolution
MJPEG
Protocol
Security HTTPS/IP Filter/IEEE 802.1X
Event Notication HTTP/FTP/SMTP
SD Card 64 GB microSD (SDHC/SDXC) card support
Supported Web Browser Internet Explorer (7.0+)/Firefox/Safari
User Account 20
1080p @ 25/30 fps + D1 @ 25/30 fps
H.264 1080p @25/30 fps + H.264 SVGA @15 fps +
H.264 CIF @15 fps + H.264 CIF @15 fps
Full HD 1080P/SXGA/HD 720P/XGA/SVGA/D1/VGA/
CIF
Full HD 1080P/SXGA/HD 720P/XGA/SVGA/D1/VGA/
CIF
ARP, IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS,
ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP,
QoS, ONVIF
Password Levels User and Administrator
Mechanical
Working Distance Up to 15 m
Built-in IR Illuminator
LED Indicator Power/Link/ACT
Connectors
General
Start-Up Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Operating Temperature -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 10 % ~ 90 %, No Condensation
Protection Class IP66
Dimension
Weight 330 g
Power Source PoE
Power Consumption POE: 5.6 W
Regulatory CE/FCC
Approvals
Wavelength 850 nm
Number of LEDs 5
Type Outdoor
Ethernet RJ-45
Outdoor w/cable management: ø 71.5 x150.53 x
91.15 mm (ø 2.815 x 5.92 x 3.58 in. )
EN 50130-4;
IEC61000-4-2, IEC61000-4-3, IEC61000-4-4,
IEC61000-4-5, IEC61000-4-6
IP66
Page 4
Technical Specications: BulletCamera MOBOTIX MOVE BC-2-IR
Unit: mm
EN_04/2019
