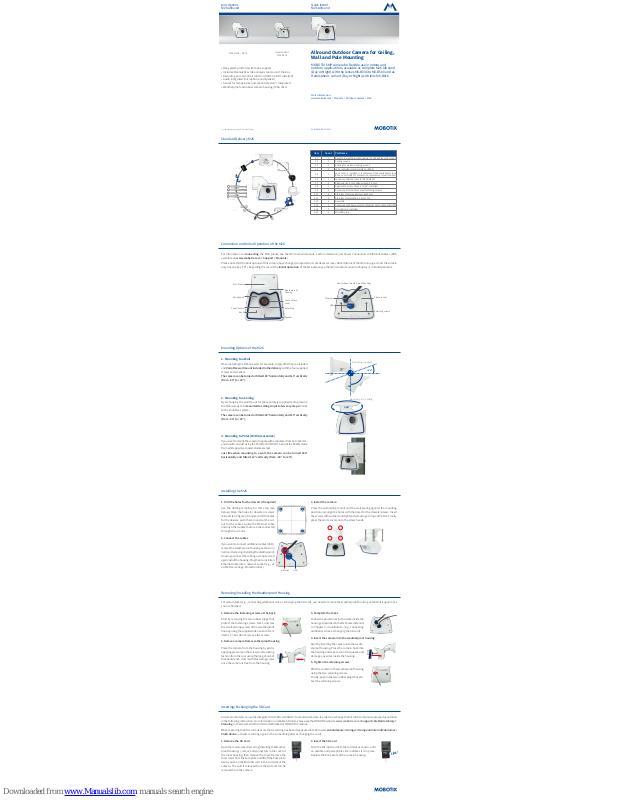

Mobotix M26 Quick Install Manual
32.818-002_EN_10/2017
Quick Install
M26 Allround
Lens Options
M26 Allround
• Mx6 system platform with H.264 support
• Includes MxAnalytics video analysis tools out-of-the-box
• Recording on internal microSD card (SDXC, SDHC installed)
• Audio integrated (microphone and speaker)
• Sensor for temperature and shock detector(*) integrated
• Weatherproof and robust camera housing (IP66, IK10)
Standard Delivery M26
1.2
1.3
1.9
1.10, 1.11, 1.12
1.14
1.8
1.13
1.5
1.4
1.6
1.1
1.7
1.15
Item Count Part Name
1.1 1 Camera in weatherproof housing, incl. VarioFlex wall mount
1.2 1 Ceiling mount
1.3 1 Sealing for wall and ceiling mount
1.4 1 Lens, installed (standard M14 or B016)
1.5 2
Lens cover, 1 installed, 1 replacement (not available for lens
B016, cover for B500 not shown, no replacement cover for B500)
1.6 1 Lens wrench B016 (only for D016/N016)
1.7 2 Allen wrench 5 mm, Allen wrench 2.5 mm
1.8 1 Special Ethernet cable 0.5 m/20", installed
1.9 4 Screw caps for stainless steel fastening screws
1.10 4 Stainless steel wood screws 6x50 mm
1.11 4 Stainless steel washers 6.4 mm dia.
1.12 4 Dowel S8
1.13 2
Cable lock with bayonet catch (Ethernet patch cable, MiniUSB)
1.14 1 MicroSD card installed
1.15 1 MiniUSB plug
Allround Outdoor Camera for Ceiling,
Wall and Pole Mounting
MOBOTIX 6MP camera for exible use in indoor and
outdoor applications, available as complete M26 Allround
(Day or Night) with the lenses MX-B036 to MX-B500 and as
Hemispheric variant (Day or Night) with lens MX-B016.
More Information:
www.mobotix.com > Products > Outdoor Cameras > M26
Removing/Installing the Weatherproof Housing
For certain tasks (e.g., connecting additional wires, exchanging the SD card), you need to remove the weatherproof housing and install it again once
you are nished.
1. Remove the fastening screws at the back
Start by removing the two rubber plugs that
protect the fastening screws. Next, unscrew
the two fastening screws of the weatherproof
housing using the supplied Allen wrench 5 mm
(item 1.7), but do not remove the screws
2. Remove camera from weatherproof housing
Press the camera from the housing by gently
applying pressure on the screws in alternating
fashion from the rear using the long shank of
the Allen wrench. Unscrew the fastening screws
once the camera is free from the housing
3. Complete the tasks
Follow the procedures for the work inside the
housing as described in the M25 Camera Manual
in
Chapter 2, «Installation»
(e.g., connecting
additional wires, exchanging the SD card).
4. Insert the camera into the weatherproof housing
Start by inserting the camera into the weatherproof housing. Press the camera back into
the housing and take care not to squeeze and
damage any wires inside the housing.
5. Tighten the retaining screws
Aix the camera in the weatherproof housing
using the two retaining screws.
Finally, push in the two rubber plugs that protect the retaining screws.
Mounting Options of the M26
1. Mounting to a Wall
When installing the M26 on a wall, for example, simply aix the pre-installed
and VarioFlex wall mount included in the delivery with the four supplied
screws and washers.
The camera can be turned or tilted 180° horizontally and 110° vertically
(from –90° to +20°).
2. Mounting to a Ceiling
By exchanging the wall mount for the separately supplied ceiling mount,
the M26 is ready to be mounted to ceilings in just a few easy steps thanks
to the VarioFlex system.
The camera can be turned or tilted 360° horizontally and 110° vertically
(from –90° to +20°).
3. Mounting to Poles (With Accessories)
If you want to mount the camera to a pole with a diameter from 60 to 180 mm,
you should consider using the Pole Mount (MX-MH-SecureFlex-ESWS) made
from white powder-coated stainless steel.
Just like when mounting to a wall, the camera can be turned 180°
horizontally and tilted 110° vertically (from –90° to +20°).
–90°
+20°
Mounting to a Wall
360°
Mounting to a Ceiling
M26 B036 – B500
Hemispheric
M26 B016
Connection and Initial Operation of the M26
For information on connecting the M26, please see the
M25 Camera Manual,
section
«Network and Power Connection, Additional Cables»
(PDF,
available on www.mobotix.com > Support > Manuals).
Please note that the boot options of this camera have changed compared to its predecessor (see
«Boot Options of the M26 on page 1
) and the camera
only has one key ("R"). Regarding the rest of the initial operation of the M26 please see the
M25 Camera Manual
in
Chapter 3, «Initial Operation»
Microphone
Wall Mount
Recording
Weatherproof
housing
Lens and lens
cover
Speaker
Power/Status
Key R
Ethernet
Pressure vent
Retaining screws
USB
Rear (without weatherproof housing)
Installing the M26
1. Drill the holes for the dowels (if required)
Use the drilling template for this step (see
below). Mark the holes for dowels or screws
(blue circles in gure). If required, drill the holes
for the dowels, push them in and cut the cutout for the cables. Guide the Ethernet cable
and any other cables that are to be connected
through the cut-out.
2. Connect the cables
If you want to connect additional cables (USB),
remove the weatherproof housing as shown in
Section «Removing/Installing the Weatherproof
Housing»
, connect the cabling as required and
again install the housing. Plug the pre-installed
Ethernet cable into a network socket (e.g., of
an MX-Overvoltage-Protection-Box).
3. Install the camera
Press the wall/ceiling mount and the wall sealing against the mounting
position and align the holes with the holes for the dowels/screws. Insert
the screws with washers and tighten them using a torque of 0.4 Nm. Finally,
press the white covers onto the screw heads.
Ethernet USB
Inserting/Exchanging the SD Card
All camera models can use the integrated microSD card (SDHC) to record video data. In order to exchange the microSD card, please proceed as outlined
in the following instruction. For information on reliable SD cards, please see the MOBOTIX website www.mobotix.com > Support > MxMedia Library >
Planning in the document
MicroSD Card Whitelist for MOBOTIX Cameras
.
When replacing the SD card, make sure that recording has been deactivated in the browser (
Admin Menu > Storage > Storage on External File Server /
Flash Device
; activate recording again in the same dialog aer exchanging the card).
1. Remove the SD Card
Open the camera (see «Removing/Installing the Weatherproof Housing» ), remove all connectors in the cover of
the inner housing, then remove the cover. Remove the
four screws from the back plate and li o the back plate.
Gently push on the MicroSD card in the card slot of the
camera. The card is released from the slot and can be
removed from the camera.
2. Insert the SD Card
Push the MicroSD card into the card slot as shown, until
an audible and perceptible click indicates it is in place
.
Replace the back plate of the camera housing.
Click!
*: with rmware version 5.0.1 and higher
MOBOTIX AG
Kaiserstrasse
D-67722 Langmeil
Tel.: +49 6302 9816-0
Fax: +49 6302 9816-190
sales@mobotix.com
www.mobotix.com
Declaration of Conformity: www.mobotix.com > Support > MxMedia Library > Certicates
MOBOTIX, the MX logo, MxControlCenter, MxEasy, MxPEG and MxActivitySensor are trademarks of
MOBOTIX AG registered in the European Union, the U.S.A., and other countries • Information subject to
change without notice • MOBOTIX does not assume any liability for technical or editorial errors or omissions
contained herein • All rights reserved • © MOBOTIX AG 2017
Technical Specications M26
Lens Options
MX-B016 bis MX-B500, 180° to 8° horizontal angle of
view
Sensitivity
• Color sensor (day): 0,1 lx @ 1/60s; 0,005 lx @ 1s
• BW sensor (night): 0,02 lx @ 1/60s; 0,001 lx @ 1s
Image Sensor 1/1.8“ CMOS, 6MP (3072x2048), progressive scan
Max. Image Size 6MP (3072x2048)
Image Formats
Freely congurable format 4:3, 8:3, 16:9 or customized format (image cropping), like 2592x1944 (5MP),
2048x1536 (QXGA), 1920x1080 (Full-HD), 1280x960
(MEGA)
Max. Frame Rate
• MxPEG: 42@HD(1280x720), 34@Full-HD, 24@QXGA,
14@5Mp, 12@6MP
• M-JPEG*: 25@HD(1280x720), 13@Full-HD, 9@QXGA,
5@5Mp, 4@6MP
• H.264: 25@Full-HD, 20@QXGA
Video Codec
• MxPEG, M-JPEG, JPEG (max. output fromat 6MP)
• H.264 (max. output format QXGA; bandwith limitation
possible)
DVR
• Camera-internal via microSD card (SDXC, SDHC preinstalled)
• External on USB device
• External on NAS
• Full image recording regardless of live image zoom
• MxFFS
• Pre-alarm and post-alarm images
• DVR monitoring with error notication
Soware MxManagementCenter
Image Processing
MxLEO, backlight compensation, automatic white
balance, image distortion correction
PTZ Digital pan/tilt/zoom; max. zoom 8x (continious)
Alarm/Events
Temperature sensor, shock detector (with rmware
version 5.0.1 and higher), microphon, other sensors/
IOs via MxMessageSystem, notication via e-mail, FTP,
IP telephony (VoIP, SIP), visual/sound alarms, pre- and
postalarm images
Intelligent Video
Analysis
MxActivitySensor, video motion analysis, MxAnalytics
Audio
• Microphone/ loudspeaker, both 16bit/16kHz (HDWideband-Audio))
• Lip-synchronous audio, audio recording
• VoIP/SIP, two-way communication, remote controlling using key codes
Interfaces
Ethernet 100BaseT (MxRJ45), MiniUSB (MxMiniUSB)
Security
User/Group management, SSL, IP address lter,
IEEE802.1x, intrusion detection, digital imge signature,
MxFFS
Certications
EN55032:2012; EN55022:2010; EN55024:2010;
EN50121-4:2015; EN61000-6-1:2007; EN 61000-62:2005; EN61000-6-3:2007+A1:2011; EN61000-64:2007+A1:2011; AS/ NZS CISPR22:2009+A1:2010; CFR47
FCC part15B
Power Supply Power over Ethernet (IEEE 802.3af)
Power
Consumption
Typ. 3,3 W
Protection Classes
IP66
IK10
Ambient
Temperature
–30 bis 50 °C
Dimensions/Weight
W x H x D: 140 x 189 x 220 mm; weight: about 350 g
Standard Delivery
Housing (high-resistance composite, PBT), white,
conversion set for ceiling mount, mounting supplies,
wrenches, 50 cm patch cable, soware, MicroSD card
(installed)
Important Notes
1. Safety Warnings
Notes on Installing:
• This product must not be used in locations exposed to
the dangers of explosion.
• Make sure that you install this product as outlined in
Chapter 2, «Installation»
of the corresponding manual.
A faulty installation can damage the camera!
•
When installing this product, make sure that you are only
using genuine MOBOTIX parts and MOBOTIX connection
cables.
•
Only install this product on suitable, solid materials that
provide for a sturdy installation of the xing elements
used.
Electrical installation: Electrical systems and equipment may
only be installed, modied and maintained by a qualied
electrician or under the direction and supervision of a qualied
electrician in accordance with the applicable electrical guidelines. Make sure to properly set up all electrical connections.
Electrical surges: MOBOTIX cameras are protected against
the eects of small electrical surges by numerous measures.
These measures, however, cannot prevent the camera from
being damaged when stronger electrical surges occur. Special
care should be taken when installing the camera outside of
buildings to ensure proper protection against lightning, since
this also protects the building and the whole network infrastructure.
Max. power consumption of attached extension modules:
The power consumption of all attached modules must not
exceed 2.5 W. When attaching modules to the USB socket,
the power consumption of all attached modules must not
exceed 3 W, if the camera is powered by PoE class 3. If PoE
class 2 is used, the power consumption of all attached modules must not exceed 1 W!
Never touch the lens: Due to the high performance of the
M26, the area of the image sensor can get quite hot, especially
when the ambient temperature is also high. This does not
aect the proper functioning of the camera in any way. For
this reason, the product must not be installed within the reach
of persons without the lens cover.
Power o before opening the camera: Make sure the power
supply to the camera is disconnected before opening the camera housing (e.g., when inserting or exchanging lenses, lens
units and SD cards).
Network security: MOBOTIX products include all of the necessary conguration options for operation in Ethernet networks in compliance with data protection laws. The operator
is responsible for the data protection concept across the entire
system. The basic settings required to prevent misuse can be
congured in the soware and are password-protected. This
prevents unauthorized parties from accessing these settings.
2. Legal Notes
Legal aspects of video and sound recording: You must com-
ply with all data protection regulations for video and sound
monitoring when using MOBOTIX products. Depending on
national laws and the installation location of the M26, the
recording of video and sound data may be subject to special
documentation or it may be prohibited. All users of MOBOTIX
products are therefore required to familiarize themselves with
all valid regulations and comply with these laws. MOBOTIX AG
is not liable for any illegal use of its products.
3. Disposal
Electrical and electronic products contain many valuable
materials. For this reason, we recommend that you dispose
of MOBOTIX products at the end of their service life in accordance with all legal requirements and regulations (or deposit
these products at a municipal collection center). MOBOTIX
products must not be disposed of in household waste! If the
product contains a battery, please dispose of the battery sep-
arately (the corresponding product manuals contain specic
directions if the product contains a battery).
4. Disclaimer
MOBOTIX AG does not assume any responsibility for damages,
which are the result of improper use or failure to comply to the
manuals or the applicable rules and regulations. Our General
Terms and Conditions apply. You can download the current
version of the General Terms and Conditions from our website at www.mobotix.com by clicking on the COS link at the
bottom of every page.
§
§
Boot Options of the M26
By default, the camera starts as DHCP client and automatically tries to get
an IP address from a DHCP server. To start the camera in a mode dierent
from the default mode, you can activate the boot menu of the camera.
1. Preparing the Camera
• Disconnect the camera's power supply.
• Make sure that you have suitable item such as a paper clip at hand,
but never use sharp or pointed objects!
• Reconnect the power supply of the camera.
2. Activating the Boot Menu
The right LED lights up red 5 to 10 seconds aer establishing the power supply and will stay on for 10 seconds.
Briey press the key by inserting the paper clip into
the hole indicated by the red circle in the gure. The
camera enters the boot menu, ready for selecting one
of the boot options.
The LED now ashes once and repeats the ash signal aer pausing for
one second (the number of ashes indicates the current boot option). To
go to the next boot option, briey press the key again (< 1 sec). Aer the
last boot option, the camera returns to the rst option (LED ashes once).
LED
ashes
Boot
Option
Meaning
Audio
Conrmation*
1 x Not used Not available on this camera model. _
2 x
Factory
Defaults
Starts the camera with factory defaults
(factory default IP address, users and
passwords will not be reset).
Boing
3 x
Automatic IP
Address
Starts the camera as DHCP client and
tries to obtain an IP address from a DHCP
server. If a DHCP server cannot be found or
no IP address can be obtained, the camera
starts with its factory default address.
Boing Boing
4 x
Recovery
System
Starts the camera with the recovery system, e.g., in order to recover from a failed
update of the camera soware.
Alarm Sound
*Nur auf Kameras mit Audio-Option und installiertem Lautsprecher.
3. Selecting a Boot Option
Press the paper clip longer (> 2 sec) into the hole. The camera conrms the
selection by ashing rapidly three times. You can now remove the paper
clip. Aer 20 sec, the camera will conrm the selection by playing a sound
according to the table above.
If nothing is selected, the camera will resume its normal boot process
aer a certain time.
Initial Operation of the M26
The initial operation starts with connecting the power supply (see section
«Network and Power Connection, Additional Cables»
in the M25 Camera Manual).
The rst access follows the procedure described in the same manual in the
«Initial Operation of the Camera»
section. All other tasks require access to
the camera's user interface in the browser. Enter the camera’s IP address in the address bar of the browser.
1. Set installed lens (only when exchanging)
Open the Admin Menu > Hardware Conguration > Lens Conguration dialog and select the
installed lens. This step is required to select the
proper special functions of the installed lens (e.g.,
for wide-angle lenses).
2. Adjust lens focus (if required)
This step is only necessary if the lens has been
installed for the rst time or exchanged. In cameras
with a MX-B016 ("Hemispheric") lens, the lens has
been focused at the factory. Remove the dome
before proceeding.
Check the live image from the camera in the browser. Activate the focusing
aid in the browser (Focusing Aid quick control, Activated value).
Carefully turn the lens by hand in clockwise or counter-clockwise direction
until the red area of the focusing aid is as small as possible.
Once the focus is adjusted properly, deactivate the focusing aid again
(Focusing Aid quick control, Disabled value).
3. Save the conguration
In the live image of the browser, select the Manage Settings quick control and set Store Entire Conguration as value. The camera stores the
conguration in the permanent camera memory so that the settings will
be applied at the next camera reboot.
Dimensions/Drilling Template
1. Dimensions—Wall Mount
2. Dimensions—Ceiling Mount
106.5 mm/4.19 in
140.5 mm/5.53 in
112 mm/4.41 in
106.5 mm/4.19 in
39 mm/1.54 in
189 mm/7.44 in
115.5 mm/4.55 in
222 mm/8.74 in
–90°
+20°
72 mm/2.83 in
106.5 mm/4.19 in
140.5 mm/5.53 in
112 mm/4.41 in
106.5 mm/4.19 in
39 mm/1.54 in
189 mm/7.44 in
115.5 mm/4.55 in
222 mm/8.74 in
–90°
+20°
72 mm/2.83 in
106.5 mm/4.19 in
106.5 mm/4.19 in
27 mm/
1.06 in
137 mm/5.39 in
140.5 mm/5.53 in
156 mm/6.14 in
59 mm/2.32 in
115.5 mm/4.55 in
72 mm/2.83 in
-90°
+20°
80 mm/3.15 in
80 mm/3.15 in
75 mm/2.95 in
15 mm/
0.59 in
Interface-Box
Wall/ceiling mount M26
Loading...
