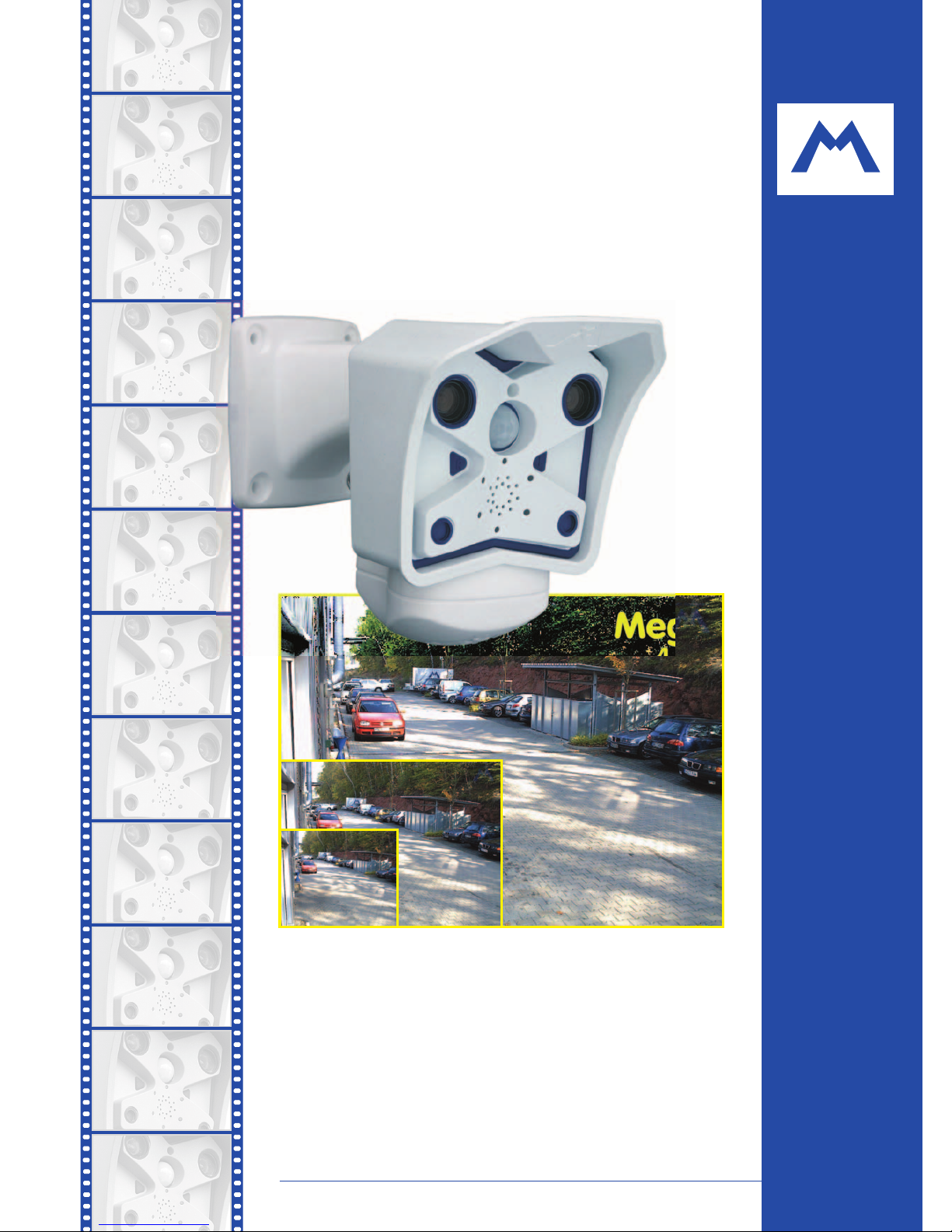

Mobotix M10 Operator's Manual

Download

Page 1

MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • sales@mobotix.com • 3.5.2006

Current PDF File:

www.mobotix.com > Services > Manuals

Complete integration for web and security

M10

Camera Manual

MOBOTIX ... the new face of IP video

MOBOTIX

Security-Vision-Systems

Part 1

VGA

12 fps

480 lines

CIFCIF

25 fps

288 lines

Mega

4 fps

960 lines

Concealed cabling

Wall bracket

with cable cover

for RJ45 wall outlet

25 Frames/s CIF (320 x 240)

12 Frames/s

VGA (640 x 480)

4 fps Mega

-22°F to +140°F

Weatherproof

-30°C to +60°C, IP65

no heating necessary

Tele/wide angle

Dual Lens

Automatic

day/night switching

SIP-Client

IP Telephony

alarm notify,

cam remote control

lip-syncronized audio

Recording

event-ringbuffer

30 cams each 25 fps

Backlight

safe using CMOS

without mechanical iris

Video motion

multiple windows

precision pixel-based

microphone & speaker

Audio

bi-directional via IP

variable framerates

Live viewing

30 cams at 25 fps all on one screen

Megapixel

1280 x 960

software zoom

Robust

no moving parts

fiber glass housing

Page 2

www.mobotix.com • sales@mobotix.com • 3.5.2006

M10 Camera Manual Part 1

MOBOTIX Camera Data

Enter the data of your camera here!

Camera Model:

Camera Name:

Factory IP Address:

Current IP Address:

DHCP: activated

 deactivated 

Admin User Name:

Admin Password:

ISDN Dial-In Number:

ISDN User Name:

ISDN Password:

Notes:

Note: MOBOTIX offers inexpensive seminars that include a workshop and

practical excercises:

Basic Seminar 2 days, Advanced Seminar 2 days.

For more information, see www.mobotix.com

Page 3

CAMERA MANUAL PART 1

1 INTRODUCTION 6

1.1 The MOBOTIX Concept 6

1.2 The MOBOTIX Product Advantages 7

1.3 Feature List 8

1.4 Important Notes 10

1.4.1 Password for the Administration Menu 10

1.4.2 Password for ISDN Dial-In 10

1.4.3 Permanently Deactivating the Microphone 10

1.4.4 Starting the Camera Using the Factory IP Address 11

1.4.5 Resetting the Camera to Factory Defaults 11

1.4.6 Activating Event Control for Web Applications 11

1.4.7 Deactivating Text and Logo Options 11

1.4.8 Deactivating the Daily Reboot of the Camera 11

1.4.9 ISDN Compatibility Note 12

1.4.10 Browser Hints 12

1.4.11 Safety Notes for Operating MOBOTIX Cameras 12

2 MOUNTING THE CAMERA 14

2.1 Delivered Parts, Camera Components and Dimensions 14

2.1.1 Delivered Parts 14

2.1.2 Components of the SecureFlex Wall Mount 15

2.1.3 Mounting Options and Tilt Capability Using the SecureFlex Wall Mount 16

2.2 Camera Housing and Connectors 17

2.2.1 External Sensors 17

2.2.2 Connectors 17

2.3 Dimensions (Outdoor Models) 18

2.3.1 Outdoor Models With Ball Joint Mount 18

2.3.2 Outdoor Models With SecureFlex Wall Mount 19

2.4 Mounting Outdoor Models With Ball Joint Mount 20

2.4.1 Mounting the Ball Joint Mount to a Wall 20

2.4.2 Finishing the Installation 21

2.5 Mounting Outdoor Models With SecureFlex Wall Mount 23

2.5.1 Converting the Wall Mount to Ceiling Mount 24

2.5.2 Determining Where to Mount the Camera 25

2.5.3 Mounting the SecureFlex Mount to a Wall 26

2.5.4 Finishing the Installation 28

2.6 Dimensions (Indoor Models) 29

2.7 Mounting the Indoor Models to a Wall or a Ceiling 30

2.8 Adjusting the Tele Lens Focus (Cameras With Tele Lens Only) 31

www.mobotix.com • sales@mobotix.com • 3.5.2006

1/64

M10 Camera Manual Part 1

Page 4

2.9 Camera Accessories for Mounting (Outdoor Models) 32

2.10 Wiring, Fire Prevention, Lightning and Surge Protection 34

2.10.1 Wiring 34

2.10.2Fire Prevention 34

2.10.3Lightning and Surge Protection 34

3 OPERATING THE CAMERA 36

3.1 General Remarks on Operating the Camera 36

3.1.1 Establishing the Power Supply of the Camera 36

3.1.2 Setting the Connection Method 36

3.2 Overview of the Configuration Settings 38

3.3 Connecting the Camera 40

3.3.1 ISDN Only 40

3.3.2 Ethernet Only 41

3.3.3 ISDN and Ethernet 43

3.3.4 Camera Startup Sequence 43

3.4 The First Image from the Camera 44

3.4.1 Preparing the ISDN Connection 44

3.4.2 Preparing the Ethernet Connection 45

3.4.3 Simultaneously Using ISDN and Ethernet Connections (Gateway) 46

3.4.4 The First Image in the Browser 47

3.4.5 Additional Information 48

3.4.6 Camera Screens in the Browser 49

3.4.7 The First Image in MxViewer 50

3.5 Starting the Camera With an Automatic IP Address (DHCP) 54

3.6 Starting the Camera Using the Factory IP Address 55

3.7 Signal Input/Output, RS-232 Interface 56

3.7.1 Signal Input 56

3.7.2 Signal Output 57

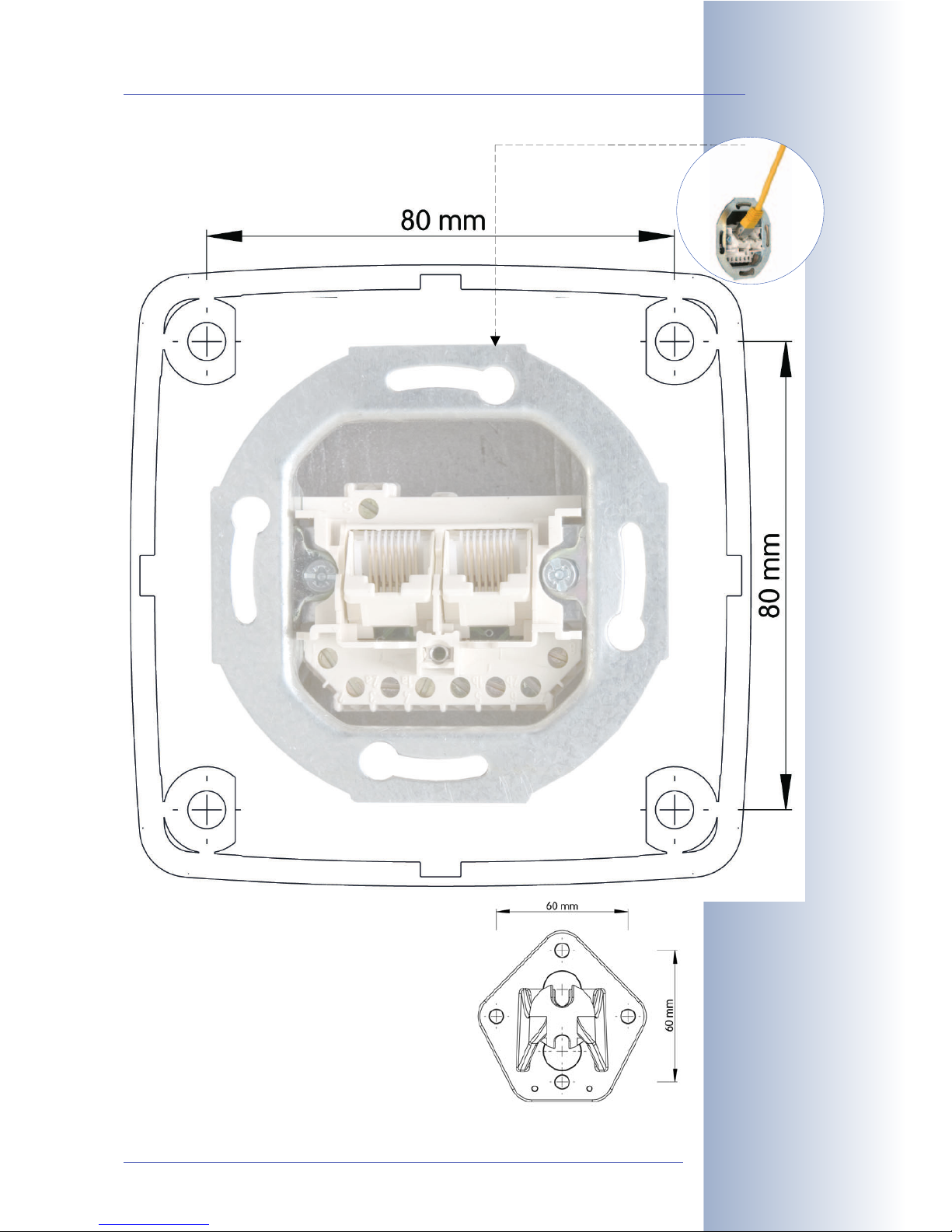

3.8 Drilling Templates M10 (Scale 1:1) 58

APPENDIX: HARDWARE AND SOFTWARE FEATURES 60

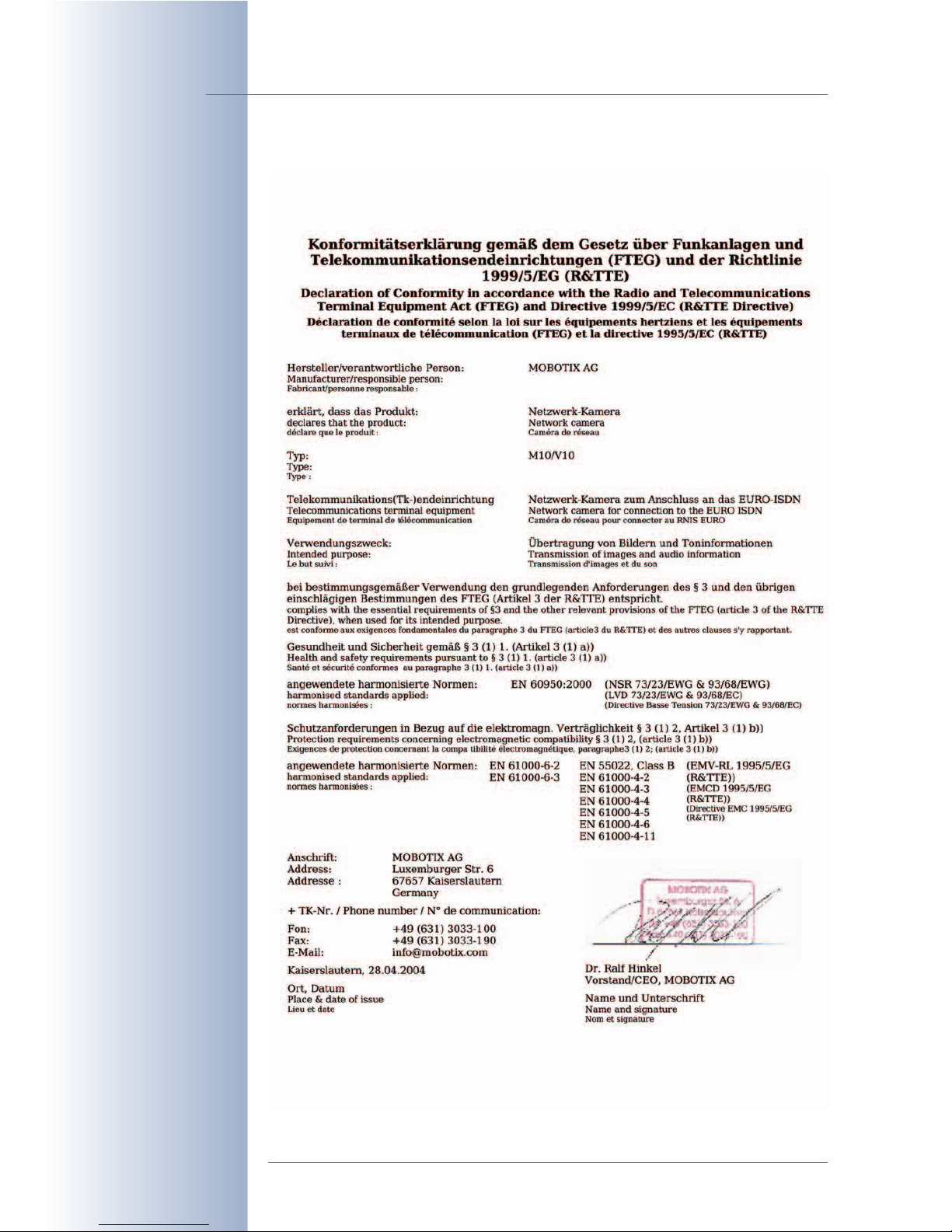

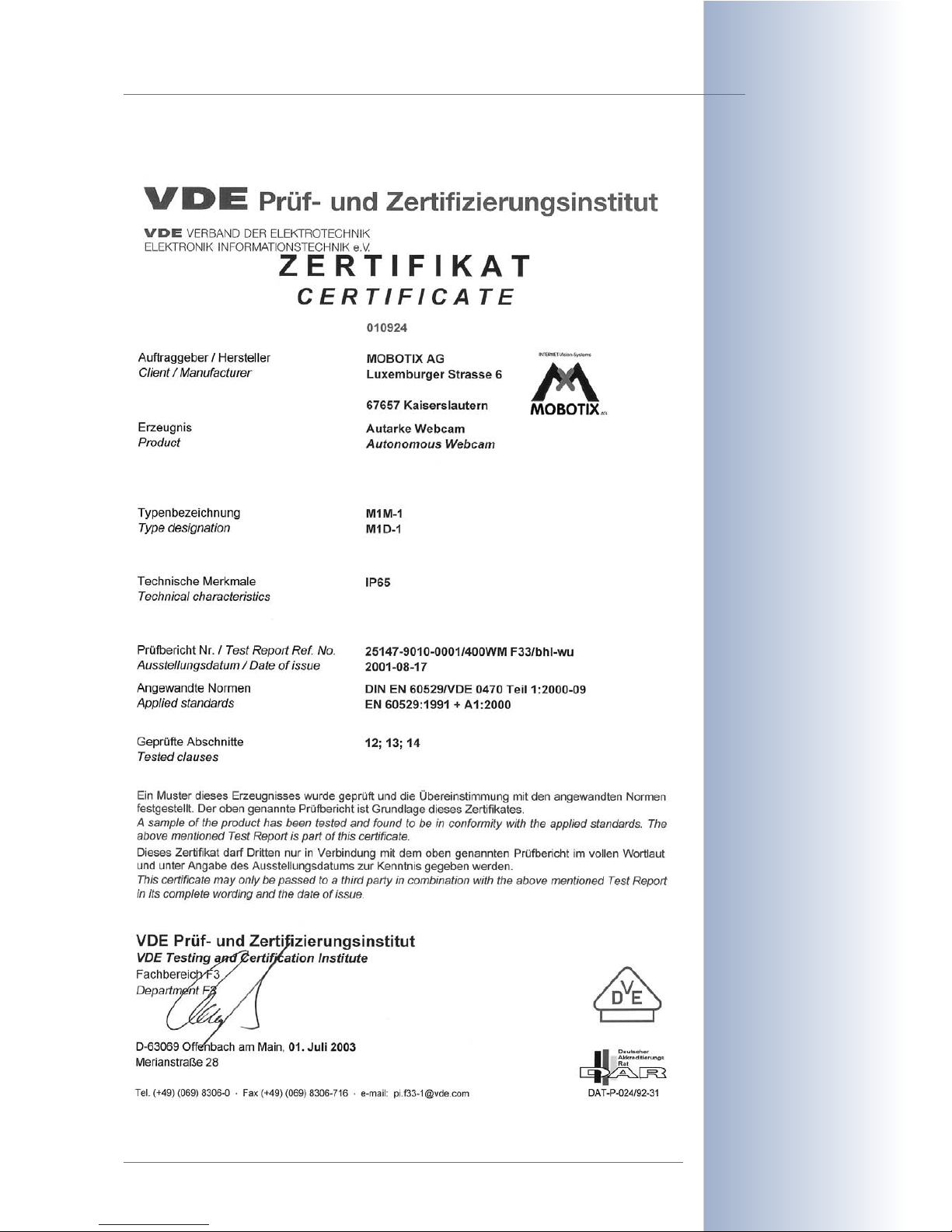

IP65 CERTIFICATE 63 DECLARATION OF CONFORMITY 64

DRILLING TEMPLATES

www.mobotix.com • sales@mobotix.com • 3.5.2006

2/64

M10 Camera Manual Part 1

Note

Download the newest version of this document as a PDF file from www.mobotix.com under Services > Manuals.

Page 5

SOFTWARE MANUAL PART 2

4 CAMERA USER INTERFACE

4.1 The First Image in the Browser

4.2 The First Image in MxViewer

4.3 Screens of the Camera

4.4 The Live Screen in the Browser

4.5 The Playback Screen in the Browser

4.6 The MultiView Screen in the Browser

4.7 PDA Screen

4.8 Guest Screen

4.9 Browser Settings

4.10 Configuring the Softbuttons

4.11 Fast Video Streaming

4.12 Operating Multiple Cameras

5 BASIC CAMERA CONFIGURATION

5.1 Overview

5.2 Quick Installation

5.3 Connection Test

5.4 Basic Settings

5.5 Image Controls

5.6 Logos

5.7 Exposure Settings

5.8 Day & Night Modes

5.9 Managing Settings

www.mobotix.com • sales@mobotix.com • 3.5.2006

3/64

M10 Camera Manual Part 1

Note

The following chapters (4 and higher) are all part of the Camera Software Manual. The main headings are listed below to give you an

overview of the

Software Manual

contents.

Page 6

6 SOFTWARE UPDATES

6.1 Overview

6.2 Preparatory Steps

6.3 Updating the Camera Software

6.4 Update Checklist

7 EVENTS, ACTIONS AND MESSAGES

7.1 Overview

7.2 Functional Overview

7.3 General Remarks on Operating the Camera

7.4 Screen Display of Event Settings in Live Image

7.5 Arming

7.6 Events

7.7 Actions and Messaging, Action and Messaging Profiles

7.8 Working with Profiles

7.9 Time Tasks

8 RECORDING

8.1 Overview

8.2 Recording Modes

8.3 Recording Types

9 TELEPHONY FEATURES

9.1 Overview

9.2 VoIP Settings for IP Telephony

9.3 Camera Phone (Listen, Speak and Intercom Modes)

9.4 Phone Profiles: Outbound Phone Calls

9.5 Voice Dial-In: Inbound Phone Calls

9.6 Remotely Controlling the Camera Using a Phone

9.7 Sample Configurations for IP Telephony via Internet

9.8 Sample Configurations for IP Telephony via LAN

www.mobotix.com • sales@mobotix.com • 3.5.2006

4/64

M10 Camera Manual Part 1

Page 7

10 MOBOTIX CAMERAS ON THE WEB

10.1 Overview

10.2 Displaying Cameras on the Web

10.3 Configuring Routers and Firewalls

10.4 Configuring DynDNS

10.5 Updating Web Pages

11 SOFTWARE INTERFACES

11.1 Overview

11.2 Accessing Live Images

11.3 Accessing the Second Image Channel

11.4 Video Streaming

11.5 The HTTP API

12 TROUBLESHOOTING

12.1 Overview

12.2 Troubleshooting Checklist

12.3 Diagnostic Tools of the Camera

12.4 Monitoring Tools of the Camera

12.5 Potential Other Problems

12.6 Additional Information

12.7 Sending Back the Camera

12.8 Warranty

www.mobotix.com • sales@mobotix.com • 3.5.2006

5/64

M10 Camera Manual Part 1

Further information: www.mobotix.com

Technical information subject to change without notice!

No part of this manual may be reproduced by any means

without our written approval!

Note

Download the newest version of this document as a PDF file from www.mobotix.com from Services > Manuals.

Page 8

1 INTRODUCTION

1.1 The MOBOTIX Concept

Megapixel Technology with Zoom, Tilt and Panning

With its high resolution of 1.3 M pixels and its true color imaging system, the MOBOTIX camera attains a resolution that is twelve times as high as on analog video systems that are commonly using CIF format. MOBOTIX also supports three digital zoom levels, tilting and panning.

Low Bandwidth Requirements

MOBOTIX' patent pending MxPEG streaming format allows fast live video with audio at extremely low network load (1 to 2 Mbps). Since the MOBOTIX camera itself detects movements in the image, video is only transmitted if movements occur and the video and audio data need to be stored.

Voice over IP and ISDN

MOBOTIX MxPEG video streaming format includes realtime audio and intercom features. Room surveillance with audio is possible using Internet Explorer. Alarm notification on your mobile is as easy as event-controlled voice messages directly from the camera.

Long-Term Storage Included

MOBOTIX cameras have an integrated long-term storage system for Linux, Windows and Mac OS X computers. Thanks to the decentralized approach, 30 live cameras can store images on a regular Pentium 4-class computer with 25 fps

each, including audio (these values may vary with the operating system).

30 Live Cameras Using MxViewer

The free Windows application for viewing up to 30 MOBOTIX cameras with audio now features an integrated layout editor for quick assembly of building plans—using full drag&drop support for positioning the live camera images. Load a floor plan as background image, drag&drop the cameras—done.

Event or Time-controlled

Just like event-controlled recording upon detecting movements in the image, the camera can also record when the volume picked up by the microphone exceeds a set trigger value. Using scheduled recording, time tasks can start and stop recording, uploading of images to a web site or sending of e-mails while running special programs on weekends and holidays.

Remote Alert Popup

In case of an alarm, MOBOTIX cameras automatically pop up windows or activate other functions at a remote security control center. The cameras can use network, ISDN or Internet connections for this purpose.

www.mobotix.com • sales@mobotix.com • 3.5.2006

6/64

M10 Camera Manual Part 1

Page 9

Day & Night

The MOBOTIX/Night models with two image sensors (color and B/W) deliver brilliant color images during the day and crisp B/W images at night. Depending on the illumination, the cameras switch lenses automatically.

Weatherproof

MOBOTIX cameras (Outdoor models) are certified according to IP65 and are designed for outdoor as well as indoor usage. As the cameras do not have any moving parts, they are extremely robust and resistant against heat or cold (-30°F to +60°C; -22°F to +140°F).

Secure and Flexible Installation Using the SecureFlex Wall Mount

The SecureFlex wall mount provides for easy mounting of the Outdoor models to a wall or a ceiling and also allows pointing the camera into virtually any direction. The concealed cabling improves security; it covers RJ45 wall outlets and enhances the visual impression of the installation. The SecureFlex wall mount is a standard accessory of all Secure Outdoor models and available as optional accessory for all other M10 Outdoor models.

Logos, Animated or Freestyle

The Logo generator of the MOBOTIX camera allows integrating different banners and graphics into the current camera images—with optional scheduler control. MOBOTIX cameras are the only cameras supporting animated and transparent graphics.

1.2 The MOBOTIX Product Advantages

Product Advantages

• High image quality with a resolution of 1.3 M pixels.

• Fully browser-based - no software installation required.

• Simple connection via Ethernet, DSL or ISDN.

• Camera configuration and playback of recorded images from any standard browser.

• Lip-synchronous audio and intercom features via Ethernet/DSL and ISDN.

• Audio room surveillance using standard browser (Internet Explorer).

• Minimum network load thanks to innovative MxPEG compression (patent pending).

• Integrated event-controlled or scheduled recording.

• Live recording of up to 30 cameras with full 25 fps each on one single Pentium 4-class PC—including audio.

• No limitation regarding the number of cameras and storage media; the system remains scalable.

www.mobotix.com • sales@mobotix.com • 3.5.2006

7/64

M10 Camera Manual Part 1

Page 10

• Long-term storage of video including audio or individual images in a ring buffer on a standard PC or file server.

• Integrated buffer can bridge network outages of up to 4,000 images or 6 minutes video.

• Maintenance-free and weatherproof from -30°C to +60°C (-22°F to 140°F) as the system has no moving parts.

• Alarm notification via e-mail, SMS or phone call.

• Layout editor in MOBOTIX MxViewer for quickly creating building layout plans with cameras.

• Backlight correction with predefined and customized exposure areas.

• Integrated sensors, video motion detectors, passive infrared sensor, microphone and speaker.

• Flexible positioning and concealed cabling thanks to the SecureFlex wall mount for Outdoor models (standard accessory of M10-Secure, optional accessory for all other M10 Outdoor models).

1.3 Feature List

The MOBOTIX camera includes the following main features (some features are model-dependent):

• Live images of up to 1280 x 960 pixels (Web and Secure models) resolution via network, ISDN, GSM, GPRS, UMTS, wireless, also adapted for PDAs.

• Digital zoom with three stages (1x, 2x, 4x) and integrated panning (from 2x: clicking in the browser image will move the visible image section in that direction; Web and Secure models only).

• Audio/video recording with three different recording modes: Event recording with audio, continuous recording with variable frame rate and audio as well as event-controlled Snap Shot recording of JPEG images.

• File server tests can monitor a file server and use one or more of the defined messaging options for error notification (IT and Secure models).

• Camera tests where several cameras monitor each other, with failure notification using the defined messaging options (IT and Secure models).

• Playback of recorded images/video sequences with audio in the integrated video management system.

• MultiView screen for displaying multiple cameras or events in one browser window.

• Event notification by e-mail, SMS (using a provider), voice notification by phone using pre-recorded messages, sounds and by visual alarms (e.g. red frame in Live image) using two separate messaging paths.

• Object tracing for analyzing the paths of objects that are moving in the image (IT and Secure models).

www.mobotix.com • sales@mobotix.com • 3.5.2006

8/64

M10 Camera Manual Part 1

1280 x 960 pixels

Page 11

• Logo generator for displaying logos in the camera images with dialogs for managing image files, image and logo profiles for controlling logo display (Web and Secure models).

• Logos can have transparent areas and can be displayed partially transparent at the same time (creating a watermark effect), banner rotation and animations are also possible.

• Transfer profiles for improved handling of FTP, E-Mail, phone calls, IP Notify transfers and messages.

• Time Tables for handling customized days, e.g. for holidays and vacations. The time tables are used to control the camera's arming, image recording, action, messaging, logo, obscure image and other features.

• Speaker phone with speak, listen and intercom modes via Internet telephony (SIP) using the integrated microphone and speaker (IT and Secure models).

• Phone Call-In via ISDN or IP telephony to remotely control the camera using a touchtone telephone (retrieve camera information, establish an Internet connection, announcement of retrieved IP address, intercom feature, etc.).

• MxPEG video compression using MOBOTIX MxViewer. The ActiveX plug-in for Internet Explorer users brings all advantages of MxPEG (including the camera's audio stream) to the browser-based user interface (only on Windows computers).

• Routing allows using other connections besides the default connection. This feature provides ways and means to use different gateways and ISDN connections for different tasks (IT and Secure models).

• DynDNS client for accessing the camera using a symbolic name (e.g. mymobotixcam.dyndns.org) although the provider is assigning a new IP address every time the camera connects to the Internet.

• Backup operating system automatically takes over when rebooting the camera after updating the system software has failed, allowing you to restart the update process.

• Enhanced startup options for the camera (obtain IP address via DHCP, announcement of IP address and other network data, reset to factory default settings).

Software Updates

MOBOTIX provides free software updates at regular intervals that improve and expand the camera's functionality. To download the update, go to http:// www.mobotix.com and open Services. Chapter 6,

Software Update

, provides

more information on the process.

www.mobotix.com • sales@mobotix.com • 3.5.2006

9/64

M10 Camera Manual Part 1

Logo generator

Speaker phone

Telephony features using ISDN or SIP connections (Internet telephony)!

Free software updates on www.mobotix.com

Page 12

1.4 Important Notes

1.4.1 Password for the Administration Menu

The administration area of the camera (Admin Menu button) is protected by a user name and password:

• User name is admin

• Password is meinsm

Enter the user name and password exactly as shown above. Note that both entries are case-sensitive. When accessing the administration menu for the first time, the Quick Installation wizard will help you set the most important parameters that are relevant for your requirements. For security reasons, it is highly recommended to

change the adminstrator password after the camera has been configured properly.

1.4.2 Password for ISDN Dial-In

Dialing into the camera via ISDN is protected by a separate password. When setting up a dial-in connection from a computer, you need to provide this information:

• User name is linux

• Password is tux

Enter the user name and password exactly as shown above. Note that both entries are case-sensitive.

1.4.3 Permanently Deactivating the Microphone

Deactivating a camera's microphone may become necessary in order to protect the privacy of people at a workplace or for other reasons. You can permanently and irreversibly deactivate the microphone in the Admin Menu > Loudspeaker

and Microphone dialog.

www.mobotix.com • sales@mobotix.com • 3.5.2006

10/64

M10 Camera Manual Part 1

Administration menu: User: admin Password: meinsm

ISDN Dial-in User: linux Password: tux

CAUTION: Make sure that you store information on user names and passwords in a secure place. In case you loose the administrator password and cannot access the Admin menu, the password can only be reset at the factory. This service is not free!

CAUTION: This deactivation is permanent and cannot be reversed even by MOBOTIX engineers. Deactivating the microphone will also deactivate all features that use the camera's microphone.

Page 13

1.4.4 Starting the Camera Using the Factory IP Address

If the camera's IP address is not known any more, you can start the camera with its factory IP address. Section 3.6,

Starting the Camera Using the Factory IP Address

describes this procedure in more detail.

1.4.5 Resetting the Camera to Factory Defaults

All settings of the MOBOTIX camera can be reset permanently to the factory default settings. This makes sense if you have, for example, obtained a camera without any information or you would like to reset all settings after testing the camera. In order to perform this procedure, you need to have access to the administration area of the camera (Admin rights). Open Admin Menu > Reset … to reset the camera to factory defaults.

Note: In contrast to the method described in section 1.4.4,

Starting the Camera

Using the Factory IP Address

, all users (except the admin user) will be deleted when resetting the camera to factory defaults. Likewise, the admin user's password will be reset.

1.4.6 Activating Event Control for Security Applications

In its default state, the camera's event control and video motion detection features are not enabled. In order to activate event control as a whole, open Setup

Menu > General Event Settings and activate the Arming switch or click on the Arm & Record softbutton of the browser interface. The video motion detection win-

dow is visible again (dotted frame in the center of the live image) and the camera stores images as soon as the video motion window detects movements.

1.4.7 Deactivating Text and Logo Options

As the camera arming has been deactivated as per factory default (see preceding section), the MOBOTIX camera only displays the Text WWW.MOBOTIX.COM, the time stamp and the MOBOTIX logo at the top of the image. Once the camera arming has been activated, the texts at the bottom of the live image (event, action and messaging symbols) will also appear.

If the camera is armed, you can deactivate the status text at the bottom and the text at the top left corner of the live image by setting Text Display in the Setup Menu > Text & Display Settings dialog to

Off

. Setting Text Display to

Date & Time

will only display the time stamp in the live image. In order to hide the logo in the live image, open Admin Menu > Logo Profiles and set Logo Display to

Disable

1.4.8 Deactivating the Daily Reboot of the Camera

In its factory state, the MOBOTIX camera will automatically reboot every morning at 3:36 am. In very rare cases, external influences (e.g. radiation in high locations) can lead to camera malfunctions. The automatic reboot will refresh the camera's memory and will ensure proper operation without requiring any interaction on the part of the user.

www.mobotix.com • sales@mobotix.com • 3.5.2006

11/64

M10 Camera Manual Part 1

The configuration can also be reset partially

If the dotted rectangle in the live image is visible, the camera is armed

Text and logos can be also deactivated or customized to your liking

Deactivating the camera reboot

Page 14

Open Admin Menu > Time Tasks and deactivate or delete the

Reboot camera

task. This will prevent the camera from rebooting automatically.

1.4.9 ISDN Compatibility Note

This product is compatible with Euro ISDN standard TBR3/TBR 3A1.

Note: MOBOTIX offers special models for the Japanese market that support the

Japanese ISDN standard. For additional information on this topic, see the Japanese section at www.mobotix.com.

1.4.10Browser Hints

Current browsers with activated JavaScript (Internet Explorer, Netscape, Mozilla, Firefox, Safari, Konqueror, Opera, …) can show the camera's live images with their standard settings. Text-based browsers (e.g. lynx) cannot display the user interface and are

not

suitable for operating the camera.

Section 4.8,

Browser Settings

, contains more information on browser compatibility.

Chapter 12,

Troubleshooting

, contains more information on how to track and

remove errors when operating the camera.

1.4.11 Safety Notes for Operating MOBOTIX Cameras

Electrical surges can be induced by other electrical appliances, improper wiring, but also from the outside (e.g. lightning strikes in phone or power lines).

MOBOTIX cameras are protected against small electrical surges by numerous measures. These measures, however, cannot prevent the camera from being damaged when stronger electrical surges occur.

Special care should be taken when installing the camera outside of buildings for

protection against lightning, since this also protects the building and the whole

network infrastructure.

MOBOTIX recommends having MOBOTIX cameras installed only by specialists accustomed to installing network devices and having proper respect for the pertinent regulations regarding lightning protection and fire prevention as well as the current technology for preventing damages from electrical surges.

Section 2.10,

Wiring, Fire Prevention, Lightning and Surge Protection

, contains more

information on these topics.

www.mobotix.com • sales@mobotix.com • 3.5.2006

12/64

M10 Camera Manual Part 1

Page 15

Additional Information

Open the News and Functional Overview pages of the camera help to find additional information. Simply click on the yellow button:

Another source of information on all dialogs and parameters of the MOBOTIX camera is the Reference Manual that you can download from www.mobotix.com. The Reference Manual consists of the MOBOTIX camera's online help in one PDF file.

www.mobotix.com • sales@mobotix.com • 3.5.2006

13/64

M10 Camera Manual Part 1

Camera Help

Camera Information

Page 16

2 MOUNTING THE CAMERA

2.1 Delivered Parts, Camera Components and Dimensions

The MOBOTIX M10 is delivered completely assembled with a ball joint mount (IT and Basic models) or the SecureFlex wall mount (Secure models), so the camera can be used out-of-the-box.

2.1.1 Delivered Parts

www.mobotix.com • sales@mobotix.com • 3.5.2006

14/64

M10 Camera Manual Part 1

Make sure to check the delivered parts

* Basic/IT models only ** Standard delivery for M10-Secure cameras, optional accessory for all other M10 models

Item Count Part Name

1 1

Camera with ball joint mount*

SecureFlex wall mount for mounting on ceiling or wall** 3 4 5 6

Rubber cable protector*

Cable ties*

Ethernet cable

Hinged ferrites 7 8

1 1

Allen wrench (5 mm)

Adjustment ring for tele lens

Allen wrench 5mm (item 7)

Rubber protector (item 3)* with cable ties (item 4*)

SecureFlex wall mount (item 2)**

Adjustment ring for tele lens (item 8)

Ethernet cable CAT 5 1m/40" (item 5)

Hinged ferrites (item 6)

Lenses (installed)

Ball joint wall mount (item 1)

Page 17

2.1.2 Components of the SecureFlex Wall Mount

The SecureFlex wall mount is a standard accessory of all M10 Secure Outdoor models and is available as optional accessory for all other M10 Outdoor models.

www.mobotix.com • sales@mobotix.com • 3.5.2006

15/64

M10 Camera Manual Part 1

Flexible installation at walls or ceilings using the

SecureFlex wall mount

Item Count Part Name

4 4

Dowels 8 mm Stainless steel washers Ø 6.4 mm

11 12 13 14

Stainless steel wood screws with hex head 6x50 mm

Cover Ø 27 mm 1 1

Spider protection (installed)

Additional NET plug for spider protection (Ethernet)

Caution

Never use screws with countersunk heads to fasten the mount, as

these screws will destroy the mount.

4 wood screws 6 x 50mm (item 11)

4 washers dia. 6.4mm (item 10)

Spider protection (item 13) with NET plug (item 14), RS232 and ISDN

4 dowels 8mm (item 9)

Cover dia. 27mm (item 12)

Page 18

2.1.3 Mounting Options and Tilt Capability Using the SecureFlex Wall Mount

Tilting horizontally (wall mount)

Tilting vertically (wall mount)

www.mobotix.com • sales@mobotix.com • 3.5.2006

16/64

M10 Camera Manual Part 1

Mounting to a ceiling or wall

Flexible positioning

Mounting to a wall

Mounting to a ceiling

approx. 180°

approx. 70°

Page 19

2.2 Camera Housing and Connectors

The MOBOTIX M10 camera housing is made of fiber-reinforced plastic (PBT-30GF). From mid-2006, the housing's color is white for all camera models.

2.2.1 External Sensors

• PIR sensor

• Microphone

• IR remote control

2.2.2 Connectors

• 10BaseT (Ethernet network)

• In/Out / RS232

•ISDN

www.mobotix.com • sales@mobotix.com • 3.5.2006

17/64

M10 Camera Manual Part 1

Signals of the

camera LEDs:

0 On

1 Camera

2 Ethernet

3 Operating Mode

4 ISDN/VoIP

5 Camera

"Right" lens

"Left" lens

Passive IR motion detector

"R" key

6 LEDs

Ball joint wall mount (IT, Basic, Web)

Rain and sun protection

ISDN

RS232 & In/Out

Ethernet (LAN)

"L" key

Speaker

Microphone

Page 20

2.3 Dimensions (Outdoor Models)

2.3.1 Outdoor Models With Ball Joint Mount

Using the ball joint mount, the MOBOTIX M10 Outdoor models are easily mounted to a wall or—when using the appropriate accessory—to a mast. See the following figures to find the camera measurements and how to position the holes for fixtures.

Check the appendix for the drilling template, which will be helpful when drilling the holes. For more detailed information on planning, please download the MOBOTIX

Planning Aid from www.mobotix.com.

www.mobotix.com • sales@mobotix.com • 3.5.2006

18/64

M10 Camera Manual Part 1

Download planning aid from www.mobotix.com

The planning aid also contains a table with

image angles for the

different lenses

All measurements in mm!

Page 21

2.3.2 Outdoor Models With SecureFlex Wall Mount

The SecureFlex wall mount (item 2) provides for easy mounting of the MOBOTIX M10 Outdoor models to a wall or ceiling. The concealed cabling improves security and enhances the visual impression of the installation. By design, the SecureFlex wall mount covers RJ45 wall outlets, allowing for perfect positioning of the camera.

The SecureFlex wall mount is a standard accessory of all Secure Outdoor mod- els and is available as optional accessory for all other M10 Outdoor models.

Check the appendix for the drilling template, which will be helpful when drilling the holes. For more detailed information on planning, please download the MOBOTIX

Planning Aid from www.mobotix.com.

www.mobotix.com • sales@mobotix.com • 3.5.2006

19/64

M10 Camera Manual Part 1

Download planning aid from www.mobotix.com

The planning aid also contains a table with

image angles for the

different lenses

All measurements in mm!

Page 22

2.4 Mounting Outdoor Models With Ball Joint Mount

2.4.1 Mounting the Ball Joint Mount to a Wall

Before attempting to mount the camera, make sure that you have found the best camera position. It is important that the camera's field of view is not obstructed in any way.

Once the camera has been mounted to the wall, you can fine-tune its position. Using the integrated ball joint mount, the camera can be turned horizontally and tilted vertically.

The camera can be tilted within the following ranges

• horizontally: approx. 35°

• vertically: approx. 60°

When the camera is looking downwards and sideways, you will need optional accessory to properly position the camera (see section 2.9,

Camera Accessories for Mounting

www.mobotix.com • sales@mobotix.com • 3.5.2006

20/64

M10 Camera Manual Part 1

Wall mount with ball joint

Pan/tilt heads for remote-controlling the camera position

M10-Secure Indoor models

Caution

Never mount the MOBOTIX M10 outdoor models upside down in outdoor locations or in humid environments, since humidity from condensation processes may accumulate.

For mounting the cameras to a ceiling, MOBOTIX in the past offered the SecureFlex wall mount (see section 2.5,

Mounting Outdoor Models With Secure-

Flex Wall Mount

) as well as the Secure Indoor

models. By design, these cameras are also easily

mounted to a ceiling (see section 2.7,

Mounting

Indoor Models to a Wall or Ceiling

Note

In order to remote-control the position of the MOBOTIX camera, the camera can control a pan/tilt head* using its serial interface (RS232). The pan/tilt head is controlled using the programmable buttons of the camera's browserbased user interface or a joystick (not available for Web and Basic models).

*Pan/tilt heads are available from third-party suppliers. Please contact our support team for more information (support@mobotix.com).

Pan/tilt head

IR light

Page 23

2.4.2 Finishing the Installation

All MOBOTIX M10 Outdoor models are IP65-certified. For outdoor use with the ball joint mount, MOBOTIX supplies a rubber protector (item 3) for the cameras, which prevents water from entering the camera along the cabling. At the same time, it allows the camera to “breathe” and prevents condensation water from accumulating.

Make sure to attach the supplied hinged ferrites to all data cables (ISDN/Ethernet/ RS232). Genuine MOBOTIX power supplies are already delivered with an integrated ferrite!

Mounting the rubber protector and the hinged ferrites

• Insert three-pronged pliers to hold the hole of the “leg” open.

• Insert one cable (with the connector) through the leg's hole in the rubber protector.

• Attach a hinged ferrite (item 6) to every cable (Ethernet, ISDN, RS232; max. distance to connector 5 cm/2"). Make sure that the hinged ferrite snaps shut completely.

• Insert the cables into the appropriate connectors of the camera.

• Pull the rubber protector over the camera's collar at the bottom.

• Attach the cable ties around the "legs" of the rubber protector to prevent the cables from being pulled out.

• Now firmly attach one cable tie around the camera collar to prevent the rubber protector from slipping off the camera.

www.mobotix.com • sales@mobotix.com • 3.5.2006

21/64

M10 Camera Manual Part 1

If no three-pronged pliers are available, cut 1 cm

(3/8") into the cable

guide of the rubber protector

Secure cable using a cable tie around the “leg” of the rubber protector!

Caution: Never seal off rubber protector with silicone or other sealant!

Secure rubber protector using cable tie

Lead cable through leg, secure with cable tie, mount hinged ferrite!

Widen rubber protector's "legs" using three-pronged pliers

Page 24

Mounting the Camera

• Copy or print the drilling template for the ball joint mount at the back of the manual (make sure

not to scale

the template), then drill the holes for the fix-

tures.

• Connect the cabling and properly fasten the ball joint mount using the sup- plied screws and the appropriate washers.

• Establish a connection from your computer to the camera (see chapter 3,

Operating the Camera

) and adjust the camera position according to the live

image delivered by the camera.

• Properly tighten the screws of the mount itself and make sure that all screws are properly fastened.

www.mobotix.com • sales@mobotix.com • 3.5.2006

22/64

M10 Camera Manual Part 1

Find the folded drilling

template at the end of

the manual!

Make sure that the drilling template is not scaled down when printing!

Note

If you need more ferrites for your application, you can order the required ferrites by calling MOBOTIX (+49 (631) 30 33 101) or by sending an e-mail to support@mobotix.com.

Caution

Never use silicone or any other sealant to seal off the rubber protector of the camera, since the camera will not be able to "breathe" and condensation can accumulate!

Caution

Never use screws with countersunk heads to fasten the mount, as

these screws will destroy the mount.

Page 25

2.5 Mounting Outdoor Models With SecureFlex Wall Mount

The SecureFlex wall mount (item 2) provides for easy mounting of the MOBOTIX M10 Outdoor models to a wall or a ceiling. Its innovative and flexible design allows pointing the camera in virtually any direction. On top, the SecureFlex wall mount covers RJ45 wall outlets (without the frame) and the concealed cabling improves the security of the camera.

www.mobotix.com • sales@mobotix.com • 3.5.2006

23/64

M10 Camera Manual Part 1

Standard delivery for Secure Models

Network Power Adapter or Network Power Rack should be used

Note

The design of the SecureFlex wall mount does not allow for connecting the external power supply. It is recommended to use either a Network Power Adapter or a Network Power Rack to inject the power into the Ethernet or ISDN cabling or to use an appropriate extension cable.

Wall mount

Bottom cover

Cover

Turn/tilt unit

Camera holder

Drain holes for exit of condensation water (never seal off!)

Caution

The SecureFlex wall mount must not be installed upside-down, as the camera will not be dustproof and resistant against water jets (IP65) any more! The holes in the bottom cover always have to point downwards.

Page 26

2.5.1 Converting the Wall Mount to Ceiling Mount

If the camera is to be mounted to a ceiling, it is necessary to convert the SecureFlex wall mount. Proceed as outlined in the following:

• Unscrew the Allen screw in the mount, which holds the turn/tilt unit in place (5 mm Allen wrench, item 7). Remove the Allen screw, the washer and the hex nut from the mount and unplug the cover.

• Gently pull the turn/tilt unit and all cables out of the vertical opening of the foot.

• First insert the cables, then the turn/tilt unit into the horizontal opening of the foot (all the way to the stop).

• Place the hex nut into the corresponding hole, insert the Allen screw with washer and lightly fasten the screw so that you can still easily move the camera.

Converting the ceiling mount back to wall mount follows the steps in reverse order. Only insert the supplied cover into the remaining opening once you have finished mounting the camera.

www.mobotix.com • sales@mobotix.com • 3.5.2006

24/64

M10 Camera Manual Part 1

Converting from wall mount to ceiling mount in four steps

Mount Pull out!

Push in until reaching stop!

Cover

Mounting to a wall

Mounting to a ceiling

Page 27

2.5.2 Determining Where to Mount the Camera

Before attempting to mount the camera to a wall or ceiling, make sure that you have found the best camera position. It is important that the camera's field of view is not obstructed in any way.

Once the camera has been mounted to a wall or ceiling, you can fine-tune its position. Thanks to the design of the SecureFlex wall mount, the camera can be turned freely horizontally and tilted vertically until the built-in stops are reached.

The camera can be turned/tilted within the following ranges:

• horizontally: approx. 180°

• vertically: approx. 70°

The mounting position should be set in such a way that the wall outlet touches the upper rim of the mount's foot.

www.mobotix.com • sales@mobotix.com • 3.5.2006

25/64

M10 Camera Manual Part 1

Mounting the SecureFlex wall mount covering a wall outlet

Wall outlet

CAT5 cable l

SecureFlex wall mount

MOBOTIX M10

Drain holes for exit of condensation

water (never seal off!)

Apply silicone sealant!

Spider protection

Ferrite

Page 28

2.5.3 Mounting the SecureFlex Mount to a Wall

Mounting the SecureFlex mount to a wall allows covering RJ45 wall outlets (without frame) and also allows using a defined network end point.

When positioning the wall outlet, make sure that the outlet lines up with the upper rim of the mount later on (see figure).

If no wall outlet is present, use a suitable extension or an adapter to connect the camera to the network.

When installing an above-the-wall assembly, breaking out one of the four openings in the base of the mount will provide for properly guiding the cable into the mount.

Connecting to the network (Ethernet)

In order to connect to an Ethernet network, simply attach the pre-installed network cable into the wall outlet or the extension's connector.

Continue by mounting the wall mount at the camera location, as described in section 2.5.4,

Finishing the Installation

Never insert the pre-installed cable into an ISDN wall outlet! In

order to attach to an ISDN network, continue as described under

Con-

necting to ISDN

in this section.

Spider protection of the camera

MOBOTIX cameras of the Secure models feature a pre-installed spider protection (item 13), which effectively prevents small animals from entering the camera.

Make sure that the condensation

drain holes remain open. These

openings contain semi-permeable membranes, which allow condensation to exit the camera housing, but also prevent small animals from entering the camera.

Never push any objects into the drain holes as this may damage the membranes!

www.mobotix.com • sales@mobotix.com • 3.5.2006

26/64

M10 Camera Manual Part 1

The SecureFlex wall mount should completely cover the wall outlet

Simply connected to the network

Spider protection preinstalled in Secure models

Drain holes with membranes for

exit of condensation water

Page 29

Connecting to ISDN only

In order to connect to ISDN only, it is necessary to open the bottom cover of the SecureFlex wall mount, to remove the spider protection and to move the pre-installed network cable to the ISDN connector of the MOBOTIX camera.

• Unscrew the Allen screw of the bottom cover using the supplied 5 mm Allen wrench and remove the bottom cover, including the Allen screw and the washer.

• Remove the remaining rubber plugs from the spider protection (RS232, ISDN) and gently pull the spider protection out of the camera without damaging the membranes in the condensation drain holes.

• Remove the cable from the 10BaseT connector and gently pull it out of the spider protection.

• Insert the cable into the ISDN opening of the spider protection, then push the cable into the ISDN connector of the camera.

• Gently push the spider protection into its original position, and insert the RS232 as well as the supplied NET plug (item 14).

• Reseat the bottom cover and fasten the Allen screw and the washer.

• Mark the cable connector on the other end as ISDN cable to prevent confusion about the cable's function.

Connecting another cable (ISDN/RS232)

In order to connect another cable besides the Ethernet cable (ISDN/ RS232), it is necessary to open the bottom cover of the SecureFlex wall mount and to install the additional cables.

• Unscrew the Allen screw of the bottom cover using the supplied 5 mm Allen wrench and remove the bottom cover, including the Allen screw and the washer.

• Guide the additional cable from below through the camera holder, the turn/tilt unit and the foot to the back of the foot (depending on the position of the wall/ceiling mount, it may help to remove the cover; see also section 2.5.1,

Converting the Wall Mount to Ceiling

Mount

• Replace the corresponding rubber plug and push the cable into the connector of the camera.

• Attach the hinged ferrites to the additional cable(s) you just installed, so that the ferrites are positioned besides or above the already installed ferrite of the network cable within the cable shaft (leading upwards) of the camera holder.

• Reseat the bottom cover and fasten the Allen screw and the washer.

• Mark the cable connector on the other end to prevent confusion about the cable's function.

www.mobotix.com • sales@mobotix.com • 3.5.2006

27/64

M10 Camera Manual Part 1

ISDN

ISDN Ethernet

Spider protection

NET plug

Spider protection

Page 30

2.5.4 Finishing the Installation

Mounting the camera

• Insert the supplied cover (item 12) into the opening of the wall mount that is not used and press it firmly into its seat.

• Copy or print the drilling template for the SecureFlex wall mount at the back of the manual (make sure

not to scale

the template).

• Mark the holes; when using a wall outlet, make sure that the outlet lines up with the upper rim of the mount so that the cable is not bent too sharply later on.

• Drill the holes and insert the supplied dowels.

• Connect the cabling and properly fasten the SecureFlex wall mount using the supplied screws and the appropriate washers.

• Establish a connection from your computer to the camera (see chapter 3,

Operating the Camera

) and adjust the camera position according to the live

image delivered by the camera.

• Properly tighten the screws of the mount itself and make sure that all screws are properly fastened.

www.mobotix.com • sales@mobotix.com • 3.5.2006

28/64

M10 Camera Manual Part 1

Find the folded drilling

template at the end of

the manual!

All measurements in mm!

Caution

Never use screws with countersunk heads to fasten the mount, as

these screws will destroy the mount.

Page 31

2.6 Dimensions (Indoor Models)

The MOBOTIX M10 Indoor models are delivered with a ceiling mount and integrated ball joint. Once the ceiling mount has been attached to the camera by mounting the camera onto the screw of the ceiling mount, the camera can be mounted to a wall or a ceiling. See the following figures to find the camera measurements and how to position the holes for fixtures.

Check the appendix at the end of the manual for the drilling template, which will be helpful when drilling the holes. For more detailed information on planning, please download the MOBOTIX Planning Aid from www.mobotix.com.

www.mobotix.com • sales@mobotix.com • 3.5.2006

29/64

M10 Camera Manual Part 1

Download planning aid from www.mobotix.com

The planning aid also contains a table with

image angles for the

different lenses

All measurements in mm!

Page 32

2.7 Mounting the Indoor Models to a Wall or a Ceiling

Mount the camera onto the ceiling mount and determine the best camera position. It is important that the camera's field of view is not obstructed in any way.

Mounting the ceiling mount

• Screw the ceiling mount into the thread at the back of the housing of the MOBOTIX camera.

• The integrated ball joint allows a wide range of camera positions.

Mounting the camera to a wall or ceiling

• Once the holes for fixtures have been drilled, you can attach the mount to the ceiling.

• The mounted camera's position can be easily fine-tuned using the integrated ball joint.

• Make sure you properly tighten the fixation screw to lock the ball joint in place once you have properly positioned the

camera.

Mounting the hinged ferrites

• Install hinged ferrites to all cables leading to the camera that do not have a hinged ferrite installed.

www.mobotix.com • sales@mobotix.com • 3.5.2006

30/64

M10 Camera Manual Part 1

Ceiling mount for mounting to ceilings or walls

The camera software can rotate the image!

Caution

If the camera has been mounted upside-down, the camera's images will also be upside-down. The MOBOTIX camera allows rotating/mirroring the image (Setup Menu > General Image Settings > Mirror & Rotate Image)

Page 33

2.8 Adjusting the Tele Lens Focus (Cameras With Tele Lens Only)

Once the camera has been mounted, the tele lens should be checked for proper sharpness and should be adjusted, if required. Make sure that you have the supplied adjustment ring ready for this purpose.

• Position the adjustment ring (item 8) on the tele lens.

• The two prongs fit exactly into the notches of the lens' rim!

• Cautiously turn the lens in clockwise or counter-clockwise direction until the image is properly focused.

• Make sure that you see the camera's live image on your monitor for this purpose.

www.mobotix.com • sales@mobotix.com • 3.5.2006

31/64

M10 Camera Manual Part 1

Tele lenses are focused using the supplied

adjustment ring

Note

How to differentiate between the wide-angle and the tele lenses:

The wide-angle lens is mounted behind a glass pane and cannot be adjusted from the outside.

The tele lens is protruding from the camera front. It can be removed and adjusted using the supplied adjustment ring.

Page 34

2.9 Camera Accessories for Mounting (Outdoor Models)

In order to give you more freedom when mounting the MOBOTIX Outdoor models, MOBOTIX offers a stainless steel outdoor wall mount with turning joint, a stain-

less steel wall mount and the SecureFlex wall mount as accessories.

Stainless Steel Outdoor Wall Mount With Turning Joint (MX-DWM-Set)

This robust accessory for the ball joint mount can be turned sideways to the left or to the right to compensate for a camera that has been mounted pointing downwards.

Stainless Steel Universal Outdoor Stand/Wall Mount (MX-SWM-Set)

The MOBOTIX stainless steel universal mount can be used as desk stand or wall mount, or it can be mounted on a tripod. Thanks to its curved slots, camera tilt can be precisely adjusted. The universal mount has a width of 100 mm (3.9"), leg lengths of 130 mm (5.1“) and is 3 mm (1/8”) strong.

www.mobotix.com • sales@mobotix.com • 3.5.2006

32/64

M10 Camera Manual Part 1

Stainless steel mount used as desk stand

Page 35

SecureFlex Wall Mount for Outdoor Models*

The SecureFlex wall mount provides for easy mounting of the Outdoor models to a wall or a ceiling and also allows pointing the camera in virtually any direction. The concealed cabling improves security and fully covers wall outlets.

www.mobotix.com • sales@mobotix.com • 3.5.2006

33/64

M10 Camera Manual Part 1

(* Standard accessory of all Secure Outdoor models; available as optional accessory for all other Outdoor models)

Page 36

2.10 Wiring, Fire Prevention, Lightning and Surge Protection

When installing the wiring inside or outside of buildings, make sure you always adhere to the relevant regulations on wiring, fire prevention and protection against lightning.

Find more information at an institution such as the International Electrotechnical Commission (IEC, www.iec.ch) or at a manufacturer of protection devices against lightning and electrical surges, such as Dehn (www.dehn.de).

2.10.1 Wiring

When installing the wiring, make sure you follow these guidelines:

• Data cable: Make sure you only use double-shielded CAT 5/7 cable (S/STP) for Ethernet connections. If the power is supplied on a data cable using the Network Power Adapter or similar means, the same applies to the ISDN cable (see section 3.3,

Connecting the Cam-

era

• Outdoors: Installing the camera outdoors requires special precautions and measures regarding the cables as well as lightning and surge protection (see section 2.10.3,

Lightning and Surge Protection

• Wire lengths: The cable segments must not exceed the maximum allowed cable lengths in order to ensure proper data transfer (see section 3.3,

Con-

necting the Camera

• Avoid induction: When running data cables parallel to existing regular power lines or high-voltage wires, make sure you observe the minimum distances to the power cables.

2.10.2 Fire Prevention

When installing the power lines to the camera, make sure you always adhere to the relevant regulations on wiring and fire prevention at the site of the installation.

2.10.3 Lightning and Surge Protection

To prevent damage from lightnings and surges, make sure you follow these guidelines:

• Lightning conductors: In areas exposed to lightning (e.g. on roofs), a distance holder (1 m/3 ft. higher, 1 m/3 ft. away from the camera) and proper lightning conductors need to be installed in order to prevent lightning strikes into the camera and to ensure that the energy of a lightning strike is properly led to the ground.

www.mobotix.com • sales@mobotix.com • 3.5.2006

34/64

M10 Camera Manual Part 1

Use double-shielded CAT 5/7 cables for wiring

Page 37

• Surge protection: Make sure you have installed proper protection against electrical surges in order to prevent damage to the camera, the building and the network infrastructure. This includes surge protectors for 19" racks, adding an uninterruptible power supply (UPS) to the MOBOTIX camera, and installing surge arresters or similar for routers, switches, servers, etc.

www.mobotix.com • sales@mobotix.com • 3.5.2006

35/64

M10 Camera Manual Part 1

Page 38

3 OPERATING THE CAMERA

3.1 General Remarks on Operating the Camera

The MOBOTIX camera does not require any software installation; all you need is your preferred browser with JavaScript support to operate the camera. Thus, the MOBOTIX camera is supported by all common operating systems (such as Win-

dows, Macintosh and Linux, ...).

3.1.1 Establishing the Power Supply of the Camera

You can choose between the following options:

• External power supply and Network Power Adapter (NPA, Power over

Ethernet)*: Power is supplied via the Ethernet cable using the NPA

(recommended, max. length 100 m/110 yd).

• ISDN cable: If the ISDN NT (network termination device) is also supplying power (connect power supply of NT to power outlet).

• Network cable (power over Ethernet): When using the MOBOTIX 19"

Netpower* unit to supply power via the network cable.

3.1.2 Setting the Connection Method

The camera has been set at the factory to support the following connection methods:

• ISDN interface of the camera: From a computer with ISDN card using a RAS connection (linux/tux), launch a browser and enter the IP address printed on the camera label (e.g. 10.1.0.99).

• Ethernet interface of the camera (10 Mbps Ethernet): Directly from a computer (using a crossover cable) or from a Network Power Adapter or a switch using a regular patch cable, launch a browser and enter the IP address printed on the camera label (e.g.

10.1.0.99).

If your network does not support a Class A network (i.e. 10.x.x.x), your PC or laptop will have to be set temporarily to such a network address. For operating systems that allow multi-homing (Windows 2000, Windows XP, Linux, Mac OS X), you can set a second IP address in the 10.x.x.x network.

Once a connection has been established, click on the Admin Menu button to start configuring the camera. The Admin Menu controls all network settings (IP address, netmask, DHCP, etc.), ISDN behavior and other options.

*Accessory, not included in delivery!

www.mobotix.com • sales@mobotix.com • 3.5.2006

36/64

M10 Camera Manual Part 1

One ISDN NT can power only one camera

Netpower for 4, 8 or 20 cameras

In the RAS box (computer):

• Camera phone number

• User: linux

• Password: tux

Computer settings:

• IP address: 10.1.0.11

• Netmask: 255.0.0.0

• Gateway: none

• DNS: none

Page 39

The configuration follows these five general steps:

a) Establish the first connection (via ISDN or network). b) Set the parameters for the desired connection type (network/ISDN) using the

Quick Installation.

c) Set the event control (events, actions and messages); see chapter 7,

Events,

Actions and Messages

. d) Set the storage parameters (FTP or external ring buffer storage). e) Store the configuration in the camera's permanent storage (flash) for

rebooting.

www.mobotix.com • sales@mobotix.com • 3.5.2006

37/64

M10 Camera Manual Part 1

Always use Quick Installation for initial configuration

Note

After first booting the new MOBOTIX camera or after resetting to factory defaults, accessing the Administration menu (Admin Menu button) will automatically start the Quick Installation wizard. This is where you configure the most important camera parameters in a step-bystep manner. If you have completed the Quick Installation wizard at least once, the standard Administration menu will open when you click on the Admin Menu button.

Live image: http://preparkcam.mobotixserver.de

Page 40

3.2 Overview of the Configuration Settings

• Using the Quick Installation wizard

After first booting the camera or after resetting it to factory defaults, any access to the administration menu (Admin Menu button) will start the Quick Installation.

This wizard will guide you through the most important settings (configuration of the network and ISDN interfaces, etc.) of the camera and can also be used to reset the camera to its factory settings.

It is recommended to use Admin Menu > Quick Installation later on as well, e.g. if you would like to change or add connection methods.

• Administration and setup of the camera

Basic configuration tasks of the camera (e.g. passwords, interfaces, software updates) are carried out from the administration menu (Admin Menu button), which requires the corresponding access rights (

admins

group).

Open the Setup Menu (button) and find the dialogs for changing the image, event and recording settings in the Image Control and Event Control sections. These options are also available for users belonging to the

users

group.

Some of these settings can be changed using the corresponding pull-down menus above the image on the Live screen.

• The image settings are already optimized

The factory image settings of the MOBOTIX camera deliver excellent images for most of the application scenarios and should not be changed; if changes are necessary, the adjustments should be minimal. If you would like to reset changes without resetting the complete configuration to factory defaults, you can use the Factory button at the bottom of the dialog to reset only this dialog's settings. If you would like to reset all image settings, you may do so using the Manage Settings > Restore Image Settings pull-down menu above the image on the Live screen.

• All changes are temporary

All changes to the configuration are only temporary and can thus be tested easily. Restoring the old configuration settings can be achieved using the

Restore button in most dialogs or by running Admin Menu > Restore last stored configuration from flash (see also section 5.9,

Managing Settings

www.mobotix.com • sales@mobotix.com • 3.5.2006

38/64

M10 Camera Manual Part 1

Always use Quick Installation for initial configuration!

Admin Menu

User: admin Password: meinsm

Setup Menu

Recommendation: Always use factory image settings!

Page 41

Once you have finished configuring the camera, you should always store

the settings in the camera's permanent memory. You can do so in each

dialog (clicking on Set at the bottom of each dialog will temporarily set the changes; clicking on Close will ask you to store the complete configuration in the camera's permanent memory) or in the Configuration section of the administration menu (Admin Menu > Store current configuration into flash memory).

The Configuration section of the administration menu provides more functions for storing, copying and managing camera settings. For additional information on this topic, see chapter 5,

Basic Camera Configuration

• A camera that keeps time

Apart from a multitude of possibilities for controlling the camera using time (time tables, holiday and vacation, scheduled tasks, etc.), the camera can also synchronize its internal clock. This allows you to keep the camera in synch manually with a computer or fully automatic using a time server. The camera can use NTP time servers or time servers providing Time Protocol (RFC 868).

• The MOBOTIX camera can do "More"

In order to provide a better overview, some of the camera dialogs hide lessoften used options when showing the dialog. These dialogs have a More button in the bottom right corner; click on it to display the advanced options. If all options are displayed, the Less button appears. Clicking this button will

hide the advanced options.

www.mobotix.com • sales@mobotix.com • 3.5.2006

39/64

M10 Camera Manual Part 1

Store configuration permanently:

• Using the Set and Close buttons

• Admin Menu> Store current configuration into flash memory

Click on the More/Less buttons to show/hide the advanced options

Page 42

3.3 Connecting the Camera

3.3.1 ISDN Only

With Network Power Adapter*

(1) Connect the Camera connector of the Network Power Adapter (NPA) to the

ISDN connector of the camera.

(2) Connect the LAN/Power connector of the NPA to the ISDN S0 bus/NT. (3) Plug the RJ45 connector of the external power unit into the PC/Power con-

nector of the NPA.

Without Network Power Adapter

1) Connect the ISDN connector of the camera to the S0 bus/NT. 2a) Power supply using the ISDN S0 bus: Connect the NT's power supply in

order to provide power to the camera via the ISDN cabling (a separate power supply is not required). If other ISDN devices are also powered via the ISDN S0 bus, you should use the external power supply for the camera.

2b) Power supply using the external power supply: Plug the RJ45 connector of

the external power unit into the 10BaseT connector of the camera.

www.mobotix.com • sales@mobotix.com • 3.5.2006

40/64

M10 Camera Manual Part 1

Use the 19" MOBOTIX Netpower rack-mount unit to supply power to 8 or 20 cameras (MX-NPR-8 or

20)

Use the MOBOTIX MXNPR-4 for smaller installations

Requires an ISDN interface card in the PC

Dial-up from an ISDN LAN router can also be set up; contact your network administrator for details

Note

To connect the MOBOTIX camera, hook up the Ethernet or the ISDN cable to the corresponding connector in the camera housing. Connect the power supply to the free connector.

The following sections contain more detailed descriptions and descriptions of special cases.

Maximum Cable Lengths (ISDN)

Connection to ISDN outlet: max. 5-10 m (16 to 33 ft.) Connection to NT (without termination resistors): max. 5-10 m (16 to

33 ft.)

Connection to NT (with termination resistors): 120 m (130 yd)

*Accessory, not included in delivery!

Page 43

3.3.2 Ethernet Only

Make sure that you only use switches or routers that support the 10 Mbps Ethernet

interface of the camera and check the LED activity of the corresponding port of the

switch or router. We recommend using a switch. For additional information on this topic, see section 4.11,

Operating Many Cameras

With Network Power Adapter

(1) Connect the Camera connector of the Network Power Adapter (NPA) to the

10BaseT connector of the camera.

2a) Connecting to an Ethernet switch or router:

• Connect the LAN/Power connector of the NPA to an Ethernet connector of the switch/router or the Ethernet wall outlet.

• Plug the RJ45 connector of the external power unit into the PC/Power connector of the NPA.

www.mobotix.com • sales@mobotix.com • 3.5.2006

41/64

M10 Camera Manual Part 1

Use a switch, if possible

The Network Power Adapter replaces the crossover cable when directly connecting to a computer

PC/Power

LAN/Power

Camera

Network

Power-Adapter

1:1 Patch-Cable

Power Supply

MX-SNT30-

RJ30V/7W

LAN

Hub/Switch

10/100 Mbit

Network(TCP/IP)

1:1 Patch-Cable

10.1.0.11 (255.0.0.0)

10.1.0.99

Maximum Cable Lengths (Ethernet)

Data/power connection: max. 100 m (110 yards)

Beispiel: Deutsche Telekom AG

Maximum of 12 wall outlets, with up to 8 devices attached

ISDN is a bus system, which requires termination (100Ohms) at both ends

Page 44

2b) Connecting directly to a computer:

• Connect the PC/Power connector of the NPA to the Ethernet port of the computer.

• Plug the RJ45 connector of the external power unit into the LAN/Power connector of the NPA.

Without Network Power Adapter

(1) Connect the data link: 2a) Connecting to an Ethernet switch or router:

• Connect the 10BaseT connector of the camera to the Ethernet connector of the switch/router or the Ethernet wall outlet.

2b) Connecting directly to a computer:

• Use a cross-over cable to connect the 10BaseT connector of the camera to the Ethernet port of the computer.

www.mobotix.com • sales@mobotix.com • 3.5.2006

42/64

M10 Camera Manual Part 1

Only a switch will guarantee maximum network performance

You may use a simple patch cable if the computer's network interface supports auto-sensing and automatically recognizes the direct connection

PC/Power

LAN/Power

Camera

Network

Power-Adapter

Power Supply

MX-SNT30-

RJ30V/7W

1:1 Patch-Cable

10.1.0.11 (255.0.0.0)

10.1.0.99

Power Supply

MX-SNT30-

RJ30V/7W

1:1 Patch-Cable

LAN

Hub/Switch

10/100 Mbit

Network(TCP/IP)

1:1 Patch-Cable

10.1.0.99

10.1.0.11 (255.0.0.0)

Power Supply

MX-SNT30-

RJ30V/7W

Cross-Over-Cable

10.1.0.11 (255.0.0.0)

10.1.0.99

Page 45

3.3.3 ISDN and Ethernet

In order to use ISDN and Ethernet simultaneously, plug the ISDN and Ethernet cables into the corresponding connectors of the camera. Power is supplied using either the ISDN cable (from the NT device) or the Ethernet cable and the Network

Power Adapter (Power over Ethernet).

3.3.4 Camera Startup Sequence

As soon as the camera's power supply has been established, the six LEDs will show the progress of the starting sequence:

• Hardware test: Two seconds after the power has been connected, all LEDs will light up for one second. The camera's computer (boot loader) checks the camera hardware.

• Unpacking the OS: The boot loader unpacks the operating system from the Flash EPROM and copies it to the camera's memory (the lower LED lights up for about 4 seconds).

• Starting the OS: The Linux operating system unpacks its data to the ramdisk and initializes the system. All operating system components are verified against their checksums in order to detect changes. In case of an error, the camera will start using the backup operating system instead.

• Starting the applications: Once the application software has been started, the LEDs in the middle will blink (if they have not been switched off for this configuration). You can now access the camera using your browser.

www.mobotix.com • sales@mobotix.com • 3.5.2006

43/64

M10 Camera Manual Part 1

2 sec. Reset

Hardware Test

Unpacking OS

Starting OS

Ready

Caution

Missing termination resistors and wrong cable lengths are the

most common installation errors!

Always observe the instructions regarding maximum cable lengths

and proper ISDN termination!

Note

During the startup sequence or a software reboot, the LEDs will always light up, even if they have been deactivated in Admin Menu > LED Setup.

Page 46

3.4 The First Image from the Camera

Once the ISDN connection (see section 3.4.1,

Preparing the ISDN Connection

) or the

Ethernet connection has been established (see section 3.4.2,

Preparing the Ether-

net Connection

), you have the following possibilities to get the first image from the

camera:

• Direct access using a browser (section 3.4.4,

The First Image in the Browser

)

• Display the camera using MxViewer (free Windows client for MOBOTIX cameras; section 3.4.7,

The First Image in MxViewer

)

Open the browser-based user interface of the camera to complete the remaining configuration tasks (see section 4.3,

The Live Screen in the Browser

, in the

Software

Manual

3.4.1 Preparing the ISDN Connection

Your computer has to have a properly configured ISDN card to establish a connection. If your network has an ISDN router, contact your network administrator for more information.

(1) Create a new Point-to-Point connection

(PPP) on your computer.

(2) Enter linux as user name and tux as

password.

(3) Enter the phone number (a free MSN) of

the ISDN port to which you connected the camera. If your computer is connected to an internal telephone system, make sure that you enter the prefix that is required to obtain an outside line.

The MOBOTIX camera can automatically determine the MSN (see section 5.2.2,

Quick Installation Pages in Detail

(4) Establish the connection.

By factory default, the camera will react to every MSN of an ISDN port (you may change this in Admin Menu > ISDN Connections).

www.mobotix.com • sales@mobotix.com • 3.5.2006

44/64

M10 Camera Manual Part 1

A JavaScript-enabled browser is all you need to access the camera user interface!

Assign different MSNs (phone numbers) to the cameras if they are on the same S0 bus

Note

Default ISDN access credentials for RAS connections

User name: linux Password: tux

Page 47

3.4.2 Preparing the Ethernet Connection

For this example, we will use a camera with the factory IP address 10.1.0.99.

Replace this IP address with the IP address of your camera. You will find this

address on a small sticker on the camera. Accessing the camera is always the same and is independent of the connection type: simply enter the camera's IP address in the address field of the browser (see section 3.4.2,

The First Image in

the Browser

Your computer has to have a network or a wireless interface, and it should be in the same subnet as the camera. If your network also uses IP addresses of a class A network (e.g. 10.x.x.x, network mask 255.0.0.0), you should be able to access the camera directly (provided no other network device uses the same IP address).

Determine the IP address of your computer:

• Open a command shell (Windows) or a terminal (Linux/UNIX/ OS X) and enter the following command:

Windows 2000/XP: ipconfig Linux/UNIX/OS X: ifconfig

You will find the IP address of your Windows computer under IP address; for Linux/ UNIX/OS X computers, search for the inet address parameter of the eth0 device (the first network interface). If your computer does not use an IP address in the

10.x.x.x range, you should change or expand the network configuration of your computer (see below).

Make sure that no other network device uses the camera's IP address:

• Open a command shell (Windows) or a terminal (Linux/UNIX/OS X) and enter the following command:

ping <factory IP address>

If you receive an answer from another network device although the camera is not connected, you will have to remove that device until you have reset the MOBOTIX camera to a free IP address. We recommend using the Quick Installation wizard for this task.

www.mobotix.com • sales@mobotix.com • 3.5.2006

45/64

M10 Camera Manual Part 1

Caution: Netmask 255.0.0.0

Open a Command Prompt (Windows): Start> Run, enter “cmd”, then press [Return]

Make sure that you replace 10.1.0.99 with the IP address of your camera!

The factory IP address is printed on the sticker on the camera

Example: 10.1.0.99

Note

Pressing the "R" key on the back of the camera will let the camera

announce the current IP address of the camera using its voice output feature.

Page 48

If your computer does not use an IP address in the 10.0.0.0 network (e.g. a

192.168.x.x or 172.x.x.x network), you should add a second IP address to the network configuration of your computer or set a new IP address:

Windows 2000/XP

(1) Open the Network Connec-

tions and open the Properties of LAN Connection.

(2) Double-click Internet Proto-

col (TCP/IP).

(3) Click on the Alternative

Configuration tab.

(4) Enter an IP address (e.g.

10.1.0.11) in the class A network (10.x.x.x) that is unique in your network and that is not the same as the camera's IP address.

(5) Close all dialogs by clicking

on OK.

Linux/UNIX/OS X

(1) Open a terminal as root user and enter the following command:

ifconfig eth0:1 10.1.0.11

The computer now has the additional IP address 10.1.0.11, allowing it to access the camera with its factory IP address in the 10.x.x.x network (10.1.0.99 in this example).

3.4.3 Simultaneously Using ISDN and Ethernet Connections (Gateway)

In most cases, the MOBOTIX camera will be used either on the ISDN or an Ethernet LAN, not both. If ISDN is used, the gateway (for accessing computers outside of the local network) is set automatically; for Ethernet, the gateway has to be set manually.

In order for the camera to open an ISDN dial-out connection while both ISDN and Ethernet are used, the default route has to be set to the preferred ISDN dial-out connection (Admin Menu > ISDN Data Connections > Dial-Out Connections). Section 5.2,

Quick Installation

, in the

Software Manual

contains more information

on this topic.

If you would like to use connections to different networks for other tasks (e.g. backup to an FTP server), you can set more network routes in Admin Menu >

Routing. See the Routing topic in the camera help for more information.

www.mobotix.com • sales@mobotix.com • 3.5.2006

46/64

M10 Camera Manual Part 1

Set up second IP address on Windows computers

Set up second IP address on Linux/UNIX/OSX computers

Routing allows reaching different network addresses using different connection types/routes

Page 49

3.4.4 The First Image in the Browser

As you have successfully started the camera for the first time, you can now access the camera using your preferred browser to see the live video stream and the user interface. Internet Explorer, Mozilla, Firefox, Safari or any other graphical browser with activated JavaScript is suitable. The operating system is of no importance, even PDAs can be used without any problems.

After entering the camera's IP address in the browser address bar (e.g. http://

10.1.0.99), you will see the Live screen of the MOBOTIX camera with its user

interface controls, such as softbuttons, buttons for the different camera screens, pull-down menus (

Quick Controls

), icons for accessing the online help and the

camera status, and status information elements above and below the live image.

www.mobotix.com • sales@mobotix.com • 3.5.2006

47/64

M10 Camera Manual Part 1

Camera access: http://10.1.0.99 (example IP)

The factory IP address is printed on the sticker on the camera

Administration menu: User name: admin Password: meinsm

Softbuttons are freely

configurable

Replace 10.1.0.99 sample address by the IP address of your own camera!

Note

Credentials for accessing the Administration Menu

User name: admin Password: meinsm

Softbuttons

Camera screens

Quick Controls

Camera help, camera status

Video motion windows

Logo within the image

Camera audio channel in the browser (ActiveX)

Page 50

3.4.5 Additional Information

For more information on this topic, see the News and Functional Overview pages in the online help of the camera's browser interface. Click on the yellow icon in

the top right corner to open the camera's online help.

In order to get more information on the camera and its current configuration, open the Camera Status dialog by clicking on the yellow icon in the top right corner

of the camera's browser interface.

www.mobotix.com • sales@mobotix.com • 3.5.2006

48/64

M10 Camera Manual Part 1

Changing the factory IP

address: Always use Admin Menu> Quick Installation

IP voice announcement is not available for Web and Basic models

Camera Help

Camera Information

Notes

Factory Defaults: Every MOBOTIX camera has its individual factory IP

address (e.g. 10.1.0.99). You will find this address on a small sticker on the camera housing. If you have started the camera using DHCP or you have set the IP address manually, use the new IP address (e.g. 192.168.0.99) instead of the factory IP address. Pressing the "R" key on the back of the camera will prompt the camera to announce its current IP address. For additional information on this topic, see section 3.5,

Starting the Camera With an Automatic IP

Address (DHCP)

Troubleshooting: If your web browser does not show the camera's Live screen after you have entered the IP address, you should try to locate and resolve the error as described in chapter 12,

Troubleshoot-

ing

, in the

Software Manual

MxViewer: In order to see the live image of the camera, you can also use other applications or the integrated programming interface of the MOBOTIX camera. MxViewer for Windows is such an application and is provided free of charge

by MOBOTIX. Besides its ability to display

fast live video of up to 30 cameras with 30 fps each on one PC, MxViewer also allows recording and playing back video clips with realtime audio via the network and can control pan/tilt heads using a joystick or the mouse. Download the newest version of MxViewer from the MOBOTIX website. The website contains more information on MOBOTIX systems as well as the MxViewer help.

Page 51

3.4.6 Camera Screens in the Browser

By factory default, the MOBOTIX camera first shows the Live screen. You can set a different entry page in order to prevent others from changing settings; you can assign user names and passwords to prevent unauthorized access or you can restrict access to the current live image only, by setting the Guest screen as entry page.

The following screens are available:

• Guest screen: Only shows the current live image with reduced frame rate (see section 4.7,

Guest Screen

, in the

Software Manual

• Live screen: Shows the current live image and allows changing the

image and event settings of the camera (see section 4.3,

The Live

Screen in the Browser

, in the

Software Manual

• Playback screen: Shows all recorded images or video clips with

extended functions for searching and downloading images, regardless of where the images are stored (in the internal or the external ring buffer on a file server or PC; see section 4.4,

The Playback Screen in the Browser

, in the

Software Manual

• MultiView screen: Shows multiple cameras or the last events in a freely definable layout (see section 4.5,

The MultiView Screen in the Browser

in the

Software Manual

• PDA screen and PDA Event List: Both screens are optimized for PDAs with a

focus on fast data transmission with low bandwidth requirements (GSM, GPRS) on devices with small displays (PDAs, mobile phones, sub notebooks). The PDA Event List in particular gives a quick overview over the last events since the live image is not transferred (see section 4.6,

The PDA Screen

, in

the

Software Manual

For more information on camera screens, see the online help of the camera's browser interface. Click on the yellow icon in the top right corner of the Live

screen to open the corresponding page of the online help.

www.mobotix.com • sales@mobotix.com • 3.5.2006

49/64

M10 Camera Manual Part 1

Use the Administration menu to set the camera screen that should appear initially when accessing the camera IP address

http://10.1.0.99/pda opens the PDA screen

Live/Playback/MultiView: Click on to open the online help pages for the camera screens

Note

Open Admin Menu > Language and Entry Page to set a different start page when accessing the camera.

Open Admin Menu > Users and Passwords and Admin Menu >

Group Access Control Lists

to set user rights and to prevent unauthor-

ized access to certain screens (see section 5.4.1,

Passwords

, in the

Software Manual

Page 52

3.4.7 The First Image in MxViewer

The MOBOTIX MxViewer is a free Windows application that allows displaying multiple MOBOTIX cameras on one computer and provides alarm management

functions. It can easily handle displaying 30 cameras with CIF resolution at 30 fps

each in MxPEG format on one standard PC with Intel Pentium 4 and 3 GHz.

MxViewer can do quite a bit more than simply display the video and audio data from MOBOTIX cameras. The unique features of MxViewer and the MOBOTIX cameras create a full-featured security system: Intelligent alarm handling, extensive possibilities of arranging the cameras on layouts (MultiView screens), ability to display cameras that are sending alarm notifications, and integrated camera management functions.

Further Information on MxViewer

For further information on MxViewer, download the

MxViewer User Manual

from

www.mobotix.com:

• Saving and loading MxPEG video clips

• Creating and editing layouts using the Layout Editor

Further Information in the

Software Manual

• Section 4.3.5:

JPEG, MxPEG and Audio

• Section 4.3.6:

Background Information on JPEG, MxPEG and Audio

• Section 4.10:

Fast Video Streaming

www.mobotix.com • sales@mobotix.com • 3.5.2006

50/64

M10 Camera Manual Part 1

Download MxViewer free of charge from www.mobotix.com

MxViewer Windows client with alarm list, background image and freely positioned cameras

Page 53

Installing and Starting MxViewer

Follow these steps to install MxViewer:

• Download the newest version of MxViewer:

http://www.mobotix.com/services/software_downloads/

• Download the MSI file (Windows Installer file) and install MxViewer.

As an alternative, you can also download the EXE file on its own; you will have to manually install MxViewer:

• Download the EXE file to a suitable folder.

• Create a shortcut by right-clicking on MxViewer.exe in this folder.

• Copy the shortcut to the desktop.

Double-click the shortcut or the program file itself to start MxViewer.

Defining Video Sources

If you start MxViewer for the first time on a computer without having defined any video sources before, the MxViewer Video Sources dialog will appear.

Depending on the task at hand, select the appropriate option in the Select video source group:

• Scan network for

MOBOTIX cameras

(default): Click on OK to open the Scan Network

for MOBOTIX Cameras

dialog. MxViewer will automatically scan the subnet for MOBOTIX cameras and will display the list of camera IP addresses.

• Define video sources manually: Click on OK to open the Define Video

Sources Manually dialog and manually add the cameras.

In the Layout options group, select Show video sources in default layout. This will prompt MxViewer to automatically generate a standard layout that comprises all video sources (i.e. cameras) once they have been defined either automatically or manually.

www.mobotix.com • sales@mobotix.com • 3.5.2006

51/64

M10 Camera Manual Part 1

The Layout Editor of MxViewer offers wideranging possibilities for creating different layouts

Download MxViewer free of charge from www.mobotix.com

Defining cameras as video sources

You should always scan the network for MOBOTIX cameras!

Note

Use MxViewer's Layout Editor to design the layout of the camera dis- play on the screen (number of cameras, arrangement, size). The editor supports drag&drop, MxPEG clips, and allows using building or property plans and similar graphics as a background image.

Page 54

Automatically Searching MOBOTIX Cameras in the Same Subnet

MxViewer displays the Scan network for MOBOTIX cameras dialog:

• Click on the Subnet dropdown list and select the desired subnet.

• Click on Scan to start the camera search.

If MxViewer finds only one subnet, the scanning process will start automatically.

In the first pass, MxViewer searches the selected subnet for MOBOTIX cameras and in the second pass, MxViewer verifies if it can access the cameras.

MxViewer then highlights all cameras in the list, which have a status of

Access denied

Using the Highlighted Cameras

Click on OK to use the

highlighted

cameras and to include them in the default lay-

out generated by MxViewer:

www.mobotix.com • sales@mobotix.com • 3.5.2006

52/64

M10 Camera Manual Part 1

Page 55

Automatically Searching MOBOTIX Cameras in all Subnets

Future versions of MxViewer will be able to search MOBOTIX cameras not only in the current subnet of the computer, but also in all subnets, which can be reached within the same physical network (e.g. not closed off by routers or other mechanisms).

This means that MxViewer can find cameras with factory IP address (e.g.

10.1.0.99 as in our sample), although the computer is in a different subnet (e.g.

172.16.0.0).

MxViewer can thus find MOBOTIX cameras automatically and without changing the computer configuration if the camera has been plugged into the same switch as the computer, for example.

Manually Defining MOBOTIX Cameras

If you have selected the Define video sources manually option in the MxViewer Video Sources dialog, you can manually add the IP addresses or DNS names of

the MOBOTIX cameras.

• Add: Adds the IP address or DNS name of the MOBOTIX camera you entered to the list.

If possible, MxViewer shows the image of the last camera you added in the preview window. Click on OK to use

all

cameras in the list and to include them in the

default layout generated by MxViewer:

Displaying MxPEG Video Clips

MxPEG video clips represent the files that contain the video and audio data stored by either MOBOTIX cameras or MxViewer. These clips can be displayed in MxViewer just like the camera images. In order to display one or more MxPEG video clips, activate the Layout Editor, right-click the desired camera windows of the layout one by one and select the Load Clip command.

To download sample MxPEG video clips, open the MOBOTIX website www.mobotix.com.

www.mobotix.com • sales@mobotix.com • 3.5.2006

53/64

M10 Camera Manual Part 1

Enhanced search features

Manually adding cameras and loading recorded video streams

MxViewer can show multiple MxPEG clips at once!

Page 56

3.5 Starting the Camera With an Automatic IP Address (DHCP)

If your network has a DHCP server, you can start the camera with DHCP support. In this case, the DHCP server automatically assigns an IP address.

As soon as startup has been completed, the camera automatically announces its IP address, its network mask and its MAC address (except Web and Basic models; speaker has to be activated). Note, that this announcement function can be deactivated (Admin Menu > Loudspeaker and Microphone).

Proceed as follows to start the camera using DHCP:

• If the camera is powered on, disconnect the power supply of the camera by unplugging the corresponding cable.

• Connect the camera's power supply.

• Wait until all six LEDs are lighting up simultaneously for the second time (about five seconds after connecting the camera's power supply—the LEDs will stay on for 25 seconds).

• Wait for about 20 seconds after the LEDs have lit up for the second time, then press and hold the "R" key. All LEDs should still be lit when you do this.

• Only release the key when the LEDs at the 8 o'clock and 12 o'clock position are lighting up.

• After about two seconds, the camera plays a sound ("Boing, Boing").

• After about another 15 seconds, the camera will announce its network data, provided it has audio functionality.

You can now access the camera using the IP address it just announced.

www.mobotix.com • sales@mobotix.com • 3.5.2006

54/64

M10 Camera Manual Part 1

Activate the camera speaker!

Announce IP address: Press “R” key

In case of an error, the camera uses its last IP address

Press "R" key

Note

Simply press the "R" key once if you would like to prompt a running camera to announce its network settings.

Caution

When starting the camera with DHCP support, make sure that the network has a properly functioning DHCP server. If this is not the case, the camera cannot obtain a valid IP address and will fall back to its last known IP address.

… until this shows:

Page 57

3.6 Starting the Camera Using the Factory IP Address

Under certain circumstances, you may have to reset the camera to its factory IP address. This could be the case if the IP address of the camera has been lost or the camera does not react to the last known IP address.

Proceed as follows to start the camera using its factory IP address:

• If the camera is powered on, disconnect the power supply of the camera by unplugging the corresponding cable.

• Connect the camera's power supply.

• Wait until all six LEDs are lighting up simultaneously for the second time (about five seconds after connecting the camera's power supply—the LEDs will stay on for 25 seconds).

• Wait for about 20 seconds after the LEDs have lit up for the second time, then press and hold the "L" key. All LEDs should still be lit when you do this.

• Only release the key when the LEDs at the 4 o'clock and 12 o'clock posi- tion are lighting up.

• After about two seconds, the camera plays a sound ("Boing").

The camera is now accessible again using its factory IP address (see label on the camera housing).

www.mobotix.com • sales@mobotix.com • 3.5.2006

55/64

M10 Camera Manual Part 1

Passwords and camera settings will not be changed!

Make sure you store the factory network configuration to the permanent flash memory

Users and passwords will

not be changed!

Note

If you use the camera's "L" key to load the factory network configuration, this configuration is not automatically saved to flash memory. Upon restarting the camera the next time without using the camera's "L" key, the

last stored network configuration

will be used. To permanently store the new network configuration in the camera's flash memory, open Admin Menu > Store ...

Caution

As opposed to resetting the camera using Admin Menu > Reset configuration to factory defaults (see section 1.4.5), the users and passwords defined in the camera will not be reset if the camera is being booted using the factory IP address.

Press "L" key … until this shows:

Page 58

3.7 Signal Input/Output, RS-232 Interface

The MOBOTIX camera provides a signal input/output and three additional signal pins on its RS-232 interface (not Basic, Web and M22 models), which you can use as additional signal in/out detectors. You can use the camera's signal input/output to detect an opening door (using a Reed switch) or to switch an external device (e.g. a lamp).

3.7.1 Signal Input

Pin 9 of the RS-232 connector is used for detecting the signal input. To trigger the signal input, simply connect pin 5 (ground) to pin 9 (no current required). You can also connect other devices (e.g. SPS machines) that close a contact (0V) to trigger the signal input.

Click on Setup Menu > Event Settings to specify which state of the signal input should create an event—an open loop or a closed loop. For example, if you would like to secure all windows and doors of a building, connect all closed switches in a serial loop and connect the wires to signal input (pin 9) and ground (pin 5). The wire should have a resistance of less than 2 kOhms. The camera already is equipped with a low pass filter (10 kOhms / 10 nF).

Open Setup Menu > Event Settings to activate the additional signal input pins of the RS-232 interface (

Closed/Low

Open/High

option; CTS: Pin 8-5, DSR: Pin 6-5, RxD: Pin 2-5). Open Admin Menu > Setup of serial interface and modem and configure the serial interface accordingly (Serial:

Data

, Mode:

I/O Mode

Click on Admin Menu > LED Setup and set one or more LEDs to

Signal input

to dis-

play the state of the input signal for testing (

Signal input

option: loop closed = LED on). "0": Current higher than +3 V ==> inactive ==> LED off "1": Current lower than 0.5 V ==> active ==> LED on

www.mobotix.com • sales@mobotix.com • 3.5.2006

56/64

M10 Camera Manual Part 1

The signal lines of the serial interface can also be programmed as additional signal in/ output: Setup Menu> Event Settings> Signal CTS/DSR/RxD. This means that you have a total of four signal input lines

Polarity can be switched

Bridge < 2 kOhms

Integrated low-pass filter

10kOhms, 10nF

Page 59

3.7.2 Signal Output

When an event is detected, the MOBOTIX camera can switch the signal output (pin 1). Use the corresponding options in Setup Menu > Actions to set how long the camera should close the signal output.

• Off: Signal output is open (10 kOhms on 3.3 V)

• 1s, 2s, 5s, 10s, 30s, 1min, 5min: Closes the contact between pin 1 of the RS232 connector and ground (pin 5). The signal output is protected against power surges and unwanted feedback (±48 V) and it switches up to 50 mA. It can thus switch a 12 V relay with 0.6 W (24 V relay with 1,2 W).

Open Setup Menu > Enhanced Signal Out Options to set custom swiching times for any combination of events (not Basic, Web and M22 models). This dialog also allows using a time table and setting a dead time.

Click on Admin Menu > LED Setup and set one or more LEDs to

Signal input

to dis-

play the state of the input signal for testing (

Signal input

option: loop closed = LED

on).

www.mobotix.com • sales@mobotix.com • 3.5.2006

57/64

M10 Camera Manual Part 1

Activate the signal output in Admin Menu> LED Setup or for specific events in Setup Menu> Event Settings

The event settings allow activating the signal output for a certain time only (to generate an impulse)

Functions:

- signal High

- signal Low

Example setup

Note

The signal output of the RS-232 interface will assume an inactive state while the camera is (re-)booting and will stay inactive. This does not apply to the I/O pins of the RS-232 interface that have been programmed as output pins.

The polarity of the two signal in/output pins is the reverse polarity of the in/output pins of the RS-232 interface in I/O mode.

Page 60

3.8 Drilling Templates M10 (Scale 1:1)

SecureFlex wall mount

www.mobotix.com • sales@mobotix.com • 3.5.2006

58/64

M10 Camera Manual Part 1

Find the drilling templates (scale 1:1) at the end of the manual as a fold-out

Wall outlet at upper rim

Note

Make sure that the drilling template is not scaled (up or down) when printing the template.

When printing the PDF, make sure that you print two facing PDF pages on one single A4 page in order to obtain a scale 1:1 template.

Page 61

SecureFlex wall mount (centered wall outlet)

Ball joint wall mount (not scaled 1:1)

www.mobotix.com • sales@mobotix.com • 3.5.2006

59/64

M10 Camera Manual Part 1

Wall outlet centered

Page 62

www.mobotix.com • sales@mobotix.com • 3.5.2006

60/64

M10 Camera Manual Part 1

M10M-Web

MX-M10M-Web-D43

M10D-IT

MX-M10D-IT-D43D135

M10D-IT-DNight

MX-M10D-IT-DNight-D43N43

M10D-Sec

MX-M10D-Sec-D43D135

M10D-Sec-DNight

MX-M10D-Sec-DNight-D43N43

M10D-Sec-DNight

MX-M10D-Sec-DNight-D135N135

M10 Hardware Features

Outdoor weatherproof (IP65) IP65 IP65 IP65 IP65 IP65 IP65

Mono (M) / Dual (D)

Image Sensor

Image size

Resolution horizontal x vertical

Color

Mega

1280x960

VGA

640x480

D-night

Color/B&WDColor

VGA

640x480

Mega

1280x960

D-night

Color/B&W

D-night

Color/B&W

Mega

1280x960

Mega

1280x960

Max. frame rate CIF/VGA/Mega

Sensitivity at 1/60 second (Lux)

Sensitivity at 1 second (Lux)

Automatic night lens switch

25/12/-

0.05

Standard lens

Storage (MB)

Video ring buffer (MB)

CIF images approx.

L4364L43/L135

750

2,000

25/12/-

0.1

25/12/4

0.005

0.05

25/12/4

0.1

25/12/4

0.1

0.005

L43/L4364L43/L135

128

2,000

L43/L43

128

L135/L135

128

4,000

VGA images approx.

Mega images approx.

Ethernet, ISDN, USB, RS232

CF slots

450

150

1,250

E /I / - / --E /I / - /R

Microphone/Speaker

External audio (Line-In/Out)

Signal Input

Signal Output

-/S

M/S

1,250

800

E /I / - /R-E /I / - /R

800

2,500

800

E /I / - /R-E /I / - /R

M/S

Concealed cabling

In stock

Yes

* available Q3/2006

*Concealed cabling for IT and Web models available in July 2006

Page 63

www.mobotix.com • sales@mobotix.com • 3.5.2006

61/64

M10 Camera Manual Part 1

Basic Models

eb Models

IT Models

Secure Models

Software Features (All Models)

Digital zoom (2x, 4x) with panning X X

Motion JPEG/MxPEG video streaming

Custom exposure windows

Video Motion Detector

Time and event control (FTP, email, logos)

X/X

Time tables definable

Web functionality (FTP, email)

Quad/MultiView in browser

Recording/Playback in browser

Logo generator, animated

Single image recording (pre-/post-alarm images)

Terabyte ring buffer (Win/Lin/Mac) via network

Continuous video/audio recording, 0.2 to 30 fps

Video/audio recording (event-triggered)

Event-controlled frame rate with continuous sound

Flexible event logic

Master/Slave arming by one camera

Scheduled privacy zones, several areas

Bidirectional audio (IP) from/to browser

Customized voice messages

VoIP telephony (Audio/Video, SIP)

Alarm calls to softphones (SIP) e.g. Xten

Remote alarm notification (via TCP/IP, IP Notify)

RS232 Data Logger/Terminal

Programming interface/HTTP API

Model Limitations

Image size

Image sensor (color / B/W)

VGA

Color

Mega

Color

VGA

Color & B/W

Mega

Color & B/W

Standard lens for software version

Audio support (Microphone/Speaker)

L43

-/S

L43

-/S

L43

M/S

L43

M/S

M10

D10

M22M

Page 64

www.mobotix.com • sales@mobotix.com • 3.5.2006

62/64

M10 Camera Manual Part 1

Notes:

Page 65

IP65 Certificate

www.mobotix.com • sales@mobotix.com • 3.5.2006

M10 Camera Manual Part 1

63/64

Page 66

Declaration of Conformity

www.mobotix.com • sales@mobotix.com • 3.5.2006

64/64

M10 Camera Manual Part 1

Page 67

Manufacturer

MOBOTIX AG

Kaiserstrasse

D-67722 Langmeil

Germany

Tel : +49 6302 9816-103

Fax: +49 6302 9816-190

http://www.mobotix.com

sales@mobotix.com

Executive Board

Dr. Ralf Hinkel

Registration Oce: Kaiserslautern Local Court

Registration Number: HRB 3724

Tax Code: 44/676/0700/4

Tax Oce: Worms-Kirchheimbolanden, Germany

VAT ID:

DE202203501

You can ﬁnd the latest version of this document at www.mobotix.com under Support.

Technical speciﬁcations subject to change without notice!

To demonstrate our conﬁdence in the quality of our products,

MOBOTIX cameras were used to capture all the images that

appear in this manual.

MOBOTIX – The HiRes Video Company

www.mobotix.com • sales@mobotix.com

Page 68

MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • sales@mobotix.com • 3.5.2006

Current PDF File:

www.mobotix.com > Services > Manuals

MX-CM-M10-EN-02

Complete integration for web and security

M10

Camera Manual

MOBOTIX ... the new face of IP video

MOBOTIX

Security-Vision-Systems

Part 1

VGA

12 fps

480 lines

CIFCIF

25 fps

288 lines

Mega

4 fps

960 lines

Concealed cabling

Wall bracket

with cable cover

for RJ45 wall outlet

25 Frames/s CIF (320 x 240)

12 Frames/s

VGA (640 x 480)

4 fps Mega

-22°F to +140°F

Weatherproof

-30°C to +60°C, IP65

no heating necessary

Tele/wide angle

Dual Lens

Automatic

day/night switching

SIP-Client

IP Telephony

alarm notify,

cam remote control

lip-syncronized audio

Recording

event-ringbuffer

30 cams each 25 fps

Backlight

safe using CMOS

without mechanical iris

Video motion

multiple windows

precision pixel-based

microphone & speaker

Audio

bi-directional via IP

variable framerates

Live viewing

30 cams at 25 fps all on one screen

Megapixel

1280 x 960

software zoom

Robust

no moving parts

fiber glass housing

Mobotix M10 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
