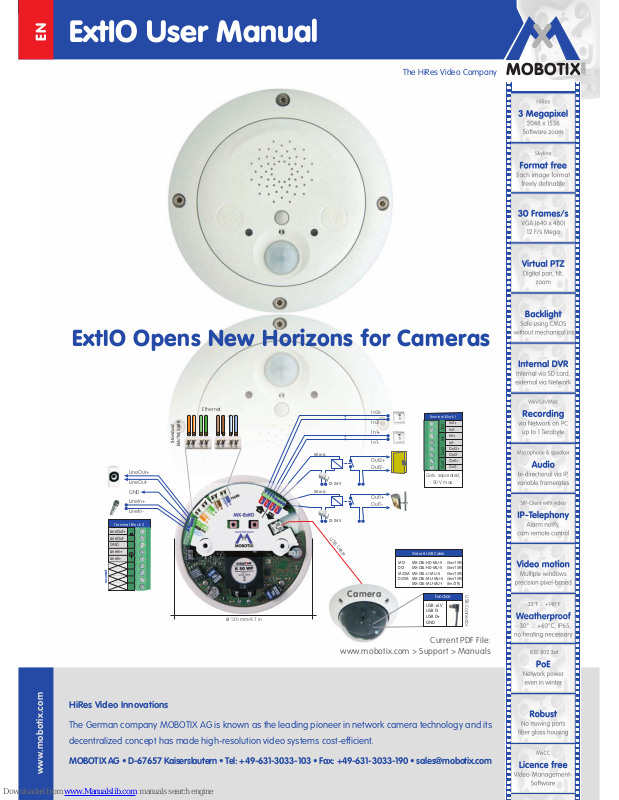

Mobotix ExtIO User Manual

www.mobotix.com

HiRes Video Innovations

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its

decentralized concept has made high-resolution video systems cost-efficient.

MOBOTIX AG • D-67657 Kaiserslautern • Tel: [phone] • Fax: [phone] • [e-mail]

ExtIO User Manual

EN

MOBOTIX

.

com

X

The HiRes Video Company

Current PDF File:

www.mobotix.com > Support > Manuals

ExtIO Opens New Horizons for Cameras

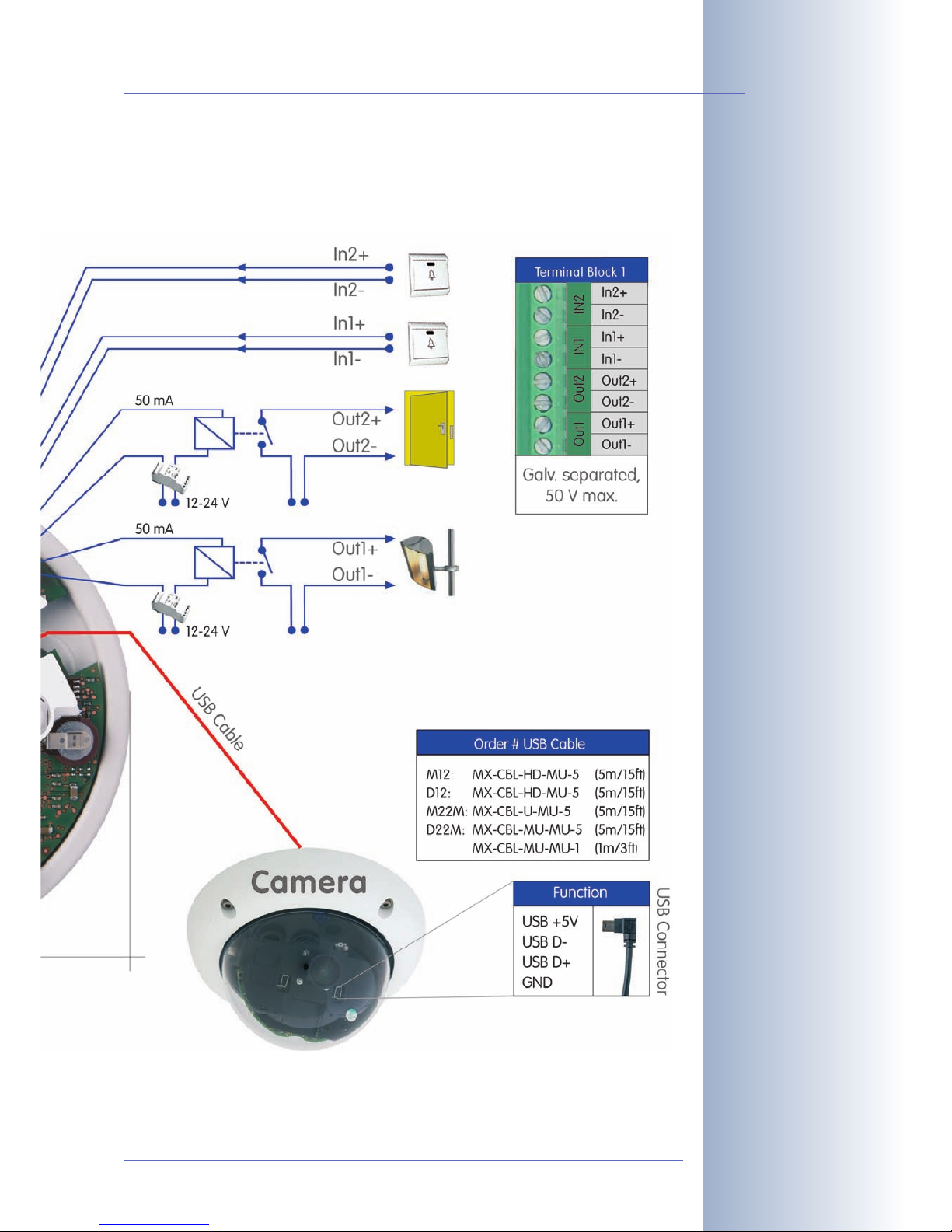

12-24 V

12-24 V

50 mA

50 mA

Out1-

Out1+

In1-

In1+

In2-

GND

LineIn-

LineIn+

LineOut-

LineOut+

Out2-

Out2+

In1-

In1+

In2-

In2+

IN1 IN2Out1 Out2

Out1-

Out1+

Out2-

Out2+

Ethernet

LineIn-

LineIn+

LineOut-

LineOut+

GND

In2+

USB +5V
USB D­USB D+
GND

USB Connector

Function

Order # USB Cable

USB Cable

Terminal Block 1

Terminal Block 2

Standard

EIA/TIA568B

reserved

ø 120 mm/4.7 in

Galv. separated,

50 V max.

Camera

M12: MX-CBL-HD-MU-5 (5m/15ft)
D12: MX-CBL-HD-MU-5 (5m/15ft)
M22M: MX-CBL-U-MU-5 (5m/15ft)
D22M: MX-CBL-MU-MU-5 (5m/15ft)

MX-CBL-MU-MU-1 (1m/3ft)

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

MOBOTIX ExtIO User Manual

Note: MOBOTIX offers inexpensive seminars that include a workshop and

practical exercises: Basic Seminar three days, Advanced Seminar two
days.

For more information, please visit www.mobotix.com.

Notes

EXTIO USER MANUAL

1 INTRODUCTION 4

1.1 MOBOTIX ExtIO Concept 6

1.2 The MOBOTIX ExtIO and MOBOTIX Cameras 8

1.2.1 Functional Overview of the ExtIO 8

1.2.2 Comparison ExtIO/CamIO 9

1.3 Accessories 10

2 MOUNTING THE EXTIO 12

2.1 Preparing the Installation 12

2.1.1 Mounting to a Wall or Ceiling 13

2.1.2 Connecting via Network or USB 13

2.1.3 Mounting Options 14

2.1.4 Providing the Camera Connections, Wall Outlets 14

2.1.5 Directions for Mounting 15

2.2 ExtIO: Delivered Parts, Components and Dimensions 16

2.2.1 Delivered Parts and Components 16

2.2.2 Housing 17

2.2.3 ExtIO Dimensions 18

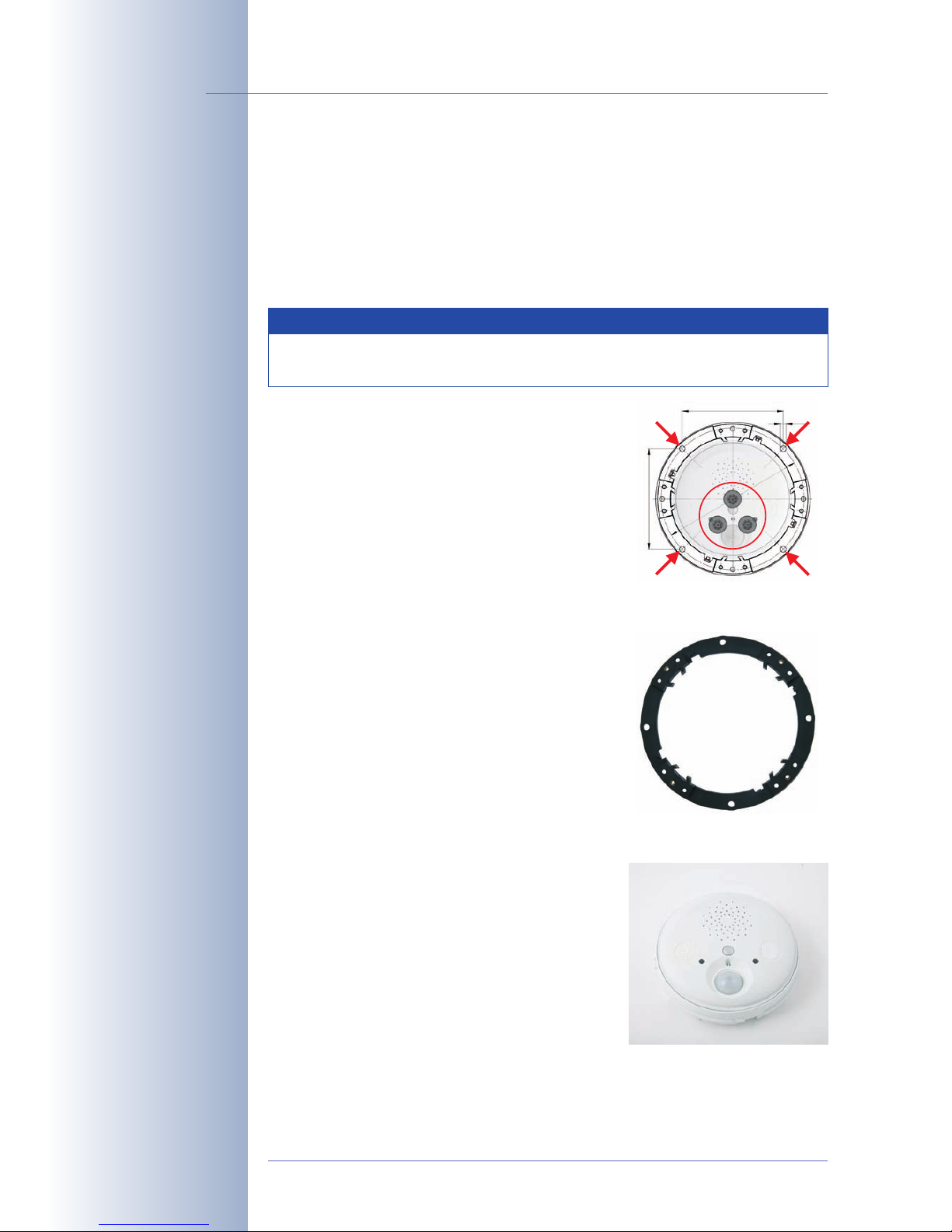

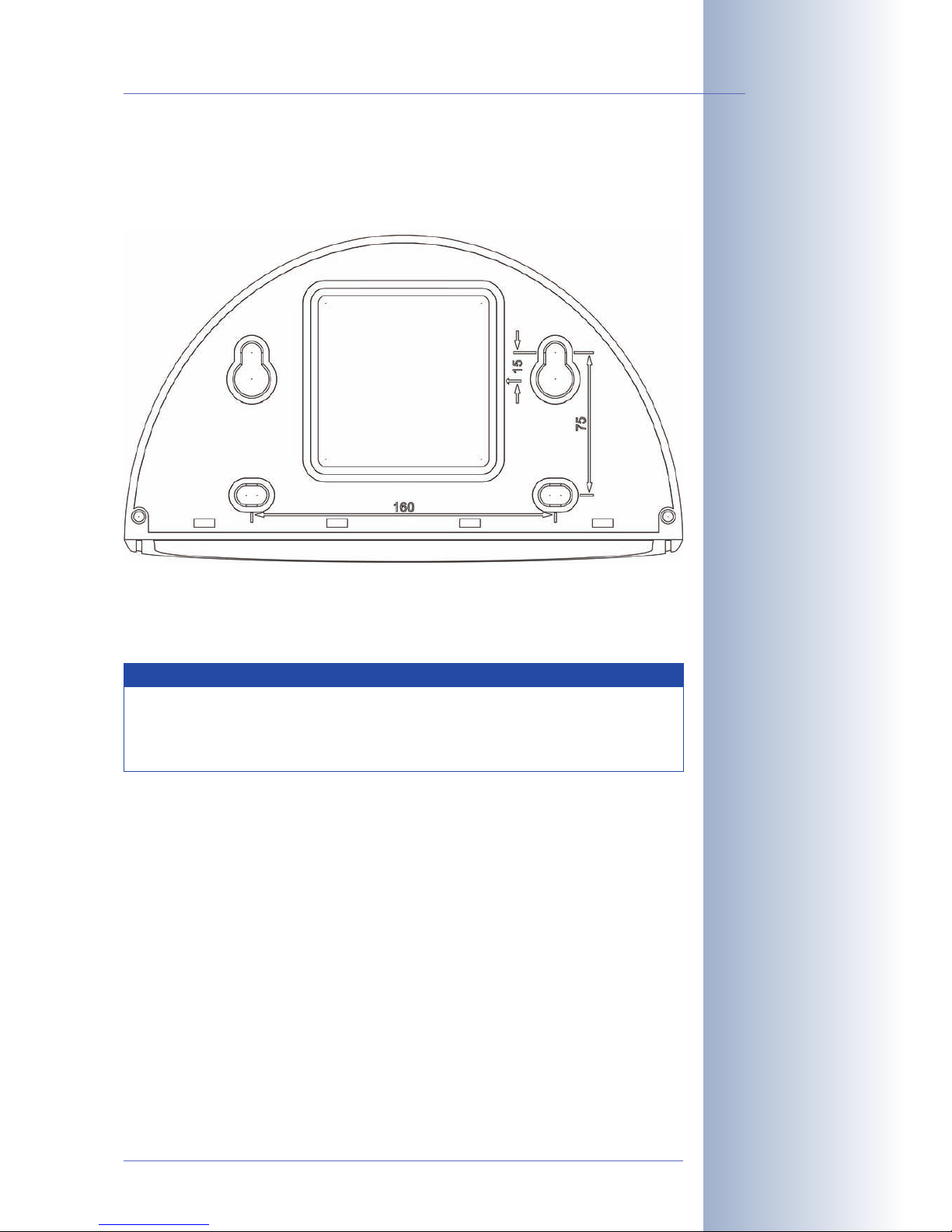

2.2.4 Drilling Template Mounting Ring 18

2.3 ExtIO Accessories: Delivered Parts, Components and Dimensions 20

2.3.1 On-Wall Set 20

2.3.2 In-Ceiling Set 22

2.3.3 Wall Mount 24

2.3.4 Pole Mount 26

2.4 Connecting the Terminal Connectors, Wiring 30

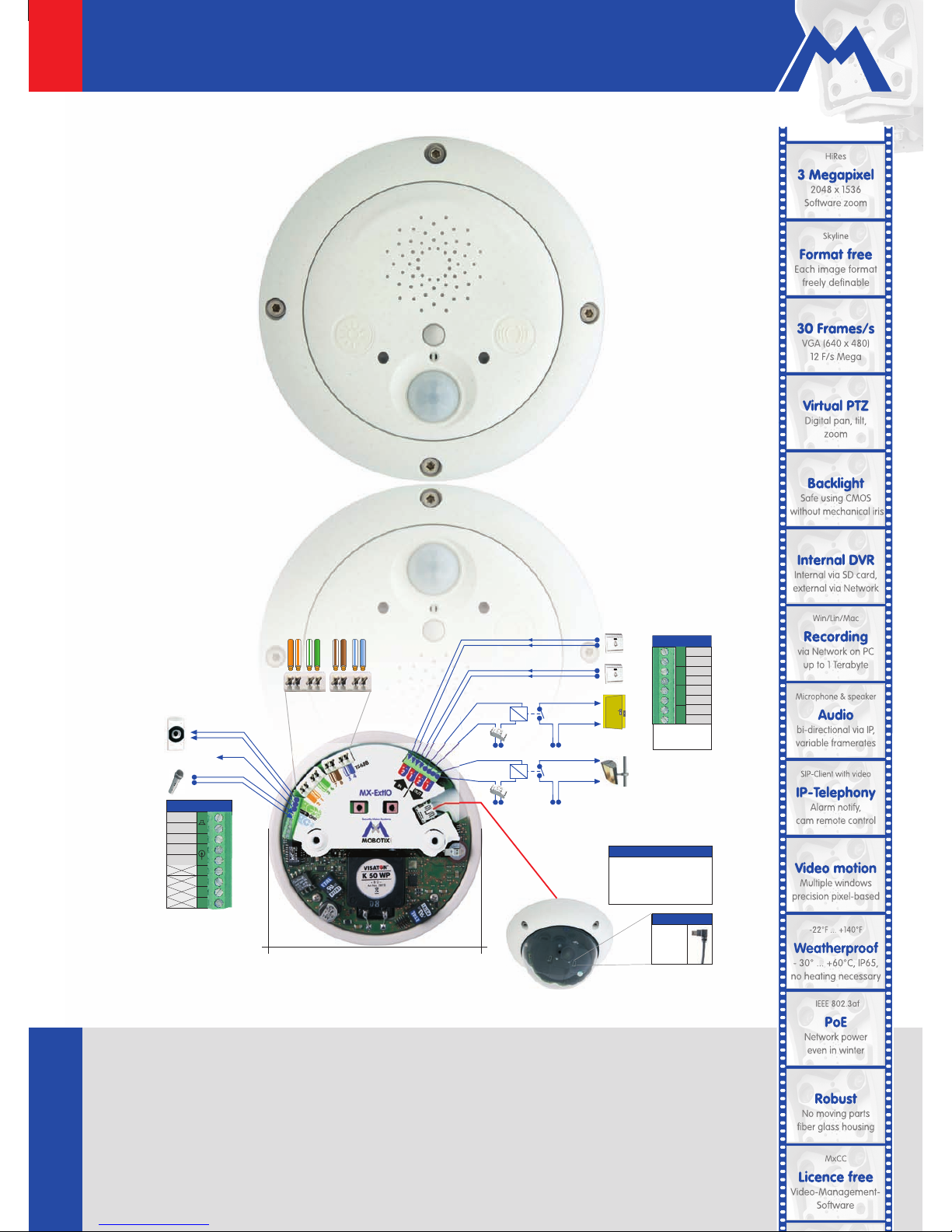

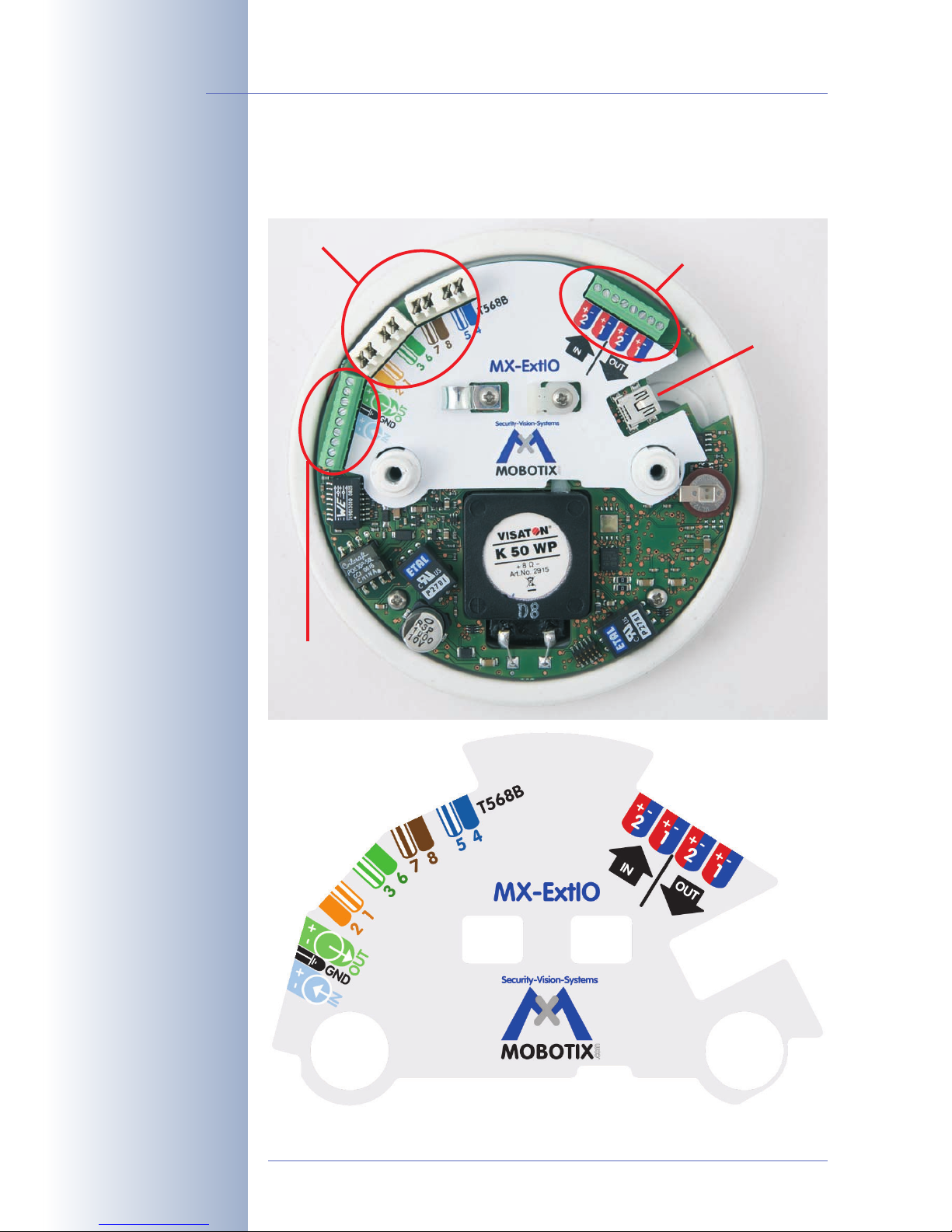

2.4.1 Overview: ExtIO Board and Connectors 30

2.4.2 ExtIO Terminal Connector for the Ethernet Cabling 31

2.4.3 ExtIO Terminal Connector1 (Signal Inputs/Outputs) 32

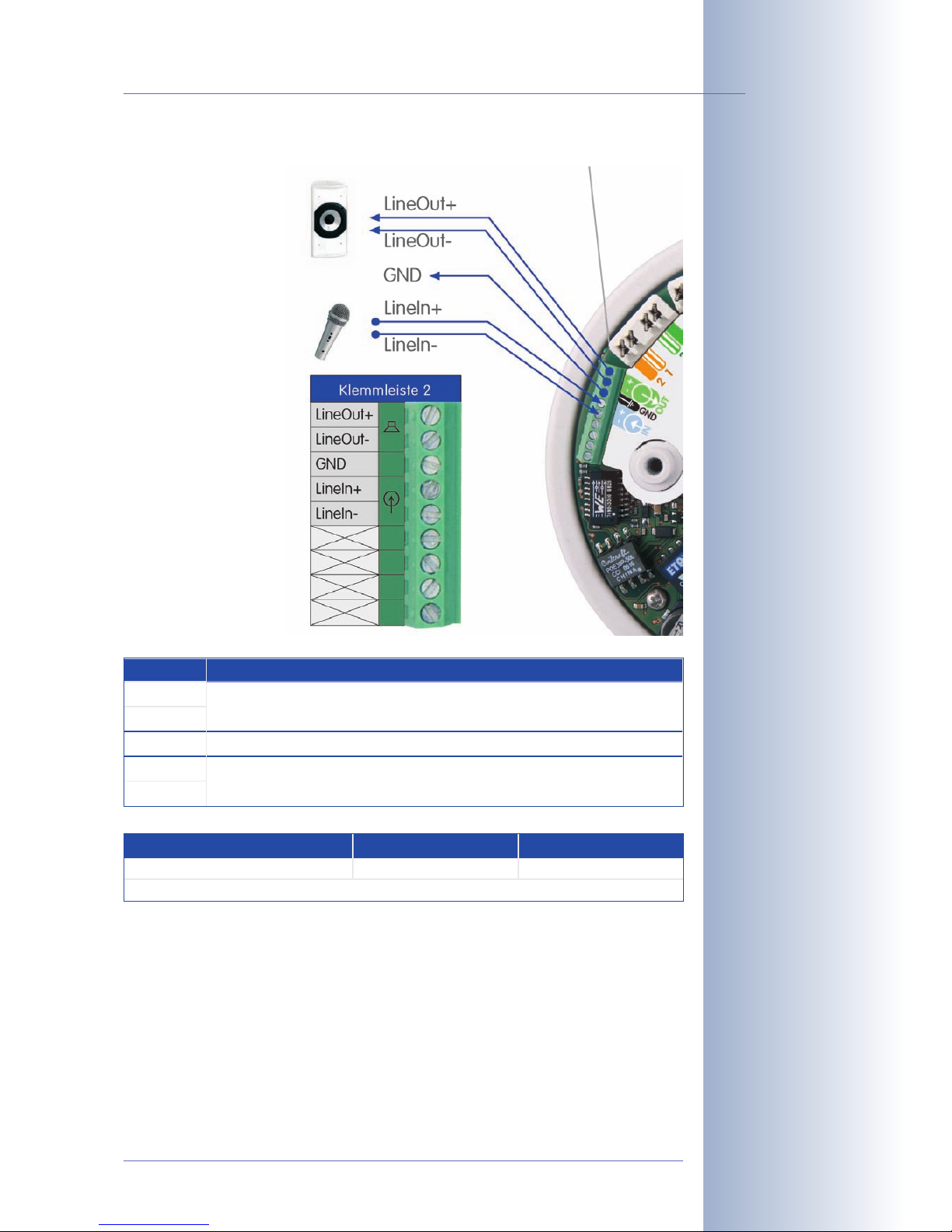

2.4.4 ExtIO Terminal Connector2 (Line-In/Line-Out) 33

2.5 Connecting a MOBOTIX USB Cable to the Camera 34

2.5.1 Overview 34

2.5.2 Establishing the USB Connection to a D22M Camera 35

2.5.3 Establishing the USB Connection to a M22M Camera 36

2.5.4 Establishing the USB Connection to a M12 Camera 38

2.5.5 Establishing the USB Connection to a D12 Camera 40

2.6 Connecting the Cable to the ExtIO 42

2.6.1 Connecting the Ethernet Cable to the ExtIO 42

2.6.2 Connecting the USB Cable to the ExtIO 44

2.6.3 Connecting Additional Cables to the ExtIO 46

2.7 Mounting the ExtIO 48

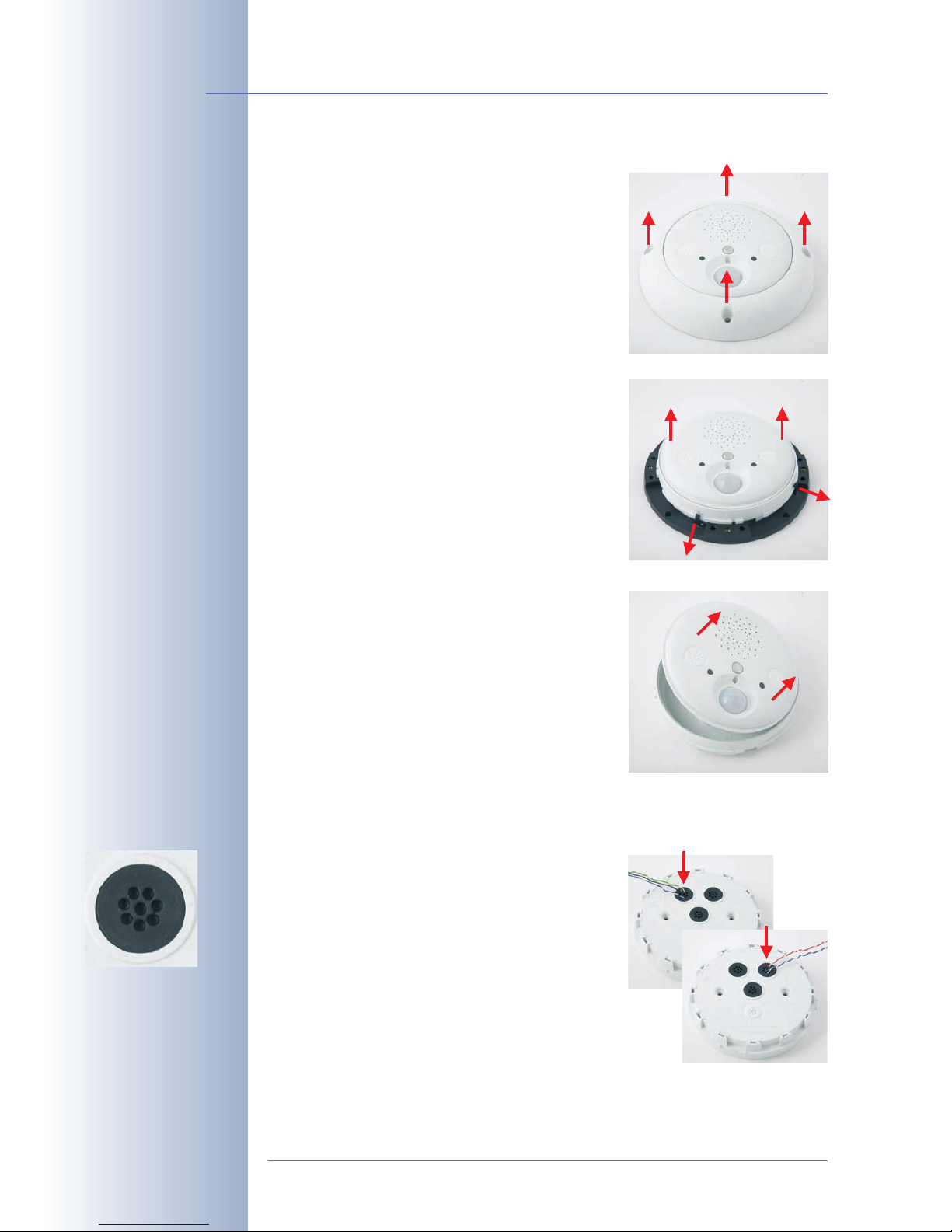

2.7.1 Mounting the ExtIO Without Additional Mounting Options 48

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

1/76

MOBOTIX ExtIO User Manual

2.8 Important Notes 50

2.8.1 Safety Regulations 50

2.8.2 Suitable Cables for the MOBOTIX ExtIO 50

2.8.3 Safety Notes for Operating the MOBOTIX ExtIO 51

2.8.4 Weatherproofness, Temperature Range 52

2.8.5 Cleaning Instructions 52

2.8.6 Additional Information 52

3 OPERATION OF THE EXTIO 54

3.1 Activating the ExtIO 54

3.1.1 Activating the USB Operating Mode 55

3.1.2 Activating the Ethernet Mode (NET) 56

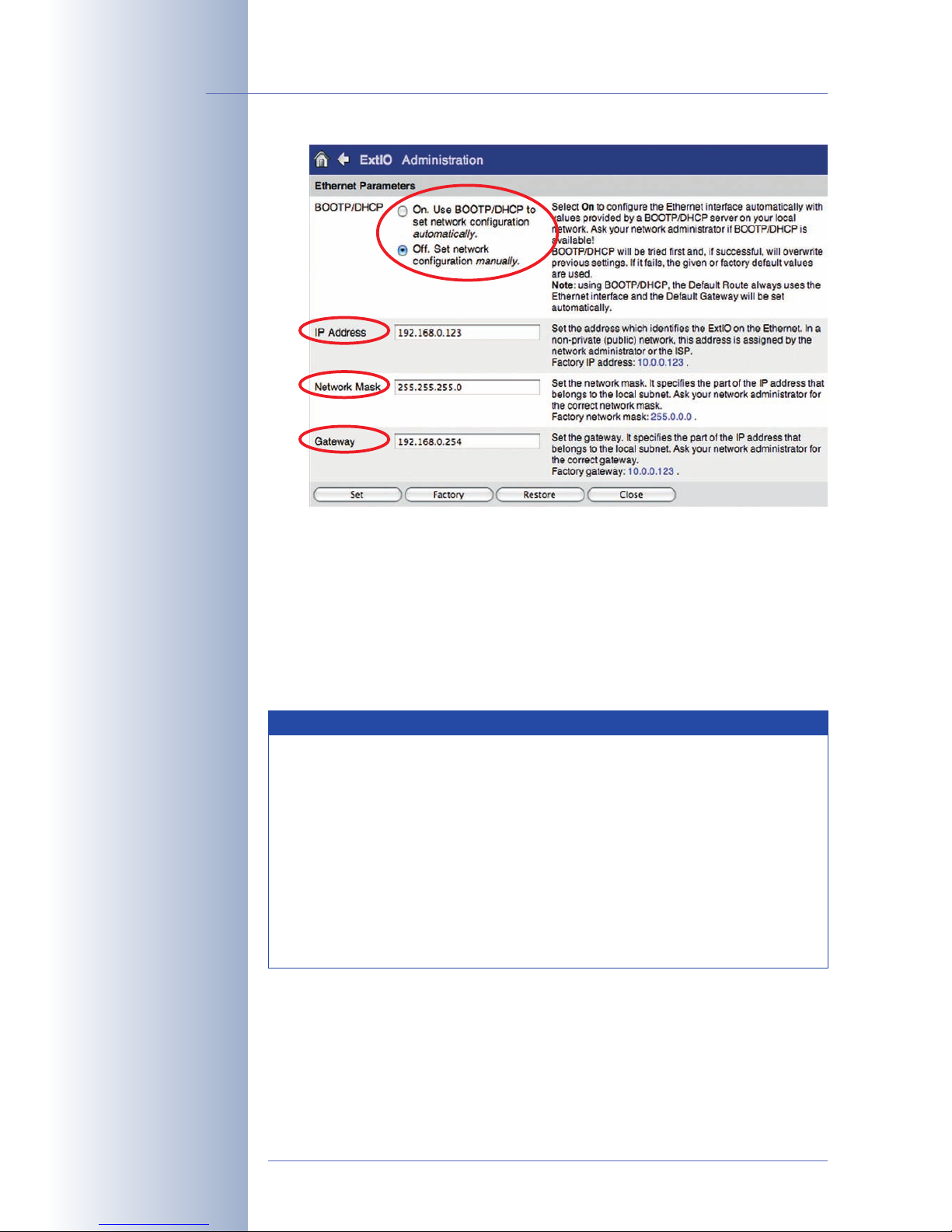

3.1.3 Setting up the Network Parameters of the ExtIO for Ethernet Operation 57

3.1.4 LED-Patterns of the ExtIO 59

3.1.5 Starting the ExtIO Using the Factory Default Settings 60

3.1.6 Starting the ExtIO With an Automatic IP Address (DHCP) 61

3.2 Sensors and Input/Output Interfaces of the ExtIO 62

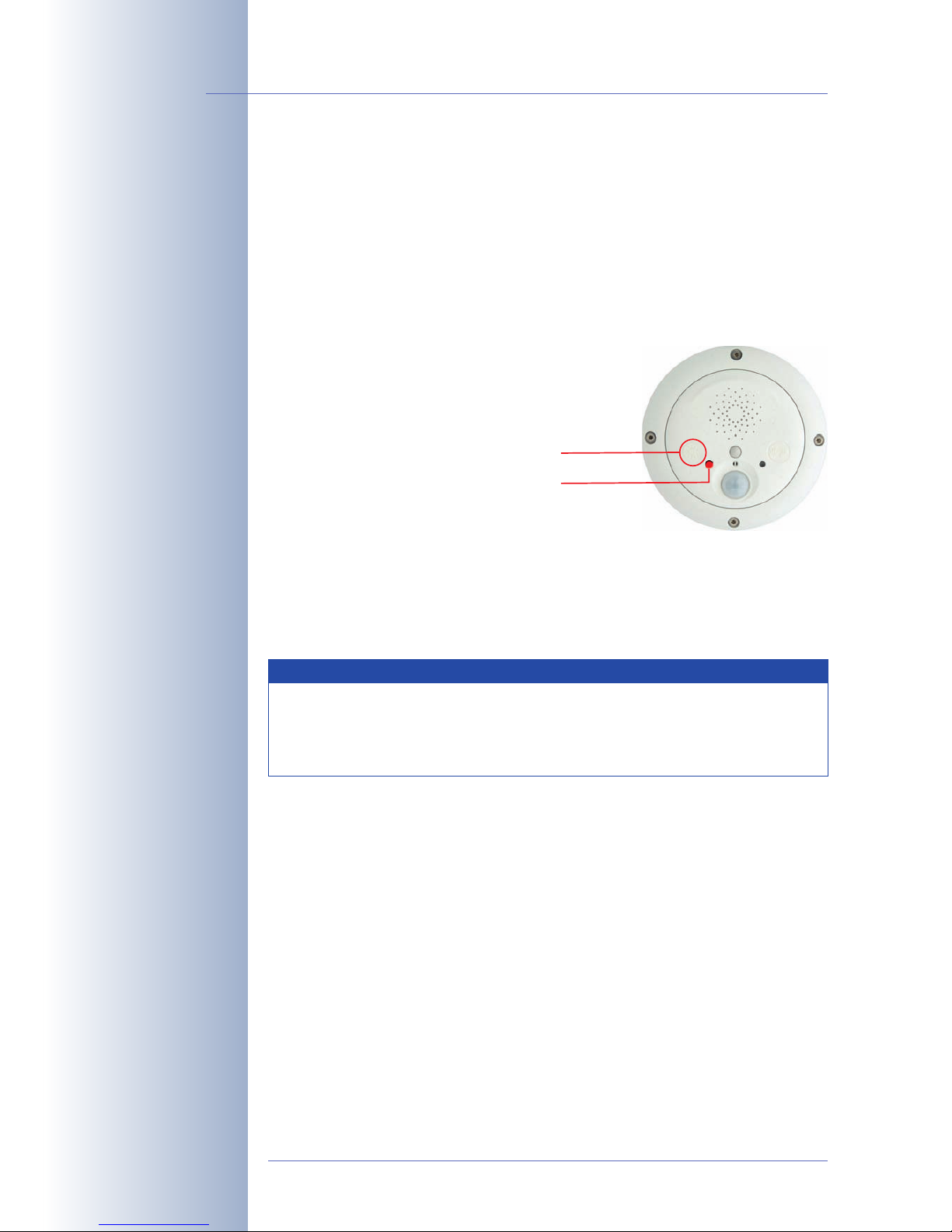

3.2.1 Status LEDs 62

3.2.2 Speaker and Microfon 62

3.2.3 Buttons 63

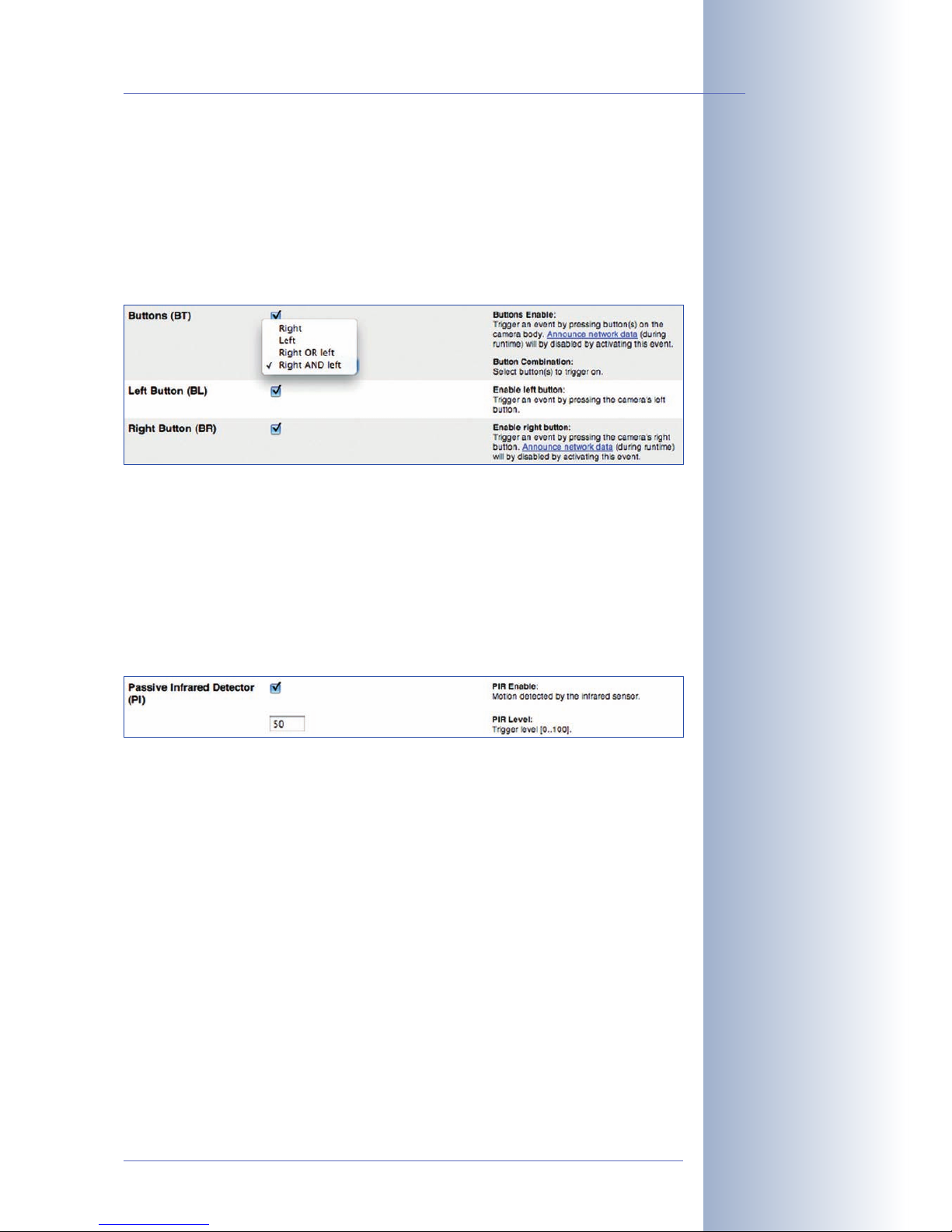

3.2.4 PIR Motion Sensor 63

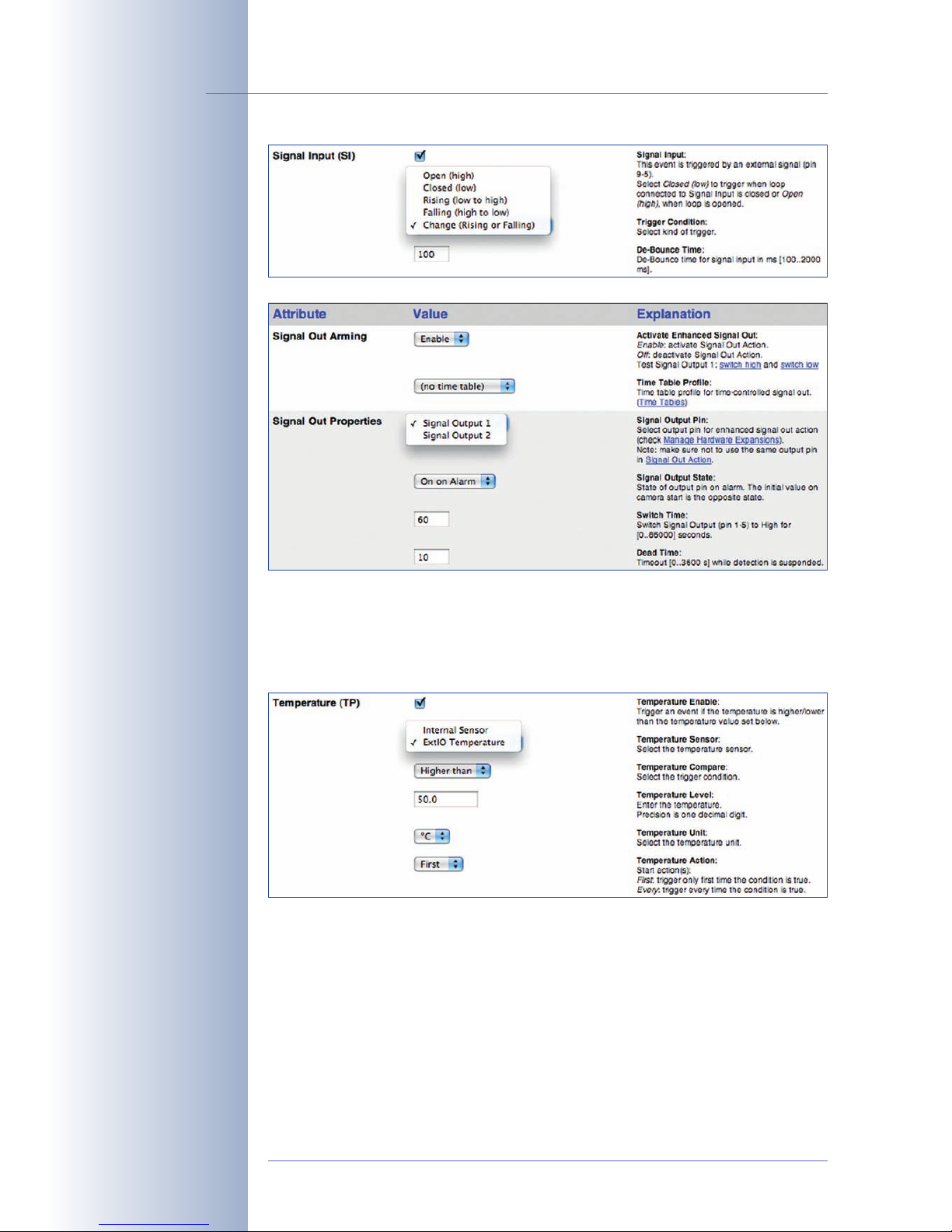

3.2.5 Signal Inputs/Outputs 63

3.2.6 Temperature Sensor 64

3.3 Software Updates 65

3.4 Configuration Sample 66

3.4.1 Functional Overview 66

3.4.2 Overview of the Configuration Steps 67

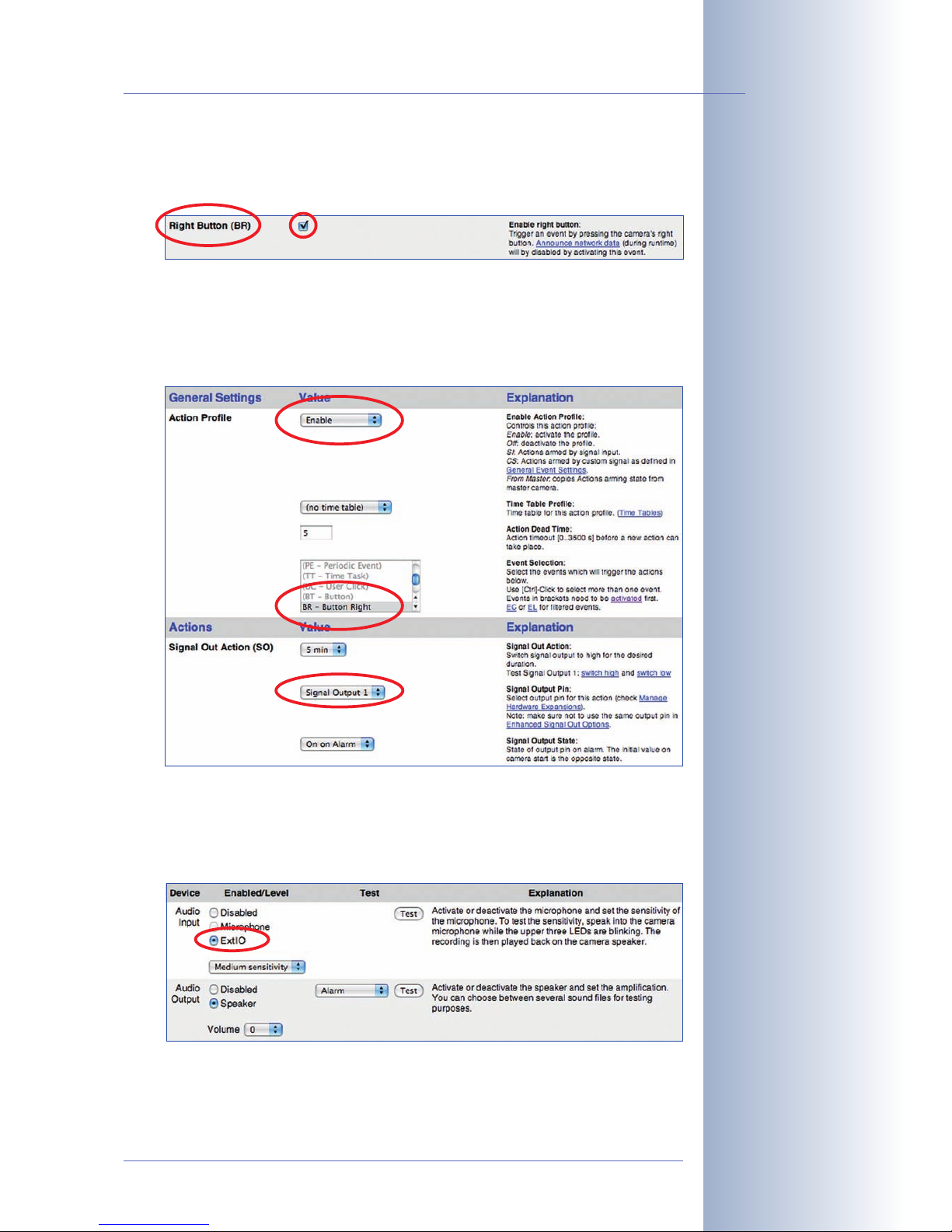

3.4.3 Configuring the MOBOTIX Camera 67

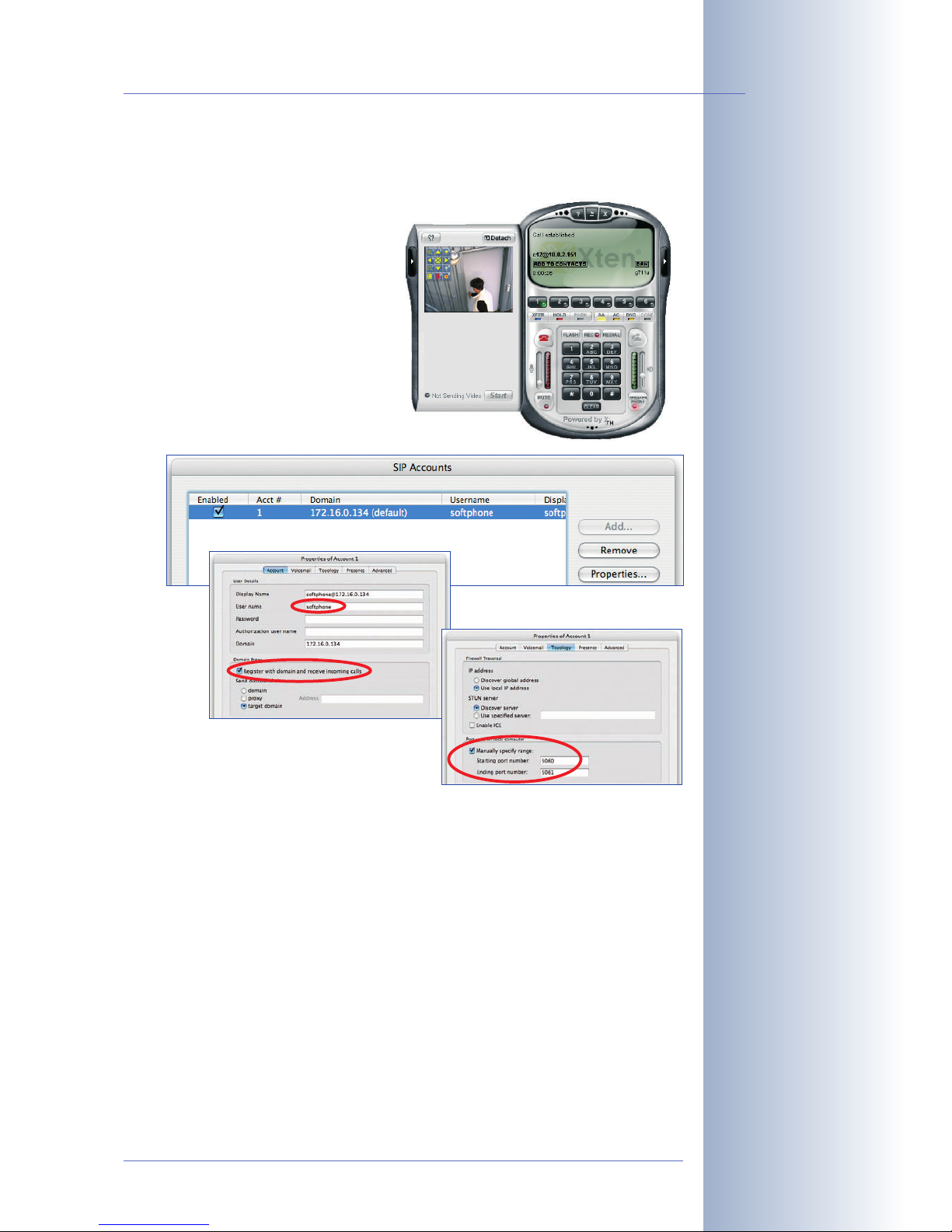

3.4.4 Configuring a Softphone 73

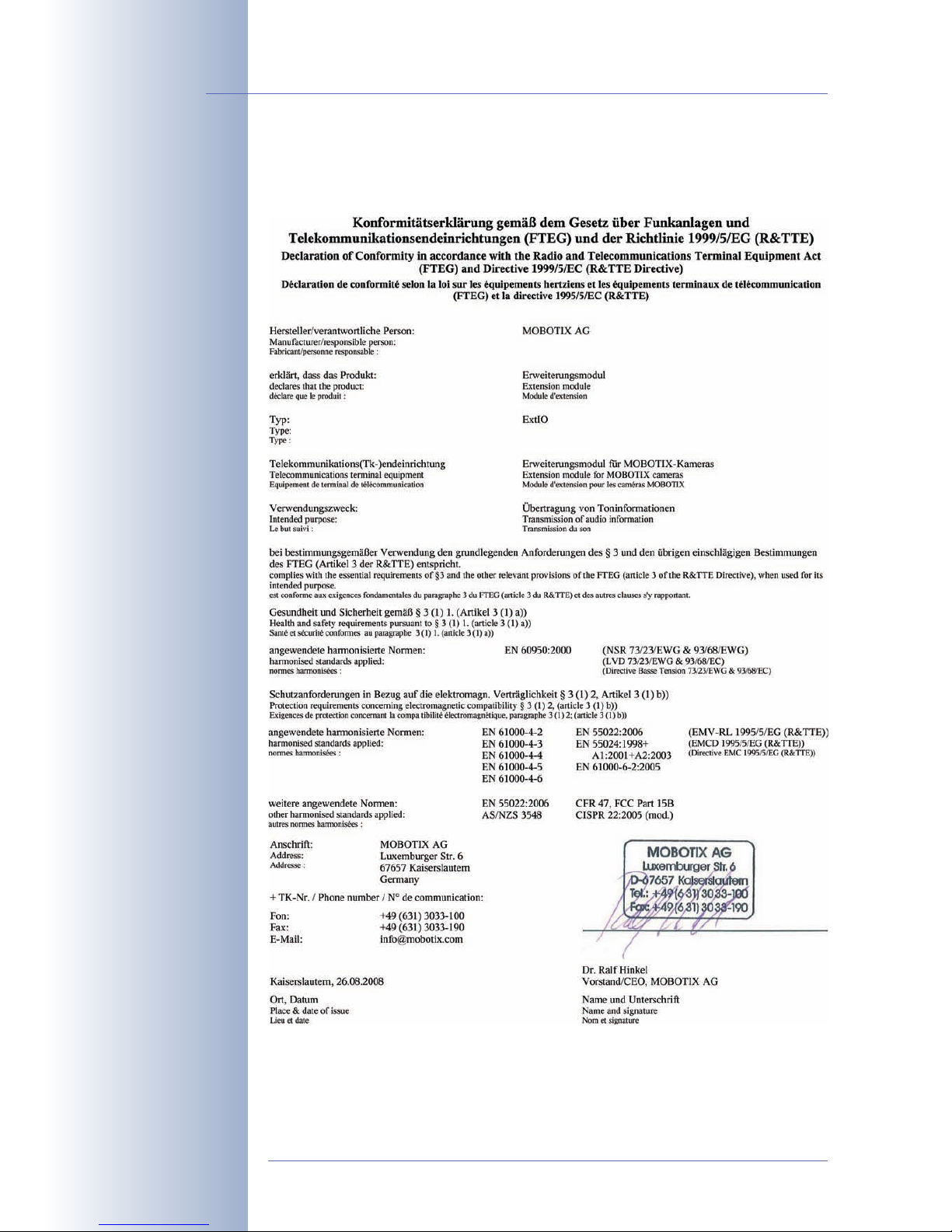

APPENDIX: DECLARATION OF CONFORMITY

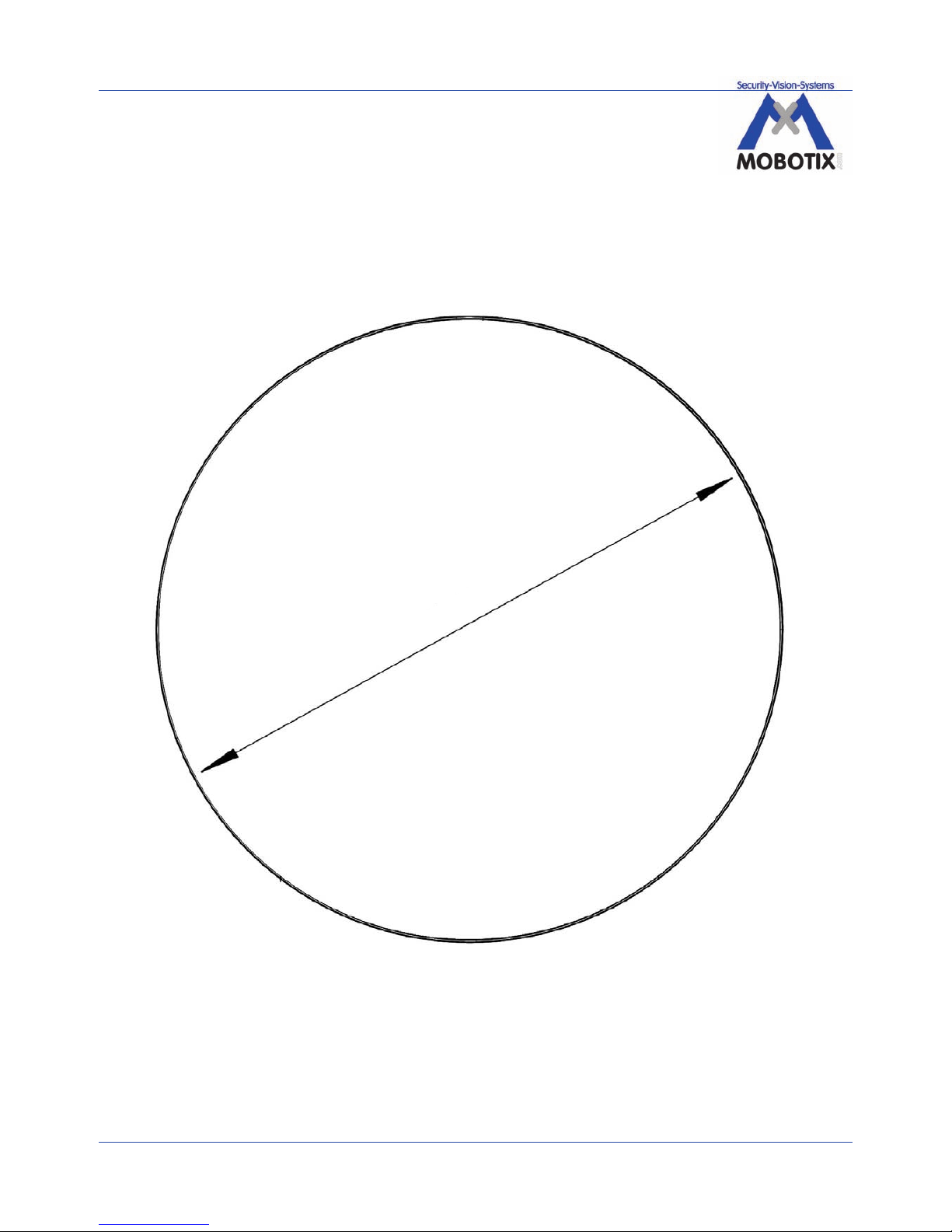

DRILLING TEMPLATES (SCALE 1:1)

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

2/76

MOBOTIX ExtIO User Manual

Information subject to change without notice!

Copyright © 1999-2008 MOBOTIX AG, Kaiserslautern, Germany.

All rights reserved. MOBOTIX, MxPEG and MxControlCenter are worldwide
trademarks of MOBOTIX AG. Microsoft, Windows and Windows Server are reg­istered trademarks of Microsoft Corporation. Apple, the Apple logo, Macintosh,
OSX and Bonjour are trademarks of Apple Inc. Linux is a trademark of Linus
Torvalds. All other marks and names mentioned herein may be trademarks or
registered trademarks of the respective owners.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

3/76

MOBOTIX ExtIO User Manual

Notes

1 INTRODUCTION

The MOBOTIX ExtIO is the weatherproof, compact expansion
and connection box for connecting all MOBOTIX cameras (IT
and Secure models). This box expands the cameras by a power­ful audio unit with microphone and speaker, a passive-Infrared detec­tor, an external temperature sensor, an illumination sensor as well as two signal in­puts and two signal outputs. The two large buttons on the unit allow easily imple­menting door and gate communication solutions.

In the security and house technology area, the MOBOTIX ExtIO represents the ideal
addition to the MOBOTIX cameras, especially if you would like to control e.g.
lamps, doors, controls wires or other external devices using pushbuttons. The
signal output can also be used to connect the MOBOTIX camera via the ExtIO to the
input of an alarm system, for example.

You can also attach external sensors to the MOBOTIX camera via the ExtIO, e.g. to
evaluate remote sensors, such as light barriers, reed switches, external PIR sensors
or the output of an alarm system.

You can easily mount the MOBOTIX ExtIO remotely (i.e. not directly near) a
MOBOTIX camera inside of a building or outside, to a wall or ceiling. Its weather­proof housing (IP65) reliably protects the ExtIO against any kind of weather. The
connection to the MOBOTIX camera can be established using either the LAN (Ether­net cabling) or a special MOBOTIX USB cable (specific for each camera model;
max. 5m/16ft long). In both cases, the camera's power supply uses the cable
(LAN/PoE or USB). As power is supplied via the cabling, the ExtIO does not require
its own power supply.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

4/76

MOBOTIX ExtIO User Manual

*You can use the ExtIO
with all MOBOTIX IT
and Secure models.
MOBOTIX Q22M models
can only be connected to
the ExtIO using Ether­net.

Ethernet & USB

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

5/76

MOBOTIX ExtIO User Manual

1.1 MOBOTIX ExtIO Concept

Simple Installation

When designing the MOBOTIX ExtIO, special focus was placed on easy installation
of the expansion box. The supplied drilling template facilitates mounting the ExtIO
and makes connecting the cabling for data and audio connections easy, secure
and weatherproof.

Buttons

The two buttons of the ExtIO can be used to control its two signal outputs, for ex­ample. In addition, a MOBOTIX camera connected to the ExtIO can react to the
pressed button and can execute the messaging options and actions defined in the
MOBOTIX camera.

Switching external Devices

Using the two galvanically separated signal outputs, the ExtIO can switch devices
with up to 50V AC or DC and max. 100mA (5W).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

6/76

MOBOTIX ExtIO User Manual

Speaker

Temperature sensor

R button (door bell)L button (lights)

PIR motion detector
Illumination sensor

Microphone

Using External Sensors

Using the two galvanically separated signal inputs of the ExtIO, the MOBOTIX cam­era can monitor external sensors and apply the different mechanisms available to
the camera for storing audio/video and for sending notification messages.

Weatherproofness

The weatherproofness of the MOBOTIX ExtIO has been tested extensively; the ExtIO
reaches protection class IP65 (absolutely dustproof and resistant against water
jets).

Robust and durable

Like all other MOBOTIX products, the ExtIO has been designed for a long product
life. The housing from PBT-GF30 is robust and reliably protects the interior of the
ExtIO.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

7/76

MOBOTIX ExtIO User Manual

Mini USB
connector

Terminal connector for signal inputs and outputs

Terminal connec­tor for Line-In
and Line-Out

Terminal connectors
for Ethernet cabling

1.2 The MOBOTIX ExtIO and MOBOTIX Cameras

1.2.1 Functional Overview of the ExtIO

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

8/76

MOBOTIX ExtIO User Manual

*IEEE 802.3af required

You can use the ExtIO
with all MOBOTIX IT
and Secure models.
MOBOTIX Q22M models
can only be connected to
the ExtIO using Ether­net.

Note that the cable re­quired for connecting the
ExtIO (MOBOTIX USB
cable or Ethernet instal­lation cable) is not in­cluded in the delivered
parts.

If you would like to use
a USB cable to connect
the ExtIO to a camera,
please order the corre­sponding MOBOTIX USB
cable for your camera
model:

M12/D12:
SUB HD to Mini USB

MX-CBL-HD-MU-5

(5 m/16 ft)

M22M:
USB to Mini USB

MX-CBL-U-MU-5

(5 m/16 ft)

D22M:
Mini-USB to Mini-USB

MX-CBL-MU-MU-1

(1 m/3 ft)

MX-CBL-MU-MU-5

(5 m/16 ft)

ExtIO

MX-EXTIO

Hardware Features

Outdoor - weatherproof IP65

Power Supply

Sensors

Concealed cabling

Dimensions/Weight

Using PoE (Class 2)* or USB cable

Speaker, microphone, 2 status LEDs,

PIR motion detector, 2 buttons, external temperature sensor,

illumination sensor

Yes

160 x 42mm/6.3 x 1.7in (dia. x height), approx. 430g/15.2ounces

Audio

Speaker

Microphone

0.5W / 8Ohm

X

Line-Out / Line-In

Outputs

Count

X / X

2 (galvanically separated)

Max. switching voltage

Min. switching voltage

Max. amperage

Min. amperage

50 V~ / 50 V=

5 V~ / 5 V=

100mA

-

Max. inductive load

Max. Ohm resistive load

Open Collector

Galvanically separated

6 VA

5 W

-

X

Inputs

Count

Max. voltage

2 (galvanically separated)

50 V~ / 50 V=

Min. voltage

Min. amperage

Switching level

self-powered

-

High active

1.2.2 Comparison ExtIO/CamIO

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

9/76

MOBOTIX ExtIO User Manual

*You can use the ExtIO
with all MOBOTIX IT
and Secure models. MO­BOTIX Q22M models
can only be connected to
the ExtIO using Ether­net.

**You can use the
CamIO with all M12 and
M22M IT and Secure
models

***IEEE 802.3af requi­red

****The integrated
speaker of the CamIO
can only be used with
M12 models

Hinweis

Zur Nutzung aller Funktionen der ExtIO ist die Aktivierung über die

ExtIO

CamIO

Hardware Features

Supported MOBOTIX models

ExtIO

all models*

CamIO

M12, M22**

Outdoor - weatherproof

Power Supply

Power input

Integrated recharg. battery

IP65

PoE (Class 2)*** / USB

typ. 1W

-

IP65

230V AC / PoE

typ. 3.5W

(only ACplus model for M12)

Sensors

Concealed cabling

Dimensions

Speaker, microphone

2 status LEDs, 2 buttons

PIR motion detector,

temperature, illumination

Yes

160 x 42mm/6.3 x 1.7in

(dia. x height)

Audio

Integrated Speaker

Integrated Microphone

Line-Out / Line-In

0.5 W

X

X / X

Speaker****

Yes

136 x 163 x 158mm/5.4 x 6.4 x

6.2in (width x depth x height)

2.5 W****

-

X / X

Outputs

Count

Max. switching voltage

2 (galvanically separated)

50 V~ / 50 V=

Min. switching voltage

Max. amperage

Min. amperage

Max. inductive load

5 V~ / 5 V=

100 mA

-

6 VA

2 (galvanically separated)

230 V~ / 48 V~/68 V=

5 V~ / 5 V=

5 A

100 mA

600 VA / 400 VA

Max. Ohm resistive load

Inputs

Count

5 W

2 (galvanically separated)

Max. voltage

Min. voltage

Min. amperage

Switching level

50 V~ / 50 V=

self-powered

-

High active

500 W / 300 W

2 (galvanically separated)

230 V~/325 V= / 48 V~/68 V=

8 V~ / 11 V=

2 mA

High active

1.3 Accessories

On-Wall Set (MX-D22-OPT-AP)

The On-Wall set can reliably protect external
cables to the ExtIO if the cables cannot be
guided from below the housing but have to
be led above the wall.

On-Wall Set 10° (MX-OPT-AP-10DEG)

This On-Wall set is identical to the regular On­Wall set, except that the mounted device is in­clined by 10 degrees.

In-Ceiling Set (MX-D22-OPT-IC)

The In-Ceiling set allows mounting the ExtIO
cameras in fake ceilings, for example, thus
providing a secure, yet elegant and unobtru­sive installation option.

Wall Mount (MX-D22-OPT-WH)

This mount is the ideal solution for mounting
the ExtIO to walls in indoor and outdoor appli­cations. The wall mount also covers RJ45 wall
outlets and has ample space for additional
modules.

Pole Mount (MX-D22-OPT-MH)

If you would like to mount the MOBOTIX ExtIO
to a pole, you should consider using the MO­BOTIX Pole Mount. This mount can only be
used in conjunction with the wall mount. The
supplied stainless steel straps allow attaching
the mount to poles with diameters between
60 and 180mm (2.4 to 7.1in).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

10/76

MOBOTIX ExtIO User Manual

The ExtIO is not in­cluded in the delivered
parts

On-Wall set (IP65, suit­able for outdoor applica­tions)

On-Wall set 10° (IP65,
suitable for outdoor appli­cations)

In-Ceiling set (ExtIO not
included)

Wall Mount made from
sturdy PBT-GF30 (IP65)

Pole Mount: Outdoor qual­ity made of 3mm stain­less steel (in conjunction
with Outdoor Wall Mount)

D22M USB Cable (MX-CBL-MU-MU-1 or MX-CBL-MU-MU-5)

USB cables for connecting D22M IT and Secure models to an ExtIO. Cable length:
1m/3ft or 5m/16ft.

M22M USB Cable (MX-CBL-U-MU-5)

USB cables for connecting M22M IT and Secure models to an ExtIO. Cable length:
5m/16ft.

M12 and D12 USB Cable (MX-CBL-HD-MU-5)

USB cable for connecting M12 and D12 IT and Secure models to an ExtIO. Cable
length: 5m/16ft.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

11/76

MOBOTIX ExtIO User Manual

You can use the ExtIO
with all MOBOTIX IT
and Secure models.
MOBOTIX Q22M models
can only be connected to
the ExtIO using Ether­net.

Note that the cable re­quired for connecting the
ExtIO (MOBOTIX USB
cable or Ethernet installa­tion cable) is not included
in the delivered parts.

If you would like to use a
USB cable to connect the
ExtIO to a camera, please
order the corresponding
MOBOTIX USB cable for
your camera model:

M12/D12:
SUB HD to Mini USB

MX-CBL-HD-MU-5

(5 m/16 ft)

M22M:
USB to Mini USB

MX-CBL-U-MU-5

(5 m/16 ft)

D22M:
Mini-USB to Mini-USB

MX-CBL-MU-MU-1

(1 m/3 ft)

MX-CBL-MU-MU-5

(5 m/16 ft)

Notes

2 MOUNTING THE EXTIO

2.1 Preparing the Installation

Before mounting the MOBOTIX ExtIO, the following questions should be answered:

1) Where will the ExtIO be mounted?
Mounting to a ceiling or wall;

section2.1.1

.

2) How should I connect the ExtIO to the camera?
Via LAN/network or via USB;

section2.1.2

.

3) Which additional mounting options are available?
On-wall mounting, in-ceiling mounting, wall mounting with Wall Mount or
Pole Mount,

section 2.1.3

4) How are the connections furnished from the building?
Wall outlets,

section 2.1.4

5) Which sections of the Mounting Instructions should I read?
In order to mount the ExtIO with its optional accessories as quickly and effi­ciently as possible, you should consult the Directions for Mounting,

sec-

tion2.1.5

.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

12/76

MOBOTIX ExtIO User Manual

The following sections contain a brief overview for all of these questions as well as
references to the relevant sections in this manual, which contain more detailed in­formation. For more information on the MOBOTIX ExtIO and the available accesso­ries, please also refer to www.mobotix.com in the Products section.

2.1.1 Mounting to a Wall or Ceiling

The ExtIO has been designed for mounting directly to a wall or ceiling. In order
to simply the installation, you can use the following mounting options (On-Wall set,
In-Ceiling set, Wall Mount, Pole Mount).

Follow these general steps to install and operate the ExtIO:

1) Prepare the installation (drill the holes and install the cabling, select a
mounting option – directly to a wall, with On-Wall set, with In-Ceiling set,
...)

2) Connect the model-specific USB cable to the MOBOTIX camera (not re­quired when connecting the ExtIO via Ethernet)

3) Connect the cables to the ExtIO
a) Connect the Ethernet cable or the model-specific USB cable
b) Connect the cables for external components (optional)

4) Mount the ExtIO to the wall, ceiling or to the mounting option (On-Wall

set, In-Ceiling set, ...)

5) Activate the ExtIO in the camera software

The back of the ExtIO's housing has three openings for cables. For more detailed
information on the installation process, see

sections 2.2 and higher

; the drilling

templates are at the end of the manual.

2.1.2 Connecting via Network or USB

You can either use the LAN (Ethernet cabling) or the model-specific MOBOTIX USB
cables to connect the ExtIO to a MOBOTIX camera. Note that the maximum length
for USB cables is 5m/16ft (100m/110yd for Ethernet cabling).

Advantage of using Ethernet – you do not need to modify the camera. When us-

ing USB, you need to install an additional model-specific cable to connect the cam­era to the ExtIO. This usually means that you need to take down the camera, guide
the USB cable through the mount and mount the camera again.

Advantage of using USB separate network connection to the ExtIO is not required.

You simply use the attached MOBOTIX camera for activating and configuring the
ExtIO with only a few clicks.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

13/76

MOBOTIX ExtIO User Manual

Never mount the ExtIO
to metal surfaces (con­densation may damage
the ExtIO)!

MOBOTIX USB cables:

M12/D12:
SUB HD to Mini USB

MX-CBL-HD-MU-5

(5 m/16 ft)

M22M:
USB to Mini USB

MX-CBL-U-MU-5

(5 m/16 ft)

D22M:
Mini USB to Mini USB

MX-CBL-MU-MU-1

(1 m/3 ft)

MX-CBL-MU-MU-5

(5 m/16 ft)

2.1.3 Mounting Options

On-Wall Set (MX-D22-OPT-AP)

The On-Wall set can reliably protect external
cables to the ExtIO if the cables cannot be
guided from below the housing but have to
be led above the wall. Note that the On-Wall
set is also available with 10 degrees inclina­tion.

In-Ceiling Set (MX-D22-OPT-IC)

The In-Ceiling set allows mounting the ExtIO in
fake ceilings, for example, thus providing a
secure, yet elegant and unobtrusive installa­tion option.

Wall Mount (MX-D22-OPT-WH)

This mount is the ideal solution for mounting
the ExtIO to walls in indoor and outdoor appli­cations. The wall mount also covers RJ45 wall
outlets and has ample space for additional
modules.

Pole Mount (MX-D22-OPT-MH)

If you would like to mount the MOBOTIX ExtIO
to a pole, you should consider using the MO­BOTIX Pole Mount. This mount can only be
used in conjunction with the wall mount. The
supplied stainless steel straps allow attaching
the mount to poles with diameters between
60 and 180mm (2.4 to 7.1in).

2.1.4 Providing the Camera Connections, Wall Outlets

Once the mounting position, the mounting options and the type of connection have
been decided upon, the cabling can be installed. If you are planning to use the net­work to connect the camera and the ExtIO, you should make sure that the network
connections have been properly tested before mounting the ExtIO, so that the
proper functioning is guaranteed.

Please also observe section 2.8,

Important Notes

.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

14/76

MOBOTIX ExtIO User Manual

On-Wall set (IP65, suit­able for outdoor applica­tions)

On-Wall set 10° (IP65,
suitable for outdoor appli­cations)

In-Ceiling set (ExtIO not
included)

Wall Mount made from
sturdy PBT-GF30 (IP65)

Pole Mount: Outdoor qual­ity made of 3mm stain­less steel (in conjunction
with Outdoor Wall Mount)

2.1.5 Directions for Mounting

Once the type of installation, the camera connections and the mounting options
have been decided upon, you should follow the directions listed below. This en­sures that you only have to read the relevant sections of this chapter, which will
speed up installing the ExtIO and connecting it to the MOBOTIX camera.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

15/76

MOBOTIX ExtIO User Manual

Note that the cable re­quired for connecting the
ExtIO (MOBOTIX USB
cable or Ethernet instal­lation cable) is not in­cluded in the delivered
parts.

*If you would like to use
a USB cable to connect
the ExtIO to a camera,
please order the corre­sponding MOBOTIX USB
cable for your camera
model:

M12/D12:
SUB HD to Mini USB

MX-CBL-HD-MU-5

(5 m/16 ft)

M22M:
USB to Mini USB

MX-CBL-U-MU-5

(5 m/16 ft)

D22M:
Mini USB to Mini USB

MX-CBL-MU-MU-1

(1 m/3 ft)

MX-CBL-MU-MU-5

(5 m/16 ft)

Directions for Mountin

g

Preparatory Tasks

ExtIO

Sections

2.1 Preparing the Installation

2.2 ExtIO Accessories: Delivered Parts, Components

and Dimensions

2.4 Connecting the Terminal Connectors, Wiring

Connection Type

ExtIO NET Operation

ExtIO USB Operation*

T

ype of Installations

Sections

2.4.2 Terminal Connectors for the Ethernet Cabling

2.6.1 Connecting the Ethernet Cable to the ExtIO

2.5 Connecting the USB Cable to the Camera

2.6.2 Connecting the USB Cable to the ExtIO

Sections

A

ll Mounting Types

Mounting to

W

alls or Ceilings

w

ith On-Wall Set

Mounting to

W

alls or Ceilings

w

ith In-Ceiling Set

Mounting to a

W

all Using the

W

all Mount

2.7 Mounting the ExtIO to a Wall or Ceiling

2.2 ExtIO Accessories: Delivered Parts, Components

and Dimensions

2.3.1 Delivered Parts, Components, Dimensions On­Wall Set

2.2 ExtIO Accessories: Delivered Parts, Components
and Dimensions

2.3.2 Delivered Parts, Components, Dim. In-Ceiling Set

2.2 ExtIO Accessories: Delivered Parts, Components

and Dimensions

2.3.3 Delivered Parts, Components, Dim. Wall Mount

Mounting to a
Pole

2.2 ExtIO Accessories: Delivered Parts, Components

and Dimensions

2.3.3 Delivered Parts, Components, Dim. Wall Mount

2.3.4 Delivered Parts, Components, Dim. Pole Mount

2.2 ExtIO: Delivered Parts, Components and Dimensions

2.2.1 Delivered Parts and Components

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

16/76

MOBOTIX ExtIO User Manual

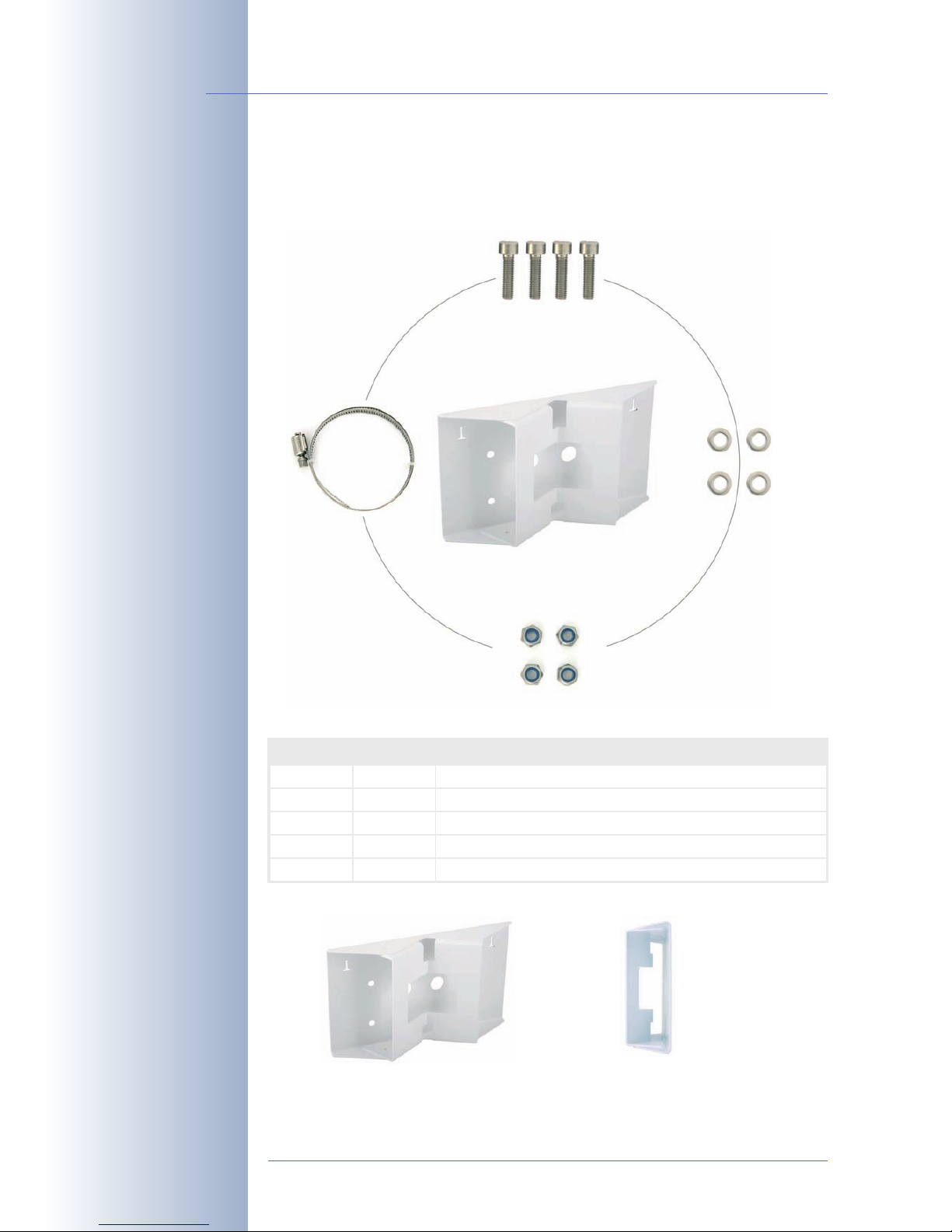

Item Count Part Name

1.1

1.2

1
1

ExtIO housing (with back and main board)
Mounting ring

1.3

1.4

1.5

1.6

1

4

Outer shell

Allen screws M4x16 mm (for outer shell)
4
3

Washers Ø 4.3 mm (for outer shell)

Plug for 8 wires (preinstalled)

1.7

1.8

1.9

1.10

3
3

Plug for cable diameters 3 to 5 mm

Plug for cable diameters 5 to 7 mm
2
2

Fillister head screws (for cable clamps, replacement)

Cable ties (for cable clamps)

1.11

1.12

1.13

1.14

4
4

Dowels 8 mm

Wood screws with Torx head 4.5x60 mm
4

1

Washers Ø 5.3mm

Allen wrench 3mm (for outer shell)

1.15 1 Torx wrench TX20 (for wood screws)

ExtIO (item1.1) with

mounting ring (item1.2)

Mounting supplies for mounting ring:

4 dowels 8mm (item1.11)
4 wood screws 4.5x60mm (item1.12)
4 washers Ø 5.3 mm (item1.13)

Allen wrench 3mm (item1.14)
TX20 Torx wrench (item1.15)

Mounting supplies for outer shell:

4 Allen screws M4x16mm (item1.4)
4 washers Ø 4.3 mm (item1.5)

Outer shell (item1.3)

3 plugs for cable diameters 3 to 5 mm (item(item1.7)
3 plugs for cable diameters 5 to 7 mm (item(item1.8)
2 Fillister head screws (item1.9)

2.2.2 Housing

The housing of the MOBOTIX ExtIO is made of white fiber-reinforced plastic (PBT­GF30, Polybutyleneterephtalate with 30% fiberglass). This material is used heav-

ily in the automotive industry and is sturdy, resistant against high temperatures, en­vironmental influences, chemicals, etc.

The MOBOTIX ExtIO's main components are the ExtIO housing (includes the main
board), the outer shell and the mounting ring.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

17/76

MOBOTIX ExtIO User Manual

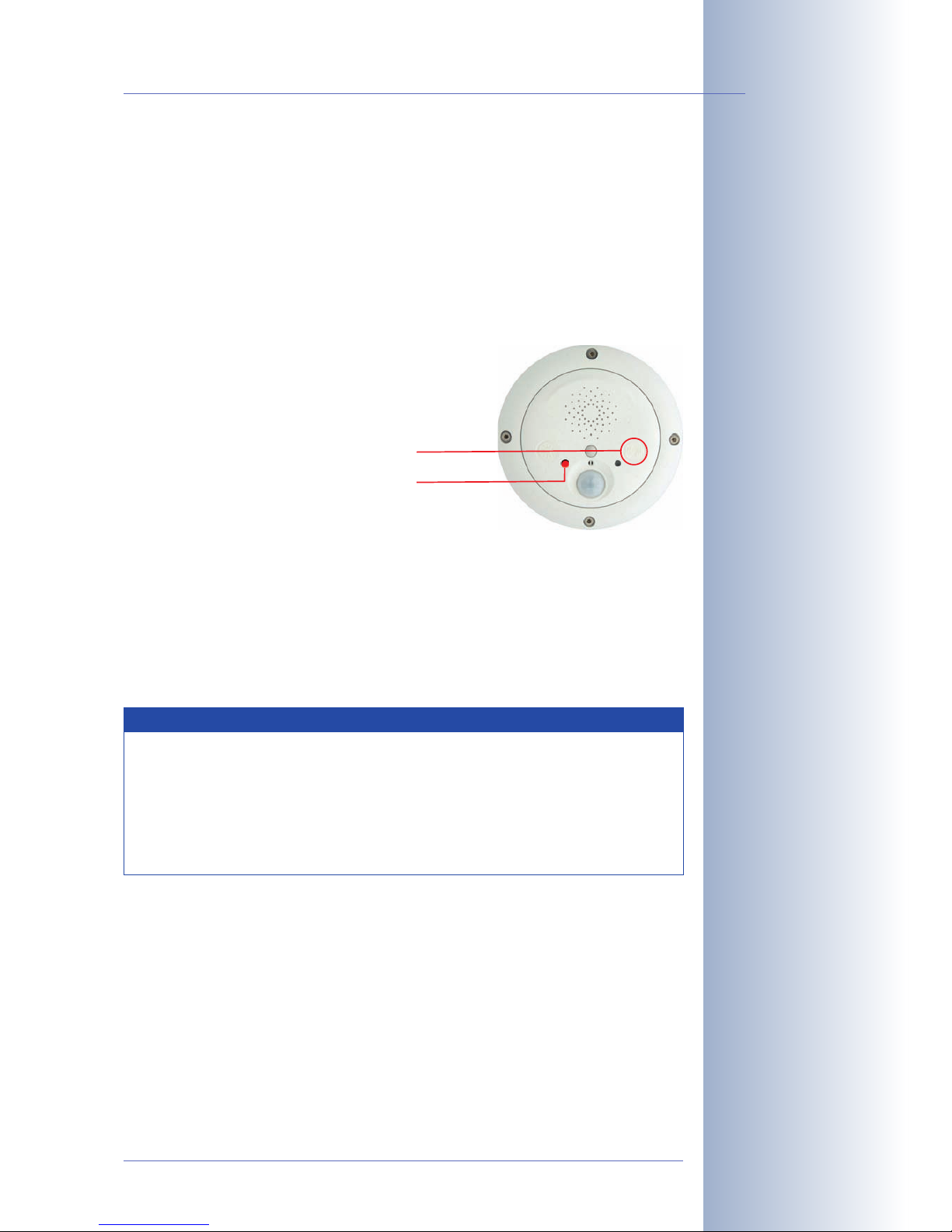

PIR motion detector

Temperature sensor

Speaker

Multicolor LEDs

Microphone

ExtIO Housing

Outer shell

Illumination sensor

L button (lights)

R button (door bell)

2.2.3 ExtIO: Dimensions Without Mounting Options

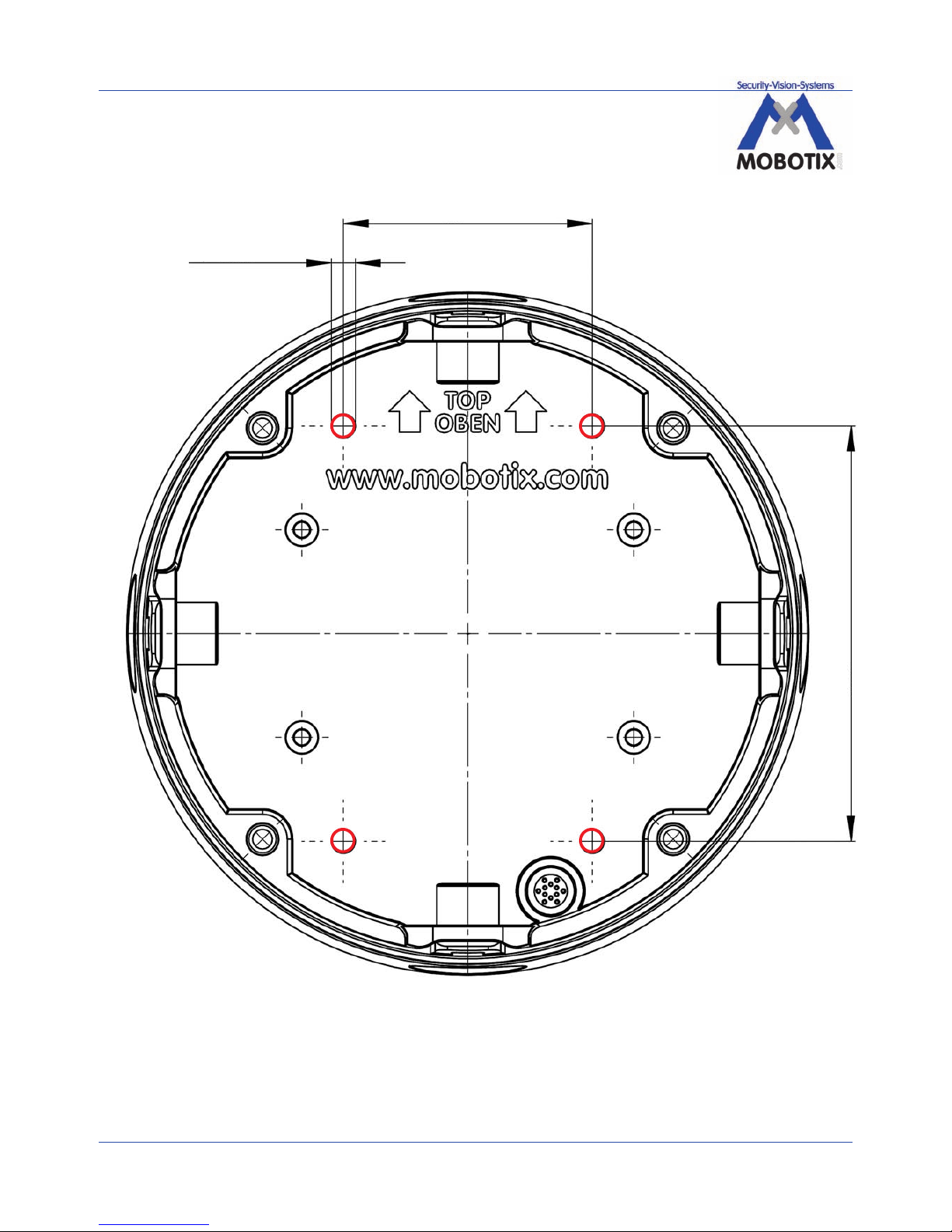

2.2.4 Drilling Template Mounting Ring

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

18/76

MOBOTIX ExtIO User Manual

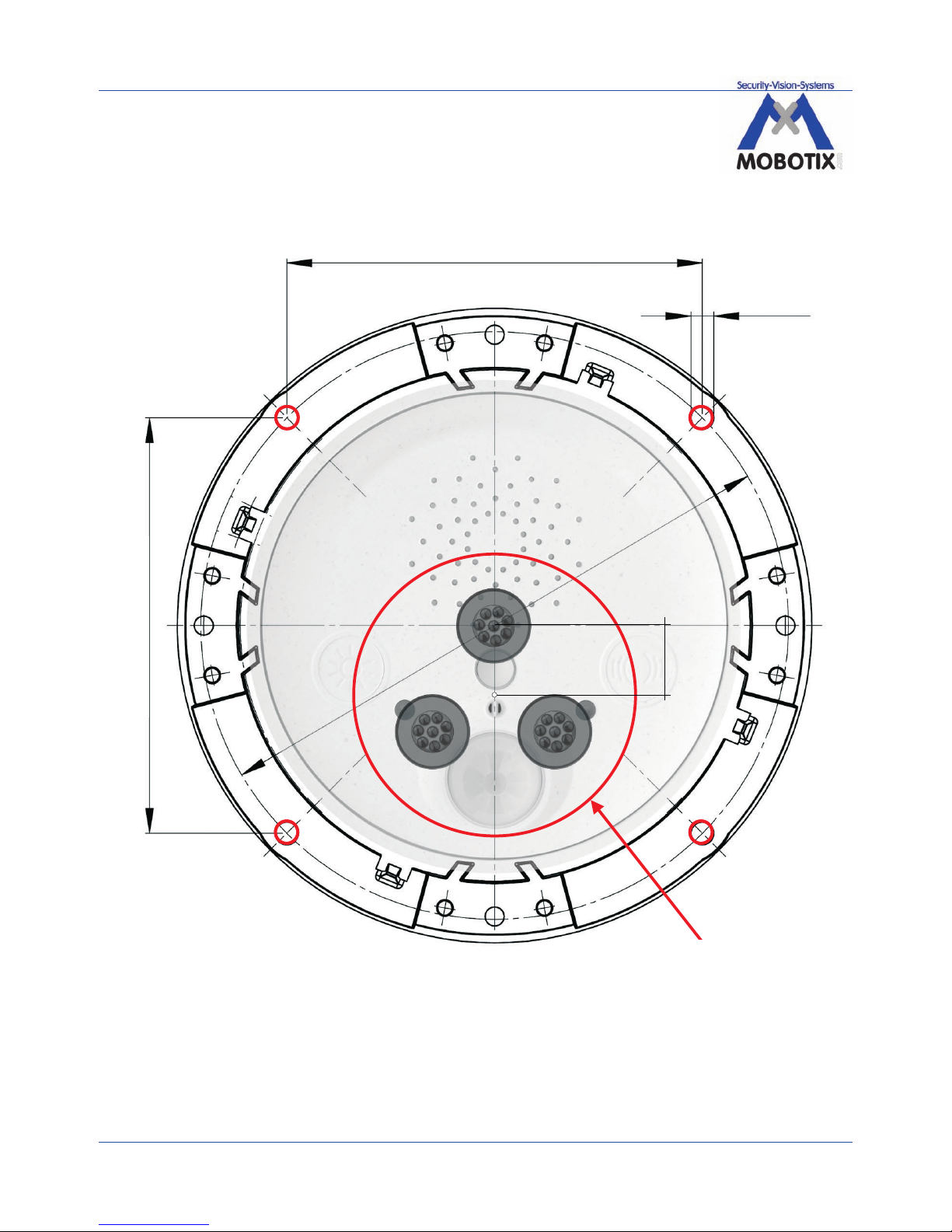

Find the drilling templates
(scale 1:1) at the end of
the manual as a fold-out

dia. 160 mm (6.3 in)

39 mm (1.5 in)

Note

Find the folded drilling template at the end of the manual.

Make sure that the drilling template is not scaled or adjusted to the
paper size when printing the PDF file.

100 mm (3.9 in)

100 mm (3.9 in)

Ø 5.5 mm (7/32 in)

17 mm

Ø 68 mm / 2.7 in (cutting
template for wall outlet)

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

19/76

MOBOTIX ExtIO User Manual

Notes

2.3 ExtIO Accessories: Delivered Parts, Components, Dimensions

2.3.1 On-Wall Set

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

20/76

MOBOTIX ExtIO User Manual

The ExtIO is not included
in the delivery of the On­Wall set!

The On-Wall set can be
used for the ExtIO and
all Q22M and D22M mod­els

Item Count Part Name

2.1

2.2

1

4

On-Wall set housing

Stainless steel Allen screws M4x35 mm

2.3 4 Stainless steel washers Ø 4.3mm

Housing (item2.1)

4 Allen screws M4x35mm (item2.2)

4 washers dia. 4.3 mm (item2.3)

Drilling Template On-Wall Set

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

21/76

MOBOTIX ExtIO User Manual

Find the drilling templates
(scale 1:1) at the end of
the manual as a fold-out

Note

Find the folded drilling template at the end of the manual.

Make sure that the drilling template is not scaled or adjusted to the
paper size when printing the PDF file.

2.3.2 In-Ceiling Set

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

22/76

MOBOTIX ExtIO User Manual

The ExtIO is not included
in the delivery of the In­Ceiling set!

The In-Ceiling set can be
used for the ExtIO and
all Q22M and D22M mod­els

Item Count Part Name

3.1

3.2

1
1

In-Ceiling set

Decoration ring

3.3

3.4

3.5

5
5

Winged cam

Clamps

2 Wrench for In-Ceiling mount

In-Ceiling mount (item3.1)

Decoration ring (item3.2)

Wrench for In-Ceiling
mount (item3.5)

5 winged cams (item3.3)

5 clamps (item3.4)

Cutting Template for In-Ceiling Set

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

23/76

MOBOTIX ExtIO User Manual

Find the cutting template
(scale 1:1) at the end of
the manual as a fold-out

∅ 150 mm (5.9 in)

Note

Find the folded drilling template at the end of the manual.

Make sure that the drilling template is not scaled or adjusted to the
paper size when printing the PDF file.

2.3.3 Wall Mount

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

24/76

MOBOTIX ExtIO User Manual

The Wall Mount can be
used for the ExtIO and
all Q22M and D22M mod­els

Item Count Part Name

5.1

5.2

1

4

Wall Mount

Dowels 8 mm

5.3

5.4

5.5

5.6

4
4

Stainless steel washers Ø 6.4mm

Stainless steel wood screws with hex head 6x50 mm
1

8

Wall sealin

g

Stainless steel Allen screws M4x16 mm

5.7

5.8

8

1

Stainless steel washers Ø 4.3mm

Bottom plate

Depth: 201mm/7.9 in

Height: 125mm/4.9 in

Width: 216mm/8.5 in

Bottom plate (item5.8)

4 wood screws
6x50mm (item5.4)

Wall sealing (item5.5)

8 Allen screws M4x16mm
(item5.6)

8 washers Ø 4.3 mm (item5.7)

Wall mount (item5.1)

4 washers Ø 6.4 mm (item5.3)
4 dowels 8mm (item5.2)

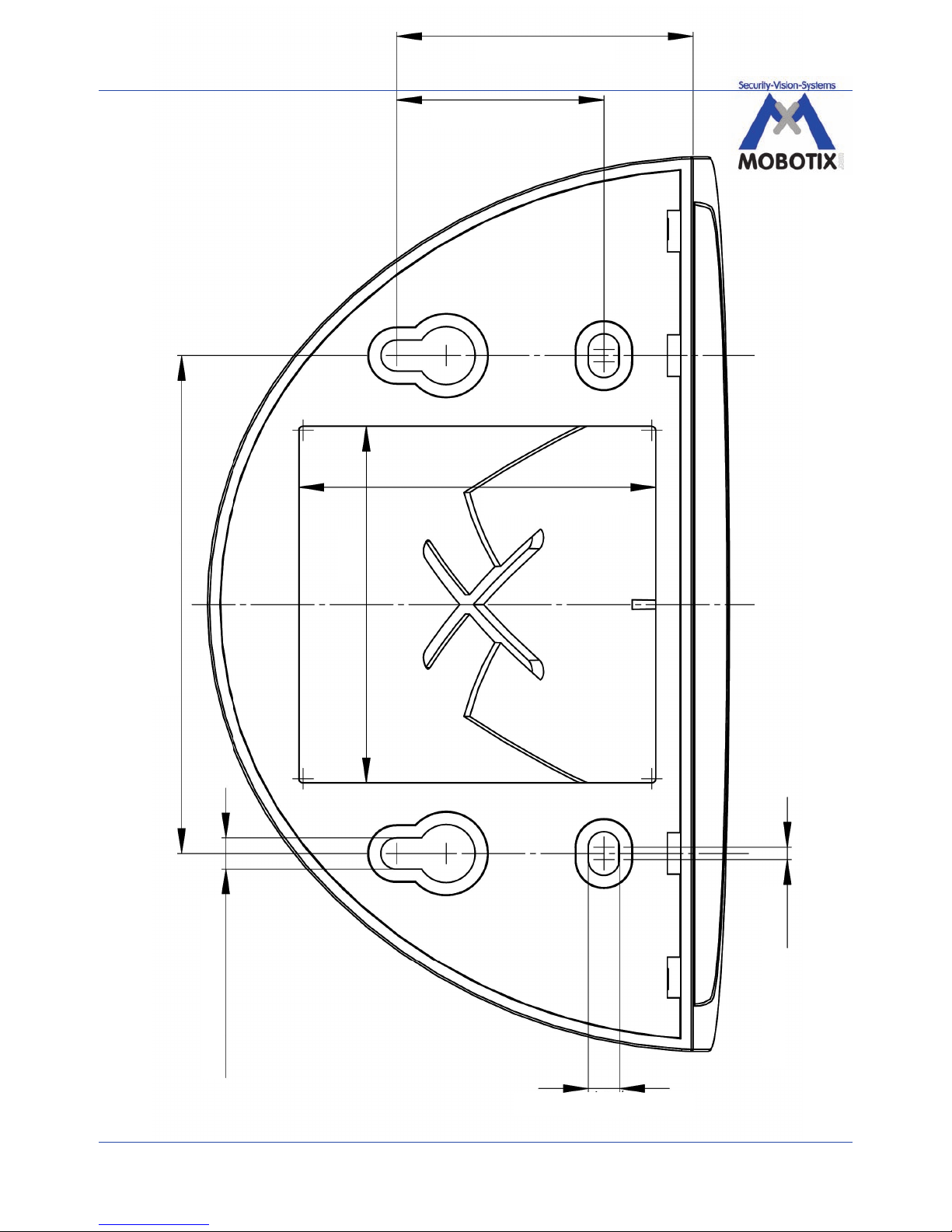

Drilling Template Wall Mount

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

25/76

MOBOTIX ExtIO User Manual

Find the drilling templates
(scale 1:1) at the end of
the manual as a fold-out

Note

Find the folded drilling template at the end of the manual.

Make sure that the drilling template is not scaled or adjusted to the
paper size when printing the PDF file.

2.3.4 Pole Mount

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

26/76

MOBOTIX ExtIO User Manual

The Pole Mount can only
be used in conjunction
with the Wall Mount

The Pole Mount can be
used for the ExtIO and
all Q22M and D22M mod­els

Item Count Part Name

6.1

6.2

1

4

Pole mount, stainless steel 3mm, white powder-coated

Stainless steel Allen screws M8x30 mm

6.3

6.4

6.5

4
4

Stainless steel washers Ø 9mm

Stainless steel lock nuts M8

2 Stainless steel straps

Depth: 55mm (2.2 in)

Height: 125mm (4.9 in)

Width: 201mm (7.9 in)

2 steel straps (item6.5)

4 Allen screws M8x30mm
(item6.2)

4 lock nuts M8mm (item6.4)

4 washers dia 9 mm
(item6.3)

Pole Mount (item6.1)

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

27/76

MOBOTIX ExtIO User Manual

Notes

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

28/76

MOBOTIX ExtIO User Manual

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

29/76

MOBOTIX ExtIO User Manual

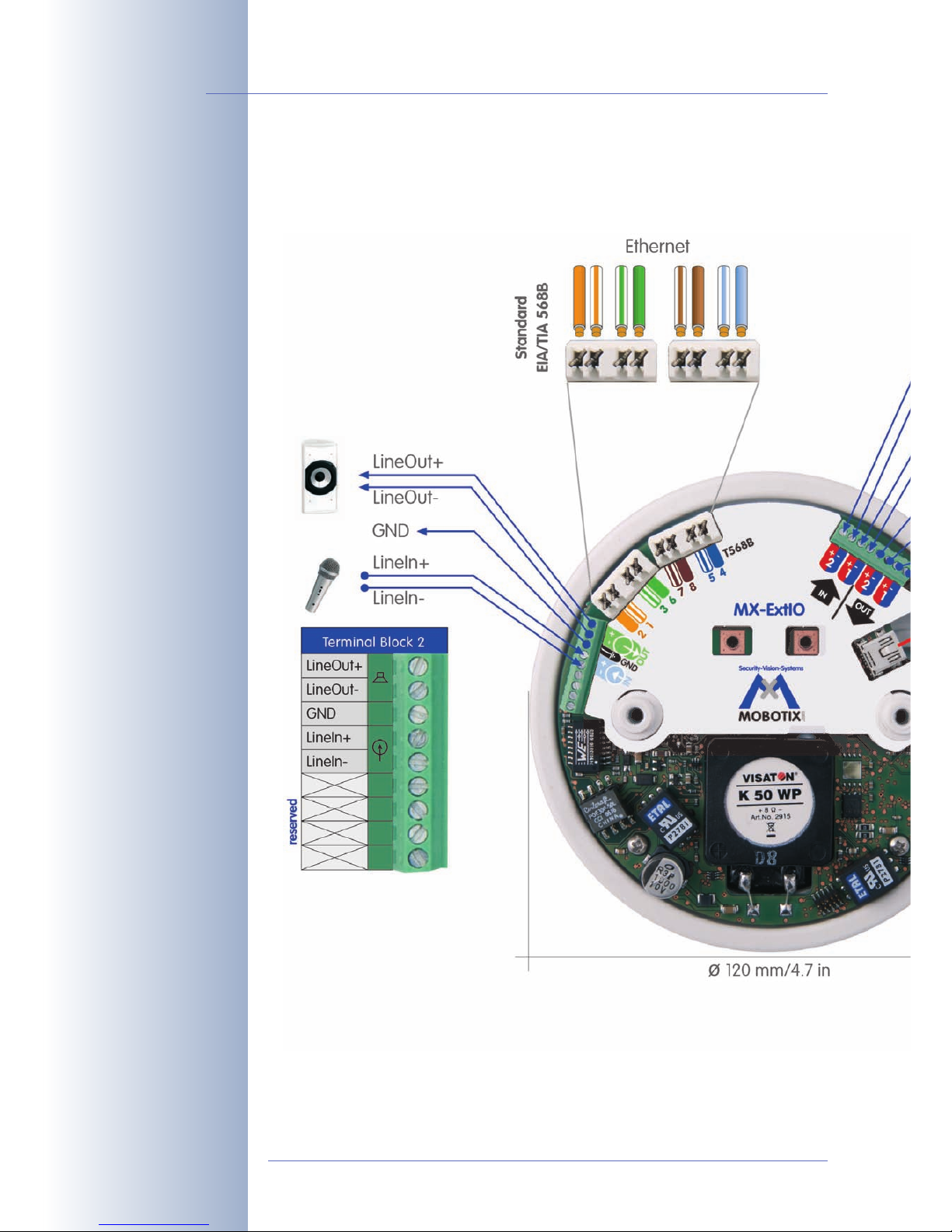

2.4 Connecting the Terminal Connectors, Wiring

2.4.1 Overview: ExtIO Board and Connectors

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

30/76

MOBOTIX ExtIO User Manual

Terminal connectors –
overview

ExtIO connection tem­plate

Terminal connector 1
(Signal inputs and outputs)

Terminal connector 2
(Line-In, Line-Out)

Terminal connectors for Ethernet cabling

Mini USB connector

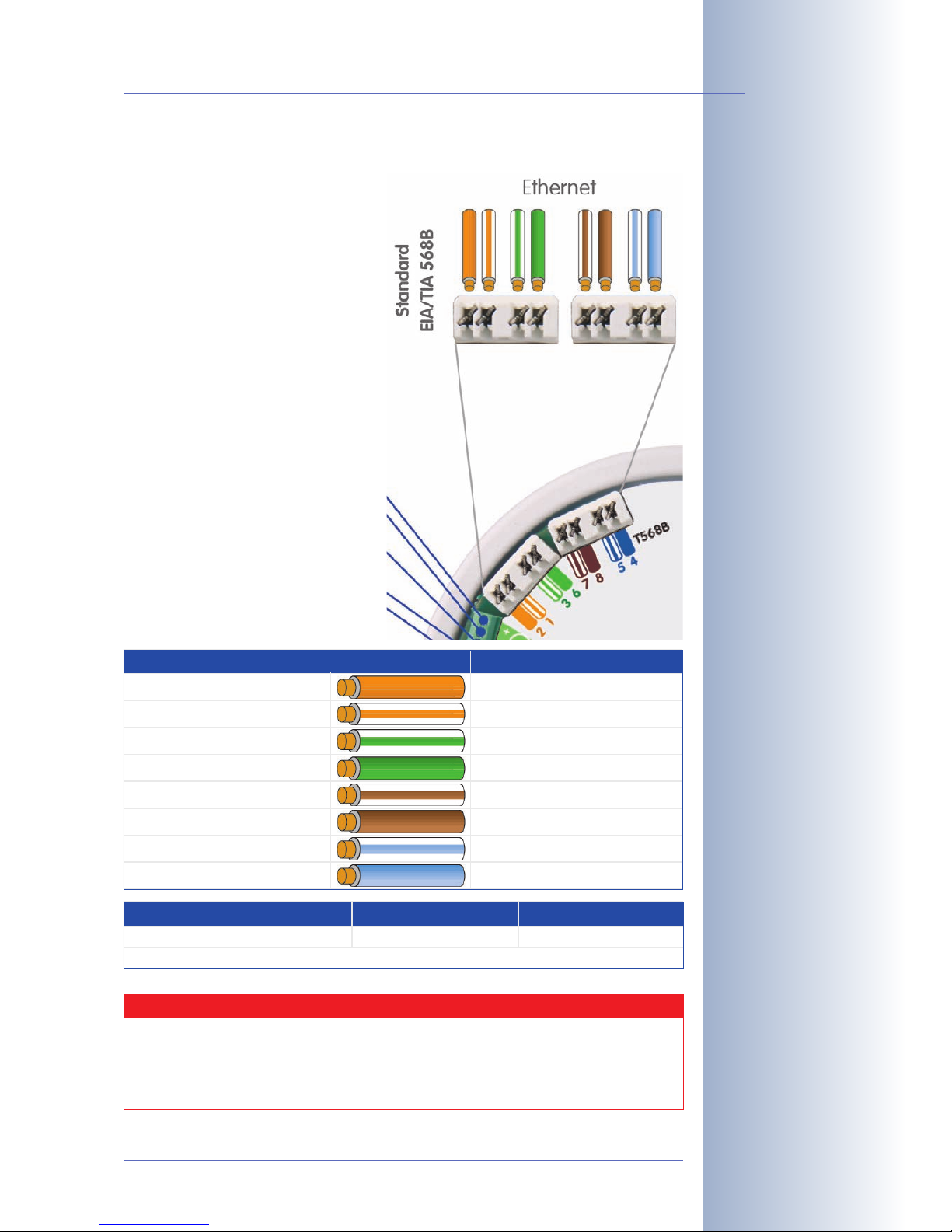

2.4.2 ExtIO Terminal Connectors for the Ethernet Cabling

Use Ethernet installation cable for
connecting the cable to the Ethernet
terminal connector. Make sure that
you adhere to the allowed wire di­mensions and to the applied Ether­net connection standard (usually EIA/
TIA-568B).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

31/76

MOBOTIX ExtIO User Manual

Ethernet connection
standard EIA/TIA-568B

(AT&T 258A)

AWG: American Wire
Gauge (for measuring
cable diameters)

EIA: Electronic Indu­stries Alliance

TIA: Telecommunications
Industry Association

Cable color Ethernet pair number

Orange

White / orange Line

2 - Eth #2 (Tx-)

2 - Eth #1 (Tx+)

White / green Line

Green

White / brown Line

Brown

3 - Eth #3 (Rx+)

3 - Eth #6 (Rx-)

4 - Eth #7

4 - Eth #8

White / blue Line

Blue

1 - Eth #5

1 - Eth #4

Allowed Wire Dimensions Solid AWG

Ethernet terminal (cutting clamps)

Cable diameters should be tailored to the electrical load and must follow the applicable regulations.

0.13 – 0.31 mm

2

26 to 22

Caution

The Ethernet cabling usually follows the EIA/TIA-568B (AT&T 258A)
standard. If the Ethernet cabling follows the EIA/TIA-568A standard,
you need to swap the orange and green cables of the Ethernet ca­ble!

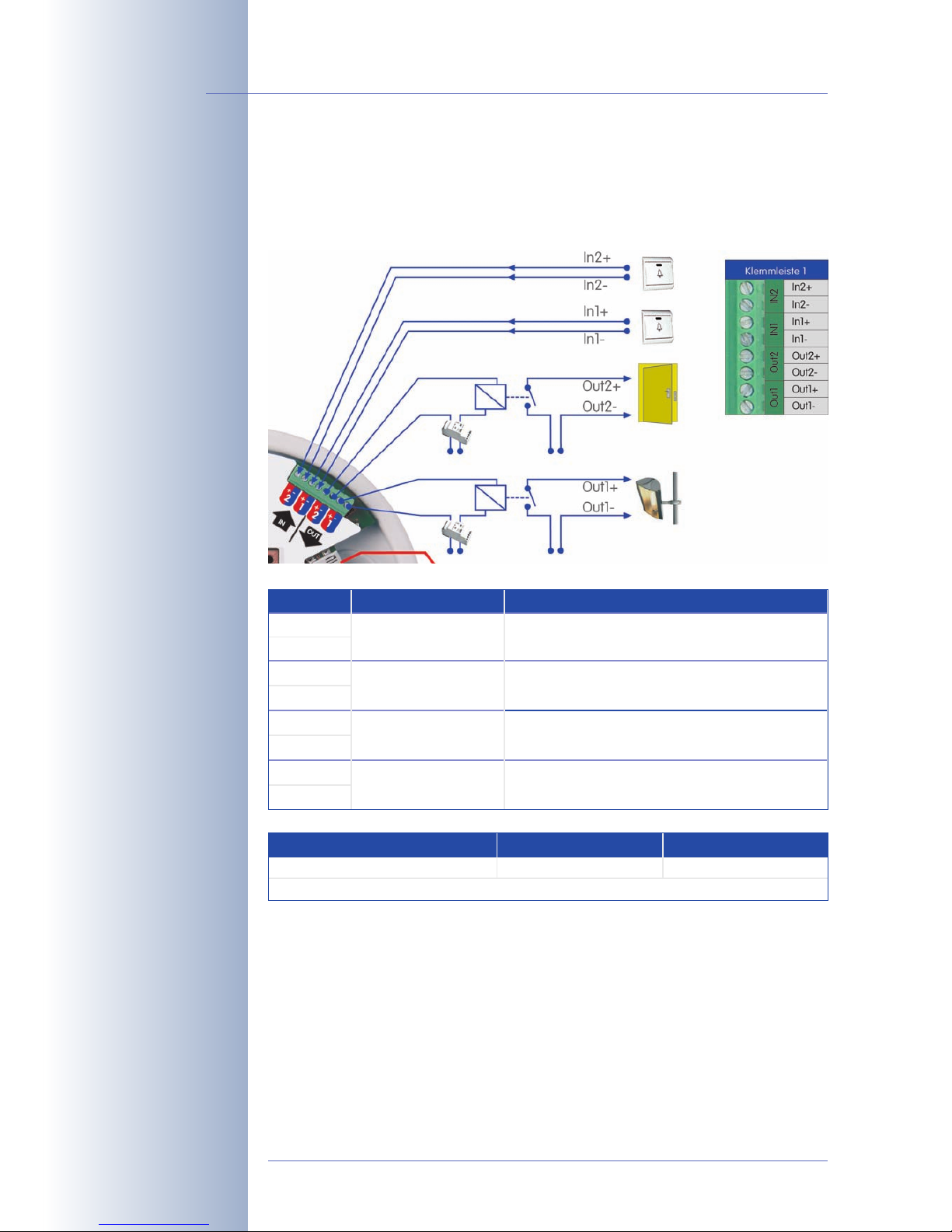

2.4.3 ExtIO Terminal Connector1 (Signal Inputs/Outputs)

Make sure that you are adhering to the applicable regulations in your country re­garding the allowed cables when connecting the wires to the terminal connector.
Always observe the allowed wire dimensions (see table below).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

32/76

MOBOTIX ExtIO User Manual

AWG: American Wire
Gauge (for measuring
cable diameters)

Terminal Part Name Remark

In2+

In2-

Signal input 2 Ext. sensor 2, max. 50V~/50V=

In1+

In1-

Out2+

Out2-

Signal input 1 Ext. sensor 1, max. 50V~/50V=

Signal output 2

Ext. device 2, 5V~ to 50V~ / 5V= to 50V=,
max. 100mA, max. 5W

Out1+

Out1-

Signal output 1

Ext. device 1, 5V~ to 50V~ / 5V= to 50V=,
max. 100mA, max. 5W

Allowed Wire Dimensions Solid AWG

Terminal connector 1

Cable diameters should be tailored to the electrical load and must follow the applicable regulations.

0.14 – 0.5 mm

2

26 to 20

2.4.4 ExtIO Terminal Connector2 (Line-In/Line-Out)

Make sure that you
are adhering to the
applicable regula­tions in your country
regarding the al­lowed cables when
connecting the wires
to the terminal con­nector. Always ob­serve the allowed
wire dimensions (see
table below).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

33/76

MOBOTIX ExtIO User Manual

AWG: American Wire
Gauge (for measuring
cable diameters)

Terminal Remark

Line-Out+

Line-Out-

For connecting to the Line-In port of a computer or when using an
external speaker with an amplifier, for example.

GND

Line-In+

Line-In-

Ground

For connecting to the Line-Out port of a computer or when using an
external Microphone with a pre-amplifier, for example.

Allowed Wire Dimensions Solid AWG

Terminal connector 2

Cable diameters should be tailored to the electrical load and must follow the applicable regulations.

0.14 – 0.5 mm

2

26 to 20

2.5 Connecting a MOBOTIX USB Cable to the Camera

2.5.1 Overview

When using USB, you need to install the model-specific USB cable in the camera
and then guide it through the camera, the SecureFlex mount or the mounting op­tion. Follow the steps that are required for your camera model:

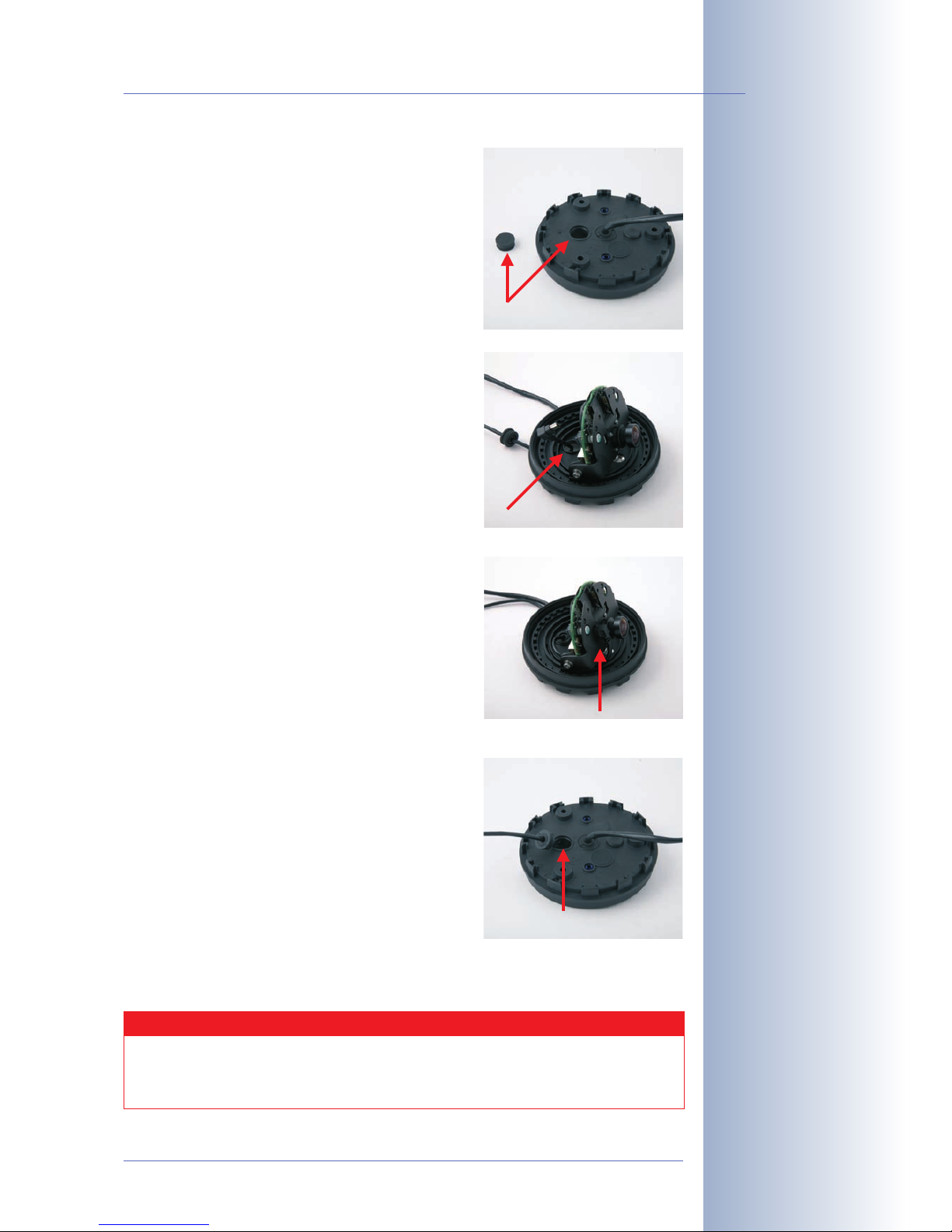

D22M

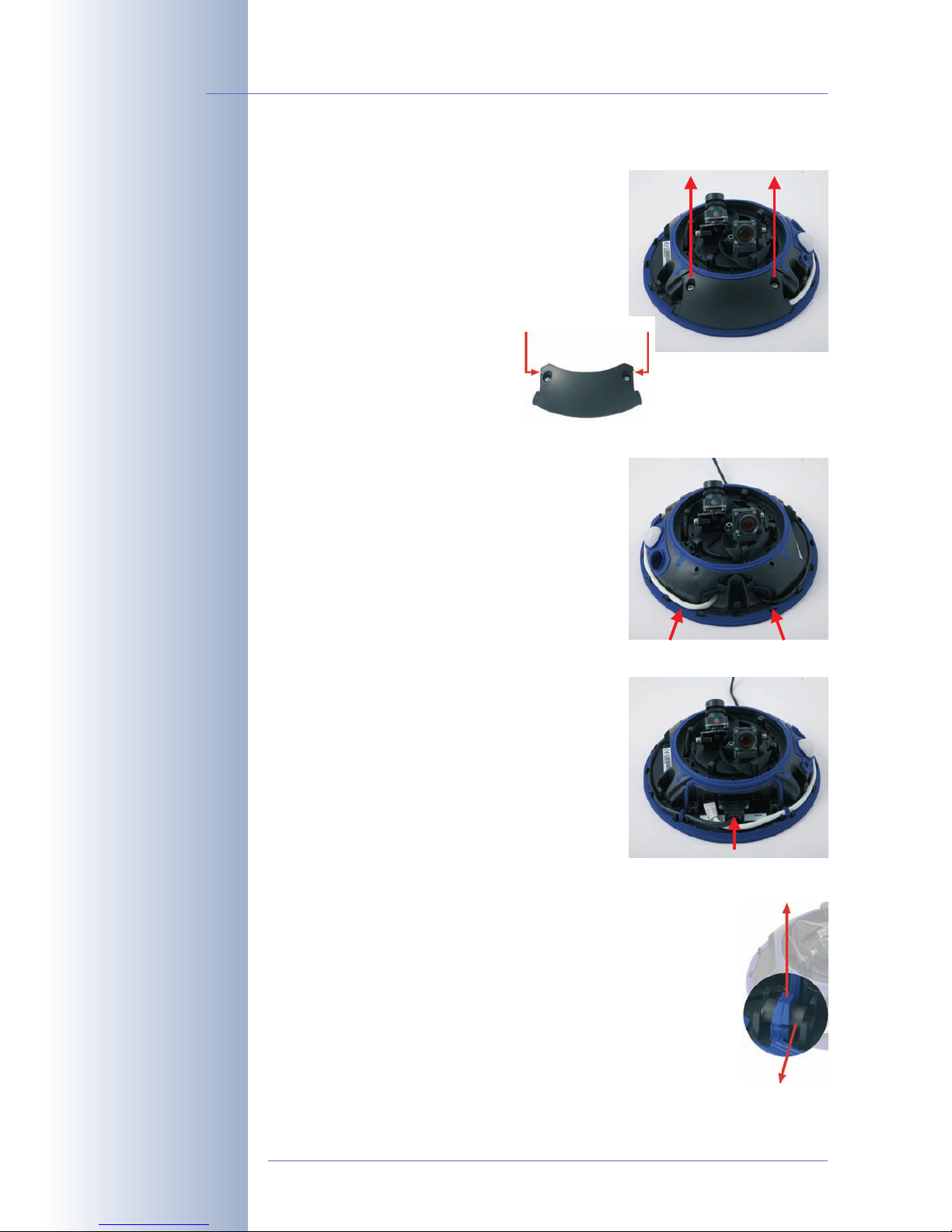

1) Disassemble the D22M camera housing.

2) Remove the rubber plug.

3) Guide the USB cable into the interior of the D22M.

4) Connect the cable's Mini USB connector to the D22M.

5) Close off the opening for the USB cable at the back of the housing with the
rubber plug.

6) Reassemble the camera housing.

For additional information on this topic, see section 2.5.2.

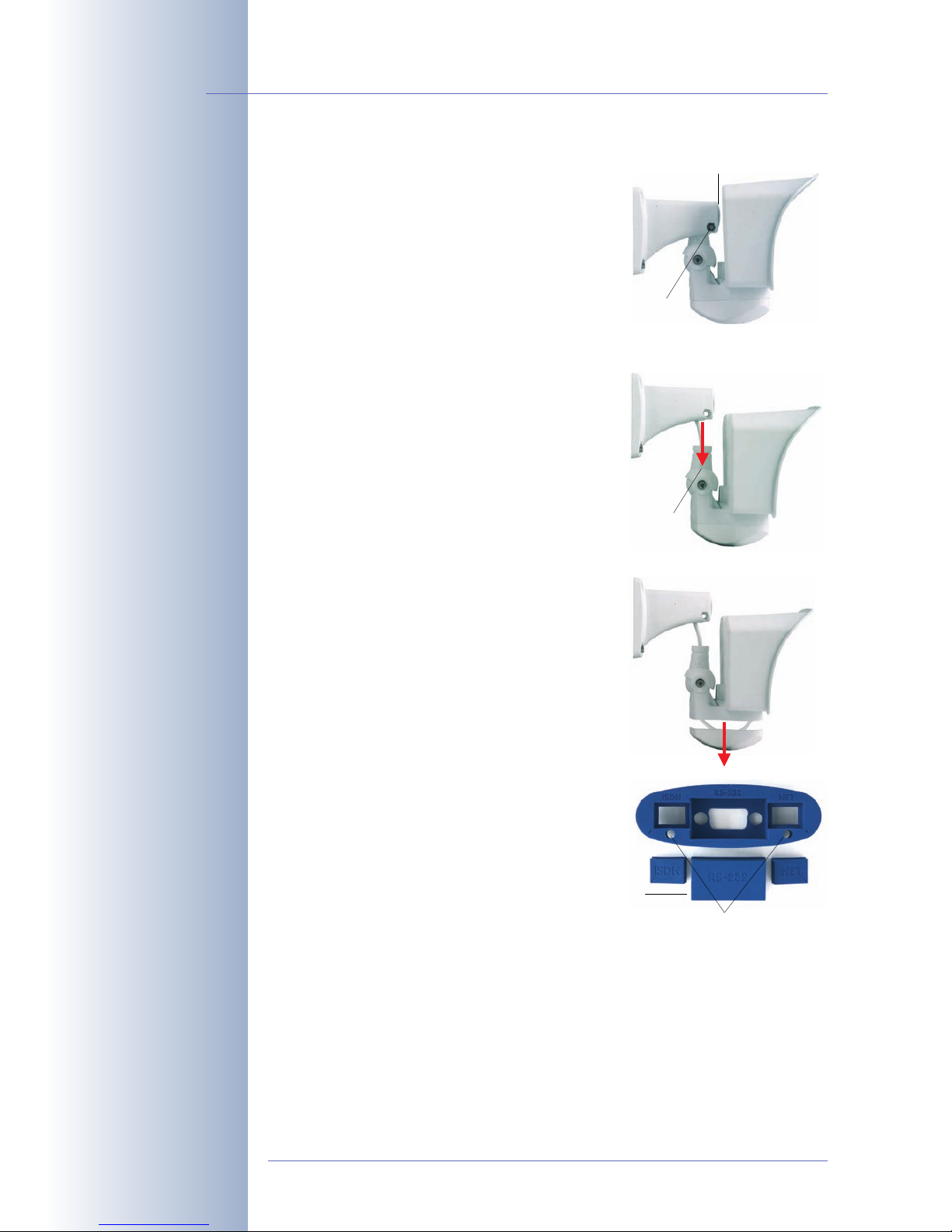

M22M

1) Disassemble the SecureFlex mount.

2) Guide the USB cable for the M22M through the SecureFlex mount.

3) Remove the rubber plug of the USB connector.

4) Connect the USB connector of the cable to the M22M.

5) Properly attach the USB rubber plug to the USB connector.

6) Reassemble the SecureFlex mount.

For additional information on this topic, see section 2.5.3.

M12

1) Disassemble the SecureFlex mount.

2) Guide the USB cable for M12/D12 into the interior of the camera/wall mount.

3) Plug the D Sub 15 HD connector of the USB cable into the camera.

4) Reassemble the SecureFlex mount.

For additional information on this topic, see section 2.5.4.

D12

1) Disassemble the D12 camera housing.

2) Guide the USB cable for the M12/D12 into the interior of the camera mount.

3) Plug the D Sub 15 HD connector of the USB cable into the camera.

4) Reassemble the camera housing.

For additional information on this topic, see section 2.5.5.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

34/76

MOBOTIX ExtIO User Manual

When using the ExtIO
via USB, you also need
to order a model-spe­cific MOBOTIX USB
cable

D22M USB cables:

MX-EXTIO-D22-1

(1 m/3 ft)

MX-EXTIO-D22-5

(5 m/16 ft)

M22M USB cable:

MX-CBL-U-MU-5

(5 m/16 ft)

M12-/D12 USB cable:

MX-CBL-HD-MU-5

(5 m/16 ft)

M12-/D12 USB cable:

MX-CBL-HD-MU-5

(5 m/16 ft)

2.5.2 USB Connection to a D22M Camera

1) Remove one of the rubber plugs in the back
of the D22M camera housing. This plug will
not be used any more in the course of the in­stallation process.

2) Guide the MOBOTIX D22M USB cable with
the angled Mini USB plug first from the open­ing in the back and under the lens mount.

3) Insert the Mini USB plug into the Mini USB/
MOBOTIX Bus connector at the front of the
lens mount. Make sure that you do not insert
the plug into the audio connector by acci­dent.

4) Close off the opening in the back of the
D22M camera housing by properly inserting
the rubber plug that is attached to the MO­BOTIX D22M USB cable into its seating. Make
sure that about 12cm/5in of free cable re­main in the camera.

It is very important that the rubber plug relia­bly protects the housing against moisture.
This will guarantee the weatherproofness
(IP65) of the camera. Please only use the pre­installed rubber plug of the cable.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

35/76

MOBOTIX ExtIO User Manual

USB cables for
MOBOTIX D22M models:

MX-CBL-MU-MU-1

(1 m/3 ft)

MX-CBL-MU-MU-5

(5 m/16 ft)

Remove rubber plug

Guide USB cable through here

Insert USB plug into USB connector

Close off opening with rubber plug

Caution

Please only use the rubber plug that is attached to the MOBOTIX
D22M USB cable! This will guarantee the weatherproofness (IP65)
of the camera.

2.5.3 USB Connection to a M22M Camera

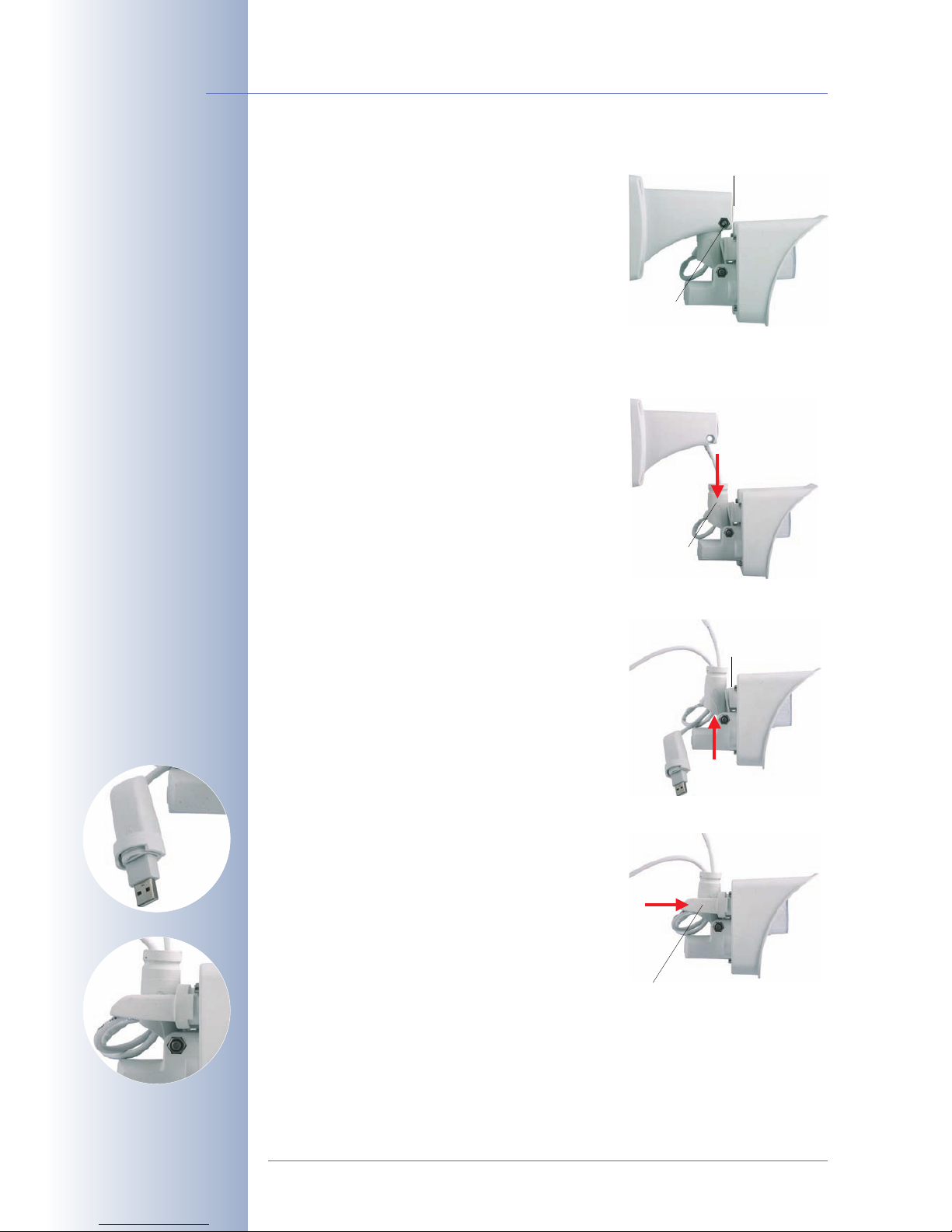

1) Unscrew the upper Allen screw in the foot of
the mount, which holds the turn/tilt unit in
place (5mm Allen wrench). Remove the Allen
screw, the washer and the hex nut from the
mount.

2) Remove the cover.

3) Gently pull the turn/tilt unit and the installed
network cable out of the opening of the
mount.

4) Guide the MOBOTIX M22M USB cable with the
angled Mini USB plug first from below through
the turn/tilt unit of the camera.

5) Remove the camera's USB rubber plug at the
back of the camera housing. This plug will not
be used any more in the course of the instal­lation process.

6) Insert the USB plug of the MOBOTIX M22M
USB cable into the USB connector at the back
of the camera housing.

7) Push the white rubber plug over the USB con­nector and the collar at the camera housing. It
is very important that the rubber plug reliably
protects the housing and the USB connector
against moisture. This will guarantee the
weatherproofness (IP65) of the camera.
Please only use the rubber plug that is deliv­ered with the USB cable.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

36/76

MOBOTIX ExtIO User Manual

USB cable (5 m/16 ft) for
MOBOTIX M22M mo­dels:

MX-CBL-U-MU-5

5mm Allen wrench is
included in the delivery
of the M22M cameras

Remove the cover

Remove Allen screw,
washer and hex nut

Pull out turn/tilt unit

Guide USB cable
through here

Remove USB rubber plug

Connect USB plug

Properly attach rubber plug

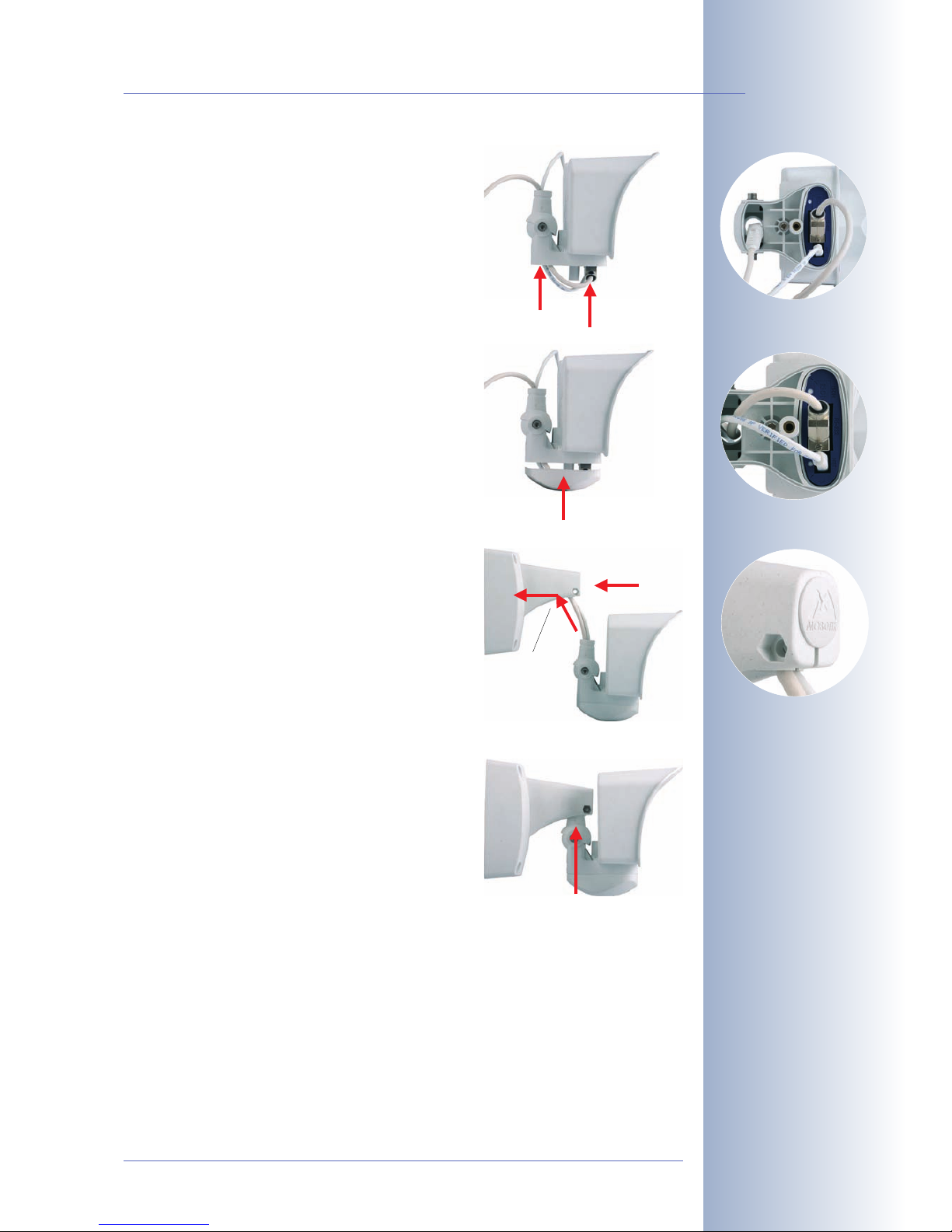

8) Guide the MOBOTIX M22M USB cable with the
angled Mini USB plug first from below through
the wall mount.

9) Insert the cover into the free opening of the
wall mount's foot.

10) Insert the turn/tilt unit of the camera into the
horizontal opening of the mount (all the way
to the stop).

11) Insert the hex nut into the corresponding hole
and fasten the Allen screw with washer.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

37/76

MOBOTIX ExtIO User Manual

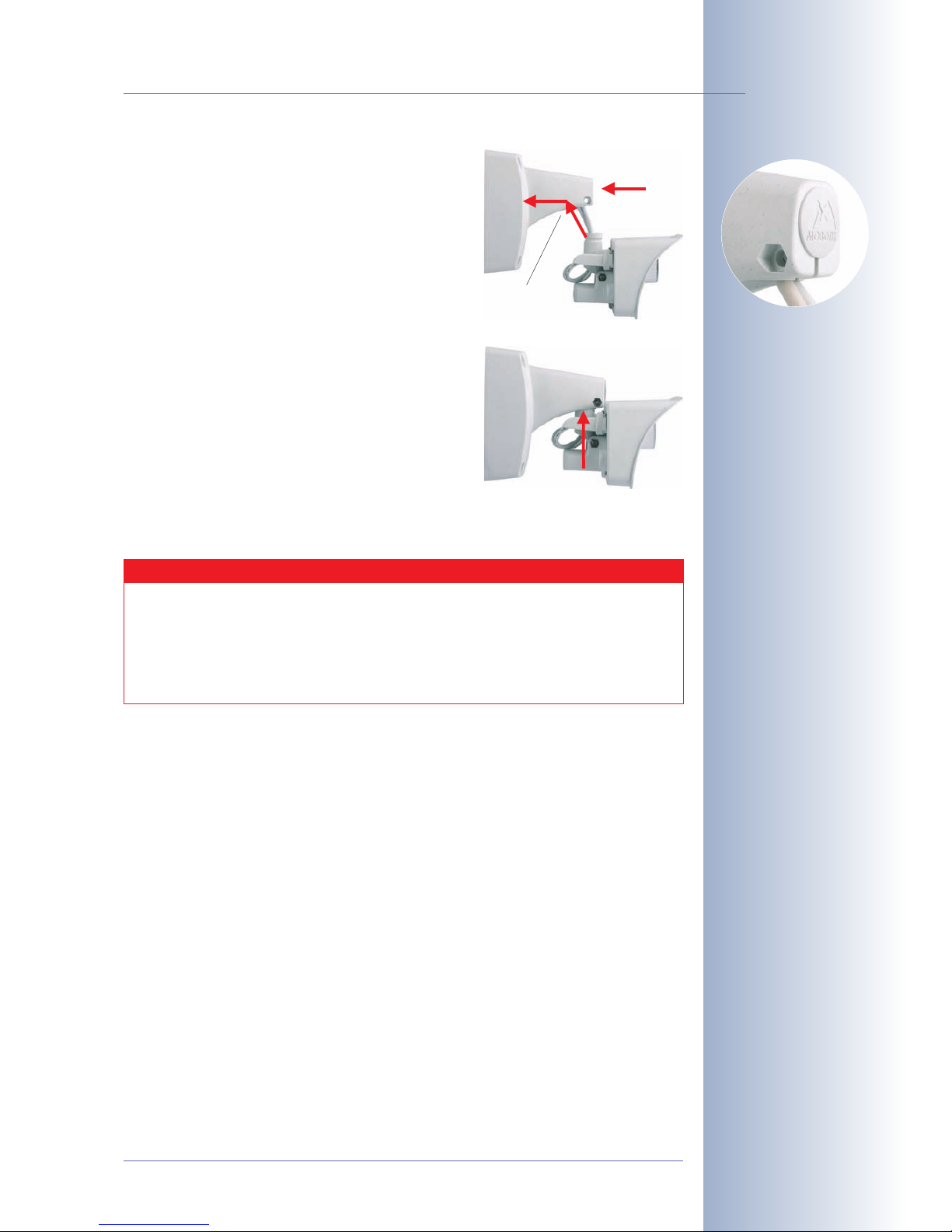

Insert the cover

Maximum torque for all
screws is 1 to 1.2Nm
(0.74lbf ft)

Caution

Please only use the rubber plug that is supplied with the MOBOTIX
M22M USB cable! This will guarantee the weatherproofness (IP65)
of the camera.

Also make sure that the connectors are not bent or the cable is un­der tension as this could lead to water entering the camera!

Insert the cover

Guide USB cable
through here

Insert turn/tilt unit

2.5.4 USB Connection to a M12 Camera

1) Unscrew the upper Allen screw in the foot of
the mount, which holds the turn/tilt unit in
place (5mm Allen wrench). Remove the Allen
screw, the washer and the hex nut from the
mount.

2) Remove the cover.

3) Gently pull the turn/tilt unit and the installed
network cable out of the opening of the
mount.

4) Remove the Allen screw of the bottom cover
and take off the cover.

5) Remove the blue plug labeled RS-232 from
the insect protection.

Caution: MOBOTIX M12 cameras feature a pre-installed insect protection,

which effectively prevents small animals from entering the camera. Make
sure that the condensation escape vents remain open. Never push any ob-

jects into the drain holes as this may damage the plugs!

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

38/76

MOBOTIX ExtIO User Manual

USB cable (5 m/16 ft) for
MOBOTIX M12 and D12
models:

MX-CBL-HD-MU-5

5mm Allen wrench is in­cluded in the delivery of
the M12 cameras

Remove Allen screw,
washer and hex nut

Pull out turn/tilt unit

Condensation escape vents

(do not block or damage)

Remove the cover

Remove RS232 plug

Remove bottom cover

6) Guide the MOBOTIX M12 USB cable with the
angled Mini USB plug first from below through
the turn/tilt unit of the camera.

7) Insert the D Sub 15 HD plug of the MOBOTIX
M12 USB cable into the D Sub 15 HD connector
of the MOBOTIX camera.

8) Reinstall the bottom cover of the mount. In
the process, make sure that the camera's in­sect protection remains firmly in place.

9) Guide the MOBOTIX M12 USB cable with the
angled Mini USB plug first from below through
the wall mount.

10) Insert the cover into the free opening of the
wall mount's foot.

11) Insert the turn/tilt unit of the camera into the
vertical opening of the mount (all the way to
the stop).

12) Insert the hex nut into the corresponding hole
and fasten the Allen screw with washer.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

39/76

MOBOTIX ExtIO User Manual

Insert the cover

Maximum torque for all
screws is 1 to 1.2Nm
(0.74lbf ft)

Insert the cover

Guide USB cable
through here

Attach bottom cover

Guide USB cable
through here

Connect D Sub
15 HD plug

Insert turn/tilt unit

2.5.5 USB Connection to a D12 Camera

1) Remove the two Allen screws of the cable
cover (3mm Allen wrench) and lift off the ca-

ble cover.

Note: If the cable cover cannot be removed
by hand, take a screwdriver to lift it out of its
seat. Insert the screwdriver into the grooves
shown below and gently lift
the cable cover.

2) Lead the MOBOTIX D12 USB cable with the
Mini USB plug first from the bottom of the
camera housing through the right-hand
opening and guide it around the camera
housing in counter-clockwise direction (as
seen from above). Make sure that this cable
is running properly as shown in the figures
below.

3) Insert the D Sub 15 HD plug of the MOBOTIX
D12 USB cable into the D Sub 15 HD connec­tor of the MOBOTIX camera and properly
lead the cable through the guides at the
outer rim of the housing. Make sure that the
cable is running properly as shown in the fig­ures below. The cables should cross one an­other just before the connectors.

4) Remove the rubber plug from the cable guide before leading
the USB cable through the guide.
If you need to remove the USB cable again sometime, you will
need to reinsert the rubber plug into the cable guide. This will
ensure that the camera remains weatherproof (IP65).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

40/76

MOBOTIX ExtIO User Manual

USB cable (5 m/16 ft) for
MOBOTIX D12 and M12
models:

MX-CBL-HD-MU-5

3mm Allen wrench is in­cluded in the delivery of
the D12 cameras

Lead the cables through
the cable guides at the
outer rim of the housing

If you are only using one
cable, close the unused
cable guide with one of
the supplied plugs

Remove cable cover

USB cableEthernet cable

Connect D Sub 15 HD plug

Remove rubber plug

5) Push the cable cover back into its seat and
fasten the two Allen screws. When mounting
the cable cover, take care to properly align
the cover with the seal of the camera housing
and the two cable guides. This will ensure
that the camera remains weatherproof (IP65).

6) Properly lead the cable through the cable
guides at the outer rim of the housing. This
will ensure that you can properly install the
outer shell again later on.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

41/76

MOBOTIX ExtIO User Manual

Always mount the cable
cover (IP65)!

Maximum torque for all
screws is 1 to 1.2Nm
(0.74lbf ft)

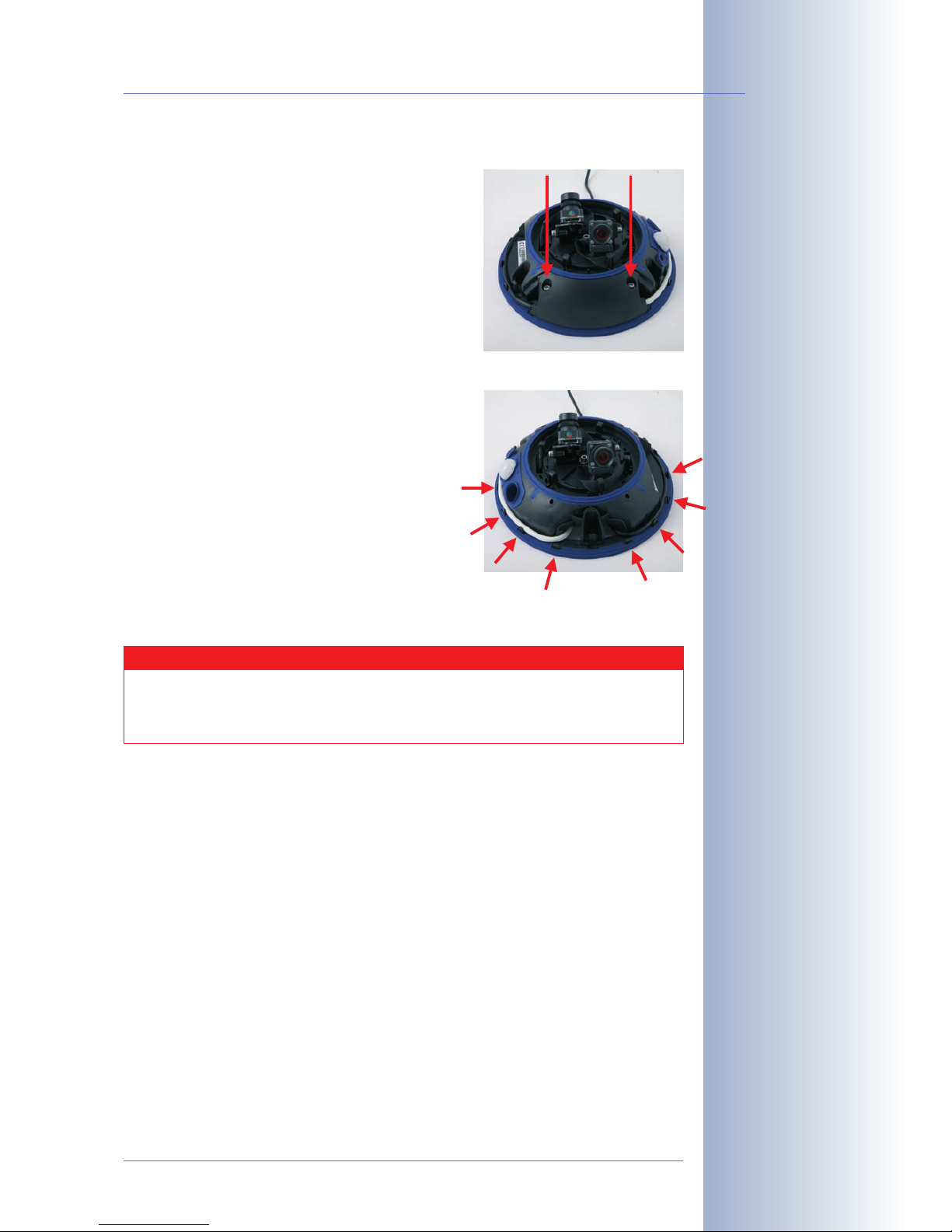

Install cable cover

Lead cables properly
through the cable guides

Caution

Make sure that you close off any unused cable openings with the
supplied rubber plugs. This will ensure that the camera remains
weatherproof (IP65).

2.6 Connecting the Cables to the ExtIO

2.6.1 Connecting the Ethernet Cable to the ExtIO

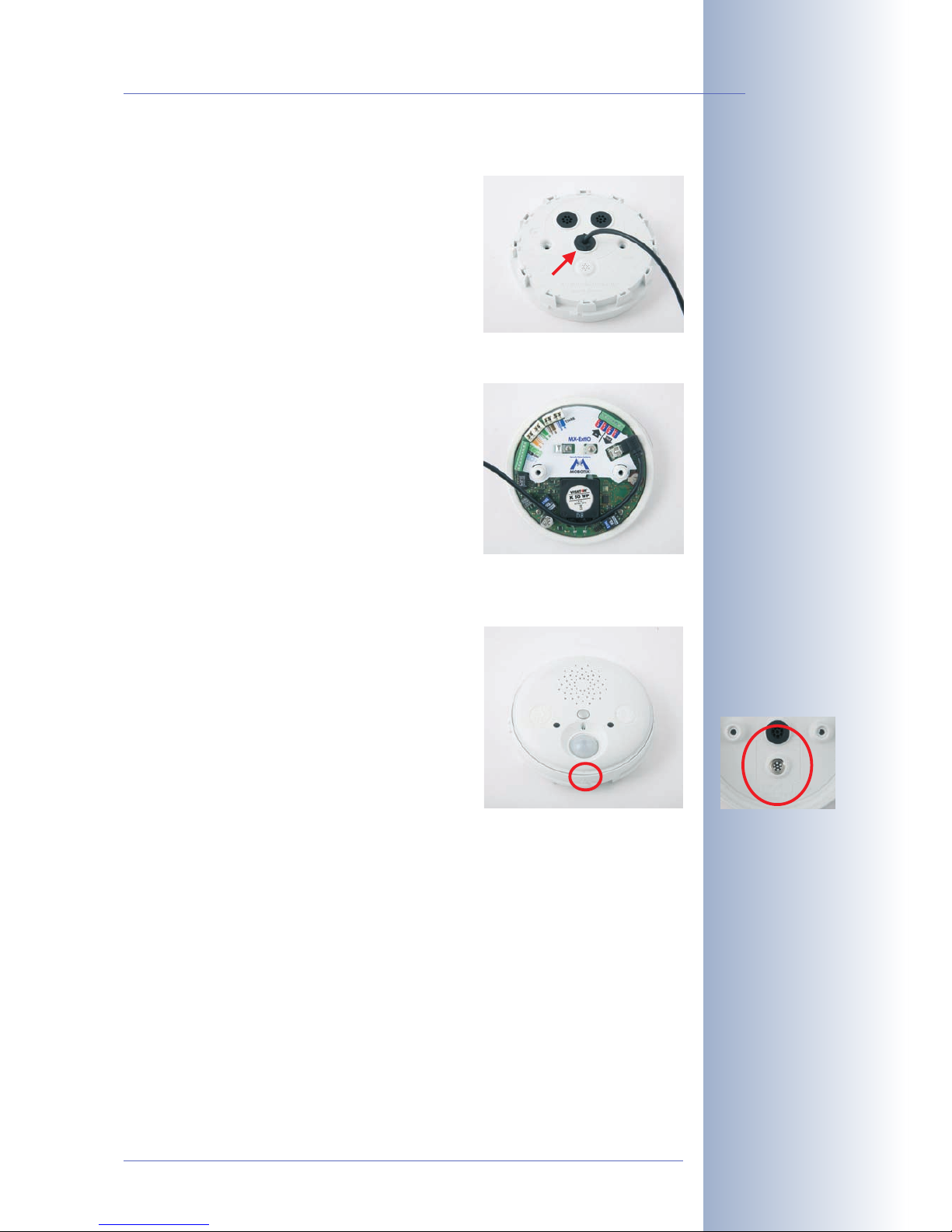

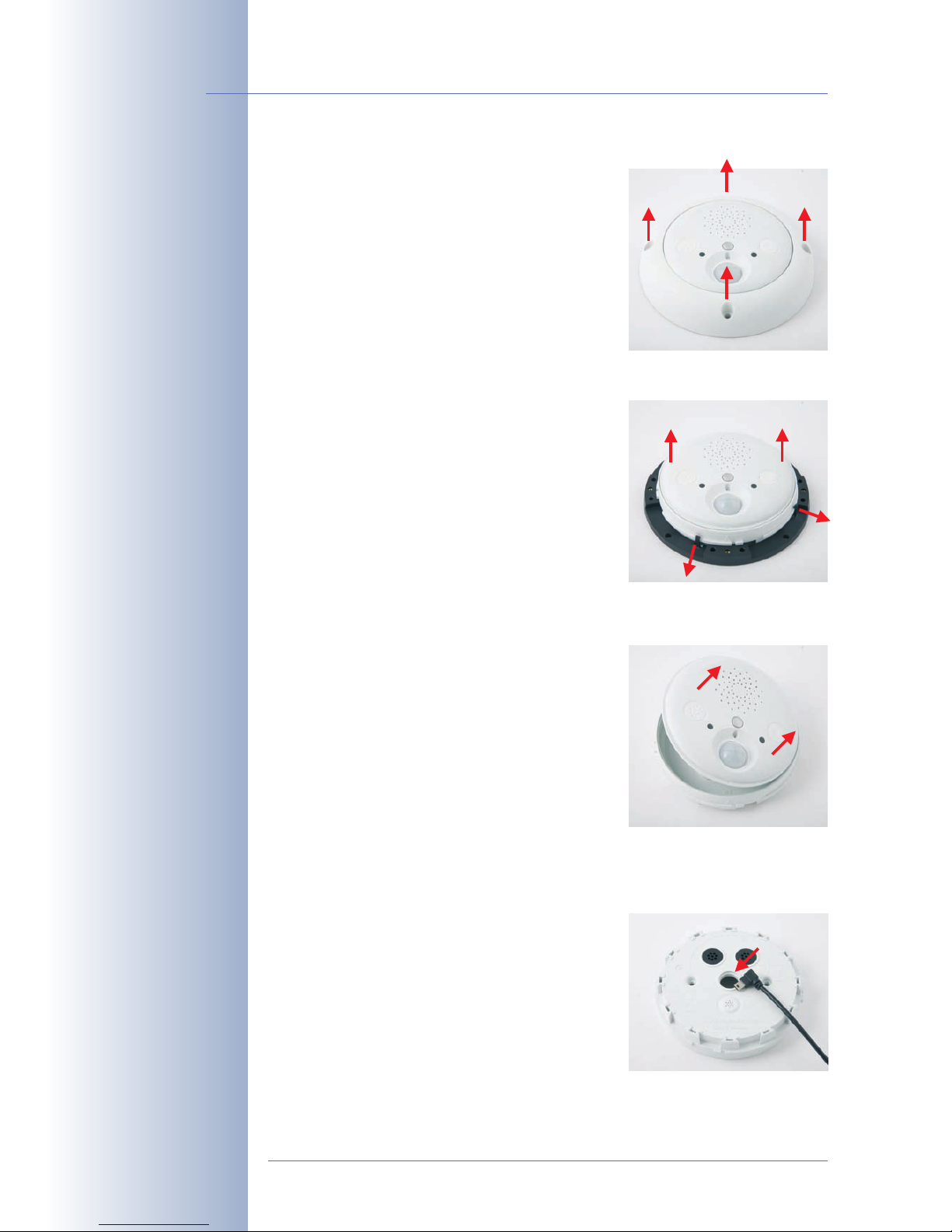

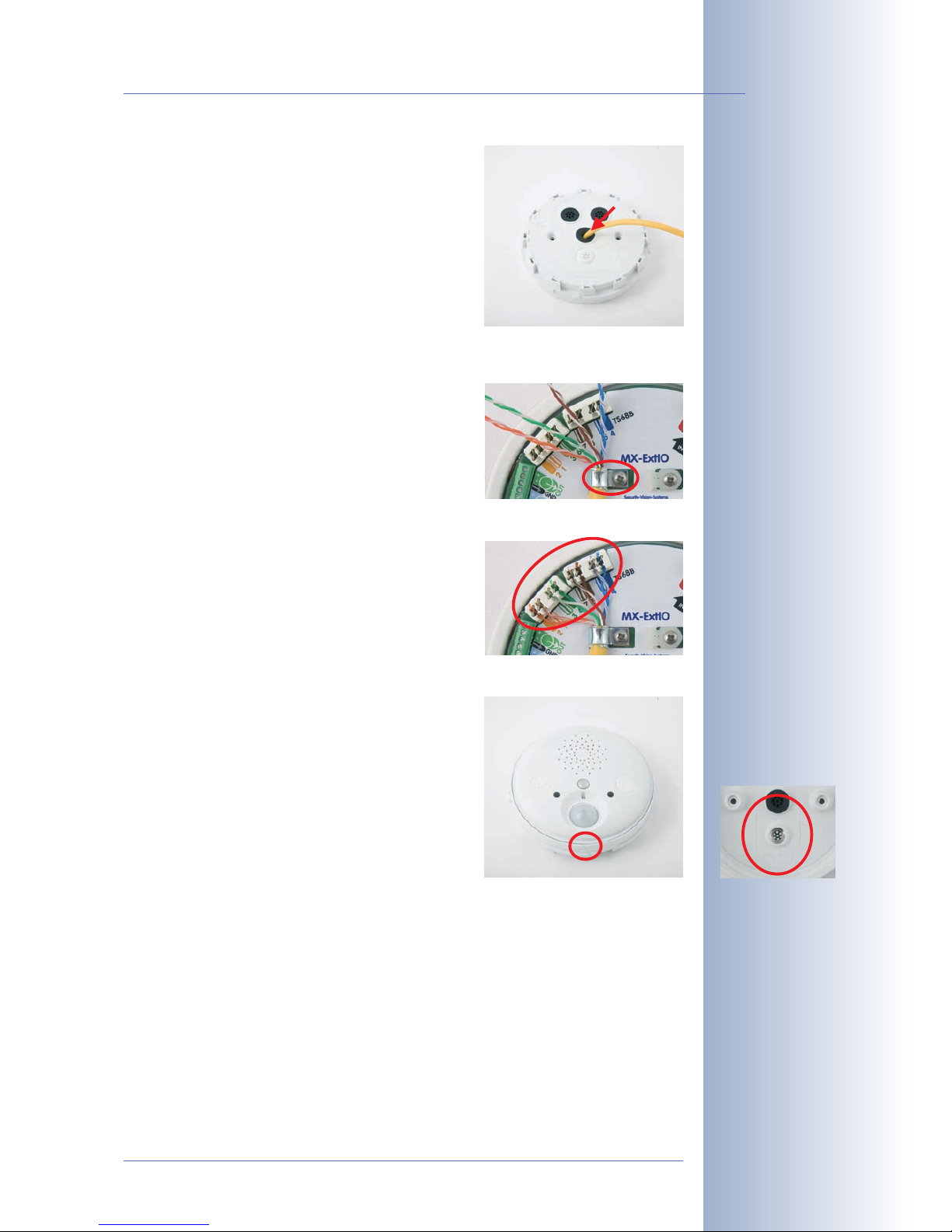

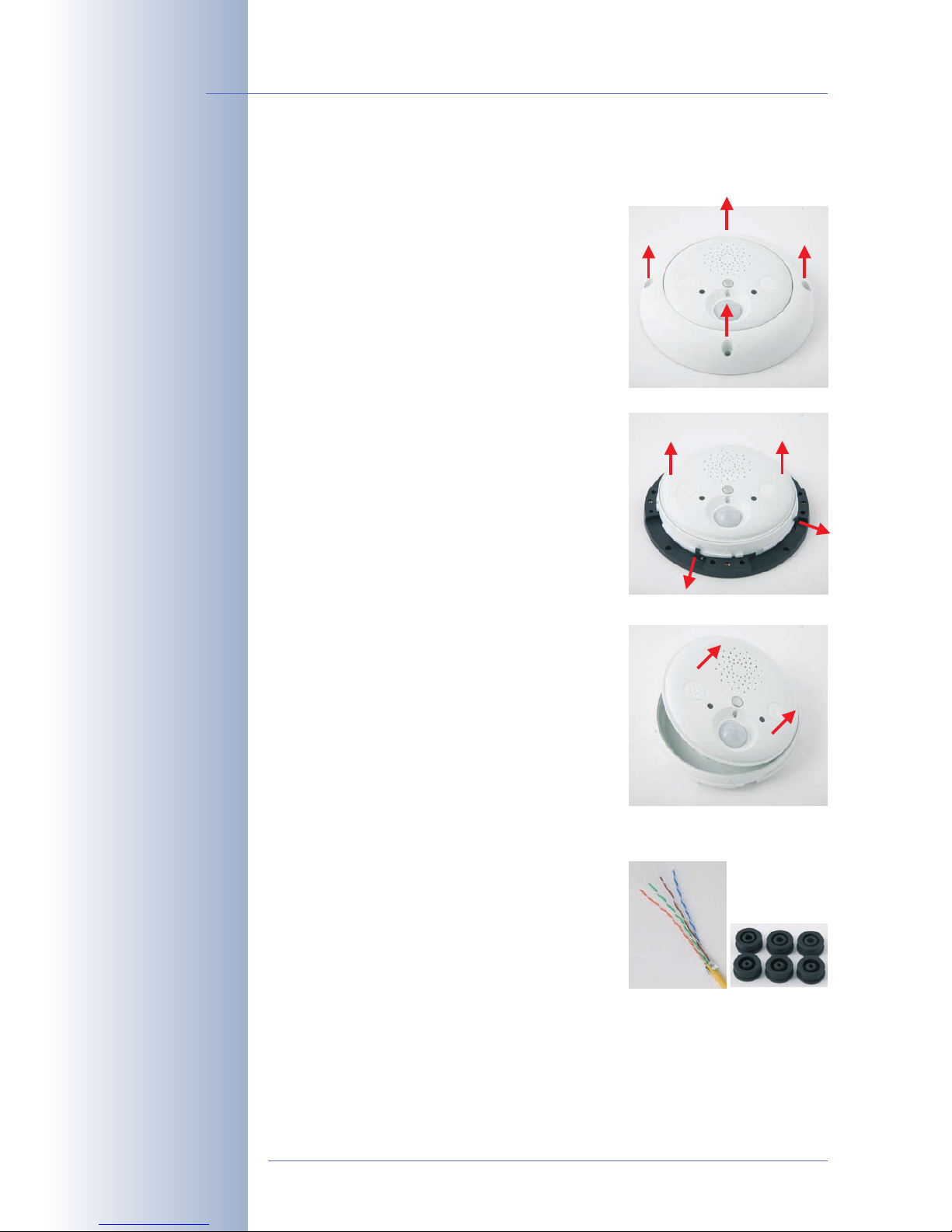

1) Remove the outer shell from the ExtIO: Re­move the outer shell (item1.3) from the ExtIO.
Use the supplied Allen wrench (item1.14) for
this purpose.

2) Remove the mounting ring from the ExtIO:
Remove the mounting ring from the ExtIO.
Carefully bend the four black clamps of the
mounting ring back, one after the other using
a suitable tool.

3) Remove the back of the ExtIO housing: Re­move the back of the ExtIO. Use a suitable
Phillips screwdriver to remove the two Fillister
head screws in the bottom. Gently press on
the screw heads with the screwdriver before
fully removing them; this will press the top
shell of the housing out of its seat. Never in-

sert tools into the sealed openings as this
may damage parts on the ExtIO's main
board!

4) Prepare the Ethernet cable: Remove about 6
to 8cm (2.4 to 3.2in) of insulation from the
Ethernet cable. Shorten the sheath to about
1cm (3/8in) and carefully fold it backwards
around the insulation. Apply the suitable rub­ber plug around the Ethernet cable.

The delivered parts of the ExtIO include rub­ber plugs for cables with outside diameters
from 3 to 5mm (1/8 to 3/16in) and 5 to 7mm
(3/16 to 9/32in). Cables with larger outside
diameters must not be used.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

42/76

MOBOTIX ExtIO User Manual

Remove outer shell

Remove mounting ring

Remove the back of the housing

Prepare the Ethernet cable:

remove insulation, shorten sheath

and fold back over insulation, push

rubber seal over cable

5) Guide the Ethernet cable through the

ExtIO's back and close the opening with a
plug: Remove the rubber plug at the center of

the ExtIO's back. This plug will not be used
any more in the course of the installation
process. Guide the Ethernet cable through the
opening into the interior. Make sure that
about 17cm/6.7in of free cable remain in the
camera. Carefully close off the opening in the
ExtIO's back using the integrated plug of the
Ethernet cable.

6) Lock Ethernet cable in place with clamp:
Lock the Ethernet cable in place using the left
clamp. When tightening the clamp with a
suitable Phillips screwdriver, make sure that
the clamp holds down the folded-back
sheath of the Ethernet cable.

7) Insert the cable wires using the LSA PLUS
tool: Insert the cable wires using the LSA
PLUS wire insertion tool: Make absolutely
sure that you insert the wires according to
their colors as shown. Please also observe
the notes in section 2.4.2,

ExtIO Terminal Con-

nectors for the Ethernet Cabling

.

8) Reseat ExtIO housing into the back and
tighten the screws: Close the ExtIO housing
again by reseating the ExtIO's top into the
back. To do so, properly align the two arrows
at the rims of the top and the back. Before
closing the ExtIO housing, make sure that all
cables are running properly inside of the
housing.

The back of the ExtIO also has a mark for the
speaker. This mark shows the proper position
of the two housing parts towards one an­other.

Make absolutely sure that top of housing is properly seated in the back all
around the housing (firmly press the top into the back). This will guarantee
the weatherproofness (IP65) of the ExtIO. Fasten the ExtIO's back using the
two Fillister head screws in the corresponding holes. Use a suitable Phillips
screwdriver for this task. Finally make sure that all rubber plugs in the ExtIO's
back are firmly in place and that they seal off the housing properly.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

43/76

MOBOTIX ExtIO User Manual

Mark for speaker inside
the back

Maximum torque for all
screws is 1 to 1.2Nm
(0.74lbf ft)

Insert cable into ExtIO's back and

close off with rubber plug

Lock cable in place with cable clamp

Insert the wires

Assemble ExtIO housing

Align arrows

2.6.2 Connecting the USB Cable to the ExtIO

1) Remove the outer shell from the ExtIO: Re-
move the outer shell (item1.3) from the ExtIO.
Use the supplied Allen wrench (item1.14) for
this purpose.

2) Remove the mounting ring from the ExtIO:
Remove the mounting ring from the ExtIO.
Carefully bend the four black clamps of the
mounting ring back using a suitable tool, one
after the other. While doing so, press against
the housing from below to push the housing
out of the clamps.

3) Remove the back of the ExtIO housing: Re-
move the back of the ExtIO. Use a suitable
Phillips screwdriver to remove the two Fillister
head screws in the bottom. Gently press on
the screw heads with the screwdriver before
fully removing them; this will press the top
shell of the housing out of its seat. Never in-

sert tools into the sealed openings as this
may damage parts on the ExtIO's main
board!

4) Guide the USB cable through the ExtIO's
back: Remove the rubber plug at the center

of the ExtIO's back. This plug will not be used
any more in the course of the installation
process. Guide the model-specific USB cable
with the angled Mini USB plug through the
opening into the interior.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

44/76

MOBOTIX ExtIO User Manual

MOBOTIX USB cables:

M12/D12:
SUB HD to Mini USB

MX-CBL-HD-MU-5

(5 m/16 ft)

M22M:
USB to Mini USB

MX-CBL-U-MU-5

(5 m/16 ft)

D22M:
Mini-USB to Mini-USB

MX-CBL-MU-MU-1

(1 m/3 ft)

MX-CBL-MU-MU-5

(5 m/16 ft)

Remove outer shell

Remove mounting ring

Remove the back of the housing

Remove center plug and

guide USB cable through

5) Close off ExtIO's back with USB plug: Care-
fully close off the opening in the ExtIO's back
using the integrated plug of the Ethernet ca­ble. Make sure that about 17cm/6.7in of free
cable remain in the camera. All MOBOTIX
USB cables have been prepared in such a
way.

6) Connect USB cable to Mini USB connector

of the ExtIO and guide the cable in the
housing: Insert the plug of the Mini USB con-

nector of the MOBOTIX USB cable into the
proper connector of the ExtIO.

Before closing the ExtIO housing, make sure
that the USB cable runs properly beneath the
speaker (see figure).

7) Reseat ExtIO housing into the back and
tighten the screws: Close the ExtIO housing
again by reseating the ExtIO's top into the
back. To do so, properly align the two arrows
at the rims of the top and the back.

The back of the ExtIO also has a mark for the
speaker. This mark shows the proper position
of the two housing parts towards one an­other.

Make absolutely sure that top of housing is
properly seated in the back all around the housing (firmly press the top into
the back). This will guarantee the weatherproofness (IP65) of the ExtIO. Fas­ten the ExtIO's back using the two Fillister head screws in the corresponding
holes. Use a suitable Phillips screwdriver for this task. Finally make sure that
all rubber plugs in the ExtIO's back are firmly in place and that they seal off
the housing properly.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

45/76

MOBOTIX ExtIO User Manual

Mark for speaker inside
the back

Maximum torque for all
screws is 1 to 1.2Nm
(0.74lbf ft)

Close off opening with rubber plug

Insert USB plug

Properly guide the cable

Assemble ExtIO housing

Align arrows

2.6.3 Connecting Additional Components to the ExtIO

1) Remove the outer shell from the ExtIO: Re-
move the outer shell (item1.3) from the ExtIO.
Use the supplied Allen wrench (item1.14) for
this purpose.

2) Remove the mounting ring from the ExtIO:
Remove the mounting ring from the ExtIO.
Carefully bend the four black clamps of the
mounting ring back using a suitable tool, one
after the other. While doing so, press against
the housing from below to push the housing
out of the clamps.

3) Remove the back of the ExtIO housing: Re-
move the back of the ExtIO. Use a suitable
Phillips screwdriver to remove the two Fillister
head screws in the bottom. Gently press on
the screw heads with the screwdriver before
fully removing them; this will press the top
shell of the housing out of its seat. Never in-

sert tools into the sealed openings as this
may damage parts on the ExtIO's main
board!

4) Prepare the wires and the ExtIO's back:
Push each of the wires through one of the
openings of the 8-wire rubber plug in the
ExtIO's back (item1.6). Use one of the two
rubber plugs at the top for this purpose (see
figure). The rubber plug at the center should
remain closed for the Ethernet or the USB ca­ble.

Make sure that the openings in the ExtIO's
back are properly sealed off later on with the
8-wire rubber plugs.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

46/76

MOBOTIX ExtIO User Manual

Use 8-wire rubber plug

Remove outer shell

Remove mounting ring

Remove the back of the housing

Push each wire through one of the

openings of the 8-wire plug

5) Prepare the cable ties: Push one of the cable
ties supplied with the ExtIO from the top
downwards into the plastic clamp prepared
for this purpose.

6) Lock the cable in place with cable tie: Lock
all wires of the cable in place using the cable
tie and clip the superfluous end of the cable
tie.

7) Lock the wires in the terminal connector:
Shorten the individual wires to the required
length. Remove about 5mm (3/16in) from
the wire's insulation, guide it into the appro­priate cable connector and tighten the screw.

Please also read the notes in sections 2.4.3,

ExtIO Terminal Connector1 (Signal Inputs/Out­puts)

and 2.4.4,

ExtIO Terminal Connector2

(Line-In/Line-Out)

.

8) Reseat ExtIO housing into the back and
tighten the screws: Close the ExtIO housing
again by reseating the ExtIO's top into the
back. To do so, properly align the two arrows
at the rims of the top and the back.

The back of the ExtIO also has a mark for the
speaker. This mark shows the proper position
of the two housing parts towards one an­other.

Make absolutely sure that top of housing is
properly seated in the back all around the housing (firmly press the top into
the back). This will guarantee the weatherproofness (IP65) of the ExtIO.

Fas­ten the ExtIO's back using the two Fillister head screws in the corresponding
holes.

Use a suitable Phillips screwdriver for this task. Finally make sure that
all rubber plugs in the ExtIO's back are firmly in place and that they seal off
the housing properly.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

47/76

MOBOTIX ExtIO User Manual

Mark for speaker inside
the back

Maximum torque for all
screws is 1 to 1.2Nm
(0.74lbf ft)

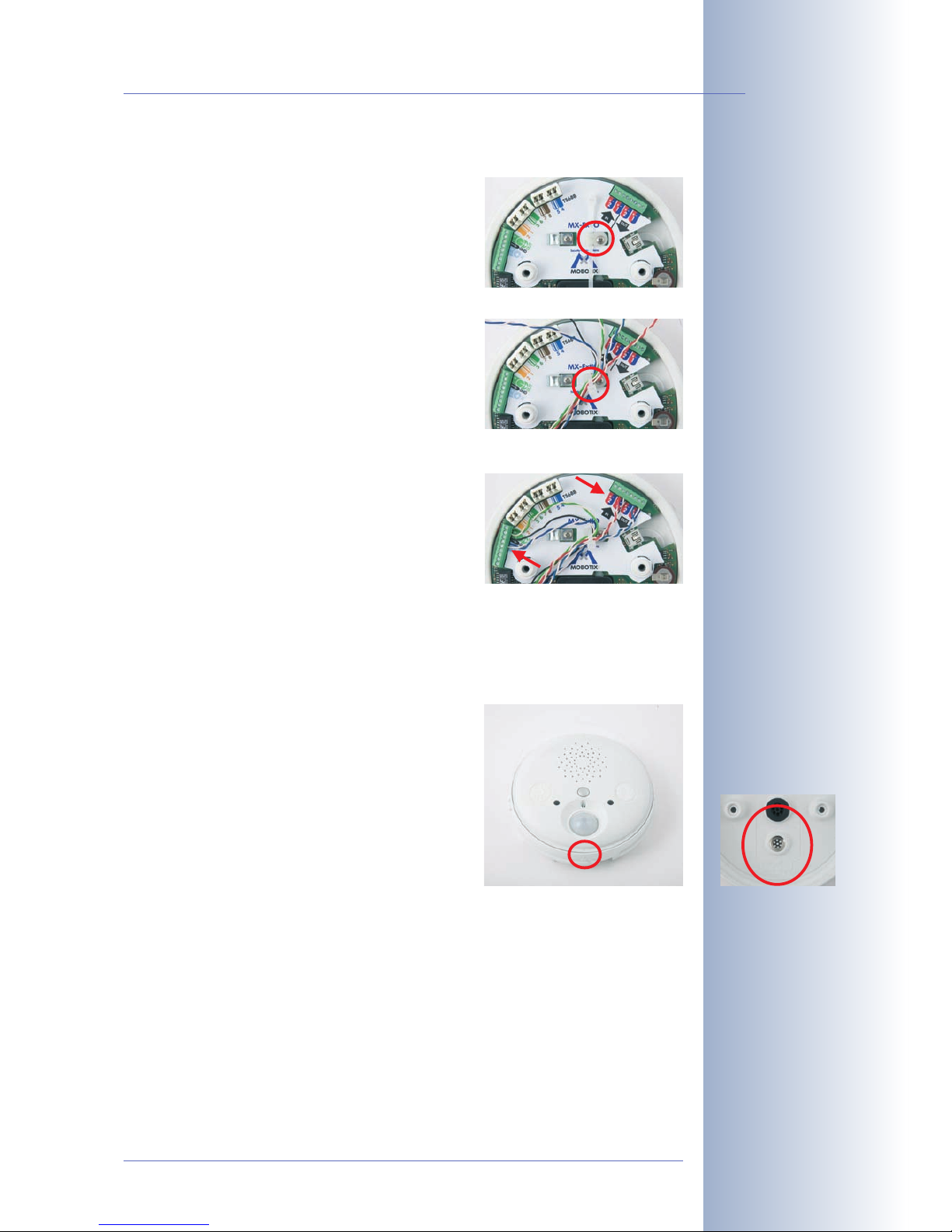

Prepare the cable ties

Lock the cable in place with cable

tie and clip cable tie

Lock the wires in the terminal con-

nectors

Assemble ExtIO housing

Align arrows

2.7 Mounting the ExtIO

2.7.1 Mounting the ExtIO Without Additional Mounting Options

1) Prepare the network or USB connection: The network cabling or USB cable
need to enter the ExtIO from the back in the center of the housing. The ca­bling is perfectly protected by the mount and cannot be seen or damaged.

2) Prepare the holes and the wall outlet: Drill
the holes for the supplied dowels (item1.11).
We also recommend using a flush-mounted
wall outlet.

Use the supplied drilling template for the
mounting ring (fold-out at the end of this
manual) to mark the position for drilling the
dowel holes and the hole for the wall outlet.

3) Attach the mounting ring to the wall or ceil-
ing: Attach the mounting ring of the ExtIO to
the designated position at the wall or ceiling
using the delivered screws (item1.12), the
washers (item1.13) and the Torx wrench
(item1.15).

4) Prepare ExtIO with cables: Connect the Eth-
ernet or USB cable and all other required ca­bles to the ExtIO and reassemble the ExtIO
again. Make sure that the housing is properly
closed and that it is sealed off using the ap­propriate rubber plugs. For more information
on this topic, see section2.6,

Connecting the

Cables to the ExtIO

.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

48/76

MOBOTIX ExtIO User Manual

Find the folded drilling
template for the mounting
ring of the ExtIO at the
end of the manual!

The red circle marks up
the hole to cut for the
wall outlet

Maximum torque for all
screws is 1 to 1.2Nm
(0.74lbf ft)

Note

Use a flush-mounted (empty) wall outlet for the cabling. The ExtIO itself
cannot be mounted directly on top of protruding wall outlets.

Drill the holes

Attach the mounting ring to the wall

Prepare ExtIO with cables

5) Attach the ExtIO to the mounting ring: Now
press the ExtIO into the guides of the mount­ing ring. The tapered guides at the back of
the ExtIO housing fit exactly into the openings
of the mounting ring. Make sure that the
ExtIO is properly oriented. The cover of the PIR
sensor is supposed to be at the bottom, the
speaker should be on top (see figures).

6) Attach the outer shell: Attach the outer shell
(item1.3) to the ExtIO. Use the supplied Allen
screws (item1.4), the washers (item1.5) and
the Allen wrench (item1.14) for this purpose.

7) Establish a connection to the ExtIO: Establish a connection between the
ExtIO and the camera and make sure that the ExtIO has been properly acti­vated. For additional information on this topic, see chapter 3,

Operation of

the ExtIO

.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

49/76

MOBOTIX ExtIO User Manual

Maximum torque for all
screws is 1 to 1.2Nm
(0.74lbf ft)

Attach the ExtIO to mounting ring

Mount outer shell

2.8 Important Notes

2.8.1 Safety Regulations

2.8.2 Suitable Cables

Only use cables, which have been approved for the pertinent type of installation.
Always observe the allowed wire diameters and the maximum cable lengths.

• Ethernet: Make sure that you are using a suitable eight-wire Ethernet instal­lation cable for connecting the device to the patch panel of a structured wir­ing system in a building. The maximum length for Ethernet cables is

100m/110yd.

• USB: Make sure that you are only using the MOBOTIX connection cables to­gether with the preinstalled rubber plug (M22M, D22M). The maximum

length for USB cables is 5m/16ft.

• Signal wires and external sensors: Use suitable installation cable for con-
necting more relays or signal lines (e.g. to an alarm system) or an external
sensor and make sure that you adhere to the allowed wire dimensions.

The length of the cables for signal wires and external sensors is not re­stricted. You need to make sure, however, that the minimum voltage at the

corresponding terminal is reached. A possible loss of voltage due to the re­sistance of the wires needs to be considered. When using a cable with a

wire with 0.3mm² dimension (AWG 23), the cable can be up to 500m
(547yd) long.

Suitable Installation Cable:

• JY(ST)Y twisted wire pairs, shielded

• A2Y(ST)2Y underground cables

• YR low-current cables

Allowed Wire Dimensions:

• Ethernet terminal (cutting clamps) inflexible 0.14 to 0.5 mm² AWG 26 to 20

• Terminals 1 and 2 inflexible 0.13 to 0.31 mm² AWG 26 to 22

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

50/76

MOBOTIX ExtIO User Manual

AWG: American Wire
Gauge (for measuring
cable diameters)

Caution

It is imperative that all electrical wires have been disconnected from
the mains power when working on or servicing the device! Also
make sure to adhere to the applicable regulations for this kind of
work!

MOBOTIX will not assume any responsibility from faulty installation
or inappropriate use!

2.8.3 Safety Notes for Operating the MOBOTIX ExtIO

When installing the wiring inside or outside of buildings, make sure you always ad­here to the relevant regulations on wiring, fire prevention and protection against
lightning.

MOBOTIX recommends having MOBOTIX cameras and accessories installed only
by certified specialists accustomed to installing network devices and having proper
respect for the applicable regulations regarding lightning protection and fire pre-

vention as well as the current technology for preventing damages from electrical

surges.

Find more information at an institution such as the International Electrotechnical
Commission (IEC, www.iec.ch) or at a manufacturer of protection devices
against lightning and electrical surges, such as Dehn (www.dehn.de).

Wiring

When installing the wiring, make sure to follow these guidelines:

• Outdoors: Installing the camera outdoors requires special precautions and
measures regarding the cables as well as lightning and surge protection
(see further below in this section).

• Wire lengths: The cable segments must not exceed the maximum allowed
cable lengths in order to ensure proper data transfer.

• Avoiding induction: When running data cables parallel to existing regular
power lines or high-voltage wires, make sure you observe the minimum dis­tances to the power cables.

Fire Prevention

When installing the power lines to the camera, make sure you always adhere to
the relevant regulations on wiring and fire prevention at the site of the installation.

Lightning and Surge Protection

To prevent damage from lightning and power surges, make sure you follow these
guidelines:

• Lightning conductors: In areas exposed to lightning (e.g. on roofs), a dis­tance holder (1m/3ft above and away from the camera or the ExtIO) and
proper lightning conductors need to be installed in order to prevent lightning
strikes into the camera/ExtIO and to ensure that the energy of a lightning
strike is properly led to the ground.

• Surge protection: Make sure you have installed proper protection against
electrical surges in order to prevent damage to the camera, the ExtIO, the
building and the network infrastructure. This includes surge protectors for 19"
racks, adding an uninterruptible power supply (UPS) to the MOBOTIX cam­era, and installing surge arresters or similar for routers, switches, servers,
etc.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

51/76

MOBOTIX ExtIO User Manual

2.8.4 Weatherproofness, Temperature Range

The housing of the MOBOTIX ExtIO is weatherproof (IP65, absolutely dustproof, re­sistant against water jets) and can be used at temperatures from -30 to +60°C

(-22 to +140°F).

2.8.5 Cleaning Instructions

The housing of the MOBOTIX ExtIO is made of fiber-reinforced PBT-30GF. This ma­terial is robust, maintenance-free and can be cleaned using a mild household de­tergent without solvents or abrasive particles.

2.8.6 Additional Information

For additional information on the MOBOTIX ExtIO, see www.mobotix.com.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

52/76

MOBOTIX ExtIO User Manual

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

53/76

MOBOTIX ExtIO User Manual

Notes

3 OPERATION OF THE EXTIO

3.1 Activating the ExtIO

Once the ExtIO and the MOBOTIX camera have been properly installed, you can set
up the camera for proper operation. When using USB, the camera directly supplies
power via the model-specific USB cable. When using Ethernet, power is supplied
via the Ethernet cable (PoE according to IEEE 802.3af). Once the connection be­tween the ExtIO and the MOBOTIX camera has been established, you can set the
operation mode (USB or Ethernet) via the camera software.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

54/76

MOBOTIX ExtIO User Manual

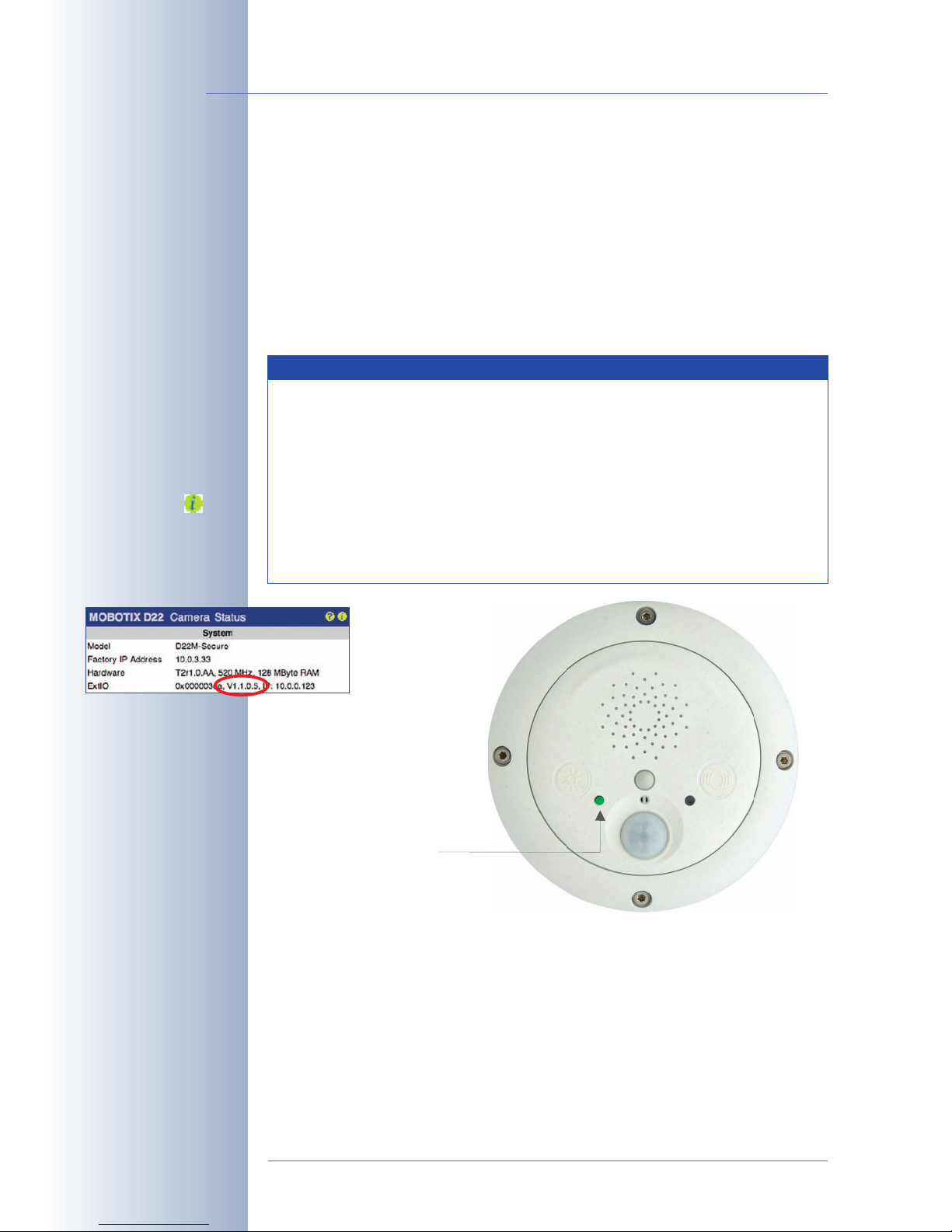

You can find the current
software version of the
ExtIO in the web inter­face of the ExtIO or the
camera software: .
Note that the ExtIO
needs to be connected
with the camera for this
to work.

The ExtIO only needs a
couple of seconds for
booting.

Note

In order to use the ExtIO, make sure that you are activating it in
the camera software (Admin Menu> Manage Hardware Expan­sions). Please ensure that you are using a camera software version
that properly supports the ExtIO (3.4.2.16 or higher for USB only,

3.4.4.15 or higher for Ethernet and USB).

Note that an ExtIO with a software lower than 1.1.0.3 only supports
USB connections. After applying a free-of-charge software up­date, you can use the Ethernet mode without limitations (see sec­tion 3.3, Software Updates).

LED permanently green:
ExtIO ready and connected

3.1.1 Activating the USB Operating Mode

To activate the USB operating mode, open the Admin Menu> Manage Hardware
Expansions dialog in the camera's browser interface. The ExtIO connected to the

camera starts after you click the Connect button in front of the ExtIO (USB) entry.
Once the green LED is on permanently, the ExtIO has successfully connected to the
camera. The remaining configuration can now be performed in the camera soft­ware.

Note that you can activate the USB operating mode in the camera even though you
have not connected the ExtIO yet, e.g. to prepare the MOBOTIX camera for using
an ExtIO later on. Once you attach any ExtIO to the camera, the camera software
will automatically establish the connection. There is no further configuration
required.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

55/76

MOBOTIX ExtIO User Manual

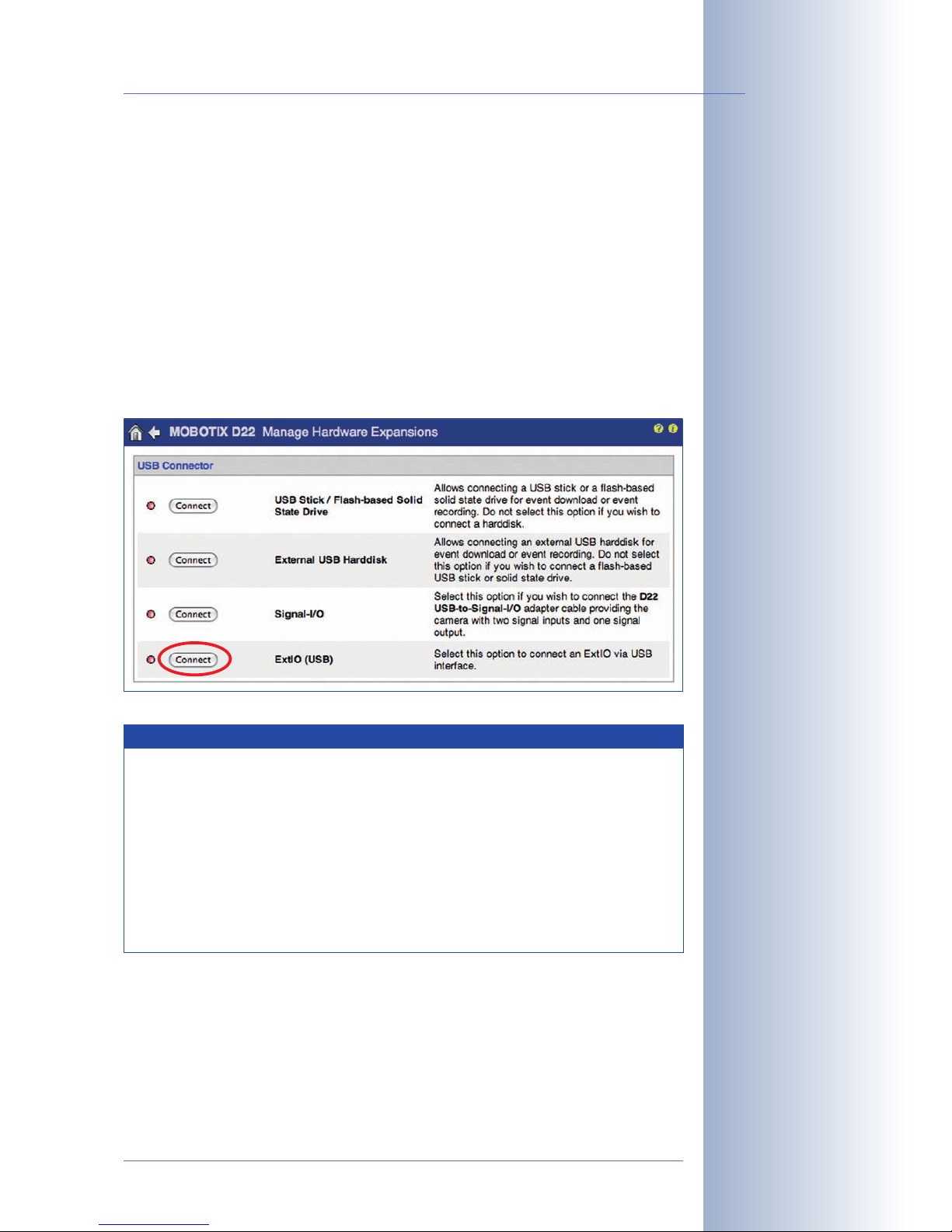

Activating the USB oper­ating mode of the ExtIO

Note

Note that you can activate the USB operating mode even though
you have not connected the ExtIO yet. In this case, the ExtIO will
start automatically once the USB cable has been attached. This
approach allows preconfiguring the camera for an ExtIO connec­tion before mounting it.

Note that you can use an ExtIO configured for USB operation with
an Ethernet connection without any problems later on. All settings
in the camera software remain unchanged even if you change the
operating mode at a later point in time.

3.1.2 Activating the Ethernet Operating Mode (NET)

To activate the Ethernet operating mode, open the Admin Menu> Manage Hard­ware Expansions dialog in the camera's browser interface. Note that you need to

enter the IP address of the ExtIO to establish a connection.

Click on the Connect button in front of ExtIO (Ethernet Connection) to establish a
connection between the camera and the ExtIO. Once the green LED is on perma­nently, the ExtIO has successfully connected to the camera. The remaining configu­ration can now be performed in the camera software.

Note that the ExtIO has to be reachable on the network. For information on setting
up the ExtIO with a suitable network configuration (IP address, network mask, gate­way and DHCP), please see section 3.1.3.

Note that you can activate the Ethernet operating mode even though you have not
connected the ExtIO yet. As soon as the camera can reach the ExtIO on the network
via its IP address, the camera will automatically establish the connection. There is
no further configuration required.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

56/76

MOBOTIX ExtIO User Manual

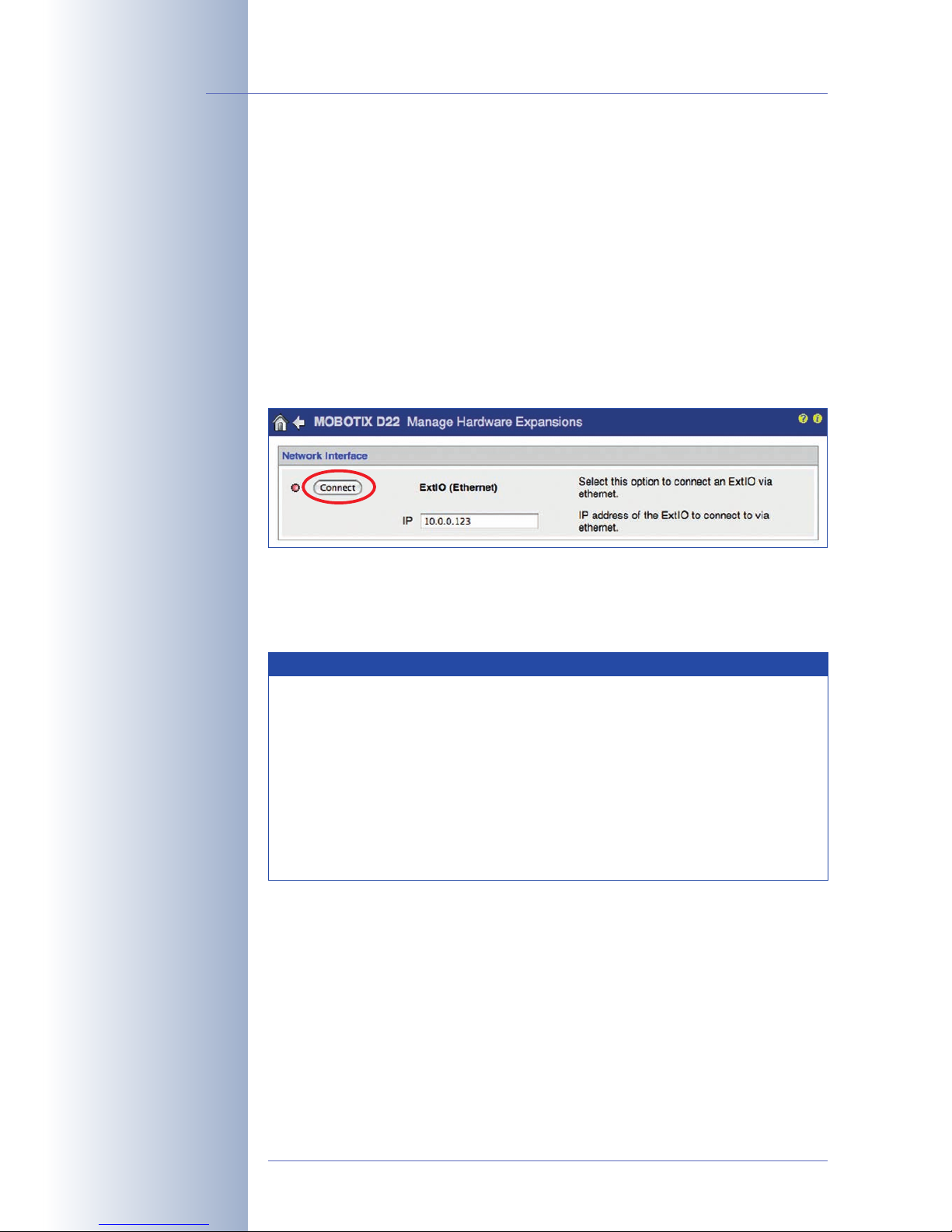

Activating the Ethernet
operating mode of the
ExtIO

Note

Note that you can activate the Ethernet operating mode even
though you have not connected the ExtIO yet. In this case, the
camera software will automatically connect to the ExtIO once it
can be reached on the network. This approach allows preconfigur­ing the camera for an ExtIO connection before mounting it.

Note that you can use an ExtIO configured for Ethernet operation
with a USB connection without any problems later on. All settings
in the camera software remain unchanged even if you change the
operating mode at a later point in time.

3.1.3 Setting up the Network Parameters of the ExtIO for Ethernet Operation

In order to integrate the ExtIO into the target network, you need to specify proper
network parameters in the ExtIO (IP address, network mask, gateway). Please fol­low these steps to perform this task:

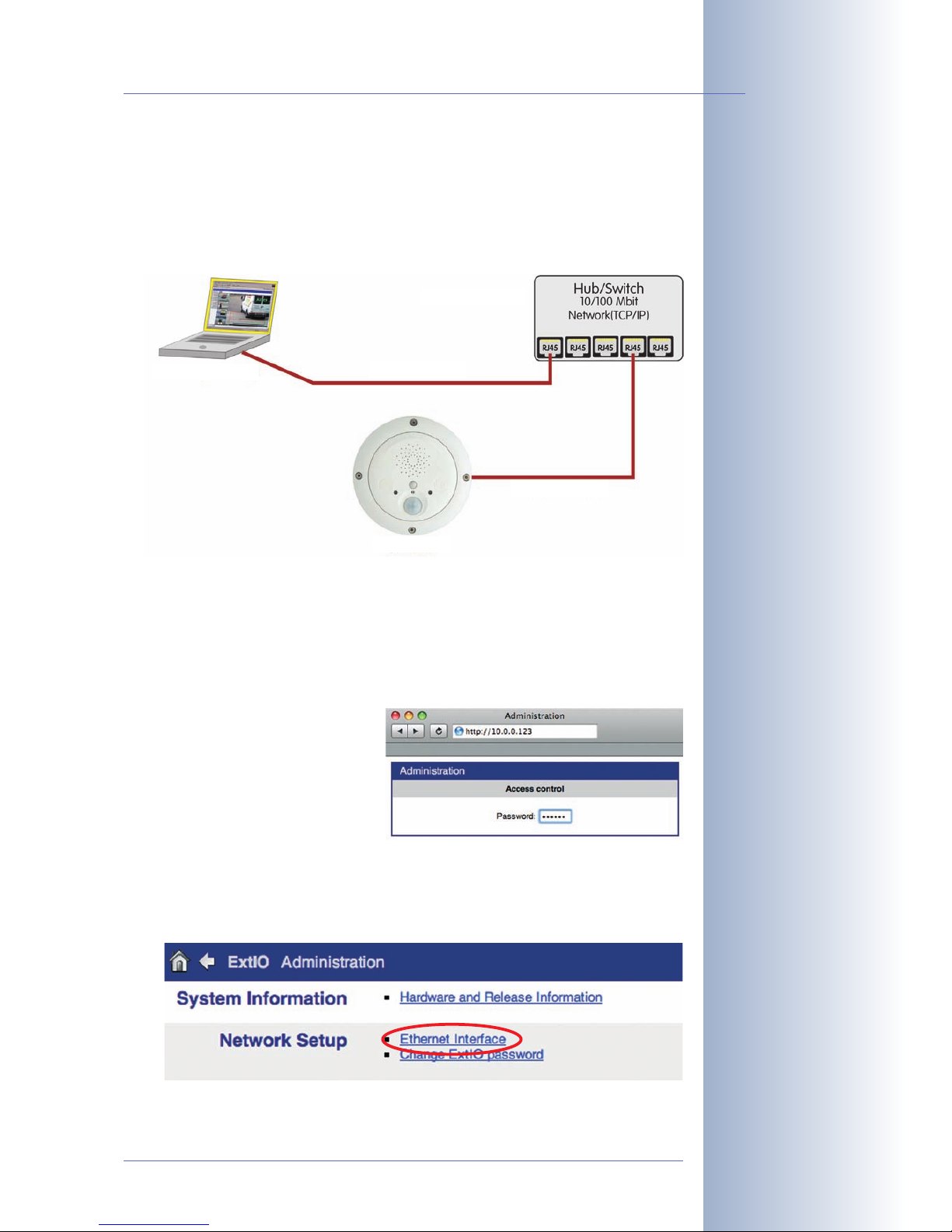

1) Connect the ExtIO and your computer via a PoE switch.

2) Reset the ExtIO to factory defaults before you proceed (see section 3.1.4).

3) Set up your computer to run in a 10.x.x.x network, for example:

IP Address: 10.1.0.11, netmask: 255.0.0.0

Please see section 3.4.1,

Preparing the Ethernet Connection

, in the corre-

sponding

Camera Manual

for more detailed information on setting up a

computer to run on a

10.x.x.x network.

4) Open the user interface of the
ExtIO by entering the ExtIO's IP
address in the address field of
a browser (the factory default
password is meinsm).

5) Enter the future network parameters of the ExtIO (Network Setup > Ethernet
Interface section) or select BOOTP/DHCP > On to activate the automatic IP
address assignment from a DHCP server on the network.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

57/76

MOBOTIX ExtIO User Manual

PoE switch/router accord­ing to IEEE 802.3af re­quired

PoE IEEE 802.3af!

10.0.0.123

10.1.0.11

1:1 Patch-Cable

1:1 Patch-Cable

6) Click on Set, then on Close to store the configuration permanently in the Ext­IO's Flash memory.

7) Change the network parameters of your computer back to its original set­tings.

You can now connect the ExtIO to the target network and use the camera software
to activate it (see above). Once the connection between the camera and the ExtIO
has been established successfully, the left LED is permanently green. The remaining
configuration can now be performed in the camera software

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

58/76

MOBOTIX ExtIO User Manual

Note that these parame­ters are examples only.
Make sure that you are
using the correct parame­ters for your network.

Note

When using the ExtIO with DHCP, make sure that the assigned IP
address does not change. Please contact your network adminis­trator in order to assign a fixed network address from the pool of
reserved IP addresses to this ExtIO.

In a home network (e.g. a DSL router with DHCP server and
switch), an IP address assigned by DHCP will usually not change if
there are only few network devices.

While the ExtIO has not been connected to the camera using the
camera software, you can prompt the ExtIO to announce its IP ad­dress by pressing the right button (“Bell”).

3.1.4 LED-Patterns of the ExtIO

The MOBOTIX ExtIO uses its two muliti-color LEDs to display status information.They
can light up permanently or blink in red, green and orange. The following table
contains the most important LED patterns of the ExtIO.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

59/76

MOBOTIX ExtIO User Manual

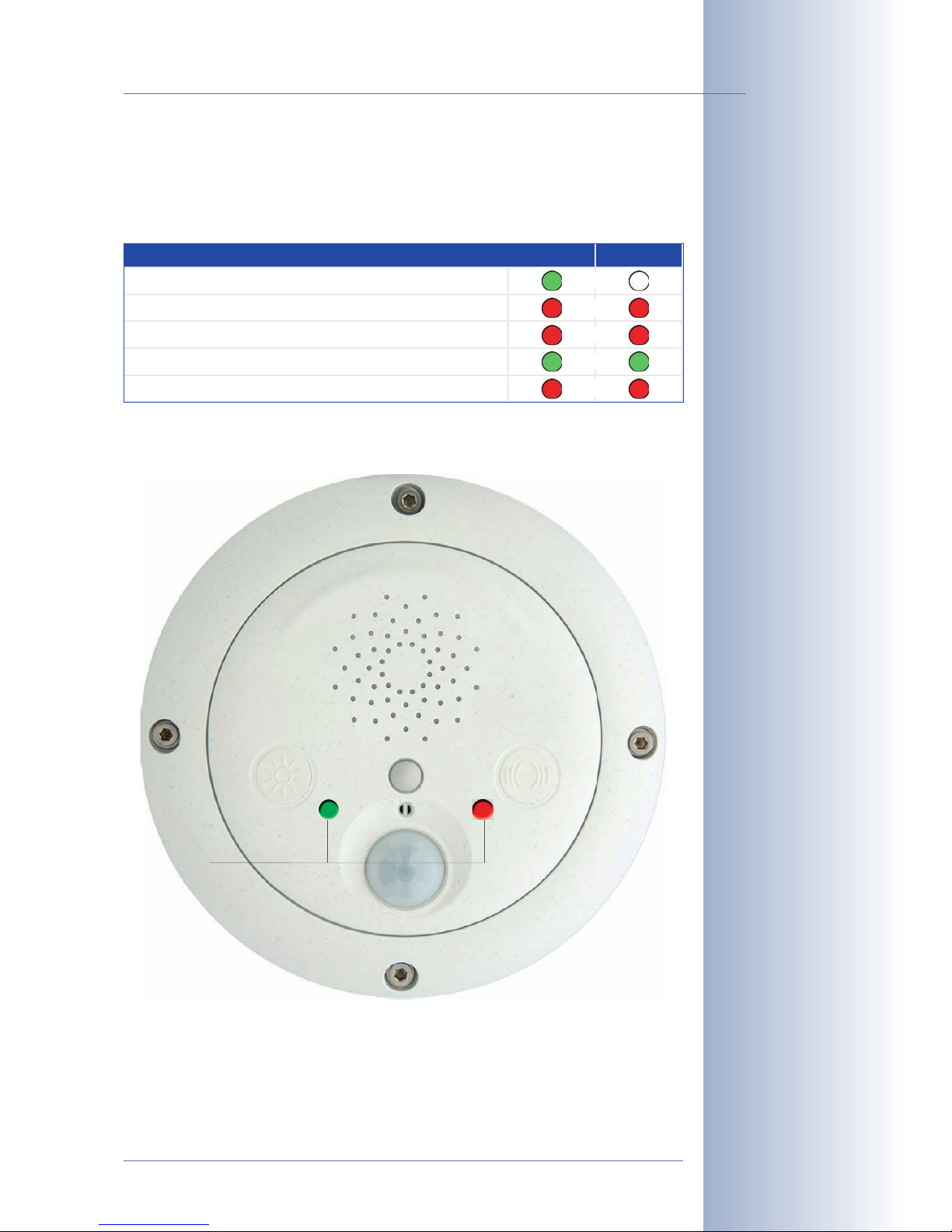

Status Left LED Right LED

Ready

Error

No connection to camera

Microphone activated, speaker deactivated

Speaker activated, microphone deactivated

blinking

blinking

both on

both on

left on

LEDs (multi-color)

3.1.5 Starting the ExtIO Using the Factory Default Settings

Under certain circumstances, you may have to reset the ExtIO to its factory default
settings (e.g. if the IP address is unknown).

Proceed as follows to start the device using its factory default settings:

1) If the ExtIO is powered on, disconnect the power supply by unplugging the
USB and Ethernet cables.

2) Reconnect the power supply of the ExtIO by reconnecting the corresponding
cable(s).

3) Wait until the left LED is permanently red.

4) Press the left button (“Lights”) until the left LED
starts blinking green.

5) After several seconds, the device plays a sound twice (“Boing, Boing”) and
the ExtIO announces its factory default IP address via the speaker. The ExtIO

is now accessible using its factory IP address (see label on the ExtIO
housing).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

60/76

MOBOTIX ExtIO User Manual

Press “Lights” button...

... as soon as LED lights up red

Note

The factory default configuration is automatically stored in the Ext­IO's permanent Flash memory. All settings will be reset to factory
defaults, including the password. This can be helpful if you are try­ing to access an ExtIO that cannot be reached otherwise.

3.1.6 Starting the ExtIO With an Automatic IP Address (DHCP)

If required, the ExtIO can

temporarily

obtain an IP address from a DHCP server on

your local network.

Proceed as follows to start the ExtIO using DHCP:

1) If the ExtIO is powered on, disconnect the power supply by unplugging the
USB and Ethernet cables.

2) Reconnect the power supply of the ExtIO by reconnecting the corresponding
cable(s).

3) Wait until the left LED is permanently red.

4) Press the right button (“Bell”) until the right
LED starts blinking green.

5) After several seconds, the device plays a sound (“Boing”). Once it has ob­tained an IP address from the DHCP server, the ExtIO announces this address
via the speaker (after about 30 seconds). You can now access the ExtIO us-

ing the IP address it just announced.

If the ExtIO cannot obtain an IP address from the DHCP server within about
one minute, the ExtIO again plays the sound (“Boing”).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

61/76

MOBOTIX ExtIO User Manual

Press “Bell” button...

... as soon as LED lights up red

Note

Note that the ExtIO will use the network parameters stored in the
Flash memory when booting the next time.

While the ExtIO has not been connected to the camera using the
camera software, you can prompt the ExtIO to announce the IP
address assigned by the DHCP server by pressing the right button
(“Bell”).

3.2 Sensors and Input/Output Interfaces of the ExtIO

The ExtIO has the following sensors and input/output interfaces:

• Status LEDs

• Speaker and Microphone

• Buttons (L – “Lights”, R – “Bell”)

• PIR Motion Sensor

• Signal Inputs/Outputs

• Temperature sensor

The following sections contain an overview over the additional configuration op­tions if an ExtIO has been attached and connected.

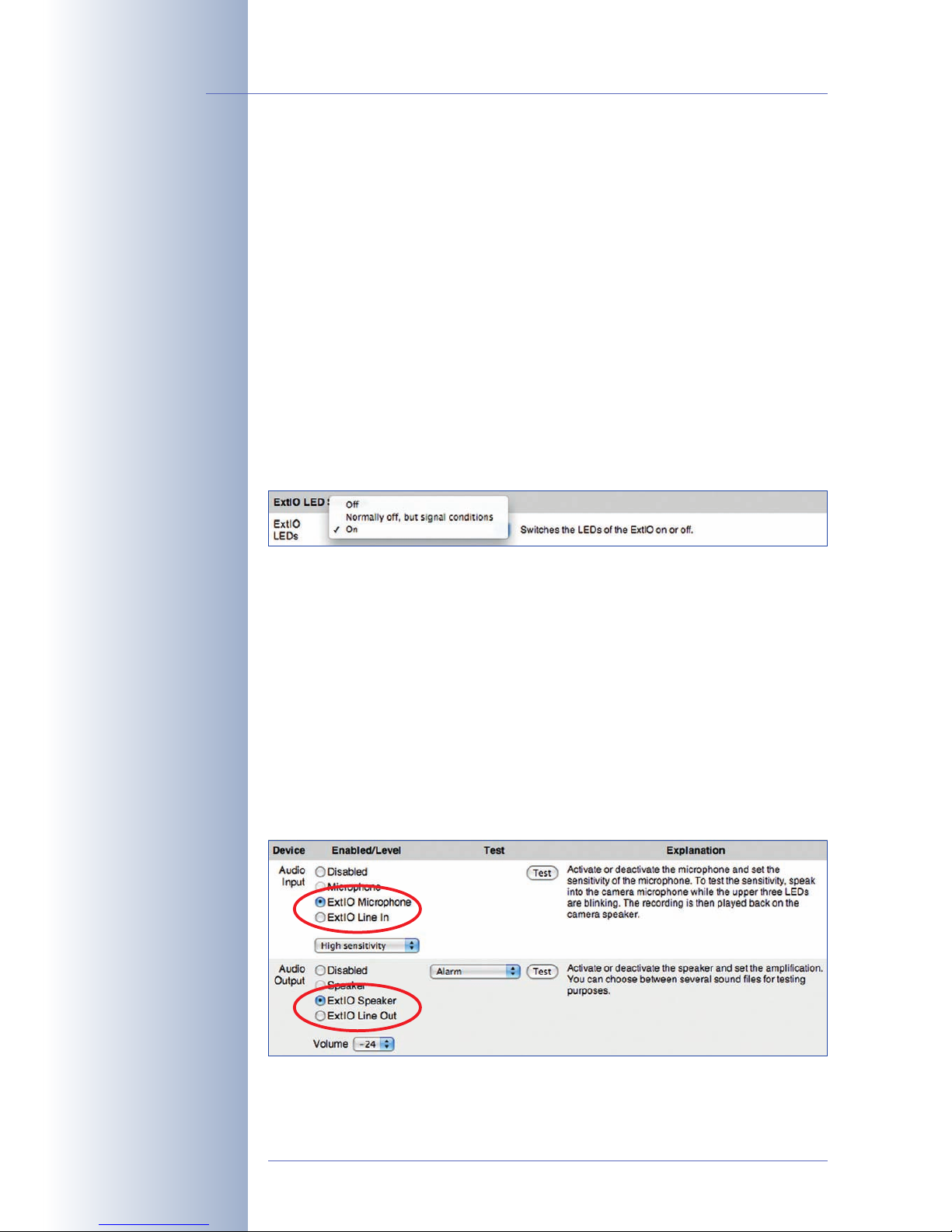

3.2.1 Status LEDs

In addition to the camera LEDs, you can now also configure the ExtIO's LEDs (Admin
Menu> LED Setup).

3.2.2 Speaker and Microphone

Once the ExtIO has been attached and is connected, it will automatically activate its
microphone and speaker and deactivate the microphone and speaker of the MO­BOTIX camera.

All events, actions or messages that are involving the speaker or the microphone
will not use the camera's speaker and microphone, but the speaker and micro­phone of the ExtIO.

To configure the speaker and microphone, open Admin Menu > Loudspeaker
and Microphone. This dialog also contains options for activating an external mi­crophone connected to Line In (via a pre-amplifier) and an external speaker con­nected to Line Out (via an amplifier).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

62/76

MOBOTIX ExtIO User Manual

3.2.3 Buttons

Once the ExtIO has been attached and is connected, it will automatically activate its
buttons and deactivate the buttons of the MOBOTIX camera.

All events, actions or messages that are involving the buttons will not use the cam­era's buttons, but the buttons of the ExtIO.

Open Setup Menu> Event Settings to set up the button events.

3.2.4 PIR Motion Sensor

Once the ExtIO has been attached and is connected, it will automatically activate its
passive-infrared sensor (PIR) and deactivate the PIR sensor of the MOBOTIX cam­era.

All events, actions or messages that are involving the PIR sensor will not use the
camera's sensor, but the PIR sensor of the ExtIO.

Open Setup Menu> Event Settings to set up the PIR sensor events.

3.2.5 Signal Inputs/Outputs

Once the ExtIO has been attached and is connected, it will automatically activate its
signal inputs and outputs. Any signal inputs and outputs of a MOBOTIX camera
(M12 and D12 models) will be deactivated automatically.

All events, actions or messages that are involving the signal inputs and outputs will
not use the camera's inputs and outputs, but those of the ExtIO.

Open Setup Menu> Event Settings and Setup Menu> Enhanced Signal Out
Options to set up the signal inputs and outputs.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

63/76

MOBOTIX ExtIO User Manual

3.2.6 Temperature Sensor

Once the ExtIO has been attached and is connected, it can use its temperature
sensor in addition to the temperature sensor of the MOBOTIX camera.

Open Setup Menu> Event Settings to set up the temperature sensor event.

To see a table with the latest temperatures of both the ExtIO's and the camera's
temperature sensor, open Admin Menu> Temperatures.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

64/76

MOBOTIX ExtIO User Manual

3.3 Software Updates

MOBOTIX provides free-of-charge software updates for the ExtIO on
www.mobotix.com (Support > Software Downloads). These updates contain
new features and– if required– bugfixes. This means that you can upgrade an
early ExtIO (USB only) with Ethernet connectivity.

To update the ExtIO software, load the new software into the MOBOTIX cam­era (Admin Menu> Update System Software). Note that you need a properly
running and connected ExtIO for this to work. The software update to the Ex­tIO can be supplied both via an Ethernet connection and via USB. All settings
of the MOBOTIX camera and the ExtIO remain unchanged by the software
update.

Updating the software involves the following steps:

(1) Download the software from the Internet: Download the update file for

the ExtIO from www.mobotix.com to your computer (Support > Software
Downloads).

Read the notes in the readme file.

(2) Connect and activate the ExtIO: Make sure that the ExtIO is running and

that it is properly connected to the MOBOTIX camera. The left LED of the ExtIO
has to be permanently green.

(3) Upload the software to the ExtIO: Read the notes in the Admin Menu>

Update System Software dialog. Follow the instructions of the camera soft­ware to complete the installation.

Avoid any power failure or disruption of the USB or Ethernet connections
while uploading the software.

Once you have started the software update of the ExtIO, avoid interrupting or
stopping the process. Do not perform additional actions in your browser, do
not load another website at the same time and do not close any browser
windows.

While updating the software, the LEDs of the ExtIO show a specific blinking
pattern. The status information of the upload process is displayed in a popup
window of the camera's browser interface. Wait until the camera software
prompts you for further actions.

(4) Reboot the camera: Reboot your camera only when the camera software

prompts you to do so. The ExtIO will automatically reboot after the software
update has been completed. The connection between camera and ExtIO will
be reestablished automatically.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

65/76

MOBOTIX ExtIO User Manual

3.4 Configuration Example

The following example of a door intercom system demonstrates one possible ap­plication and shows the steps for properly configuring a MOBOTIX D22M with an
ExtIO using a USB connection.

3.4.1 Functional Overview

A MOBOTIX camera and an ExtIO are used at the entrance of a building for access
control purposes; the camera should also be able to open the door when in­structed to do so.

If a visitor rings the doorbell key of the ExtIO , the MOBOTIX camera activates an
additional source of light near the entrance , plays back a voice message (“Wel­come to xyz company …”) and establishes a video SIP connection to the reception-

ist's computer (or the guard on duty – ).

The softphone on the receptionist's computer signals an inbound video phone
call from the camera at the entrance. The receptionist accepts the phone call and

talks to the visitor via the microphone and the speaker of the ExtIO.

The image displayed on the softphone, i.e. the live video stream from the MOBOTIX
camera allows for visually checking the visitor. The softphone's keys provide func­tions for selecting certain image areas and for zooming the image (keys1, 7: zoom
control, keys2, 4, 6, 8: move image section, key5: center image).

If the receptionist would like to open the door for the visitor, he/she activates the
door opener using the softphone key0, allowing the visitor to enter the build-

ing. If required, the receptionist can manually switch the additional lights using the
softphone keys ; key3 switches the lights on and key9 switches them off again.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

66/76

MOBOTIX ExtIO User Manual

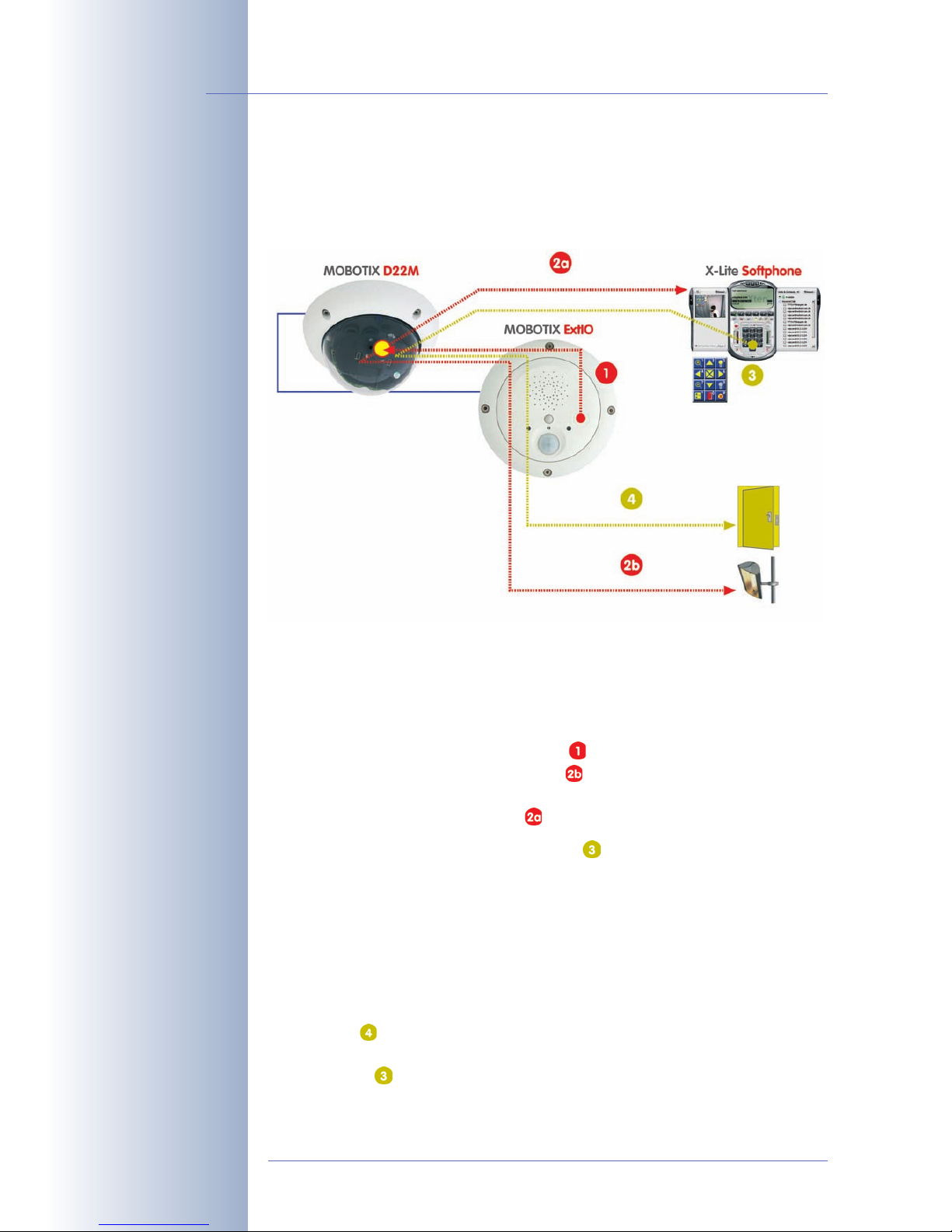

Example: ExtIO as door
intercom device with
Video SIP and additional
lights

Action: activate additional lights

Action: open door

Door bell

Key 0: door opens

Action: call softphone

Connection cable

Legend

In the meantime, the camera is automatically recording the video and audio
stream on an SD card or Flash device in the MOBOTIX camera. This includes the
sound from the ExtIO's microphone that is automatically transmitted to the MO­BOTIX camera.

3.4.2 Overview of the Configuration Steps

Configure the MOBOTIX camera (section2.2.3)

1) Activate arming of the camera

2) Configure recording

3) Activate and configure the BR event:

a) Switch additional lights (SO action)

b) Record and configure voice message (SD message)

c) Configure VoIP phone call (CL message)

Configure the softphone (section2.2.4)

4) Start and configure the softphone

3.4.3 Configuring the MOBOTIX Camera

1) Activate arming of the camera

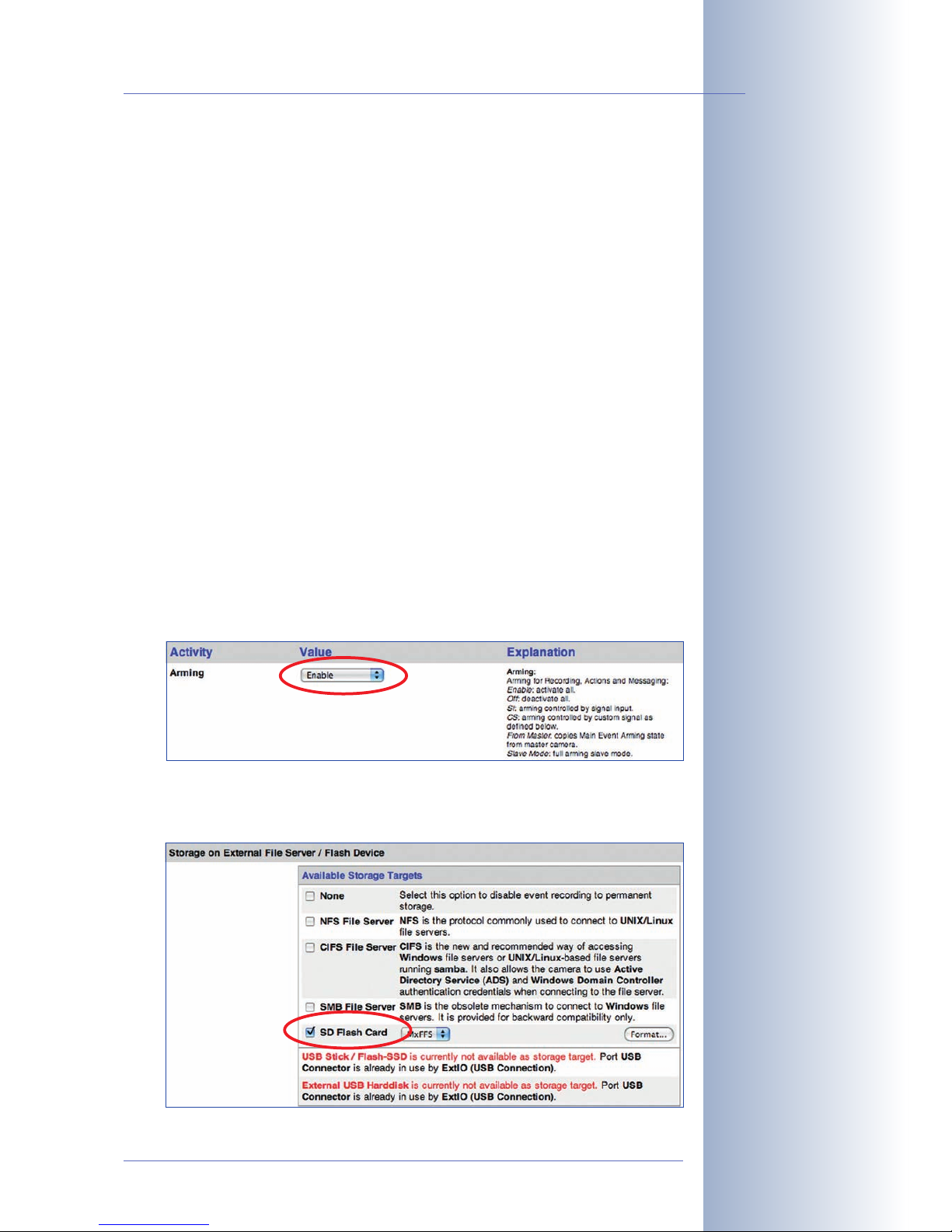

• Activate arming (Setup Menu> General Event Settings).

2) Configure recording

• Set up event recording on an SD card/Flash device (Admin Menu> Storage
on External File Server/ Flash Device).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

67/76

MOBOTIX ExtIO User Manual

BR: Button Right

SO: Signal Output

SD: Audio (Sound)

CL: Phone Call-Out

You can find more detailed information on setting up recording on SD cards/
Flash devices in the MOBOTIX camera manuals and in section8.3.6,

Record-

ing on Flash, USB and SD Storage Devices

, in the

Software Manual

.

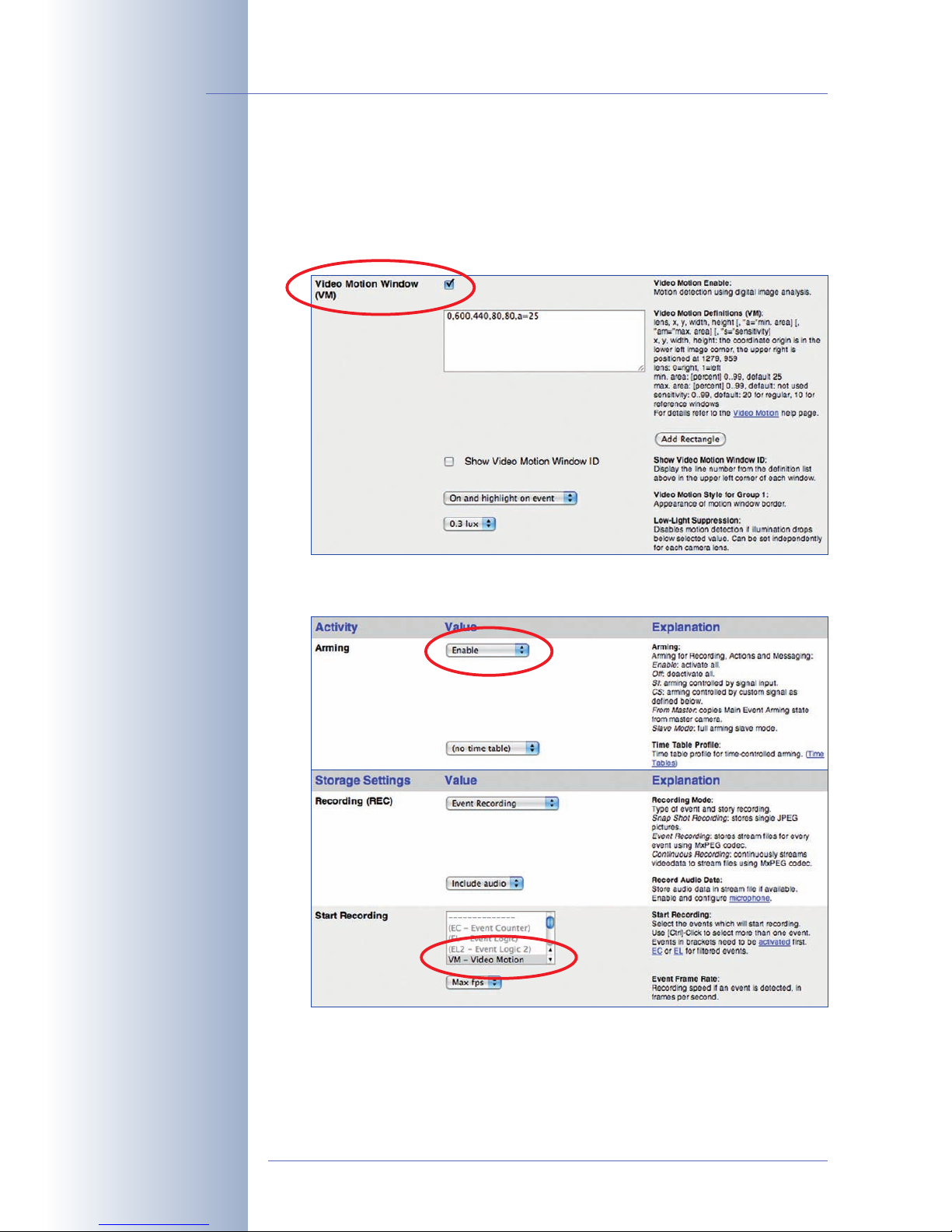

• Activate VM event and set up video motion window (Setup Menu> Event
Settings).

• Activate recording for VM event (Setup Menu> Recording).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

68/76

MOBOTIX ExtIO User Manual

3) Activate and configure the BR event

• Activate BR event (Setup Menu> Event Settings)

a) Switch additional lights (SO action)

• Activate action profile (for VM and BR events) and configure SO action
(Setup Menu> Actions).

b) Record and configure voice message (SD message)

•Set Audio Input to

ExtIO

(audio is transmitted directly from the ExtIO's mi-

crophone; Admin Menu> Loudspeaker and Microphone).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

69/76

MOBOTIX ExtIO User Manual

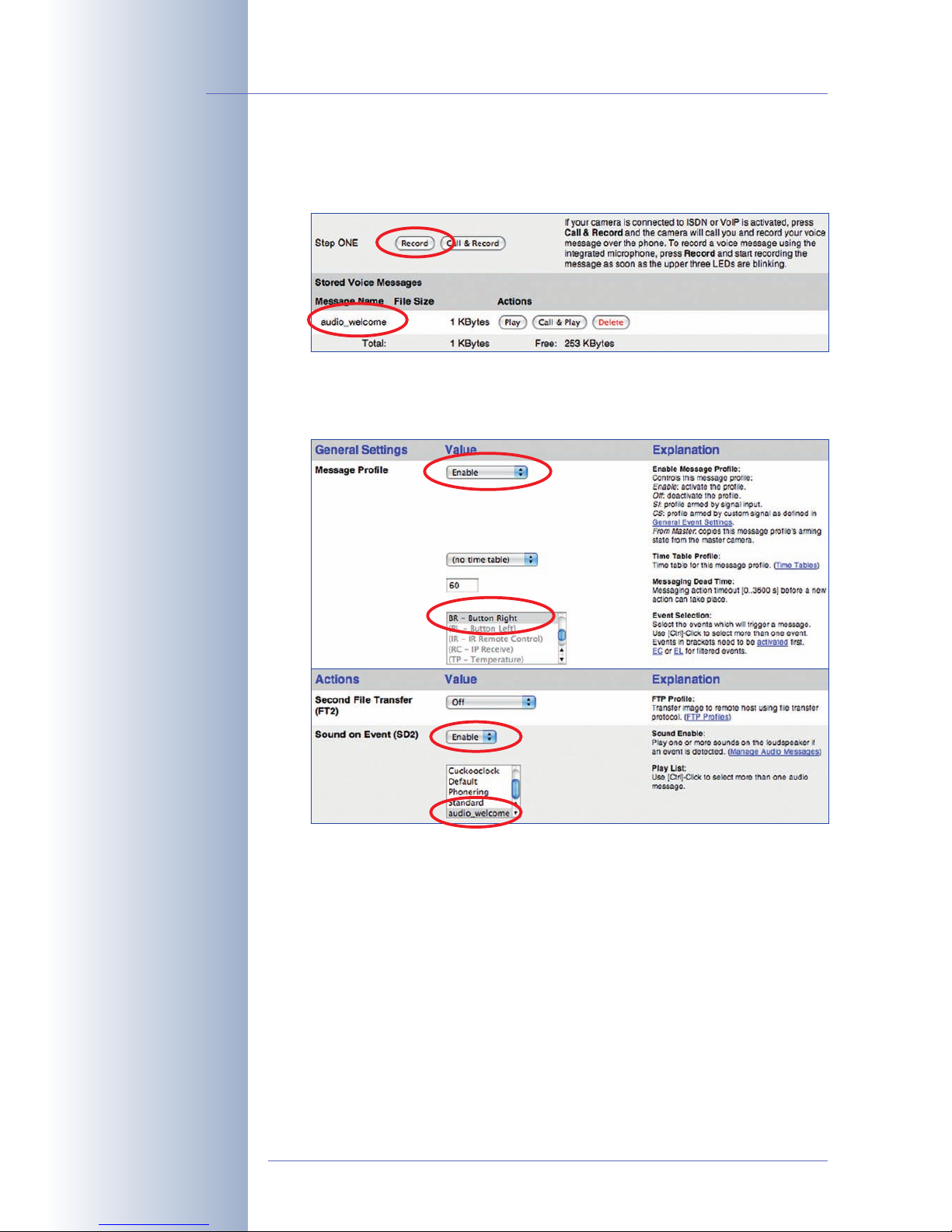

• Record the voice message using the ExtIO's integrated microphone (optional:
upload sound file to the camera; Admin Menu> Manage Audio Mes-
sages).

• Activate message profile and configure SD message (for BR event) and select
the recorded voice message (

audio_welcome

; Setup Menu> Messaging2).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

70/76

MOBOTIX ExtIO User Manual

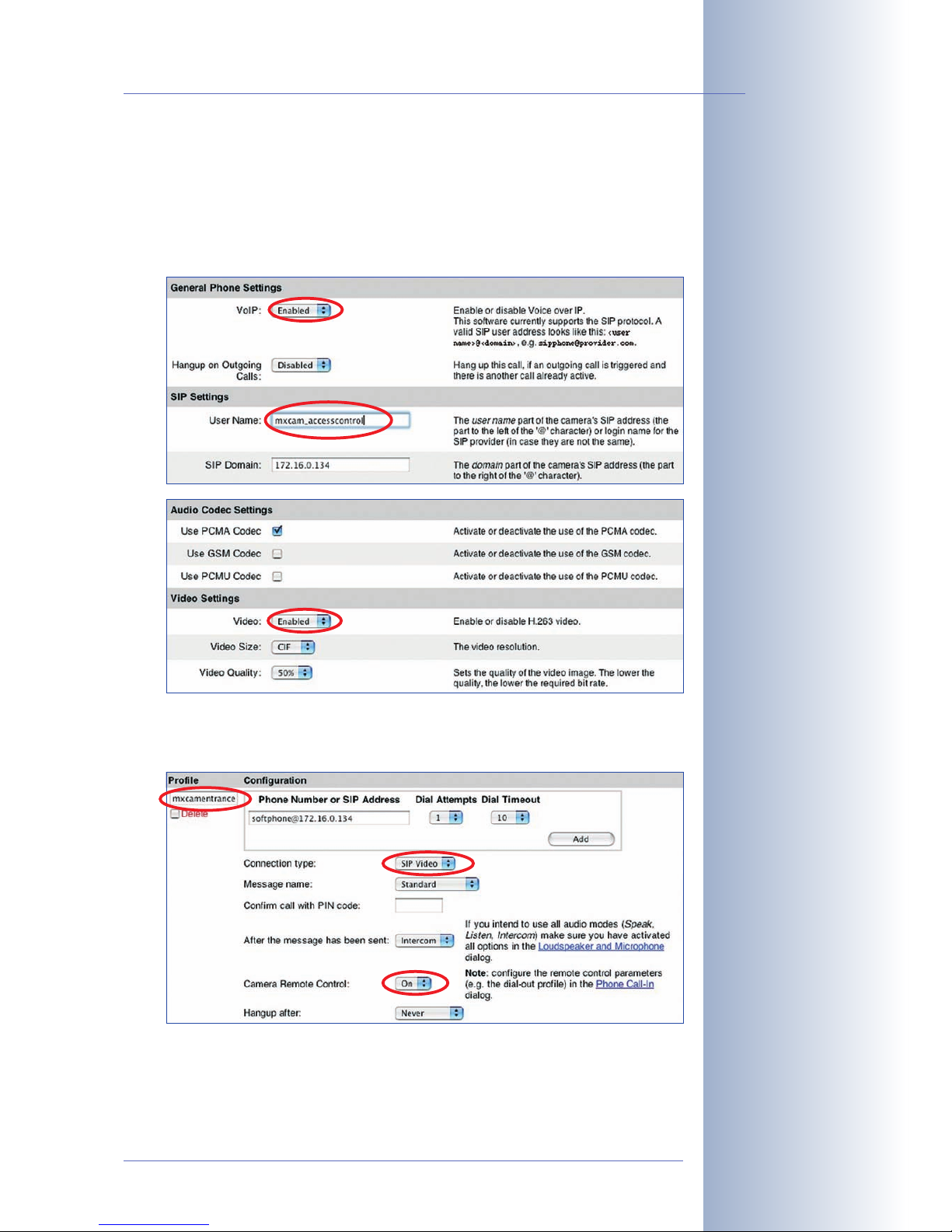

c) Configure VoIP phone call (CL message)

For more information on setting up the SIP telephony features of MOBOTIX
cameras, read chapter 9,

Telephony Features

in the

Software Manual

.

• Configure the VoIP settings and activate VoIP (Admin Menu> VoIP Set-
tings).

• Set up a phone profile (Admin Menu> Phone Profiles).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

71/76

MOBOTIX ExtIO User Manual

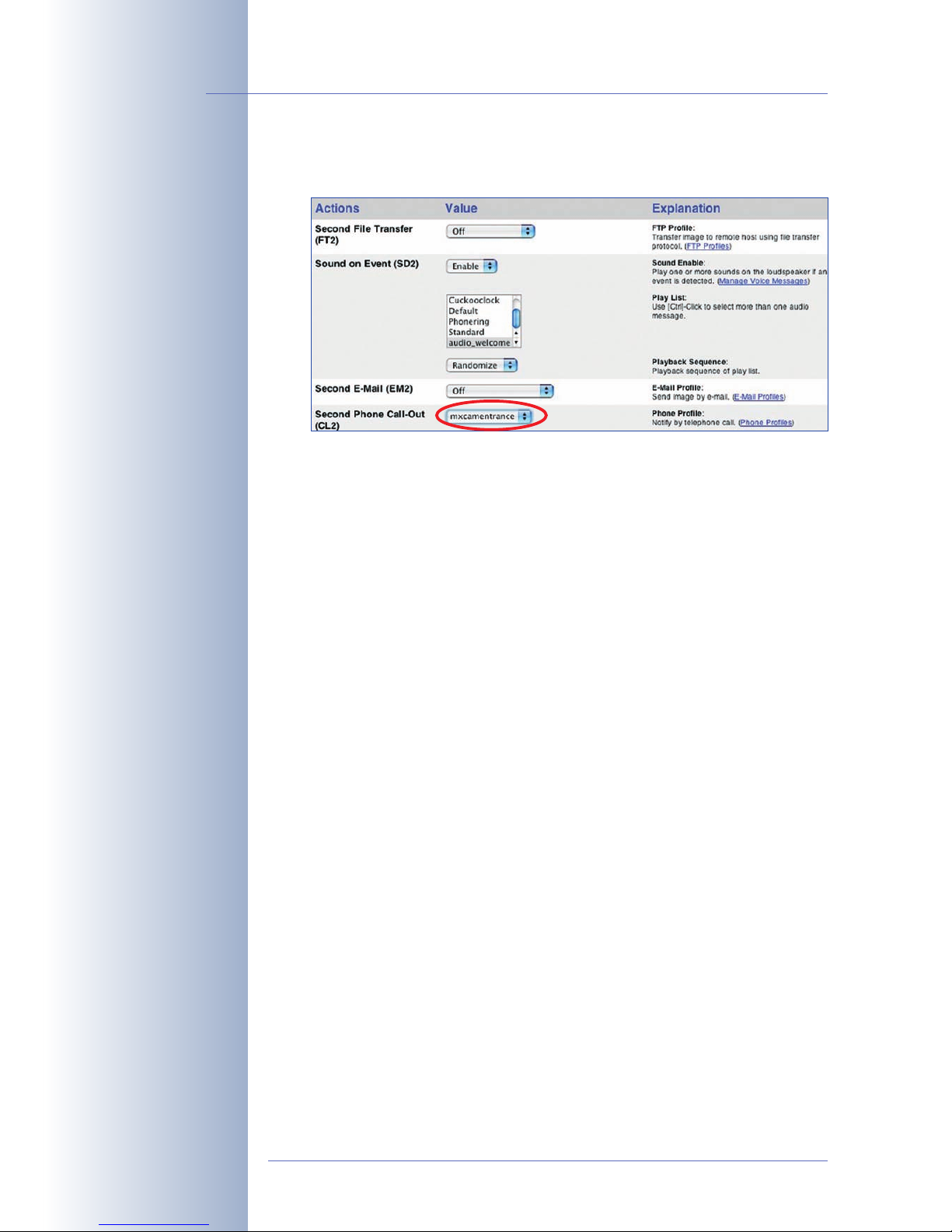

• Add CL message to messaging profile and select phone profile (Setup
Menu> Messaging2; SD message has already been configured).

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

72/76

MOBOTIX ExtIO User Manual

3.4.4 Configuring a Softphone

• Configure the softphone and make sure that it is running on the computer.

For more information on setting
up a softphone for use with MO­BOTIX cameras, read chapter 9,

Telephony Features

in the

Soft-

ware Manual

.

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

73/76

MOBOTIX ExtIO User Manual

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

74/76

MOBOTIX ExtIO User Manual

Notes

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

75/76

MOBOTIX ExtIO User Manual

Notes

Declaration of Conformity

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

76/76

MOBOTIX ExtIO User Manual

All images in this manual are genuine MOBOTIX camera images.

Enjoy the image quality!

Manufacturer: CEO:

MOBOTIX AG Dr. Ralf Hinkel
Luxemburger Str. 6
67657 Kaiserslautern Court of Registration:
Germany Amtsgericht Kaiserslautern

Registration Number: HRB 3724

Phone: [phone] Tax Code: 19/650/0812/1
Fax: [phone] Tax Office: Kaiserslautern

http://www.mobotix.com VAT ID: DE 202203501
[e-mail]

Download the newest version of this document from:
www.mobotix.com, Support section.

Technical information subject to change without notice!

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

MOBOTIX ExtIO User Manual

MOBOTIX ... The HiRes Video Company

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

ExtIO: Drilling Template

Scale 1:1

1 00 mm/3.94 in

1 00 mm/3.94 in

ø5.5 mm/

0.22 i n

1 7 mm/

0.67in

Cutout for wall outlet

Ø68mm/2.7in

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

ExtIO On-Wall Set: Drilling Template

Scale 1:1

60 mm/2.36 i n

ø5.8 mm/0.23 in

1 00 mm/3.94 in

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

ExtIO In-Ceiling Set: Cutting Template

Scale 1:1

ø1 50 mm/5.9 in

© MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • [e-mail]

ExtIO Outdoor Wall Mount: Drilling Template

Scale 1:1

1 20 mm/4.72 i n

86 mm/3.39 i n

50 mm/1 .97 i n

86 mm/

3.39 i n

ø7.5 mm/0.3 in

ø7.5 mm/0.3 in

3 mm/0.1 2 in

71 .5 mm/2.82 in

www.mobotix.com

HiRes Video Innovations

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its

decentralized concept has made high-resolution video systems cost-efficient.

MOBOTIX AG • D-67657 Kaiserslautern • Tel: [phone] • Fax: [phone] • [e-mail]

ExtIO User Manual

EN

MOBOTIX

.

com

X

The HiRes Video Company

Current PDF File:

www.mobotix.com > Support > Manuals

ExtIO Opens New Horizons for Cameras

MX-UM-ExtIO-EN-02

12-24 V

12-24 V

50 mA

50 mA

Out1-

Out1+

In1-

In1+

In2-

GND

LineIn-

LineIn+

LineOut-

LineOut+

Out2-

Out2+

In1-

In1+

In2-

In2+

IN1 IN2Out1 Out2

Out1-

Out1+

Out2-

Out2+

Ethernet

LineIn-

LineIn+

LineOut-

LineOut+

GND

In2+

USB +5V
USB D­USB D+
GND

USB Connector

Function

Order # USB Cable

USB Cable

Terminal Block 1

Terminal Block 2

Standard

EIA/TIA568B

reserved

ø 120 mm/4.7 in

Galv. separated,

50 V max.

Camera

M12: MX-CBL-HD-MU-5 (5m/15ft)
D12: MX-CBL-HD-MU-5 (5m/15ft)
M22M: MX-CBL-U-MU-5 (5m/15ft)
D22M: MX-CBL-MU-MU-5 (5m/15ft)

MX-CBL-MU-MU-1 (1m/3ft)
