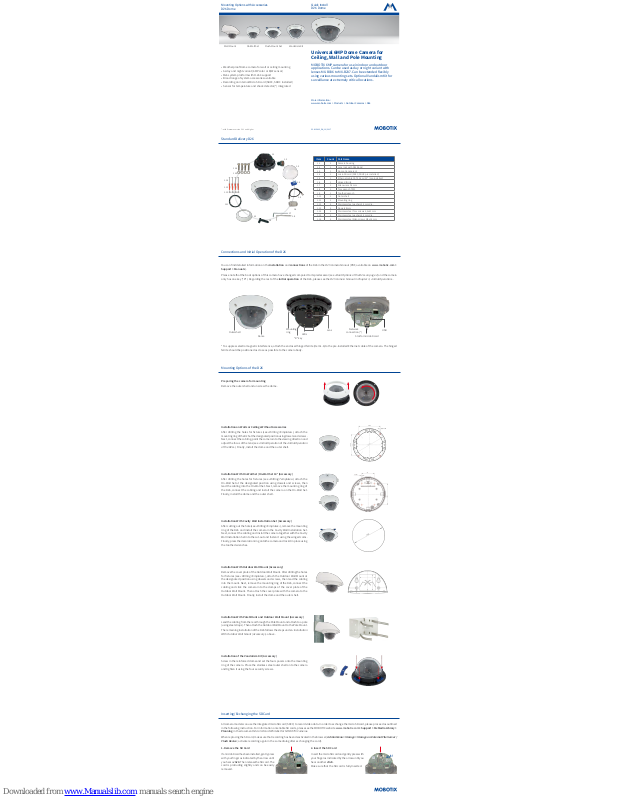

Page 1
32.815-002_EN_10/2017
Quick Install
D26 Dome
Mounting Options with Accessories
D26 Dome
• Weatherproof Dome camera for wall or ceiling mounting
• As day and night variant (6MP color or B/W sensor)
• Mx6 system platform with H.264 support
• Broad range of system accessories available
• Recording on internal MicroSD card (SDXC, SDHC installed)
• Sensor for temperature and shock detector(*) integrated
Standard Delivery D26
1.1
1.16
1.15
1.3
1.13
1.12
1.14
1.2
1.4
1.5
1.7
1.8
1.9
1.10
1.11
1.6
Item Count Part Name
1.1 1 Camera housing
1.2 1 Lens (not with D26 Body)
1.3 1 Dome, transparent
1.4 1 microSD card (SDXC, SDHC pre-installed)
1.5 1 Ethernet cable CAT5 0,5 m/20" (pre-installed)
1.6 1 Hinged ferrite
1.7 1 Allen wrench 3 mm
1.8 1 Torx wrench TX20
1.9 1 Toothed wrench
1.10 1 Outer shell
1.11 1 Mounting ring
1.12 4 Stainless steel washers 5,3 mm dia.
1.13 4 Dowels 8 mm
1.14 4 Stainless steel Torx screws 4,5x60 mm
1.15 4 Stainless steel washers 4,3 mm dia.
1.16 4 Stainless steel Allen screws M4x16 mm
Connections and Initial Operation of the D26
You can nd detailed information on the installation and connections of the D26 in the
D25 Camera Manual
(PDF, available on www.mobotix.com >
Support > Manuals).
Please note that the boot options of this camera have changed compared to its predecessor (see
«Boot Options of the D26» on page 2
) and the camera
only has one key ("R"). Regarding the rest of the initial operation of the D26, please see the
D25 Camera Manual
in
Chapter 3, «Initial Operation»
.
Outershell
Dome
Network
connection (*)
USB
Slot for microSD card
LEDs
Lens
"R" key
Mounting
ring
* To suppress electromagnetic interference, attach the enclosed hinged ferrite (item 1.6) to the pre-installed Ethernet cable of the camera. The hinged
ferrite should be positioned as close as possible to the camera body.
Wall Mount On-Wall Set Vandalism Kit
Mounting Options of the D26
Preparing the camera for mounting
Remove the outer shell and unscrew the dome.
Installation on Walls or Ceilings Without Accessoires
Aer drilling the holes for xtures (see «
Drilling Templates
»), attach the
mounting ring of the D25 at the designated position using dowels and screws.
Next, connect the cabling, point the camera into the viewing direction and
adjust the focus of the lens (see «Initial Operation of the
«Initial Operation
of the D26»
). Finally, install the dome and the outer shell.
Installation With On-Wall Set/On-Wall Set 10° (Accessory)
Aer drilling the holes for xtures (see
«Drilling Templates»
) attach the
On-Wall Set at the designated position using dowels and screws, then
lead the cabling into the On-Wall Set. Next, remove the mounting ring of
the D26, connect the cabling and install the camera on the On-Wall Set.
Finally, install the dome and the outer shell.
Installation With Cavity Wall Installation Set (Accessory)
Aer cutting out the hole (see
«Drilling Templates»
), remove the mounting
ring of the D26 and install the camera in the Cavity Wall Installation Set.
Next, connect the cabling and install the camera together with the Cavity
Wall Installation Set into the cut-out and fasten it using the winged cams.
Finally, press the decoration ring onto the camera and lock it in place using
the toothed wrenches.
Installation With Outdoor Wall Mount (Accessory)
Remove the cover plate of the Outdoor Wall Mount. Aer drilling the holes
for xtures (see
«Drilling Templates»
), attach the Outdoor Wall Mount at
the designated position using dowels and screws, then lead the cabling
into the mount. Next, remove the mounting ring of the D26, connect the
cabling and click the camera into the clamps of the cover plate of the
Outdoor Wall Mount. Then attach the cover plate with the camera to the
Outdoor Wall Mount. Finally, install the dome and the outer shell.
Installation With Pole MOunt and Outdoor Wall Mount (Accessory)
Lead the cabling from the rear through the Pole Mount and attach to a pole
(using steel straps). Then attach the Outdoor Wall Mount to the Pole Mount.
The remaining installation of the D26 follows the steps under
«Installation
With Outdoor Wall Mount (Accessory)»
above.
Installation of the Vandalism Kit (Accessory)
Screw in the reinforced dome and set the four spacers onto the mounting
ring of the camera. Place the stainless steel outer shell onto the camera
and tighten it using the four security screws.
100mm
Ø5,5mm
100mm
141.4 mm
4x
Universal 6MP Dome Camera for
Ceiling, Wall and Pole Mounting
MOBOTIX 6MP camera for use in indoor and outdoor
applications. Can be used as day or night variant with
lenses MX-B036 to MX-B237. Can be extended exibly
using various mounting sets. Optional Vandalism Kit for
surveillance at extremely critical locations.
More information:
www.mobotix.com > Products > Outdoor Cameras > D26
Inserting/Exchanging the SD Card
All camera models can use the integrated microSD card (SDXC) to record video data. In order to exchange the microSD card, please proceed as outlined
in the following instruction. For information on reliable SD cards, please see the MOBOTIX website www.mobotix.com > Support > MxMedia Library >
Planning in the document
MicroSD Card Whitelist for MOBOTIX Cameras
.
When replacing the SD card, make sure that recording has been deactivated in the browser (
Admin Menu > Storage > Storage on External File Server /
Flash Device
; activate recording again in the same dialog aer exchanging the card).
1. Remove the SD Card
If a microSD card has been installed, gently press
with your nger as indicated by the arrow until
you hear a
click
. Then release the SD card. The
card is protruding slightly and can be easily
removed.
2. Insert the SD Card
Insert the microSD card and gently press with
your nger as indicated by the arrow until you
hear another
click
.
Make sure that the SD card is fully inserted.
Flush-Mount Set
Click!
Click!
*: with rmware version 5.0.1 and higher
Page 2
MOBOTIX AG
Kaiserstrasse
D-67722 Langmeil
Tel.: +49 6302 9816-0
Fax: +49 6302 9816-190
sales@mobotix.com
www.mobotix.com
Declaration of Conformity: www.mobotix.com > Support > MxMedia Library > Certicates
MOBOTIX, the MX logo, MxControlCenter, MxEasy, MxPEG and MxActivitySensor are trademarks of
MOBOTIX AG registered in the European Union, the U.S.A., and other countries • Information subject to
change without notice • MOBOTIX does not assume any liability for technical or editorial errors or omissions
contained herein • All rights reserved • © MOBOTIX AG 2017
Initial Operation of the D26
The initial operation starts with connecting the power supply (see section
«Network and Power Connection, Additional Cables»
in the
D25 Camera Manual
).
The rst access follows the procedure described in the same manual in the
«Initial Operation of the Camera»
section. All other tasks require access to
the camera's user interface in the browser. Enter the camera’s IP address into the address bar of the browser.
1. Select the lens
Open the Admin Menu > Hardware Conguration > Lens Conguration dialog and select the
installed lens. This step is required to select the
proper special functions of the installed lens (e.g.,
for wide-angle lenses).
2. Adjust the lens focus
Remove the dome before proceeding.
Check the live image from the camera in the browser. Activate the focusing
aid in the browser (Focusing Aid quick control, Activated value).
Carefully turn the lens by hand (possibly with
a cloth, see Safety Warnings, "Never touch
the lens") in clockwise or counter-clockwise
direction until the red area of the focusing
aid is as small as possible.
Once the focus is adjusted properly, deactivate
the focusing aid again (Focusing Aid quick
control, Disabled value).
Note: Due to the lens eect of the dome, the focus of the B237 tele lens is
shiing slightly once the dome has been mounted. Before mounting the
dome, the tele lens should be turned about
90° in counter-clockwise
direction
(as seen from the lens' front). Make sure that you check the focus
of the live image in your browser with the dome installed and re-adjust
the lens, if required.
3. Save the conguration
In the live image of the browser, select the Manage Settings quick control and set Store Entire Conguration as value. The camera stores the
conguration in the permanent camera memory so that the settings will
be applied at the next camera reboot.
Technical Specications D26
Lens Options
MX-B036 to MX-B237 (20 to 135 mm in 35 mm format),
103° to 15° horizontal angle of view
Sensitivity
• Color sensor (day): 0,1 lx @ 1/60s; 0,005 lx @ 1s
• BW sensor (night): 0,02 lx @ 1/60s; 0,001 lx @ 1s
Image Sensor 1/1,8“ CMOS, 6MP (3072x2048), Progressive Scan
Max. Image Size 6MP (3072x2048)
Image Formats
Freely congurable format 4:3, 8:3, 16:9 or customized
format (image cropping), e.g., 2592x1944 (5MP), 2048x1536
(QXGA), 1920x1080 (Full-HD), 1280x960 (MEGA)
Max. Frame Rate
• MxPEG: 42@HD (1280x720), 34@Full-HD, 24@QXGA,
15@5MP, 12@6MP
• M-JPEG: 26@HD (1280x720), 13@Full-HD, 9@QXGA,
5@5MP, 4@6MP
• H.264: 25@Full-HD, 20@QXGA
Video Codec
• MxPEG, M-JPEG, JPEG (max. output format 6MP)
• H.264 (max. output format QXGA; bandwith limitation
possible)
DVR
• Camera-internal via microSD card (SDXC, SDHC preinstalled)
• External on USB device
• External on NAS
• Full image recording regardless of live image zoom
• MxFFS
• Pre-alarm and post-alarm images
• DVR monitoring with error notication
Soware Videomanagement Soware MxManagementCenter
Image Processing
MxLEO, backlight compensation, automatic white
balance, image distortion correction
PTZ
Digital pan/tilt/zoom; max. zoom 8x (continious)
Alarm/Events
Temperature sensor, shock detector (with rmware version
5.0.1 and higher), other sensors/IO via MxMessageSystem,
notication via e-mail, FTP, IP telephony (VoIP, SIP), visual/
sound alarms, pre- and post-alarm images
Intelligent Video
Analysis
MxActivitySensor, video motion analysis, MxAnalytics
Interfaces
Ethernet 10/100, IPv4/IPv6, MiniUSB;
audio, inputs/outputs and
RS232
with optional accessory
Security
User/group management, HTTPS/SSL, IP address lter,
IEEE 802.1x, intrusion detection, digital image signature,
MxFFS
Certications
EN55022:2010; EN55024:2010; EN50121-4:2006;
EN61000-6-1:2007; EN 61000-6-2:2005; EN61000-63:2007+A1:2011; EN61000-6-4:2007+A1:2011; AS/ NZS
CISPR22:2009+A1:2010; CFR47 FCC part15B
Power Supply PoE (IEEE 802.3af)
Power Consumption Typ. 3,3 W
Protection Classes
IP66
IK10
Ambient
Temperature
–30 to 50 °C/–22 to 122°F
Dimensions/Weight Diameter x Height: 160 x 86 mm; weight: approx. 350 g
Standard Delivery
Housing (high-resistance composite, PBT), white, shock-resistant dome (transparent), mounting supplies, wrenches,
50 cm patch cable,
MicroSD card (installed)
Drilling Templates
100mm/3.94in
Dia.
5.5mm/0.22in
100mm/3.94in
141.4 mm/5.57 in
Installation with mounting ring
(without accessories)
Manuals and drilling templates: www.mobotix.com > Support > Manuals > IP Camera Systems > Dome D26
Camera
without
accessories
Outdoor Wall Mount
Important Notes
1. Safety Warnings
Notes on Installing:
• This product must not be used in locations exposed to
the dangers of explosion.
• Make sure that you install this product as outlined in
Chapter 2, «Installation»
of the corresponding manual.
A faulty installation can damage the camera!
•
When installing this product, make sure that you are only
using genuine MOBOTIX parts and MOBOTIX connection
cables.
•
Only install this product on suitable, solid materials that
provide for a sturdy installation of the xing elements
used.
Electrical installation: Electrical systems and equipment may
only be installed, modied and maintained by a qualied
electrician or under the direction and supervision of a qualied
electrician in accordance with the applicable electrical guidelines. Make sure to properly set up all electrical connections.
Electrical surges: MOBOTIX cameras are protected against
the eects of small electrical surges by numerous measures.
These measures, however, cannot prevent the camera from
being damaged when stronger electrical surges occur. Special
care should be taken when installing the camera outside of
buildings to ensure proper protection against lightning, since
this also protects the building and the whole network infrastructure.
Never touch the lens: Due to the high performance of the
D25, the area of the image sensor can get quite hot, especially
when the ambient temperature is also high. This does not
aect the proper functioning of the camera in any way. For
this reason, the product must not be installed within the reach
of persons without the dome.
Power o before opening the camera: Make sure the power
supply to the camera is disconnected before opening the camera housing (e.g., when inserting or exchanging lenses, lens
units and SD cards).
Network security: MOBOTIX products include all of the necessary conguration options for operation in Ethernet networks in compliance with data protection laws. The operator
is responsible for the data protection concept across the entire
system. The basic settings required to prevent misuse can be
congured in the soware and are password-protected. This
prevents unauthorized parties from accessing these settings.
2. Legal Notes
Legal aspects of video and sound recording: You must comply
with all data protection regulations for video and sound monitoring when using MOBOTIX products. Depending on national
laws and the installation location of the D25, the recording of
video and sound data may be subject to special documentation
or it may be prohibited. All users of MOBOTIX products are
therefore required to familiarize themselves with all applicable
regulations and to comply with these laws. MOBOTIX AG is not
liable for any illegal use of its products..
3. Disposal
Electrical and electronic products contain many valuable
materials. For this reason, we recommend that you dispose
of MOBOTIX products at the end of their service life in accordance with all legal requirements and regulations (or deposit
these products at a municipal collection center). MOBOTIX
products must not be disposed of in household waste! If the
product contains a battery, please dispose of the battery sep-
arately (the corresponding product manuals contain specic
directions if the product contains a battery).
4. Disclaimer
MOBOTIX AG does not assume any responsibility for damages,
which are the result of improper use or failure to comply to the
manuals or the applicable rules and regulations. Our General
Terms and Conditions apply. You can download the current
version of the General Terms and Conditions from our website at www.mobotix.com by clicking on the COS link at the
bottom of every page.
§
§
Boot Options of the D26
By default, the camera starts as DHCP client and automatically tries to get
an IP address from a DHCP server. To start the camera in a mode dierent
from the default mode, you can activate the boot menu of the camera.
1. Preparing the Camera
• Remove the outer shell and the dome.
• Disconnect the camera's power supply.
• Reconnect the power supply of the camera.
2. Activating the Boot Menu
The red LED lights up 5 to 10 seconds aer esta
-
blishing the power supply and will stay on for
10 seconds. Briey press the "R" key indicated
by the red circle in the gure. The camera enters
the boot menu, ready for selecting one of the
boot options.
The LED now ashes once and repeats the ash signal aer pausing for one
second (the number of ashes indicates the current boot option). To go
to the next boot option, briey press the "R" key again (< 1 sec). Aer the
last boot option, the camera returns to the rst option (LED ashes once).
LED
ashes
Boot
Option
Meaning
Audio
Conrmation*
1 x
Auto Conguration
Starts the auto conguration in order to
operate this camera as a door station (not
supported on all camera models).
Phone ringing
2 x
Factory
Defaults
Starts the camera with factory defaults
(factory default IP address, users and
passwords will not be reset).
Boing
3 x
Automatic IP
Address
Starts the camera as DHCP client and
tries to obtain an IP address from a DHCP
server. If a DHCP server cannot be found or
no IP address can be obtained, the camera
starts with its factory default address.
Boing Boing
4 x
Recovery
System
Starts the camera with the recovery system, e.g., in order to recover from a failed
update of the camera soware.
Alarm Sound
*Audio on D26 only in connection with ExtIO (MOBOTIX Accessory).
3. Selecting a Boot Option
Press the "R" key longer (> 2 sec). The camera conrms the selection by
ashing rapidly three times. Aer 20 sec, the camera will conrm the selec-
tion by playing a sound according to the table above. If nothing is selected,
the camera will resume its normal boot process aer a certain time.
The outer shell and the dome can be mounted again.
On-Wall Set/
On-Wall Set 10°
Cavity Wall Installation Set
Loading...
