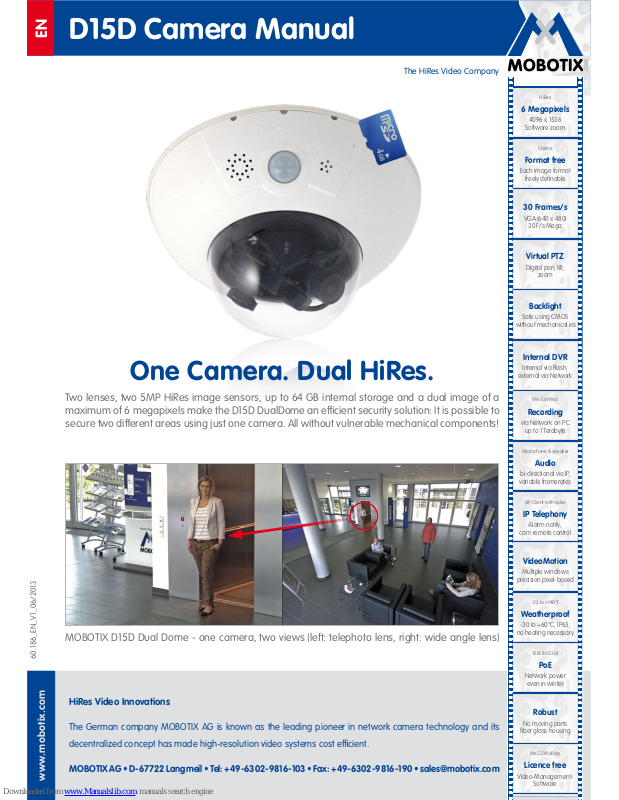

Mobotix D15D User Manual

Page 1

One Camera. Dual HiRes.

Two lenses, two 5MP HiRes image sensors, up to 64GB internal storage and a dual image of a maximum of 6 megapixels make the D15D DualDome an ecient security solution: It is possible to secure two dierent areas using just one camera. All without vulnerable mechanical components!

MOBOTIX D15D Dual Dome - one camera, two views (left: telephoto lens, right: wide angle lens)

60.186_EN_V1_06/2013

www.mobotix.com

The HiRes Video Company

D15D Camera Manual

HiRes Video Innovations

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its

decentralized concept has made high-resolution video systems cost ecient.

MOBOTIX AG • D-67722 Langmeil • Tel: +49-6302-9816-103 • Fax: +49-6302-9816-190 • sales@mobotix.com

HiRes

6 Megapixels

4096 x 1536

Software zoom

Skyline

Format free

Each image format

freely deﬁnable

30 Frames/s

VGA (640 x 480)

F/s Mega

Virtual PTZ

Digital pan, tilt,

zoom

Backlight

Safe using CMOS

without mechanical iris

Internal DVR

Internal via Flash,

external via Network

Win/Lin/Mac

Recording

via Network on PC

up to 1 Terabyte

Microphone & speaker

Audio

bi-directional via IP,

variable framerates

SIP-Client with video

IP Telephony

Alarm notify,

cam remote control

VideoMotion

Multiple windows

precision pixel-based

-22 to +140°F

Weatherproof

-30 to +60°C, IP65,

no heating necessary

IEEE 802.3af

PoE

Network power

even in winter

Robust

No moving parts

ﬁber glass housing

MxCC/MxEasy

Licence free

Video-Management-

Software

Page 2

2/124

www.mobotix.com • sales@mobotix.com

D15D Camera Manual

MOBOTIX Seminars

MOBOTIX oers inexpensive seminars that include workshops and practical exercises.

For more information, visit www.mobotix.com > Seminars.

Notes and Copyright Information

Download the latest version of this manual and the MxEasy and MxControlCenter manuals as PDF ﬁles from www.mobotix.com (Support > Manuals).

MOBOTIX

™,

MxControlCenter®

und

MxEasy®

are internationally

protected trademarks of MOBOTIX AG.

Microsoft, Windows

and

Windows Server

are

registered trademarks of Microsoft Corporation.

Apple

, the Apple logo,

Macintosh

OSX

and

Bonjour

, the Bonjour logo and the Bonjour icon are trademarks of Apple Inc.

Linux

is a trademark of Linus Torvalds. All other marks and names mentioned herein

may be trademarks or registered trademarks of the respective owners.

Additional information:

www.mobotix.com

Page 3

3/124

Contents

www.mobotix.com • sales@mobotix.com

CONTENTS

1 Product Overview 10

1.1 D15D-DualDome 10

1.1.1 General Product Characteristics 10

1.1.2 Advantages And New Features 15

1.1.3 Decentralized Video System 17

1.1.4 Green IP Video 19

1.2 Technical Speciﬁcations 20

1.2.1 Lens Options 20

1.2.2 Camera Variants– Lenses, Hardware, Image Formats 22

1.2.3 Camera Variants – Software Features 24

1.2.4 Technical Data 26

1.3 Delivered Parts 28

1.3.1 Standard Delivery – D15D 28

1.3.2 Standard Delivery – D15D-Pano 30

1.3.3 Standard Delivery – D15D-Sec-DNight-Fix 32

1.3.4 Delivered Parts For The Outdoor Wall Mount (Accessory) 34

1.3.5 Delivered Parts For The Corner And Pole Mount (Accessory) 35

1.4 Available Accessories 36

1.4.1 NPA-PoE-Set 36

1.4.2 Replacement Dome 36

1.4.3 Vandalism Set 36

1.4.4 Ethernet Patch Cable With Bayonet Catch 37

1.4.5 Outdoor Wall Mount 37

1.4.6 Corner and Pole Mount 37

1.4.7 MX-Patch-Box 37

1.4.8 MX-NPA-Box 38

1.4.9 MX-GPS-Box 38

1.4.10 MX-232-IO-Box 38

1.4.11 ExtIO Expansion Module 39

1.4.12 Mx2wire+ Media Converter 39

1.4.13 MiniUSB Cable To MiniUSB (Straight/Straight Or Straight/Angled) 39

1.4.14 MiniUSB Cable To USBA Socket 39

1.5 MOBOTIX Software 40

1.5.1 Integrated Camera Software (Firmware) 40

1.5.2 MxControlCenter 41

1.5.3 MxEasy 42

1.5.4 MOBOTIX App 43

2 Mounting 44

2.1 Overview Of Mounting Options 44

2.1.1 Mounting Indoor Cameras To A Ceiling Or Wall (Without Accessories) 44

2.1.2 Outdoor Installation On A Wall, Pole Or Corner (With Accessories) 45

Page 4

4/124

www.mobotix.com • sales@mobotix.com

D15D Camera Manual

2.2 Overview Of Network Connection 46

2.2.1 Power-Over-Ethernet (PoE Conforming To IEEE 802.3af) 46

2.2.2 Uninterruptible Power Supplies (UPS) 47

2.2.3 Preparing The Camera Connections, Wall Outlets 47

2.2.4 Wiring, Fire Prevention, Lightning And Surge Protection 48

2.3 First Installation Steps 50

2.3.1 Mounting Lens Units 50

2.3.2 Overview Of Cable Connections 54

2.3.3 Connecting The Ethernet Cable With The MX-Patch-Box 55

2.3.4 Connecting The MiniUSB Cable 55

2.3.5 Connecting MxBus Modules 57

2.3.6 Replacing The MicroSD Card 58

2.4 Mounting The Camera With Outdoor Wall Mount 60

2.4.1 Aiming The Passive Infrared Sensor (PIR) 60

2.4.2 Mounting The Outdoor Wall Mount 61

2.4.3 Aiming The Camera 63

2.4.4 Connecting The Camera With Bottom Plate 64

2.4.5 Connecting And Securing The Camera 65

2.5 Mounting The Corner And Pole Mount 66

2.5.1 Overview 66

2.5.2 Mounting To The Corner Of A Building 67

2.5.3 Mounting To A Pole 68

2.5.4 Mounting The Outdoor Wall Mount 69

2.6 Adjusting The Lens 70

2.7 Network And Power Connection 71

2.7.1 Notes On Cable Lengths And Power Supply 71

2.7.2 Power Supply With Power-Over-Ethernet Products 71

2.7.3 Power Supply Using A Switch 72

2.7.4 Power Supply When Connected Directly To A Computer 73

2.7.5 Variable PoE 74

2.7.6 Camera Startup Sequence 75

3 Operating The Camera 76

3.1 Manual And Automatic Operation – Overview 76

3.1.1 Manually Using A Computer In The 10.x.x.x IP Address Range 77

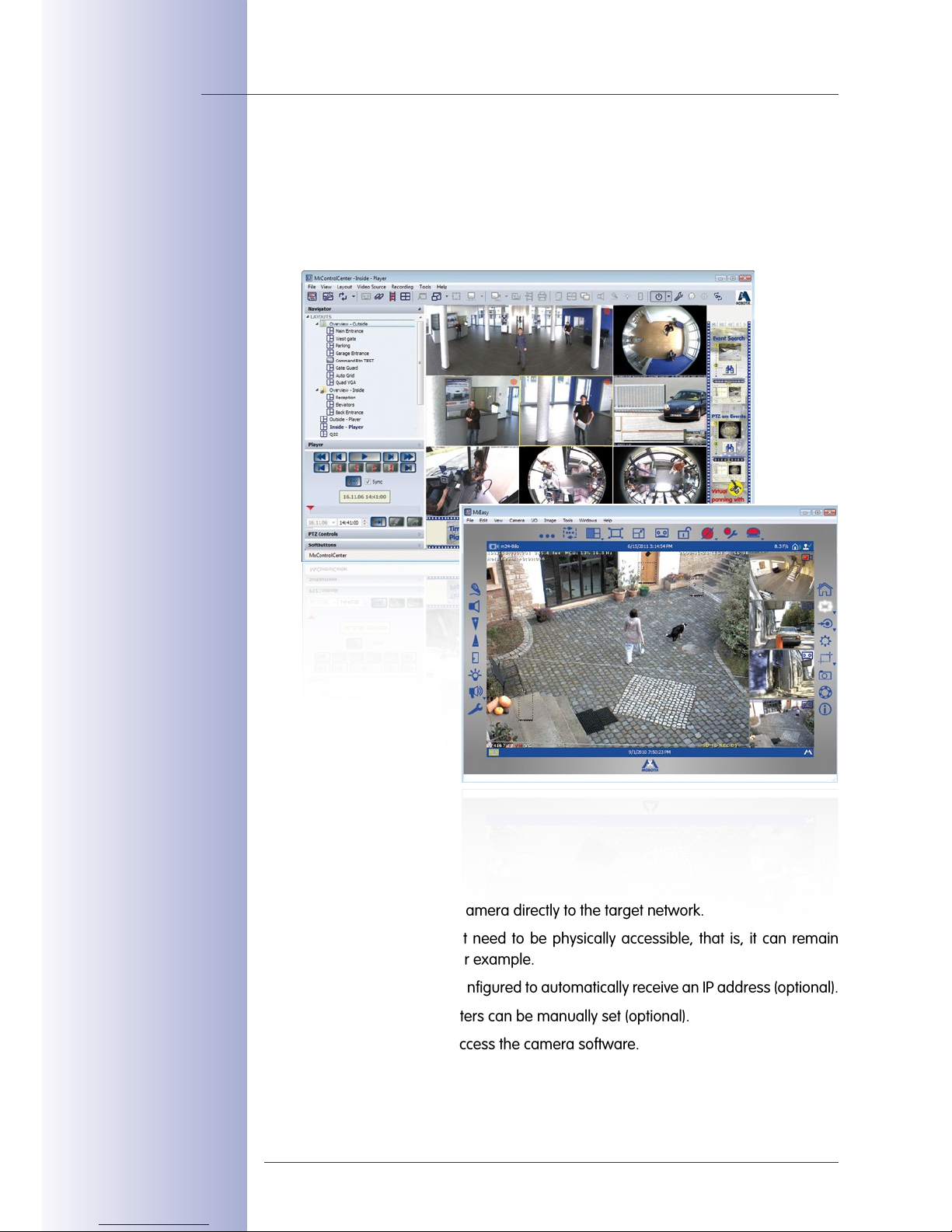

3.1.2 Automatically Using MxControlCenter Or MxEasy 78

3.1.3 Automatically Using DHCP 79

3.2 First Images And The Most Important Settings 80

3.2.1 Manually Setting Up The Network Parameters In A Browser 80

3.2.2 First Images And The Most Important Settings In The Browser 82

3.2.3 First Images And Network Parameter Conﬁguration In MxControlCenter 84

3.2.4 First Images And Network Parameter Conﬁguration In MxEasy 89

3.2.5 Starting The Camera With The Factory IP Address 92

3.2.6 Starting The Camera With An Automatic IP Address (DHCP) 93

Page 5

5/124

Contents

www.mobotix.com • sales@mobotix.com

3.3 Virtual PTZ And Full Image Recording 94

3.3.1 Virtual PTZ 94

3.3.2 Full Image Recording 96

3.4 Image Optimization 98

3.4.1 Correction Of Lens Distortion (L25 Only) 98

3.4.2 Adjusting The Panorama Image (D15D-Pano Only) 100

3.4.3 Dual Image Exposure 105

3.5 MicroSD Card Recording 106

3.5.1 Introduction 106

3.5.2 Formatting The MicroSD Card 108

3.5.3 Activate Recording 109

3.5.4 Accessing Data on the MicroSD Card 110

3.5.5 Deactivating Card Recording 110

3.5.6 Using A MicroSD Card In A Dierent MOBOTIX Camera 111

3.5.7 Limitations On Warranty When Using Flash Storage Media 111

3.6 Conﬁguration In The Browser 112

3.6.1 Overview 112

3.6.2 General Browser Settings 114

3.7 Additional Notes 116

3.7.1 Password For The Admin Menu 116

3.7.2 Permanently Deactivating The Microphone 116

3.7.3 Starting The Camera With The Factory IP Address 116

3.7.4 Resetting The Camera To Factory Settings 116

3.7.5 Activating Event Control And Motion Detection 117

3.7.6 Deactivating Text And Logo Options 117

3.7.7 Deactivating The Camera Reboot 117

3.7.8 Browser 117

3.7.9 Cleaning The Camera And Lens 118

3.7.10 Safety Warnings 118

3.7.11 Online Help In The Browser 119

3.7.12 RoHS Declaration 119

3.7.13 Disposal 119

3.7.14 Disclaimer 119

Declaration of Conformity D15D-DualDome 122

Manufacturer 123

Page 6

6/124

www.mobotix.com • sales@mobotix.com

D15D Camera Manual

Important Notes

Electrical Installation

Electrical systems and equipment may only be set up, changed and maintained by a qualiﬁed electrician or under the direction and supervision of a qualiﬁed electrician in accordance with the appropriate electrical guidelines.

Legal Aspects Of Video And Sound Recording

You must comply with all data protection regulations for video and sound monitor

ing when using MOBOTIX products. Depending on national laws and the installation location of the IP Video Door Station, the recording of video and sound data may be subject to special documentation or it may be prohibited. All users of MOBOTIX products are therefore required to familiarize themselves with all valid regulations and comply with these laws. MOBOTIX AG is not liable for any illegal use of MOBOTIX products.

Network Security

MOBOTIX products include all of the necessary conﬁguration options for operation in Ethernet networks in compliance with data protection laws. The operator is responsible for the data protection concept across the entire system. The basic settings required to prevent misuse can be conﬁgured in the software and are passwordprotected. This prevents unauthorized parties from accessing these settings.

Page 7

7/124

Contents

www.mobotix.com • sales@mobotix.com

D15D Standard

Image sensors and lenses can be combined freely and you can point the image sensors into dif

ferent directions, totally independent from one another..

D15D-Pano

Two super wide-angle lenses mounted on a bracket deliver a high-resolution panorama image with up to 6 megapixels that is distortion-corrected by the cam

era software.

D15D-DNight

The camera switches lenses automatically, depending on the current illumination: either the color image sensor with daylight lens or the B/W image sensor with infrared lens.

Page 8

8/124

D15D Camera Manual

www.mobotix.com • sales@mobotix.com

FOREWORD

Dear MOBOTIX customer,

Congratulations on your purchase of the latest generation of the successful MOBOTIX

DualDome cameras. The D15D is a high-resolution, weatherproof network camera "Made in Germany". The D15D can capture two dierent areas at once in great detail,

thanks to its two lenses with sensor assembly and optimized sensor technology.

The latest 5-megapixel image sensor technology used in the camera guarantees

brilliant 2x 3.1megapixel dual images. The camera's enhanced light sensitivity allows it to produce convincing color images even in low-light situations. Likewise, you only need one of the optional, new black and white sensors to deliver HiRes images of up to

3.1megapixel resolution at night – either live or recorded (D14D: 1.3megapixels).

Using a weatherproof MxBus and MiniUSB camera interfaces allow MOBOTIX interface boxes and standard modules such as UMTS or storage devices to be connected directly. The camera's 4GB internal ﬂash memory, which oers sucient space for long-term recordings, can be individually extended simply by changing the MicroSD card.

This Camera Manual provides you with all the information you need to be able to unpack and install the camera and view initial images on a PC. For information on how to work with the many camera functions, such as event control or image storage, please refer to the online help for the camera in the browser (see

Section 3.7.11

The MxEasy and MxControlCenter video management software, speciﬁcally developed for MOBOTIX cameras, is available for free download from the MOBOTIX website (with the manual as a PDF): www.mobotix.com> Support> Sof tware Downloads. MOBOTIX also provides a mobile solution for the iPad, iPhone and iPod Touch mobile iOS devices. Search for "MOBOTIX AG" in the App Store to ﬁnd the free app.

If you have any questions, our support and international sales sta are available at intl-support@mobotix.com from Monday to Friday, 8am to 6pm (German time).

Thank you for choosing MOBOTIX products and services. We wish you all the best with your new, high-performance MOBOTIX D15D DualDome camera!

MiniUSB port for external

expansions

Page 9

9/124

www.mobotix.com • sales@mobotix.com

MiniUSB port for external

expansions

MxBus port for MOBOTIX

add-on modules

Variable PoE class

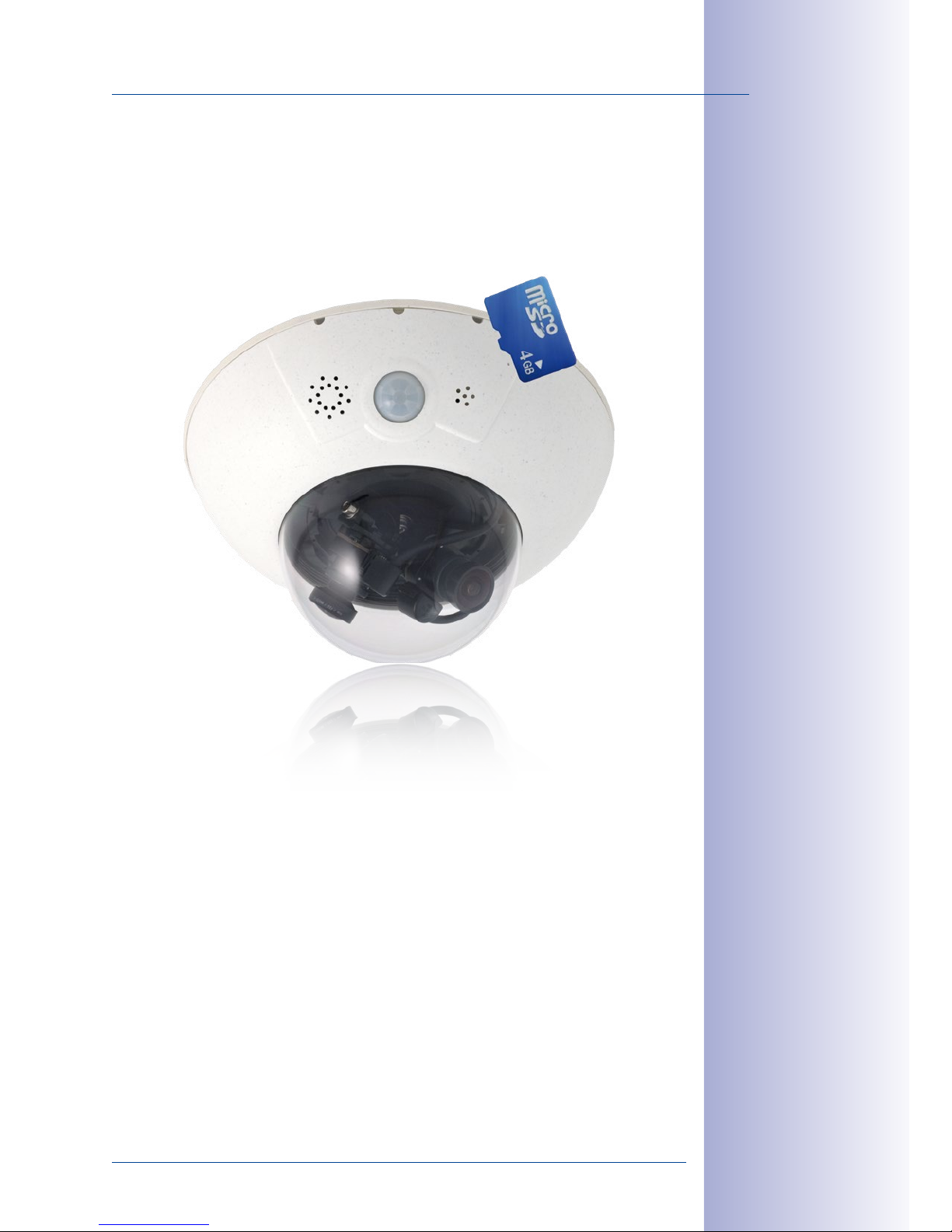

Integrated 4GB MicroSD card

(expandable up to 64GB)

HiRes dual image, up to 6

megapixels (also at night)

High frame rates up to

30 fps (Mega)

Shock detector

MxActivitySensor detects

movement and the direction

of movement

Page 10

10/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1 PRODUCT OVERVIEW

1.1 D15D-DualDome

1.1.1 General Product Characteristics

HiRes DualDome Camera With Two Independent Image Sensors And Lenses

With its compact and elegant dome-shaped housing, the MOBOTIX DualDome camera system has become an indispensable feature of the now global market of high-resolution network security cameras. Thanks to the ﬂexibility of two adjustable lenses and optional HiRes image sensors, this camera system delivers video surveillance of one scene in day and night mode (DNight models) or it can monitor two dierent areas simultaneously using dierent day or night lenses.

One camera monitors two different image areas

Page 11

11/124

D15D-DualDome

www.mobotix.com • sales@mobotix.com

5-Megapixel Image Sensor Technology

The D15D features an increased level of performance compared to the previous D14D model. The latest 5-megapixel image sensor technology used in the camera has improved the frame rate as well as the image quality for up to 3.1 megapixel resolution and brings a new level of detail to your zoomed images (+26%). Thanks to the new sensors that feature close to four times higher light sensitivity, the camera also delivers convincing color images at dusk and in heavy rainfall. At night, the optional black and white sensor now also provides HiRes images of up to 3.1 megapixel resolution (previous D14D model: max. 1.3 megapixels), delivering dual images at up to six megapixels during both day and night.

One Camera For Four Gas Pumps – Long-Term Recording Without

Peripheral Devices

Overview And Details With A Single Camera

A single D15D is all that is required to fully monitor an entire shop ﬂoor, as well as provide a direct view of the checkout. The simultaneous generation and evaluation of two images with a high degree of image detail not only reduces the number of required cameras, but also minimizes system costs by reducing the wiring complexity, backup power supply requirements and number of recording devices required.

All D15D cameras feature direct recording to integrated MicroSD cards (up to 64GB) or external USB drives and can therefore be used in standalone operation with no additional network load.

Robust, Practically Maintenance-Free And Versatile

Its robust design means that the D15D can be installed on walls or ceilings without any additional accessories in locations where the already very high requirements of the IP54 protection class are sucient.

Original image: Telephoto lens (left) and Wide-Angle lens (right) – simultaneously in one

Page 12

12/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Ambient temperatures may vary between –30 to +60°C/–22 to 140°F, making it the ideal camera for the most demanding weather situations. From stations in Antarctica to production monitoring at a steel smelting plant, MOBOTIX cameras oer unmatched ﬂexibility and versatility.

The absence of mechanically moving parts, heating and ventilation means that D15D cameras require less than ﬁvewatts of power. This can be easily supplied via a standard PoE cable. Cleaning the D15D is simple enough: wipe the dome using a lint-free cotton cloth and a mild household detergent without abrasive particles.

Model Variants And Lenses

The D15D is available as a Secure or IT variant, each of which has two day or night sensors or a day/night sensor combination. The main dierence between Secure and IT models is that the two image sensors of the Secure models have a higher maximum resolution (two 3MEGA instead of two VGA). Each D15D comes with a well-protected, pre-installed 4GB MicroSD card as standard. If required, this card can be replaced with a card of up to 64GB. The night models of the D15D with two highly sensitive black and white image sensors deliver high-contrast images of up to sixmegapixels in size even in extremely low-light conditions.

D15D: Individual Lens Conﬁguration

The standard models of the D15D stand out in particular as they allow the two image sen

sors and lenses to be combined as required and focused on dierent areas independently of one another. A lens can be delivered for every day or night sensor with a horizontal image angle of 13°, 27°, 39°, 54° and 82° as desired.

Note

The lenses must be ordered separately for standard versions and can be attached to the camera housing in just a few steps (see

Chapter 2, «Mounting»

). Special D15D-DNight-

Fix and

D15D-Pano

versions of the camera are also available. The lenses in these

special versions are pre-installed at the MOBOTIX factory on special lens bridges.

Detail and overview in dual image mode

Page 13

13/124

D15D-DualDome

www.mobotix.com • sales@mobotix.com

D15D-Pano: High-Resolution Panoramic View

The D15D-Pano is equipped with a panorama lens bridge with two permanently installed Super Wide-Angle lenses. Together, they provide a high-resolution panorama image that is up to six megapixels in size, which is corrected by means of the camera software.

Using only one camera, it is possible, for example, to cover one side of a building and the adjacent areas (parking lots, lawns, etc.). The D15D-Pano also delivers excellent, detailed images as a high-quality webcam.

D15D-DNight-Fix: 3MEGA Images By Day And By Night

The day/night version of the D15D is equipped with two dierent image sensors including two lenses. It automatically switches to the ideal mode depending on the lighting conditions: either the color sensor with daylight lens or the black and white sensor with infrared lens.

This dual sensor system provides excellent true-color images during the day (also in reduced daylight) and extremely sensitive night images in dark environments. A new feature of the D15D is the maximum resolution of the black and white sensor, which has increased from 1.3 to 3.1 megapixels.

The day and night lenses are pre-installed at the factory on a special DNight lens bridge, which ensures that they are positioned exactly parallel to one another. This way, the day lens always covers the same area as the night lens.

Panorama dual image with up to six megapixels during the day (color) and at night (black and white)

Automatic day/night switching depending on lighting conditions

Page 14

14/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

D15D With Vandalism Set (Accessory)

In critical environments or particularly harsh outdoor conditions, a MOBOTIX camera with optional anti-vandalism features is often the best choice. Their steel housing resists even the hardest attacks, and the cameras will deliver a perfect picture of the attackers.

D15D With Outdoor Wall Mount (Accessory)

When combined with the Outdoor Wall Mount, which is available as an accessory, the D15D is compliant with the higher IP65 protection class (fully dustproof and resistant to water jets) and can then be easily used in any unprotected outdoor areas. MOBOTIX oers an additional Corner and Pole Mount that allows the Outdoor Wall Mount to be attached to the corners of buildings and to masts.

The Outdoor Wall Mount’s design enables, for example, WiFi or GSM/UMTS modules to be installed directly within the weatherproof housing without disturbing the overall appear

ance of the surveillance unit. Similarly, relays for alarm sirens or lights can be installed easily and elegantly within the housing.

The Outdoor Wall Mount is made from PBT-30GF (polyethylene terephthalate with 30% ﬁberglass). This material, which is often used in the automotive industry, is stable and resistant to high temperatures, UV rays, other environmental factors, chemicals, etc. The software-based architecture of the MOBOTIX D15D and free software updates ensure that the surveillance system has a long product life and thus provides a high return on investment.

D15D with vandalism set: Suitable for use in particularly harsh conditions (only the stainless steel ring can be used for the D15D-Pano and D15D-Sec-DNight-Fix)

Mounted to a corner

Mounted to a pole

Page 15

15/124

D15D-DualDome

www.mobotix.com • sales@mobotix.com

1.1.2 Advantages And New Features

The high-resolution D15D-DualDome camera is the even more powerful successor to the D14D and is the ﬁrst MOBOTIX camera to feature ﬁve-megapixel image sensors. Due to technical reasons, the maximum size at which the images of a D15D sensor can be dis

played is 3.1 megapixels (live or recorded). Despite this, the D15D outperforms the previous D14D model and other dome cameras on the market in many respects.

Smooth HiRes Video Streams

The modiﬁed hardware of the D15D ensures that the video streams of the camera are transmitted even more smoothly than those of the high-performance D14D, particularly at high resolutions. As image streams from a rate of 16 frames per second are perceived by the human eye as continuous movement, the maximum frame rate remains limited to 30fps (for MEGA resolution 1280x960) to ensure that sucient camera processing power is available for other tasks.

Conclusive Still Images

Thanks to the proprietary MxPEG video codec developed exclusively for MOBOTIX cameras, the cameras oer the advantage that a recording can be paused at any given point and still provide meaningful and useful snapshots due to the absence of distortion. This is essential for security applications and allows individuals or license plates to be identiﬁed, for example. In contrast, the H.264 standard, which was developed for feature movies and is favored by some video security providers, cannot achieve this with the required level of quality.

Good Color Images Even In Low Light

The more light-sensitive an image sensor is, the better the image quality, especially when the ambient light level is low, such as at dusk and in heavy rainfall. The D15D oers the best MOBOTIX image quality that is currently available thanks to the light sensitivity pro

vided by the ﬁve-megapixel color sensor that is four times higher than that of the previous three-megapixel color sensor.

More Details When Zooming

The maximum zoom factor of the D15D is 1.26 times higher than that of the D14D due to the use of ﬁve-megapixel technology. This means that the degree of detail provided by the camera has improved by 26 percent. As a result, a D15D can now be installed even further away than before from the objects and areas to be monitored. In addition, this relativizes the horizontal image angles of the new ﬁve-megapixel sensors that are slightly smaller compared to the D14D.

Black And White Resolution Now Up To 3.1 Megapixels

The D15D is the ﬁrst MOBOTIX camera worldwide to also feature a ﬁve-megapixel night sensor that can deliver black and white images of up to 3.1 megapixel resolution. This means that in pixels alone images are roughly 140% larger than those delivered by the

Page 16

16/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

previous 1.3-megapixel sensor. The images also beneﬁt from the improved detail magniﬁcation enabled by digitally zooming into the image created by the ﬁve-megapixel sensor.

MxActivitySensor

The D15D provides an activity-controlled image analysis sensor as standard for detecting the movements of people and objects in a deﬁned surveillance area (full image or section). The MxActivitySensor delivers reliable results particularly in outdoor area applications, in contrast to video motion detection that continues to be available and that registers all image changes in deﬁned video motion windows. In the monitored area, the camera distinguishes between the continuous movements of vehicles, persons or objects that trigger an alarm and movements that do not set o an alarm such as shadows, changing light conditions and trees swaying in the wind.

Low Power Consumption In Accordance With The PoE Standard (IEEE 802.3af)

A D15D uses no more power than its predecessor (typically 4.5watts), despite the new sensor technology. Adjusting the PoE class via the camera software also enables the use of PoE switches that cannot be operated on all ports with PoE class3 (up to max. 12.95V).

Page 17

17/124

D15D-DualDome

www.mobotix.com • sales@mobotix.com

1.1.3 Decentralized Video System

Usually, cameras only supply images while processing and recording take place later on a central PC using video management software. This centralized structure has too many limitations for high-resolution video systems since it requires high network bandwidth and the PC processing power is insucient when using several high-resolution cameras. Due to the large number of computers and servers required, traditional centralized systems are therefore becoming less suitable and cost eective.

As part of the decentralized MOBOTIX concept, every camera features a high-speed processor, and, if necessary, digital long-term ﬂash memory (MicroSD card) can be integrated to provide several days of recording time. The com

puter or video control center is required only to view and control the cameras, not to evaluate and record video. This means that you do not have to rely on expensive, overloaded video management software as most of the important functions that require a large amount of processing power are integrated into the MOBOTIX cameras themselves.

Integrated Sensors enable MOBOTIX cameras such as the D15D to automatically detect when an event has occurred. If necessary, the cameras will respond immediately with an alarm sound and will establish a direct video and sound connection to a control room.

The D15D is equipped with a shock detector as standard (for all IT and Secure models). For example, if the camera receives a blow to the housing, it can simultaneously take a video of the oender, trigger a sound alarm and notify the security company via a SIP call. Due to the build quality and absence of moving parts, MOBOTIX cameras are extremely tough. This typically allows them to stay fully operational, even when they are subject to strong vibrations.

All MOBOTIX cameras are backlight-proof and are not adversely aected by the glare from direct sunlight. They deliver meaningful, detailed images at all times as the camera software supports easy programming of independent exposure windows, making them ideal for rooms with large glass fronts.

MOBOTIX In the event of an alarm, D15D cameras can also record lip-synchronous audio. The cameras therefore play an important role in analyzing and clarifying a situation. An integrated speaker and microphone allow each camera to also be used for bidirectional communication (two-way video communication). This feature is also available on the move using the MOBOTIX App on an iPhone or iPad.

MOBOTIX Camera

CPU

Image analysis

CMOS

5 megapixels

MicroSD

Recording

Page 18

18/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

The decentralized MOBOTIX video solutions are superior to traditional systems in all major aspects. They are also considerably cheaper to operate since they require

• Fewer cameras due to the more accurate detail of panorama images with mega

pixel technology

•

Fewer recording devices because in the decentralized system, ten times the standard number of cameras can be used to record high-resolution HDTV video with sound on one computer/server simultaneously

• Lower network bandwidth because everything is processed in the camera itself and the high-resolution images therefore do not have to be constantly transported for analysis

MOBOTIX System

Decentralized and secure

PC as storage device

Recording soft

ware

MicroSD integrated

Page 19

19/124

D15D-DualDome

www.mobotix.com • sales@mobotix.com

1.1.4 Green IP Video

The modern, network-based video security technology oers numerous advantages to use energy eciently. Due to the special product and system properties, the decision to install MOBOTIX video systems is also a decision for Green IP Video: low power consump

tion and environmental friendly because of long life expectancy and minimal amount of materials involved.

Low Power Consumption

MOBOTIX cameras are cost-eciently supplied via PoE. This reduces the expenses for power and, in addition, saves copper and other important raw material as less power cabling is necessary.

Robust

MOBOTIX IP65 cameras are highly robust and work – without high-power climate control and extra protective housing – in a temperature range from –30 to +60°C/–22 to +140°F.

Modern

Integrated into the cameras are high-power processors and ﬂash storage, thus making energy-consuming servers and storage devices unnecessary. And, of course, the disposal of waste later.

High Resolution

A hemispheric MOBOTIX camera with two image sensors replaces up to eight standard cameras – including their consumption of energy and resources.

Sustainable

Without mechanical components, MOBOTIX cameras are maintenance-free and stay fully functional, even after years – and are, thus, more sustainable compared to other systems.

Forward-Looking

Even previous camera models can be easily updated and then oer new functionalities. Remote updates via the internet and the fact that the cameras are maintenance-free reduce trips by car, and, thereby, the negative eect on the environment.

Page 20

20/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.2 Technical Speciﬁcations

1.2.1 Lens Options

MOBOTIX currently oers ﬁve standard lenses with M14 thread for the D15D that can each be combined with a day or night sensor (color or black and white). Since MOBOTIX cameras are backlight-proof, none of these lenses requires a mechanical auto iris. This makes the cameras extremely robust and maintenance-free.

The L25 Super Wide-Angle lens has very little distortion and delivers good image quality, even when the maximum digital zoom is used. If the D15D is mounted in the corner of a room with this lens, the complete room will be visible on the image.

In the case of the special D15D-Pano model, two L25 lenses are installed in such a way that the camera can optically combine the two 82° images via the software to form a single large and corrected panorama image.

D15D With Standard Lenses And M14 Thread

Five dierent MOBOTIX lenses are available for every sensor unit:

• L25 Super Wide-Angle with 82° image angle (horizontal)

• L38 Wide Angle with 54° image angle (horizontal)

• L51 Wide Angle with 39° image angle (horizontal)

• L76 Telephoto with 27° image angle (horizontal)

• L160 Telephoto with 13° image angle (horizontal)

This results in a total of 20 possible lens combinations (L25/L25 to L160/L160) for a D15D.

MOBOTIX Original image L25 Super Wide-Angle

Page 21

21/124

Technical Speciﬁcations

www.mobotix.com • sales@mobotix.com

Five-Megapixel Sensor Lenses

L25 L38 L51 L76 L160

Original image

35mm equivalent 25mm 38mm 51mm 76mm 160mm

Nominal focal length 4mm 6mm 8mm 12mm 25mm

Aperture 2.0 2.0 2.0 2.0 2.5

Horizontal image angle 82° 55° 40° 27° 13°

Vertical image angle 61° 41° 30° 20° 10°

At 1m distance

Image width 1.7 1.0 0.7 0.5 0.2

Image height 1.2 0.7 0.5 0.4 0.2

At 5m distance

Image width 8.7 5.2 3.6 2.4 1.1

Image height 5.9 3.7 2.7 1.8 0.9

At 10m distance

Image width 17.4 10.3 7.2 4.9 2.3

Image height 11.9 7.5 5.4 3.6 1.7

At 20m distance

Image width 34.7 20.6 14.5 9.7 4.6

Image height 23.7 14.9 10.8 7.2 3.4

At 50m distance

Image width 86.8 51.5 36.2 24.3 11.4

Image height 59.3 37.3 27.0 18.0 8.6

Notes

The speciﬁed focal lengths of the MOBOTIX lenses do not reﬂect the actual focal length of the lenses, but the focal length (Lxxmm) converted to 35mm camera format. For example, the MOBOTIX L25 Super Wide-Angle lens has an actual focal length of 4mm. This would be the equivalent of 25mm on a 35mm camera. It is therefore referred to as an L25. Since the image sensors in digital cameras have dierent sizes, converting the focal lengths to 35mm camera as a known format allows the image formats and the ﬁelds of vision of the dierent lenses to be calculated and compared more easily. Another beneﬁt is that you can easily set a 35mm camera (analog or digital) to the same focal length as the MOBOTIX lens (Lxx) to obtain the same ﬁeld of vision. This approach greatly facilitates lens selection.

L25 Super Wide-Angle 82°

L38 Wide-Angle 54°

L51 Wide-Angle 39°

L76 Tele 27°

L160 Tele 13°

Page 22

22/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.2.2 Camera Variants– Lenses, Hardware, Image Formats

*With Outdoor Wall Mount

**With Vandalism Set

Camera Model

D15Di-IT (Day) D15Di-IT-Night D15Di-Sec (Day)

Lenses, Sensors

Hemispheric 12mm – – –

Super Wide-Angle 25mm L25 L25 L25

Wide-Angle 38mm L38 L38 L38

Wide-Angle 51mm L51 L51 L51

Tele 76mm L76 L76 L76

Tele 160mm L160 L160 L160

CSVario 24–54mm – – –

Image sensor with individual exposure zones

Color, color B/W, B/W Color, color

Sensor sensitivity in lux at 1/60s/1s 0.25/0.013 0.05/0.0025 0.25/0.013

Hardware Features

Protection classes IP54/IP65*/IP66**/IK10**

IP54/IP65*/IP66**/IK10** IP54/IP65*/IP66**

Temp. internal DVR (MB) 32 32 64

Internal DVR (MicroSD, up to 64GB) 4GB incl. 4GB incl. 4GB incl.

Microphone/speaker X/X X/X X/X

Passive infrared sensor (PIR) X X X

Integrated temperature sensor X X X

Shock detector X X X

Power consumption in watts (typical) < 5 < 5 < 5

Variable PoE class 2 – 3 2 – 3 2 – 3

Image Formats, Frame Rates and Image Storage

Max. resolution (per sensor) HD (1280x720) HD (1280x720) 3MEGA (2048x1536)

3MEGA (2048x1536) 3MEGA (2048x1536) 3MEGA (2048x1536) 3MEGA (2048x1536)

Max. frame rate (MxPEG, max. resolution) 30B/s 30B/s 20fps

CIF images with 4GB MicroSD DVR 250,000 250,000 250,000

VGA images with 4GB MicroSD DVR 125,000 125,000 125,000

MEGA images with 4GB MicroSD DVR – – 40,000

3MEGA images with 4GB MicroSD DVR – – 20,000

Page 23

23/124

Technical Speciﬁcations

www.mobotix.com • sales@mobotix.com

D15Di-Sec-Night D15Di-Sec-Pano

D15Di-Sec-Night-Pano

D15Di-Sec-DNight-Fix

Lenses, Sensors

– – – –

L25 L25 L25 L25

L38 – – L38

L51 – – L51

L76 – – L76

L160 – – L160

– – – –

B/W, B/W Color, color B/W, B/W Color, B/W

0.05/0.0025 0.25/0.013 0.05/0.0025 0.25/0.013 / 0.05/0.0025

Hardware Features

IP54/IP65*/IP66**/IK10** IP54/IP65*/IP66**

64 64 64 64

4GB incl. 4GB incl. 4GB incl. 4GB incl.

X/X X/X X/X X/X

X X X X

< 5 < 5 < 5 < 5

2 – 3 2 – 3 2 – 3 2 – 3

Image Formats, Frame Rates and Image Storage

3MEGA (2048x1536) 3MEGA (2048x1536) 3MEGA (2048x1536) 3MEGA (2048x1536)

20fps 8fps 8fps 20fps

250,000 250,000 250,000 250,000

125,000 125,000 125,000 125,000

40,000 40,000 40,000 40,000

20,000 20,000 20,000 20,000

*With Outdoor Wall Mount

**With Vandalism Set

Page 24

24/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.2.3 Camera Variants – Software Features

Camera Model

D15Di-IT (Day) D15Di-IT-Night D15Di-Sec (Day)

General Features

Digital zoom (continuous) with panning X X X

Motion JPEG/MxPEG/H264 codecs X/X/– X/X/– X/X/X

Programmable exposure ones X X X

Snapshot rec. (pre-/post-alarm images) 10 10 50

Terabyte ring buer storage (internal/network) X X X

Continuous rec. with sound (0.2 to 30fps) X X X

Event recording with sound X X X

Time and event control X X X

Weekly schedules/holidays X X X

Web functionality (FTP, email) X X X

Playback/Quad und MultiView, bidirectional sound in browser

X X X

Logo generator, animated X X X

Flexible event logic – – X

Master/Slave arming – – X

Several scheduled privacy zones – – X

Customized voice messages X X X

VoIP telephony (audio/video, alert) X X X

Remote alarm notiﬁcation (network msg.) X X X

Signal inputs/outputs, RS232 Via MX-232-IO-Box

Programming interface/HTTP API X X X

Security features (HTTPS/SSL, IP-based access control, IEEE 802.1X network authentication)

X X X

Video Analysis

Video Motion detector X X X

MxAnalytics – – –

MxActivitySensor – – X

Video Management Software

MxEasy, MxCC X X X

MOBOTIX App X X X

Free-of-charge download from www.mobotix.com or App Store

Page 25

25/124

Technical Speciﬁcations

www.mobotix.com • sales@mobotix.com

D15Di-Sec-Night D15Di-Sec-Pano

D15Di-Sec-Night-Pano

D15Di-Sec-DNight-Fix

General Features

X X X X

X/X/X X/X/X X/X/X X/X/X

X X X X

50 50 50 50

X X X X

Via MX-232-IO-Box

X X X X

Video Analysis

X X X X

– – – –

X X X X

Video Management Software

X X X X

Page 26

26/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.2.4 Technical Data

Technical Data D15D

Model variants (ﬁtted with day or night sensors)

MX-D15Di-IT, MX-D15Di-SEC

(day or night), MX-D15Di-SEC-DNIGHT-FIX (day and night), MX-D15Di-SEC-Pano

(Day)

MX-D15Di-SEC-NIGHT-Pano

(night)

Lens options 25 to 160mm (compared to 35mm camera),

horizontal angle 82° to 13°

Sensitivity Color sensor: 0.25lux at 1/60s, 0.013lux at 1s

Black and white sensor: 0.05 lux at 1/60s,

0.0025 lux at 1s

Image sensors Two 1/2.5" CMOS, 5megapixels, progressive scan

Max. image resolution D15Di-IT (dual image)

Color: 2560x720 (dual HD) Black and white: 2560x720 (dual HD)

Max. image resolution D15Di-SEC (dual image)

Color: 4096x1536 (6MEGA) Black and white: 4096x1536 (6MEGA)

Image formats (per sensor)

Selectable image formats, for example, 2048x1536 (MEGA),

1920x1080 (full HD),

1280x960 (MEGA), 1280x720 (HD), 1024x768, 800x600, 768x576 (D1-PAL), 704x576(TV-PAL), 640x480, 384x288, 320x240, 160x120

Max. frame rate (M-JPEG) (live/recording)

VGA: 30fps, MEGA: 10fps, 3MEGA: 4fps, 6MEGA: 2fps

Max. frame rate (MxPEG) (live and recording including sound)

VGA: 30fps, MEGA: 30fps, 3MEGA: 20fps, 6MEGA: 8fps

Image compression MxPEG, M-JPEG, JPEG, H.264

Internal DVR MicroSD slot including 4GB, max. 64GB

External video ring buer

Directly on NAS and computer/server without addi

tional recording software

Software (included) MxEasy video management software,

MxControlCenter control center software, MOBOTIX App for iOS devices, iOS 5.0 and higher

Image processing

Backlight compensation, automatic white balance, image distortion correction, panorama correction, Video Motion detection, MxActivitySensor,

Virtual PTZ Digital pan/tilt/zoom, continuous 8X zoom

Alarm/events Video Motion detection, MxActivitySensor, external

signal, temperature sensor, PIR, microphone, shock detector, notiﬁcation over e-mail, FTP, IP telephony (VoIP, SIP), visual/acoustic alarm, pre- and post-alarm images

Microphone and speaker Integrated microphone and speaker

Sound Lip-synchronous audio, two-way communication,

sound recording

Functionality depends on camera variant (see

Section 1.2.3, «Camera Variants – Software Features»

Page 27

27/124

Technical Speciﬁcations

www.mobotix.com • sales@mobotix.com

Technical Data D15D

Interfaces

10/100 Ethernet, MiniUSB, MxBus; inputs and outputs and RS232 via accessories

Video telephony VoIP/SIP, two-way communication, remote controlling

with key code, event notiﬁcation

Security User/group management, HTTPS/SSL, IP address ﬁlter,

IEEE802.1x, intrusion detection, digital image signature

Certiﬁcations EMV (EN55022, CISPR22, EN55024, EN61000-6-1/2,

FCCPart15B, CFR47, AS/NZS3548)

Power supply Year-round Power-over-Ethernet (IEEE 802.3af);

variable PoE class, approx. 5W

Protection classes IP54 without wall mount

IP65 with wall mount IP66 and IK10 with Vandalism Set

Temperature range –30 to +60°C/–22 to +140°F

Dimensions/weight

Diam. x H: 205 x 108mm (D15D), 205 x 125mm (D15D-

Pano

, D15D-Sec-DNight-Fix); weight: approx.

750g (including lenses)

Delivered parts Housing (high-resistance composite, PBT-PC), white,

shock-resistant dome (transparent), free choice of lens, mounting parts, Allen wrench, 50cm patch cable, manual, software, 4GBMicroSD card

Page 28

28/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.3 Delivered Parts

1.3.1 Standard Delivery – D15D

Item Number Part Name

1.1 1 Camera housing

1.2 2 Lens (installed)

1.3 2 Lens mount

1.4 2 Lock ring (installed)

1.5 2 Sensor cable (integrated, not shown here)

1.6 1 Cable cover (installed)

1.7 2 Dome (1x transparent– integrated, 1x tinted)

1.8 1 Outer shell

1.9 1 Ethernet cable (installed)

1.10 1 Allen wrench 3mm

1.11 1 TX20 Torx wrench

1.12 1 Custom tool with magnet

1.13 1 MxBus connector (inserted):

1.14 1 MicroSD card, max. of 4 GB (inserted)

Installation accessories

Item Number Part Name

M.1.1 3 8-mm screw anchors

M.1.2 3 Stainless steel washers, diam. 5.3mm

M.1.3 3 Stainless steel wood 4.5 x 60mm screws with TX20

head

2 lenses (item 1.2)

2 lens mounts (item 1.3)

2 lock rings (item 1.4)

Custom tool

with magnet (item 1.12)

Outer shell (item 1.8)

3 mm Allen wrench (item 1.10)

TX20 Torx wrench (item 1.11)

Camera housing (item 1.1)

Domes (item 1.7),

1x transparent, 1x tinted

Cable cover (item 1.6)

Ethernet cable (item 1.9)

Page 29

29/124

Delivered Parts

www.mobotix.com • sales@mobotix.com

Camera Housing And Connectors– D15D

The MOBOTIX D15D consists of three main components (camera housing, outer shell and dome).

4 2

4 LEDs (behind PIR

cover)

Speaker

Dome

PIR sensor

Lens unit I

Lens unit II

Sensor cable

MicroSD card

MxBus

MxBus cabling

MiniUSB

Ethernet

Washer

Water outlet open-

ings

Outer shell

Microphone

Two freely positionable camera modules

Ø 205mm/8.07in

108mm/4.25in

LED default settings:

1 Power (on), error (ashes) 2 Recording (ashes) 3 Off 4 Off

Page 30

30/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.3.2 Standard Delivery – D15D-Pano

Item Number Part Name

2.1 1 Camera housing

2.2 2 Lens (installed)

2.3 2 Lens mount (installed)

2.4 2 Lock ring (installed)

2.5 2 Sensor cable (integrated, not shown here)

2.6 1 Cable cover (installed)

2.7 2 XL Dome (1x transparent– integrated, 1x tinted)

2.8 1 Outer shell

2.9 1 Ethernet cable

2.10 1 Allen wrench 3mm

2.11 1 TX20 Torx wrench

2.12 1 Custom tool with magnet

2.13 1 MxBus connector (inserted):

2.14 1 Lens bridge (installed)

2.15 1 MicroSD card, max. of 4 GB (inserted)

Installation accessories

Item Number Part Name

M.2.1 3 8-mm screw anchors

M.2.2 3 Stainless steel washers, diam. 5.3mm

M.2.3 3 Stainless steel wood 4.5 x 60mm screws with TX20

head

Custom tool

with magnet (item 2.12)

Outer shell (item 2.8)

3 mm Allen wrench (item 2.10)

TX20 Torx wrench (item 2.11)

Camera housing (item 2.1)

XL domes (item 2.7),

1x transparent, 1x tinted

Cable cover (item 2.6)

Ethernet cable (item 2.9)

2 lenses (item 2.2)

2 lens mounts (item 2.3)

1 lens bridge (item 2.14)

2 lock rings (item 2.4)

Page 31

31/124

Delivered Parts

www.mobotix.com • sales@mobotix.com

Camera Housing And Connectors– D15D-Pano

The MOBOTIX D15D-Pano consists of three main components (camera housing, outer shell and dome).

4 2

4 LEDs (behind PIR

cover)

Speaker

XL dome

PIR sensor

Lens bridge

Sensor cable

MicroSD card

MxBus

MxBus cabling

MiniUSB

Ethernet

Washer

Water outlet open-

ings

Outer shell

Microphone

Two ﬁxed 82° lenses

Ø 205mm/8.07in

125mm/4.92in

LED default settings:

1 Power (on), error (ashes) 2 Recording (ashes) 3 Off 4 Off

Page 32

32/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.3.3 Standard Delivery – D15D-Sec-DNight-Fix

Item Number Part Name

2.1 1 Camera housing

2.2 2 Lens (installed)

2.3 2 Lens mount (installed)

2.4 2 Lock ring (installed)

2.5 2 Sensor cable (integrated, not shown here)

2.6 1 Cable cover (installed)

2.7 2 XL Dome (1x transparent– integrated, 1x tinted)

2.8 1 Outer shell

2.9 1 Ethernet cable

2.10 1 Allen wrench 3mm

2.11 1 TX20 Torx wrench

2.12 1 Custom tool with magnet

2.13 1 MxBus connector (inserted):

2.14 1 Lens bridge (installed)

2.15 1 MicroSD card, max. of 4 GB (inserted)

Installation accessories

Item Number Part Name

M.2.1 3 8-mm screw anchors

M.2.2 3 Stainless steel washers, diam. 5.3mm

M.2.3 3 Stainless steel wood 4.5 x 60mm screws with TX20

head

Custom tool

with magnet (item 2.12)

Outer shell (item 2.8)

3 mm Allen wrench (item 2.10)

TX20 Torx wrench (item 2.11)

Camera housing (item 2.1)

XL domes (item 2.7),

1x transparent, 1x tinted

Cable cover (item 2.6)

Ethernet cable (item 2.9)

2 lenses (item 2.2)

2 lens mounts (item 2.3)

1 lens bridge (item 2.14)

2 lock rings (item 2.4)

Page 33

33/124

Delivered Parts

www.mobotix.com • sales@mobotix.com

Camera Housing And Connectors– D15D-Sec-DNight-Fix

The MOBOTIX D15D-Sec-DNight-Fix consists of three main components (camera housing, body shell and dome).

4 2

4 LEDs (behind PIR

cover)

Speaker

XL dome

PIR sensor

Lens bridge

Sensor cable

MicroSD card

MxBus

MxBus cabling

MiniUSB

Ethernet

Washer

Water outlet open-

ings

Outer shell

Microphone

Two pre-installed lenses

(L25 to L160)

Ø 205mm/8.07in

125mm/4.92in

LED default settings:

1 Power (on), error (ashes) 2 Recording (ashes) 3 Off 4 Off

Page 34

34/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.3.4 Delivered Parts For The Outdoor Wall Mount (Accessory)

Item Number Part Name

3.1

1 Outdoor wall mount

3.2 1 Bottom plate

3.3 4 10-mm screw anchors

3.4 4 Stainless steel washers, diam. 9mm

3.5 4 Stainless steel wood 8 x 70mm screws

3.6 1 Ethernet cable 1m

3.7 1 Wall sealing

3.8 8 Stainless steel Allen screws M4x10mm

3.9 4 Stainless steel hex nuts M4

3.10 4 Stainless steel Allen screws M4x25 mm

3.11 4 Stainless steel washers, diam. 4.3 mm

Make sure to check the delivered parts

8 Allen screws M4x10 mm (item 3.8)

4 screw anchors, 10 mm (item 3.3)

Bottom plate (item 3.2)

4 washers

diam. 9 mm (item 3.4)

Wall sealing (item 3.7)

4 Allen screws, M4x25 mm (item 3.10) 4 washers, diam. 4.3 mm (item 3.11)

4 hex nuts, M4 (item 3.9)

Ethernet cable 1 m (item 3.6)

4 wood screws, 8x70 mm (item 3.5)

The original cable supplied with the D15D must be exchanged for a 1-m long Ethernet patch cable to mount the camera with a wall mount

Height: 160mm/6.3in

Width: 293 mm/11.54inDepth: 275 mm/10.83in

The 90 x 90 mm space covers in-wall and onwall sockets as well as an MX-Patch-Box that is attached to the wall (MX-OPT-Patch1-EXT)

Page 35

35/124

Delivered Parts

www.mobotix.com • sales@mobotix.com

1.3.5 Delivered Parts For The Corner And Pole Mount (Accessory)

Item Number Part Name

4.1

1 Corner and Pole Mount

4.2

4 Stainless steel Allen screws M8x30 mm

4.3 4 Stainless steel washers, diam. 9 mm

4.4 4 Stainless steel lock nuts M8

4.5 2 Stainless steel straps

Height:

160mm/6.3in

Depth:

175mm/6.89in

Width: 293 mm/11.54in

4 Allen screws, M8x30 mm (item 4.2)

4 washers diam. 9 mm (item 4.3)

4 hex nuts, M8 (item 4.4)

2 steel straps

(item4.5)

Page 36

36/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.4 Available Accessories

1.4.1 NPA-PoE-Set

Order No.: MX-NPA-PoE-EU and MX-NPA-PoE-INT (Version EU and Version INT)

Order No.: MX-CBL-NPA-BAT-2 (battery cable for mobile voltage sources)

This is a multifunctional PoE injector according to the IEEE 802.3af standard– with three connectors (for network, camera/PoE device, PC), universal power supply unit with interchangeable adapter plugs and crossover function. The NPA-PoE-Set connects and remotely supplies a D15D with power via an Ethernet cable up to 100m in length. The blue adapter can also be connected to mobile voltage sources from 12V to 42V by means of an additionally available battery cable. The "EU" version of the NPA-PoE-Set is supplied as standard with a European adapter, while the "INT" version includes four adapters (EU, USA, UK, AUS).

1.4.2 Replacement Dome

Order No.: MX-D15D-OPT-DCT/DCS (transparent/tinted)

The standard D15D dome is available as a transparent version or as a 50 percent-tinted version (also available as an XL dome for D15D-Pano and D15D-SecDNight-Fix).

1.4.3 Vandalism Set

Order No.: MX-D15D-Vandal-ESMA/ESPO/PUGR/PUWH/ PUBL (matt/polished/gray/white/black)*

Ideally suited for surveillance in extremely harsh conditions. The stainless steel vandalism ring available in ﬁve colors replaces the standard outer shell and is securely fastened to the surface using the supplied safety screws. The standard dome is replaced by a polycarbonate dome that has been reinforced and the wall thickness increased to 3mm.

The vandalism set deletes the PIR and audio features of the camera by design; this can be oset with the ExtIO.

*In D15D models with an XL dome (D15D-Pano and D15D-Sec-DNightFix), you can only use the stainless steel vandalism ring and not the reinforced dome

Page 37

37/124

Available Accessories

www.mobotix.com • sales@mobotix.com

1.4.4 Ethernet Patch Cable With Bayonet Catch

Order No.: MX-OPT-CBL-LAN-1/2/5/10 (length 1 m/2 m/5 m/10 m)

The MOBOTIX-developed special cable can be installed in a waterproof manner and has an integrated sealing gasket. Every D15D ships with a 0.5-m-long cable as standard, which can be exchanged for a patch cable up to 10m in length.

1.4.5 Outdoor Wall Mount

Order No.: MX-WH-Dome

When combined with the Outdoor Wall Mount, the D15D is fully weatherproof and its protection class is increased from IP54 to IP65 (fully dustproof and resistant to water jets).

1.4.6 Corner and Pole Mount

Order No.: MX-WH-Dome-ESWS

The Outdoor Wall Mount can be used for applications mounted on a pole or the corner of a building. This extremely robust mount is made of 3mm powdercoated stainless steel (white) and has been designed speciﬁcally for outdoor use. The supplied stainless steel straps allow the mount to be attached to poles with diameters between 60 and 180mm.

1.4.7 MX-Patch-Box

Order No.: MX-OPT-Patch1-EXT

Universal network connector for installation cables, MOBOTIX patch cables and standard patch cables (protection class IP65,

–30 to +60°C/–22 to 140°F

. The MX-Patch-Box can be used to connect the patch cable of an IP device with the network installation cable (for example, Cat 5) or network patch cable (RJ45 connector) in a weatherproof manner and ﬁts into the 90x90mm space of the Outdoor Wall Mount (see diagram).

Page 38

38/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.4.8 MX-NPA-Box

Order No.: MX-OPT-NPA-EXT

The MX-NPA-Box is a weatherproof PoE injector conforming to the IEEE 802.3af standard and is designed to connect to a MOBOTIX camera external voltage source (12 to 57VDC).

The MX-NPA-Box is equipped with the Patch-Box’s weath

erproof and extremely compact outer housing (protection class IP65, –30 to +60°C/–22 to +140°F), which means it can also be installed in the space of the Outdoor Wall Mount. MX-NPA-Box Interfaces: Camera via patch cable, Ethernet via LSA+ and external power supply (12 to 57VDC is possible)

1.4.9 MX-GPS-Box

Order No.: MX-OPT-GPS1-EXT

This box primarily serves as a high-precision time source for systems without an Internet connection. The IT and Secure models additionally provide triggering of GPS-based events (reaching or moving away from a speciﬁed position; exceeding or not reaching a speciﬁed speed). The MX-GPS-Box can be connected as an add-on module to all MOBOTIX cameras with an MxBus interface.

The MX-GPS-Box has the same compact exterior housing as the MX-Patch-Box and the MX-NPA-Box (IP65 protection class, –30 to +60°C/–22 to +140°F). Note that this box should not be installed below other wall-mounted units. It should be installed on the exterior of the building with a large section of open sky above it, which ensures the best possible reception from GPS satellites and thereby the highest possible accuracy of the received GPS data. The maximum length of the MxBus cable (diameter: 0.8mm) is 50 m.

1.4.10 MX-232-IO-Box

Order No.: MX-OPT-RS1-EXT

This box provides the signal inputs and outputs as well as the RS232 (serial) interface. It replaces the connections that were handled on the older camera models via a D-Sub 15-HD connector. The MX-232-IO-Box can be connected as an add-on module to all MOBOTIX cameras with an MxBus or USB interface. The maximum length of the MxBus cable (diameter: 0.8mm) is 50 m. If the MiniUSB connection is used, the maximum cable length is 5 m.

Page 39

39/124

Available Accessories

www.mobotix.com • sales@mobotix.com

1.4.11 ExtIO Expansion Module

Order No.: MX-ExtIO

The device, which is suitable both for on-wall and in-wall installations, contains a powerful speaker, microphone, infrared motion sensor, ambient temperature sensor, two input and two output contacts and two illuminated keys. It is ideal for door communication, elevators, access control systems, etc. The ExtIO is suitable for use as direct connection to the D15D via a MiniUSB cable (max. 5m), which can be ordered separately, or as a network con

nection via the PoE switch.

1.4.12 Mx2wire+ Media Converter

Order No.: MX-2wirePlus-Set-PW

The Mx2wire+ system allows an Ethernet network with PoE to be set up via two-wire cables, which saves users from having to lay several hundred meters of Ethernet cable. For example, an existing two-wire cable of an analog video camera can be reused to connect a high-resolution and modern IP network camera. Mx2wire+ is delivered in the standard wall outlet frame in dierent designs; however, it can also be used with the available on-wall socket that is included.

1.4.13 MiniUSB Cable To MiniUSB (Straight/Straight Or Straight/Angled)

Order No.: MX-CBL-MU-STR-05/2/5 (Straight/Straight) Order No.: MX-CBL-MU-EN-STR-05/2/5 (Straight/Angled)

With this cable, which is up to ﬁve meters long, MOBOTIX add-on modules (MX-232-IO-Box, ExtIO, CamIO) can be connected directly to the D15D.

1.4.14 MiniUSB Cable To USBA Socket

Order No.: MX-CBL-MU-STR-AB-05/2/5

USB-based storage media (for example, USB hard drives) can be connected directly to the D15D with this cable, which is up to ﬁve meters long.

Page 40

40/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.5 MOBOTIX Sof tware

1.5.1 Integrated Camera Sof tware (Firmware)

MOBOTIX cameras and connected MxBus modules operate with built-in ﬁrmware whose functions are accessed by the MOBOTIX MxControlCenter, MxEasy remote stations and MOBOTIX App.

The D15D models therefore also feature a variety of functions that are integrated in the ﬁrmware: from motion detection and long-term storage right through to alarm notiﬁcation via video IP telephony. The virtual PTZ functions allow you to continuously zoom into or out of a MOBOTIX camera image using either the mouse wheel or a joystick.

When recording image or video sequences, you can choose to store either the section of the live image that is visible or the full sensor image (full image storage). This also allows you to examine parts of an image or video that had not been visible in the live image section on display at the time of the recording.

Unlike in the camera systems from other manufacturers, there is no need to buy and install additional software on your computer thanks to the MOBOTIX ﬁrmware that can be accessed directly in a web browser via the camera IP address. Instead of using a web browser, you can also download the free MxControlCenter or MxEasy video management software from the MOBOTIX website (www.mobotix.com > Support) to quickly display multiple cameras on one monitor or on an entire video wall, switch alarms with sound or conveniently search for an event. The MOBOTIX App for iOS devices (iPhone, iPad, iPad mini, iPod touch, iOS 5.0 and higher) is also available free of charge from the App Store for your mobile applications.

Download free of charge from www.mobotix.com

No licensing fees Free updates

Page 41

41/124

MOBOTIX Software

www.mobotix.com • sales@mobotix.com

1.5.2 MxControlCenter

The MxControlCenter video management software can be used to combine any number of cameras at any locations into a well-structured and powerful video security system with centralized or local access-protected operation and analysis.

The state-of-the-art software, speciﬁcally tailored to support high-resolution MOBOTIX network cameras, provides a user-friendly user interface and camera image display, convenient video search functions, eective alarm handling, automatic camera integra

tion, video storage on ﬁle servers as well as useful conﬁguration and update wizards.

MxControlCenter– Professional Video Management

•

Proven worldwide in the most demanding video applications thousands of times over

• Unlimited number of users and cameras

• No license fees

• Individual user interface, adaptable to each individual user

• Simplest installation and complete use on any standard PC

• Convenient layout editor for integrating real building plans

• Integration of conventional network and analog cameras as well

• For Microsoft Windows

Several hundred cameras can be managed on

a standard computer

Download free of charge from www.mobotix.com

No licensing fees Free updates

Page 42

42/124

D15D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.5.3 MxEasy

MxEasy makes it simple to operate the most important functions of the camera thanks to its intuitive user interface and represents a new approach to viewing camera images and controlling MOBOTIX cameras. The clear design allows you to manage up to 16 cameras, and the application can show up to four cameras at the same time.

All settings selected in MxEasy (for example, virtual camera position, zoom, brightness, volume, microphone sensitivity, image storage, signal outputs) can be used immediately and are stored instantly in the conﬁguration of the corresponding camera. The calendar functions integrated in the Alarm Planner provide an innovative tool for the scheduled settings of one or more cameras. This tool not only controls video and sound recording based on certain time and date information, but also allows features like video motion detection, image brightness and the microphone to be activated/deactivated based on a date and time schedule.

MxEasy – Simple Operation Of The Most Important Camera Functions:

• Cameras can be installed without any knowledge of networks

• Supports up to 16 MOBOTIX cameras

• Time- or event-controlled recording

• Time-controlled motion detection, image brightness and microphone

• For Microsoft Windows and Mac OSX

Suitable for up to 16 MOBOTIX cameras

Download free of charge from www.mobotix.com

No licensing fees Free updates

Page 43

43/124

MOBOTIX Software

www.mobotix.com • sales@mobotix.com

1.5.4 MOBOTIX App

Premium solution: There for you whenever and wherever you need it, the MOBOTIX App

serves as the perfect remote mobile station that uses intelligent detailed solutions to increase security and convenience for users on a daily basis. The controls are optimized for use with touchscreen devices and feature three main views (Live, Player, Events), self-explanatory symbols, large software buttons, multifunctional sliders developed by MOBOTIX as well as simple gestures like swipe and tap, making it easy for newcomers and older users to work with professional security equipment. In addition, using mobile devices to operate the various functions such as door opening, activating the voice mailbox, switching the door bell o at night and switching a light on/o, creates added value in the form of greater convenience and security in every day life.

MOBOTIX App – Mobile Remote Station For MOBOTIX Cameras And Door Stations

• Bandwidth-optimized remote access via WLAN (WiFi) or the Internet

• Live images and recordings in the best MOBOTIX HiRes quality

• Two-way communication, door opening and video mailbox access

• Doorbell and alarm notiﬁcations, protection of privacy

• Convenient search functions, playback of external MxPEG videos

• Grouping of cameras and ﬁltering of events

• Free from the App Store for the iPad, iPad mini, iPhone and iPod Touch

Free download from the App Store

No licensing fees Free updates

Page 44

44/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2 MOUNTING

2.1 Overview Of Mounting Options

2.1.1 Mounting Indoor Cameras To A Ceiling Or Wall (Without Accessories)

In order to mount the MOBOTIX D15D to a ceiling or wall, you need to drill the holes for the ﬁxtures. Use the supplied drilling template (fold-out at the end of this manual) to mark the position for drilling the anchor holes and the holes through which the cables will be led later on. Remember to position the drilling template according to the direction of

the camera's PIR sensor.

Connecting The Camera Patch Cable To The Network Cable (For Example, Cat 5)

• Position the camera over the cable outlet.

• Connect the camera patch cable securely to the Ethernet cable, for example, using the MOBOTIX MX-Patch-Box.

• Use the correct screws to mount the camera housing to the wall or ceiling.

Preventing Condensation

When installing the camera, make sure that the PIR sensor is pointing downwards to allow condensation

to ﬂow freely through the openings in the outer shell (see diagram).

The Outdoor Wall Mount may have to be used, as the PIR sensor can be turned in any direction when installed horizontally (PIR is tilted diagonally down

wards).

PIR: passive infrared sensor

120°

R=75mm

45°

30°

2.80m/9.2ft

1.50m/4.9ft

2.90m/9.5ft

The folded drilling templates can be found at the end of the manual

Page 45

45/124

Overview Of Mounting Options

www.mobotix.com • sales@mobotix.com

Special Case: D15D-Pano Mounted To A Wall Without The Wall Mount

The lens mount unit has to be rotated by 180° so that you do not get an upside down pan

orama image. For further information, see the end of

Section 2.3.1, «Mounting Lens Units»

Note

Make sure that the camera is always mounted on a

smooth surface

. Otherwise, the sealing lip on the underside of the housing will not be able to close tightly or will bend upwards, which leads to leaks between the outer shell and the housing.

2.1.2 Outdoor Installation On A Wall, Pole Or Corner (With Accessories)

The associated Outdoor Wall Mount can be used to mount the D15D outdoors. The camera is then compliant with the IP65 protection class (fully dustproof and resistant to water jets). Ambient temperatures may vary between –30 to +60°C/–22 to 140°F, making it the ideal camera for the most demanding weather situations. The drill holes must be prepared for the installation. Use the supplied drilling template to mark the position of the holes for the ﬁxtures and the holes through which the cables will be led later on (fold-out).

If you would like to mount the MOBOTIX D15D to the corner of a building or to a pole, you should consider using the MOBOTIX Corner And Pole Mount. This mount can only be used together with the Outdoor Wall Mount. The supplied stainless steel straps allow the mount to be attached to poles with diameters between 60 and 180mm.

The folded drilling templates can be found at the end of the manual

When printing, make sure that the drilling template is printed in its original size (is neither enlarged nor reduced in size)

Make sure that the arrows are pointing upwards when mounting

Page 46

46/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.2 Overview Of Network Connection

2.2.1 Power-Over-Ethernet (PoE Conforming To IEEE 802.3af)

All D15D models are supplied with power using the PoE standard. The PoE Adapter Set (MX-NPA-PoE-Set) may be used for smaller installations. For larger installations, we recommend investing in a PoE-capable supply device available on the market. For detailed information on power supply options and on connecting the D15D camera, please see

Section 2.7.1, «Notes On Cable Lengths And Power Supply»

and the following sections.

Caution

The maximum length of the network cable for power supply over an Ethernet cable is 100m.

Previous MOBOTIX network power accessories such as the NPA-Set, Power-Box

and Power-Rack (MX-NPA-Set, MX-NPR-4 and MX-NPR8/20) are not suitable for use with the D15D.

Note

The MOBOTIX D15D can also be powered by switches or routers that support the PoE (Power-over-Ethernet) standard and conform to IEEE802.3af.

Advantages of PoE power supply:

• Centralized backup power supply available via network

• Lower, more cost-eective power consumption

• Camera does not require an additional network connection

The D15D supports the Power-overEthernet standard IEEE 802.3af (PoE)

The PoE adapter replaces the crossover cable when directly connecting to a computer

PoE Adapter

MX-NPA-PoE

LAN or POWER PC or POWER

CAMERA

For the D15D, use the blue MX-NPA-PoE-Set

– previous MOBOTIX network power accessories such as the NPA-Set, Power-Box and Power-Rack (MX-NPASet, MX-NPR-4 and MX-NPR8/20) are not suitable for use with the D15D

Page 47

47/124

Overview Of Network Connection

www.mobotix.com • sales@mobotix.com

2.2.2 Uninterruptible Power Supplies (UPS)

In order to maintain a continuous power supply even when utility power fails, you should install an uninterruptible power supply (UPS). These devices also provide full protection against electrical surges and voltage ﬂuctuations and thus enhance the reliability of the system as a whole.

When using a more powerful 19" rack-mounted UPS, you can also protect all other network components (for example, switches, routers, PoE switches, etc.).

Since MOBOTIX cameras do not require any heating, even during winter, the average power consumption of less than ﬁvewatts is comparatively low. This, in turn, means that you can centralize the UPS-protected power supply by injecting power into the Ethernet cables (max. 100m). This kind of protected power supply can be used either with MOBOTIX PoE products (MX-NPA-PoE plus Universal Power Supply) or with PoE-compliant switches according to IEEE802.3af.

2.2.3 Preparing The Camera Connections, Wall Outlets

Once the camera position, the position of the cable connectors, and the method of power supply have been decided upon, the cabling can be installed. Before mounting the MOBOTIX D15D, you should make sure that the network connections have been properly tested, so that the proper functioning of the camera is guaranteed.

PoE switch

PC/server

Raid

USV

Page 48

48/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.2.4 Wiring, Fire Prevention, Lightning And Surge Protection

When installing the wiring inside or outside of buildings, make sure you always adhere to the relevant regulations on wiring, ﬁre prevention, and protection against lightning.

A range of measures are used to protect MOBOTIX cameras against the eects of small electrical surges. These measures, however, cannot prevent the camera from being dam

aged when stronger electrical surges occur. Particular care should be taken when installing the camera outside to ensure proper protection against lightning, as this also protects the building and the entire network infrastructure.

MOBOTIX recommends having its cameras installed only by certiﬁed specialists who are used to installing and operating network devices safely and who are familiar with the applicable regulations regarding lightning and ﬁre prevention as well as the current tech

nology for preventing damage from electrical surges.

Wiring

When installing the wiring, make sure to follow these guidelines:

• Data cable: Make sure you only use double-shielded Cat 5 or higher cables (S/STP) for Ethernet connections.

• Outdoors: Installing the camera outdoors requires special precautions and measures regarding the cables as well as lightning and surge protection.

• Wire lengths: The cable segments must not exceed the maximum allowed cable lengths in order to ensure proper data transfer.

• Avoiding induction: When running data cables parallel to existing regular power lines or high-voltage wires, make sure you observe the minimum distances to the power cables.

Fire Prevention

When installing the power lines to the camera, make sure you always adhere to the country-speciﬁc regulations (for example, VDE in Germany, IEEE in the U.S.) in eect on wiring and ﬁre prevention at the site of the installation.

Page 49

49/124

Overview Of Network Connection

www.mobotix.com • sales@mobotix.com

Lightning And Surge Protection

More information on preventing lightning or surge damage is available from organizations such as the International Electrotechnical Commission (www.iec.ch) or from the manufacturers of lightning and surge protectors.

Page 50

50/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.3 First Installation Steps

2.3.1 Mounting Lens Units

The standard models in the MOBOTIX D15D series are supplied with a pre-installed dome. Lens units (lens mount, image sensor and lens) are usually delivered separately. Lens units are installed as described below if this is the case.

The sensor cables to connect the image sensors are marked with

(right) and L (left). Depending on the type of sensor used, the sensors (mounted on the lens units) are marked either by the RGB icon (color) or the SW icon (BW, black & white).

The following combinations of sensor cables (L, R) and sensors (color, black and white) are possible:

Image sensor combination L sensor cable R sensor cable

Color/color

Black & white/color*

Black & white/black & white

Note

Make sure that you only use the combinations of image sensors and sensor cables listed in the table!

When setting up the camera, the installed combination of image sensors has to be set in the camera's web-based user interface. You can do so either automatically by running the Quick Installation (Admin Menu> Quick Installation) or manually by opening the Admin Menu> Image Sensor Conﬁguration dialog box.

RGB SW

*Lenses in DNight versions are shipped pre-installed on the special lens bridge

Possible image sensor combinations for the MOBOTIX D15D (Standard)

Page 51

51/124

First Installation Steps

www.mobotix.com • sales@mobotix.com

Remove the outer shell

: Remove the outer shell using the supplied custom tool. Insert the tip of the custom tool into the three small holes of the shell, one by one. Lift the outer shell to loosen it from the ﬁxtures.

Remove the dome

: Pick up the dome using the supplied plastic foil or a cotton cloth and remove it by turning it counterclockwise.

Insert the lens units and mount the central lens screw

: Remove the center lock screw and the washer. Insert the lens units into the seatings. Insert the lock screw with a washer into the center of the camera and gently tighten it to hold the lens units in place.

Note

Touch the mount of the lens units only. Always avoid direct contact with the switches on the green circuit board (ESD) in order to prevent damage arising now or later and to avoid reducing the service life.

Remove the lens cover on the image sensors

: Press

the two bars on the side of each lens cover (red arrow) and remove the covers one after another in the direction of the gray arrow.

Use the supplied custom tool

Max. tightening torque of the lock screw: 1 to 1.2 Nm

Page 52

52/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

5. Connect

the sensor cable to the lens mount

Connect the R and L sensor cables with the image sensors in accordance with the table.

Example

: In the case of a D15D-DNight (color/black and white), the R sensor cable must always be connected to the lens mount marked with RGB, while the L sensor cable must always be connected to the lens mount marked SW.

Note

Never pull the sensor cable forcefully! To remove it, ﬁrst disconnect the plug by pressing lightly on the notch (1) and then carefully pull it upwards (2).

Always avoid direct contact with the switches on the green circuit board (ESD) in order to prevent damage arising now or later and to avoid reducing the service life.

Insert the sensor cable

: Insert the sensor cable

through the space in the circuit board. Make sure that the individual wires are gently curved and are not bent near the plug.

Place the lens cover on the image sensors

: Carefully

push the lens covers one after another in the direction of the gray arrow onto the plug until they click into place.

Align the image sensors and cable guide:

Align the image sensors so that the plugs of the sensor cable point towards the interior of the dome (see red marking in the ﬁgure). This will ensure the images appear in the correct position later on and not upside down. Make sure that the sensor cable is as straight as possible and ﬁx the cable in place using the corresponding guides.

RGB SW

Page 53

53/124

First Installation Steps

www.mobotix.com • sales@mobotix.com

Mount the dome

: Pick up the dome using the supplied plastic foil or a cotton cloth and screw the transparent dome in a clockwise direction onto the housing until the dome sits securely (but not too tightly) in the seal.

Make sure that the dome is not tilted and that it is securely ﬁtted to the seal on all sides.

10.

Attach the outer shell

: Hold the outer shell so that the round hole of the shell is positioned over the PIR sensor of the camera. Gently press the shell into the shell's seats in the camera housing. Old outer shells

(D10D, D12D) may no longer be used!

If the camera is mounted

on an outdoor ceiling

and is exposed

extreme conditions

, the three holes in the outer shell should

be sealed with commercial silicon in order to prevent water from entering the outer shell.

Special Case: D15D-Pano Mounted To A Wall Without The Wall Mount

The lens mount unit has to be rotated by 180° so that you do not get an upside-down camera image in the vertically mounted camera (PIR sensor points downwards, see

Section 2.1.1

• Loosen the two sensor cables from the clamping rails on both sides.

• Remove two Allen screws on both sides of the lens mount.

• Pick up the lens mount and rotate by 180 degrees. Do not tear or jam the cable in the process.

• Reposition and mount the lens mount.

Caution

Due to the associated environmental conditions, the sensor boards may be exposed to a relatively high temperature that is however harmless for camera functioning. Sensor boards should not be directly touched while the camera is running (let them cool down ﬁrst).

Make sure that the sensor cable is not damaged or disconnected when aiming the lens.

Page 54

54/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.3.2 Overview Of Cable Connections

The following cables can be used with the D15D:

•

MOBOTIXEthernet cable

: This MOBOTIX cable is pre-installed at delivery and is intended for direct connection to a network outlet. If the D15D is to be installed outdoors, the MOBOTIX MX-Patch-Box should be used (optional accessory).

•

MOBOTIX USB cable with MiniUSB connector

: This MOBOTIX cable

provides the required impermeability, even in adverse weather condi

tions, and thereby prevents corrosion of the connections.

•

Two-wire cables for MxBus modules

: These cables can be used to connect MOBOTIX modules. The wires of this cable are led along the bottom of the camera and then pushed through the sealing membranes and into the cable guides.

Caution

Only MOBOTIX cables

should be used

for the Ethernet and USB connection

ensure that the cable cover remains permanently sealed.

Ethernet

(network)

MiniUSB

Caution

Appliances with a maximum total power consumption of four watts may be connected to the MxBus connector

and

USB connector

if power is supplied to the

camera using PoE class 3

. If

PoE Class2

is used,

the power consumption of all

the connected appliances should not exceed one watt.

For information on changing the PoE class, see

Section 2.7.5, «Variable PoE»

MxBus

MiniUSB

Ethernet

Connection of additional devices with more than 1 W (via MxBus/USB): Max. ambient temperature +50°C/+122°F

Page 55

55/124

First Installation Steps

www.mobotix.com • sales@mobotix.com

2.3.3 Connecting The Ethernet Cable With The MX-Patch-Box

The

MX-Patch-Box

enables you to connect a MOBOTIX camera

with a

patch cable

or with an

Ethernet installation cable

simply and watertightly for the following cases:

•

Outdoor installation (preferably using the

Outdoor Wall

Mount

)

• Indoor installation with Ethernet installation cable

For more information on the MX-Patch-Box, please visit

www.mobotix.com and go to the

Products> Accessories

> Interface Boxes

section.

2.3.4 Connecting The MiniUSB Cable

Existing additional modules like the MOBOTIX ExtIO (USB) can be connected via the MiniUSB connector.

Remove the outer shell

: Remove the outer shell using the supplied custom tool. Insert the tip of the custom tool into the three small holes of the shell, one by one. Lift the outer shell to loosen it from the ﬁxtures.

Remove cable cover

: Remove the two M4x25 Allen screws from the cable cover using the 3-mm Allen wrench.

Remove cable cover

: Remove the two M4x25 Allen screws from the cable cover using the 3-mm Allen wrench.

Remove rubber plug

: Carefully bend the cable guide upwards and remove the rubber plug. Keep the rubber plug in a safe place (ideally in the camera’s original packaging).

Use the supplied custom tool

Page 56

56/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

Insert USB cable

: Insert the MOBOTIX USB cable from below through the cable outlet (see ﬁgure) and wrap it around the camera within the cable guides.

Plug in the USB connector

: Insert the MiniUSB connector in the appropriate socket. Make sure that the cable is correctly ﬁtted into the cable guides and that there is no excess cable in front of the connections.

Place the USB cable in the cable guides

: Carefully bend the cable guides upwards, place the USB cable in the guides and snap the cable guides closed again.

Check the position of the cables

: The two cables should now cross one another just before the connectors.

Install cable cover

: Push the cable cover back into its seat and fasten the two M4x25 Allen screws. When mounting the cable cover, take care to properly align the cover with the seal of the camera housing and the two cable guides. This is the only way to ensure that the connections are reliably protected against any kind of weather.

Page 57

57/124

First Installation Steps

www.mobotix.com • sales@mobotix.com

10.

Secure the cable

: Properly lead the cable through the cable guides at the outer rim of the housing and make sure that the outer shell can be properly mounted later on.

11.

Attach the outer shell

: Hold the outer shell so that the round hole of the shell is positioned over the PIR sensor of the camera. Gently press the shell into the shell’s seats in the camera housing. Old outer shells

(D10D, D12D) may no longer be used!

2.3.5 Connecting MxBus Modules

The MxBus connection of the camera is located under the cable cover and enables additional modules to be operated to extend the functions of the camera. MxBus was optimized speciﬁcally for the use of existing two-wire cables.

The white (detachable) MxBus connector has four connec

tions (each of which is blue/red or +/-):

•

2 MxBus inputs to connect the D15D to the MxBus cable

• 2 MxBus outputs to connect an MxBus module to the D15D

Notes

The MxBus wires that are to be stripped at the end should ideally be inserted into the camera before installation. In the process, every wire (coming from the housing ﬂoor) should be pushed through an elastic sealing membrane.

Do not mix up the polarity of the cables during installa

tion. Select a consistent cable color for +/- in the entire MxBus system (for example, red = +, blue = -).

After an MxBus module has been connected, the MxBus itself must be started in the camera's web-based user interface (if this has not been done yet) as well as the actual module (Admin Menu> Manage Hardware Expansions or MxBus Modules).

You are free to choose the position of the cable for the MxBus

connector’s inputs and

outputs (left or right)

Page 58

58/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.3.6 Replacing The MicroSD Card

If the supplied 4 GB MicroSD card is to be replaced (for example, with a 64 GB MicroSD card), it is best to do so

before

the camera is installed. The cards should only be replaced

when the camera is disconnected from the power supply.

Remove the outer shell

: Remove the outer shell using the supplied custom tool. Insert the tip of the custom tool into the three small holes of the shell, one by one. Lift the outer shell to loosen it from the ﬁxtures.

Remove cable cover

: Remove the two M4x25 Allen screws from the cable cover using the 3-mm Allen wrench.

Remove cable cover

: If you are unable to do so by hand, press a suitable tool (screwdriver) into the notches provided for this purpose (red arrows). Carefully lift the cover upwards in the direction of the dome.

Remove the MicroSD card

: Carefully press the MicroSD card into the mount until you hear a click. The card now protrudes from its seat and can be removed (tweezers may be used to facilitate removal).

Use the supplied custom tool

Push-push: Push the MicroSD card in, then pull it out

Click

Page 59

59/124

First Installation Steps

www.mobotix.com • sales@mobotix.com

Insert the MicroSD card

: Push the MicroSD card as shown (electrical contacts pointing toward the dome) into the card slot using a tweezers. Make sure that you hear a click when the card is inserted. The card is now locked and can be used. If a new MicroSD card is used, it must be formatted before use (see

Section 3, «Operating The Camera»

Install cable cover

: Push the cable cover back into its seat and fasten the two M4x25 Allen screws. When mounting the cable cover, take care to prop

erly align the cover with the seal of the camera housing and the two cable guides. This is the only way to ensure that the connections are reliably protected against any kind of weather.

Attach the outer shell

: Hold the outer shell so that the round hole of the shell is positioned over the PIR sensor of the camera. Gently press the shell into the shell's seats in the camera housing. Old outer shells

(D10D, D12D) may no longer be used!

Click

Max. tightening torque of the Allen screws: 1 to 1.2 Nm

Page 60

60/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.4 Mounting The Camera With Outdoor Wall Mount

2.4.1 Aiming The Passive Infrared Sensor (PIR)

When mounting the camera, make sure that the PIR sensor points into the direction where it is most useful. The PIR sensor has a range of approximately 10m and a detection angle of approximately ±15 degrees.

The positions that are available depend on how high the MOBOTIX D15D has been mounted and the alignment of the camera on the bottom plate, which can be completed in 15° increments.

Hint: It may be useful to mark the ideal position of the PIR sensor on the bottom plate with a pencil.

1.50m/4.9ft

2.90m/9.5ft

2.80m/9.2ft

30°

45°

PIR data: range approx.

10 m, eld of view +/-15°

Page 61

61/124

Mounting The Camera With Outdoor Wall Mount

www.mobotix.com • sales@mobotix.com

2.4.2 Mounting The Outdoor Wall Mount

Ideally, the Outdoor Wall Mount is mounted over the tested wall outlet that provides the connections (network, Power-over-Ethernet) to the camera.

MX-Patch-Box or wall outlet

D15D Outdoor Wall Mount

MOBOTIX Ethernet patch cable (1 m)

D15D

In-wall socket

Mounting the Outdoor Wall Mount over the MX-Patch-Box or a socket

293

9037

160

MOBOTIX interface boxes (here: the

MX-Patch-Box) also t

in the 90 x 90 mm space

Page 62

62/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

Use the supplied drilling template (fold-out at the end of this manual) to mark the position for drilling the anchor holes and the holes through which the cables will be led later on. Make sure that it is not scaled down when printing or copying the drilling template.

1. Use the supplied screw anchors (10 mm), screws (8x70 mm) and washers (diam. 9 mm) to secure the Outdoor Wall Mount.

2. Attach the supplied wall sealing to the rear side of the wall mount. If the Outdoor Wall Mount is mounted to a very rough surface, the top of it should be subsequently sealed against the wall using silicon.

The rectangular opening on the rear of the wall mount is intended to cover the installed in-wall socket or a MOBOTIX interface box.

The folded drilling templates can be found at the end of the manual

Make sure that the drilling template is not scaled down when printing

Silicon for rough plaster

Page 63

63/124

Mounting The Camera With Outdoor Wall Mount

www.mobotix.com • sales@mobotix.com

2.4.3 Aiming The Camera

The camera can be installed once the Outdoor Wall Mount has been mounted to the wall or pole. The bottom plate closes o the outdoor wall mount from below and also holds the camera.

The upper side of the bottom plate has 24 holes for the M4 stainless steel hex nuts. It is thus possible to mount the camera in increments of 15 degrees. All holes have been numbered from 1 to 8 in order to facilitate the mounting process.

Three standard positions to aim the camera are described below:

1. PIR sensor of the camera looks straight ahead: Only use the holes numbered with 1 for the M4 hex nuts.

2. PIR sensor of the camera looks to the right: Only use the holes numbered with 3 for the M4 hex nuts.

PIR sensor of the camera looks to the left: Only use the holes numbered with 7 for the M4 hex nuts.

The bottom plate closes off the Outdoor Wall Mount from below and also holds the camera

PIR looking straight ahead: 1

PIR looking to the right: 3

PIR looking to the left: 7

Page 64

64/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.4.4 Connecting The Camera With Bottom Plate

To mount the camera to the bottom plate, use three of the supplied M4x25mm Allen screws, three washers (diam. 4.3mm) and the corresponding hex nuts.

Caution

When fastening the Allen screws using the 3mm Allen wrench, make sure that you do not scratch the camera dome!

1. Exchange the Ethernet patch cable for the extension patch cable (1m) supplied with the wall mount. Guide the connection cables of the camera from below (smooth side) through the round opening of the bottom plate.

2. Position the camera on the underside of the bottom plate so that the PIR sensor points in the desired direction and the hole in the housing to the right of the PIR sensor is situated above a hole in the bottom plate.

3. Insert the ﬁrst M4 hex nut into the corresponding hole of the bottom plate. Then use one M4x25 Allen screw and a washer (diam. 4.3mm) and

lightly

fasten the

screw.

Turn the bottom plate over and identify the number of the hole that has just been screwed in (example: PIR is pointing ahead > Hole has the number 1). Insert the remaining M4 hex nuts into the other holes with the same number (1, in this case) and use the two other M4x25 Allen screws with the washers to mount the camera to the bottom plate.

Mount the camera housing to the bottom plate before mounting the bottom plate itself

PIR sensor of the camera looks straight ahead: Position 1

Page 65

65/124

Mounting The Camera With Outdoor Wall Mount

www.mobotix.com • sales@mobotix.com

5. Make sure that you have properly fastened the three M4x25 Allen screws.

2.4.5 Connecting And Securing The Camera

1. Plug the camera connection cables into the appropriate wall outlets or adapters.

2. Insert the (straight) wall side of the bottom plate into the back of the wall mount as shown in the ﬁgure.

3. Push the front of the bottom plate upwards.

4. Mount the bottom plate to the wall mount (eight M4x10 Allen screws) and make sure the screws are all properly fastened.

Mounting the camera on the bottom plate

Pushing the bottom plate into the Outdoor Wall Mount

Push into slots

Max. torque for all Allen screws: 4 Nm

Page 66

66/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.5 Mounting The Corner And Pole Mount

2.5.1 Overview

If you want to mount the MOBOTIX D15D to the corner of a building or to a pole, you should consider using the MOBOTIX Corner and Pole Mount. This mount is designed as an additional mounting option for the Outdoor Wall Mount. The supplied stainless steel straps allow the mount to be attached to poles with diameters between 60 and 180mm.

By design, the Corner and Pole Mount does not allow the use of an in-wall socket for the camera cabling (recommendation: MX-Patch-Box).

Like the Outdoor Wall Mount, the Corner and Pole Mount is made from 3-mm white powder-coated stainless steel and is just as robust and maintenance-free.

Mounted to a corner

Mounted to a pole

Page 67

67/124

Mounting The Corner And Pole Mount

www.mobotix.com • sales@mobotix.com

2.5.2 Mounting To The Corner Of A Building

Use the supplied screw anchors, screws and washers to ax the Corner and Pole Mount to a building corner.

1. Mark the four screw anchor holes on the corner of the building. Make sure that the arrows on the mount are pointing upwards. Drill the holes with a 10-mm drill bit.

2. Guide the connection cables through one of the large round holes at the back of the Corner and Pole Mount and then through one of the two 16-mm holes on the front of the mount. In order to properly protect the cabling, you should let the cabling run from the inside of the building through the Corner and Pole Mount directly into the camera. Note: The cable to the camera

should be at least 80cm from the corner!

3. Insert the supplied 10-mm screw anchors into the screw anchor holes and secure the Corner and Pole Mount to the corner of the building using the 8x70 screws and washers (diam. 9 mm).

Attach the Outdoor Wall Mount to the Corner and Pole Mount as described in

Section 2.5.4,

«Mounting The Outdoor Wall Mount»

Make sure that the arrows are pointing upwards when mounting

Make sure not to pinch and damage the cables when mounting

Page 68

68/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.5.3 Mounting To A Pole

Use the stainless steel straps supplied to ax the Corner and Pole Mount to a pole.

1. Guide the stainless steel straps through the holes in the pole mount (see ﬁgure). Make sure that you are using the slots of the mount that best ﬁt for the thickness of the pole. The stainless steel straps allow the mount to be attached to poles with diameters between 60 and 180mm.

2. Guide the connection cables from behind through one of the large round holes of the Corner and Pole Mount. In order to properly protect the cabling, you should let the cabling run from the pole through the Corner and Pole Mount directly into the camera. Note:

The cable length from the pole should be at least 80cm!

Firmly tighten the screws of the stainless steel straps. If required, trim the ends of the stain-

less steel straps.

Pole diameter: 60 to 180 mm

Available soon: Corner and Pole Mount with pre-drilled holes for the MX-Patch-Box

Page 69

69/124

Mounting The Corner And Pole Mount

www.mobotix.com • sales@mobotix.com

2.5.4 Mounting The Outdoor Wall Mount

Use the stainless steel screws, washers and hex nuts supplied with the Corner and Pole Mount to ax the Outdoor Wall Mount to the installed Corner and Pole Mount.

1. Lead the cables through the appropriate hole on the back of the Outdoor Wall Mount.

Use the M8x30 Allen screws, washers (diam. 9 mm) and M8 hex nuts supplied with the Corner and Pole Mount to attach the Outdoor Wall Mount to the Corner and Pole Mount.

Mount the camera to the Outdoor Wall Mount as described in

Section 2.4.3, «Aiming

The Camera»

and the following sections.

Page 70

70/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.6 Adjusting The Lens

Make sure that you see the live image of the camera on the monitor of your computer or laptop. Now adjust the lenses one by one until you see the desired image area on your monitor:

• Remove the camera dome using a lint-free cotton cloth.

• Release the lock ring of the lens, adjust the image sharpness and tighten the lock ring again. Never turn the lens too far or with force

to avoid damaging the lens mount.

• Mount the dome again using a soft cotton cloth.

Notes

The focusing aid provides a visual aid when setting the image sharpness of a MOBOTIX camera lens (see the

The Focusing Aid Of The Camera

section on the

The Live View

Of The MOBOTIX Camera

page in the camera online help).

Image focus: Due to the lens eect of the dome, the focus of the 135mm telephoto lens shifts slightly once the dome has been mounted. Before mounting the dome, rotate the telephoto lens by about 90° in a counterclockwise direction (against the direction in which the lens is screwed). Make sure that you check the focus of the live image with the dome installed and readjust the lens, if required.

We do not recommend (even) aligning the telephoto lens horizontally due to the image distortions that occur in the top part of the dome for technical reasons.

Lock ring secures lenses against vibrations

90°

Page 71

71/124

Network And Power Connection

www.mobotix.com • sales@mobotix.com

2.7 Network And Power Connection

2.7.1 Notes On Cable Lengths And Power Supply

• Power may only be supplied to the camera via its Ethernet connector. We recommend using a MOBOTIX PoE adapter or other similar high-quality PoE product to loop-in the power supply:

– One camera: with the PoE adapter (MX-NPA-PoE)

– Multiple cameras: with PoE products conforming to IEEE 802.3af (PoE switch)

• The maximum length of the network cable for power supply over an Ethernet cable is 100m.

• Make sure that you only use switches or routers that support the 10/100 Mbps Ethernet interface of the camera. Check the LED activity of the corresponding port at the switch or router.

•

We highly recommend using uninterruptible power supplies (UPS) to provide backup power.

• If you are using IEEE 802.3af or IEEE 802.3at ("PoE+") Power-over-Ethernet network components to supply power to your MOBOTIX cameras, make sure, if possible, that these components do not have a fan. As the power consumption of MOBOTIX cameras is very low compared to other products, the reliability of the entire system is increased, thus extending the life of the components.

2.7.2 Power Supply With Power-Over-Ethernet Products

Connect the factory pre-installed cable of the camera to the Ethernet connector of the PoE switch/router. The switch/router must support the

IEEE 802.3af

IEEE 802.3at ("PoE+")

PoE standard as a minimum.

The IP addresses in the diagram are shown only as an example

PC (10.8.0.11/255.0.0.0)

Camera (10.8.0.99)

PoE/PoE+ Switch/

router

LAN/www

Page 72

72/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.7.3 Power Supply Using A Switch

1. Connect the factory pre-installed cable of the camera to the camera connector of the PoE adapter.

2. Connect the LAN/Power connector of the PoE adapter to the Ethernet connector of the switch/router or the Ethernet socket.

3. Plug the RJ45 connector of the power supply unit into the PC/Power connector of the PoE adapter.

The IP addresses in the diagram are shown only as an example

Switch/router

PoE adapter

(MX-NPA-PoE)

Power supply unit

LAN/www

PC (10.8.0.11/255.0.0.0) Camera (10.8.0.99)

LAN/Power

PC/Power

Camera

RJ45

For the D15D you should use the blue MX-NPAPoE-Set or the MX-NPABox – previous MOBOTIX

network power accessories, such as the NPA-Set, Power-Box and Power-Rack (MX-NPASet, MX-NPR-4 and MX-NPR8/20) are not suitable for use with the D15D.

Page 73

73/124

Network And Power Connection

www.mobotix.com • sales@mobotix.com

2.7.4 Power Supply When Connected Directly To A Computer

1. Connect the factory pre-installed cable of the camera to the camera connector of the PoE adapter.

2. Connect the PC/Power connector of the PoE adapter to the Ethernet port of the computer.

3. Plug the RJ45 connector of the power supply unit into the LAN/Power connector of the PoE Adapter.

The IP addresses in the diagram are shown only as an example

For the D15D you should use the blue MX-NPA-PoE-Set or the MX-NPA-Box – previous

MOBOTIXnetwork power accessories, such as the NPA-Set, Power-Box and Power-Rack (MX-NPASet, MX-NPR-4 and MX-NPR8/20) are not suitable for use with the D15D.

PoE adapter

(MX-NPA-PoE)

PC (10.8.0.11/255.0.0.0)

Camera (10.8.0.99)

LAN/Power

PC/Power

Camera

RJ45

Page 74

74/124

D15D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.7.5 Variable PoE

The power consumption of the camera depends on the functions in use as well as any peripheral devices connected (see table). PoE classes 1, 2 or 3 may be selected in the web-based user interface in order to optimally adjust the camera to your system design (PoE switch in use, emergency power concept, etc.).

PoE Power Level Classes (IEEE802.3af standard)

Class Max. power consumption Camera operating mode and peripheral devices

1 0.44W–3.84W

LowPower mode; no peripheral devices (available soon)

2 3.84W–6.49W Normal mode; max. 1W for MxBus peripheral devices

3 6.49W–12.95W

FullPower mode; max. 2.5W for MxBus peripheral devices (for example, MX-GPS-Box and MX-232-IO-Box to MxBus), max. 4W for peripheral devices to MxBus and USB inter

face

Caution

If the total power consumption of the camera and peripheral devices exceeds the power provided by the PoE switch for the speciﬁed class, the switch can disconnect the camera from the power supply.

In this case, the camera will only be accessible again once the peripheral devices have been disconnected from the camera and the camera has been restarted.

The PoE class that has been set is usually ﬁne and nothing needs to be changed. However, if your application requires a lower or a higher power class, you must change this in the browser:

1. Select Admin Menu > Network Setup> Ethernet Interface.

2. Click on Change under Power Supply.

3. A Power Wizard will appear to guide you through the PoE con

ﬁguration steps.

4. Next, restart the camera: Disconnect the camera from the power supply. Then reconnect it, for example, by disconnecting and then reconnecting the Ethernet cable at the PoE switch.

Variable PoE: Multiple cameras can be operated simultaneously from the same switch

Page 75

75/124

Network And Power Connection

www.mobotix.com • sales@mobotix.com

2.7.6 Camera Startup Sequence

As soon as the power supply has been established, LEDs 2 and 4 will show the progress of the startup sequence:

• Hardware test: After the power supply has been connected, LEDs 2 and 4 will light up for about two seconds. The camera's computer checks the camera hardware.

• Backup system test: The camera checks the operating system. In case of an error, the camera will start using the backup operating system, allowing you to reinstall the system software.

•

Unpacking the OS: The camera unpacks the operating system from the ﬂash EPROM and copies it to the camera’s memory (LEDs 2 and 4 light up for about ten seconds). Starting the OS: The Linux operating system unpacks its data to the RAM disk and initializes the system.

• Boot mode (factory IP address/DHCP): If the magnetic side of the supplied custom tool is pressed to the spot marked L, the camera starts either using its factory default IP address (all LEDs ﬂash) or with DHCP (all LEDs light up). (Please also see

Section 3.2.5

and

Section 3.2.6

in this manual.) The ﬂashing patterns only appear in the case of

a hardware reboot, that is, after the power supply has been interrupted.

• Starting the applications: Once the application software has started, LED 1 will light up continuously (if it has not been switched o for this conﬁguration). You can now access the camera using your browser.

Note

During the startup sequence of the camera, the LEDs will always light up, even if they have been deactivated in Admin Menu> LED Setup.

Page 76

76/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3 OPERATING THE CAMERA

3.1 Manual And Automatic Operation – Overview

MOBOTIX cameras do not require any extra software. Thus, you can set up and operate the MOBOTIX camera using a JavaScript-enabled browser on all common operating systems (such as Windows, Linux, Apple, etc.). As an alternative, you can also use the MOBOTIX applications MxControlCenter and MxEasy. Follow these steps to set up the camera:

1. Connect the camera to the network. Power is supplied directly via the Ethernet cable (see

Section 2.7, «Network And Power Connection»

2. Set up the camera's network parameters:

– Manually using a web browser (see

Section 3.2.1

)

– Automatically using MxControlCenter/MxEasy (see

Section 3.2.3

and

Section 3.2.4

) or via DHCP (see

Section 3.2.6

)

3. Conﬁgure the camera using the web-based user interface, MxControlCenter or MxEasy.

Every MOBOTIX camera comes preconﬁgured with a static IP address in the 10.x.x.x range (for example, 10.8.0.99). However, local computer networks usually have IP addresses in the 172 or 192 ranges. MOBOTIX cameras must therefore also be given an IP address in this address range to ensure that they can be accessed via the network. You can set

up the network parameters of a MOBOTIX camera using one of the following methods: Manually, using MxCC and MxEasy or by DHCP.

Camera software in the browser

MxEasy and the MxControlCenter control room software are available for free download from www.mobotix.com

Page 77

77/124

Manual And Automatic Operation – Overview

www.mobotix.com • sales@mobotix.com

3.1.1 Manually Using A Computer In The 10.x.x.x IP Address Range

You can set up the camera's network parameters using a browser and the embedded camera software. To do so, connect the camera to a computer or network that is using a

10.x.x.x IP address range (see

Section 3.2.1, «Manually Setting Up The Network Parameters

In A Browser»

). Afterwards, you can enter the camera's default IP address in the browser's

address bar on your computer (see

Section 3.2.2, «First Images And The Most Important Settings In The Browser»

). Next, click on the Admin Menu button to open the camera's Quick Installation in the browser's user interface. This is where you can conﬁgure the desired network parameters of the camera. Once you have completed the Quick Installation, you can connect the camera with its new network parameters to the desired network.

Beneﬁts

– The camera does not

need to be physically accessible, that is, it can remain mounted to a pole, for example.

– No additional software is required.

– The network parameters can be set ﬂexibly through manual entry.

Disadvantages

– The computer or the network needs to operate in the 10.x.x.x IP address range

or need to be able to access such a network.

– The setup does not work automatically.

– You need to know the relevant network parameters.

The default IP address of your camera is printed on a sticker on the back of the camera

Page 78

78/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.1.2 Automatically Using MxControlCenter Or MxEasy

You can set up the camera's network parameters using the free video management software MxControlCenter or MxEasy (see

Section 3.2.3

and

Section 3.2.4

). You can also use one of these applications to automatically conﬁgure the network parameters of a MOBOTIX camera that is not operating in the same IP address range as the computer.

Beneﬁts

– You can connect the camera directly to the target network.

– The camera does not need to be physically accessible, that is, it can remain

mounted to a pole, for example.

– The camera can be conﬁgured to automatically receive an IP address (optional).

– The network parameters can be manually set (optional).

– You do not need to access the camera software.

Requirement

– Either MxControlCenter or MxEasy must be installed on the computer.

MxControlCenter control room software (free download from www.mobotix.com)

MxEasy (free download fromwww.mobotix.com)

Page 79

79/124

Manual And Automatic Operation – Overview

www.mobotix.com • sales@mobotix.com

3.1.3 Automatically Using DHCP

The camera can automatically obtain its network parameters using DHCP (Dynamic Host Conﬁguration Protocol). This requires the network to have a functioning DHCP server (for example, a DSL router with activated DHCP server) and the camera must be booted using DHCP (see

Section 3.2.6, «Starting The Camera With An Automatic IP Address (DHCP)»

). The IP address automatically assigned by the DHCP server will be announced via the camera speaker as soon as the camera has booted successfully.

Beneﬁts

– You can connect the camera directly to the target network.

– Network parameters are automatically assigned.

– No additional software is required.

– You do not need to access the camera software.

Disadvantages

– The camera needs to be physically accessible as you need to press a key on the

camera housing to boot it using DHCP.

– Requires a running DHCP server on the network.

Page 80

80/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.2 First Images And The Most Important Settings

Once the MOBOTIX camera has been connected to the network, you need to set up the camera's network interface accordingly. This step involves setting up and checking the network parameters of the camera. If your network is already using an IP address in the

10.x.x.x range with a 255.0.0.0 network mask, you do not need to change the camera's network parameters. You can access the camera directly (see

Section 3.2.2

). If your network or computer does not use an IP address in the 10.x.x.x range (for example, in the 192 or 172 ranges), you should follow one of the following methods for changing the camera's network parameters:

• Manual setup in the browser (

Section 3.2.1

)

•

Automatic setup using MxControlCenter or MxEasy (

Section 3.2.3

and

Section 3.2.4

)

Note

We will use a camera with the factory address 10.8.0.99 in the following examples. Replace this IP address with the IP address of your camera. You will ﬁnd the IP address of your camera on a small sticker on the camera. Make sure that the IP addresses used in the following examples are not already being used by other devices in the network.

3.2.1 Manually Setting Up The Network Parameters In A Browser

You need a computer that is using a 10.x.x.x IP address in order to manually set up the network parameters of the MOBOTIX camera. The computer's network parameters usually have to be changed for this purpose.

1. Change the network parameters of your computer:

Windows (XP, Vista and 7):

1. Open

Start > Settings > Control Panel > Network

Connections

. Clicking Properties opens the dialog box

shown.

2. Double-click Internet Protocol (TCP/IP). On the General tab, activate the

Use the following IP address

option. Enter an IP address in the 10.x.x.x range in this ﬁeld (for example, 10.8.0.1 1 ).

Once all dialog boxes have been closed, the computer will have the IP address 10.8.0.11 .

Pressing the "L" key with the magnetic side of the custom tool will prompt the camera to announce its current IP address on the camera

speaker (see the gure

Section 2.7.6, «Camera

Startup Sequence»

)

Entry in "Subnet mask" eld:

255.0.0.0

Page 81

81/124

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

Linux/Unix:

1. Open a terminal as root user.

2. Enter the following command: ifcong eth0:1 10.8.0.11

3. The computer is now also using the IP address 10.8.0.11

Mac OSX:

1. Open

System Properties > Network.

2. Select Ethernet. In the Conﬁguration ﬁeld, select Manual and enter a 10.x.x.x IP address (for example,

10.8.0.11 ).

Click Apply on the bottom right-hand side of the dialog box to assign the computer the IP address 10.8.0.1 1 .

2. Set up the target network parameters of the MOBOTIX camera:

Open a web browser on the computer and enter the default IP address of the MOBOTIX camera in the address bar of the browser (for example, 10.8.0.99). Clicking Enter displays the user interface of the MOBOTIX camera (see also

Section 3.2.2, «First

Images And The Most Important Settings In The Browser»

2. Click on the Admin Menu softbutton in the user interface of the MOBOTIX camera. The Quick Installation starts automatically once the

admin

user has logged on.

Note: The Quick Installation can also be executed at a later stage by opening

Admin

Menu > Network Setup > Quick Installation

(see also

Quick Installation

in the

Camera Software Manual Part 2

3. Enter the target network parameters of the camera on the appropriate page of the Quick Installation assistant.

Note: The network parameters can also be modi

ﬁed retrospectively via

Admin Menu > Network

Conﬁguration> Quick Installation.

4. Once you have completed the Quick Installation and rebooted the camera, the new network parameters will be activated. The camera can now be connected to the target network and, if required, further conﬁgured.

Default user data

User name: admin password: meinsm

Page 82

82/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.2.2 First Images And The Most Important Settings In The Browser

Once the MOBOTIX camera has been connected to the power supply and to the network, you can access the user interface with the live camera image in the web browser. Internet Explorer, Firefox, Safari or any other graphical browser with activated JavaScript is suitable. It does not matter which operating system is used.

After entering the camera's IP address in the address bar of the browser, you will see the live view of the MOBOTIX camera with its user interface controls such as softbuttons, but

tons for the dierent camera screens, pull-down menus (Quick Controls), icons for accessing the online help and the camera status and status information elements.

Note

Default access data for the Admin Menu

• Login name: admin

• Password: meinsm

Softbuttons

Camera views

Quick Controls

Camera status and help

Page 83

83/124

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

Camera Views: Live, Player, MultiView

The MOBOTIX camera automatically displays the Live screen when it starts up (factory default setting). You can set a dierent start page in Admin Menu> Language and Start Page (for example, the Guest screen) to allow a restricted access to the live image.

The other available standard screens include Player (playback of recorded images and video sequences) and the MultiView screen (displays several cameras with live or recorded images).

MultiView allows you to view several cameras via a "proxy" camera (especially useful if you want to access your cameras from outside of the network with reduced bandwidth) and the PDA mode provides a special screen for mobile devices.

Note

Click on the icon to view further information on the current camera screen in the online help of the camera's user interface.

Live view: http://<camera IP>/control/userimage.html

Player screen: http://<camera IP>/ control/player

MultiView screen: http://<camera IP>/ control/multiview

PDA screen: http://<camera IP>/pda

PDA event list: http://<camera IP>/control/ player?eventlist&pda

Guest screen: http://<camera IP>/ cgi-bin/guestimage.html

Page 84

84/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.2.3 First Images And Network Parameter Conﬁguration In MxControlCenter

Installation

Download the setup ﬁle from the MOBOTIX website to install the latest version. The latest versions are available at www.mobotix.com in the Support> Software Downloads> MxControlCenter section.

To install MxControlCenter, simply double-click the setup ﬁle and follow the instructions.

The selected ﬁles are copied to the computer (older versions will be removed automatically) and the shortcuts are created during the installation process (Desktop, Start Menu, etc.).

Caution

MxControlCenter will automatically attempt to ﬁnd all MOBOTIX cameras in the physically-connected network (that is, even a MOBOTIX camera with a factory IP address of 10.x.x.x ). Make sure that the ﬁrewall settings on your computer are low enough so that MxControlCenter is not blocked. If any MOBOTIX cameras are found, MxControlCenter can automatically reconﬁgure them so that they are avail

able in the current subnet of the computer. If you do not have permission to modify these settings on your computer, contact your system administrator for assistance.

Download MxControlCenter for free from

www.mobotix.com

Page 85

85/124

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

MOBOTIX– Searching And Displaying Cameras

Launch MxControlCenter after successful installation by double-clicking the shortcut that was created by the installer or the executable ﬁle MxCC.exe in the installation directory on your computer.

The Add Video Sources dialog box appears and the application automatically searches for MOBOTIX cameras in the local network when you launch the program for the ﬁrst time. Select Video Source> Add from the menu to perform a camera search at a later time.

If your MOBOTIX camera is properly connected, it should appear together with the exist

ing video sources in the following list:

Note

Video sources

in this context not only refer to cameras, but also to third-party IP cameras, ﬁle server paths, videos and analog cameras connected to (for example, analog dome cameras). These video sources are not found automatically and need to be added manually.

List of video sources

Legend Camera preview

Automated search for MOBOTIX cameras

Page 86

86/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

Cameras Are Found But Are Located In A Dierent Subnet

The symbols in the ﬁrst column and the legend in the dialog box indicate whether you can access a particular camera directly from the MxControlCenter, which is the case for all cameras designated with

(OK) . Cameras designated with (dierent subnet) are located in a dierent subnet. This usually applies to new cameras or cameras that have been reset to their factory settings.

Note

MxControlCenter ﬁnds all MOBOTIX cameras, even when the computer and the cameras are not located in the same subnet.

Once you have marked all of the desired video sources in the list with OK, you can now select the ones that you wish to display and manage in MxControlCenter. The live image is automatically displayed in the preview window when a camera is selected to help you identify the cameras.

For cameras marked with Dierent subnet or if you want to add additional video sources, follow the instructions in the following sections. You can also display the selected cameras directly in a layout. For more information, see section

«Creating A New Layout»

Reconﬁguring Cameras In A Dierent Subnet

If one or more MOBOTIX cameras are displayed with the status Dierent subnet (for example, cameras with a factory IP address), MxControlCenter automatically oers to conﬁgure the network settings of the cameras. In this case, the application displays the dialog box shown here after you have clicked on the "Add selected video sources" button. Click Yes to conﬁgure the cameras to the subnet of your computer.

A DHCP server automatically assigns IP addresses for network devices in most networks so that you can automatically select the default setting Get IP address automatically (DHCP) in the Conﬁgure selected cameras dialog box.

Page 87

87/124

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

Activate the Use this IP address/this range option if the IP address of a particular camera must be assigned manually (for networks with static IP addresses). Obtain the assigned IP address, subnet mask and standard gateway from your network administrator and enter the data. All you have to do is enter the range of IP addresses that includes the addresses of all of these cameras to reconﬁgure multiple cameras at the same time.

Make sure that the Store conﬁguration in the camera checkbox is selected. This setting ensures that the cameras are displayed with the correct network settings even after they have been rebooted. Click OK to close the dialog box.

Wait until MxControlCenter has changed the network settings and rebooted the cameras. The status of the reconﬁgured camera changes from

(Dierent subnet) to (OK).

Deﬁning Additional Video Sources

In addition to the MOBOTIX cameras that are found automatically, you can also manually add video sources to the list of video sources for MxControlCenter

• Camera: Here, you can enter the known IP address or DNS name of a MOBOTIX camera or a third-party IP camera if it was not found by the automatic search feature.

• MxPEG clip: Adds an MxPEG video clip previously recorded by a MOBOTIX camera as a video source.

• Recording path: Adds the path of an external ﬁle server where a MOBOTIX camera has recorded audio/video data. The videos or images recorded at that location can now be played back using the Player or Video Search.

Page 88

88/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

Editing The Video Source List

Right-click this list to open a shortcut menu from which you can select all video sources or cancel the selection. You can also use this method to remove from the list some or all of the video sources that you do not want to display or manage in MxControlCenter.

If you have cancelled the camera conﬁguration process or need a password that diers from the camera's factory default password, you can also conﬁgure the camera from the shortcut menu at a later date and enter the user name and password required for reconﬁguration at that time.

It is also possible to open the Conﬁgure selected cameras dialog box using the shortcut menu in order to change the camera network parameters.

Creating A New Layout

Select the camera or other video sources that you would like to display in a layout (a view with a group of selected cameras) in the Add video sources dialog box and then click Add selected video sources.

The Create new layout dialog box is displayed. If you select the Generate new grid for selected video sources option here, MxControlCenter automatically generates a grid layout that displays windows of the same size for all selected video sources. Give each layout a unique name (for example, Underground garage).

If you select the second option, the video sources you selected are simply integrated in the MxCC system where you can use them to generate a layout at a later time.

Click OK to conﬁrm your selection.

Page 89

89/124

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

3.2.4 First Images And Network Parameter Conﬁguration In MxEasy

Installing And Starting MxEasy

Download the current version of MxEasy from the MOBOTIX website (www.mobotix.com> Support> Sof tware Downloads in the MxEasy area). Double-click the shortcut for the

program or the program ﬁle.

Finding Cameras

When you start MxEasy for the ﬁrst time on a computer, the MxEasy Wizard automatically begins to search for MOBOTIX cameras and displays all the cameras found in a list. The camera list will be updated automatically as soon as new MOBOTIX cameras are con

nected to the local network or removed from the network.

MxEasy also automatically monitors and displays the operating status of all cameras. Cameras that are not on the same subnet as the computer will get a dierently colored symbol than the cameras that are on the same subnet. Likewise, the cameras that have an unknown password or for which no user name/password combination has been speciﬁed in MxEasy will be displayed in a dierent color. The following section contains information for cameras with the status Invalid network (for example, for all new MOBOTIX cameras with factory settings) and includes tips for conﬁguring the cameras for the "right" subnet.

Download MxEasy for free from www.mobotix.com

Page 90

90/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

Reconﬁguring Network Addresses Of Cameras

Using Bonjour*, MxEasy not only ﬁnds cameras on the same network as your computer, it also ﬁnds MOBOTIX cameras located in other subnets (status Invalid network). In such a case, you would not be able to establish any connection to cameras in a dierent network or subnet (without going into much further detail regarding TCP/IP network conﬁgurations). This is possible, for example, when a camera with a factory IP address is connected to a network in which a DHCP server automatically assigns the IP addresses. MxEasy can automatically conﬁgure such a camera so that it is "integrated" into your existing network. To do so, you only have to select the aected camera in the list and then click Continue.

After a security prompt, a new dialog box for conﬁguring the selected camera is displayed.

If your computer automatically obtains its IP address from a DHCP server, then this is certainly the best choice for that speciﬁc camera and most likely for all other cameras that have been found in a dierent subnet (Get IP address automatically option).

If you have assigned a static IP address to your computer, you will probably want to assign static IP addresses (issued by your system administrator) to every camera (the Use this IP address option). Normally, you enter the same conﬁguration used for the network settings of your computer.

When you click OK, the selected cameras are automatically reconﬁgured and they are located in the same subnet as the computer.

*Bonjour: automatic recognition of network services in IP networks

Page 91

91/124

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

Integrating And Displaying Cameras

After a camera has been reconﬁgured, it has the status Accessible and can be integrated into MxEasy. The MxEasy Assistant then displays the Deﬁne integration mode in MxEasy dialog box.

Here, you can jump directly to the main window of MxEasy with the current live camera image by activating the option Quick Start. However, some required detailed conﬁgura

tions may have to be made at a later time (for example, password protection, available bandwidth). For this reason, we recommend activating the option Complete integration and complete the remaining dialog boxes of the MxEasy Assistant until the main window appears.

For more information, see the MxEasy User Manual, which can be downloaded as a PDF ﬁle from the MOBOTIX website: www.mobotix.com> Support> Manuals.

Main window with dual image display of a D15D (telephoto lens and wide angle)

Page 92

92/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.2.5 Starting The Camera With The Factory IP Address

Under certain circumstances, you may have to reset the camera to its factory IP address. This could be the case, for example, if the IP address has been lost or the camera does not respond to the last known IP address.

1. If the camera is powered on, disconnect the power supply by unplugging the cor

responding cables and then reconnect the power supply.

2. After about ten seconds, the LEDs will light up and blink for about four seconds.

3. After they stop blinking (all LEDs light up continuously now), hold the magnetic

side of the custom tool over the spot above the microphone labeled L in the ﬁgure (the switch is inside the camera housing).

4. If you skip this step, disconnect the camera from the power supply and start from the beginning.

Release the custom tool after around 40 seconds when the camera emits a single sound ("boing").

Notes

If you use the camera's L key to load the factory network conﬁguration, this conﬁguration is not automatically saved in the camera's ﬂash memory. When the camera is next rebooted without using the L key, the last stored network conﬁguration will be used. To permanently store the new network conﬁguration in the camera's ﬂash memory, open Admin Menu> Store.

As opposed to resetting the camera using Admin Menu > Reset conﬁguration to factory defaults, the user information will not be reset if the camera is booted using the factory IP address.

Passwords and camera settings will not be changed

Users and passwords will not be reset!

Make sure you store the default network

conguration to the permanent ash memory

Page 93

93/124

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

3.2.6 Starting The Camera With An Automatic IP Address (DHCP)

If your network has a DHCP server, you can start the MOBOTIX camera with DHCP support. The camera automatically obtains an IP address from the DHCP server and announces the new network data. Note that if the speaker has been previously deactivated, the announcement will not be audible (Admin Menu > Microphone and Speaker).

1. If the camera is powered on, disconnect the power supply by unplugging the cor

responding cables and then reconnect the power supply.

2. After about ten seconds, the LEDs will light up and blink for about four seconds (ﬁrst blink), light up continuously and then blink again for about four seconds (second blink).

3. After they stop blinking for the second time (all LEDs light up continuously

again), hold the magnetic side of the custom tool over the spot above the microphone labeled L in the ﬁgure (the switch is inside the camera housing).

4. If you skip this step, disconnect the camera from the power supply and start from the beginning.

5. Release the custom tool after around 25 seconds when the camera emits a sound twice ("boing, boing"). The network data is announced shortly afterwards.

Notes

Starting the camera with an automatic IP address (DHCP) is only temporary. The network conﬁguration of the camera can be permanently set to DHCP under Admin Menu> Ethernet Interface.

Make sure that the network has a functioning DHCP server when starting the camera with DHCP support. If this is not the case, the camera cannot obtain a valid IP address and will use its last IP address.

You should also make sure that the cameras always obtain the same IP addresses by assigning the MAC addresses of the cameras to the desired IP addresses.

In case of an error, the camera uses its last IP address

Page 94

94/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.3 Virtual PTZ And Full Image Recording

3.3.1 Virtual PTZ

The virtual PTZ function allows you to use a mouse or joystick to continuously zoom in on images from the selected video source and "virtually" move the enlarged image section

within the entire image sensor area.

Operation Using The Mouse And Scroll Wheel

The vPTZ function of the D15D can be controlled in the browser using the mouse. This position becomes the new image center by clicking any position on the image displayed on the monitor. The image moves accordingly and the image distortion is automatically corrected. The scroll wheel can be used to control the zoom function. This functionality is disabled in the default settings of the camera and must therefore ﬁrst be activated. To do so, go to

Setup Menu> vPTZ Settings

, disable Lock Mouse Wheel Zoom, click Set and then Close to save your settings. You can now use the scroll wheel to zoom + (scroll forwards) or zoom - (scroll backwards).

Original image: Telephoto lens (left) and Wide-Angle lens (right) – simultaneously in one image

USB joystick offers greater ease of use

Page 95

95/124

Virtual PTZ And Full Image Recording

www.mobotix.com • sales@mobotix.com

Operation Using USB Joystick

A standard USB joystick can drastically improve vPTZ operation for the user – in the browser, in MxEasy, and in the MxControlCenter (however, MxCC is also equipped with a virtual joystick that can be operated using the mouse). Please ﬁrst install the joystick on the computer according to the manufacturer's instructions.

In order to use a USB joystick in the browser, make sure that you have a computer running a Windows operating system and the latest version of Internet Explorer and that the

"ActiveX" mode in the camera software (browser) is activated:

• Switch to Browser in the Quick Control.

• Under Browser, select the option ActiveX in the ﬁeld to the right. The USB joystick can then be used until the browser is closed.

•

To store the setting permanently, ActiveX must be activated in the

Admin Menu. To do so, use Language and Start Page in

the Admin Menu.

• Under the page options, select the ActiveX operating mode.

• Store the settings permanently in the camera by clicking Set and Close.

• The joystick can now be used.

Notes

You will ﬁnd more information and details on vPTZ in the Camera Software Manual

Part 2

Section 4.3.6 "Virtual PTZ"

, the MxEasy manual in

Section 2.4.1 "Activating

The PTZ Features"

and the MxControlCenter manual in

Section 2.4.6 "Using The

vPTZ Features"

and

Section 3.1.4 "PTZ Controls In The Sidebar Panel"

The latest versions of all the manuals are available for download from the MOBOTIX website www.mobotix.com under Support> Manuals.

Virtual joystick in MxControlCenter

Page 96

96/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.3.2 Full Image Recording

It is possible to record a full image, regardless of the live image stream that is being displayed. This ensures that the recording always contains the full image of the lens used, even though the operator may have used the vPTZ features to zoom into the image in order to examine a speciﬁc detail.

This means that you can use the vPTZ features in VGA resolution to pan, tilt and zoom in the live image while the camera is, for example, recording full images at 1fps in MEGA or QXGA resolution.

In MxEasy and MxControlCenter, the recorded full images may be prepared for the user with the vPTZ functions (for example, panning and zooming in on an image detail such as a doorway).

If full image recording is not activated, only the last displayed live image will be saved (save what is seen). The main beneﬁt of live image storage is to ensure that the full power of the camera processor is used for live image correction and maximum frame rates. The main advantage of full image recording lies in the special functionality of the D15D, in that it can always maintain availability of a maximum size (full) image for later investigation, despite vPTZ actions carried out on the live image. The mechanical limitations of motor-driven PTZ cameras mean that they simply cannot provide this unique advantage to the user!

Notes

Post-event search in the full image: If you are using full image recording on D15D

cameras, you should use at least MEGA resolution when storing. This will facilitate later searches in MxControlCenter or MxEasy. The advanced distortion correction features require this function to deliver satisfactory image quality.

Full image recording on: Due to the increased processing time, full image recording reduces the data rate of the live image stream, which may drop by around 10 to 30 percent. We therefore recommend reducing the frame rate for storage as much as possible to aect the live image stream as little as possible.

Full image recording o: The event that triggered a video motion (VideoMotion VM) window may not be in the recorded sequences while the window was not displayed at the time.

Stored full image: Original camera image without distortion or image correction

Live image Stored full image Analysis in the stored full image

Page 97

97/124

Virtual PTZ And Full Image Recording

www.mobotix.com • sales@mobotix.com

Activate/Deactivate Full Image Recording In The Browser

To conﬁgure this feature, open the Setup Menu > Event Control >Recording dialog box and activate or deactivate the Full Image Recording option.

Page 98

98/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.4 Image Optimization

3.4.1 Correction Of Lens Distortion (L25 Only)

If you are using a camera with the 82° Wide-Angle Lens, the image, particularly around the edges, may be slightly distorted due to the extreme angle of the lens.

You can suppress this eect using software (for example, in the browser) so that a new and appropriately corrected image can be displayed live. A side eect of this correction, however, is that a cushion shape appears around the edges of the image.

To hide this cushion eect, you simply have to Zoom In on the image slightly. Although this reduces the size of the captured area, the image is almost distortion-free compared to the original.

Page 99

99/124

Image Optimization

www.mobotix.com • sales@mobotix.com

Since activated lens distortion correction requires additional processing power, you should consider disabling it in situations where it is not really necessary. You will only notice a minimal distortion of the image, especially if you use the zoom. However, the maximum frame rate for high resolution may be reduced (by 10 to 25 percent), which means you have to choose between maximum distortion correction or maximum frame rate.

We recommend activating lens distortion correction, especially for applications with a low frame rate and non-zoomed images (for example, when using as a webcam). However, images can usually be corrected at a later point in time when searching recorded images. This saves on processing power during recording and increases the frame rate. The more you zoom in on the image, the less distorted the image should appear.

Activate/Deactivate Lens Distortion Correction In The Browser

To activate this option, ﬁrst specify the lens that you are using in the Admin Menu > Hardware Conﬁguration > Lens Conﬁguration dialog box (this setting is saved until the

camera is reset to its factory settings). Select the

L25 (4.0mm) option from the Lens Type

Selection ﬁeld, then click on Apply and Reboot the camera.

Now select the Lens Distortion Correction option in the Display Mode Quick Control panel. An automatically corrected (live) image is displayed that can be panned, tilted, or zoomed. Switching to the Full Image option will deactivate the automatic distortion correction function.

Zoom without distortion correction

Corrected image (zoom)

Page 100

100/124

D15D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.4.2 Adjusting The Panorama Image (D15D-Pano Only)

The D15D-Pano with integrated panorama function has two 82° Wide-Angle lenses that are mounted on a lens bridge in such a way that they produce a panorama image. The two individual images do not always ﬁt together completely and seamlessly because of the mounting position of the individual cameras and the lens adjustment.

Note

Make sure that the camera is not tilted too far down to ensure that you get a good panorama image. The image area that is most interesting for the viewer should be in the center of the image so that the camera creates an image that is as close to reality as possible.

Adjusting The Panorama Image In The Web Browser

You need to follow these extra steps when installing a D15D-Pano to create a good combined image from the two single images (left and right image sensor).

Step1: Activate the conﬁguration for the panorama view

Open the user interface of the camera in the browser. Click on the Conﬁguration For The Panorama View Quick Control above the live image and set the value in the ﬁeld to the right to Activate.

Step2: Image adjustment using the OnScreen control

As soon as you click the live image of the camera, an OnScreen Control appears in the top left corner of the live camera image. Using these elements, you can adjust the two individual sensor images to form the desired panorama image. This requires a resolution of at least VGA. If your currently set resolution is less than VGA, the camera automatically switches to VGA mode to carry out the adjustment and it returns to the original resolution after the OnScreen Control is hidden again.

Mobotix D15D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
