D14D Camera Manual

HiRes Video Innovations

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its

decentralized concept has made high-resolution video systems cost ecient.

MOBOTIX AG • D-67722 Langmeil • Tel: +49-6302-9816-103 • Fax: +49-6302- 9816-190 • sales@mobotix.com

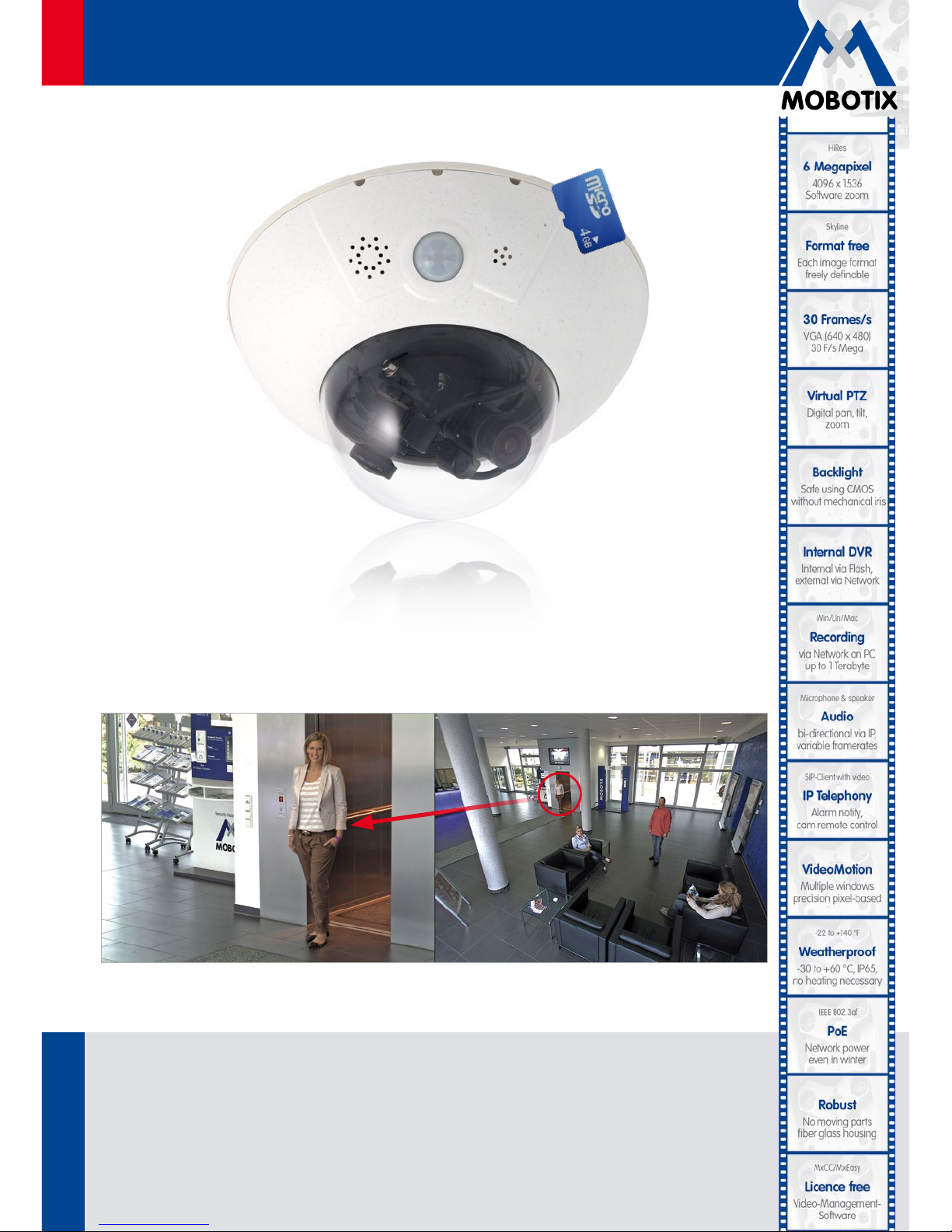

One camera, two lenses.

Seeing more is just not possible.

Two lenses, two HiRes image sensors, up to 64GB internal storage and a dual image of a maximum of 6 megapixels make the D14D DualDome an ecient security solution: It is possible to secure two dierent areas using just one camera. All without vulnerable mechanical components!

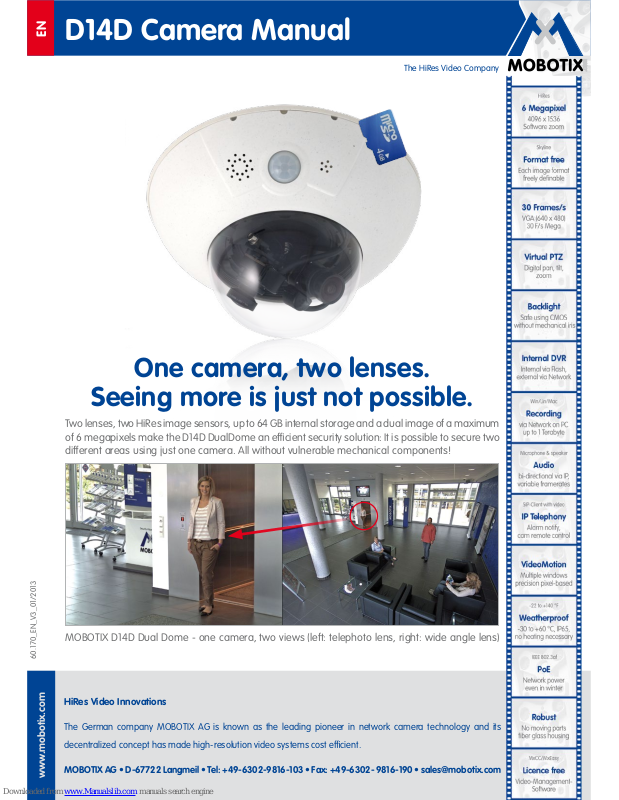

MOBOTIX D14D Dual Dome - one camera, two views (left: telephoto lens, right: wide angle lens)

60.170_EN_V3_01/2013

Page 2

2/132

www.mobotix.com • sales@mobotix.com

D14D Camera Manual: Contents

MOBOTIX Seminars

MOBOTIX oers inexpensive seminars that include workshops and practical exercises.

For more information, visit www.mobotix.com > Seminars.

Notes and Copyright Information

The enclosed Camera Software Manual contains detailed information on the camera software. Download the latest version of this manual and the MxEasy and MxControlCenter manuals as PDF ﬁles from www.mobotix.com (Support > Manuals). All rights reserved. MOBOTIX, MxControlCenter, MxEasy, ExtIO and CamIO are internationally protected trademarks of MOBOTIX AG. Microsoft, Windows and Windows Server are registered trademarks of Microsoft Corporation. Apple, the Apple logo, Macintosh, OSX and Bonjour are trademarks of Apple Inc. Linux is a trademark of Linus Torvalds. All other marks and names mentioned herein may be trademarks or registered trademarks of the respective owners. Copyright © 1999-2012 MOBOTIX AG, Langmeil, Germany. Information subject to change without notice!

Additional information: www.mobotix.com

Page 3

3/132

www.mobotix.com • sales@mobotix.com

Contents

Foreword 6

The MOBOTIX Concept 8

Superior Storage Solution 10

Added Security Value 12

Cost Beneﬁts And Technical Advantages 14

1 Product Overview 16

1.1 An Overview Of The D14D DualDome 16

1.2 The Most Important Beneﬁts 22

1.3 New Features Compared To The D12D 23

1.4 General Camera Functions 24

1.5 Lenses, Equipment and Technical Data 30

1.6 Standard delivery 36

1.6.1 Standard delivery – D14D 36

1.6.2 Standard delivery – D14D 180° 38

1.6.3 Delivered With The D14D-Sec-DNight-Fix 40

1.6.4 Delivered Parts Of The Outdoor Wall Mount (Accessories) 42

1.6.5 Delivered Parts Of The Corner And Pole Mount (Accessories) 43

1.7 Available Accessories 44

1.7.1 NPA-PoE Set 44

1.7.2 Replacement Dome 44

1.7.3 Vandalism Set 44

1.7.4 Ethernet Patch Cable With Bayonet Catch 45

1.7.5 Outdoor Wall Mount 45

1.7.6 Corner And Pole Mount 45

1.7.7 ExtIO Function Expansion 45

1.7.8 Mx2wire+ Media Converter 46

1.7.9 MX-Patch-Box 46

1.7.10 MX-NPA-Box 47

2 Mounting 48

2.1 Overview Of Mounting Options 48

2.1.1 Mounting Indoor Cameras To A Ceiling Or Wall (Without Accessories) 48

2.1.2 Outdoor Installation On A Wall, Pole Or Corner (With Accessories) 49

Page 4

4/132

www.mobotix.com • sales@mobotix.com

D14D Camera Manual: Contents

2.2 Overview Of Network Connection 50

2.2.1 Power over Ethernet (PoE Conforming to IEEE 802.3af) 50

2.2.2 Uninterruptible Power Supplies (UPS) 51

2.2.3 Providing The Camera Connections, Wall Outlets 51

2.2.4 Wiring, Fire Prevention, Lightning And Surge Protection 52

2.3 First Installation Steps 54

2.3.1 Mounting Lens Units 54

2.3.2 Overview Of Cable Connections 58

2.3.3 Connecting Ethernet Cable With The MX-Patch-Box 59

2.3.4 Connecting The Mini USB Cable 59

2.3.5 Connecting MxBus Modules 61

2.3.6 Replacing The MicroSD Card 62

2.4 Mounting The Camera With Outdoor Wall Mount 64

2.4.1 Aiming The Passive Infrared Sensor (PIR) 64

2.4.2 Mounting The Outdoor Wall Mount 65

2.4.3 Aiming The Camera 67

2.4.4 Connecting The Camera With Bottom Plate 68

2.4.5 Connecting And Securing The Camera 69

2.5 Mounting The Corner And Pole Mount 70

2.5.1 Overview 70

2.5.2 Mounting To The Corner Of A Building 71

2.5.3 Mounting To A Pole 72

2.5.4 Mounting The Outdoor Wall Mount 73

2.6 Adjusting The Lens 74

2.7 Network And Power Connection 76

2.7.1 Notes On Cable Lengths And Power Supply 76

2.7.2 PoE Variables 76

2.7.3 Power Supply Using A Switch 77

2.7.4 Power Supply When Connected Directly To A Computer 78

2.7.5 Power Supply With Power-Over-Ethernet Products 78

2.7.6 Camera Startup Sequence 79

3 Operating The Camera 80

3.1 Manual And Automatic Operation – Overview 80

3.1.1 Manually Using A Computer In The 10.x.x.x IP Address Range 81

3.1.2 Automatically Using MxControlCenter Or MxEasy 82

3.1.3 Automatically Using DHCP 83

3.2 First Images And The Most Important Settings 84

3.2.1 Manually Setting Up The Network Parameters In A Browser 84

3.2.2 First Images And The Most Important Settings In The Browser 86

3.2.3 First Images And Network Parameter Conﬁguration In MxControlCenter 88

Page 5

5/132

www.mobotix.com • sales@mobotix.com

3.2.4 First Images And Network Parameter Conﬁguration In MxEasy 93

3.2.5 Starting the Camera With The Factory IP Address 96

3.2.6 Starting The Camera With An Automatic IP Address (DHCP) 97

3.3 Virtual PTZ And Full Image Recording 98

3.3.1 Virtual PTZ 98

3.3.2 Full Image Storage 100

3.4 Image Optimization 102

3.4.1 Correction Of Lens Distortion (L22 Only) 102

3.4.2 Adjusting The Panorama Image (D14D 180° Only) 104

3.4.3 Dual Image Exposure 109

3.5 MicroSD Card Recording 110

3.5.1 Introduction 110

3.5.2 Formatting The Card 112

3.5.3 Activate Recording 113

3.5.4 Accessing Camera Data 114

3.5.5 Deactivating The Card Memory 114

3.5.6 Using A MicroSD Card In A Dierent MOBOTIX Camera 115

3.5.7 Limitations On Warranty When Using Flash Storage Media 115

3.6 Conﬁguration In The Browser 116

3.6.1 Overview 116

3.6.2 General Browser Settings 116

3.6.3 Additional Conﬁguration Options 119

3.7 Additional Notes 120

3.7.1 Password For The Administration Menu 120

3.7.2 Permanently Deactivating The Microphone 120

3.7.3 Starting The Camera With The Factory IP Address 120

3.7.4 Reset The Camera To Factory Settings 121

3.7.5 Activate Event Control And Motion Detection 121

3.7.6 Deactivate Text And Logo Options 121

3.7.7 Deactivating The Daily Automatic Camera Reboot 121

3.7.8 Browser 122

3.7.9 Cleaning The Camera And Lens 122

3.7.10 Safety Warnings 122

3.7.11 Online Help In The Browser 123

3.7.12 RoHS Declaration 123

3.7.13 Disposal 123

3.7.14 Disclaimer 123

Page 6

6/132

D14D Camera Manual: Foreword

www.mobotix.com • sales@mobotix.com

FOREWORD

Dear MOBOTIX customer,

Congratulations on your decision to purchase an exceptionally ecient premium

network camera 'Made in Germany.' Thanks to its double lens and sensor assembly, the D14D can monitor two dierent areas at once, for example, making it the most

powerful MOBOTIX Fixdome camera yet.

The integrated 4-GB long-term memory can now be expanded up to 64GB. An entirely

new MOBOTIX dual camera system architecture with HiRes image sensors ensures you are able to transmit a dual image of up to 6 megapixels – also as a highly detailed 180° panorama, if necessary (special model D14D Sec-180° with two 90° lenses).

The new MxBus and Mini USB camera interfaces make it particularly easy and cost eective to connect add-on modules such as UMTS, GPS or data storage units.

This Camera Manual will give you an initial overview of the innovative MOBOTIX concept that is at the core of this technology. This includes all the information you need to unpack and install the camera (Chapter 2) and to view initial images on a PC (Chapter 3).

Please see the Software Camera Manual Part 2, included in the camera packaging, for information on how to work with the many camera functions, such as event control or image storage, for example.

If you would prefer to work with MxEasy or MxControlCenter instead of the browsercontrolled MOBOTIX camera software, you can download these programs for free including a manual (PDF) from the MOBOTIX website: www.mobotix.com > Support> Software Downloads.

If you still have any questions, our support and international sales sta are available at intl-support@mobotix.com from Monday to Friday, 8 a.m. to 6 p.m. (German time).

Thank you for choosing MOBOTIX products and services. We trust you will be impressed with the performance of your new D14D DualDome camera!

MiniUSB interface

for extensions

Page 7

7/132

www.mobotix.com • sales@mobotix.com

MiniUSB interface

for extensions

MxBus interface

for additional modules

PoE class

adjustable & variable

4 GB MicroSD integrated

(expandable up to 64 GB)

HiRes double image

up to 6 megapixels

High frame rates

up to 30 fps (Mega)

Shock detector

Page 8

8/132

D14D Camera Manual: The MOBOTIX Concept

www.mobotix.com • sales@mobotix.com

THE MOBOTIX CONCEPT

HiRes Video Innovations And Technology Leader

The German company MOBOTIX AG is known as the leading pioneer in network camera technology since its founding in 1999, and its decentralized concept has made high-resolution video systems cost ecient.

MOBOTIX has been producing megapixel cameras exclusively for many years now and is regarded as the global market

leader for high-resolution video systems.

Why High-Resolution Systems?

The higher the resolution, the more accurate the detail in the image. With analog technology, a recorded image generally has no more than 0.1 megapixels (CIF). One

single MOBOTIX camera with 3.1 megapixels records

around 30 times more detail. As a result, larger image areas with up to 360° allround

views are possible, thus reducing the number of cameras, and therefore the costs. For example, four lanes of a gas station can be recorded with one MOBOTIX camera instead of four conventional cameras.

Disadvantages Of The Old Centralized Standard Solution

Usually, cameras only supply the images while the processing and recording is done later on a central PC using expensive video management software. This traditional centralized structure has many limitations, since it requires high network bandwidth and the PC processing power is not enough for several cameras. An HDTV MPEG4 ﬁlm already puts considerable strain on a PC, so how can it be expected to process dozens of highresolution live cameras? Traditional

centralized systems are therefore less suitable and unproﬁtable when compared with high-resolution systems due to the high number of PCs needed.

MOBOTIX Camera

CMOS

3.1 Megapixel

CPU

Image-Analysis

MicroSD

Recording

3 Mega

1536 lines

TV-Pal

576 lines

CIF

288 lines

Mega

960 lines

Page 9

9/132

www.mobotix.com • sales@mobotix.com

The Decentralized MOBOTIX Concept

Unlike other systems, with the decentralized MOBOTIX concept, a high-speed computer and if necessary, digital long-term memory (MicroSD Card) is built into every camera, providing several days of recording time. The PC and the video control center now serve only for viewing and controlling the cameras (PTZ), not for analysis or recording. This makes it unnecessary to purchase expensive video management software, as the most important and computer-intensive functions are already integrated in the MOBOTIX cameras.

The Beneﬁts

MOBOTIX video solutions therefore require signiﬁcantly:

•

fewer cameras due to the more accurate detail of panoramic images with megapixel

technology,

• fewer storage devices, because in the decentralized system, 10 times the standard number of cameras can simultaneously store high-resolution HDTV video with sound on one PC/server.

• lower network bandwidth, because everything is processed in the camera itself and the high-resolution images therefore do not have to be constantly transferred for analysis.

Robust And Low-Maintenance

MOBOTIX cameras have neither mechanical motors for lenses nor for movement. Without any moving parts, they are therefore so robust that maintenance is reduced to a minimum. The unique temperature range from -30 to +60 °C (-22 to +140 °F) is achieved without heating or a fan at only 3 watts. Since no PC hard disk is required for recording, there are no parts that wear out in the entire video system.

MOBOTIX System

Decentral and secure

PC as storage

Recording software

MicroSD integrated

One Camera For Four Gas Pumps – Long-Term Recording Without Peripheral Devices

Page 10

10/132

www.mobotix.com • sales@mobotix.com

D14D Camera Manual: Superior Storage Solution

SUPERIOR STORAGE SOLUTION

MOBOTIX Storage Concept Without Bottlenecks

These days, video data is normally pre-processed and stored centrally on a PC or digital video recorder (DVR) using video management software. Video and audio streams from all installed cameras are directed to this central device. In this case, using high-resolution cameras often results in data jam. Above all, storage is inecient, because if the PC has limited computing power, the high-resolution video with a high frame rate must be sent directly to a storage device before it can be processed.

If, like with MOBOTIX cameras, the camera adjusts the image format and the frame rate to the correct values for the speciﬁc application (at a gas station, two frames per second are enough for the recording), it relieves the load both of the network and of the recording device (PC, server). MOBOTIX cameras can of course also minimize the recording independent of the live video, and the sound channel is recorded even with video recordings of two frames per second.

No Storage Limit

The decentralized MOBOTIX concept enables the user to save around 10 times the number of cameras on a single storage device because the camera manages the recording itself (on a PC, server, NAS), thus reducing load on the device. For this reason, practically speaking, there is no memory limit for the entire system because theoretically, each camera is able to manage its own terabyte-sized storage device via the network. Another beneﬁt of this concept is the use of aordable, reliable NAS drives that do not require any special software.

PC as storage

Recording software

Standard System

Storage bottleneck is pre-programmed

Standard system requires an extra PC including software for analysis and storage

Page 11

11/132

www.mobotix.com • sales@mobotix.com

SD Card Memory Reduces Storage Costs

MOBOTIX cameras are also able to store up to 64 GB of video in their integrated memory. Thanks to this high storage capacity and the option of recording only the sequences in which an event occurs, external storage devices such as hard drives are rarely required. This saves on storage devices and network infrastructure and reduces the maintenance cost of mechanical components such as hard drives or fans. The internal SD cards (ﬂash memory) are digital and since they do not have mechanical components, they are maintenance-free.

A single 64 GB SD card has space for:

• 2 weeks of continuous recording from four gas station lanes

• 4 days of video in TV quality

• 200,000 clips of 10s each in high-resolution

• 2 million images

Ideal For Dicult Network Conditions Or WLAN

MOBOTIX cameras are ideal for dicult network conditions or WLAN connections because the internal ﬂash storage bridges network failures or bandwidth ﬂuctuations and synchronizes data when a connection is re-established with the external storage device.

The option of backing up the internal memory at preset times (for example, at night) reduces the load on the network and, in many cases, enables shared use of the existing network infrastructure.

Feature soon available (after updating the software)

Backup Storage

Connection Loss

Failover Storage

Standard IT-Storage (e.g. Hard Drives)

MOBOTIX systems are decentralized and secure, even without a PC for storage

Page 12

12/132

D14D Camera Manual: Added Security Value

www.mobotix.com • sales@mobotix.com

ADDED SECURITY VALUE

Robust, Low-Maintenance Technology

The real added value of MOBOTIX products is reﬂected in characteristics such as enhanced functionality, long life, and robustness. MOBOTIX cameras have no moving parts. This makes the cameras very resistant to wear and tear, and reduces both maintenance costs and power consumption.

Alarm Management And Forwarding

Integrated sensors enable MOBOTIX cameras

to recognize when an event has occurred. If

desired, the cameras will respond immediately

with an alarm sound and will establish

a direct video and audio connection to a

control room.

Absolute Data Security

The security barriers that are built into the camera are extremely secure. The camera images are only accessible to authorized persons and are encrypted via SSL when they are transferred over the network.

Notiﬁcation Of Failure And Shock Detector

Your MOBOTIX video management system will automatically report any impairment or failure of single network components (e.g. cameras). This ensures maximum reliability and readiness for use.

Additionally, the D14D is the ﬁrst MOBOTIX camera with a pre-installed shock detector (for all IT and Secure versions). If, for example, the camera’s housing receives an impact, it can simultaneously take video of the oender, trigger an alarm and notify the security company via telephone. Due to the build quality and absence of moving parts, MOBOTIX cameras are extremely tough. This typically allows them to stay fully operational, in particular, when they are subject to strong vibrations.

Subsequent Searches

Unlike any other surveillance camera, MOBOTIX cameras are capable of recording the full image, even if the operator is zoomed into a speciﬁc area in the live image. This full image recording can always be reviewed via digital pan/tilt/zoom whenever necessary at a later date.

Users can search for events even in recorded video using post event video motion windows (in MxEasy or MxControlCenter). This is how, for example, a video motion window is placed

Page 13

13/132

www.mobotix.com • sales@mobotix.com

Floor plan and camera view in MxControlCenter (free control center software from MOBOTIX)

above a door in the post image search dialog. This will only ﬁlter sequences triggered when that door opens/closes.

Sound Increases The Chance Of Detection

In the event of an alarm, MOBOTIX cameras can turn on their built-in microphones and record lip-synchronous sound. They are therefore an even greater help in analyzing a situation and easing clariﬁcation. In addition, the video system can be used for bidirectional communication via a loudspeaker/microphone.

No Problems With Backlighting

MOBOTIX cameras are not adversely aected by the glare from direct sunlight. They deliver meaningful, detailed images all the time because the camera software supports easy programming of independent exposure windows to cope with speciﬁc situations. This makes them ideal for rooms with large glass fronts.

Anti-Vandalism Dome Cameras

In critical environments or for outdoor use, it is often best to choose optionally vandalismprotected MOBOTIX cameras. Their steel housing resists even the hardest attacks, and

the cameras will deliver a perfect picture of the attackers.

Placing the exposure window in the lower image area (left image) delivers less optimum results compared to moving three individual exposure windows up toward the windows (right image)

D14D with Vandalism Kit: Perfectly suited for applications in demanding environments

Page 14

14/132

D14D Camera Manual: Cost Beneﬁts And Technical Advantages

www.mobotix.com • sales@mobotix.com

THE MOST IMPORTANT MOBOTIX COST BENEFITS

Increased Resolution Reduces Amount Of Cameras Needed

1536 lines, high-resolution sensors give a better overview and allow monitoring an entire room with just one camera.

Reduced Installation Costs At Any Distance

Standard Ethernet connection enables the use of common network components such as ﬁber, copper and wireless (WLAN).

Intelligent Cameras Reduce The Number Of Storage Devices

The decentralized MOBOTIX concept enables the user to save around 10 times the standard number of cameras using just one storage device.

Event-Controlled Image Format Minimizes Storage Costs

Automatic image adjustment (frame rate, size) in the case of movement, noises or sensor action reduces bandwidth and storage requirements.

Low Power Costs, No Extra Heating

Anti-fogging without heating allows the system to be powered throughout the year using network cable or two wires (PoE standard) and saves on the cost of power cabling.

Backup Power Supply Costs Reduced By 80%

Low power consumption, approx. 5 watts, enables year-round PoE (no heating required) with one centralized UPS from the installation room using network cable.

Robust And Practically Maintenance-Free

Fiberglass-reinforced composite housing with built-in cable protection and no mechanical moving parts (no auto iris) guarantees longevity.

Software For A Thousand Cameras & Storage Devices Included

The right premium operating software for every application: MxEasy for compact video solutions, MxControlCenter for the professional control center.

Unlimited Scalability And High Return On Investment

More cameras and storage can be added at any time – even while the system is in use; image format, frame rate and recording parameters can be camera-speciﬁc.

Additional Functions And Other Extras Included

Sound support, lens, wall mount and weatherproof housing (-30 to +60 °C) (-22 to +140°F) are included in the camera delivery; microphone and speakers available for most models.

Page 15

15/132

www.mobotix.com • sales@mobotix.com

THE MOST IMPORTANT MOBOTIX TECHNICAL ADVANTAGES

High-Resolution Digital Image Instead Of TV Quality

Megapixel sensor and image processing inside the camera generate sharp images with a higher resolution than HDTV, allowing them to be recognized as evidence in a court of law.

Hemispheric Technology For An Overview With No Blind Spots

360° allround view or 180° widescreen image, corrected for perspective; only one camera is needed to view the entire room or train platform without any blind spots.

Bridging Of Recording During Network Failures

In-camera data storage (up to 64 GB) can even bridge longer network failures or bandwidth ﬂuctuations (for example with wireless networks).

Professional Software For Systems Of Any Size

This control center and recording software, which is free of charge and used in tens of thousands of systems around the world, sets no limits on the number of users, cameras or servers.

Very Low Network Load

Ecient video codecs, motion detection and data storage of up to 64 GB in the camera guarantee a very low network load.

No Storage Limit

There is no storage limit for the entire system because each camera is able to manage its own terabyte-sized storage device (NAS) via the network.

Sun And Backlight Compensation

CMOS-sensor without auto iris, digital contrast enhancement and conﬁgurable exposure measurement zones guarantee optimum exposure control.

Day & Night Maintenance-Free

MOBOTIX dual cameras with two sensors and digital switching between day and night modes operate reliably with no mechanical components in all lighting conditions.

Simultaneous Recording, Event Search And Live Viewing

Live video for multiple users, simultaneous recording and event search possible in seconds from anywhere in the world via a network connection.

Sound And SIP Telephony

Lip-synchronous sound (live & recording); every camera is also a video IP telephone compliant with the SIP standard, featuring camera control and automatic alarm calls.

Page 16

16/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1 PRODUCT OVERVIEW

1.1 An Overview Of The D14D DualDome

HiRes DualDome Camera With Two Independent Image Sensors And Lenses

With its compact and elegant dome-shaped housing, the MOBOTIX DualDome camera system has become an indispensable feature of the now global market of high-resolution network security cameras. Thanks to its two ﬂexibly adjustable lenses and optional HiRes image sensors, this camera system delivers video surveillance of one scene in day/night mode (DNight models) or it can even monitor two dierent areas simultaneously using dierent day or night lenses.

One camera monitors two different image areas

Page 17

17/132

An Overview Of The D14D DualDome

www.mobotix.com • sales@mobotix.com

The First MOBOTIX Camera With Images Up To 6 Megapixels

As always, MOBOTIX focused on the most sophisticated customer requirements during the development phase. Compared to the previous D12D model, the D14D features numerous innovations and signiﬁcantly improved performance. The system architecture was adjusted to suit the new microprocessor, which allowed MOBOTIX to double the image rates of the previous model in terms of megapixel resolution. With the D14D, it is now possible to record a dual color image up to 6megapixels in size.

High-Resolution Sees More And Costs Less

A single D14D camera is all that is required to fully monitor an entire shop ﬂoor, as well as providing a direct view of the checkout. The simultaneous generation and evaluation of two images with a high degree of image detail not only reduces the number of required cameras, but also minimizes system costs by reducing the wiring complexity, backup power supply requirements and number of recording devices needed. All D14D cameras feature direct recording to integrated MicroSD cards (now up to 64GB!) or external USB drives and can therefore be used in standalone operation with no additional network load.

Robust, Practically Maintenance-Free And Versatile

Its robust design means that the D14D can be installed on walls or ceilings without any additional accessories in locations where the already very high requirements of the IP54 protection class are sucient.

Ambient temperatures may vary between –30°C and +60 °C (–22°F to 140°F), making it the ideal camera for the most demanding weather situations. From stations in Antarctica to production monitoring at a steel smelting plant– MOBOTIX cameras oer unmatched ﬂexibility and versatility.

Original image: Telephoto lens (left) and wide angle lens (right) – simultaneously in one image

One Camera For Four Gas Pumps – Long-Term Recording Without Peripheral Devices

Page 18

18/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

The absence of mechanically moving parts, heating and ventilation means that D14D cameras requires less than 5watts of power, which can therefore be easily supplied via a standard PoE cable. Cleaning the D14D is simple enough– wipe the dome using a lint-free cotton cloth and a mild household detergent without abrasive particles.

D14D Model Versions And Lenses

The D14D is available in a Secure and IT version, each of which has two day or night sensors, or a day/night combination. The main dierence between Secure and IT models is that the two image sensors of the Secure models have a higher maximum resolution (two 3MEGA instead of two VGA). Each D14D comes with a well-protected pre-installed 4 GB MicroSD card as standard and, if required, it can be replaced with a card of up to 64 GB. The Night versions of the D14D with two highly sensitive black and white sensors deliver high-contrast images, even in extremely low-light conditions (min. of 0.01 lux).

In addition to the standard versions, the camera is also available in a D14D-DNight and a D14D-180° version.

D14D: Standard Version With Individual Lens Conﬁguration

The standard models of the D14D stand out because you can freely combine the two image sensors and lenses and you can focus them on dierent areas independently of one another. A lens can be delivered for every day or night sensor with an angle of 15°, 31°, 45°, 60° and 90° as desired.

D14D-DNightD14D-180°D14D Standard

Detail and overview in dual image mode

Page 19

19/132

An Overview Of The D14D DualDome

www.mobotix.com • sales@mobotix.com

D14D-180°: High-Resolution 180° Panoramic Image

The D14D 180° is equipped with two ﬁxed 90° Super Wide Angle lenses, which together ensure a high-resolution 180° panorama image that is up to 6 megapixels in size and is corrected by means of the camera software.

Using only one camera, it is possible, for example, to cover one side of a building and the adjacent areas (parking lots, lawns, etc.). Even as a high-quality webcam, the D14D180° delivers an excellent, detailed image.

D14D-DNight: Full Operational Readiness In Day And Night Situations

The day/night version of the D14D is equipped with two image sensors and two lenses which automatically switches to the ideal mode depending on lighting conditions: either the color sensor with daylight lens or the black and white image sensor with infrared lens.

The dual sensor system provides for excellent colors in daylight and high-quality images in dark environments.

The day and night lenses come pre-installed on a special DNight lens bridge, which ensures that they are positioned exactly parallel to one another. This way, the day lens always covers the same area as the night lens.

180° panorama with up to 6 megapixels

Automatic day/night switching depending on lighting conditions

Page 20

20/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Outdoor Wall Mount: Weatherproof And Room For Extensions

Combined with the Outdoor Wall Mount, which is available as an accessory, the D14D is compliant with the higher protection class IP65 (fully dustproof and resistant to water jets) and can then be easily used in any unprotected outdoor areas. MOBOTIX oers an additional Corner and Pole Mount that allows the Outdoor Wall Mount to be attached to the corners of buildings and to masts.

The Outdoor Wall Mount’s design enables, for example, WiFi or GSM/GPRS modules to be installed directly within the weatherproof housing without disturbing the overall appearance of the surveillance unit. Similarly, relays for alarm sirens or lights can be installed easily and elegantly within the housing.

The Outdoor Wall Mount is made from PBT-30GF (polyethylene terephthalate with 30% ﬁberglass). This material, which is often used in the automotive industry, is stable and resistant to high temperatures, UV rays, other environmental factors, chemicals, etc. Combined with the software-based architecture of the MOBOTIX D14D and the free software updates, the whole surveillance system has a long product life and thus provides a high return on investment (ROI).

Mounted to a corner

Mounting

to a pole

Page 21

21/132

An Overview Of The D14D DualDome

www.mobotix.com • sales@mobotix.com

D14D-Standard

You can freely combine the two image sensors and lenses and focus them on dierent areas independently of one another.

D14D-180°

Two ﬁxed 90° Super Wide Angle lenses, which together ensure a high-resolution 180° panorama image that is up to 6 megapixels in size and is corrected by means of the camera software.

D14D-DNight

The camera automatically chooses the ideal mode depending on lighting conditions: either the color sensor with daylight lens or the black and white image sensor with infrared lens.

Page 22

22/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.2 The Most Important Beneﬁts

The high-resolution DualDome D14D camera is the even more powerful successor to the D12D and has a new microprocessor and a modiﬁed system platform. The result is more than twice the processing power, which enables smooth video frame rates, even during the simultaneous transfer of two sensor images.

Double The Frame Rates Of The D12D

The modiﬁed hardware of the D14D not only brings signiﬁcantly increased performance thanks to the use of the PXA320 XScale processor, it also includes an FPGA hardware accelerator, which noticeably frees up the CPU.

New, Waterproof Connections To The Camera

The new MxBus and Mini USB interfaces allow current and future MOBOTIX modules to be connected directly to the D14D: for example, a GPS module, IO modules, an AudioBox as well as future modules for connection to mobile and wireless networks.

Up To 64GB Of Internal Memory

The MicroSD card now installed in the Secure versions of the MOBOTIX D14D has a 4-GB memory (max. 64GB) and allows for decentralized storage and additional reliability.

Adjustable PoE Classes

Adjusting the PoE class via the camera software also enables the use of PoE switches that cannot be operated on all ports with PoE class3 (up to max. 12.95V).

Improved Sound Quality

In the case of sound connections, a software-based echo elimination function that ensures a noticeably improved sound quality (particularly in the case of two-way communication) has been integrated.

Improved Camera Software

For example, any number of action proﬁles (FTP, e-mail, sound, telephone call and network report) can now be executed simultaneously for an event (for example, motion detection by the camera).

Page 23

23/132

New Features Compared To The D12D

www.mobotix.com • sales@mobotix.com

1.3 New Features Compared To The D12D

New Comment

Image sensor Incompatible with D12D

Sensor cable Incompatible with D12D

MicroSD card Replaces SD card and R models of the D12D

Mini USB Adapter cable available from MOBOTIX

MxBus MxBus cables are two-wire cables

Power supply NPR/NPA-Set of the D12D is replaced by a new NPA-PoE-Set (blue)

Vandalism Set Incompatible with D12D

Mounting to a Wall

New condensation openings must always be located at the bottom of the camera

Ethernet connection Directly to the D14D via MOBOTIX patch cable, otherwise via connector

Inputs and outputs Via ExtIO/MX 232 IO Box/MX Audio Box, HD15 of D12D discontinued

Shock detector New MOBOTIX event sensor, in the D14D for the ﬁrst time

Page 24

24/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.4 General Camera Functions

Like all MOBOTIX cameras, the D14D line has a variety of software functions: from motion detection and long-term storage right through to alarm notiﬁcation via video IP telephony. Unlike camera systems from other manufacturers, buying and installing additional software on the computer is thus unnecessary. It is possible to use a web browser, however, you can also download the free MxControlCenter or MxEasy from the MOBOTIX website, which allows quick displaying of multiple cameras on one monitor, alarm switching with audio or an easy event search.

vPTZ: Virtual Pan/Tilt/Zoom Features

While MxControlCenter has been providing virtual PTZ features for quite a while, these features are now available directly in the MOBOTIX camera. This means that you can continuously zoom into or out of the live image using either the mouse wheel or a joystick. When storing images or video sequences, you can choose to store either the visible image area of the live image or the full sensor image (full image storage). This also allows examining the parts of an image or video that had not been visible in the live image section on display at the time of the recording.

Automatic Image Correction (Only With The L22 Lens)

A problem familiar from the ﬁeld of photography is the distortions that result from using wide-angle lenses. Straight lines near the image borders are curved. The integrated distortion correction features of the camera (and of MxControlCenter) allow the curve of various lenses to be corrected using software functions.

Live Video With Up To 30 Frames Per Second, Including Audio

The MOBOTIX cameras deliver smooth live video with lip-synchronous live audio, yet they keep the network load to a minimum. Some analog systems may also be able to deliver this, but the quality of recording is so much higher with MOBOTIX since the cameras eciently store the high, live-image resolution and frame rate without compromising image quality. MOBOTIX technology thus provides for continuous recording of simultaneous video from 30 cameras at 30frames per second each, including audio, all on one standard PC.

Very Low Network Load

MOBOTIX’s patent-pending streaming format MxPEG enables fast live video with sound at extremely low network load (1 to 2Mbps). Since the MOBOTIX camera itself detects movements in the image (and not the computer), the video sequences are only transmitted if movements occur.

Camera vPTZ functions can be controlled with a mouse or joystick

Using a joystick: Internet Explorer with activated MxPEG ActiveX plug-in, MxControlCenter, or MxEasy required

MxControlCenter and MxEasy can be downloaded free of charge at www.mobotix.com

Page 25

25/132

General Camera Functions

www.mobotix.com • sales@mobotix.com

Voice over IP

Moreover, MxPEG provides for lip-synchronous live audio and two-way communication between the camera and a computer. Room surveillance is possible using a browser (Internet Explorer), MxControlCenter, or MxEasy. Customized alarm notiﬁcation on your mobile or via Internet telephony is just as easy as event-controlled voice messages directly from the camera.

Internet Telephony (SIP) and Video SIP

Video SIP allows establishing audio/video connections to the camera using Windows Messenger or similar applications (e.g. CounterPath X-Lite/Eyebeam). This feature also allows the camera to be controlled remotely using the phone keys and the camera itself can place phone calls in case of alarms.

Long-Term Storage On File Servers Included

MOBOTIX cameras have an integrated long-term storage system for Linux, Windows, and Mac OS X computers. Every camera manages its own ring buer storage on the shared folder. Thanks to this decentralized approach, 30 live cameras can store images of up to 30 frames per second each, including sound, on a single computer.

Internal DVR: Storage On MicroSD And CF Cards

MOBOTIX cameras support the direct storage on an internal MicroSD/SD card. By using the integrated DVR, the camera is able to oer the following additional applications:

• Standalone operation of the camera without a ﬁle server by recording to the MicroSD card

• High-security application with recording on a ﬁle server or NAS/SAN in which the SD card serves as storage buer. It can thus bridge longer network or ﬁle server failures without losing any video sequences (supported in a future software version).

• Event downloads from the MicroSD card for evaluation of the recorded sequences on a computer

Internal DVR External USB Storage Comments on USB Storage

M12 optional optional Adapter cable required

D14 Integrated (as standard) optional Device can be connected directly

V12 optional – –

M24 Integrated (as standard) optional Device can be connected directly

D24 Integrated (as standard) optional Device can be connected directly

Q24 Integrated (as standard) optional Device can be connected directly

External USB storage: Lower maximum data rate compared to internal DVR

Page 26

26/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Event and Time-Controlled

Just like triggering event-controlled recording upon detecting movements in the image, the camera can also record when the volume detected by the microphone exceeds a certain trigger value. Using scheduled daily recording, time tasks can start or stop video recording, upload images to a web site or send e-mails with video/audio clips. Vacation times and holidays can be programmed.

Remote Alerting

In case of an alarm, MOBOTIX cameras can automatically pop up windows or activate other functions at a remote security control center. The cameras can use network/wi-ﬁ, GSM/GPRS/UMTS (3G), or Internet connections for this purpose.

Integrated Power-over-Ethernet

Power is supplied as Power over Ethernet via the network cabling using the MOBOTIX NPA-PoE-Set or from a PoE-compatible switch (both according to the IEEE 802.3af PoE standard).

Caution

Previous MOBOTIX network power accessories such as the NPA Set, Power Box and Power Rack (MX-NPA-Set, MX-NPR-4 and MX-NPR8/20) are not suitable for use with the D14D.

No heating is necessary thanks to the well-insulated plastic housing and anti-fogging properties. Due to their low power consumption (approximately 5 watts), MOBOTIX cameras, unlike those of other manufacturers, may be operated both indoors and outdoors using a PoE power supply.

Logos, Animated Or Freestyle

The logo generator of MOBOTIX cameras allows integrating banners and graphics (including ﬁles loaded from any URL) into the current camera images with optional scheduler control. MOBOTIX cameras are the only network IP cameras supporting animated and transparent graphics.

No heating required – PoE is no problem, even in winter

Logo generator for displaying graphics already integrated in the live image

Page 27

27/132

General Camera Functions

www.mobotix.com • sales@mobotix.com

MxControlCenter – Professional Video Management, Free Of Charge

Instead of using a web browser, you can download and install the free-of-charge MxControlCenter from the MOBOTIX website. This program allows live images from highresolution MOBOTIX cameras to be displayed on one monitor with sound. In addition, MxControlCenter can activate alarms with lip-synchronous sound and also enables convenient event search. The integrated Layout Editor of MxControlCenter provides for quickly creating ﬂoor plans by simply dragging/dropping the cameras onto a background image. Load a ﬂoor plan as background image, drag and drop the cameras; done.

MxEasy – Intuitive Application For Windows, Apple, And Linux

MxEasy aims at easy operation of the most important camera functions through its intuitive user interface, thus creating a new user experience when viewing and controlling MOBOTIX cameras. The clear design allows up to 16 cameras to be managed, and the application can display up to four cameras at the same time.

Free download at www.mobotix.com

No licensing fees Free updates

Free download at www.mobotix.com

No licensing fees Free updates

Several hundred cameras can be managed

on a standard PC

Suitable for up to 16 MOBOTIX cameras

Page 28

28/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

All settings selected in MxEasy (for example, virtual camera position, zoom, brightness, volume, microphone sensitivity, image storage, signal outputs) are usable immediately and are stored instantly in the conﬁguration of the corresponding camera. The calendar function integrated in the Alarm Planner provides access to innovative features for scheduled settings of one or more cameras.

This tool not only controls video and sound recording based on certain time and date information, but also allows features like video motion detection, image brightness and the microphone to be activated/ deactivated based on a date and time schedule.

MxEasy is available as a free-of-charge download for Windows and Mac OS X at www.mobotix.com.

Diverse Installation Options

Not only can MOBOTIX cameras be used under almost all weather and temperature conditions, they also oer suitable installation materials from a wide range of accessories for any conceivable application scenario.

Additional Camera Functions (Software)

• True software scaling generates smaller image formats easily for PDAs (such as 320x240, 160x120, etc.).

• Audio-video recording has three dierent recording modes: event recording with audio, continuous recording with variable frame rate and audio, and event-controlled snapshot recording of JPEG images.

• Storage failure detection can monitor a ﬁle server (or a ﬂash device), and can use one or more of the deﬁned messaging options for error notiﬁcation

•

Player of recorded images/video sequences includes audio in the integrated video management system

• Multiwatcher screen can display and monitor several cameras over the Internet with only one camera requiring access from the outside. This “proxy” camera uses very little bandwidth, making it an ideal solution for low-bandwidth connections

•

MultiView screen for displaying multiple cameras or events appears in one browser window

• Event notiﬁcation via e-mail, voice notiﬁcation (phone call), sounds, and by visual means (for example, red frame in live image).

• Object tracing for analyzing the paths of objects that are moving in the image

Page 29

29/132

General Camera Functions

www.mobotix.com • sales@mobotix.com

• Time Tables that handle customized holidays and vacations are used to control the camera's arming, image recording messaging, logos, the obscure image function as well as other features.

• Remote signaling for master/slave cameras, where the master camera controls the arming status of the slave cameras allows all slave cameras to be armed using a key switch connected to the master camera for example.

• Transfer proﬁles allow easy control of transmissions via FTP, e-mail, phone calls, and network messages.

• Speakerphone allows you to speak via microphone, monitor the room via audio and allows two-way communication.

•

Phone Call-In remotely controls the camera using a touchtone telephone (retrieve camera information, establish an Internet connection, announce the retrieved IP address, two-way communication, etc.).

•

MxPEG video compression and display uses MxControlCenter or MxEasy. The ActiveX plug-in for Internet Explorer users brings all advantages of MxPEG to the browserbased user interface, including the audio stream to and from the camera.

• Routing allows use of other network connections besides the standard route.

• DynDNS client for accessing the camera via the Internet using a symbolic name (for example, mymobotixcam.dyndns.org) if the provider assigns a new dynamic IP address every time the camera connects to the Internet.

• Non-voidable backup system starts the cameras in the original operating state if a software update fails, allowing the user to easily restart the update process.

•

Enhanced startup options for the camera (obtain IP address via DHCP, announcement of IP address and other network data, reset to factory default settings)

• Notiﬁcations upon errors or when rebooting provide a method for executing one or more notiﬁcations like blinking of the camera LEDs, audio message, FTP, e-mail, phone call, network message.

•

Extended security features protect the pages and features of the camera and prohibit unauthorized access (IP-level access control, intrusion detection). They also provide SSL-protected transmission of the video sequences and the data (using SSL encryption and X.509 certiﬁcates).

Free Software Updates (www.mobotix.com)

MOBOTIX provides software updates free of charge at regular intervals that improve and expand the camera’s functionalities. Chapter6,

Software Update

, in the

Software Manual

provides more information on the process.

Free-of-charge software updates from www.mobotix.com

L22 Super Wide-Angle 90°

L32 Wide Angle 60°

L43 Wide Angle 45°

L65 Tele 31°

L135 Tele 15°

Page 30

30/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.5 Lenses, Equipment and Technical Data

MOBOTIX currently oers ﬁve standard lenses with M14 thread for the D14D that can all be combined with a day or night sensor (color or black and white). Since MOBOTIX cameras are backlight-proof, none of these lenses requires a mechanical auto iris, thus making the camera extremely robust and maintenance-free.

The L22 Super Wide Angle lens has very little distortion and delivers good image quality, even when using the maximum digital zoom. If the D14D has been mounted in the corner of a room with this lens, the complete room is visible on the image.

In the case of the special model D14D 180°, two L22 lenses are installed in such a way that the camera can optically combine the two 90° images using software to form a single large and corrected 180° panorama image.

D14D With Standard Lenses And M14 Thread

A total of ﬁve dierent MOBOTIX lenses are oered for every sensor unit:

• L22 Super Wide Angle with 90° image angle (horizontal)

• L32 Wide Angle with 60° image angle (horizontal)

• L43 Wide Angle with 45° image angle (horizontal)

• L65 Telephoto with 31° image angle (horizontal)

• L135 Telephoto with 15° image angle (horizontal)

This results in a total of 15 possible lens combinations for a D14D (L22/L22 to L135/L135).

MOBOTIX original L22 Super Wide Angle image

Page 31

31/132

Lenses, Equipment and Technical Data

www.mobotix.com • sales@mobotix.com

Lenses

L22 L32 L43 L65 L135

Original Image

35mm equivalent 22 mm 32 mm 43 mm 65 mm 135 mm

Nominal focal length 4 mm 6 mm 8 mm 12 mm 25 mm

Obturador 2.0 2.0 2.0 2.0 2.5

Image angle horizontally 90° 60° 45° 31° 15°

Image angle vertically 67° 45° 34° 23° 11°

Dist. 1 m m m m m m

Image width 2.0 1.1 0.8 0.5 0.3

Image height 1.3 0.8 0.6 0.4 0.2

Dist. 5 m m m m m m

Image width 10.0 5.7 4.1 2.7 1.3

Image height 6.6 4.1 3.0 2.0 1.0

Dist. 10 m

m m m m m

Image width 20.0 11.5 8.2 5.5 2.6

Image height 13.3 8.2 6.1 4.0 1.9

Dist. 20 m m m m m m

Image width 40.0 23.0 16.4 11.0 5.2

Image height 26.6 16.4 12.2 8.0 3.8

Dist. 50m m m m m m

Image width 100.0 57.5 41.0 27.5 13.0

Image height 66.0 41.0 30.5 20.0 9.5

Notes

The speciﬁed focal lengths of MOBOTIX lenses do not reﬂect the actual focal length of the lenses, but the focal length (Lxxmm) converted to 35mm camera format. For example, the MOBOTIX Super Wide-Angle lens has an actual focal length of 4mm. This would be the equivalent of 22mm on a 35mm camera. It is therefore referred to as an L22. Since the image sensors in digital cameras have dierent sizes, converting the focal lengths to 35mm camera as a known format allows the image formats and the ﬁelds of vision of the dierent lenses to be calculated and compared more easily. Another beneﬁt is that you can easily set a 35mm camera (analog or digital) to the same focal length as the MOBOTIX lens (Lxx) to obtain the same ﬁeld of vision. This approach greatly facilitates lens selection.

Page 32

32/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Hardware and Software Features

MX-D14Di-IT

MX-D14Di-SEC

MX-D14Di-SEC-DNIGHT-FIX

MX-D14Di-SEC-180

MX-D14Di-SEC-NIGHT-180

D14D Hardware Features

Outdoor – weatherproof IP54/IP65

IP54/IP651IP54/IP651IP54/IP65

Ethernet/Mini USB/MxBus/MicroSD X X X X

MicroSD slot (internal DVR, max. 64GB)

X X X X

Image sensors

2x color, color/BW, 2x BW

2x color 2x BW

Lenses L22, L32, L43, L65, L135 L22/L22 L22/L22

Resolution (per sensor) VGA 3/1MEGA

3MEGA

1MEGA

Resolution horizontal x vertical (per sensor)

640x480

2048x1536,

1280x960

2048x1536

1280x960

Max. frame rate (fps) CIF/VGA/MEGA/3MEGA

30/30/–/–

30/30/30/20 30/30/30/20

30/30/30/–

Sensitivity of color sensor at 1/60 second (lux)

1 1 1 –

Sensitivity of BW sensor at 1/60 second (lux)

0.1 0.1 0.1 0.1

Sensitivity of color sensor at 1 second (lux)

0.05 0.05 0.05 –

Sensitivity of BW sensor at 1 second (lux)

0.005 0.005 0.005 0.005

Automatic night mode switch for color/BW

X X – –

RAM storage (MB) 64 128 128 128

Temp. video storage (MB), ring buer 32 64 64 64

Internal DVR (MicroSD)

, ring buer:

up to 64 GBup to 64 GBup to 64 GBup to 64

• CIF images (64 GB int. DVR), approx. 4 million

4 million42 million

2 million

• VGA images (64 GB int. DVR), approx. 2 million42 million

1 million

• MEGA images (64 GB int. DVR), approx. – 700,000

350,000

• 3MEGA images (64 GB int. DVR), approx. – 320,000

160,000

–

Speaker and microphone X X X X

Warranty (months) 24 24 24 24

Concealed cabling X X X X

Special D14D Software Features

Dual image display X X X X

Dual image storage X X X X

Dual image adjustment for 180° – – X X

Special exposure mode for 180° – – X X

MX-D14Di-SECDNIGHT-FIX: Day/night versions with special DNight lens bridge and xed mounted lenses

4-GB MicroSD card

pre-installed

IP65 only with

Outdoor Wall Mount

Color sensor: 3MEGA resolution with 2048 x 1536 pixels; BW sensor: 1MEGA resolution with 1280 x 960 pixels

Estimated number of images in single image mode; in the case of dual images (right and left lens), the number of images is halved accordingly

Page 33

33/132

Lenses, Equipment and Technical Data

www.mobotix.com • sales@mobotix.com

M24M

D24M

M12

Q24M

D14

Basic Model

Web Model

IT Model

Secure Model

Software Features All Models

Digital zoom (smooth) with panning

only Q24 X X X

Motion JPEG/MxPEG video streaming

X/X X/X X/X X/X

Custom exposure windows

X X X X

Video Motion Detection

X X X X

Time and event control (FTP, email, logos)

X X X X

Weekly schedules/holidays

– X X X

Web functionality (FTP, email)

X X X X

Quad/MultiView in browser

X X X X

Recording/Player in browser

X X X X

Logo generator, animated

– X X X

Snapshot recording (pre-/post-alarm images)

3 3 10 50

Terabyte ring buer (Win/Lin/Mac) via network

– – X X

Continuous video/sound recording, 0.2 to 30 fps

– – X X

Video/audio recording (event-triggered)

– – X X

Event-controlled frame rate with continuous audio

– – X X

Flexible event logic

– – – X

Master/slave arming by one camera

– – – X

Scheduled privacy zones, several areas

– – – X

Bidirectional audio (IP) from/to browser

– – X

Customized voice messages

– – X X

VoIP telephony (audio/video, SIP)

– – X

Alarm calls to softphones (SIP) e.g. X-Lite

– – X X

Remote alarm notiﬁcation (alarm via network message)

– – X X

RS232 Data Logger/Terminal

– – X X

Programming interface/HTTP API

– – X X

Security features (HTTPS/SSL, IP-level access control, network authentication IEEE 802.1X)

X X X X

Model Feature List

Image size

VGA 3 MEGA VGA 3 MEGA

Image sensor

Color Color

Color & B/W Color & B/W

Audio support (Microphone/Loudspeaker)

–/L

M/L

New in D14: echo elimination, any number of action proles can be executed simultaneously per event, full image storage

External speakers and microphones can be connected to D24M IT and Secure models

Direct connection is possible with the D12; connection via Mini USB in the case of the D14 with a RS232 module (available soon)

Page 34

34/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

Technical Speciﬁcations

D14D Technical Data

Model Versions (ﬁtted with day or night sensors)

MX-D14Di-IT, MX-D14Di-SEC (day or night), MX-D14Di-SEC-DNIGHT FIX (day or night), MX-D14Di-SEC-180° (day) MX-D14Di-SEC-NIGHT-180° (night)

Lens Options 22 to 135 mm format,

horizontal angle 90° to 15°

Sensitivity Color sensor: 1 lux (t =1/60 s), 0.05 lux (t = 1/1 s)

Black and white sensor 0.1 lux at 1/60 s,

0.005 lux at 1/1 s

Image sensors Two 1/2“ CMOS, progressive scan

Max. image resolution (dual image) Color: 4096 x 1536 (6.2 MEGA)

Black and white: 2560 x 960 (2.5 MEGA)

Image format (per sensor)

Selectable image formats, e.g., 2048 x 1536 (3 MEGA), 1280 x 960 (MEGA), 1024 x 768, 800 x 600, 768 x 576 (D1-PAL), 704 x 576 (TV-PAL), 640 x 480, 384 x 288, 320 x 240, 160 x 120

Max. frame rate (M-JPEG) (live/recording)

VGA: 30 fps, MEGA: 10 fps, 3MEGA: 4 fps, 6MEGA: 2 fps

Max. video stream (MxPEG) (live/recording/audio)

VGA: 30 fps, Mega: 30 fps, 3Mega: 20 fps, 6 MEGA: 8 fps

Image Compression MxPEG, M-JPEG, JPEG, H.264 (only for video VoIP)

Internal DVR MicroSD slot including 4 GB, max. 64 GB

External storage Directly on NAS and PC/Server without additional

recording software

Software (included) MxEasy video management software,

MxControlCenter control room software

Image Processing

Backlight compensation, automatic white balance, image distortion correction, video sensor (motion detection)

Virtual PTZ Digital Pan/Tilt/Zoom, continuous 8x zoom

Alarm/Events Triggered by motion detection, external signal, tempe-

rature sensor, PIR, microphone, shock detector, notiﬁcation over e-mail, FTP, IP telephony (VoIP, SIP), visual/ acoustic alarm, pre- and post-alarm images

Audio Integrated microphone and speaker, lip-synchronous

audio, two-way speaker, audio recording

Interfaces

10/100 Ethernet, MiniUSB, MxBus; Inputs and outputs and RS232 via accessories

Video telephony VoIP/SIP, two-way communication intercom,

remote controlling with key code, event notiﬁcation

Security User/Group management, HTTPS/SSL, IP address ﬁlter,

IEEE 802.1x, intrusion detection, digital image signature

Page 35

35/132

Lenses, Equipment and Technical Data

www.mobotix.com • sales@mobotix.com

Certiﬁcates EMC (EN55022, EN55024, EN61000-6-2,

FCC part 15B, AS/NZS3548)

Power supply Year-round Power-over-Ethernet (IEEE 802.3af);

PoE class variable, approx. 4.5 W

Operating conditions IP54/IP65 (without/with wall mount)

-30°C to +60°C/-22°F to +140°F

Dimensions

Ø x H: 205 x 108 mm (D14D), 205 x 125 mm (D14D-180°); Weight: approx. 750 g (including lenses)

Standard delivery Housing (high-resistance composite, PBT-PC), white,

shock-resistant dome (transparent), free choice of lens, mounting parts, Allen wrench, 50 cm patch cable, manual, software, 4 GB MicroSD card

Page 36

36/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.6 Standard delivery

1.6.1 Standard delivery – D14D

Item Count Part Name

1.1 1 Camera housing

1.2 2 Lens (installed)

1.3 2 Lens mount

1.4 2 Lock ring (installed)

1.5 2 Sensor cable (integrated, not shown here)

1.6 1 Cable cover (installed)

1.7 2 Dome (1x transparent– integrated, 1x tinted)

1.8 1 Outer shell

1.9 1 Ethernet cable (installed)

1.10 1 Allen wrench 3mm

1.11 1 TX20 Torx wrench

1.12 1 Custom tool with magnet

1.13 1 MxBus connector (inserted):

1.14 1 MicroSD card, max. of 4 GB (inserted)

Installation accessories

Item Count Part Name

M.1.1 3 Dowels 8 mm

M.1.2 3 Stainless steel washers Ø 5.3 mm

M.1.3 3 Stainless steel wood 4.5x60 mm screws with TX20 head

2 lenses (item 1.2) 2 lens mounts (item 1.3) 2 lock rings (item 1.4)

Custom tool with magnet (item 1.12)

Outer shell (item 1.8)

3 mm Allen wrench (item 1.10) TX20 Torx wrench (item 1.11)

Camera housing (item 1.1)

Domes (item 1.7), 1x transparent, 1x tinted

Cable cover (item 1.6)

Ethernet cable (item 1.9)

Page 37

37/132

Standard delivery

www.mobotix.com • sales@mobotix.com

D14D Camera Housing And Connectors

The MOBOTIX D14D consists of three main components (camera housing, body shell and dome). The D14D is also delivered with PIR sensor, microphone and speaker.

4 2

4 LEDs (behind PIR cover)

Speaker

Dome

PIR sensor

Lens unit I

Lens unit II

Sensor cable

MicroSD card

MxBus

MxBus cabling

Mini USB

Ethernet

Washer Water outlet

openings

Outer shell

Microphone

LED defaults:

1 Power (on), error (ashes) 2 Recording (ashes) 3 Off 4 Off

Two freely positionable camera modules

Ø 205 mm

108 mm

Page 38

38/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.6.2 Standard delivery – D14D 180°

Item Count Part Name

2.1 1 Camera housing

2.2 2 Lens (installed)

2.3 2 Lens mount (installed)

2.4 2 Lock ring (installed)

2.5 2 Sensor cable (integrated, not shown here)

2.6 1 Cable cover (installed)

2.7 2 XL Dome (1x transparent– integrated, 1x tinted)

2.8 1 Outer shell

2.9 1 Ethernet cable

2.10 1 Allen wrench 3mm

2.11 1 TX20 Torx wrench

2.12 1 Custom tool with magnet

2.13 1 MxBus connector (inserted):

2.14 1 Lens bridge (installed)

2.15 1 MicroSD card, max. of 4 GB (inserted)

Installation accessories

Item Count Part Name

M.2.1 3 Dowels 8 mm

M.2.2 3 Stainless steel washers Ø 5.3 mm

M.2.3 3 Stainless steel wood 4.5x60 mm screws with TX20 head

Custom tool with magnet (item 2.12)

Outer shell (item 2.8)

3 mm Allen wrench (item 2.10) TX20 Torx wrench (item 2.11)

Camera housing (item 2.1)

XL dome (item 2.7), 1x transparent, 1x tinted

Cable cover (item 2.6)

Ethernet cable (item 2.9)

2 lenses (item 2.2) 2 lens mounts (item 2.3) 1 lens bridge (item 2.14) 2 lock rings (item 2.4)

Page 39

39/132

Standard delivery

www.mobotix.com • sales@mobotix.com

Ø 205 mm

125 mm

D14D-180° – Camera Housing And Connectors

The MOBOTIX D14D-180° consists of three main components (camera housing, body shell and dome). The D14D is also delivered with PIR sensor, microphone and speaker.

4 2

4 LEDs (behind PIR cover)

Speaker

Dome

PIR sensor

Lens bridge

Sensor cable

MicroSD card

MxBus

MxBus cabling

Mini USB

Ethernet

Washer Water outlet

openings

Outer shell

Microphone

LED defaults:

1 Power (on), error (ashes) 2 Recording (ashes) 3 Off 4 Off

125 mm

Two ﬁxed 90° lenses (180°)

Page 40

40/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.6.3 Delivered With The D14D-Sec-DNight-Fix

Item Number Part name

2.1 1 Camera housing

2.2 2 Lens (installed)

2.3 2 Lens mount (installed)

2.4 2 Lock ring (installed)

2.5 2 Sensor cable (integrated, not shown here)

2.6 1 Cable cover (installed)

2.7 2 XL Dome (1x transparent – integrated, 1x tinted)

2.8 1 Outer shell

2.9 1 Ethernet cable

2.10 1 Allen wrench 3 mm

2.11 1 TX20 Torx wrench

2.12 1 Custom tool with magnet

2.13 1 MxBus connector (inserted):

2.14 1 Lens bridge (installed)

2.15 1 MicroSD card, max. of 4 GB (inserted)

Installation accessories

Item Number Part name

M.2.1 3 Dowels 8 mm

M.2.2 3 Stainless steel washers Ø 5,3 mm

M.2.3 3 Stainless steel wood 4.5x60 mm screws with TX20 head

Custom tool with magnet (item 2.12)

Outer shell (item 2.8)

3 mm Allen wrench (item 2.10) TX20 Torx wrench (item 2.11)

Camera housing (item 2.1)

XL dome (item 2.7), one transparent, one tinted

Cable cover (item 2.6)

Ethernet cable (item 2.9)

2 lenses (item 2.2) 2 lens mounts (item 2.3) 1 lens bridge (item 2.14) 2 lock rings (item 2.4)

Page 41

41/132

Standard delivery

www.mobotix.com • sales@mobotix.com

D14D-Sec-DNight-Fix – Camera Housing and Connectors

The MOBOTIX D14D-Sec-DNight-Fix consists of three main components (camera housing, body shell and dome). The D14D is also delivered with PIR sensor, microphone and speaker.

4 2

4 LEDs (behind PIR cover)

Speaker

XL dome

PIR-Sensor

Lens bridge

Sensor cable

MicroSD Card

MxBus

MxBus cabling

Mini USB

Ethernet

Washer

Water outlet openings

Outer shell

Microphone

Two pre-installed lenses (L22 to 135)

Ø 205 mm

125 mm

LED defaults:

1 Power (on), error (ashes) 2 Recording (ashes) 3 Off 4 Off

Page 42

42/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.6.4 Delivered Parts Of The Outdoor Wall Mount (Accessories)

Item Count Part Name

3.1 1 Outdoor wall mount

3.2 1 Bottom plate

3.3 4 Dowels 10 mm

3.4 4 Stainless steel washers Ø 9 mm

3.5 4 Stainless steel wood screws with hex head 8x70 mm

3.6 1 Ethernet cable 1 m

3.7 1 Wall sealing

3.8 8 Stainless steel Allen screws M4x10mm

3.9 4 Stainless steel hex nuts M4

3.10 4 Stainless steel Allen screws M4x25 mm

3.11 4 Stainless steel washers Ø 4.3mm

Make sure to check the delivered parts

8 Allen screws, M4x10 mm (item 3.8)

4 dowels, 10 mm (item 3.3)

Bottom plate (item 3.2)

4 washers, dia. 9 mm (item 3.4)

4 wood screws, 8x70 mm (item 3.5)

Wall sealing (item 3.7)

4 Allen screws, M4x25 mm (item 3.10) 4 washers, dia. 4.3 mm (item 3.11)

4 hex nuts, M4 (item 3.9)

Ethernet cable 1 m (item 3.6)

When using the wall mount, please exchange the original Ethernet cable of the D14D against the 1 m (3 ft 3 in) Ethernet cable

Height: 160 mm

Width: 293 mmDepth: 275 mm

The 90 x 90 mm space covers in-wall and on-wall sockets, as well as an MX-Patch-Box that is attached to the wall (MX-OPT-Patch1-EXT)

Page 43

43/132

Standard delivery

www.mobotix.com • sales@mobotix.com

1.6.5 Delivered Parts Of The Corner And Pole Mount (Accessories)

Item Count Part Name

4.1 1 Corner and Pole Mount

4.2 4 Stainless steel Allen screws M8x30 mm

4.3 4 Stainless steel washers Ø 9 mm

4.4 4 Stainless steel lock nuts M8

4.5 2 Stainless steel straps

Height: 160 mm

Depth: 175 mmWidth: 293 mm

2 steel straps (item 4.5)

4 Allen screws, M8x30 mm (item 4.2)

4 washers, dia. 9 mm (item 4.3)

4 hex nuts, M8 (item 4.4)

Page 44

44/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.7 Available Accessories

1.7.1 NPA-PoE Set

Order No.: MX-NPA-PoE-EU and MX-NPA-PoE-INT (Version EU and Version INT)

Order No.: MX-CBL-NPA-BAT-2 (battery cable for mobile signal inputs)

A multifunctional PoE injector according to the IEEE

802.3af standard– with three connectors (for network, camera/PoE device, PC), universal power supply with interchangeable adapter plugs and crossover function. The NPA-PoE-Set connects and remotely supplies a D14D camera with power via an Ethernet cable up to 100 m in length. The blue adapter can also be connected to mobile voltage sources from 12V to 42V by means of an additionally available battery cable. The “EU” version of the NPA-PoE-Set is supplied as standard with a European adapter, while the “INT” version includes four adapters (EU, USA, UK, AUS).

1.7.2 Replacement Dome

Order No.: MX-D14D-OPT-DCT/DCS (transparent/tinted)

The standard D14D dome is available as a transparent or as 50 percent-tinted version (also available as an XL dome for D14D-180° and D14D-Sec-DNight-Fix).

1.7.3 Vandalism Set

Order No.: MX-D14D-Vandal-ESMA/ESPO/PUGR/PUWH/ PUBL (matt/polished/gray/white/black)*

Ideally suited for surveillance in extremely harsh conditions. The stainless steel vandalism ring available in ﬁve colors replaces the standard outer shell and is securely fastened to the surface using the supplied safety screws. The standard dome is replaced by a polycarbonate dome that has been reinforced and the wall thickness increased to 3mm.

The vandalism set requires the PIR and audio features of the camera by design; these can be oset with the ExtIO.

* Not suitable for D14D models with an XL dome (D14D-180° and D14DSec-DNight-Fix)

Page 45

45/132

Available Accessories

www.mobotix.com • sales@mobotix.com

1.7.4 Ethernet Patch Cable With Bayonet Catch

Order No.: MX-OPT-CBL-LAN-1/2/5/10 (length 1 m/2 m/5 m/10 m)

The MOBOTIX-developed special cable can be installed in a waterproof manner and has an integrated sealing gasket. Every D14D camera is delivered with a 0.5-m-long cable as standard, which can be exchanged for a patch cable up to 10m in length.

1.7.5 Outdoor Wall Mount

Order No.: MX-WH-Dome

When combined with the Outdoor Wall Mount, the D14D is fully weatherproof and its protection class increased from IP54 to IP65 (fully dustproof and resistant to water jets).

1.7.6 Corner And Pole Mount

Order No.: MX-WH-Dome-ESWS

To install the Outdoor Wall Mount on a pole or the corner of a building. This extremely robust mount is made of 3mm powder-coated stainless steel (white) and has been designed speciﬁcally for outdoor use. The supplied stainless steel straps allow the mount to be attached to poles with diameters between 60 and 180mm.

1.7.7 ExtIO Function Expansion

Order No.: MX-ExtIO

The device, which is suitable both for on-wall and in-wall installations, contains a powerful speaker, microphone, infrared motion sensor, ambient temperature sensor, two input and two output contacts and two illuminated buttons. It is ideal for door communication, elevators, access control, etc. The ExtIO is suitable for use as direct connection to the D14D via a Mini USB cable (max. 5m), which can be ordered separately, or as a network connection via the PoE switch.

Page 46

46/132

D14D Camera Manual: Product Overview

www.mobotix.com • sales@mobotix.com

1.7.8 Mx2wire+ Media Converter

Order No.: MX-2wirePlus-Set-PW

The Mx2wire system allows an Ethernet network with PoE to be set up via two-wire cables, which saves users from having to lay several hundred meters of Ethernet cable. For example, an existing two-wire cable of an analog video camera can be reused to connect a high-resolution and modern IP network camera. Mx2wire is supplied in the standard socket frame in dierent designs, however, it can also be used with the surface-mounted socket provided.

1.7.9 MX-Patch-Box

Order No.: MX-OPT-Patch1-EXT

Universal network connector for installation cable, MOBOTIX patch cable and standard patch cable (protection class IP65,

-30°C to +60°C/-22°F to +140°F). The MX-Patch-Box can be used to connect the patch cable of an IP device with the network installation cable (for example, Cat 5) or network patch cable (RJ45 connector) in a weatherproof manner and ﬁts into the 90 x 90 mm space of the Outdoor Wall Mount (see diagram).

Page 47

47/132

Available Accessories

www.mobotix.com • sales@mobotix.com

1.7.10 MX-NPA-Box

Order No.: MX-OPT-NPA-EXT

The MX-NPA-Box is a weatherproof PoE injector conforming to the IEEE 802-3af standard and is designed to connect to a MOBOTIX camera external power supply (12 to 57 V DC).

The MX-NPA-Box is equipped with the PatchBox’s weatherproof and extremely compact outer housing (protection class IP65, -30°C to +60°C/-22°F to +140°F), which means it can also be installed in the space of the Outdoor Wall Mount. MX-NPA-Box Interfaces: Camera via patch cable, Ethernet via LSA+ and external power supply (12 to 57 V DC is possible).

MOBOTIX are planning additional functional boxes (e.g., GPS receiver as internal clock and to determine position).

Page 48

48/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2 MOUNTING

2.1 Overview Of Mounting Options

2.1.1 Mounting Indoor Cameras To A Ceiling Or Wall (Without Accessories)

In order to mount the MOBOTIX D14D to a ceiling or wall, you need to drill the holes for the ﬁxtures. Use the supplied drilling template (fold-out at the end of this manual) to mark the position for drilling the dowel holes and the holes through which the cables will be led later on. Remember to position the drilling template according to the direction of

the camera’s PIR sensor.

Connecting The Camera Patch Cable To The Network Cable (for example, Cat 5)

• Position the camera housing over the cable exit.

• Connect the camera patch cable securely to the Ethernet cable, for example, using the MX-Patch-Box.

• Use the proper screws to mount the camera housing to the wall or ceiling.

Preventing Condensation

When installing the camera, make sure that the PIR sensor is pointing downwards to allow condensation to ﬂow freely through the openings in the outer shell (see diagram).

PIR: Passive infrared sensor

120°

R=75 mm

45°

30°

2.80m

1.50m

2.90

The folded drilling templates can be found at the end of the manual

Page 49

49/132

Overview Of Mounting Options

www.mobotix.com • sales@mobotix.com

The Outdoor Wall Mount may have to be used, as the PIR sensor can be turned in any direction when installed horizontally (PIR is tilted diagonally downwards).

Special Case: Mounting The D14D-180° To A Wall Without The Wall Mount

The lens mount unit has to be rotated by 180° so that you do not get an upside down panorama image. For additional information on this topic, see the end of Section 2.3.1 (Mount The Lens Units).

Note

Make sure that the camera is always mounted on a smooth surface. Otherwise, the sealing lip on the underside of the housing will not be able to close tightly or will bend upwards, which leads to leaks between the outer shell and the housing.

2.1.2 Outdoor Installation On A Wall, Pole Or Corner (With Accessories)

The associated Outdoor Wall Mount can be used to mount the D14D outdoors and is compliant with IP65 speciﬁcations (fully dustproof and resistant to water jets). Operating temperatures may vary between –30°C and +60°C (–22°F to 140°F), making it the ideal camera for the most demanding weather situations. The drill holes must be prepared for the installation. Use the supplied drilling template to mark the position of the holes for the ﬁxtures and the holes through which the cables will be led later on (fold-out).

If you would like to mount the MOBOTIX D14D to the corner of a building or a pole, you should consider using the MOBOTIX Corner and Pole Mount. This mount can only be used together with the Outdoor Wall Mount. The supplied stainless steel straps allow the mount to be attached to poles with diameters between 60 and 180mm.

The folded drilling templates can be found at the end of the manual

Make sure that the drilling template is not scaled down when printing

Make sure that the arrows are pointing upwards when mounting

Page 50

50/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.2 Overview Of Network Connection

2.2.1 Power over Ethernet (PoE Conforming to IEEE 802.3af)

All D14D models are supplied with power using the PoE standard. The PoE Adapter Set (MX-NPA-PoE Set) may be used for smaller installations. For larger installations, it is worth investing in a PoE-capable supply device available on the market. The end of Section 2

contains more information on the possible combinations of connecting the D14D and power supply options.

Caution

The maximum length of the network cable for power supply over an Ethernet cable is 100m.

Previous MOBOTIX network power accessories such as the NPA Set, Power Box

or Power Rack (MX-NPA-Set, MX-NPR-4 and MX-NPR8/20) are not suitable for use with the D14D.

Note

The MOBOTIX D14D can be powered by switches or routers that support the PoE (Power over Ethernet) standard and conform to IEEE 802.3af.

Advantages of PoE power supply:

• Advantages of centralized backup power supply are available via network

• Lower, more cost-eective power consumption

• Camera does not require an additional network connection

The D14D supports the Power over Ethernet standard IEEE 802.3af (PoE)

The PoE adapter replaces the crossover cable when directly connecting to a computer

PoE Adapter

MX-NPA-PoE

LAN or POWER PC or POWER

CAMERA

For the D14D, you should use the new blue MX-NPA-PoE Set –

previous MOBOTIX network power accessories such as the NPA Set, Power Box, and Power Rack (MX-NPA Set, MX-NPR-4 and MX-NPR8/20) are not suitable for use with the D14D

Page 51

51/132

Overview Of Network Connection

www.mobotix.com • sales@mobotix.com

2.2.2 Uninterruptible Power Supplies (UPS)

In order to maintain a continuous power supply even when utility power fails, you should install an uninterruptible power supply (UPS). These devices also provide full protection against electrical surges and voltage ﬂuctuations and thus enhance the reliability of the system as a whole.

When using a more powerful 19" rack-mounted UPS, you can also protect all other network components (e.g. switches, routers, PoE switches, etc.).

Since MOBOTIX cameras do not require any heating, even during winter, the average power consumption of less than 5watts is very low. This, in turn, means that you can centralize the UPS-protected power supply by injecting power into the Ethernet cables (max. 100m). This kind of protected power supply can be used either with MOBOTIX PoE products (MX-NPA-PoE with Universal Power Supply) or with PoE-compliant switches according to IEEE 802.3af.

2.2.3 Providing The Camera Connections, Wall Outlets

Once the camera position, the position of the cable outlets and the method of power supply have been decided upon, the cabling can be installed. Before mounting the MOBOTIX D14D, you should make sure that the network connections have been properly tested, so that the proper functioning of the camera is guaranteed.

PoE switch

PC/server

RAID

UPS

Page 52

52/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.2.4 Wiring, Fire Prevention, Lightning And Surge Protection

When installing the wiring inside or outside of buildings, make sure you always adhere to the relevant regulations on wiring, ﬁre prevention, and protection against lightning.

MOBOTIX cameras are protected against the eects of small electrical surges by numerous measures. These measures, however, cannot prevent the camera from being damaged when stronger electrical surges occur. Particular care should be taken when installing the camera outside to ensure proper protection against lightning, as this also protects the building and the entire network infrastructure.

MOBOTIX recommends having MOBOTIX cameras installed only by certiﬁed specialists accustomed to installing network devices and having proper respect for the applicable regulations regarding lightning protection and ﬁre prevention as well as the current technology for preventing damages from electrical surges.

Wiring

When installing the wiring, make sure to follow these guidelines:

• Data cable: Make sure you only use double-shielded Cat 5 or higher cables (S/STP) for Ethernet connections.

• Outdoors: Installing the camera outdoors requires special precautions and measures regarding the cables as well as lightning and surge protection.

• Wire lengths: The cable segments must not exceed the maximum allowed cable lengths in order to ensure proper data transfer.

• Avoiding induction: When running data cables parallel to existing regular power lines or high-voltage wires, make sure you observe the minimum distances to the power cables.

Fire Prevention

When installing the power lines to the camera, make sure you always adhere to the country-speciﬁc regulations (for example, VDE in Germany, IEEE in the U.S.) in eect on wiring and ﬁre prevention at the site of the installation.

Page 53

53/132

Overview Of Network Connection

www.mobotix.com • sales@mobotix.com

Lightning And Surge Protection

More information on preventing lightning or surge damage is available from organizations such as the International Electrotechnical Commission (www.iec.ch) or from the manufacturers of lightning and surge protectors.

Page 54

54/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.3 First Installation Steps

2.3.1 Mounting Lens Units

The standard models in the MOBOTIX D14D family are supplied with a pre-installed dome. Lens units (lens mount, image sensor and lens) are usually delivered separately. Lens units are installed as described below if this is the case.

The sensor cables to connect the image sensors are marked with R (right) and L (left). Depending on the type of sensor used, the sensors (mounted on the lens units) are marked either by the RGB icon (color) or the SW icon (BW, black & white).

The following combinations of sensor cables (L, R) and sensors (color, black & white) are possible:

Image Sensor Combination Sensor cable L Sensor cable R

Color/Color

l l

Black & White/Color*

Black & White/Black & White

Note

Make sure that you only use the combinations of image sensors and sensor cables listed in the table!

When setting up the camera, the installed combination of image sensors has to be set in the camera’s browser user interface. You can do so either automatically by running the Quick Installation (Admin Menu> Quick Installation) or manually by opening the Admin Menu> Image Sensor Conﬁguration dialog box.

RGB SW

* Lenses in DNight versions are shipped pre-installed to the special lens bridge

Possible image sensor combinations for the MOBOTIX D14D (standard)

Page 55

55/132

First Installation Steps

www.mobotix.com • sales@mobotix.com

Remove the outer shell: Remove the outer shell using the supplied custom tool. Insert the tip of the custom tool into the three small holes of the shell, one by one. Lift the outer shell to loosen it from the ﬁxtures.

2. Remove the dome: Pick up the dome using the supplied plastic foil or a cotton cloth and remove it by turning it counterclockwise.

3. Insert the lens units and mount the central lens screw: Remove the center lock screw and the washer. Insert the lens units into the seatings. Insert the lock screw with a washer into the center of the camera and gently tighten it to hold the lens units in place.

Note

Touch the mount of the lens units only. Always avoid direct contact with the switches on the green circuit board (ESD) in order to prevent damage arising now or later and to avoid reducing the service life.

Remove the lens cover on the image sensors: Press the two bars on the side of each lens cover (red arrow) and remove the covers one after another in the direction of the gray arrow.

Use the supplied custom tool

Max. tightening torque of the lock screw: 1 to 1.2 Nm

Page 56

56/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

5. Connect the sensor cable to the lens mount: Connect the R and L sensor cables with the image sensors in accordance with the table. Example: In the case of a D14D-DNight (color/black and white), the R sensor cable must always be connected to the lens mount marked with RGB, while the L sensor cable must always be connected to the lens mount marked SW.

Note

Never pull the sensor cable forcefully! To remove it, ﬁrst disconnect the plug by pressing lightly on the notch (1) and then carefully pull it upwards (2).

Always avoid direct contact with the switches on the green circuit board (ESD) in order to prevent damage arising now or later and to avoid reducing the service life.

6. Insert the sensor cable: Insert the sensor cable through the space in the circuit board. Make sure that the individual wires are gently curved and are not bent near the plug.

Place the lens cover on the image sensors: Carefully push the lens covers one after another in the direction of the gray arrow onto the plug until they click into place.

8. Align the image sensors and cable guide: Align the image sensors so that the plugs of the sensor cable point towards the interior of the dome (see red marking in the ﬁgure). This will ensure the images appear in the correct position later on and not upside down. Make sure that the sensor cable is as straight as possible and ﬁx the cable in place using the corresponding guides.

RGB SW

Page 57

57/132

First Installation Steps

www.mobotix.com • sales@mobotix.com

9. Mount the dome: Pick up the dome using the supplied plastic foil or a cotton cloth and screw the transparent dome in a clockwise direction onto the housing until the dome sits securely (but not too tightly) in the seal.

Make sure that the dome is not tilted and that it is securely ﬁtted to the seal on all sides.

10. Attach the outer shell: Hold the outer shell so that the round hole of the shell is positioned over the PIR sensor of the camera. Gently press the shell into the shell’s seats in the camera housing. Old

outer shells (D10D, D12D) may no longer be used!

If the camera is mounted on an outdoor ceiling and is exposed to extreme conditions, the three holes in the outer shell should be sealed with commercial silicon in order to prevent water from entering the outer shell.

Special Case: Mounting The D14D-180° To A Wall Without The Wall Mount

The lens mount unit has to be rotated by 180° so that you do not get an upside down panorama image in the vertically mounted camera (PIR sensor points downwards, see Section 2.1.1):

• Loosen the two sensor cables from the clamping rails on both sides.

• Remove two Allen screws on both sides of the lens mount.

• Pick up the lens mount and rotate by 180 degrees. Do not tear or jam the cable in the process.

• Reposition and mount the lens mount.

Caution

Due to the associated environmental conditions, the sensor boards may be exposed to a relatively high temperature that is however harmless for camera functioning. Sensor boards should not be directly touched while the camera is running (let them cool down ﬁrst).

Make sure that the sensor cable is not damaged or disconnected when aiming the lens.

Page 58

58/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.3.2 Overview Of Cable Connections

The following cables can be used with the D14:

•

MOBOTIX Ethernet cable: This MOBOTIX cable is pre-installed at delivery and is intended for direct connection to a network outlet. If the D14D is to be installed outdoors, the MOBOTIX MX-Patch-Box should be used (optional accessory).

• MOBOTIX USB cable with Mini USB connector: This MOBOTIX cable provides the required impermeability, even in adverse weather conditions, and thereby prevents corrosion of the connections.

• Multi-wire cable for MxBus connections: Additional MOBOTIX modules can be connected via this multi-wire cable in the future. The wires of this cable are led along the bottom of the camera and then pushed through the sealing membranes and into the cable guides.

Caution

Only MOBOTIX cables may be used for the Ethernet and USB connection to ensure

that the cable cover remains permanently sealed.

Note

Appliances with a combined maximum power consumption of 2.5W may be connected to the MxBus connector. If additional devices are connected to the MxBus connector and to the Mini USB connector, the power consumption of all connected devices may not amount to more than 4W.

If additional modules are connected, which in total consume more than 1 W, the maximum environmental temperature is limited to 50°C (122°F).

MxBus

Mini USB

Ethernet

for LAN

Mini USB

Connection of additional devices (via MxBus/Mini USB): Max. environmental temperature 50°C (122°F)

Page 59

59/132

First Installation Steps

www.mobotix.com • sales@mobotix.com

2.3.3 Connecting Ethernet Cable With The MX-Patch-Box

The MX-Patch-Box enables you to connect a MOBOTIX camera with a patch cable or with an Ethernet installation cable simply and water-resistant for the following cases:

•

Outdoor installation (preferably using the Outdoor Wall Mount)

• Indoor installation with Ethernet installation cable

You will ﬁnd additional information on the MX-PatchBox at www.mobotix.com under the section Products >

Accessories > Functional Boxes.

2.3.4 Connecting The Mini USB Cable

Existing additional modules like the MOBOTIX ExtIO (USB) can be connected via the Mini USB connector.

2. Remove cable cover: Remove the two M4x25 Allen screws from the cable cover using the 3-mm Allen wrench.

3. Remove cable cover: Remove the two M4x25 Allen screws from the cable cover using the 3-mm Allen wrench.

Remove rubber plug: Carefully bend the cable guide upwards and remove the rubber plug. Keep the rubber plug in a safe place (ideally in the camera’s original packaging).

Use the supplied custom tool

Page 60

60/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

5. Insert USB cable: Insert the MOBOTIX USB cable from below through the cable outlet (see ﬁgure) and wrap it around the camera within the cable guides.

6. Plug in the USB connector: Insert the Mini USB connector in the relevant socket. Make sure that the cable is correctly ﬁtted into the cable guides and that there is no excess cable in front of the connections.

7. Place the USB cable in the cable guides: Carefully bend the cable guides upwards, place the USB cable in the guides and snap the cable guides closed again.

8. Check the position of the cables: The two cables should now cross one another just before the connectors.

Install cable cover: Push the cable cover back into its seat and fasten the two M4x25 Allen screws. When mounting the cable cover, take care to properly align the cover with the seal of the camera housing and the two cable guides. This is the only way to ensure that the connections are reliably protected against any kind of weather.

Page 61

61/132

First Installation Steps

www.mobotix.com • sales@mobotix.com

10. Secure the cable: Properly lead the cable through the cable guides at the outer rim of the housing and make sure that the outer shell can be properly mounted later on.

11. Attach the outer shell: Hold the outer shell so that the round hole of the shell is positioned over the PIR sensor of the camera. Gently press the shell into the shell’s seats in the camera housing. Old outer shells

(D10D, D12D) may no longer be used!

2.3.5 Connecting MxBus Modules

The MxBus connection of the camera is located under the cable cover and enables additional modules to be operated to extend the functions of the camera. MxBus was optimized speciﬁcally for the use of existing two-wire cables.

The white (detachable) MxBus connector has four connections (each of which is blue/red or +/–):

• 2x MxBus inputs to connect the D14D to the MxBus cable

• 2x MxBus outputs to connect an MxBus module to the D14D

Note

The MxBus wires that are to be stripped at the end should always be inserted into the camera before installation. In doing so, every individual wire (coming from the housing ﬂoor) should be pushed through the elastic sealing membrane.

Do not mix up the polarity of the cables during installation. Select a consistent cable color for +/– in the entire MxBus system.

You are free to choose the position of the cable for the MxBus connector’s inputs and outputs (left or right)

Page 62

62/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.3.6 Replacing The MicroSD Card

If the supplied 4-GB MicroSD card is to be replaced (for example, with a 64-GB MicroSD card), it is best to do so before the camera is installed. The cards should only be replaced

when the camera is disconnected from the power supply.

2. Remove cable cover: Remove the two M4x25 Allen screws from the cable cover using the 3-mm Allen wrench.

3. Remove cable cover: If you are unable to do so by hand, press a suitable tool (screwdriver) into the notches provided for this purpose (red arrows). Carefully lift the cover upwards in the direction of the dome.

4. Remove the MicroSD card: Carefully press the MicroSD card into the mount until you hear a click. The card now protrudes from its seat and can be removed (tweezers may be used to facilitate removal).

Use the supplied custom tool

Push-push: Push the MicroSD card in, then pull it out

Page 63

63/132

First Installation Steps

www.mobotix.com • sales@mobotix.com

5. Insert the MicroSD card: Push the MicroSD card as shown (electrical contacts pointing toward the dome) into the card slot using a tweezers. Make sure that you hear a click when the card is inserted. The card is now locked and can be used. If a new MicroSD card is used, it must be format ted before use (see Chapter 3).

6. Install cable cover: Push the cable cover back into its seat and fasten the two M4x25 Allen screws. When mounting the cable cover, take care to properly align the cover with the seal of the camera housing and the two cable guides. This is the only way to ensure that the connections are reliably protected against any kind of weather.

7. Attach the outer shell: Hold the outer shell so that the round hole of the shell is positioned over the PIR sensor of the camera. Gently press the shell into the shell’s seats in the camera housing. Old outer shells

(D10D, D12D) may no longer be used!

Max. tightening torque of the Allen screws: 1 to 1.2 Nm

Page 64

64/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.4 Mounting The Camera With Outdoor Wall Mount

2.4.1 Aiming The Passive Infrared Sensor (PIR)

When mounting the camera, make sure that the PIR sensor points into the direction where it is most useful. The PIR sensor has a range of approximately 10m and a detection angle of approximately ±15 degrees.

The available positions are identiﬁed by means of the mounting height of the MOBOTIX D14D and the alignment of the bottom plate, which can be completed in 15° increments.

Hint: It may be useful to mark the ideal position of the PIR sensor on the bottom plate with a pencil.

1.50m

2.90m

2.80m

30°

45°

PIR data: Range of approximately 10 m, detection angle of approximately +/-15 degrees

Page 65

65/132

Mounting The Camera With Outdoor Wall Mount

www.mobotix.com • sales@mobotix.com

2.4.2 Mounting The Outdoor Wall Mount

Ideally, the Outdoor Wall Mount is mounted over the tested wall outlet that provides the connections (network, Power over Ethernet) to the camera.

MX-Patch-Box or wall outlet

D14D Outdoor Wall Mount

MOBOTIX Ethernet patch cable (1 m)

D14D

In-wall socket

293

9037

160

The 90 x 90 mm space also ts the MX-Patch-Box (MX-OPT-Patch1-EXT)

Mounting the Outdoor Wall Mount over the MX-Patch-Box or a socket

Page 66

66/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

Use the supplied drilling template (fold-out at the end of this manual) to mark the position for drilling the dowel holes and the holes through which the cables will be led later on. When printing or copying the drilling template, make sure that it is not scaled down.

1. Use the supplied screw anchors (10 mm), screws (8x70 mm) and washers (dia. 9 mm) to secure the Outdoor Wall Mount.

2. Attach the supplied wall sealing to the rear side of the wall mount. If the Outdoor Wall Mount is mounted to a very rough surface, the top of it should be subsequently sealed against the wall using silicon.

3. The rectangular opening on the wall mount’s rear side is intended to cover the in-wall socket or the MX-Patch-Box.

The folded drilling templates can be found at the end of the manual

Make sure that the drilling template is not scaled down when printing

Silicon for rough plaster

Page 67

67/132

Mounting The Camera With Outdoor Wall Mount

www.mobotix.com • sales@mobotix.com

2.4.3 Aiming The Camera

The camera can be installed once the Outdoor Wall Mount has been mounted to the wall or pole. The bottom plate closes o the outdoor wall mount from below and also holds the camera.

The upper side of the bottom plate has 24 holes for the M4 stainless steel hex nuts. It is thus possible to mount the camera in increments of 15 degrees. All holes have been numbered from 1 to 8 in order to facilitate the mounting process.

Three standard positions to aim the camera are described below:

1. PIR sensor of the camera looks straight ahead: Only use the holes numbered with 1 for the M4 hex nuts.

2. PIR sensor of the camera looks to the right: Only use the holes numbered with 3 for the M4 hex nuts.

PIR sensor of the camera looks to the left: Only use the holes numbered with 7 for the M4 hex nuts.

The bottom plate closes off the Outdoor Wall Mount from below and also holds the camera

PIR looking straight ahead: 1

PIR looking to the right: 3

PIR looking to the left: 7

Page 68

68/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.4.4 Connecting The Camera With Bottom Plate

In order to mount the camera to the bottom plate, use three of the supplied M4x25 Allen screws , three washers (dia. 4.3mm) and the corresponding hex nuts.

Caution

When fastening the Allen screws using the 3mm Allen wrench, make sure that you do not scratch the camera dome!

Please exchange the original (short) Ethernet cable of the D14D against the extended

1 m (3 ft 3 in) Ethernet cable that is delivered with the wall mount. Guide the connection cables of the camera from below (smooth side) through the round

opening of the bottom plate.

2. Position the camera on the underside of the bottom plate so that the PIR sensor points in the desired direction and the hole in the housing to the right of the PIR sensor is situated above a hole in the bottom plate.

3. Insert the ﬁrst M4 hex nut into the corresponding hole of the bottom plate. Then use one M4x25 Allen screw and a washer (dia. 4.3mm) and

lightly

fasten the

screw.

Turn the bottom plate over and identify the number of the hole that has just been screwed in (example: PIR is pointing ahead > Hole has the number 1). Insert the remaining M4 hex nuts into the other holes with the same number (1, in this case) and use the two other M4x25 Allen screws with the washers to mount the camera to the bottom plate.

Mount the camera housing to the bottom plate before mounting the bottom plate itself

PIR sensor of the camera looks straight ahead: Position 1

Page 69

69/132

Mounting The Camera With Outdoor Wall Mount

www.mobotix.com • sales@mobotix.com

5. Make sure that you have properly fastened the three M4x25 Allen screws.

2.4.5 Connecting And Securing The Camera

1. Plug the camera connection cables into the appropriate wall outlets or adapters.

2. Insert the (straight) wall side of the bottom plate into the back of the wall mount as shown in the ﬁgure.

3. Push the front of the bottom plate upwards.

4. Mount the bottom plate to the wall mount (eight M4x10 Allen screws) and make sure the screws are all properly fastened.

Mounting the camera on the bottom plate

Pushing the bottom plate into the Outdoor Wall Mount

Push into slots!

Max. torque for all Allen screws: 4 Nm

Page 70

70/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.5 Mounting The Corner And Pole Mount

2.5.1 Overview

If you would like to mount the MOBOTIX D14D to the corner of a building or a pole, you should consider using the MOBOTIX Corner and Pole Mount. This mount is designed as an additional mounting option for the Outdoor Wall Mount. The supplied stainless steel straps allow the mount to be attached to poles with diameters between 60 and 180mm.

By design, the Corner and Pole Mount does not allow the use of an in-wall socket for the camera cabling (recommendation: MX-Patch-Box).

Like the Outdoor Wall Mount, the Corner and Pole Mount is made from 3-mm white powder-coated stainless steel and is just as robust and maintenance-free.

Mounting to corner

Mounting to a pole

Page 71

71/132

Mounting The Corner And Pole Mount

www.mobotix.com • sales@mobotix.com

2.5.2 Mounting To The Corner Of A Building

Use the supplied screw anchors, screws and washers to ax the Corner and Pole Mount to a building corner.

1. Mark the four screw anchor holes on the corner of the building. Make sure that the arrows on the mount are pointing upwards. Drill the holes with a 10-mm drill bit.

2. Guide the connection cables through one of the large round holes at the back of the Corner and Pole Mount and then through one of the two 16-mm holes on the front of the mount. In order to properly protect the cabling, you should let the cabling run from the inside of the building through the Corner and Pole Mount directly into the camera. Note: The cable to

the camera should be at least 80cm (32in) from the corner!

3. Insert the supplied 10-mm screw anchors into the screw anchor holes and secure the Corner and Pole Mount to the corner of the building using the 8x70 screws and washers (dia. 9 mm).

Attach the Outdoor Wall Mount to the Corner and Pole Mount as described in Section 2.5.4.

Make sure that the arrows are pointing upwards when mounting

Make sure not to pinch and damage the cables when mounting

Page 72

72/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.5.3 Mounting To A Pole

Use the stainless steel straps supplied to ax the Corner and Pole Mount to a pole.

1. Guide the stainless steel straps through the holes in the pole mount (see ﬁgure). Make sure that you are using the slots of the mount which are ﬁtting best for the thickness of the pole. The stainless steel straps allow the mount to be attached to poles with diameters between 60 and 180mm.

2. Guide the connection cables from behind through one of the large round holes of the Corner and Pole Mount. In order to properly protect the cabling, you should let the cabling run from the pole through the Corner and Pole Mount directly into the camera. Note:

The cable length from the pole should be at least 80cm!

Firmly tighten the screws of the stainless steel straps. If required, clip the ends of the stainless

steel straps.

Pole diameter: 60 to 180 mm

Available soon: Corner and Pole Mount with predrilled holes for the MX-Patch-Box

Page 73

73/132

Mounting The Corner And Pole Mount

www.mobotix.com • sales@mobotix.com

2.5.4 Mounting The Outdoor Wall Mount

Use the stainless steel screws, washers and hex nuts supplied with the Corner and Pole Mount to ax the Outdoor Wall Mount to the installed Corner and Pole Mount.

1. Lead the cables through the appropriate hole at the back of the Outdoor Wall Mount.

2. Use the M8x30 Allen screws, washers (dia. 9 mm) and M8 hex nuts supplied with the Corner and Pole Mount to attach the Outdoor Wall Mount to the Corner and Pole Mount.

Mount the camera to the Outdoor Wall Mount, as described from Section 2.4.3 onwards (Aiming The Camera).

Page 74

74/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.6 Adjusting The Lens

Make sure that you see the live image of the camera on the monitor of your computer or laptop. Now adjust the lenses one by one until you see the desired image area on your monitor:

• Remove the camera dome using a lint-free cotton cloth.

• Release the lock ring of the lens, adjust the image sharpness and tighten the lock ring again. To avoid damaging the lens mount,

never turn the lens too far or with force.

• Mount the dome again using a soft cotton cloth.

Notes

The focusing aid provides a visual aid when setting the image sharpness of a MOBOTIX camera lens (see Section 4.3.3

Image and Audio Settings, Quick

Controls

in the

Software Manual

Image focus: Due to the lens eect of the dome, the focus of the 135 mm telephoto lens shifts slightly once the dome has been mounted. Before mounting the dome, the telephoto lens should be rotated by about 90° in a counterclockwise direction (against the direction in which the lens is screwed). Make sure that you check the focus of the live image with the dome installed and readjust the lens, if required.

We do not recommend (even) aligning the telephoto lens horizontally due to the image distortions that occur in the top part of the dome for technical reasons.

Lock ring secures lenses against vibrations

90°

Page 75

75/132

Adjusting The Lens

www.mobotix.com • sales@mobotix.com

Page 76

76/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.7 Network And Power Connection

2.7.1 Notes On Cable Lengths And Power Supply

•

Power may only be supplied to the camera via its Ethernet connector. We recommend using a MOBOTIX PoE adapter or another similar high-quality PoE product to loop-in the power supply:

• one camera: with the PoE adapter (MX-NPA-PoE)

• multiple cameras: with PoE products conforming to IEEE 802.3af (PoE switch)

• The maximum length of the network cable for power supply over an Ethernet cable is 100m.

• Make sure that you only use switches or routers that support the 10/100 Mbps Ethernet interface of the camera. Check the LED activity of the corresponding port at the switch or router.

•

It is highly recommend to use uninterruptible power supplies (UPS) to provide backup power.

• If you are using IEEE 802.3af or IEEE 802.3at (PoE+) Power-over-Ethernet network components to supply power to MOBOTIX cameras, make sure, if possible, that these components do not have a fan. Since the power consumption of MOBOTIX cameras is very low compared to other products, the reliability of the entire system is increased, thus extending the life of these components.

2.7.2 PoE Variables

The power consumption of the camera depends on the functions in use as well as any connected expansion modules (see table). PoE classes 1, 2 or 3 may be selected in the browser-based user interface in order to optimally adjust the camera to your system design (PoE switch in use, emergency power concept, etc.).

PoE power level classes (IEEE 802.3af standard):

Clase Max. power consumption Possible Operating Modes and accessories

1 0.44W to 3.84W

LowPower Mode (available soon): no accessories

2 3.84W – 6.49W (factory default) Standard Mode: max. 1 W for accessories

3 6.49W to 12.95W

FullPower Mode: max. 4 W for accessories (max. allowed ambient temperature: +50°C/+122°F)

MOBOTIX factory default is class 2

Page 77

77/132

Network And Power Connection

www.mobotix.com • sales@mobotix.com

The MOBOTIX factory default is PoE class 2. This default is usually ﬁne and nothing needs to be changed. However, the PoE power class must be changed in the browser if the higher power class 3 is required for your application:

1. Select Admin Menu > Network Setup > Ethernet interface (for experts).

2. Under Power Supply, click on Change.

3. A Power Wizard will appear to guide you through the PoE conﬁguration steps.

4. Next, restart the camera: Disconnect the camera from the power supply. Then reconnect it, for example, by disconnecting and then reconnecting the Ethernet cable at the PoE switch.

2.7.3 Power Supply Using A Switch

1. Connect the factory pre-installed cable of the camera to the Camera connector of the PoE adapter.

2. Connect the LAN/Power connector of the PoE adapter to the Ethernet connector of the switch/router or the Ethernet socket.

3. Plug the RJ45 connector of the power supply unit into the PC/Power connector of the PoE adapter.

Variable PoE: multiple cameras can be operated simultaneously from the same switch

For the D14D, you should use the blue MX-NPA-PoE Set –

previous MOBOTIX network power accessories such as the NPA Set, Power Box, and Power Rack (MX-NPA-Set, MX-NPR-4 and MX-NPR8/20) are not suitable for use with the D14D

The IP addresses in the diagram are shown only as an example

Switch/router

PoE Adapter

(MX-NPA-PoE)

Power supply

LAN/www

(10.8.0.11/255.0.0.0)

Camera

(10.8.0.99)

LAN/Power

PC/Power

Camera

RJ45

Page 78

78/132

D14D Camera Manual: Mounting

www.mobotix.com • sales@mobotix.com

2.7.4 Power Supply When Connected Directly To A Computer

1. Connect the factory pre-installed cable of the camera to the Camera connector of the PoE adapter.

2. Connect the PC/Power connector of the PoE adapter to the Ethernet port of the computer.

3. Plug the RJ45 connector of the power supply unit into the LAN/Power connector of the PoE adapter.

2.7.5 Power Supply With Power-Over-Ethernet Products

Connect the factory pre-installed cable of the camera to the Ethernet connector of the PoE switch/router. The switch/router must support the PoE standards IEEE 802.3af or IEEE

802.3at.

For the D14D, you should use the blue MX-NPA-PoE Set –

previous MOBOTIX network power accessories such as the NPA Set, Power Box, and Power Rack (MX-NPA-Set, MX-NPR-4 and MX-NPR8/20) are not suitable for use with the D14D

The IP addresses in the diagram are shown only as an example

PoE Adapter

(MX-NPA-PoE)

Power supply

(10.8.0.11/255.0.0.0)

Camera

(10.8.0.99)

LAN/Power

PC/Power

Camera

RJ45

(10.8.0.11/255.0.0.0)

Camera

(10.8.0.99)

PoE/PoE+

switch/router

LAN/www

The IP addresses in the diagram are shown only as an example

Page 79

79/132

Network And Power Connection

www.mobotix.com • sales@mobotix.com

2.7.6 Camera Startup Sequence

As soon as the power supply has been established, LEDs 2 and 4 will show the progress of the startup sequence:

• Hardware test: After the power has been connected, LEDs 2 and 4 will light up for about two seconds. The camera’s computer checks the camera hardware.

• Backup system test: The camera checks the operating system. In case of an error, the camera will start using the backup operating system, allowing you to reinstall the system software.

•

Unpacking the OS: The camera unpacks the operating system from the ﬂash EPROM and copies it to the camera’s memory (LEDs 2 and 4 light up for about ten seconds). Starting the OS: The Linux operating system unpacks its data to the RAM disk and initializes the system.

• Boot mode (factory IP address/DHCP): If the magnetic side of the custom tool is pressed to the spot marked L, the camera starts either using its factory default IP address (all LEDs ﬂash) or with DHCP (all LEDs light up). See also Sections 3.2.5 and

3.2.6 of this manual. The ﬂashing patterns only appear in the case of a hardware reboot, that is, after the power supply has been interrupted.

• Starting the applications: Once the application software has been started, LED 1 will light up continuously (if it has not been switched o for this conﬁguration). You can now access the camera using your browser.

Note

During the startup sequence of the camera, the LEDs will always light up, even if they have been deactivated in Admin Menu> LED Setup.

Page 80

80/132

D14D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3 OPERATING THE CAMERA

3.1 Manual And Automatic Operation – Overview

MOBOTIX cameras do not require any extra software. Thus, you can set up and operate the MOBOTIX camera using a JavaScript-enabled browser on all common operating systems (such as Windows, Linux, Macintosh, etc.). As an alternative, you can also use the MOBOTIX applications MxControlCenter and MxEasy. Follow these steps in order to set up the camera:

1. Connect the camera to the network. Power is supplied directly via the Ethernet cable (see Chapter 2)

2. Set up the camera's network interface:

• Manually using a web browser (see Section3.2.1 f)

• Automatically using MxControlCenter/MxEasy (see Sections 3.2.3 and 3.2.4) or via DHCP (see Section 3.2.6)

Conﬁgure the camera using the browser-based user interface, with MxControlCenter or with MxEasy.

Every MOBOTIX camera comes preconﬁgured with a ﬁxed IP address in the 10.x.x.x range (for example, 10.8.0.99). Local computer networks usually have IP addresses in the 172 or 192 ranges. In order to access a MOBOTIX camera via the network, the camera needs to get an IP address in the same address range. You can set up the network parameters of the MOBOTIX camera using one of the following methods: Manually, using MxCC and MxEasy or by DHCP.

Camera software in the browser

Download the free-of-charge MxEasy and MxControlCenter software at www.mobotix.com

Page 81

81/132

Manual And Automatic Operation – Overview

www.mobotix.com • sales@mobotix.com

3.1.1 Manually Using A Computer In The 10.x.x.x IP Address Range

You can set up the camera’s network parameters using a browser and the embedded camera software. To do this, connect the camera to a computer or a network that is using a

10.x.x.x IP address range (see Section 3.2.1, Manually Setting Up The Network Interface). Once this has been completed, you can enter the camera’s default IP address in the browser address bar of the computer (see Section 3.2.2, The First Images And

The Most Important Settings In The Browser). Next, click on the Admin Menu button to open the camera’s

Quick Installation in the browser’s user interface. This is where you can conﬁgure the desired network parameters of the camera. Once you have completed the Quick Installation, you can connect the camera with its new network parameters to the desired network.

Advantages

•

The camera does not need to be physically accessible, i.e. it can remain mounted to a pole, for example.

• There is no additional software required.

• The network parameters can be set ﬂexibly through manual entry.

Disadvantages

• The computer or the network need to operate in the 10.x.x.x IP address range or need to be able to access such a network.

• The setup does not work automatically.

• You need to know the relevant network parameters.

The default IP address of your camera is printed on a sticker on the back of the camera

Page 82

82/132

D14D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.1.2 Automatically Using MxControlCenter Or MxEasy

You can set up the camera's network parameters using the free-of-charge video management software MxControlCenter or MxEasy (see Sections 3.2.3 and 3.2.4). You can also use one of these applications to automatically conﬁgure the network parameters of MOBOTIX cameras that are not operating on the same IP address range as the computer.

Advantages

• You can directly connect the camera to the target network.

•

The camera does not need to be physically accessible, i.e. it can remain mounted to a pole, for example.

• The camera can be conﬁgured to automatically receive an IP address (optional).

• The network parameters can be manually set (optional).

• You do not need to access the camera software.

Requirement

• Either MxControlCenter or MxEasy must be installed on the computer.

MxControlCenter software (free download from www.mobotix.com)

MxEasy (free download from www.mobotix.com)

Page 83

83/132

Manual And Automatic Operation – Overview

www.mobotix.com • sales@mobotix.com

3.1.3 Automatically Using DHCP

The camera can automatically obtain its network parameters using DHCP (Dynamic Host Conﬁguration Protocol). This requires the network to have a functioning DHCP server (for example, a DSL router with activated DHCP server) and the camera must be booted using DHCP (see Section 3.2.6, Starting The Camera With An Automatic IP Address (DHCP)). The IP address automatically assigned by the DHCP server will be announced via the camera speaker as soon as the camera has booted successfully.

Advantages

• You can directly connect the camera to the target network.

• Network parameters are automatically assigned.

• There is no additional software required.

• You do not need to access the camera software.

Disadvantages

• The camera needs to be physically accessible as you need to press a key on the camera housing to boot it using DHCP.

• Requires a running DHCP server on the network.

Page 84

84/132

D14D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.2 First Images And The Most Important Settings

Once the camera has been connected to the network, you need to set up the camera's network interface accordingly. This step involves setting up and checking the network parameters of the camera. If your network is already using an IP address in the 10.x.x.x range with a 255.0.0.0 network mask, you do not need to change the camera's network parameters. You can access the camera directly (see Section 3.2.2). If your network or computer does not use an IP address in the 10.x.x.x range (for example, in the 192 or 172 ranges), you should follow one of the following methods for changing the camera's network parameters:

• Manual Setup (Section 3.2.1)

• Automatic Setup using MxControlCenter or MxEasy (Sections 3.2.3 and 3.2.4)

Note

For the following examples, we will use a camera with the factory address 10.8.0.99. Replace this IP address with the IP address of your camera. You will ﬁnd this address on a small sticker on the camera. Make sure that the IP addresses used in the following examples are not already being used by other devices in the network.

3.2.1 Manually Setting Up The Network Parameters In A Browser

In order to manually set up the network parameters of the MOBOTIX camera, you need a computer that is using a 10.x.x.x IP address. The computer's network parameters usually have to be changed for this purpose.

1. Change The Network Parameters Of Your Computer:

Windows (2000, XP, and Vista):

1. Open Start > Settings > Control Panel > Network Connections. Clicking Properties opens the dialog

shown.

2. Double-click on Internet Protocol (TCP/IP). On the General tab, activate the

Use the following IP address

option. Enter an IP address in the 10.x.x.x range in this ﬁeld (for example, 10.8.0.11).

3. Once all dialogs have been closed, the computer will have the IP address 10.8.0.11.

Pressing the “L” key (see Section 2.7.6) with the magnetic side of the custom tool will prompt the camera to announce its current IP address on the camera speaker.

Entry in “Subnet mask” eld: 255.0.0.0

Page 85

85/132

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

Linux/Unix:

1. Open a terminal as root user.

2. Enter the following command: ifcong eth0:1 10.8.0.11

3. The computer is now also using the IP address 10.8.0.11

Mac OSX:

1. Open System Properties > Network.

2. Select Ethernet. In the Conﬁguration ﬁeld, select Manual and enter a 10.x.x.x IP address (for example,

10.8.0.11).

Click Apply on the bottom right-hand side of the dialog to assign the computer the IP address 10.8.0.11.

2. Set Up The Target Network Parameters Of The Camera:

1. Open a Web browser on the computer and enter the default IP address of the MOBOTIX camera in the address bar of the browser (for example, 10.8.0.99). Pressing Enter displays the user interface of the MOBOTIX camera (see also Section

3.2.2 First Images And The Most Important Settings In The Browser).

2. Click the Admin Menu soft key in the user interface of the MOBOTIX camera. The Quick Installation starts automatically once the admin user has logged on.

Hint: The Quick Installation can also be executed at a later stage by opening Admin Menu > Network Setup > Quick Installation (see also Section 5.2 Quick Installation in the Camera Software Manual Part 2).

4. Enter the target network parameters of the camera on the appropriate page of the Quick Installation assistant.

5. Hint: The network parameters can also be accessed at a later stage by opening Admin Menu > Network Setup > Quick Installation.

6. Once you have completed the Quick Installation and rebooted the camera, the new network parameters will be activated. The camera can now be connected to the target network and, if required, further conﬁgured.

Default user data

User name: admin password: meinsm

Page 86

86/132

D14D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.2.2 First Images And The Most Important Settings In The Browser

Once the MOBOTIX camera has been connected to the power supply and to the network, you can access the user interface with the live camera image in the web browser. Internet Explorer, Firefox, Safari or any other graphical browser with activated JavaScript is suitable. It does not matter which operating system is used.

After entering the camera's IP address in the browser address bar, you will see the live screen of the MOBOTIX camera with its user interface controls, such as softbuttons, buttons for the dierent camera screens, pull-down menus (Quick Controls), icons for accessing the online help and the camera status as well as status information elements.

Note

Default access credentials for the Administration Menu

• Username: admin

• Password: meinsm

Soft keys

Camera views

Quick Controls

Camera status and help

Page 87

87/132

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

Camera Views: Live, Player, MultiView

The MOBOTIX camera automatically displays the live screen when it starts up (factory default setting). You can set a dierent start page in Admin Menu> Language and Start Page (for example, the Guest screen) to allow a restricted access to the live image.

The other available standard screens include Player (playback of recorded images and video sequences) and the MultiView screen (displays several cameras with live or recorded images).

Multiview allows you to view several cameras via a “proxy” camera (especially useful if you want to access your cameras from outside of the network with reduced bandwidth) and the PDA mode provides a special screen for mobile devices.

Note

For more information on camera screens, see Section 4.1.1 Camera Screens in the Browser, the Camera Software Manual Part 2, or the online help of the camera's browser interface.

Live screen: http://<camera IP>/ control/userimage.html

Player screen: http://<camera IP>/ control/player

MultiView screen: http://<camera IP>/ control/multiview

PDA screen: http://<camera IP>/pda

PDA event list: http://<camera IP>/control/ player?eventlist&pda

Guest screen: http://<camera IP>/ cgi-bin/guestimage.html

Page 88

88/132

D14D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.2.3 First Images And Network Parameter Conﬁguration In MxControlCenter

Installation

If you want to install the current version of the software, you can download the current Windows installer from the MOBOTIX website as an MSI ﬁle, which you can install manually. The latest versions are available at www.mobotix.com in the Support> Sof tware Downloads>

MxControlCenter.

If you have downloaded the latest Windows installer, double-click the

MSI ﬁle to initiate

the installation process.

The installer copies the selected ﬁles to the computer (older versions will be removed automatically) and then creates the designated shortcuts during the installation process (Desktop, Start Menu, etc.).

Caution

MxControlCenter will automatically attempt to ﬁnd all MOBOTIX cameras in the physically connected network (that is, even a MOBOTIX camera with a factory IP address of 10.x.x.x ). Make sure that the ﬁrewall settings on your computer are low enough so that MxControlCenter is not blocked. If any MOBOTIX cameras are found, MxControlCenter can automatically reconﬁgure them so that they are available in the current subnet of the computer. If you do not have permission to modify these settings on your computer, contact your system administrator for assistance.

Download MxControlCenter for free from www.mobotix.com

Page 89

89/132

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

MOBOTIX- Searching And Displaying MOBOTIX Cameras

Launch MxControlCenter after successful installation by double-clicking the shortcut that was created by the installer or the executable ﬁle MxCC.exe in the installation directory on your computer.

When you launch the program for the ﬁrst time, the Add Video Sources dialog box appears and the application automatically searches for MOBOTIX cameras in the local network. To perform a camera search at a later time, select Video Source > Add from the menu.

If your MOBOTIX camera is properly connected, it should appear together with the existing video sources in the following list:

Note

Video sources in this context not only refer to cameras, but also to third-party IP

cameras, ﬁle server paths, clips and analog cameras connected via (for example, analog dome cameras). These video sources are not found automatically and need to be added manually.

List of video sources Legend Camera preview

Automated Search for MOBOTIX Cameras

Page 90

90/132

D14D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

Cameras Are Found But Are Located In A Dierent Subnet

The symbols in the ﬁrst column and the legend in the dialog indicate whether you can access a particular camera directly from the MxControlCenter, which is the case for all cameras designated with

(OK) . Cameras designated with (dierent subnet) are located in a dierent subnet. This usually applies to new cameras or cameras that have been reset to their factory settings.

Note

MxControlCenter ﬁnds all MOBOTIX cameras, even when the computer and the cameras are not located in the same subnet.

Once you have marked all of the desired video sources in the list with OK, you can now select those that you wish to display and manage in MxControlCenter. The live image is automatically displayed in the preview window when a camera is selected to help you identify the cameras.

For cameras marked with Dierent subnet or if you want to add additional video sources, follow the instructions in the following sections. You can also display the selected cameras directly in a layout. For more information, see Section Creating A New Layout.

Reconﬁguring Cameras In A Dierent Subnet

If one or more MOBOTIX cameras are displayed with the status Dierent subnet (for example, cameras with a factory IP address), MxControlCenter automatically oers to conﬁgure the network settings of these cameras. In this case, the application displays the dialog box shown here after you have clicked on the “Add selected video sources” button. Click on Yes to conﬁgure the cameras to the subnet of your computer.

A DHCP server automatically assigns IP addresses for network devices in most networks so that you can automatically select the default setting Get IP address automatically (DHCP) in the Conﬁgure selected cameras dialog box.

Page 91

91/132

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

Activate the option Use this IP address/this range if the IP address of a particular camera must be assigned manually (for networks with permanent IP addresses). Obtain the assigned IP address, subnet mask and standard gateway from your network administrator and enter the data. To reconﬁgure multiple cameras at the same time, all you have to do is enter the range of IP addresses that includes the addresses of all of these cameras.

Make sure that the checkbox Store conﬁguration in the camera is checked. This setting ensures that the cameras are displayed with the correct network settings even after they have been rebooted. Click on OK to close the dialog box.

Wait until MxControlCenter has changed the network settings and rebooted the cameras. The status of the reconﬁgured camera changes from

(Dierent subnet) to (OK).

Deﬁning Additional Video Sources

In addition to the MOBOTIX cameras that are found automatically, you can also manually add video sources to the list of video sources for MxControlCenter

• Camera: Here, you can enter the known IP address or DNS name of an MOBOTIX camera or a third-party IP camera if it was not found by the automatic search feature.

• MxPEG clip: Adds an MxPEG video clip previously recorded by an MOBOTIX camera as a video source.

• Recording path: Adds the path of an external ﬁle server where a MOBOTIX camera has recorded audio/video data. The videos or images recorded at that location can now be played back using the Player or Video Search.

Page 92

92/132

D14D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

Editing the Video Source List

This list provides a context menu (right mouse key), allowing you to select/deselect all video sources at once. You can also use this method to remove from the list some or all of the video sources that you would not like to display or manage in MxControlCenter.

If you have cancelled the camera conﬁguration process or need a password that diers from the camera's factory default password, you can also conﬁgure the camera from the shortcut menu at a later date and enter the user name and password required for reconﬁguration at that time.

It is also possible to open the Conﬁgure selected cameras dialog using the shortcut menu in order to change the camera network parameters.

Creating A New Layout

In the dialog box Add video sources select the camera or other video sources that you would like to display in a layout (a view with a group of selected cameras) and then click on Add selected video sources.

The dialog box Create new layout is displayed. If you select the option Generate new grid for selected video sources here, MxControlCenter automatically generates a grid layout that displays windows of the same size for all selected video sources. Give each layout a unique name (for example, underground garage).

If you select the second option, the video sources you selected are simply integrated in the MxCC system, where you can use them to generate a layout at a later time.

Click on OK to conﬁrm your selection.

Page 93

93/132

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

3.2.4 First Images And Network Parameter Conﬁguration In MxEasy

Installing And Starting MxEasy

Download the current version of MxEasy from the MOBOTIX website (www.mobotix.com> Support> Software Downloads in the MxEasy area). Double-click on the shortcut for the program or load the program ﬁle.

Finding Cameras

When you start MxEasy for the ﬁrst time on a computer, the MxEasy Assistant automatically begins to search for MOBOTIX cameras, and displays all cameras found in a list. The camera list will be updated automatically as soon as new MOBOTIX cameras are connected to, or removed from the network.

MxEasy also automatically monitors and displays the operating status of all cameras. Cameras that are not on the same subnet as the computer will get a dierently colored icon than the cameras that are on the same subnet. Likewise, the cameras that have an unknown password or for which no user name/password combination has been speciﬁed in MxEasy will get a dierently colored icon. The following section contains information for cameras with the status Invalid network (for example, for all new MOBOTIX cameras with factory settings) and includes tips for conﬁguring these cameras for the “right” subnet.

Free MxEasy download at www.mobotix.com

Page 94

94/132

D14D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

Reconﬁguring Network Addresses Of Cameras

Using Bonjour*, MxEasy ﬁnds not only cameras on the same network as your computer, but also MOBOTIX cameras located in other subnets (Status Invalid Network). In such a case, you would not be able to establish any connection to cameras in a dierent network or subnet (without going into much further detail regarding TCP/IP network conﬁgurations). This is possible, for example, when a camera with a factory IP address is connected to a network in which a DHCP server automatically assigns the IP addresses. MxEasy can automatically conﬁgure such a camera so that it is “integrated” into your existing network. To do so, you only have to select the aected camera in the list and then click on the button Continue.

After a security prompt, a new dialog box for conﬁguring the selected camera is displayed.

If your computer automatically obtains its IP address from a DHCP server, then this is certainly the best choice for that speciﬁc camera and most likely for all other cameras that have been found in a dierent subnet (Get IP address automatically option).

If you have assigned a ﬁxed IP address to your computer, you will probably want to assign ﬁxed IP addresses (issued by your system administrator) to every camera (the Use this IP address option). Normally, you enter the same conﬁguration used for the network settings of your computer.

When you click on OK, the selected cameras are automatically reconﬁgured and they are located in the same subnet as the computer.

* Bonjour: automatic recognition of network services in IP networks

Page 95

95/132

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

Integrating And Displaying Cameras

After a camera has been reconﬁgured, it has the status Accessible and can be integrated into MxEasy. The MxEasy Assistant then displays the dialog box Deﬁne integration mode in MxEasy.

Here, you can jump directly to the main window of MxEasy with the current live camera image by activating the option Quick Start. However, some required detailed conﬁgurations may have to be made at a later time (for example, password protection, available bandwidth). For this reason, we recommend activating the option Complete integration and complete the remaining dialog boxes of the MxEasy Assistant until the main window appears.

For more information, see the MxEasy User Manual, which can be downloaded as a PDF ﬁle from the MOBOTIX website: www.mobotix.com > Support> Manuals.

Main window with dual image display of a D14D (telephoto lens and wide angle)

Page 96

96/132

D14D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.2.5 Starting the Camera With The Factory IP Address

Under certain circumstances, you may have to reset the camera to its factory IP address. This could be the case, for example, if the IP address has been lost or the camera does not respond to the last known IP address.

1. If the camera is powered on, disconnect the power supply by unplugging the corresponding cables and then reconnect the power supply.

2. After about ten seconds, the LEDs will light up and blink for about four seconds.

3. After they stop blinking (all LEDs light up continuously now), hold the magnetic

side of the custom tool over the spot above the microphone labeled L in the ﬁgure (the switch is inside the camera housing).

4. If you skip this step, disconnect the camera from the power supply and start from the beginning.

5. Release the custom tool after around 40 seconds when the camera emits a single sound (“boing”).

Notes

If you use the camera's L key to load the factory network conﬁguration, this conﬁguration is not automatically saved in the camera's ﬂash memory. When the camera is next rebooted without using the L key, the last stored network conﬁguration will be used. To permanently store the new network conﬁguration in the camera's ﬂash memory, open Admin Menu> Store.

As opposed to resetting the camera using Admin Menu > Reset conﬁguration to factory defaults, the user information will not be reset if the camera is booted using the factory IP address.

Passwords and camera settings will not be changed

Users and passwords will not be reset!

Make sure you store the default network conguration to the permanent ash memory

Page 97

97/132

First Images And The Most Important Settings

www.mobotix.com • sales@mobotix.com

3.2.6 Starting The Camera With An Automatic IP Address (DHCP)

If your network has a DHCP server, you can start the MOBOTIX camera with DHCP support. The camera automatically obtains an IP address from the DHCP server and announces the new network data. Note that if the speaker has been previously deactivated the announcement will not be audible (Admin Menu > Microphone and Speaker).

1. If the camera is powered on, disconnect the power supply by unplugging the corresponding cables and then reconnect the power supply.

2. After about ten seconds, the LEDs will light up and blink for about four seconds (ﬁrst blink), light up continuously and then blink again for about four seconds (second blink).

After they stop blinking (all LEDs light up continuously again), hold the magnetic side of the custom tool over the spot above the microphone labeled L in the ﬁgure (the switch is inside the camera housing).

4. If you skip this step, disconnect the camera from the power supply and start from the beginning.

5. Release the custom tool after around 25 seconds when the camera emits a sound twice (“boing, boing”). The network data is announced shortly afterwards.

Notes

Starting the camera with an automatic IP address (DHCP) is only temporary. The network conﬁguration of the camera can be set to DHCP permanently under Admin Menu> Ethernet Interface.

When starting the camera with DHCP support, make sure that the network has a functioning DHCP server. If this is not the case, the camera cannot obtain a valid IP address and will fall back to its last IP address.

You should also make sure that the cameras always obtain the same IP addresses by assigning the MAC addresses of the cameras to the desired IP addresses.

234

In case of an error, the camera uses its last IP address

Page 98

98/132

D14D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.3 Virtual PTZ And Full Image Recording

3.3.1 Virtual PTZ

The virtual PTZ function allows you to use a mouse or joystick to continuously zoom in on images from the selected video source and “virtually” move the enlarged image section

within the entire image sensor area.

Operation Using The Mouse And Scroll Wheel

The vPTZ function of the camera can be controlled in the browser using the mouse. By clicking any position on the image displayed on the monitor, this position becomes the new image center. The image moves and is corrected accordingly. The scroll wheel can be used to control the zoom function. This functionality is disabled in the default settings of the camera and must therefore ﬁrst be activated. To do so, go to Setup Menu > vPTZ Settings and uncheck the Lock Mouse Wheel Zoom item. Then save the settings by clicking on Set and Close. You can now use the scroll wheel to zoom + (roll upwards) or

zoom – (roll downwards).

Original image: Telephoto lens (left) and wide angle lens (right) – simultaneously in one image

USB joystick offers greater ease of use

Page 99

99/132

Virtual PTZ And Full Image Recording

www.mobotix.com • sales@mobotix.com

Operation Using USB Joystick

A standard USB joystick can drastically improve vPTZ operation for the user – in the browser, in MxEasy, and in the MxControlCenter (however, MxCC is also equipped with a virtual joystick that can be operated using the mouse). Please ﬁrst install the joystick on the PC according to the manufacturer's instructions.

In order to use a USB joystick in the browser, make sure that you have a PC with a Windows operating system and the latest version of Internet Explorer and that the “ActiveX” mode

in the camera software (browser) is activated:

• Switch to Browser in the Quick Control.

• Under Browser, select the option ActiveX in the ﬁeld to the right. The USB joystick can then be used until the browser is closed.

•

To store the setting permanently, ActiveX must be activated in the

Admin Menu. To do so, use Language and Start Page in

the Admin Menu.

• Under the page options, select the ActiveX operating mode.

• Store the settings permanently by clicking on Set and Close in the Admin Menu.

• The joystick can now be used.

Notes

For more information and details regarding vPTZ, see the Camera Software Manual, the manual for MxEasy and the manual for MxControlCenter.

The latest versions of all manuals are available at www.mobotix.com under the main menu item Support in the bar on the left-hand side (“Manuals”).

Virtual joystick in MxControlCenter

Page 100

100/132

D14D Camera Manual: Operating The Camera

www.mobotix.com • sales@mobotix.com

3.3.2 Full Image Storage

It is possible to store a full image, regardless of the live image stream that is being displayed. This ensures that the recording always contains the full image of the lens used, even though the operator may have used the vPTZ features to zoom into the image in order to examine a speciﬁc detail.

This means that you can use the vPTZ features in VGA resolution to pan, tilt, and zoom the live image while the camera is for example, recording full images at 1fps in MEGA or QXGA resolution.

In MxEasy or MxControlCenter, the recorded full images may be prepared for the user with the vPTZ functions (for example, panning and zooming in on an image detail such as a doorway).

If full image storage is not activated, only the last displayed live image will be saved (save what is seen). The main beneﬁt of live image storage is to ensure that the full power of the camera processor is used for live image correction and maximum frame rates. The main advantage of full image storage lies in the special functionality of the D14D, in that it can always ensure the availability of a maximum size (full) image for later searches, despite vPTZ actions carried out on the live image. The mechanical limitations of motor-driven PTZ cameras mean that they simply cannot provide this unique advantage to the user!

Notes

Post-event search in the full image: If you are using Full Image Recording on D14D

cameras, you should use at least MEGA resolution when storing. This will facilitate later searches in MxControlCenter or MxEasy. The advanced distortion correction features require this function to deliver satisfactory image quality.

Full Image Recording On: Due to the increased processing time, full image recording reduces the data rate of the live image stream, which may drop by around 10 to 30 percent. We therefore recommend to reduce the frame rate for storage as much as possible to aect the live image stream as little as possible.

Full Image Recording O: The event that triggered a video motion (VideoMotion VM) window may not be in the recorded sequences while the window was not displayed at the time.

Stored full image: Original camera image without distortion or image correction

Live image Stored full image Analysis in the stored full image

Mobotix D14D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
