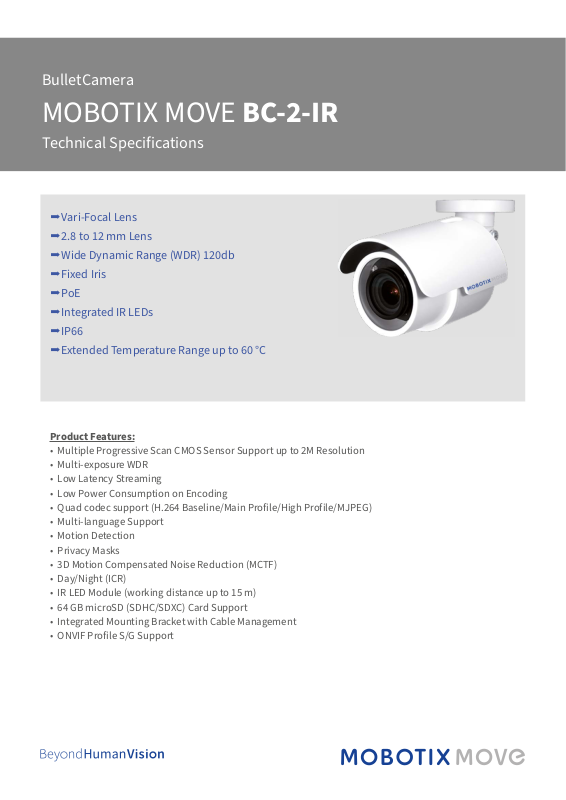

BulletCamera
MOBOTIX MOVE BC-2-IR
Technical Specifications
Vari-Focal Lens
2.8 to 12 mm Lens
Wide Dynamic Range (WDR) 120db
Fixed Iris
PoE
Integrated IR LEDs
IP66
Extended Temperature Range up to 60 °C
Product Features:
• Multiple Progressive Scan CMOS Sensor Support up to 2M Resolution
• Multi-exposure WDR
• Low Latency Streaming
• Low Power Consumption on Encoding
• Quad codec support (H.264 Baseline/Main Profile/High Profile/MJPEG)
• Multi-language Support
• Motion Detection
• Privacy Masks
• 3D Motion Compensated Noise Reduction (MCTF)
• Day/Night (ICR)
• IR LED Module (working distance up to 15 m)
• 64 GB microSD (SDHC/SDXC) Card Support
• Integrated Mounting Bracket with Cable Management
• ONVIF Profile S/G Support
Technical Specifications: BulletCamera MOBOTIX MOVE BC-2-IR
BulletCamera MOBOTIX MOVE BC-2-IR
MOBOTIX Order Number Mx-BC1A-2-IR
Image Sensor 1/3” Progressive CMOS
Eective Pixels 1920(H) x 1080 (V)
Minimum
Illumination
Color 0.1 lux
B/W 0.01 lux
Shutter Speed 1–1/10000 sec.
S/N ratio > 50 dB
Lens
Lens Manual Vari-Focal Lens
Focal Length 2.8–12 mm
F Number F1.4
FOV 91.61 º(Wide); 34.3 º (Tele)
Operation
English/French/German/Italian/Japanese/Korean/Portu
Multiple Languages
guese/Russian/Simplified Chinese/Spanish/Traditional
Chinese
Iris Control Fixed Iris
Backlight Compensation On/O
White Balance Auto/Manual/ATW/One Push
-
Event Setting
Noise Reduction 3DNR/2DNR/ColorNR
Wide Dynamic Range Shutter WDR On/O (120 dB)
Privacy Mask On/O
Privacy Mask Type Black
Brightness Manual
Exposure Auto/Manual
Sharpness Manual
Contrast Manual
Saturation Manual
Hue Manual
Digital Zoom Optical 4.3x, digital 10x
ICR Auto/Smart/Day/Night
ICR + IR LED Auto/LED On/LED O/Smart IR/Light Sensor/Day/Night
Motion Detection By Schedule/On/O
Tampering Alarm By Schedule/On/O
Network
Interface RJ45, 10/100 Mbps Ethernet
Video Compression H.264/MJPEG
2M @ 25/30 fps + SVGA @ 25/30 fps
Video Streaming Quad Streams
1080p @ 25/30 fps + D1 @ 25/30 fps
H.264 1080p @25/30 fps + H.264 SVGA @15 fps +
H.264 CIF @15 fps + H.264 CIF @15 fps
Video Resolution
Protocol
Security HTTPS/IP Filter/IEEE 802.1X
Event Notification HTTP/FTP/SMTP
SD Card 64 GB microSD (SDHC/SDXC) card support
Supported Web Browser Internet Explorer (7.0+)/Firefox/Safari
User Account 20
Password Levels User and Administrator
Mechanical
Built-in IR Illuminator
LED Indicator Power/Link/ACT
H.264 Full HD 1080P/SXGA/HD 720P/XGA/SVGA/D1/VGA/CIF
MJPEG Full HD 1080P/SXGA/HD 720P/XGA/SVGA/D1/VGA/CIF
ARP, IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS,
ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP,
QoS, ONVIF
Working Distance Up to 15 m
Wavelength 850 nm
Number of LEDs 5
Connectors
General
Start-Up Temperature –20 °C–60 °C (–4 °F–140 °F)
Operating Temperature –30 °C–60 °C (–22 °F–140 °F)
Humidity 10 %–90 %, no condensation
Protection Class IP66
Dimension
Weight 330 g
Power Source PoE
Power Consumption POE: 5.6 W
Regulatory CE/FCC
Type Outdoor
Ethernet RJ45
Outdoor w/cable management: ø 71.5 x 150.53 x
91.15 mm (ø 2.815 x 5.92 x 3.58 in. )
Technical Specifications: BulletCamera MOBOTIX MOVE BC-2-IR
EN 50130-4;
Approvals
IEC61000-4-2, IEC61000-4-3, IEC61000-4-4,
IEC61000-4-5, IEC61000-4-6
IP66
Unit: mm
EN_10/2020
MOBOTIX AG • Kaiserstrasse • D-67722 Langmeil • Tel.: +49 6302 9816-0 • Fax: +49 6302 9816-190 • sales@mobotix.com • www.mobotix.com
MOBOTIX, the MX Logo, MxControlCenter, MxEasy, MxPEG and MxActivitySensor are trademarks of MOBOTIX AG registered in the European Union, the U.S.A. and in other countries • For a complete product overview and a current price
list, see the MOBOTIX website • Sold only to distributors or commercial clients • Technical specifications subject to change without notice • MOBOTIX do not assume any liability for technical or editorial errors or omissions contained
herein • All rights reserved • © MOBOTIX AG 2020
BulletCamera
MOBOTIX MOVE BC-4-IR
Technical Specications
Motorized Vari-Focal Lens with One-Push Auto Focus
2.7 to 12 mm Lens
Wide Dynamic Range (WDR) 120db
Auto-Iris
Remote Zoom & Focus
Triple Power Support (PoE/DC12 V/AC24 V)
Integrated IR LEDs
IP66 and IK10 (housing only)
Extended Temperature Range up to 65 °C
Product Features:
• Progressive Scan CMOS Sensor Support with 4MP Resolution
• Multi Exposure WDR
• Multi Codec Support (H.264/H.265/MJPEG)
• Low Latency Streaming
• Triple Stream Support
• True Day/Night Function (ICR)
• IR LED (Working Distance up to 30 m)
• 3D Motion Compensated Noise Reduction (MCTF)
• Smart Event Function: External Output/Motion Detection/Network Failure Detection/Tampering Alarm/
Periodical Event/Manual Trigger/Audio Detection
• Text Overlay and Privacy Masks
• microSD (SDHC/SDXC) Card Support
• ONVIF Prole S/G/T Support
• Smart Low Bitrate Control
• Weatherproof (IP66)
• IK10 (housing only)
Technical Specications: MOBOTIX MOVE BulletCamera BC-4-IR
Lens Movement Sensor
Auto Focus
The MOBOTIX MOVE BulletCamera BC-4-IR can perform fast, reliable auto focus and can adapt to dierent indoor and outdoor scenes through its unique algorithm. As auto focus can be done by camera itself,
no on-site focus adjustment is required.
4MP WDR
The MOBOTIX MOVE BulletCamera BC-4-IR utilizes
state of the art image processing technology, provid
ing 4MP resolution high quality video. Its WDR capability captures more image detail under challenging light
conditions, such as entrance area, warehouse loading
bay or parking lot.
-
Technical Specications
MOBOTIX MOVE BulletCamera BC-4-IR
MOBOTIX Order Number Mx-BC1A-4-IR
Sensor
Eective Pixels H x V = 2688 x 1512 (4MP)
Pixel Size 2.0 μm
Frame Rate (Maximum) H.264/H.265: WDR 4MP@30 fps + d1@30 fps
Lens
Minimum Illumination Color
Lens Motorized Vari-Focal Lens
4MP
1/3“ Progressive CMOS
MJPEG: 1080p@30 fps
B/W
Focal Length
Horizontal (Field of View)
Vertical (Field of View)
0.1 lux
0.01 lux
Focus, Zoom, P-Iris,
F1.7, 2.7 to 12 mm
103 ° (Wide), 35 ° (Tele)
53 ° (Wide), 23 ° (Tele)
Camera
Day and Night
Shutter Time 1 to 1/10K sec.
WDR
EIS No
Zoom Optical 4.4x, digital 10x
Settings
Corridor Mode 90 °, 180 °, 270 ° Rotation
Video Codec
Compression H.264/H.265/MJPEG
Streaming Up to 3 individually congurable Streams in
Audio Codec
Compression G.711/G.726/AAC/LPCM
Streaming 2-Way
Audio Input Line in
Automatically removable IR-cut Filter
Yes
Color, Brightness, Sharpness, Contrast White Balance,
Exposure Control 2DNR, 3DNR, NR by Motion Masking,
Text Overlay
H.264/H.265/MJPEG Congurable Resolution/Frame
Rate/Bandwidth LBR/VBR/CBR in H.264/H.265
Audio Output Line out
Network
Interface 10/100 Mbps Ethernet
Security User Authentication/HTTPS/IP Filter/IEEE 802.1x
Supported
Protocols
ONVIF Prole S/G/T conformant
System Integration
Analytics Motion Detection/Tampering/Audio Detection
Event Triggers External Input, Analytics, Network Failure Detection,
Event Actions External Output Activation
ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP,
UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP,
DDNS, SMBv2
Periodical Event, Manual Trigger
Video and Audio Recording to Edge Storage
File Upload:
FTP, Network Share and Email Notication:
HTTP, FTP, Email
Technical Specications: MOBOTIX MOVE BulletCamera BC-4-IR
General
Casing Metal and Plastic
Power PoE IEEE802.3af
or DC 12 V, 2.12 A
or AC 24 V;
max 13.68 W
Connectors RJ45
Alarm in x4, Alarm out x1, Terminal Block
DC12 V Terminal Block
AC24 V Terminal Block
Audio in 3.5 mm Jack
Audio out 3.5 mm Jack
IR Illumination
Illumination Distance: up to 30 m
Storage Support for microSD/microSDHC/microSDXC card
Support for Recording to NAS
Protection Class IP66/IK10 (housing only)
Operating Conditions –30 °C to 65 °C (–22 °F to 149 °F)
10 % to 90 %, no Condensation
Storage Conditions –20 °C to 70 °C (–4 °F to 158 °F)
Approvals EMC
Safety
Environment
CE/FCC
LVD
IP66, IK10
Dimensions ø 92 x 220 mm
Weight 780 g
EN_05/2020
MOBOTIX AG • Kaiserstrasse • D-67722 Langmeil • Tel.: +49 6302 9816-0 • Fax: +49 6302 9816-190 • sales@mobotix.com • www.mobotix.com
MOBOTIX, the MX Logo, MxControlCenter, MxEasy, MxPEG and MxActivitySensor are trademarks of MOBOTIX AG registered in the European Union, the U.S.A. and in other countries • For a complete product overview and a current price
list, see the MOBOTIX website • Sold only to distributors or commercial clients • Technical specications subject to change without notice • MOBOTIX do not assume any liability for technical or editorial errors or omissions contained
herein • All rights reserved • © MOBOTIX AG 2020
BulletCamera
MOBOTIX MOVE BC-4-IR-D
Technical Specications
Motorized Zoom Lens with Auto Focus Function
9 to 22 mm Lens especially for greater distances
Wide Dynamic Range (WDR) 120db
Auto-Iris
Remote Zoom & Focus
Triple Power Support (PoE/DC12 V/AC24 V)
Integrated IR LEDs
IP66 and IK10 (housing only)
Extended Temperature Range up to 60 °C
Product Features:
• Progressive Scan CMOS Sensor Support with 4MP Resolution
• Multi Exposure WDR
• Multi Codec Support (H.264/H.265/MJPEG)
• Low Latency Streaming
• Triple Stream Support
• True Day/Night Function (ICR)
• IR LED (Working Distance up to 40 m)
• 3D Motion Compensated Noise Reduction (MCTF)
• Smart Event Function: External Output/Motion Detection/Network Failure Detection/Tampering Alarm/
Periodical Event/Manual Trigger/Audio Detection
• Text Overlay and Privacy Masks
• microSD (SDHC/SDXC) Card Support
• ONVIF Prole S/G/T Support
• Smart Low Bitrate Control
• Weatherproof (IP66)
• IK10 (housing only)
Technical Specications: MOBOTIX MOVE BulletCamera BC-4-IR-D
Lens Movement Sensor
Auto Focus
The MOBOTIX MOVE BulletCamera BC-4-IR-D can perform fast, reliable auto focus and can adapt to dierent indoor and outdoor scenes through its unique algorithm. As auto focus can be done by camera itself,
no on-site focus adjustment is required.
4MP WDR
The MOBOTIX MOVE BulletCamera BC-4-IR-D utilizes
state of the art image processing technology, provid
ing 4MP resolution high quality video. Its WDR capability captures more image detail under challenging light
conditions, such as entrance area, warehouse loading
bay or parking lot.
-
Technical Specications
MOBOTIX MOVE BulletCamera BC-4-IR-D
MOBOTIX Order Number Mx-BC1A-4-IR-D
Sensor
Eective Pixels H x V = 2688 x 1512 (4MP)
Pixel Size 2.0 μm
Frame Rate (Maximum) H.264/H.265: WDR 4MP@30 fps + d1@30 fps
Lens
Minimum Illumination Color
Lens Motorized Zoom Lens
4MP
1/3“ Progressive CMOS
MJPEG: 1080p@30 fps
B/W
Focal Length
Horizontal (Field of View)
Vertical (Field of View)
0.1 lux
0.01 lux
Focus, Zoom, DC Iris,
F1.6, 9 to 22 mm
35 ° (Wide), 15 ° (Tele)
20 ° (Wide), 9 ° (Tele)
Camera
Day and Night
Shutter Time 1 to 1/10K sec.
WDR
EIS No
Zoom Optical 2.4x, digital 10x
Settings
Corridor Mode 90 °, 180 °, 270 ° Rotation
Video Codec
Compression H.264/H.265/MJPEG
Streaming Up to 3 individually congurable Streams in
Audio Codec
Compression G.711/G.726/AAC/LPCM
Streaming 2-Way
Audio Input Line in
Automatically removable IR-cut Filter
Yes
Color, Brightness, Sharpness, Contrast White Balance,
Exposure Control 2DNR, 3DNR, NR by Motion Masking,
Text Overlay
H.264/H.265/MJPEG Congurable Resolution/Frame
Rate/Bandwidth LBR/VBR/CBR in H.264/H.265
Audio Output Line out
Network
Interface 10/100 Mbps Ethernet
Security User Authentication/HTTPS/IP Filter/IEEE 802.1x
Supported
Protocols
ONVIF Prole S/G/T conformant
System Integration
Analytics Motion Detection/Tampering/Audio Detection
Event Triggers External Input, Analytics, Network Failure Detection,
Event Actions External Output Activation
ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP,
UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP,
DDNS, SMBv2
Periodical Event, Manual Trigger
Video and Audio Recording to Edge Storage
File Upload:
FTP, Network Share and Email Notication:
HTTP, FTP, Email
Technical Specications: MOBOTIX MOVE BulletCamera BC-4-IR-D
General
Casing Metal and Plastic
Power PoE IEEE802.3af
or DC 12 V, 2.12 A
or AC 24 V;
max 13.68 W
Connectors RJ45
Alarm in x4, Alarm out x1, Terminal Block
DC12 V Terminal Block
AC24 V Terminal Block
Audio in 3.5 mm Jack
Audio out 3.5 mm Jack
IR Illumination
Illumination Distance: up to 40 m
Storage Support for microSD/microSDHC/microSDXC card
Support for Recording to NAS
Protection Class IP66/IK10 (housing only)
Operating Conditions –30 °C to 60 °C (–22 °F to 140 °F)
10 % to 90 %, no Condensation
Storage Conditions –20 °C to 70 °C (–4 °F to 158 °F)
Approvals EMC
Safety
Environment
CE/FCC
LVD
IP66, IK10
Dimensions ø 92 x 220 mm
Weight 780 g
EN_05/2020
MOBOTIX AG • Kaiserstrasse • D-67722 Langmeil • Tel.: +49 6302 9816-0 • Fax: +49 6302 9816-190 • sales@mobotix.com • www.mobotix.com
MOBOTIX, the MX Logo, MxControlCenter, MxEasy, MxPEG and MxActivitySensor are trademarks of MOBOTIX AG registered in the European Union, the U.S.A. and in other countries • For a complete product overview and a current price
list, see the MOBOTIX website • Sold only to distributors or commercial clients • Technical specications subject to change without notice • MOBOTIX do not assume any liability for technical or editorial errors or omissions contained
herein • All rights reserved • © MOBOTIX AG 2020
Loading...
