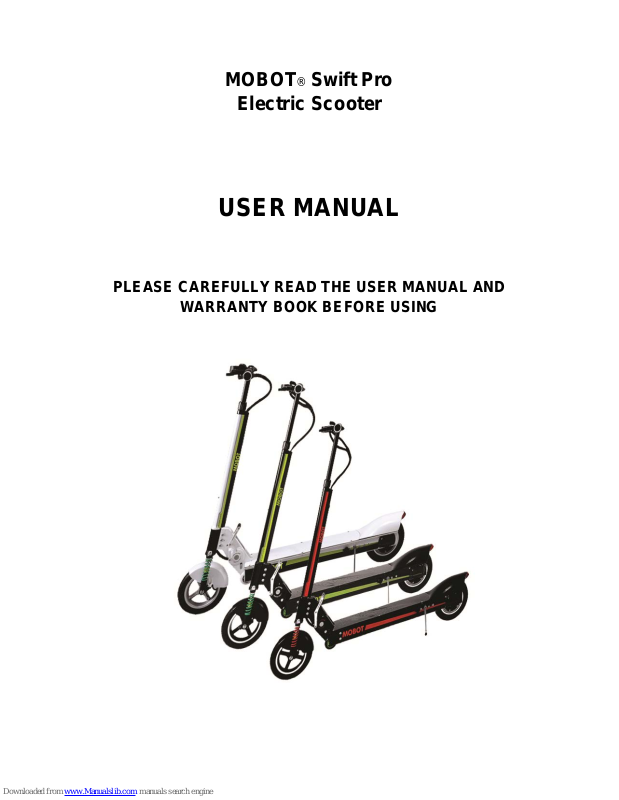

MOBOT® Swift Pro
Electric Scooter
USER MANUAL
PLEASE CAREFULLY READ THE USER MANUAL AND
WARRANTY BOOK BEFORE USING
WARNING
Whenever you ride the MOBOT® Swift Pro electric scooter
you might risk having serious injury from collisions, falls
or loss of control. To ride safely, YOU MUST READ AND
FOLLOW ALL INSTRUCTIONS AND WARNINGS STATED IN
THIS MANUAL.
This manual includes basic operational instructions for the
MOBOT
® Swift Pro electric scooter. It does not cover any
situations where injury or death may occur.
OPERATORS MUST USE GOOD JUDGMENT AND
COMMON SENSE TO DETECT AND AVOID HAZARDS AND
DANGERS that they may encounter when riding the
MOBOT
® Swift Pro electric sco oter. By using the MOBOT®
Swift Pro electric scooter, it deems that you accept the
inherent risks of operating this product.
CONTENTS
MAIN PART 4
SAFETY 5-6
PRODUCTS
Folding Stage 7
Folding Steps 8
Opening Steps 9
RIDING OPERATION 10
PRODUCT OPERATION 11-12
BATTERY and CHARGER 12-13
MAINTENCE 13
GENERAL TROUBLESHOOTING 13
PRODUCT SPECIFICATION SHEET 14
PRODUCT WARRANTY 15
MAIN PARTS
SAFETY
1. Please read the instruction manual carefully before using the scooter, do not
lend it to anyone who is/or unclear on the uses of the scooter.
2. The product is recommended for adults (18 years old and above) and is not
suitable for minors age (below 12 years old).
3. Please wear your safety helmet and other protective equipment when riding.
4. Do not ride in traffic lane or unsafe roads that is breaking the local traffic rules
and regulations.
5. Please exercise in wide areas, and ride after skilled manipulation.
6. Do not attempt any dangerous actions like riding single-handedly.
7. Always keep your feet on the scooter platform.
8. Do not attempt to ride the scooter on stairs that are above 3 cm. It may result in
vehicle overturn, causing injuries and/or damages to the rider and/or scooter.
9. The maximum speed limit for MOBOT ® Swift 2nd Gen is 35 Km/h. For your
safety, please maintain the riding speed at 20 Km/h.
10. When travelling at night, please limit the speed within 15 Km/h or less and turn
on the headlights.
11. For safety reasons, do not ride the scooter in bad weather conditions such as
heavy downpours and high winds.
12. Do not use the scooter when outdoor temperature is lower than 0ºC.
13. Please slow down or avoid using the scooter when riding in poor road
conditions such as oily or slippery road surfaces.
14. Please adjust the handlebar according to your height to ensure a safe and
comfortable riding.
15. To avoid damages to the electrical parts of the vehicle, do not immerse the
scooter in water with depth of more than 4 cm. Do not wash it with pressurized
water.
16. Please check the scooter brakes, headlight, rear light and horn is functional, as
well as the steering of the handle bar.
17.
Unsuitability of using this product may be subjected to the old age, pregnant
women, disability, after-consumption of alcohol and drugs.
18. Please do not ride on unauthorized areas that is regulated by the government.
For the safety of yourself and other road users, always follow on the traffic rules
and signs.
19.
Slow down the scooter when travelling on wet slippery surfaces to avoid
making unnecessary emergency brake.
20.
Charge the battery under room temperature (20°C), leave the battery
uncovered to allow better cooling of the battery preventing it from over-heating.
21.
Do not dispose the old battery that is harmful to the environment, instead you
can return to us for recycling.
22.
It is recommended to go for the first maintenance check for the first 2 (months)
and subsequently for the every 3 (months) for maintenance check.
23.
Please do not modify any parts of the scooter including the engine and tyres.
24.
Please do not attempt to modify the readings or detach the LCD panel as
designed by the company.
25.
Please keep the scooter out of reach from children.
26.
Each MOBOT® Swift 2nd Gen electric scooter is equipped with a special lithium
polymer battery and special smart charger. These accessories that come with
each scooter have a dedicated number, do not use the chargers from other
brands. Damages caused by using inappropriate battery chargers is not under
usual product warranty.
PRODUCTS
Folding Stage
A- Unfolded B- Folded Handlebar
C- Fully Folded
PRODUCTS
Folding Steps
PRODUCTS
Opening Steps
RIDING OPERATION
Before Ride Procedure
1. The normal air pressure of the front wheel tire should maintain within (240-250) kPa, rear
wheel tire should maintain within (250-260) kPa. Please check the tire frequently for any
defects. (Important) Deflated tires will affect the steering process of the scooter.
2. Check if the accelerator and brakes are functioning properly.
3. Check if the headlight and rear light is functioning properly.
4. Check if the handles are steering smoothly from left to right.
During Ride Procedure
1. Please do not ride in single-handle! For first user, please practice on an open area before
proceeding to pedestrian road.
2. When travelling on wet and slippery surfaces, avoid riding on high speed, making sharp
turns and always keep a safe distance between other vehicles and pedestrians.
3. When travelling at night, always turn on the head and rear light.
4. During heavy downpour, do not ride on high flood level that will damage the motor and
battery.
5. Please do not ride on unauthorized areas that is regulated by the government!
After Ride Procedure
1. Turn off the power by pressing the off button beside the LCD Screen.
2. Always check on the remaining power of the battery, to ensure sufficient power for next
use.
3. Always ensure that the scooter is park in stable and locked
RODUCT OPERATION
1. Introduction of LCD Screen
1. Battery indicator 5. On/ Off Button
2. Speed indicator 6. Mode Button (Function button)
3. Per or Total Trip indicator 7. Thumb Throttle
4. 4.T ot al or per Trip distance travel
Switch
1) To turn on the electric scooter, press and hold the on/off button for 3 second.
Speed
1) User could control the speed between 1km/h to 35km/hr by pushing the thumb
throttle. Accelerate depend on how much force input to the thumb throttle.
3
4
5
1
2
Power/ Battery Display
1) The LCD Screen will show the amount of battery left after your ride.
Distance
1) The LCD screen show the total distance per trip travel or the distance total trip travel.
Head and Rear light
1) When travelling at night, please switch on the head and rear light.
Brake
1) User can brakes the scooter by hold on to the brake lever which connected to the
rear electric disk brake.
Start non-zero start function
1) Turn on the electric scooter
2) The scooter is equipped with non-zero start electric motor system and the brake will
switch off the device. During the starting ride, please first go by your foot slide to let
the scooter move then use the thumb throttle to use the function.
BATTERY AND CHARGER
Each MOBOT® Swift 2nd Gen electric scooter is equipped with a special lithium polymer
battery and special smart charger. These accessories that come with each scooter have a
dedicated number, do not use the chargers from other brands. Damages caused by using
inappropriate battery chargers is not under usual product warranty.
Battery
1) When c harging the battery, the LED turns red which means that charging is in
progress. When it is in “green” it means battery is fully charged.
2) If the red light does not turn green after continuous charging, please visit our service
center.
3) For the first 5 uses, please charge the battery for at least 10 hours before use.
4) Please do not charge the battery for more than 12 hours.
5) Charge the battery in area temperature of (0~45)°C, the ideal temperature for
charging will be 25°C.
6) Please charge the battery once every month, if not in use for a long period of time.
(Important!)
7) Avoid direct contact of the battery from flames and direct sun exposure.
8) Avoid water or other liquid to be in contact with the battery.
9) We recommend you to go for maintenance once every 3 months to check on the
body and parts of the scooter.
Charge Description
1) Open the charging hole under the rubber protective cover and plug in the charger
connector.
2) Connect the charger plug into the power socket.
3) The charger light turns red when charging is in progress. Charger light turns green
when battery is fully charged.
4) Please close the main power of the scooter, and charge the scooter around 48V.
5) Please always check whether there is still remaining power left in the battery the next
trip.
6) The company provides dedicated charger which has a charging protection function,
when the battery is 100% charged, the charger will automatically stop charging.
Charging time is no more than 3 hours.
7) Water immersion, collisions, and other abnormal factors will lead to charger damag e,
which is not covered under warranty.
MAINTENANCE
Due to the likelihood of breakdown of the electric scooter usually within 1 year, in order to
allow convenience and ease of maintenance. The company has implement 1 year of free
warranty plan.
Proper use and maintenance of the scooter will prolong the lifespan of the scooter. We
recommend you to send the scooter for maintenance once every 3 months to check on the
brakes and the battery functionality.
Lubrication
Need every six months in folding hand clutch set using a small amount of lubricating oil or
lubricant to do maintenance.
Tire
When the brake performance began to decline, can adjust the brake line regulator in order to
achieve the required sensitivity. If the brake line after adjustment, the performance still poor,
or still noise at the brake area, you need to find the dealers for the replacement of brake
pads.
Battery
The product is equipped with lithium battery can repeat charging at least 2 year , 800 times.
When each time with electric range is too short, lithium batteries need to be replaced.
GENERAL TROUBLESHOOT ING
Checking List
1) Please check the following actions do or not if the scooter cannot work
2) Power switch is turned on
3) Display shows remaining power stand more the limited
4) Brake lever is not stand at the working position
5) All sockets and connectors are clean and well connected.
PRODUCT SPECIFIC ATION SHEET
PRODUCT WARRANTY
In normal use, if a part or parts of the electric scooters have any problems listed in the
following form during the warranty period, please contact your local vendor or authorised
reseller, we will provide a complete service as specified in the warranty book.
Item
Quality problems
Warranty
period
Service item
Motor
Under normal circumstances the motor
cannot be used
One year
Free
maintenance
Controller
Failures under normal use
One year
Free
maintenance
Lithium Battery
Under normal circumstances cannot be
charged and discharged
One year
Free
maintenance
Body structure
Failures under normal use, such as
deformations and fractures
One year
Free
maintenance
Charger
Failures under normal use
Six month
Free
maintenance
UBHI
(uniblock human
interface-display)
Cannot be used under natural conditions
(Excluding the impact forces and ex
ternal
damages)
Six month
Free
maintenance
Note: Please follow the correct way to use this product, the company will not be responsible
for parts damaged and other damages caused by misusing.
PRODUCT WARRANTY
In warranty period, if the malfunction and damage caused by the following reasons, it will not
be within the scope of product warranty:
1. I nappr opriate maintenance and repair that are not in accordance with the instruction
manual.
2. Use of the electr ic scooter for other purposes such as performing dangerous acts
which result in damages or functional failures.
3. Using any of the external factory components.
4. Disassem bling the scooter without contacting the local reseller.
5. Wrongly usage causing traffic accidents or accidental collision damage to the product
body and the parts.
6. Pr oduct wear and tear.
MOBOT PTE LTD
62 Ubi Road 1, #03-19 Oxley Bizhub 2, Singapore 408734
Tel: 65382816 | Fax: 65382817 www.MOBOT.sg
