MobiWireS DAKOTA Operators Guide

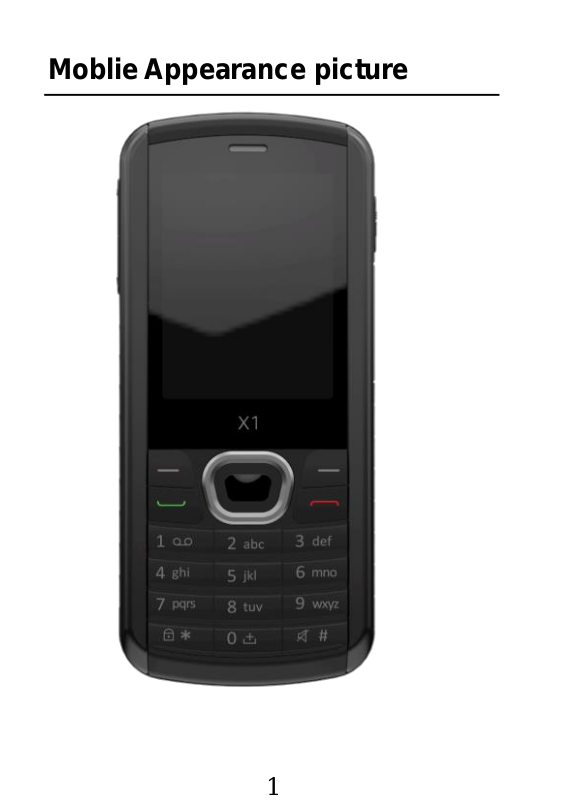

Moblie Appearance picture

1

Technical Specifications

Battery
Type

Battery
Capacity

Talk time

Standby time

Li-batter
y

1400mAh

6hr

About 400hr

Weight: 128.3g
Size: 132*58.5*12mm
Battery: 4.2 Li-on
For the network:
GSM900MHz/DCS1800MHz/GSM850MHz/PCS1900MHz
Battery refer to the following table:

Notice:
The actual condition for mobile phones using has the
relation to the network of the local environmental
conditions, SIM card and the way using.
Warning:
For the consequences result by violating the
following recommendations or using mobile phones
In accurately, the manufacturers has no responsibility.
Explain: If relate to the upgrades, without notice. The
Company has the right for the final interpretation of
this statement.

2

Moblie Appearance picture ......................... 1

Table of Contents

1. Quick start ........................ 8

Icon Explain .................................................. 8

Install SIM card ............................................. 9

Install T-flash card ......................................... 9

Installing Battery ............................................ 9

Battery Charging ......................................... 10

Switching on ................................................ 10

Other special function .................................. 11

2. Call function ................... 12

Dialing telephone......................................... 12

Receiving telephone .................................... 12

call in the menu ........................................... 13

3. Menu functions .............. 15

Contacts ...................................................... 15

SMS ............................................................ 17

Calls ............................................................ 21

Gmail/Email ................................................. 22

Browser ....................................................... 22

Opera .......................................................... 24

Facebook .................................................... 24

Settings ....................................................... 24

Connected ................................................... 31

Java ............................................................ 32

Camera ....................................................... 32

Media .......................................................... 33

FM radio ...................................................... 34

3

Images ................................ ........................ 35

Ebook.......................................................... 35

Recorder ..................................................... 36

Editor .......................................................... 37

Files ............................................................ 37

Bluetooth ..................................................... 37

Calendar ..................................................... 39

Alarm .......................................................... 39

World clock ................................................. 40

Notes .......................................................... 40

Calculator .................................................... 40

Tasks .......................................................... 41

Convert ....................................................... 41

Torch ........................................................... 41

Stopwatch ................................................... 41

Profiles ........................................................ 42

SIM ............................................................. 43

4. Input methods ................ 44

5. Phone maintenance ....... 46

6. Accessories ................... 48

7. Safety Information错误! 未

定义书签。

4

Foreword

Honorific mobile phones user, thank you for choosing our
mobile phone!
Our cellular phones is according with the communication
industry standards of PRC, and also according with the
standards of European, and are approved for GSM
networks.
Your phone may be used internationally with various
networks depending on your roaming arrangements with
your service provider.
To use this phone you must subscribe to a GSM service
from a provider. We have included many features in this
device but their function depends on the features
available with your subscribed wireless network. Please
contact your service provider for more information.
We strongly recommend you carefully read and
understand this manual before using your phone in order
to keep it under best conditions for your effective usage
and utmost satisfaction.

Safety

Never attempt to disassemble your phone. You alone are
responsible for how you use your phone and any
consequences of its use.
As a general rule, always switch off your phone wherever
the use of a phone is prohibited.
Use of your phone is subject to safety measures designed
to protect users and their environment.
Do not use your phone in damp areas (bathroom,

swimming pool…). Protect it from liquids and other

moisture.
Do not expose your phone to extreme temperatures lower
than - 10°C and higher than + 55°C.
The physicochemical processes created by chargers

5

impose temperature limits when charging the battery. Your
phone automatically protects the batteries in extreme
temperatures.
Do not leave your phone within the reach of small children
(certain removable parts may be accidentally ingested).
Electrical safety
Only use the chargers listed in the manufacturer’s
catalogue. Using any other charger may be dangerous; it
would also invalidate your warranty. Line voltage must be
exactly the one indicated on the charger’s serial plate.
Aircraft safety
When traveling by plane, you will need to switch your
phone off when so instructed by the cabin crew or the
warning signs. Using a mobile phone may be dangerous
to the operation of the aircraft and may disrupt the phone
network.
Its use is illegal and you could be prosecuted or banned
from using cellular networks in the future if you do not
abide by these regulations.
Explosive materials
Please comply with warning signs at petrol station when
personnel asking you to switch your phone off. You will
need to comply with radio equipment usage restrictions in
places such as chemical plants, fuel depots and at any
location where blasting operations are under way.
Electronic equipment
To avoid the risk of demagnetization, do not let electronic
devices close to your phone for a long time.
Electronic medical equipment
Your phone is a radio transmitter which may interfere with
electronic medical equipment or implants, such as hearing
aids, pacemakers, insulin pumps, etc. It is recommended
that a minimum separation of 15 cm be maintained
between the phone and an implant. Your doctor or the

6

manufacturers of such equipment will be able to give you
any advice you may need in this area.
Hospitals
Always make sure that your phone is switched off in
hospitals when so instructed by warning signs or by
medical staff.
Road safety
Do not use your phone when driving. In order to give your
full attention to driving, stop and park safely before making
a call. You must comply with any current legislation.
Distance of operation
This phone model has been tested and meets
radiofrequency exposure guidelines when used
As follows:

·Against the ear: place or receive a phone call and hold
the phone as you would a wire line telephone.

·Body worn: when transmitting, place the phone in a carry
accessory that contains no metal and positions the phone
a minimum of 2.5cm form your body. Use of other
accessories may not ensure compliance with
radiofrequency exposure guidelines. If you do not use a
body worn accessory and are not holding the phone at the
ear, position the phone a minimum of 2.5 cm from your
body,

·Data operation: when using a data feature, position the
phone a minimum of 2.5cm from your body for the whole
duration of the data transmission.

7

1. Quick start

Icon

Function description

Network signal strength:

number of the more stronger the signal;

Battery capacity

number of the more power the more full;

SMS

SIM have unread SMS

Missed call
SIM have missed calls

Used profiles

Different icons show different icon:
General, Silent, Meeting, Outdoor

Headset

Plug in headset

Alarm

Alarm function opened

Stopwatch

Stopwatch function turn on

Key lock

Show key and screen lock

Icon Explain

8

Install SIM card

This phone supports one GSM SIM cards. Find SIM

card’s groove in the back of the phone and slide it

completely there. During installation, please make
sure the chip is facing downwards and pay attention to
slot direction.

Note：

1. Keep SIM card out of children’s touch.

2. Any abrasion or folding could easily damage
SIM card, so please be extremely careful when you
insert, Remove and preserve it.

3. Please make sure that you have cut off the
power supply and have taken out battery
before you remove SIM card.

Install T-flash card

1. First switch off the phone and remove the battery.

2. Push the metal card holder toward the bottom of the
phone and lift the released end of the holder.

3. Place the memory card into the holder with the metal
contacts face down and push the holder until it locks into
place.

Note:

1.To avoid damaging memory card, please do not
plug memory card fast or frequently.

2. Please regularly backup information in the
cards on other equipment when you use Cards
like T-flash! Improper use or other uncertain
factors may cause the damage or loss to the
content in the cards.

Installing Battery

Align the battery chip with the metallic salient point in
battery jar, insert the battery until it is inserted into the
battery jar. Slide battery cover into back of the phone until
it is locked.

9

Battery Charging

Unclose dustproof soft gum of attachment mode on the
bottom of the phone, insert one end of the charger, i.e.,
the charging plug into attachment mode and the other end
into electrical outlet, Screen will display the charging sign.
After charging is finished, just pull out the plug.

Note:

1. Please use the standard battery and charger, or
may explode.

2. If the battery is completely discharged, the
battery icon should be in charge after 2 to 3
minutes to appear. Generally based on the current
state of the phone (if boot, call, etc.) of different
charging time for 2 to 5 hours.

3. Please use the charger, charging as much as
possible to avoid using USB cable.

4. To ensure optimal battery performance, the
completion of two to three times the battery
charge and discharge cycles. Several new battery
initial charge, please charge more than 10 hours
straight.

Switching on

Long press the Red key to switch your phone on

1. If there is no SIM card, SIM card is defective, or SIM
card contact is loose, you will be prompt with a warning
after powering on, shut down and check your SIM and its
installation.

2. If inserted one GSM SIM card only into the phone,
meanwhile phone code and PIN code is turn on. When
switched on, after entering the PIN code and phone code,
the phone enter the standby mode by the current SIM.

3. If the phone detected authorized network, the screen
will display network name and signal strength；If there is

10

no authorized network is found，the phone can only make
emergency calls or use non-communications features.

Other special function

In the idle screen, long press the red key, you can enter
the phone mode setting screen, include select power
mode, network management and profiles.
Lock: press the * key + the left softkey, the mobile will
lock screen. If you need operat the phone, press the left
softkey + * to unlock.
Power off: select the function, the phone will power off.
Reboot: select the function, the phone will reboot one
time.
Flight mode: select the function, the phone will switch to
flight mode.
SIM: you can select open or close the SIM card function.
Date: you can open or close the data connection.
Profiles: The phone provides you with five profiles:

General, Silent, Meeting, Outdoor and My style. It’s help

you according to the different events and environments in
different custom ring tones. according to different
scenarios, choose a different profile.

11

2. Call function

Dialing telephone

1. Direct dial
In standby mode, press the corresponding numeric keys
to enter the phone number that you want to dial, including
necessary area codes. Short Press the Right soft key
[Clear] to delete one character, and Long Press delete all
inputs, press the Green key to dial.

2. Making an International Call:
To make an international call, long press [0] key until the
prefix symbol "＋" of international call displays in screen.

3. Dialing from Phonebook
Enter the Phonebook via the menu, use the Up/Down
Navigator keys to scroll to the desired contact, or press
the first letter of the name of the desired contact as saved
in your phonebook for quick access to names beginning
with the letter then scroll to the desired, press the green
key to dial.

4. Dialing from Call history
Enter the Call center (press the Green key from standby
or via the menu), use the Up/ Down navigator keys to
scroll to the desired contact, press the green key to dial.

5. Dial emergency service
You can directly dial the emergency service number
without SIM card. Different networks use different urgency
service numbers, so for details please inquire the network
operation company.

Receiving telephone

When there is an incoming call, the phone will give
corresponding alert, if your network supports caller ID, the

screen will display caller’s name or number (depending on

whether there is information of the caller in your

12

phonebook).

1. Press the green key or press the Left soft key and
confirm [Answer] to answer the incoming call.

2. If function of [call center/call settings/Advanced setting/
Answer mode] is selected as [Any-key], press the any key
to answer the incoming call except the Right soft key or
the Red key.

3. If you do not want to answer an incoming call, press the
Red key or the Right soft key [Reject] to reject it.
You can also press the Red key to end a call.

4. During a call, you can press the Up/Down navigator key
to adjust receiver volume.

call in the menu

During a call, press the right soft key can also open / close
the Mute function, press the OK key can open/close the
handfree function. press the left soft-key into the options:

- Swap*: Is maintained in the current call and switch
between calls

- Conference*:Into the multi-party conference call, you
can follow the prompts to answer the waiting call, to add
multi-session conference call will be maintained; and the
party conference in private conversation, the call to keep
all other parties; the parties to keep the party; the end of
the current Calls and all calls remain.

- Hold/Retrieve single call*: The current call on hold or
resume the call

- End single call*: end off the current call.

- End all calls*:end off the current call and the hold call

- Transfer*: the function need network support.

- New call: enter the dial-up interfaces.

- Phonebook: enter the phonebook list of interfaces.

- Messaging: access to the message menu.

- Call history: access to call history list.

- Sound recorder: record the current call.

13

Note:
Recording of the call, in some countries is illegal.
Therefore, when you talk to Recording, should seek
prior approval from the other party's consent.

-

The dual tone multi-frequency switching

DTMF:

operation ( a call, you press the keys on the keyboard, the
audio signal will be sent to each other, for telephone
banking, automatic answering machine, etc.)

：

-

mute on or off, open the case in the quiet do not

Mute

send local voice.

you can press the navigation to adjust the call

-Volume:

volume.

Note:
Denotes menu items only appear in specific
circumstances.
Such as: [Swap] exist only in the state of the phone
and call the phone only appears to be suspended. At
the same time for the conferencing, you need to the
appropriate service provider to subscribe..

14

3. Menu functions

Contacts

The Phone for your well-prepared high-capacity phone
storage space. You can use the phone's contacts feature
to save the contact name, number and caller ring-tone.
The phone can save 1500 phonebook records, SIM card
number of records stored phone numbers vary because of
their capacity.
Enter the contacts screen, there have three labels on the
screen，press the left/right navigation key to switch the
label.

Add new contact

-To SIM：New records added to the SIM, each name can

only be stored under a number.

-To Phone：you can input name, number and set caller
ring-tone. This Records stored in your phone.

Quick search

In order to facilitate you to quickly search the phone book
to the desired number, the phone prompts you to quickly
find features.
In the contact list interface, you press # key to switch input
method, e nter the contact name of the first characters to
locate search.
After searching for the name, press the Green key to dial
the number and press the Red key to end dialing.

Browse contacts

In the phonebook list screen, press the up / down
navigation key to select the contact record, press the
green key to dial the number in the record, then the red
key to end the dialing. Press the OK Key to display the
details of the selected record. In the phonebook list

15

screen, select either the phonebook record, press the left
key to perform the following operation:

- View: view the select

- Send message: send SMS to the select number

- Call: call the select number

- Edit: you can edit the select record

- Delete: Delete the select record

- Copy: this record can copy to “SIM” or “phone”

- Move: this record can move from SIM to phone, or move

from phone to SIM

- Add to Blacklist: this record can add to blacklist.

- Mark several: you can mark one or several contacts to
delete.

- Phonebook settings:

Speed dial: Add this number to the fast dial list. Set the

speed dial feature, in standby mode press the
corresponding number key, you can directly dial the

number key corresponding to the speed dial number.
My number and Extra numbers: set this number to own
number
Memory Status: Query "SIM", "phone" memory

address book using status
Copy contacts: copy all contacts from phone to SIM, or

from SIM to phone.

Move contacts: move all contacts from phone to SIM,

or from SIM to phone

Delete all contacts: delete all SIM contacts or delete all

phone contacts

Backup contacts: you can backup contacts to memory

card.

Add new group

In phonebook list screen, press the right navigation key
switch to the caller groups list, you can add caller groups
and can edit groups ring, add or view members.

16
