MOBIWIRE MOBILES P241 Users manual

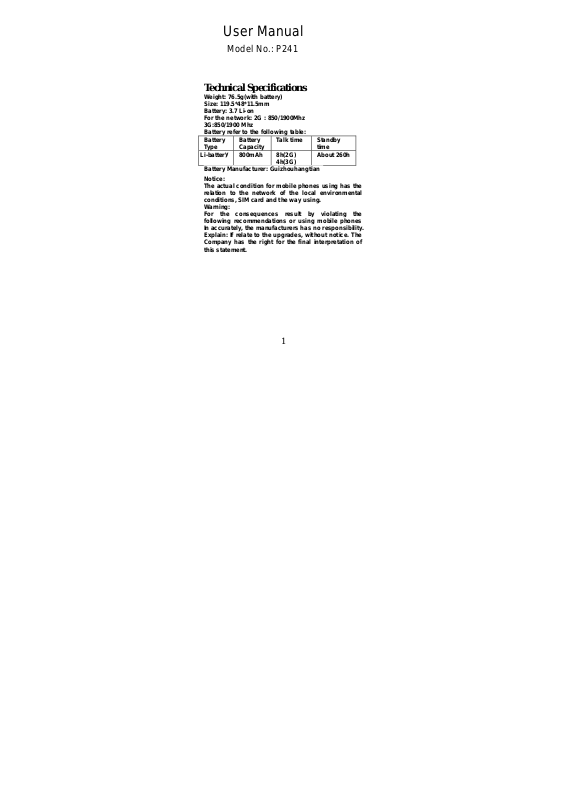

User Manual
Model No.: P241
Technical Specifications
Weight: 76.5g(with battery)
Size: 119.5*48*11.5mm
Battery: 3.7 Li-on
For the network: 2G : 850/1900Mhz
3G:850/1900 Mhz
Battery refer to the following table:
Battery
Type
Li-battery 800mAh 8h(2G)
Battery Manufacturer: Guizhouhangtian
Notice:
The actual condition for mobile phones using has the
relation to the network of the local environmental
conditions, SIM card and the way using.
Warning:
For the consequences result by violating the
following recommendations or using mobile phones
In accurately, the manufacturers has no responsibility.
Explain: If relate to the upgrades, without notice. The
Company has the right for the final interpretation of
this statement.
Battery
Capacity
Talk time Standby
4h(3G)
time
About 260h
1
Moblie Appearance picture
Table of Contents
1. Quick start ........................ 7
Keypad Explain .............................................. 7
Install SIM card .............................................. 8
Install T -flas h card .......................................... 8
Installing Battery ............................................. 9
Battery Charging ............................................ 9
Switching on ................................................... 9
2.
Dialing .......................................................... 10
Receiving ..................................................... 10
3.
Contacts ....................................................... 12
Message....................................................... 12
Call history ................................................... 12
Email ............................................................ 13
Browser ........................................................ 13
Facebook ..................................................... 13
Settings ........................................................ 13
Camera ........................................................ 14
Music ............................................................ 14
FM radio ....................................................... 14
Gallery .......................................................... 14
File manager ................................................ 15
Bluetooth ...................................................... 15
Calendar....................................................... 16
Alarm ............................................................ 16
Call function ................... 10
Menu functions .............. 12
2
Calculator ..................................................... 16
Games ......................................................... 16
SIM ............................................................... 16
4.
5.
Accessories .................... 18
SAR ................................. 19
3
Foreword
Honorific mobile phones user, thank you for choosing our
mobile phone!
Our cellular phones is according with the communication
industry standards of PRC, and also according with the
standards of European, and are approved for GSM
networks.
Your phone may be used internationally with various
networks depending on your roaming arrangements with
your service provider.
To use this phone you must subscribe to a GSM service
from a provider. We have included many features in this
device but their function depends on the features
available with your subscribed wireless network. Please
contact your service provider for more information.
We strongly recommend you carefully read and
understand this manual before using your phone in order
to keep it under best conditions for your effective usage
and utmost satisfaction.
Safety
Never attempt to disassemble your phone. You alone are
responsible for how you use your phone and any
consequences of its use.
As a general rule, always switch off your phone wherever
the use of a phone is prohibited.
Use of your phone is subject to safety measures designed
to protect users and their environment.
Do not use your phone in damp areas (bathroom,
swimming pool…). Protect it from liquids and other
moisture.
Do not expose your phone to extreme temperatures lower
than - 10°C and higher than + 55°C.
The physicochemical processes created by chargers
4
impose temperature limits when charging the battery. Your
phone automatically protects the batteries in extreme
temperatures.
Do not leave your phone within the reach of small children
(certain removable parts may be accidentally ingested).
Electrical safety
Only use the chargers listed in the manufacturer’s
catalogue. Using any other charger may be dangerous; it
would also invalidate your warranty. Line voltage must be
exactly the one indicated on the charger’s serial plate.
Aircraft safety
When traveling by plane, you will need to switch your
phone off when so instructed by the cabin crew or the
warning signs. Using a mobile phone may be dangerous
to the operation of the aircraft and may disrupt the phone
network.
Its use is illegal and you could be prosecuted or banned
from using cellular networks in the future if you do not
abide by these regulations.
Explosive materials
Please comply with warning signs at petrol station when
personnel asking you to switch your phone off. You will
need to comply with radio equipment usage restrictions in
places such as chemical plants, fuel depots and at any
location where blasting operations are under way.
Electronic equipment
To avoid the risk of demagnetization, do n ot let electronic
devices close to your phone for a long time.
Electronic medical equipment
Your phone is a radio transmitter which may interfere with
electronic medical equipment or implants, such as hearing
aids, pacemakers, insulin pumps, etc. It is recommended
that a minimum separation of 15 cm be maintained
between the phone and an implant. Your doctor or the
5
manufacturers of such equipment will be able to give you
any advice you may need in this area.
Hospitals
Always make sure that your phone is switched off in
hospitals when so instructed by warning signs or by
medical staff.
Road safety
Do not use your phone when driving. In o rder t o gi ve your
full attention to driving, stop and park safely before making
a call. You must comply with any current legislation.
Distance of operation
This phone model has been tested and meets
radiofrequency exposure guidelines when used
As follows:
·Against the ear: place or receive a phone call a nd hold
the phone as you would a wire line telephone.
·Body worn: when transmitting, place the phone in a carry
accessory that contains no metal and positions the phone
a minimum of 1.0 cm from your body. Use of
other accessories may not ensure compliance
with radiofrequency exposure guidelines. If you do not
use a body worn accessory and are not holding the phone
at the ear, position the phone a minimum of 1.0 cm
from your body,
·Data operation: when using a data feature, position the
phone a minimum of 1.0cm from your body for the whole
duration of the data transmission.
6
1. Quick start
Keypad Explain
Key
Function
description
Left softkey
Right softkey
Green key
Red key
Navigation key
Center key
Number key
*key
Enter the notification screen
In home screen, press the key enter the
shortcut settings screen, other screens,
back to home screen.
Answer the incoming call, and in the
home screen, press the key enter the
call history direct.
Reject the incoming call, and in the
home screen, short press screen off,
long press to power off.
Up/Down/Left/Right move the high light
Confirm the select to enter function
Input the corresponding character
Dial pad input star character
7
