Mobistel E7 User Manual
Basic Feature
Hardware Specification
GPS
USB OTG
Sensor
SAR Value

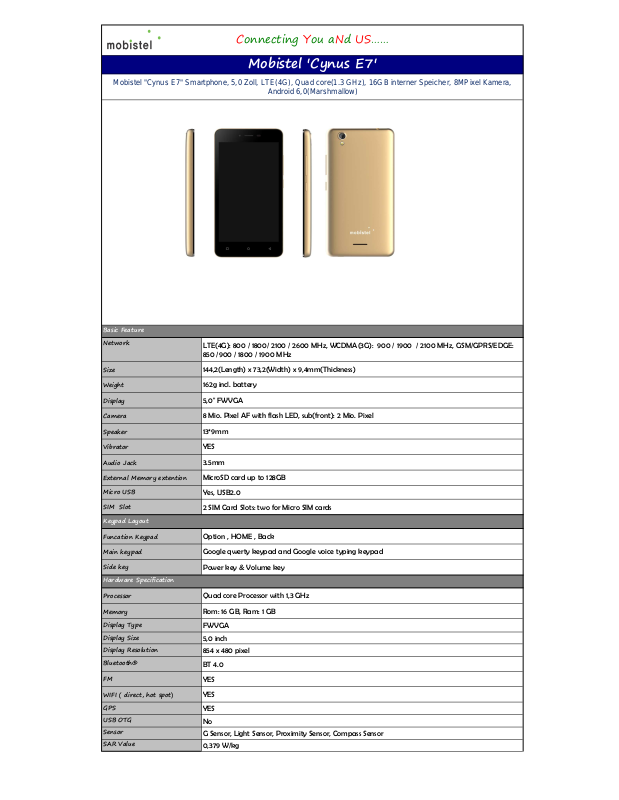

Mobistel 'Cynus E7'
Connecting You aNd US……
Mobistel "Cynus E7" Smartphone, 5,0 Zoll, LTE(4G), Quad core(1.3 GHz), 16GB interner Speicher, 8MPixel Kamera,
Android 6,0(Marshmallow)
Network
LTE(4G): 800 / 1800/ 2100 / 2600 MHz, WCDMA(3G): 900 / 1900 / 2100 MHz, GSM/GPRS/EDGE:
850 /900 / 1800 / 1900 MHz
Size
Weight
Display
Camera
Speaker
Vibrator
Audio Jack
External Memory extention
Micro USB
SIM Slot
Keypad Layout
Funcation Keypad
Main keypad
Side key
144,2(Length) x 73,2(Width) x 9,4mm(Thickness)
162g incl. battery
5,0" FWVGA
8 Mio. Pixel AF with flash LED, sub(front): 2 Mio. Pixel
13*9mm
YES
3.5mm
MicroSD card up to 128GB
Yes, USB2.0
2 SIM Card Slots: two for Micro SIM cards
Option , HOME , Back
Google qwerty keypad and Google voice typing keypad
Power key & Volume key
Processor
Memory
Display Type
Display Size
Display Resolution
Bluetooth®
FM
WIFI ( direct, hot spot)
Quad core Processor with 1,3 GHz
Rom: 16 GB, Ram: 1 GB
FWVGA
5,0 inch
854 x 480 pixel
BT 4.0
YES
YES
YES
No
G Sensor, Light Sensor, Proximity Sensor, Compass Sensor
0,379 W/kg
Software Specificetion
Android OS version
Input
GUI
MMS
Browser
Multimedia Capability
Audio decode
Video decode
Camera / Camcorder
Camera
Camcorder
White Balance
Digital Zoom
Brightness
ISO
Auto Focus
Flash LED light
Battery Performance
Battery Volume
Stand-by time
Talk time
Software Update
Software Update method
Standard Package
Handset
Battery
Travel Charger AC adaptor
Stereo Earphone
User's manual
USB cable
Silikon-Hülle
Logistic
Available colors of phone
Size
Weight
EAN by color
Model Name
Aticle No.
Android 6.0(Marshalmallow)
Google qwerty keypad and Google voice typing keypad
Mobistel Standard
YES
HTML
3.5mm jack, Mp3, Mp4, 1080P video out,
30fps@1080pdecode
JPEG,GIF,PNG,BMP
Type: JPEG
MP4,3GP(H.263)
Auto, Incandescent, Fluorescent, Daylight, Cloudy
YES
YES
YES
YES
YES
2300 mAh Li-Ion battery
Up to 290 Hours
Up to 16 Hours
OTA(Over the Air)
1
1
1
1(3.5mm)
1
1
1
Black, Gold
144,2 x 73,2 x 9,4mm
162g incl. battery
Black: 4 2 6 0 2 1 8 5 3 1 9 4 9, Gold: 4 2 6 0 2 1 8 5 3 1 9 5 6
Cynus E7
P5
