MOBINTEL KPAU02 User Manual

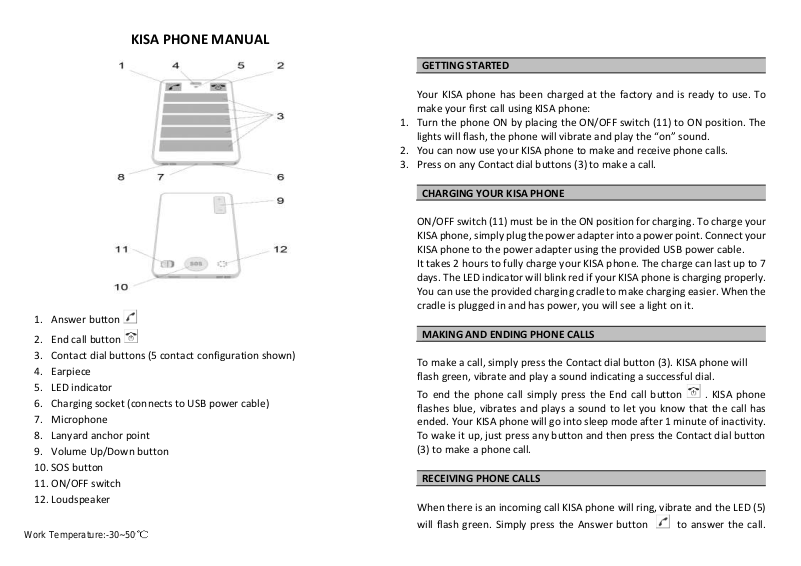

KISA PHONE MANUAL
GETTING STARTED
CHARGING YOUR KISA PHONE
MAKING AND ENDING PHONE CALLS
RECEIVING PHONE CALLS
1. Answer button
Your KISA phone has been charged at the factory and is ready to use. To make your first call using KISA phone:
1. Turn the phone ON by placing the ON/OFF switch (11) to ON position. The
lights will flash, the phone will vibrate and play the “on” sound.
2. You can now use your KISA phone to make and receive phone calls.
3. Press on any Contact dial buttons (3) to make a call.
ON/OFF switch (11) must be in the ON position for charging. To charge your KISA phone, simply plug the power adapter into a power point. Connect your KISA phone to the power adapter using the provided USB power cable. It takes 2 hours to fully charge your KISA phone. The charge can last up to 7 days. The LED indicator will blink red if your KISA phone is charging properly. You can use the provided charging cradle to make charging easier. When the cradle is plugged in and has power, you will see a light on it.
2. End call button
3. Contact dial buttons (5 contact configuration shown)
4. Earpiece
5. LED indicator
6. Charging socket (connects to USB power cable)
8. Lanyard anchor point
9. Volume Up/Down button
10. SOS button
11. ON/OFF switch
12. Loudspeaker
Work Temperature:-30~50ÿ
To make a call, simply press the Contact dial button (3). KISA phone will flash green, vibrate and play a sound indicating a successful dial.
To end the phone call simply press the End call button . KISA phone flashes blue, vibrates and plays a sound to let you know that the call has ended. Your KISA phone will go into sleep mode after 1 minute of inactivity. To wake it up, just press any button and then press the Contact dial button (3) to make a phone call.
When there is an incoming call KISA phone will ring, vibrate and the LED (5)
will flash green. Simply press the Answer button to answer the call.
When talking you can activate and deactivate Loudspeaker (12) by pressing
SOS BUTTON AND EMERGENCY CALLS
VOLUME ADJUSTMENT
TURNING KISA PHONE ON AND OFF
LED INDICATOR
SMART CALL TERMINATION
CHANGING DIAL BUTTONS AND PHONE NUMBERS
WARRANTY
the Answer button . To end the call press the End call button
To call emergency services, press the SOS button 4 times within 3 seconds. KISA phone will switch itself to Loudspeaker. KISA phone will also make a loud emergency noise and vibrate; this is deliberate to alert people around.
To end the call press End call button
No LED light when KISA phone is in sleeping mode or switched off.
To protect you from receiving excessive bills if you forget to end an outgoing call your KISA phone will disconnect all outgoing calls after 15 minutes; this function does not affect incoming calls. If KISA phone disconnects you partway through a phone call you can re-dial using a Contact dial button (3).
You can adjust the volume of the ringtone by pressing the Volume button (9) while not on an active call. Press + to increase the volume, press - to
decrease the volume. You can also adjust the Earpiece and Loudspeaker volume by pressing the Volume button (9) during a call.
To check if your KISA phone is switched ON press the Answer button once, LED indicator will show green or blue depending on mobile signal. We recommend not turning your KISA phone OFF. If the need arises you can turn KISA phone OFF using the OFF switch. To turn KISA phone back ON, move the ON/OFF switch (11) to the ON position.
THINGS YOU SHOULD KNOW ABOUT KISA PHONE
Please refer to www.kisaphone.com.au/mykisa for instructions on how to make changes to dial buttons and phone numbers.
Please refer to www.kisaphone.com.au/warranty for KISA phone warranty.
Green light indicates working mobile reception. Blue light indicates no mobile reception. Four red lights indicate battery power is at 100%, three lights mean
75%, two lights mean 50% and one light means 25% or less.
