Mobility Electronics NP644 User Manual
Contents
INTRODUCTION ...................................................................................... 3
Product Features ................................................................................3
System Requirements ......................................................................... 4
Wireless Terminology .......................................................................... 4
GETTING TO KNOW YOUR NP644 ............................................................... 6
Package Contents ...............................................................................6
LED Indicators ................................................................................... 7
INSTALLING THE NB644 ........................................................................... 8
Step 1 - Utility Installation ................................................................... 8
Step 2 - Driver Installation ................................................................. 12
USING THE WIRELESS UTILITY ............................................................... 16

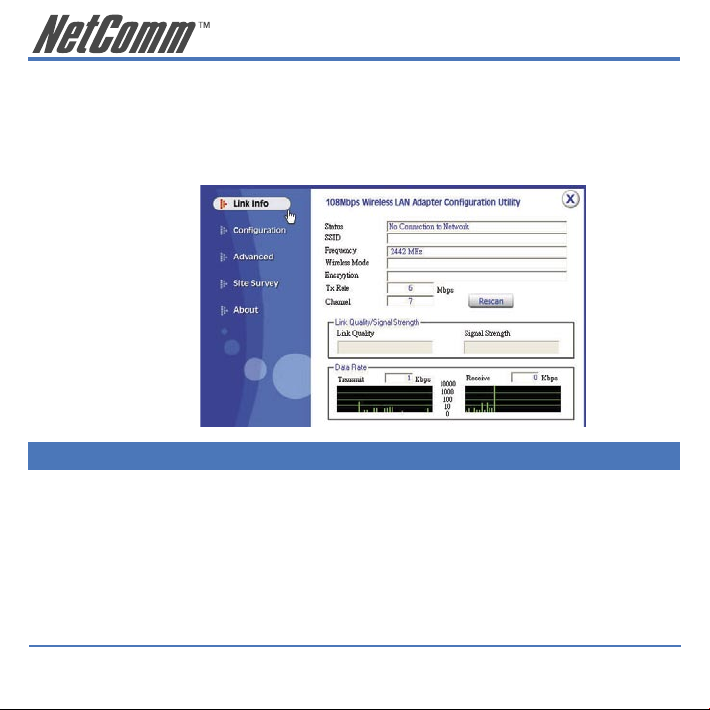

Link Information ............................................................................... 16

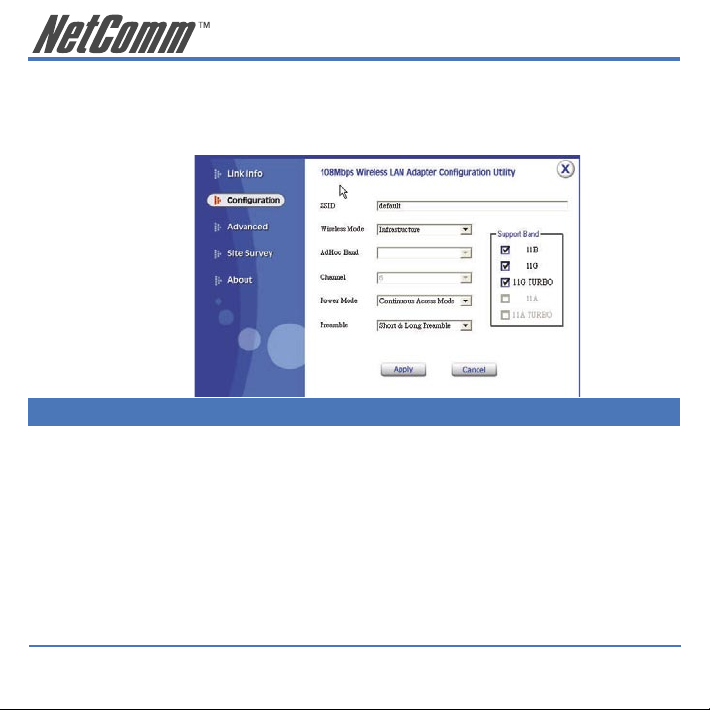

Configuration ................................................................................... 18

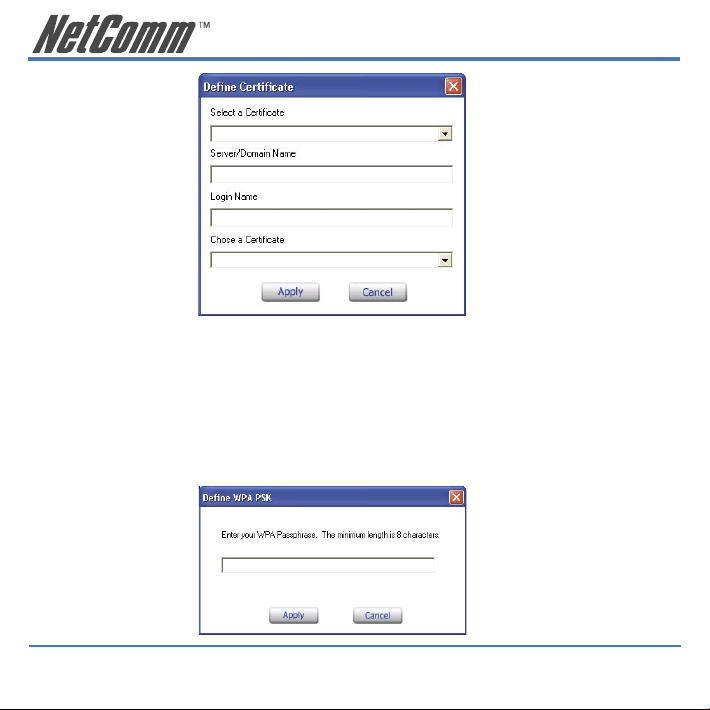

Advanced ........................................................................................ 21

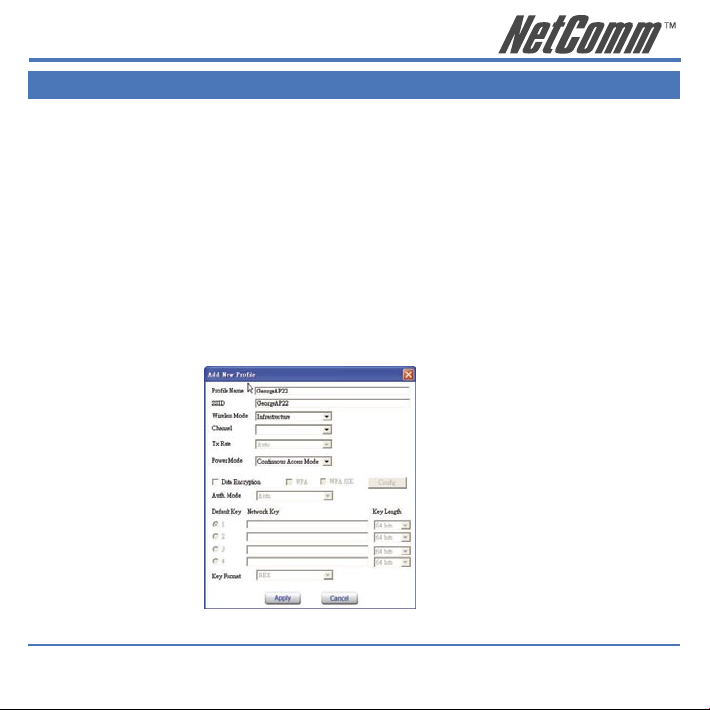

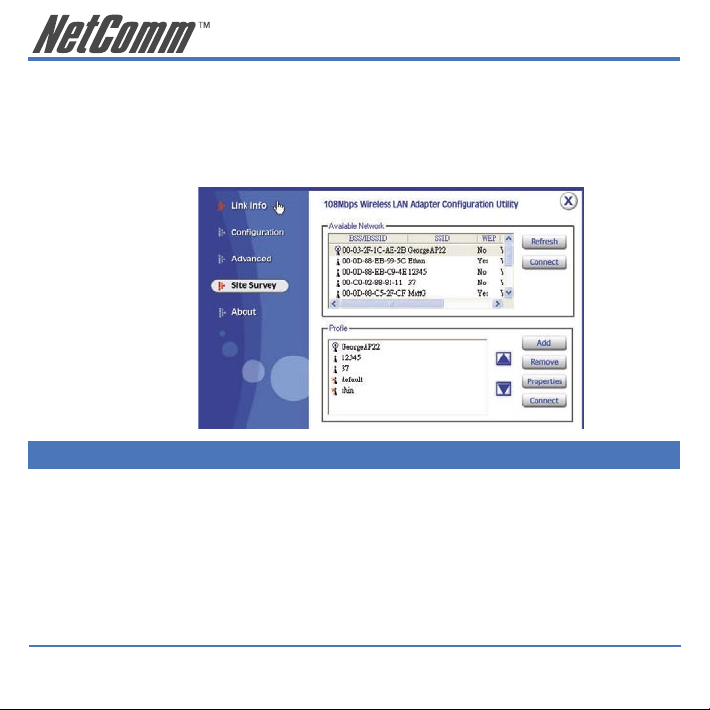

Site Survey ...................................................................................... 24

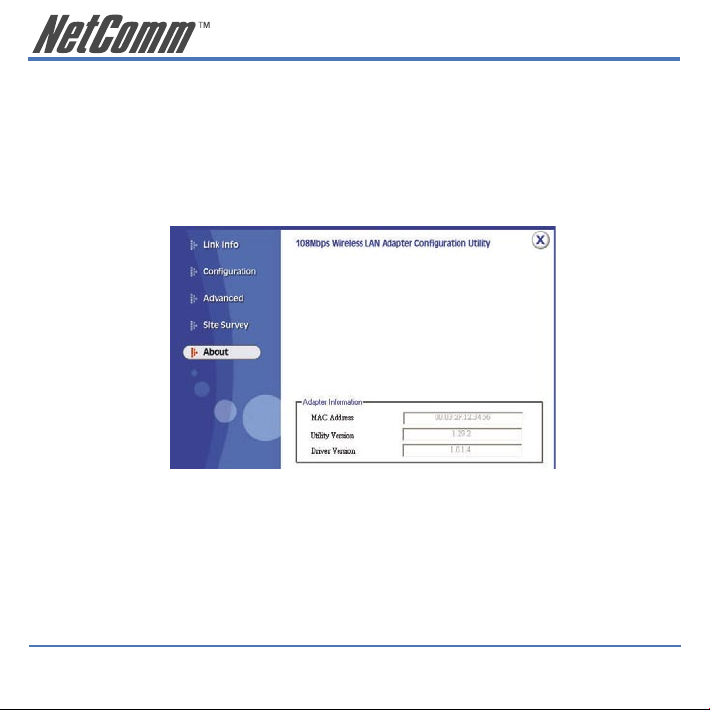

About Us ......................................................................................... 26
APPENDIX A: Glossary .......................................................................... 27
APPENDIX B: Registration and Warranty Information ................................. 35
Contact Information .......................................................................... 35
Copyright Information ....................................................................... 36
Customer Information ....................................................................... 37
Product Warranty .............................................................................. 38
Limitations of Warranty ..................................................................... 39
2 NP644 IEEE 802.11g Wireless Network USB Adaptor
YML787 Rev1
INTRODUCTION
Product Features
• Compliant with IEEE802.11g and 802.11b standards
• Achieves data transfer rates of up to 11Mps for 802.11b, 54Mbps for 802.11g and
108Mbp for 802.11g Super-G Turbo with wide range coverage.
• Strong network security with WEP, WPA and WPA-PSK support
• Auto-switch between IEEE 802.11b and 802.11g standards.
• Driver/Utility support for Windows 2000/XP
• Pen size design provides greater mobility and flexibility.
• Supports both USB 2.0 & 1.1
NP644 IEEE 802.11g Wireless Network USB Adaptor 3
YML787 Rev1
System Requirements
• Windows 2000 and XP operating systems
• Pentium III 600MHz system or above is recommended
• USB port
• CD-ROM drive
• 20Mb spare disk storage
Wireless Terminology
Wireless Standards
802.11, 802.11b and 802.11g all refer to a series of standards which govern a common
method of creating wireless local area networks (WLANs).
802.11b and 11g are the most common WLAN types, with 11g being the later and faster
of the two standards with a maximum transmission rate of 54Mbps.
The NP644 is faster again as it is built around a processor which ‘turbo-charges’
transmission rates up to 108Mbps.
802.11g is ‘backward compatible’ with 802.11b, which means that the two standards are
able to communicate, albeit at the lower 11Mbps rate of the 11b standard.
The NP644 can communicate with both kinds of device at their maximum rate, and with
other ‘turbo-charged’ devices at the much higher rate of 108Mbps.
4 NP644 IEEE 802.11g Wireless Network USB Adaptor
YML787 Rev1
Wireless Security Terms

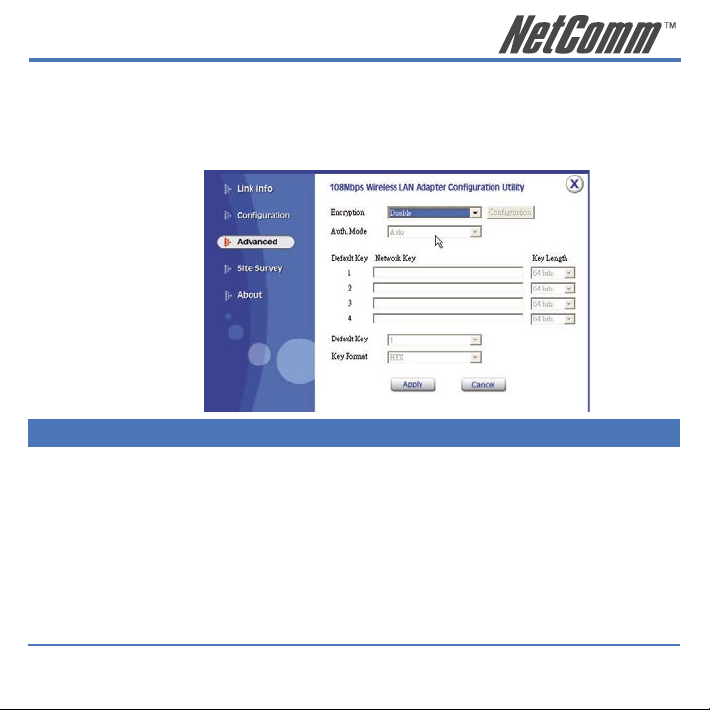

The Advanced Features of the NP644 include the ability to select from several types of
Wireless Security.
WEP WEP stands for Wired Equivalent Privacy. Introduced with
802.11b, WEP uses encryption to protect data confidentiality
by way of pre-shared keys (passwords or pass-phrases) that are
entered at both ends. Superseded by WPA and 802.11i but still in
use.
WPA WPA stands for Wi-Fi Protected Access - authorizes and
identifies users based on a secret key that changes automatically
at a pre-defined interval. This is called TKIP (Temporal Key
Integrity Protocol) to change the temporal key every 10,000
packets (= unit of data.) Keys can either be pre-shared or
established by a RADIUS Server.
RADIUS RADIUS is part of 802.11i security; this is a wireless standard
which is only concerned with wireless security standards.
Authentication is based around a secure server with a challengeand-response method of interaction which verifies the identity
of the client wishing to connect to the network. If you wish to
connect to a RADIUS server ask the Network Administrator for
details. RADIUS servers are not usually used as part of home
networks.
NP644 IEEE 802.11g Wireless Network USB Adaptor 5
YML787 Rev1
GETTING TO KNOW YOUR NP644
Package Contents
Open the box of the Wireless PC Card Adapter and carefully unpack it. The box should
contain the following items:
• NetComm NP 644 108 Mbps Super-G
Wireless Network USB Adaptor
• User Manual
• Driver & Utility with User’s Guide CD-ROM
• A-type USB male to female extension cable
If any of the items are missing or damaged, please contact your local reseller for
replacement.
6 NP644 IEEE 802.11g Wireless Network USB Adaptor
YML787 Rev1
LED Indicators
LED Description
Power The Power LED will be ON when the unit is powered up.
Link The Link LED will be flashing if there is a WLAN connection.
NP644 IEEE 802.11g Wireless Network USB Adaptor 7
YML787 Rev1
INSTALLING THE NB644
Step 1 - Utility Installation
1. Before inserting the USB Adaptor, first install the Utility Program first. Make sure that
the 108Mbps Wireless Network USB Adaptor is NOT inserted into the USB slot in
your PC.
NOTE: All the screens of the installation procedure mentioned in
this manual are based on Windows XP. For other windows
operating systems, the procedures are the same but the
screens may vary slightly to those displayed in this manual.
2. Turn on the computer. Insert the CD into the CD-ROM Drive. Select “USB Adaptor”
and then select “Install”.
8 NP644 IEEE 802.11g Wireless Network USB Adaptor
YML787 Rev1
3. InstallShield Wizard will automatically start. Please click “Next” to continue.
If you want to change the destination folder click “Browse” to change the directory or
click “Next” to continue.
NP644 IEEE 802.11g Wireless Network USB Adaptor 9
YML787 Rev1
4. Select a Program Folder and click “Next” to continue.
5. The InstallShield Wizard will show the progress as the Utility installs on your compu-
ter.
10 NP644 IEEE 802.11g Wireless Network USB Adaptor
YML787 Rev1
6. Click “Finish” to complete the utility installation.
7. Restart your computer to activate the settings.
NP644 IEEE 802.11g Wireless Network USB Adaptor 11
YML787 Rev1

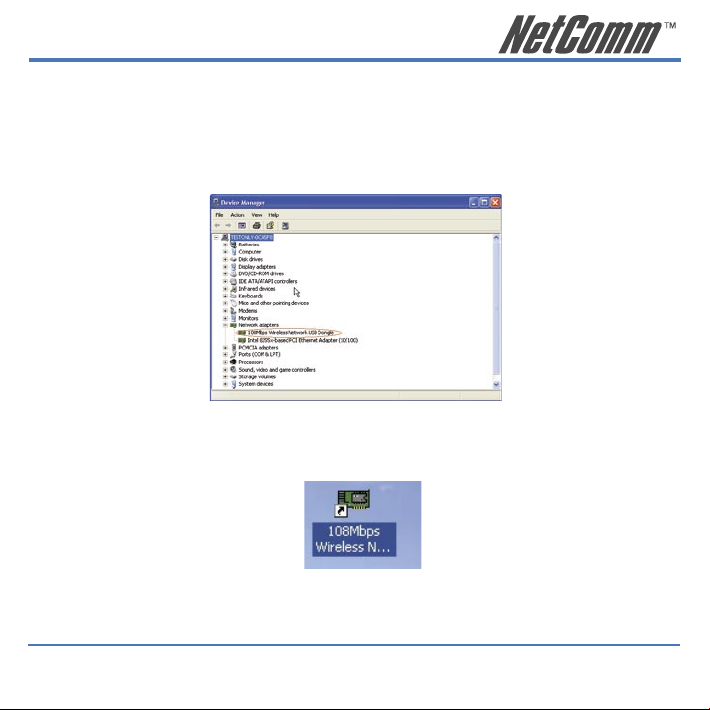

Step 2 - Driver Installation

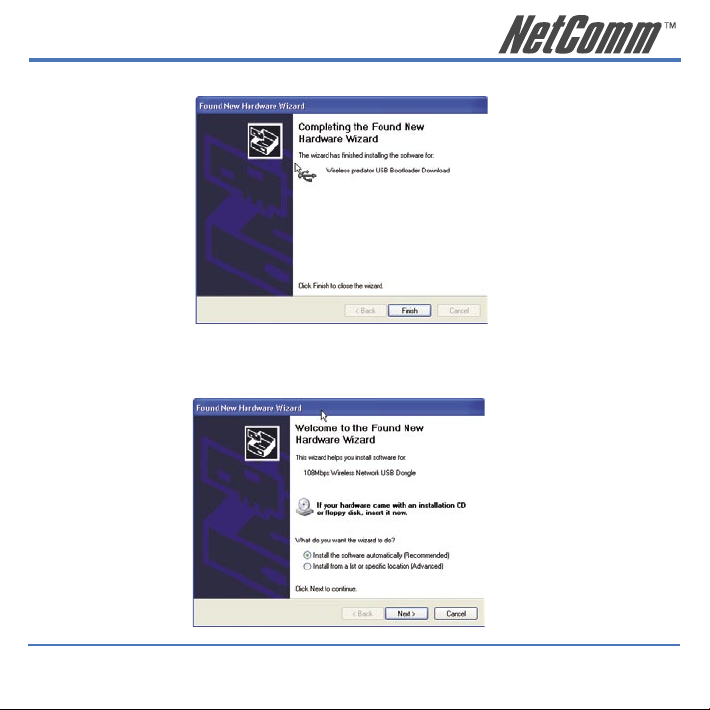

1. After restarting the computer, insert the USB Adaptor into the USB port. After a few
moments the “Found New Hardware Wizard” menu should start up. Select “Next”.

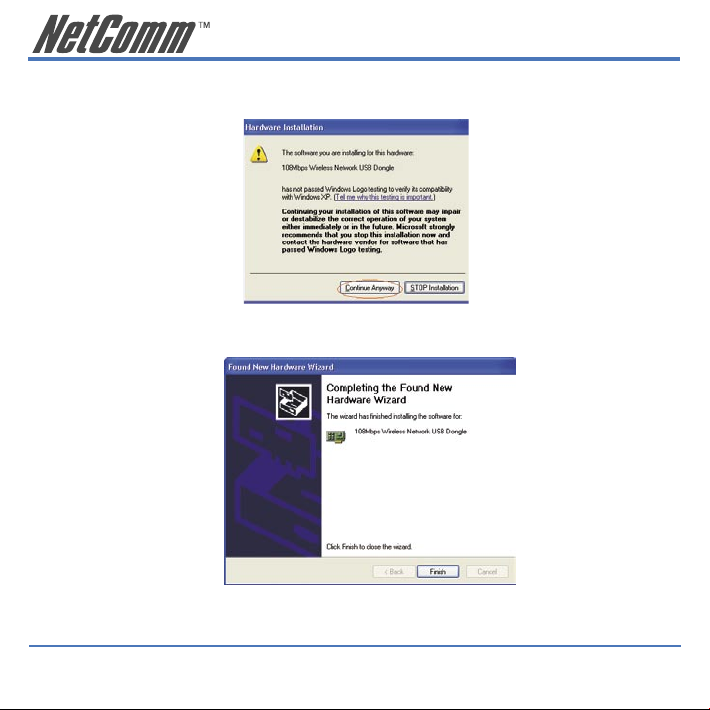

2. Windows XP/2000 users may see the following screen. Click “Continue Anyway” to
keep installation going.
12 NP644 IEEE 802.11g Wireless Network USB Adaptor
YML787 Rev1
