Mobiletron Electronics TX008 Users Manual

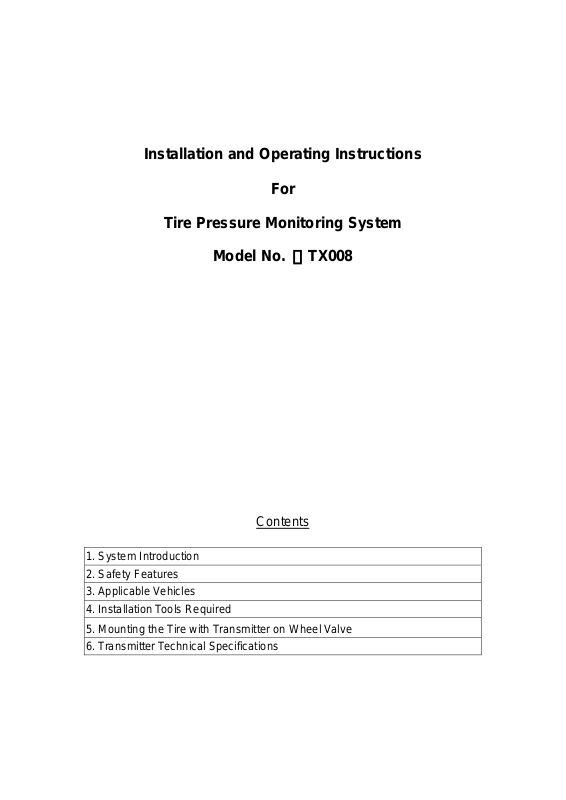

Installation and Operating Instructions

For

Tire Pressure Monitoring System

Model No. ：TX008

Contents

1. System Introduction

2. Safety Features

3. Applicable Vehicles

4. Installation Tools Required

5. Mounting the Tire with Transmitter on Wheel Valve

6. Transmitter Technical Specifications

1. System Introduction

1.1 TX008 is a wireless tire pressure monitoring system with sensors and
transmitters mounted in each tire. Highly accurate sensors collect tire
pressure and temperature data which is transmitted to a Digital Display
Receiver.

1.2 The System monitors the tire data with a LCD display which informs the
driver of the condition of the tires while driving. The Digital Receiver will
immediately alert with a beeping sound, a bright yellow LED and the
backlight of the LCD when tire pressure and/or temperature are outside of
factory-preset critical limits. The wireless tire pressure monitoring system
will alert the driver to the unsafe tire or temperature condition and thereby
reduce the possibility of an accident.

2. Safety Features

2.1 The System is designed to measure and display active data, i.e. pressure
and temperature, in tires, and provides a warning when the System
detects tire pressure and/or temperature is above or below preset critical
limits. It is the driver’s responsibility to react to a warning. Abnormal tire
pressure and temperature must be checked and brought back to within
the preset safe limits to avoid dangerous driving conditions.

2.2 This product must be properly installed and programmed by qualified
personnel according to this User Manual.

3. Applicable Vehicles

This system is suitable for use on trucks, buses, and trailers.

4. Installation Tools Required

¾ Tire Balancing Equipment.
¾ Torque Wrench.
