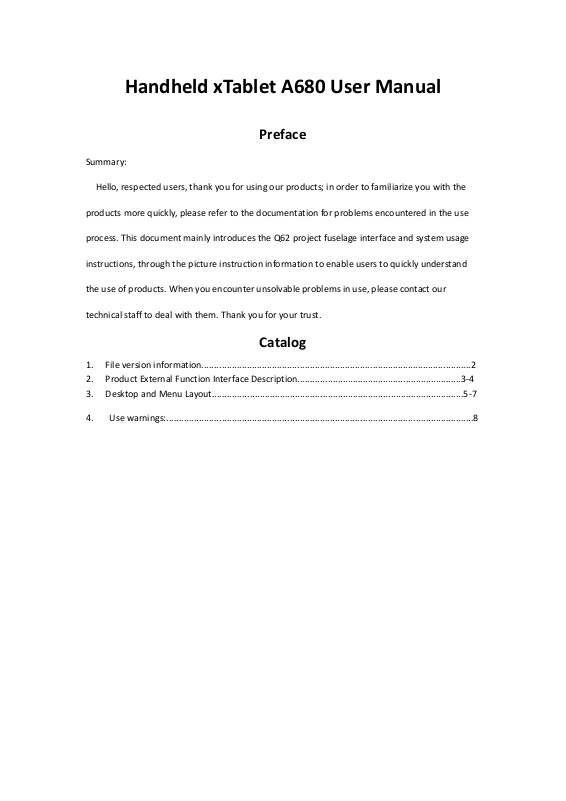

Handheld xTablet A680 User Manual

Preface

Summary:

Hello, respected users, thank you for using our products; in order to familiarize you with the

products more quickly, please refer to the documentation for problems encountered in the use

process. This document mainly introduces the Q62 project fuselage interface and system usage

instructions, through the picture instruction information to enable users to quickly understand

the use of products. When you encounter unsolvable problems in use, please contact our

technical staff to deal with them. Thank you for your trust.

Catalog

1. File version information...........................................................................................................2

2. Product External Function Interface Description.................................................................3-4

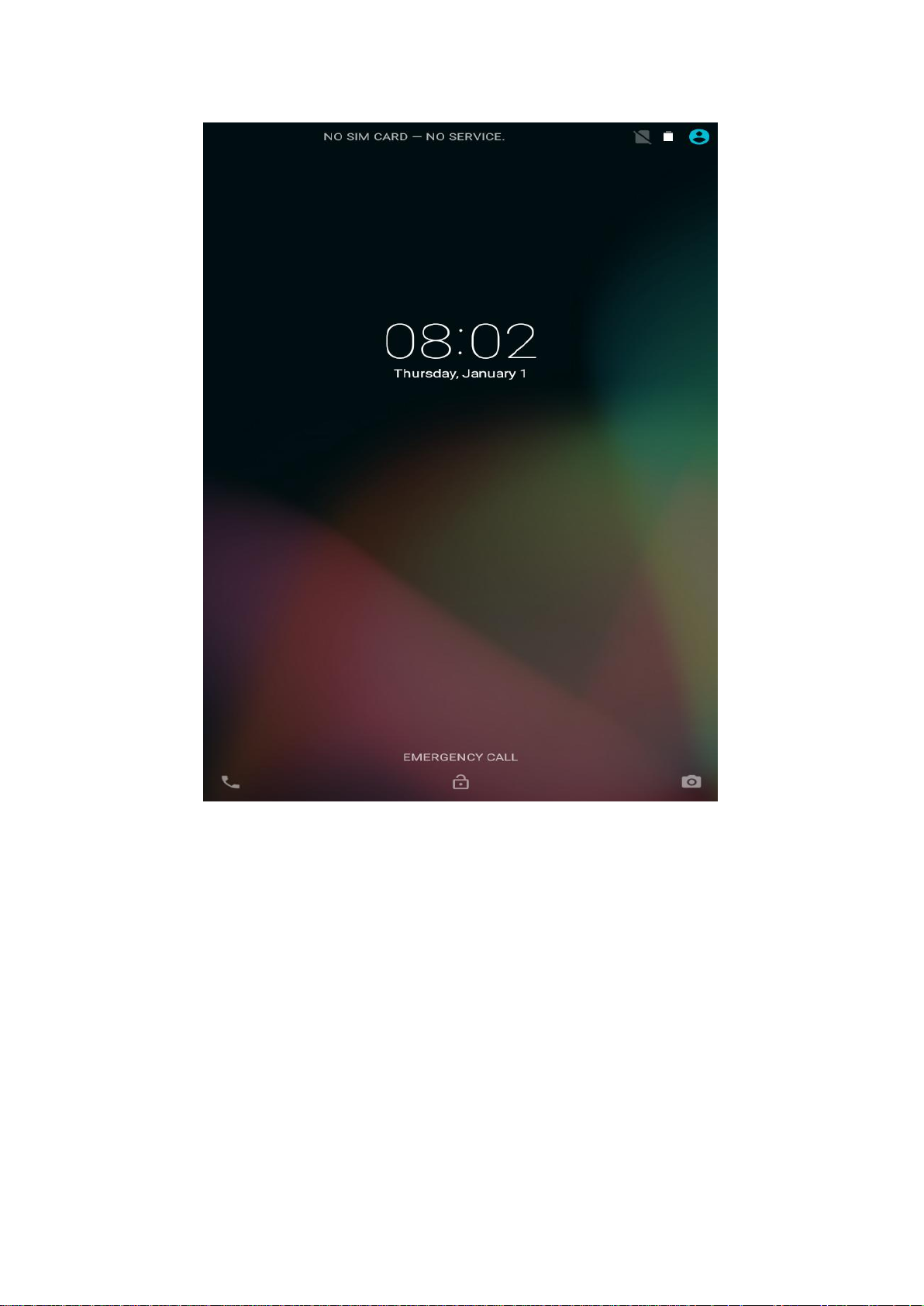

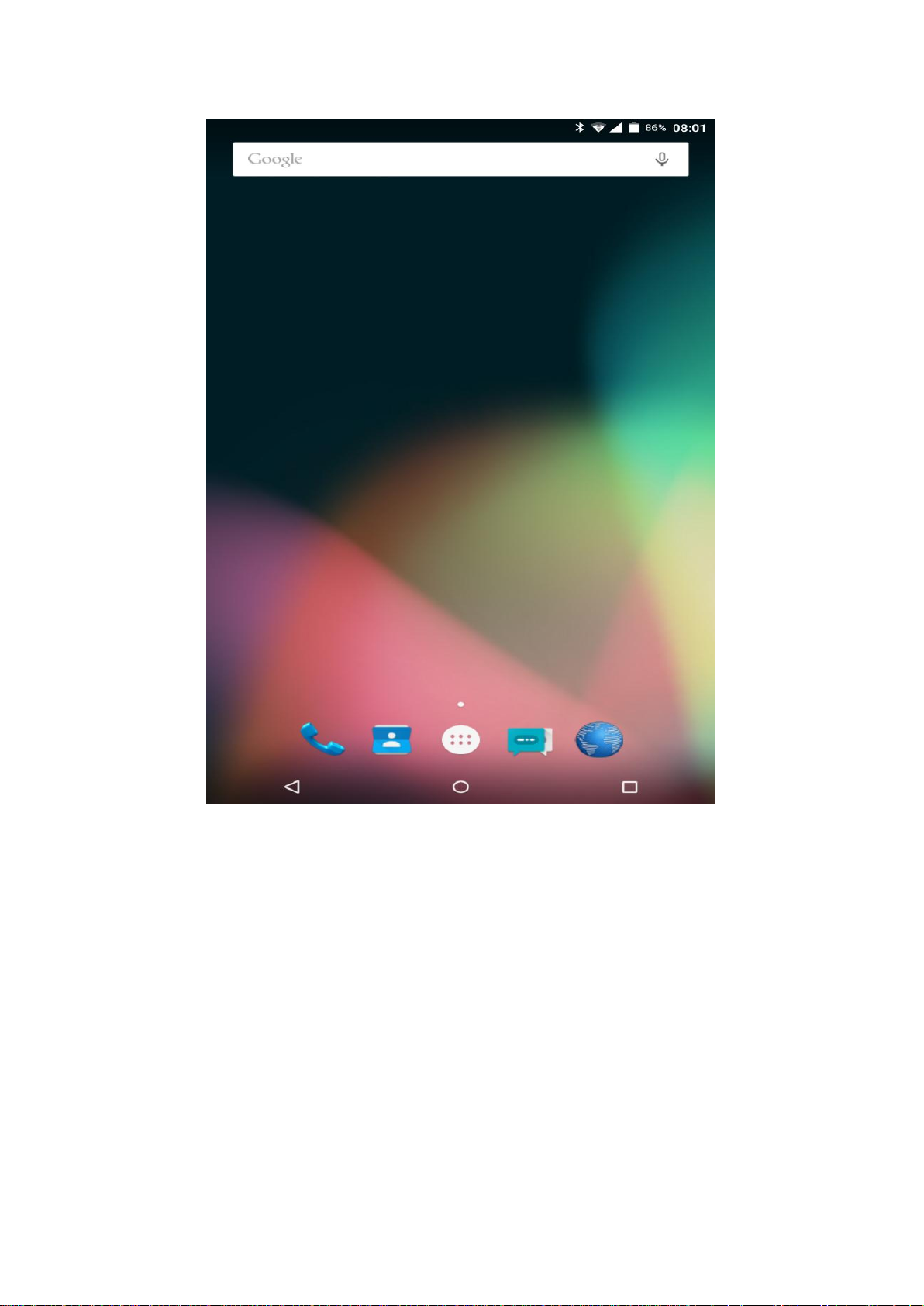

3. Desktop and Menu Layout....................................................................................................5-7

4. Use warnings:..........................................................................................................................8

1.File version information

File name

xTablet A680 User Manual

Document number

0002

Edition

V1.0

Issue date

2017-09-29

Page number

Change record

Serial

number

Change number

Edition

Date of change

Change content

Maintenance

department

1

YDXX-02

V1.0

2017-09-29

First episode

Customer service

department FAE

2.Product External Function Interface Description:

1.Front camera - 2 million front-end cameras, users can use video calls, take photos or record videos;

2.Receiver horn - used for answering telephone calls, network voice calls, etc.；

3.Light Sensor/Range Sensor-when it is close to the sensing distance of the face when the user is talking.

It reduces the power consumption and prevents the wrong touch from causing the interruption of the

call or other problems.

4.HOME key - When the user is in the application APP interface, he does not need to exit APP, and can

directly return to the desktop or the main menu through the HOME key.

5.LED-Indicate boot charging

7.Power button-Turn on, Shut down and Hibernate

8/13.Custom Function Keyboard

9.USB Waterproof Plug - Used for Waterproof and Dust-proof

10/11.Volume+/Volume-Keyboard-Control Volume

12.MIC-Microphone

14. Rear Camera/Flash - Rear 5 million cameras (batch optional 8 million), users can take photos and

record videos, flash can assist the camera at night, flashlight and other functions;

15.Flash Off - Auxiliary Photography in Darker Light

16. Battery bolt - for fixing batteries, sliding to the right to lock, sliding to the left to unlock the battery,

after locking the battery can not be removed;

17. Speakers - Source output for playing video or audio;

18.Extended Interface - Used for Customer Custom Functional Interface

19.LCD&TP-Display Screen and Touch Scree

20. Batteries - 3.7V/5000mAh lithium batteries, running for 6 hours (default 50% volume, default 200
