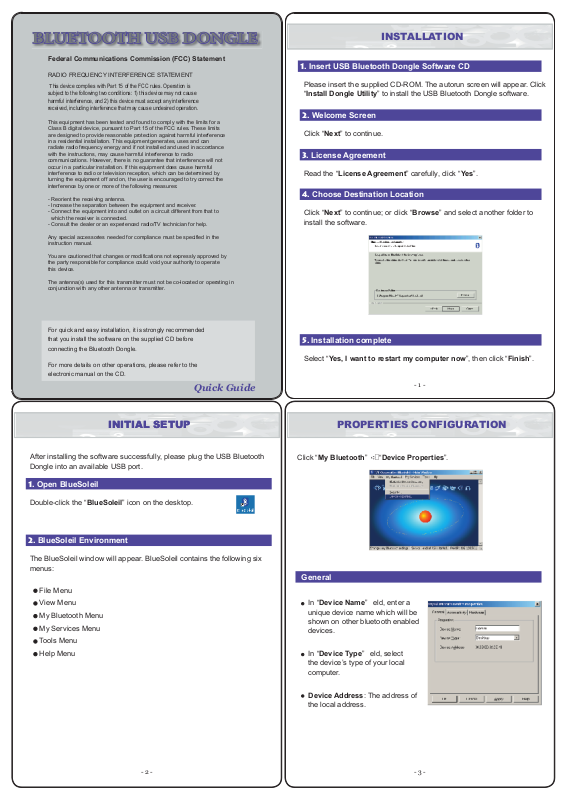

Mobile Action Technology MA730R1 Users Manual

BLUETOOTH USB DONGLE

Federal Communications Commission (FCC) Statement

RADIO FREQUENCY INTERFERENCE STATEMENT

This device complies with Part 15 of the FCC rules. Operation is

subject to the following two conditions: 1) this device may not cause
harmful interference, and 2) this device must accept any interference
received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try correct the
interference by one or more of the following measures:

- Reorient the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into and outlet on a circuit different from that to
which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

INSTALLATION

1. Insert USB Bluetooth Dongle Software CD

Please insert the supplied CD-ROM. The autorun screen will appear. Click
“Install Dongle Utility” to install the USB Bluetooth Dongle software.

2. Welcome Screen

Click “Next” to continue.

3. License Agreement

Read the “License Agreement” carefully, click “Yes”.

4. Choose Destination Location

Click “Next” to continue; or click “Browse” and select another folder to
install the software.

Any special accessories needed for compliance must be specified in the
instruction manual.

You are cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void your authority to operate
this device.

The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.

For quick and easy installation, it is strongly recommended

that you install the software on the supplied CD before

connecting the Bluetooth Dongle.

For more details on other operations, please refer to the

electronic manual on the CD.

Quick Guide

INITIAL SETUP

INITIAL SETUP

5. Installation complete

Select “Yes, I want to restart my computer now”, then click “Finish”.

- 1 -

PROPERTIES CONFIGURATION

After installing the software successfully, please plug the USB Bluetooth
Dongle into an available USB port.

1. Open BlueSoleil

Double-click the “BlueSoleil” icon on the desktop.

2. BlueSoleil Environment

The BlueSoleil window will appear. BlueSoleil contains the following six
menus:

File Menu

View Menu

My Bluetooth Menu

My Services Menu

Tools Menu

Click “My Bluetooth” •“Device Properties”.

General

In “Device Name” eld, enter a

unique device name which will be
shown on other bluetooth enabled
devices.

Help Menu

In “Device Type” eld, select

the device’s type of your local
computer.

Device Address: The address of

the local address.

- 2 - - 3 -

- 5 -

- 6 -

- 7 -

- 4 -

Accessibility

You may permit or prohibit other Bluetooth enabled devices to interact with
your computer.

- Connectable: Permit.

- Non-connectable: Prohibit.

Hardware

View information about your Bluetooth hardware.

Click “Tools”

“My Bluetooth Device”.

In the “Bluetooth Device” tab, select the type of Bluetooth enabled device
that you want to use. The default setting is “

USB”. Other device type may

not be supported by the bundled software.

Supported Outlook version

Operating System Version

Windows 98SE/ME MS Outlook 2002 (XP)

Windows 2000/XP MS Outlook 2000, Outlook 2002 (XP),

Outlook 2003

AV Headphone

Click on the “AV Headphone” tab,
and enable the check box next to
“Auto-start this service when My
Bluetooth starts”.

Then, select the proper item for
the “Playback device” in the local
computer.

Click “My Services”

“Properties”.

Information Synchronization

Click on the “Information
Synchronization” tab, and enable
the check box next to “Auto-start
this service when My Bluetooth
starts”.

Select the type of PIM (Personal
Information Management) objects
that you would like to synchronize.

MY BLUETOOTH DEVICE

SERVICE PROPERTIES

82-000-300500v002
