Mobile Action Q-60 User Manual

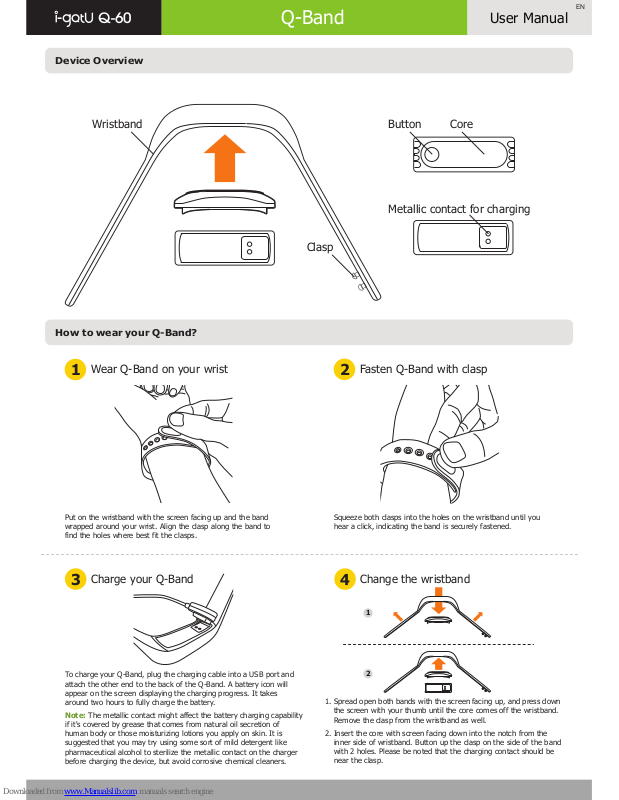

Device Overview
How to wear your Q-Band?
User ManualQ-60
Q-Band
EN
Wear Q-Band on your wrist
Wristband CoreButton
Metallic contact for charging
1 2
3 4
Charge your Q-Band
Fasten Q-Band with clasp
Change the wristband
Put on the wristband with the screen facing up and the band
wrapped around your wrist. Align the clasp along the band to
find the holes where best fit the clasps.
Squeeze both clasps into the holes on the wristband until you
hear a click, indicating the band is securely fastened.
To charge your Q-Band, plug the charging cable into a USB port and
attach the other end to the back of the Q-Band. A battery icon will
appear on the screen displaying the charging progress. It takes
around two hours to fully charge the battery.
Note: The metallic contact might affect the battery charging capability
if it's covered by grease that comes from natural oil secretion of
human body or those moisturizing lotions you apply on skin. It is
suggested that you may try using some sort of mild detergent like
pharmaceutical alcohol to sterilize the metallic contact on the charger
before charging the device, but avoid corrosive chemical cleaners.
Spread open both bands with the screen facing up, and press down
the screen with your thumb until the core comes off the wristband.
Remove the clasp from the wristband as well.
Insert the core with screen facing down into the notch from the
inner side of wristband. Button up the clasp on the side of the band
with 2 holes. Please be noted that the charging contact should be
near the clasp.
1.
2.
Clasp
1
2
Get started with Q-Band
Download and Install i-gotU Life app
1 2
3 4
Start Using Q-Band
Set up Q-Band
Features of Q-Band & i-gotU Life App
User ManualQ-60
Q-Band
Please download i-gotU Life app from Google Play or the App Store
and have it installed on your smartphone:
https://play.google.com/store/apps/details?id=com.mobileaction.ilife
http://appstore.com/igotulife
Apk download: http://global.mobileaction.com/download/apk
Supported device
Any Android smartphone (v4.3 and up) with built-in 4.0
Bluetooth connectivity; or
iPhone 4s and later models, iPad 2 and later models,
and iPod Touch (all with iOS version 7.0 and up).
A complete list of supported smartphone or mobile
devices can be found at:
http://ww2.voiis.com/qband/devices.html
Important Notice
Please make sure your Q-Band is fully charged when used
for the first time. It takes about 2 hours before it is fully
charged.
Although the device is usable in the rain, its use under water
is prohibited.
Please do not use any corrosive chemical to clean the device.
1.
2.
3.
Your Q-Band can be configured directly on the i-gotU Life app.
First time setup:
Open the i-gotU Life app.
A Setup Wizard will be launched automatically.
Follow the on-screen instructions to proceed with more settings.
Set up a new device from Settings:
Open the i-gotU Life app.
Tap the app icon at the upper left corner to open function menu.
Choose Settings.
Tap Setup New Device under MORE DEVICE SETTINGS.
Follow the on-screen instructions to continue.
Note
Your personal information is used to calculate your Base Metabolic
Rate (BMR), which determines your calories burned.
1.
2.
3.
1.
2.
3.
4.
5.
1. Switch between different function modes
2. Change display information
3. Q-Band modes
1. Long-press the button on the Q-Band until you see 4 icons
on the screen for mode selection.
2. Press the button to switch mode.
3. You’ll be entering the selected mode in 3 seconds.
Information shown on the screen will vary as you press the button on
the Q-Band to toggle between screens.
Daily mode: Analyzes your daily data, including steps taken
and calories burned, and displays current UV index.
Sleep mode: Tracks your sleep pattern and quality.
Sports mode: Starts a workout and displays information
including duration, steps taken, calories burned, UV-index and
distance traveled during the workout.
Nap mode: Awakes you via vibration after a short nap.
1.
2.
3.
4.
Silent Alarm
Notification
Remote Display (Android only)
Online Help
Silent Alarm awakes you using gentle vibrations of the Q-Band.
You can dismiss the alarm by long-pressing the button on the
Q-Band. In case you miss the alarm, Q-Band will alert you again
in 5 minutes. Alarms can be set up from: i-gotU Life App Menu ->
Silent Alarm.
You will be notified with incoming calls, SMS, E-Mail, or alerts
from the social apps via vibration. When notified about an
incoming call on an Android smartphone, you may reject the call
by long-pressing the button on Q-Band. Notification can be set up
from: i-gotU Life App Menu -> Notification.
Please download i-gotU Sports app from Google Play
and have it installed on your Android smartphone:
After starting an activity on i-gotU Sports app, selected sports
data from i-gotU Life app will be displayed on Q-Band.
Remote Display can be set up from: i-gotU Life App Menu
->Remote Display.
The screen can be rotated by changing the settings from: i-gotU
Life App Menu ->Settings -> MORE DEVICE SETTINGS -> Screen
Rotation.
Android: http://ww2.voiis.com/igotu-life/help.html?language=en
iOS: http://ww2.voiis.com/igotu-life/help.html?language=en&platform=ios
https://play.google.com/store/apps/details?id=com.mobileaction.isports
http://global.mobileaction.com/download/apk
Note on environmental protection:
After the implementation of the European Directive 2002/96/EU in the
national legal system, the following applies:
Electrical and electronic devices may not be disposed of with domestic
Waste. Consumers are obliged by law to return electrical and electronic
devices at the end of their service lives to the public collecting points set up
for this purpose or point of sale. Details to this are defined by the national
law of the respective country. This symbol on the product, the instruction
manual or the package indicates that a product is subject to these
regulations. By recycling, reusing the materials or other forms of utilizing old
devices, you are making an important contribution to protecting our
environment.
WEEE
•
•
•
