MobileAccess 2000 Installation And Configuration Manual

b

b

b

m

e

t

s

y

S

0

0

0

2

s

s

e

c

c

A

e

l

i

e

l

i

e

l

i

A

A

c

c

c

c

e

e

s

s

s

s

2

2

0

0

0

0

0

0

S

S

y

y

s

s

t

t

e

e

m

m

Installation and Configuration Guide

M

M

M

o

o

o

P/N: 709C001208

REV: A0

Date: 08-FEB-09

Preface

MobileAccess 8391 Old Courthouse Road, Suite 300, Vienna, VA 22182

Tel: [phone] TAC: [phone], Fax: [phone]

http://www.MobileAccess.com

© COPYRIGHT 2009, MOBILEACCESS NETWORKS INC. ALL RIGHTS RESERVED.

OBILEACCESS™ IS A REGISTERED TRADEMARK OF MOBILEACCESS. THIS DOCUMENT CONTAINS OTHER TRADEMARKS, TRADE NAMES AND

M

SERVICE MARKS OF

HIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF MOBILEACCESS AND MAY NOT BE COPIED, TRANSMITTED, STORED

T

IN A RETRIEVAL SYSTEM OR REPRODUCED IN ANY FORMAT OR MEDIA

MOBILEACCESS. INFORMATION CONTAINED IN THIS DOCUMENT SUPERSEDES ANY PREVIOUS MANUALS, GUIDES, SPECIFICATIONS, DATA SHEETS OR

OTHER INFORMATION THAT MAY HAVE BEEN PROVIDED OR MADE AVAILABLE TO THE USER

T

HIS DOCUMENT IS PROVIDED FOR INFORMATIONAL PURPOSES ONLY, AND MOBILEACCESS DOES NOT WARRANT OR GUARANTEE THE ACCURACY,

ADEQUACY

MOBILEACCESS RESERVES THE RIGHT TO MAKE UPDATES, IMPROVEMENTS AND ENHANCEMENTS TO THIS DOCUMENT AND THE PRODUCTS TO

WHICH IT RELATES AT ANY TIME WITHOUT PRIOR NOTICE TO THE USER

IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
WITH RESPECT TO THIS DOCUMENT OR ANY INFORMATION CONTAINED HEREIN.

MOBILEACCESS AND OTHER ORGANIZATIONS, ALL OF WHICH ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS.

, QUALITY, VALIDITY, COMPLETENESS OR SUITABILITY FOR ANY PURPOSE OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

, IN WHOLE OR IN PART, WITHOUT THE PRIOR WRITTEN CONSE N T OF

.

. MOBILEACCESS MAKES NO WARRANTIES, EXPRESS OR

MA 2000 Installation and Configuration Guide

II

Preface

Policy for W arrantee and Repair

MOBILEACCESS TESTS AND INSPECTS ALL ITS PRODUCTS TO VERIFY THEIR QUALITY AND RELIABILITY. MOBILEACCESS USES EVERY REASONABLE

PRECAUTION TO ENSURE THAT EACH UNIT MEETS THEIR DECLARED SPECIFICATIONS BEFORE SHIPMENT
INCOMING INSPECTION
OF THESE PRECAUTIONS CAN BE FOUND IN THIS MANUAL

HE PRODUCTS ARE COVERED BY THE FOLLOWING WARRANTIES:

T

, ASSEMBLY, AND TEST PERSONNEL ABOUT THE PRECAUTIONS REQUIRED IN HANDLING AND TESTING OUR PRODUCTS. MANY

.

. CUSTOMERS SHOULD ADVISE THEIR

General Warranty

MOBILEACCESS WARRANTS TO THE ORIGINAL PURCHASER ALL STANDARD PRODUCTS SOLD BY MOBILEACCESS TO BE FREE OF DEFECTS IN

MATERIAL AND WORKMANSHIP FOR ONE

MOBILEACCESS WILL REPAIR OR REPLACE ANY PRODUCT THAT MOBILEACCESS PROVES TO BE DEFECTIVE. THIS WARRANTY DOES NOT APPLY TO

ANY PRODUCT THAT HAS BEEN SUBJECT TO ALTERATION
ENVIRONMENTAL OVER

-STRESS, NEGLIGENCE IN USE, STORAGE, TRANSPORTATION OR HANDLING.

(1) YEAR FROM DATE OF SHIPMENT FROM MOBILEACCESS. DURING THE WARRANTY PERIOD,

, ABUSE, IMPROPER INSTALLATION OR APPLICATION, ACCIDENT, ELECTRICAL OR

Specific Product Warranty Instructions

ALL MOBILEACCESS PRODUCTS ARE WARRANTED AGAINST DEFECTS IN WORKMANSHIP, MATERIALS AND CONSTRUCTION, AND TO NO FURTHER

. ANY CLAIM FOR REPAIR OR REPLACEMENT OF UNITS FOUND TO BE DEFECTIVE ON INCOMING INSPECTION BY A CUSTOMER MUST BE MADE

EXTENT

30 DAYS OF RECEIPT OF SHIPMENT, OR WITHIN 30 DAYS OF DISCOVERY OF A DEFECT WITHIN THE WARRANTY PERIOD.

WITHIN

THIS WARRANTY IS THE ONLY WARRANTY MADE BY MOBILEACCESS AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED.
MOBILEACCESS SALES AGENTS OR REPRESENTATIVES ARE NOT AUTHORIZED TO MAKE COMMITMENTS ON WARRANTY RETURNS.

Returns

IN THE EVENT THAT IT IS NECESSARY TO RETURN ANY PRODUCT AGAINST ABOVE WARRANTY, THE FOLLOWING PROCEDURE SHALL BE FOLLOWED:

1.

RETURN AUTHORIZATION IS TO BE RECEIVED FROM MOBILEACCESS PRIOR TO RETURNING ANY UNIT. ADVISE MOBILEACCESS OF THE MODEL,

SERIAL NUMBER
COLLECT OR WITHOUT AUTHORIZATION MAY NOT BE ACCEPTED

2.

PRIOR TO REPAIR, MOBILEACCESS WILL ADVISE THE CUSTOMER OF OUR TEST RESULTS AND ANY CHARGES FOR REPAIRING CUSTOMER-CAUSED

PROBLEMS OR OUT

REPAIRED PRODUCTS ARE WARRANTED FOR THE BALANCE OF THE ORIGINAL WARRANTY PERIOD, OR AT LEAST 90 DAYS FROM DATE OF

3.

SHIPMENT

, AND DISCREPANCY. THE UNIT MAY THEN BE FORWARDED TO MOBILEACCESS, TRANSPORTATION PREPAID. DEVICES RETURNED

.

-OF-WARRANTY CONDITIONS ETC.

.

Limitations of Liabilities

MOBILEACCESS'S LIABILITY ON ANY CLAIM, OF ANY KIND, INCLUDING NEGLIGENCE FOR ANY LOSS OR DAMAGE ARISING FROM, CONNECTED WITH,

OR RESULTING FROM THE PURCHASE ORDER
MANUFACTURE
CONTACT

EXCEPT AS EXPRESSLY PROVIDED HEREIN, MOBILEACCESS MAKES NO WARRANTY, EXPRESSED OR IMPLIED, WITH
RESPECT TO ANY GOODS, PARTS AND SERVICES PROVIDED IN CONNECTION WITH THIS AGREEMENT INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. MOBILEACCESS
SHALL NOT BE LIABLE FOR ANY OTHER DAMAGE INCLUDING, BUT NOT LIMITED TO, INDIRECT, SPECIAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF OR IN CONNECTION WITH FURNISHING OF GOODS, PARTS AND SERVICE HEREUNDER, OR THE
PERFORMANCE, USE OF, OR INABILITY TO USE THE GOODS, PARTS AND SERVICE.

MA 2000 Installation and Configuration Guide

, SALE, DELIVERY, INSTALLATION, INSPECTION, OPERATION OR USE OF ANY EQUIPMENT COVERED BY OR FURNISHED UNDER THIS

, SHALL IN NO CASE EXCEED THE PURCHASE PRICE OF THE DEVICE WHICH GIVES RISE TO THE CLAIM.

, CONTRACT, QUOTATION, OR FROM THE PERFORMANCE OR BREACH THEREOF, OR FROM THE DESIGN,

III

Preface

Reporting Defects

THE UNITS WERE INSPECTED BEFORE SHIPMENT AND FOUND TO BE FREE OF MECHANICAL AND ELECTRICAL DEFECTS.
E

XAMINE THE UNITS FOR ANY DAMAGE THAT MAY HAVE BEEN CAUSED IN TRANSIT. IF DAMAGE IS DISCOVERED, FILE A CLAIM WITH THE FREIGHT

CARRIER IMMEDIATELY

NOTE: KEEP ALL PACKING MATERIAL UNTIL YOU HAVE COMPLETED THE INSPECTION
WARNING: TO COMPLY WITH FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, ANTENNAS USED FOR THIS PRODUCT MUST BE FIXED MOUNTED

ON INDOOR PERMANENT STRUCTURES, PROVIDING A SEPARATION DISTANCE OF AT LEAST 20 CM FROM ALL PERSONS DURING NORMAL OPERATION.

WARNING: ANTENNA GAIN SHOULD NOT EXCEED 10 dBi.
WARNING: EACH INDIVIDUAL ANTENNA USED FOR THIS TRANSMITTER MUST BE INSTALLED TO PROVIDE A MINIMUM SEPARATION DISTANCE OF 20

CM OR MORE FROM ALL PERSONS AND MUST NOT BE CO-LOCATED WITH ANY OTHER ANTENNA FOR MEETING RF EXPOSURE REQUIREMENTS.

WARNING: THE DESIGN OF THE ANTENNA INSTALLATION NEEDS TO BE IMPLEMENTED IN SUCH A WAY SO AS TO ENSURE RF RADIATION SAFETY

LEVELS AND NON-ENVIRONMENTAL POLLUTION DURING OPERATION.

. NOTIFY MOBILEACCESS AS SOON AS POSSIBLE.

ATTENTION:

COMPLIANCE WITH RF SAFETY REQUIREMENTS:
MOBILEACCESS™ PRODUCTS HAVE NO INHERENT SIGNIFICANT RF RADIATION.
THE RF LEVEL ON THE DOWN LINK IS VERY LOW AT THE DOWNLINK PORTS. THEREFORE, THERE IS NO DANGEROUS RF RADIATION WHEN THE

ANTENNA IS NOT CONNECTED.

Laser Safety

FIBER OPTIC PORTS OF THE MOBILEACCESS 2000 EMIT INVISIBLE LASER RADIATION AT THE 1310/1550 NM WAVELENGTH WINDOW.
TO AVOID EYE INJURY NEVER LOOK DIRECTLY INTO T HE OPTICAL PORTS, PATCHCORDS OR OPTICAL CABLES. DO NOT STARE INTO BEAM OR VIEW

DIRECTLY WITH OPTICAL INSTRUMENTS. ALWAYS ASSUME THAT OPTICAL OUTPUTS ARE ON.

ONLY TECHNICIANS FAMILIAR WITH FIBER OPTIC SAFETY PRACTICES AND PROCEDURES SHOULD PERFORM OPTICAL FIBER CONNECTIONS AND

DISCONNECTIONS OF THE MOBILEACCESS 2000 MODULES AND THE ASSOCIATED CABLES.

THE MOBILEACCESS 2000 COMPLIES WITH 21 CFR 1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE NO. 50 (JULY
26, 2001) & IEC 60825-1, AMENDMENT 2 (JAN. 2001).

Care of Fiber Optic Connectors

DO NOT REMOVE THE PROTECTIVE COVERS ON THE FIBER OPTIC CONNECTORS UNTIL A CONNECT ION IS READY TO BE MADE. DO NOT LEAVE

CONNECTORS UNCOVERED WHEN NOT CONNECTED.

THE TIP OF THE FIBER OPTIC CONNECTOR SHOULD NOT COME INTO CONTACT WITH ANY OBJECT OR DUST.
REFER TO THE CLEANING PROCEDURE FOR INFORMATION ON THE CLEANING OF THE FIBER TIP.

MA 2000 Installation and Configuration Guide

IV

Preface

Safety

WARNING! To comply with FCC RF exposure compliance requirements, antennas used for this product
must be fixed mounted on indoor permanent structures, providing a separation distance of at least
20 cm from all persons during normal operation.

1. Each individual antenna used for this transmitter must be installed to provide a
minimum separation distance of 20 cm or more from all persons and must not be
co-located with any other antenna for meeting RF exposure requirements.

2. The design of the antenna installation needs to be implemented in such a way so as
to ensure RF radiation safety levels and non-environmental pollution during
operation.

Compliance with RF safety requirements:

• MobileAccess™ products have no inherent significant RF radiation.

• The RF level on the downlink is very low at the downlink ports. Therefore, there is no

dangerous RF radiation when the antenna is not connected.

MA 2000 Installation and Configuration Guide

V

Preface

Standards and Certification

MobileAccess products have met the approvals of the following certifying organizations:

Product Certifications

US

FCC 47 CFR part 15B, 22, 24, 90

UL 60950-1

21CFR 1040.10 & 1040.11.

Europe

EN 301502, EN 300609, EN 301489, EN 60950-1, IEC 60825-1, IEC 60825-2

Company Certification

ISO ISO 9001: 2000 and ISO 13485: 2003

MA 2000 Installation and Configuration Guide

VI

Preface

About this Guide and Other Relevant Documentation

This user guide describes how to perform the physical installation of the MA2000 systems. The
installation procedures of other units (RIU, MA850/860) relevant to the system are detailed in
their user manuals (see

Revision History

The revision history for this document is shown in Table 1-1.

P/N Date Description

709C001305 September 2004 Initial version.
709C001307 JUNE 2007 New version that includes all previous updates.

19-FEB-08 Update for 1000M products – Multi-mode fiber

709C001208 20-JAN-09 Updated DS in appendix for E-GSM products

February 2009 International Configurations

Additional Relevant Documentation

Table 1-1: Revision history

below).

Additional Relevant Documents

The following documents are required if the corresponding units are included in your system
installation.

Document Name

MA 850/860 Installation and Configuration Guide
RIU Installation and Configuration Guide
NMS MA 410/430 Installation and Configuration Guide
MA1000 MA2000 Commissioning Guide

List of Acronyms

BDA Bi-Directional Amplifier
BTS Base Transceiver Station
BTSC Base Transceiver Station Conditioner
BU Base Unit
DL Downlink
RU Remote (Hub )Unit
RIU Radio Interface Unit

MA 2000 Installation and Configuration Guide

VII

Preface

UL Uplink

MA 2000 Installation and Configuration Guide

VIII

Preface

Table of Contents

1 Introduction to the MA 2000 System..................................................................................1

1.1 System Architecture..................................................................................................................2

1.2 Application Examples.................................................................................................................4

2 MA 2000 System Elements..................................................................................................6

2.1 Enclosure Types........................................................................................................................6

2.1.1 MA 2000 Remote Cabinet.................................................................................................6

2.1.2 MA 2000 Lite...................................................................................................................9

2.1.2.1 Enclosure Internal Elements................................................................................ 10

2.1.2.2 Digital Card Unit ................................................................................................ 11

2.1.2.3 Filters and Combiners......................................................................................... 12

2.2 MA 2000 Remote Location Units............................................................................................... 12

2.2.1 RU 2000 ....................................................................................................................... 12

2.2.2 MA 1200 Add-on............................................................................................................ 14

2.2.3 8 x 4 Combiner .............................................................................................................. 16

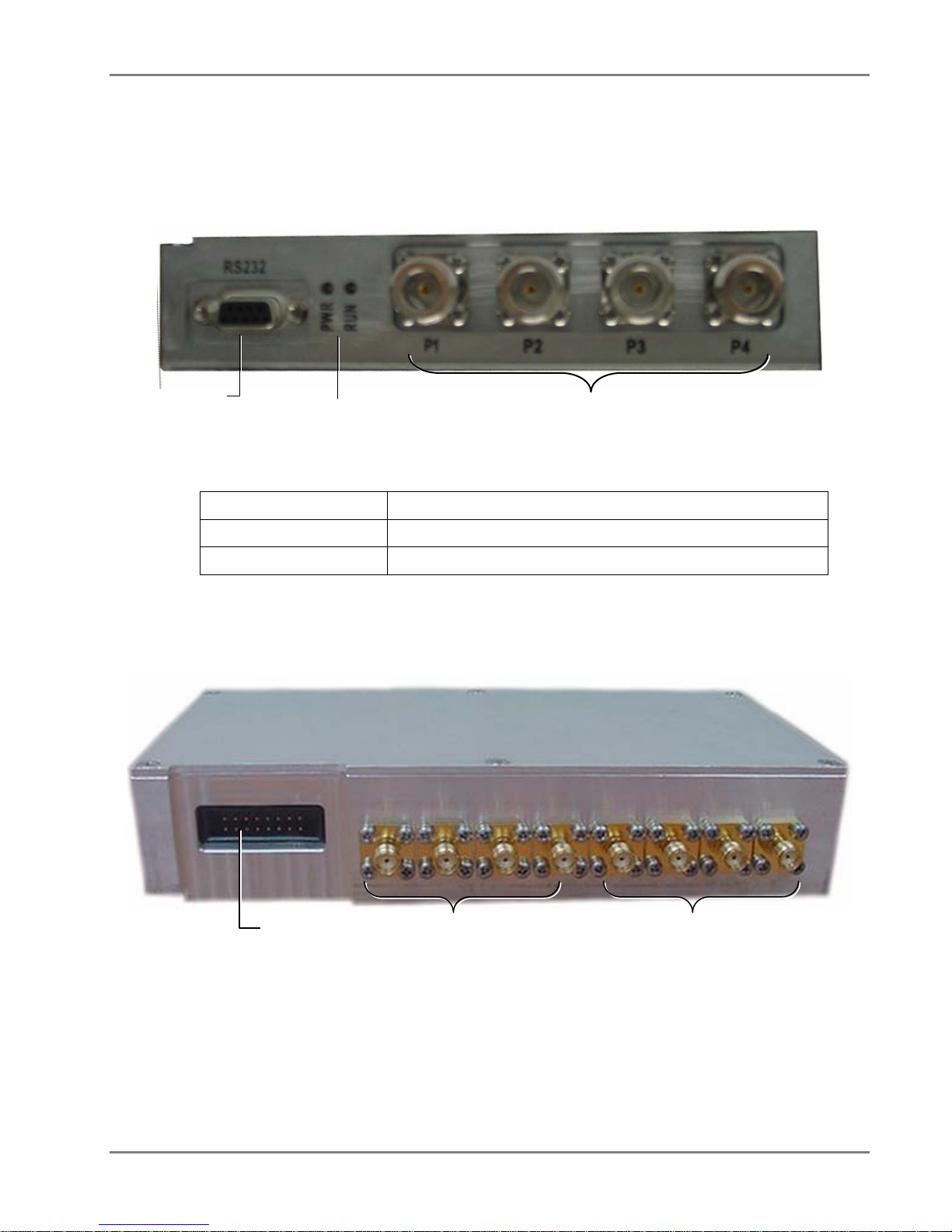

2.2.3.1 MA 8x4 Combiner Front Panel............................................................................. 17

2.2.3.2 MA 8x4 Rear Panel............................................................................................. 17

2.3 MA Base Unit.......................................................................................................................... 18

2.3.1 Base Unit Models and OPTMs.......................................................................................... 18

2.3.2 BU Panels ..................................................................................................................... 19

2.3.2.1 MA BU Front Panel............................................................................................. 19

2.3.2.2 BU Rear Panel ................................................................................................... 20

3 Site Preparation .................................................................................................................21

3.1 Infrastructure Preparation........................................................................................................ 21

3.2 Installation Requirements........................................................................................................ 21

3.3 Coaxial Cable Connections....................................................................................................... 22

3.3.1 General Cable Installation Procedures.............................................................................. 22

3.3.2 Fiber Optic Rules ........................................................................................................... 22

3.3.3 RF Rules....................................................................................................................... 23

3.3.4 Coax Cable Lengths and Losses ...................................................................................... 24

3.4 Power Consumption, Connections and Power Supplies................................................................25

3.4.1 Power Safety Instructions ............................................................................................... 25

MA 2000 Installation and Configuration Guide

IX

Preface

3.4.2 Power Consumption of Units........................................................................................... 25

3.4.3 Circuit Breakers............................................................................................................. 26

3.4.4 Types of Power Supplies................................................................................................. 26

3.5 Installation Conventions .......................................................................................................... 26

4 System Installation ............................................................................................................28

4.1 Pre-installation Instructions...................................................................................................... 28

4.1.1 Unpacking and Inspection .............................................................................................. 28

4.2 Communication Room Installation ............................................................................................ 29

4.2.1 Rack Installation General Instructions.............................................................................. 29

4.2.2 Rack Installation Safety Instructions................................................................................ 30

4.2.3 BU Connections............................................................................................................. 30

4.3 Remote Cabinet Installation..................................................................................................... 32

4.3.1 RC 2000 Wall Mount Installation ..................................................................................... 32

4.3.2 RC Grounding - Integrated PS Wall Mount Model.............................................................. 35

4.3.3 RC 2000 Rack Mount Installation..................................................................................... 36

4.3.4 Fiber Optic Connections.................................................................................................. 38

4.3.5 Power Connections ........................................................................................................ 39

4.3.5.1 Integrated Power Supply model .......................................................................... 39

4.3.5.2 External Power Supplies Model............................................................................ 39

4.3.6 Antenna Connections..................................................................................................... 39

4.4 MA 2000 Lite Installation and Connections ................................................................................ 40

4.4.1 Mounting MA 2000 Lite................................................................................................... 42

4.4.2 MA 2000 Lite Connections .............................................................................................. 43

5 Upgrading and Configuration Examples .........................................................................44

5.1 Common USA Configurations ................................................................................................... 45

5.1.1 iDEN/SMR with PCS Add-on............................................................................................ 45

5.1.2 Cell/PCS ........................................................................................................................ 46

5.2 Typical International Configurations.......................................................................................... 47

5.2.1 Typical Asian Configuration: Cell/DCS+ UMTS.................................................................. 47

5.2.2 Typical European & Middle East Configuration: EGSM/DCS + UMTS Configuration............... 47

5.2.3 iDEN............................................................................................................................. 48

5.3 2000 Lite Cell/DCS and GSM/DCS Config for Telstra................................................................... 49

6 Appendix : System Specifications ...................................................................................50

RF Parameters............................................................................................................................... 50

System Specs................................................................................................................................ 54

MA 2000 Installation and Configuration Guide

X

Preface

Specifications of Units .................................................................................................................... 55

MA 2000 MRC Remote Hub...................................................................................................... 55

MA 2000 Lite.......................................................................................................................... 55

MA 2000 Remote Unit ............................................................................................................. 55

MA 1200 Add-On Specifications................................................................................................ 55

Base unit Specifications........................................................................................................... 56

Ordering Information ..................................................................................................................... 56

MA 2000 Installation and Configuration Guide

XI

t

1

MA 2000 Lite

IInnttrroodduuccttiioonn ttoo tthhee M
SSyysstteem

MobileAccess™-2000 series provides enterprise level indoor coverage, of a wide range of
multi-operator wireless services over a single broadband infrastructure. Front-end wireless RF
services are routed, over optic fibers, to MA 2000 series hubs that are securely located in remote
telecommunication closets at each remote location. These modular service aggregation platforms
precisely combine multiple wireless service signals for simultaneous distribution over a common
broadband infrastructure.

Two remote service hub models are available:

• MA-2000 Lite – supports two remote units that are connected externally, where MA 1200
add-ons and MA 850/860 units can be integrated with the remote units.

• MA-2000 Cabinet (MRC) – internally houses a total of five remote units and MA 1200
add-on units with which MA 850/860 can be integrated as an external assembly.

m

MAA 22000000

MA 2000 Cabine

Figure 1-1. MA 2000 Lite (left side) and MA 2000 Cabinet (right side)

MA 2000 Installation and Configuration Guide

1

Introduction to the MA 2000 System System Architecture

The supported units are:

• Remote Units (RUs) – Service specific modules that support up to two voice services and
perform the optic to RF conversion, filtering and amplification at the remote locations.

• MA 1200 Add On – Service specific module that provides support for an additional high
band voice service.

• MA 850/860 – Module that supports data services

Features and Capabilities

• Multi-service platform that accommodates virtually any combination of wireless voice and
data services eliminating the need for separate overlay networks

• Scalable and future-safe – services can be added and removed without affecting existing
operators or end-users

• MA-2000 Lite components can be migrated to MA-2000 MRC for increased capacity

• All active components are located in the communication closet/room

• Carrier class operation – MA 2000 advanced signal handling ensures optimal performance for

all services within a multi-operator deployment

• Local and remote end-to-end monitoring and control through interface to MA 410/430
controllers

• Conditioning and monitoring of input RF signals at the head-end through interface to MA-RIU

NOTE: MobileAccess is in the process of transition to 2000M products that will support both singlemode
fiber and multimode fiber. The new Base Unit is designated by WBM (Wide Band M), and the new RHUs will
be indicated by 2000M RHUs,

and multimode fiber usage.

backward compatible. See

where the suffix “M” indicates that the product will support both single mode

The new products have the same packaging and performance and are fully

3.3.2 for details on multimode fiber use.

1.1 System Architecture

At the head-end Mobile Access elements provide interface to the wireless service provider’s
network, where the signals can be conditioned through an active interface and transported over
optic fiber to the remote end.

At the remote end, the optical signal is reconverted to RF, amplified, filtered and distributed over
the broadband antenna infrastructure.

MA 2000 Installation and Configuration Guide 2

Introduction to the MA 2000 System System Architecture

For end-to-end control, controllers installed at the head-end provide direct interface to the MA
elements and through them, control over the remote end elements.

Figure 1-2. System Architecture

Figure 1-2 shows a basic block diagram of the system operation. On the downlink, services from
the BTS/BDA are transferred via interface to the Base Units (BUs). The interface, which may be
passive (i.e. Interface Box) or active (RIU), is used to attenuate the RF signals to the required
levels, converge them and distribute them to the BUs.

service specific.

The BUs are wideband – they are not

At the BUs, the RF signals are converted to optical signals and transmitted over the optic fiber to
(service-specific) RUs at the remote locations. At the remote locations, the RUs supported by the
hub reconvert the optical signal to RF. The hub elements converge the voice services together
with 802.11 a/b/g data services (if MA 850/860 units are installed) and distribute them over the
coax antenna infrastructure. MA 410/430 (in installations with remote management) provides
monitoring and control of all active system elements.

MA 2000 Installation and Configuration Guide 3

Introduction to the MA 2000 System Application Examples

1.2 Application Examples

Figure 1-3 shows an example of an MA 2000 Cabinet based solution. Five services from two
different operators are distributed, where services from Operator A conflict with those from
Operator B.

The converted optical signal is routed from the BUs directly to the corresponding RUs in each
Cabinet over optic fiber. Each BU supports connections to 8 RUs. Additional BUs are required for
connection to more RUs.

Services 1 and 2 are distributed through one of the RUs supported in each Cabinet. Services 3, 4
and 5 are distributed through the second RU and the MA 1200 unit connected to that RU.

MA 850/860 converges 802.11a/b/g data services with the voice services to be distributed
through a common infrastructure of coax and wideband antennas.

MA 2000 Installation and Configuration Guide 4

Figure 1-3. Example of MA 2000 Cabinet Architecture

Introduction to the MA 2000 System Application Examples

Figure 1-4 shows an example of an MA 2000 Lite based solution. Four services from two
different operators are distributed.

The converted optical signal is routed from the BUs directly to the corresponding RUs over optic
fiber.

Services 1 and 2 are distributed through one of the RUs supported by MA 2000 Lite. Services 3
and 4 are distributed through the second RU. The combiner and filter provides interface to the
antennas.

Figure 1-4.Example of MA 2000 Lite Architecture

MA 2000 Installation and Configuration Guide 5

2

MAA 22000000 SSyyssttee

M

This chapter provides a full, detailed description of each of the system elements and their
individual connections. The element descriptions are organized according to the following
sections:

• Enclosures types – Cabinet and Lite

• Remote Location Elements:

• MA 2000 Remote Units (RUs)

• 1200 Add-on

• Base Unit

NOTE: The following elements are fully described in their corresponding user guides: MA RIU, MA
850/860, MA 410/430 Controllers and MCT/NMS Management Application (described in MA

410/430 Installation and Configuration Guide).

2.1 Enclosure Types

This section describes both types of enclosures (Cabinet/Lite) and t h eir external connections.

m EEllee

m

meennttss

m

2.1.1 MA 2000 Remote Cabinet

Figure 2-1. RC 2000 Closed Cabinet View

MA 2000 Cabinet supports the following functions:

• Compactly houses up to five RU 2000 and MA 1200 modules and the required filters

NOTE: The number of modules that can be housed depends on the models, required filtering, etc.

• MA 850/860 can be connected externally

MA 2000 Installation and Configuration Guide

6

MA 2000 System Elements Enclosure Types

p

• Converges all voice services and provides a single interface to the antennas through external
connections

• Wall mounted or rack mounted

• Supplied in two models with differing power supply:

• Integrated power supply – fed from an external AC power source. The RU 2000 an MA

1200 Add-on modules are internally connected to the power supply. This model includes
a battery connection as well.

• External power supplies – power is routed to external connectors from which power is

routed internally to each RU 2000 and MA 1200 Add-on module.

Open door views

The following figure shows an open RC 2000 cabinet, integrated power supply model, with four
RU 2000 modules and four filters. (For clarity, the internal connections are demonstrated

separately in

Figure 2-3).

Slot for fitting

Optic Fibers

Figure

Optic fiber connection from

Connection to
external battery

AC power input to
integrated power supply

the corres

onding BU

Internal DC module
connections

Antenna ports

Splitter/Combiner
connections

Filters (four in this
configuration example)

2-2. RC 2000 Open Ca binet View (without internal connections)

MA 2000 Installation and Configuration Guide 7

MA 2000 System Elements Enclosure Types

The following image shows the MA 2000 RC with the cabling. The antenna ports of the individual
modules are connected to the relevant filters and to the 8x4 Combiner. The PS connections of
each module are also connected to cables that are internally routed to the integrated PS (a full

detailed description of the connections is provided in chapter

NOTE: The fiber optic connections are not displayed.

5 ).

Filter (x4)

PS connection

Antenna ports (four in
each module)

8x4 Combiner
Connections

Figure 2-3. RC Open Cabinet with Internal Cabling

MA 2000 Installation and Configuration Guide 8

MA 2000 System Elements Enclosure Types

R

2.1.2 MA 2000 Lite

The 2000 Lite is designed to support up to 8 voice services, in addition to 802.11 data services.

MA 2000 Lite

To RU 2000
front panel
RS232

Connections to RU
2000 front panel

Antenna connections

Figure 2-4. 2000 Lite System

LEDs

PW

Control

To RU 2000 front panel
antenna connections

MA 2000 Lite capabilities:

• External connections to two MA 2000 RUs (to which MA 1200 Add-on units can be added)

• Internal filters and combiner (converges all services)

• Connection to MA 850/860 for support of 802.11a/b/g data services

• External power supplies

The MA 2000 enclosure contains two sets of cables, each providing connections to two MA 2000
RUs.

Cable Connector Description

Four N-type connectors Coax connections to corresponding antennas
1x DB-9 connector Connection to RU front panel RS232 connector

The following table describes the MA 2000 Lite front panel connectors.

Connector Description

Ant-1 to Ant-4 (N-type) Coax connections to corresponding antennas
Control Control connector for MA service personnel.
Power 20 to 48V DC power input

The following table describes the front panel LEDs.

LEDs Description

Run Module is operating properly.
Power Green – required power is supplied.

MA 2000 Installation and Configuration Guide 9

MA 2000 System Elements Enclosure Types

2.1.2.1 Enclosure Internal Elements

The MA 2000 Lite enclosure includes:

• 8x4 Combiner (see section

• Digital Card unit (see

• Filters and Combiners (see

Filters and combiners

Digital module

8x4 Combiner

Front tabs

2.2.3 for description)

2.1.2.2).

2.1.2.3).

Rear tab

Figure 2-5. MA 2000 Lite Internal Units

MA 2000 Installation and Configuration Guide 10
