MobiFren SM Pro User Manual

Download

Page 1

First Apple MFi certified Bluetooth earphone

User Guide

MobiFren is made by dreaming for all the user's happiness

Page 2

■

Premium Sound

(MSTS™ Tuning Technology & apt-X codec & AAC codec)

■

Supporting Android & iOS App.

MobiFren Bluetooth earphone Features

MSTS™ Tuning Technology together with lossless compression codec apt-X & AAC codec enables you to enjoy premium Hi-Fi stereo sound.

With built-in DSP chip, it supplies optimal call quality by noise reduction and echo cancellation.

You can use many kinds of useful functions like as below, if you download MobiFren_SM from the store.

Caller ID TTS

If you press any button of the headset on incoming call, the mobile phone reads you the caller's name via phone speaker.

SMS/SNS message TTS ( Available with Android )

If there's new message of SMS, SNS or Line, it reads you the message, together with beep.

Find mobile phone

If you can't remember well where you placed mobile phone, it helps you to find out your mobile phone by pressing headset button. Mobile phone will ring.

Anti Earphone loss

When the earphone is disconnected with mobile phone, mobile phone alarms you with vibration or message.

Anti Mobile Phone loss

When the mobile phone and earphone is disconnected during connection, earphone alarms its disconnection, to prevent any possibility of your mobile phone loss. You can stop alarm sound if you press any button of the earphone.

Mobi Health

It counts steps, walking distance and measures calorie consumption like as pedometer.

Hot call (Prompt call)

If you register one phone number in advance that you call frequently, you can call easily by pressing headset button for two times consecutively.

(For iPhone, it connects to call with Call button in mobile.)

Page 3

Camera Remote control (Available with Android)

It enables to play as a remote control when you take a picture. It's helpful when you take a self picture or group picture.

■

Bluetooth 4.2

■

Multi Point

■

Voice prompts

It's available the latest firmware for optimized usage if there's upgrade.

※ Its functions are variable depending on mobile phone.

■

Firmware upgrade

※ There's built-in magnet to hold the L&R earphone

together, to make it easier to carry while not using.

■

Fixing magnet

※ Caution

American Heart Association and British Drug Admini

stration warns that magnets can affect medical equipments (pacemaker, defibrillators, insulin pump, and other electronic medical equipment) if the distance between magnets and medical equipment is within 15 cm)

Please do not use this product before you consult with your doctor, if you are using the mentioned medical equipment. Please do not place this product to the places, influe nced by magnetism. The magnetic products like as credit card, telephone card, bank account, ticket can be deleted its information.

Last Call

(Instant call for the latest number)

(Available with Android)

You can connects to call by earphone after searching recent call list.

Present time notice

By pressing headset button for 2 times consecutively, it notices you the present time.

Present time notice

By pressing headset button for 2 times consecutively, it notices you the present time.

Incoming call alarm via earphone (Android only)

Alarm sound increases gradually via earphone if there's incoming call. It's useful when your mobile is silent mode.

Page 4

Manual

Contents

Headset & Accessories

1. About your MobiFren earphones 2-1. How to wear earphone

5 6

2-2. Attach/Detach ear foam and foam tip

4. Getting started with your MobiFren

(1) Getting started with your MobiFren

3. Button guide

(3) Call

(4) Factory reset

(5) Firmware upgrade

(6) Listening music

( 7) Changing Music Mode

(2) Multi point

( 8) Android application

5. What does LED color mean?

6. Troubleshooting & FAQ

7. Handle MobiFren with care

8. Certification and safety approvals

9. Features & Specifications

10.

Warranty

Turn on/off the headset

Charging

Page 5

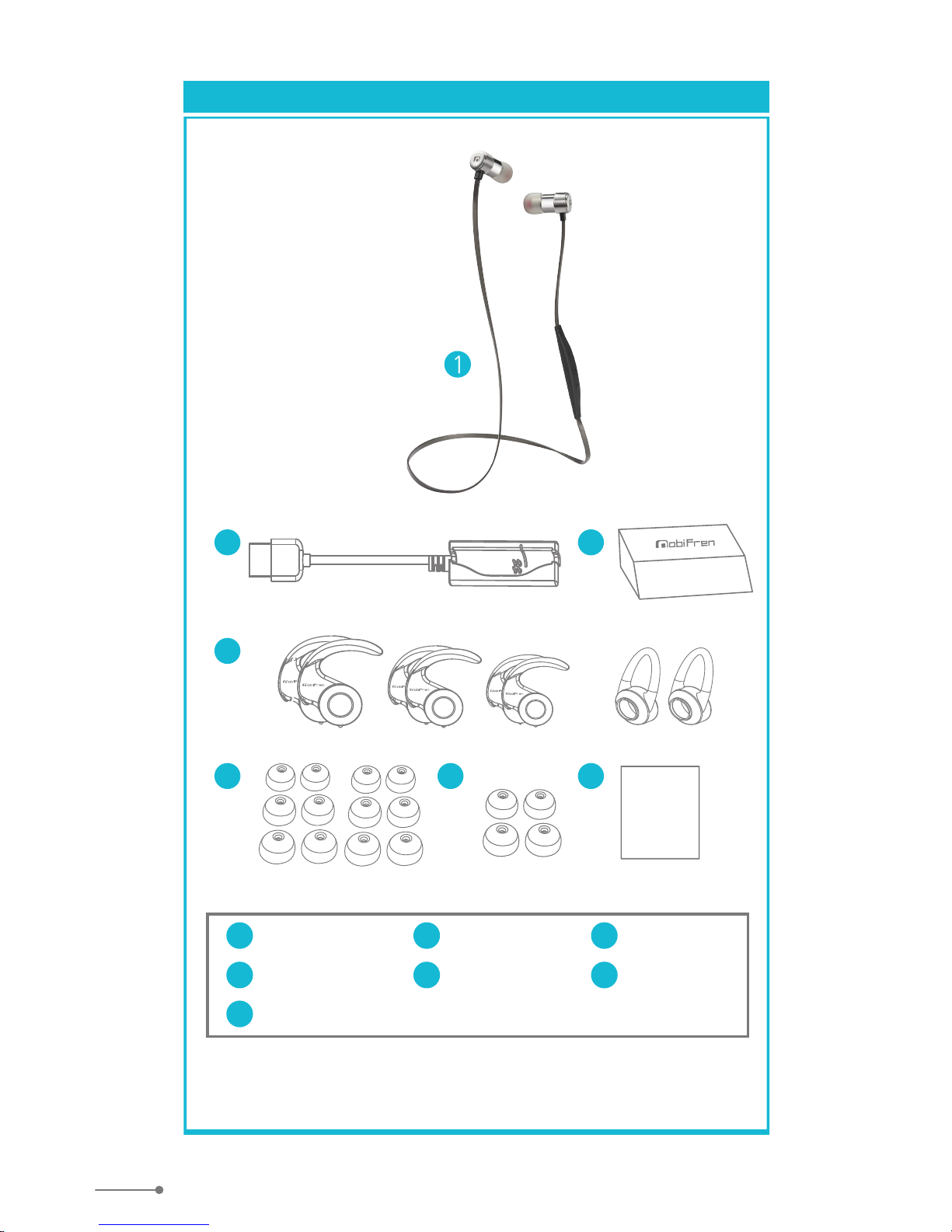

Headset & Accessories

Earphones

※ The drawings and examples in manual are for better understanding to this product, so it may be different from the real goods. Accessories and design can be changed without prior notice.

charging cradle

Pouch

Ear cushion(L,M,S)

Manual

Ear pad(L,M,S)

Foam tip(L,M)

Manual

Page 6

Press MFB for 2 seconds. It turns on and blue LED glitters

Press MFB for 4 seconds. If you give a MFB button long press, the purple LED glitters and the headset will be power off after you hear " Power off".

Turn on

Turn off

Volume up ( )

Volume down ( )

Button

Microphone

MFB Button (Multi Function)

LED display

Charging port

Button

Fig.1 Turn on/off the headset

5 6

Page 7

※

Make sure that your headset is fully charged before

you use it.

- The LED shows 'RED' during charging and will turn 'BLUE' when fully charged.

LED display

Fig.2 Charging

Page 8

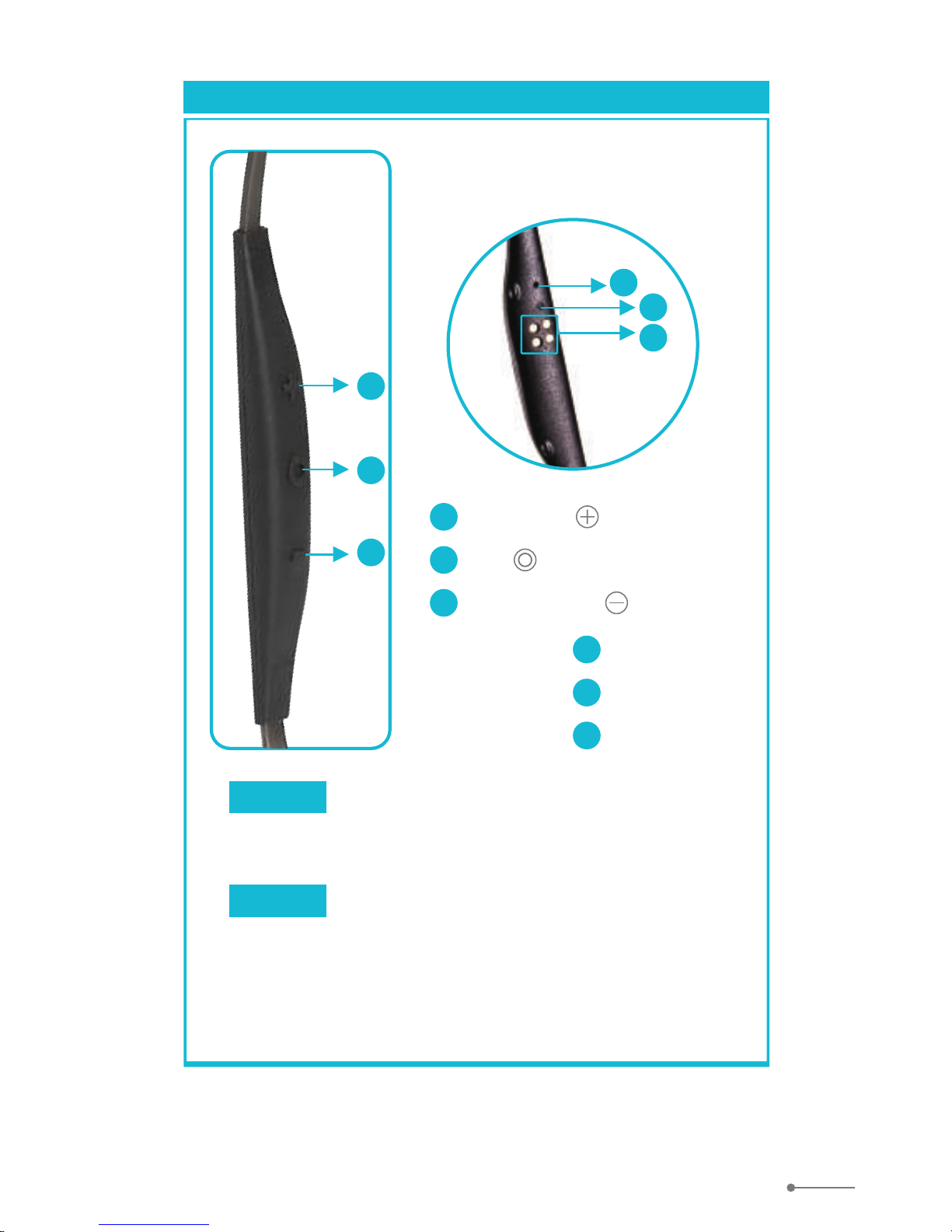

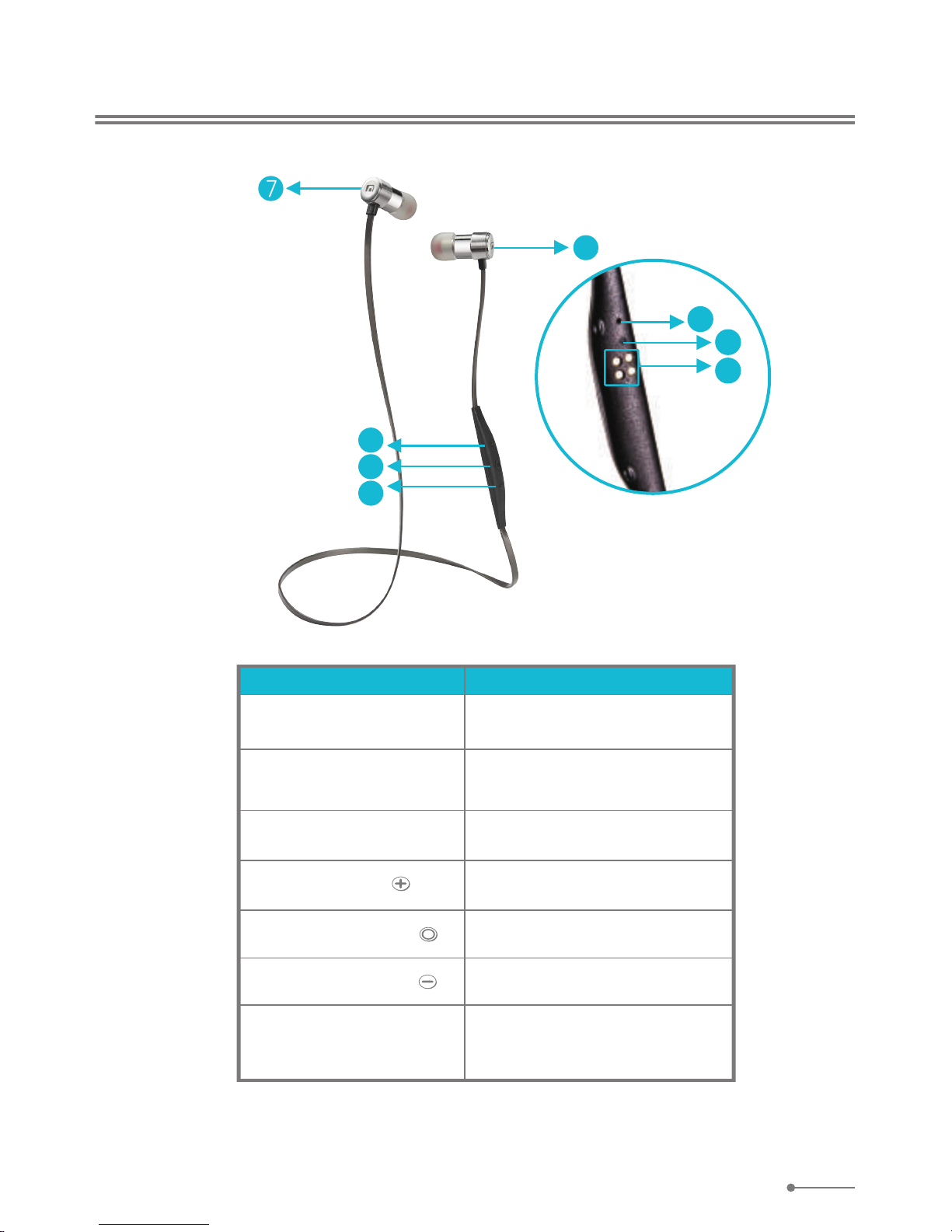

1. About your MobiFren

2. LED

3. Charging port

LED guide light for

headset status LED

1. Microphone

Designation Function

Microphone

Charging port

Volume control,

Previous song etc.

7. Fixing Magnet

Magnet to hold

L&R earphone together

Volume control,

Next song etc.

4. Volume up ( )

Turn on/off, Answer/Reject/

Convert a call/ Play/ etc.

5. Multi Function ( )

6. Volume down ( )

2 3

4 5 6

Page 9

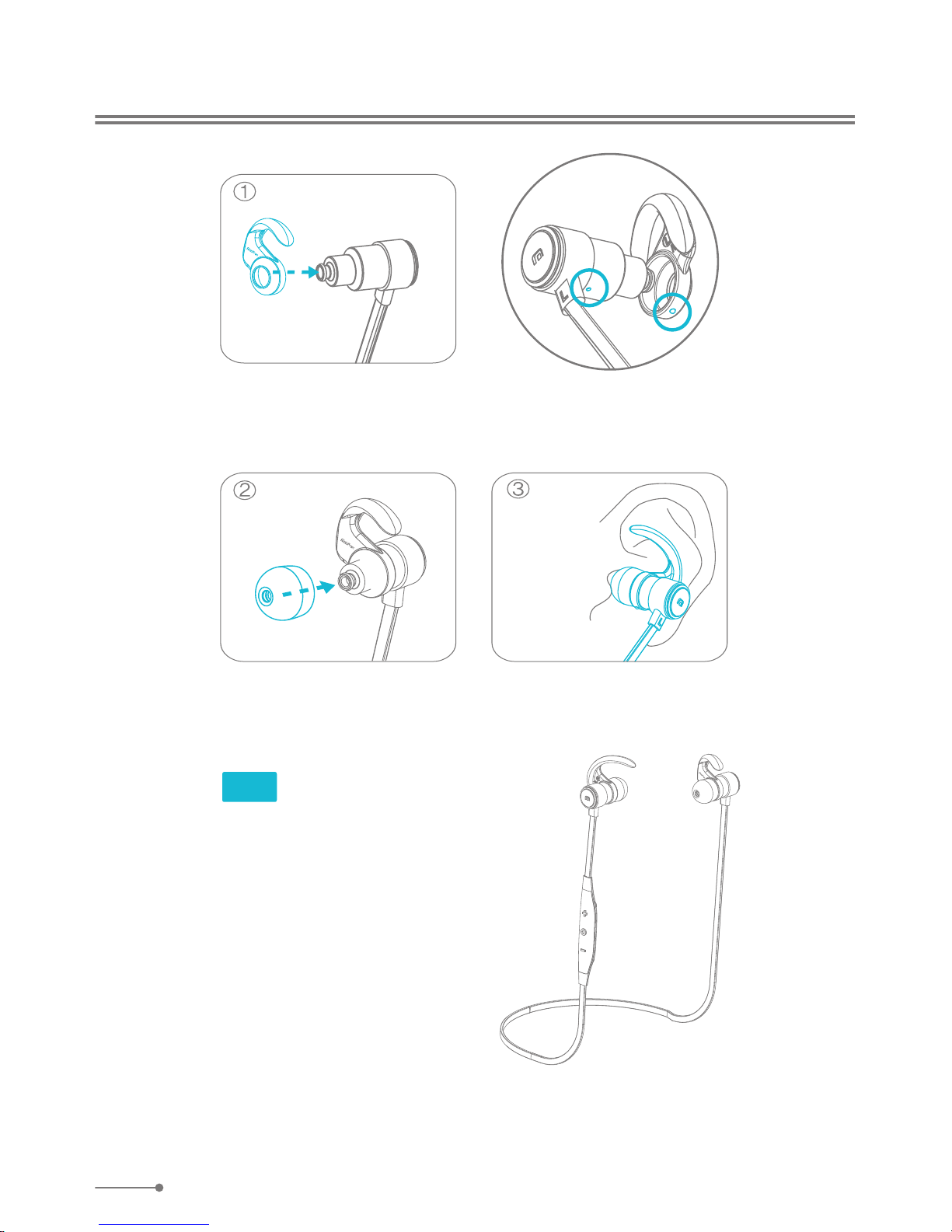

First, attach ear cushion to earphone.

(Like as Fig. 1, assemble the ear cushion projected part to

meet ear body hole at bottom.)

Fig.1

Then, wear the earphone after

fixing ear cushion to the ear.

Attach the proper size of

ear pad to earphone.

Select the best fit ear pad size for you, and it's comfortable to wear with supporting ear cushion.

Tip

2-1. How to wear earphone

Page 10

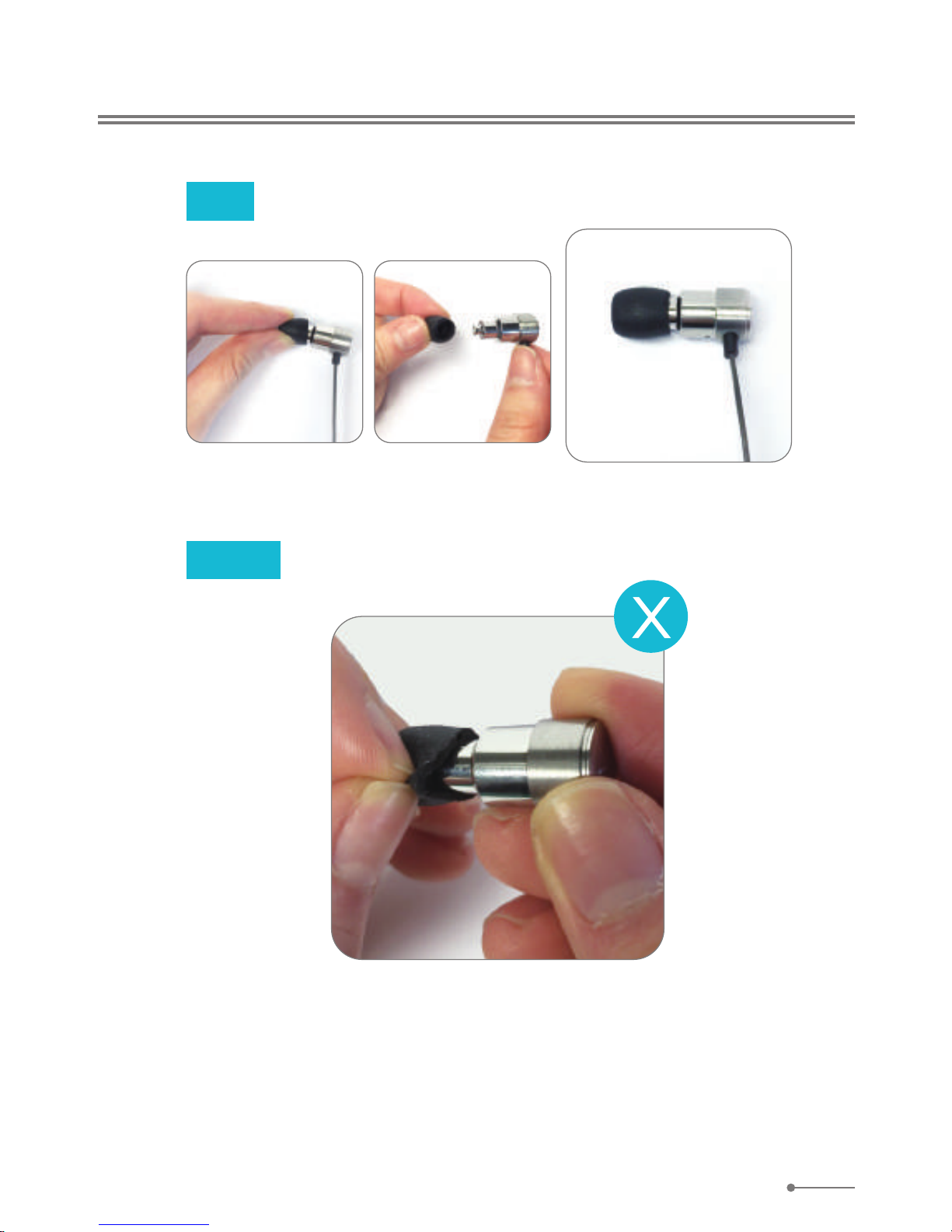

Attach/Detach holding ear foam and

foam tip holding together.

Well assembled

If you handle excessive force for ear foam,

it will damage to the bonding area between ear foam and foam tip.

2-2. Attach/Detach ear foam and foam tip

Good

Not good

Page 11

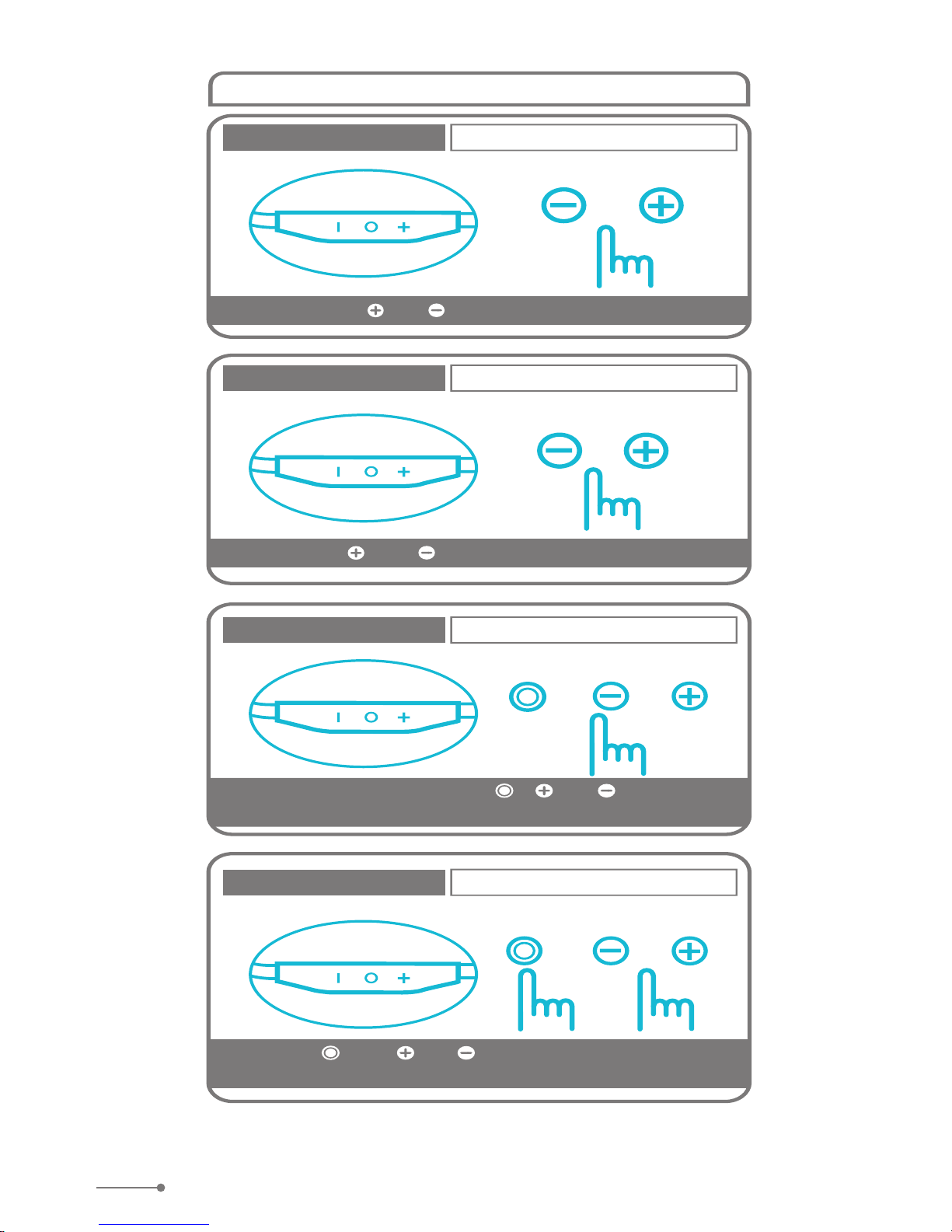

3. Button Guide

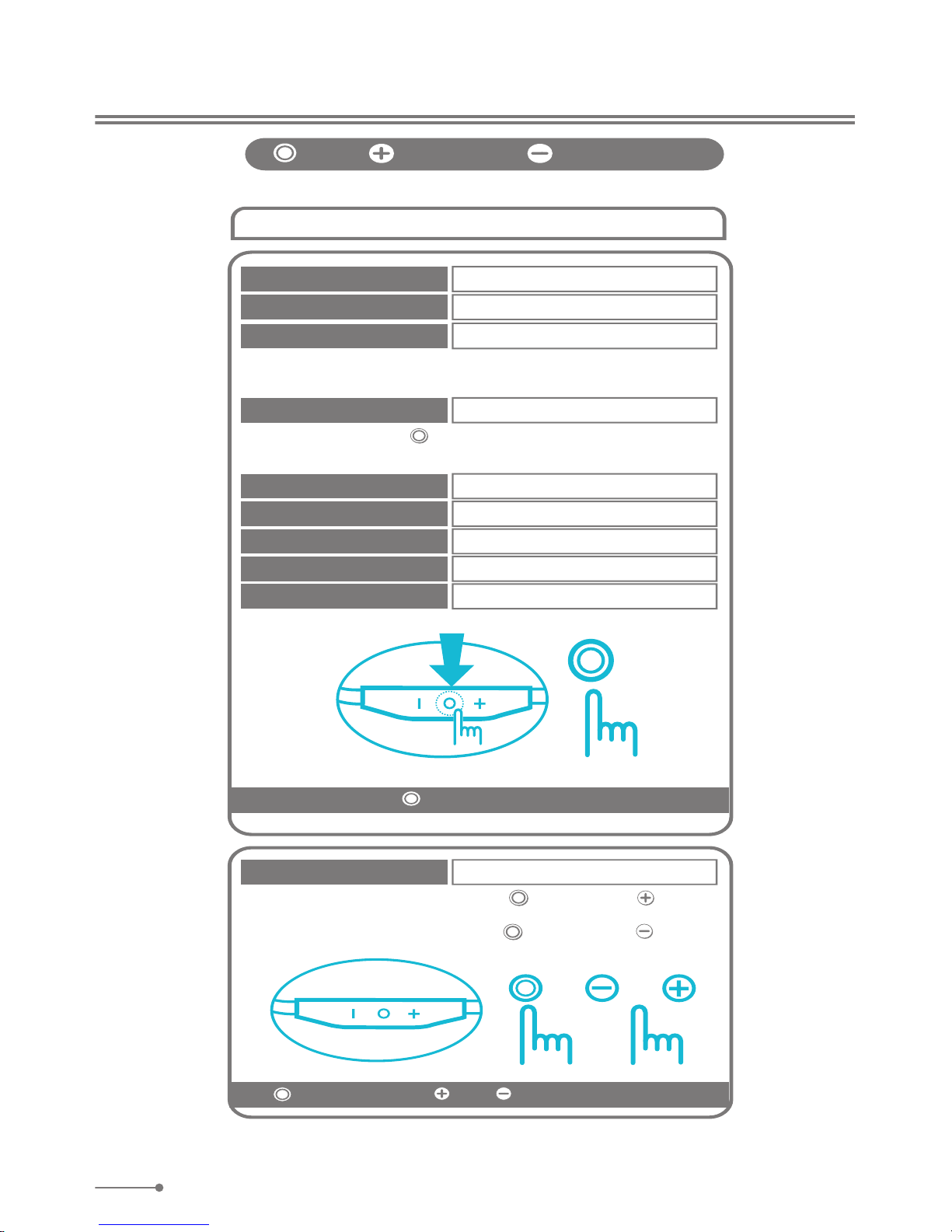

Basic Button Control

You can control earphone easily with these 3 buttons.

Volume down

Volume up

MFB

Answer a call Short press End a call Short press Turn on headset Press for 2 seconds

(If no paired device, it moves to pairing mode automatically.)

(If there's paired device, it connects to the paired device.)

Pairing mode Reject a call Convert a call Play/Pause Stop

Press for 4 seconds at power off Press for 1 second Press shortly during call Short press Press for 1 second (during play)

Turn off headset

Press for 4 seconds

If you give a MFB long press, the purple LED glitters

and the headset will be power off after you hear "Power off"

Press MFB button

Music Mode change

Press for 1 second (during play)

To move forward direction, press( ) button and ( )button simultaneously. To go backward direction, press( ) button and ( )button simultaneously.

( )MFB + Volume ( ) or ( ) Press at the same time.

Press for 1 second

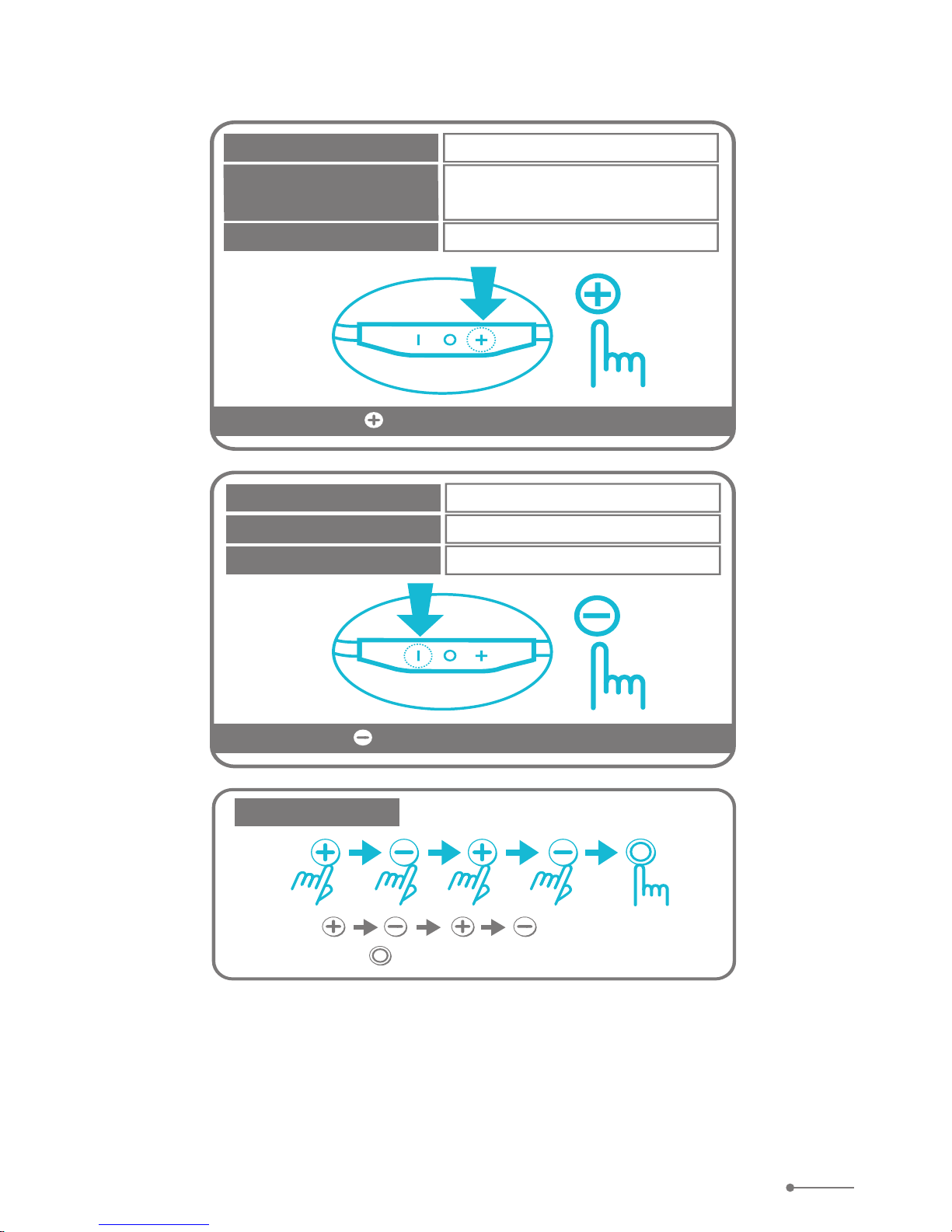

Page 12

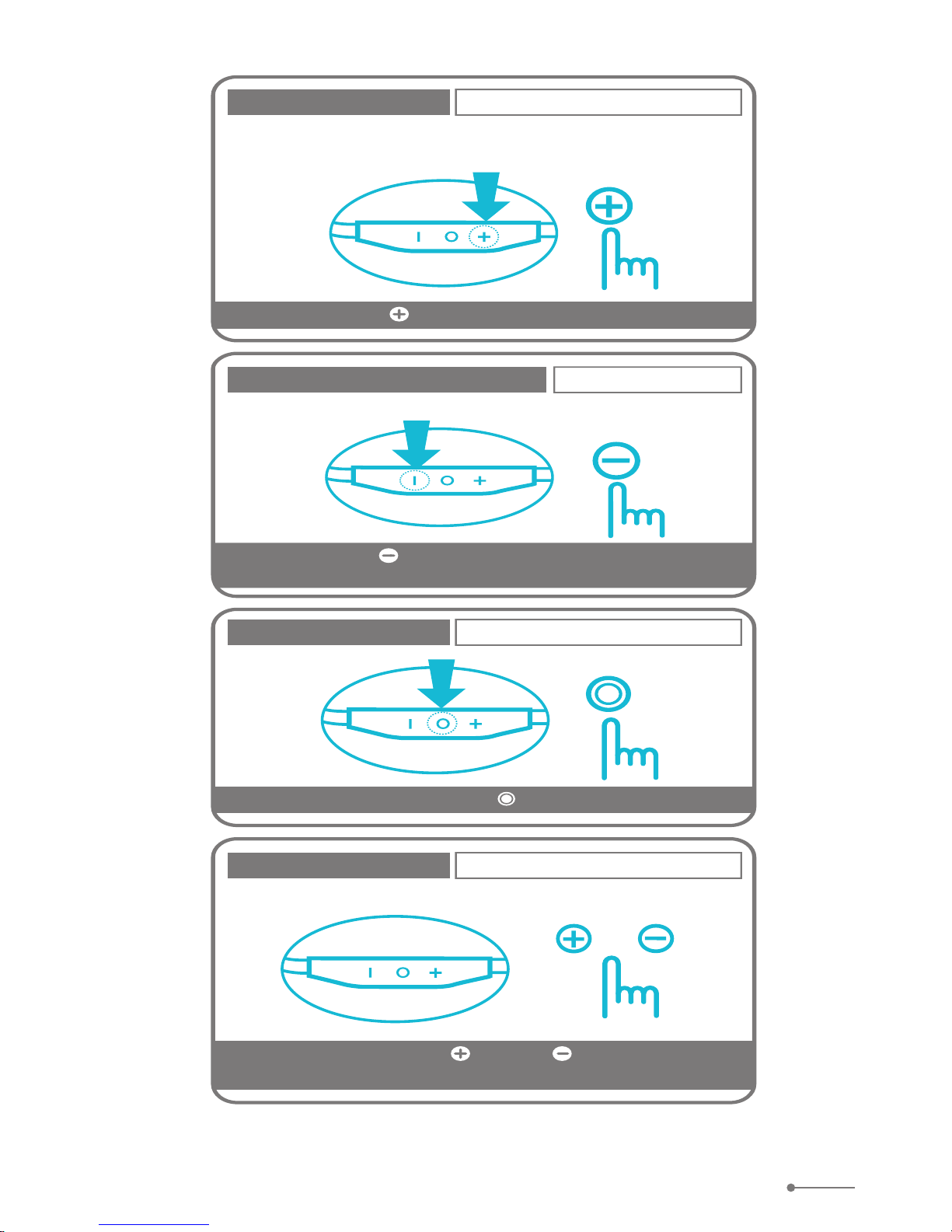

Press volume up button.

Press for 1 second (during call)

Short pressVolume +

Next song

Press for 1 second (during play)

Waiting a call and put a call on hold

Volume Mic mute Previous song

Short press Press for 1 second (during call) Press for 1 second (during play)

Press volume down button

buttons in order, Press

then press ( )button

Factory Reset

Page 13

Operating App functions with earphone

TTS caller ID

Short press upon incoming call

( ) or ( ) Press volume button

Short press

Find mobile phone

Press for 1 second (at standby)

( ) and ( ) Press at the same time

Press buttons for a second

at the same time

TTS ( Stop during TTS)

Short press (during message TTS)

(Only with Android)

During message TTS, press ( ), ( ) or ( ) button.

oror

Short press during message TTS

TTS (Manual TTS play)

Short press

Press MFB( ) and ( ) or ( ) buttons at the same time after

received TTS message. (Only with Android )

Short press after received TTS message

Page 14

※ It connects to call to the pre-registered number, with beep sound. ※ In case of iPhone, press Call button in your mobile.

Hot call (Prompt call) Short press for 2 times

Press Vol. up button

Short press for 2 times

Time notice

Short press for 2 times

Press MFB ( ) button.

※ It works only when MobiFren camera application is on.

Camera remote control

Short press

Press Vol.( ) or Vol.( ) button. (Available with Android)

※ You can connects to call by earphone after searching recent ca llist.

Short press for 2 times

Last Call (Direct call to the latest number)

Press Vol. down button

Short press for 2 times

(Available with Android )

Page 15

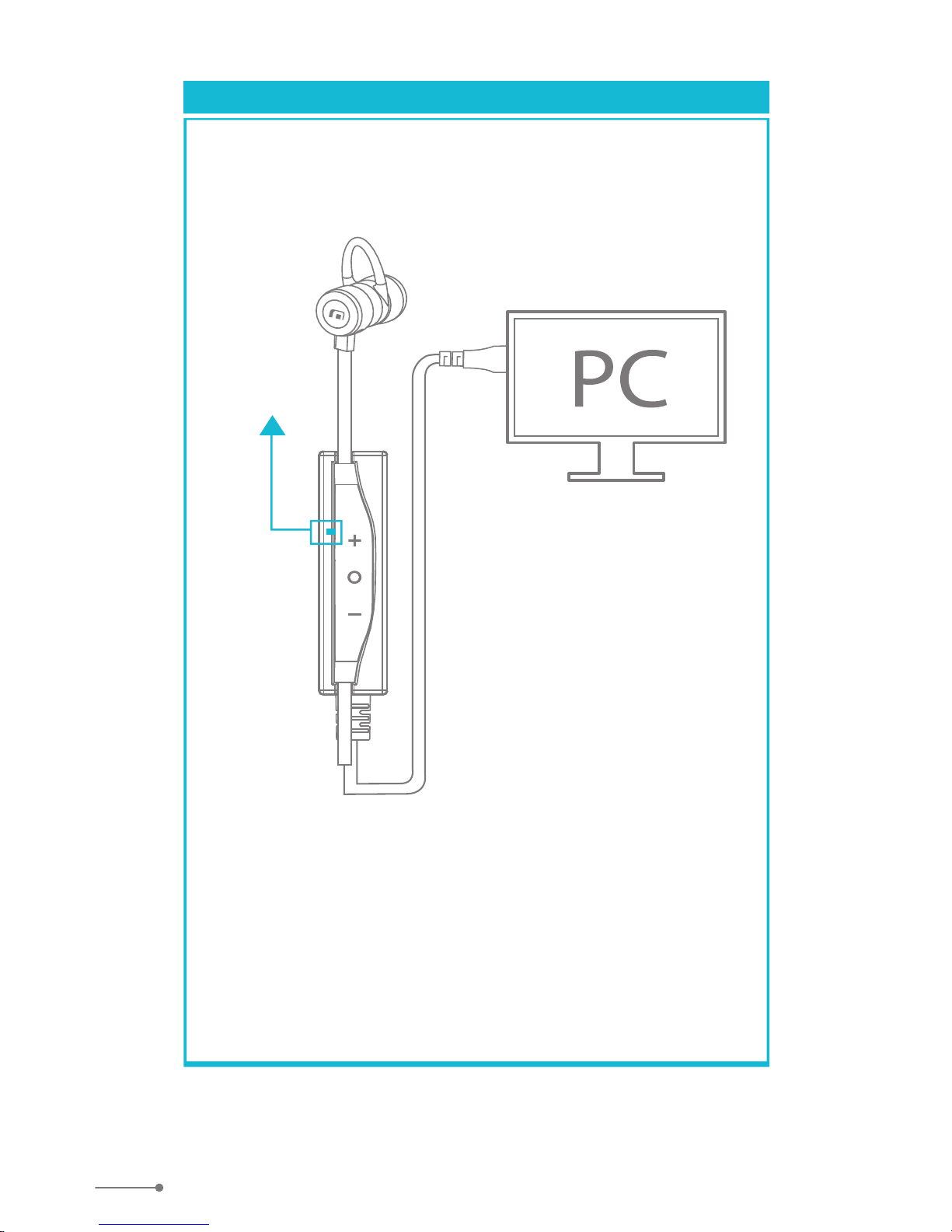

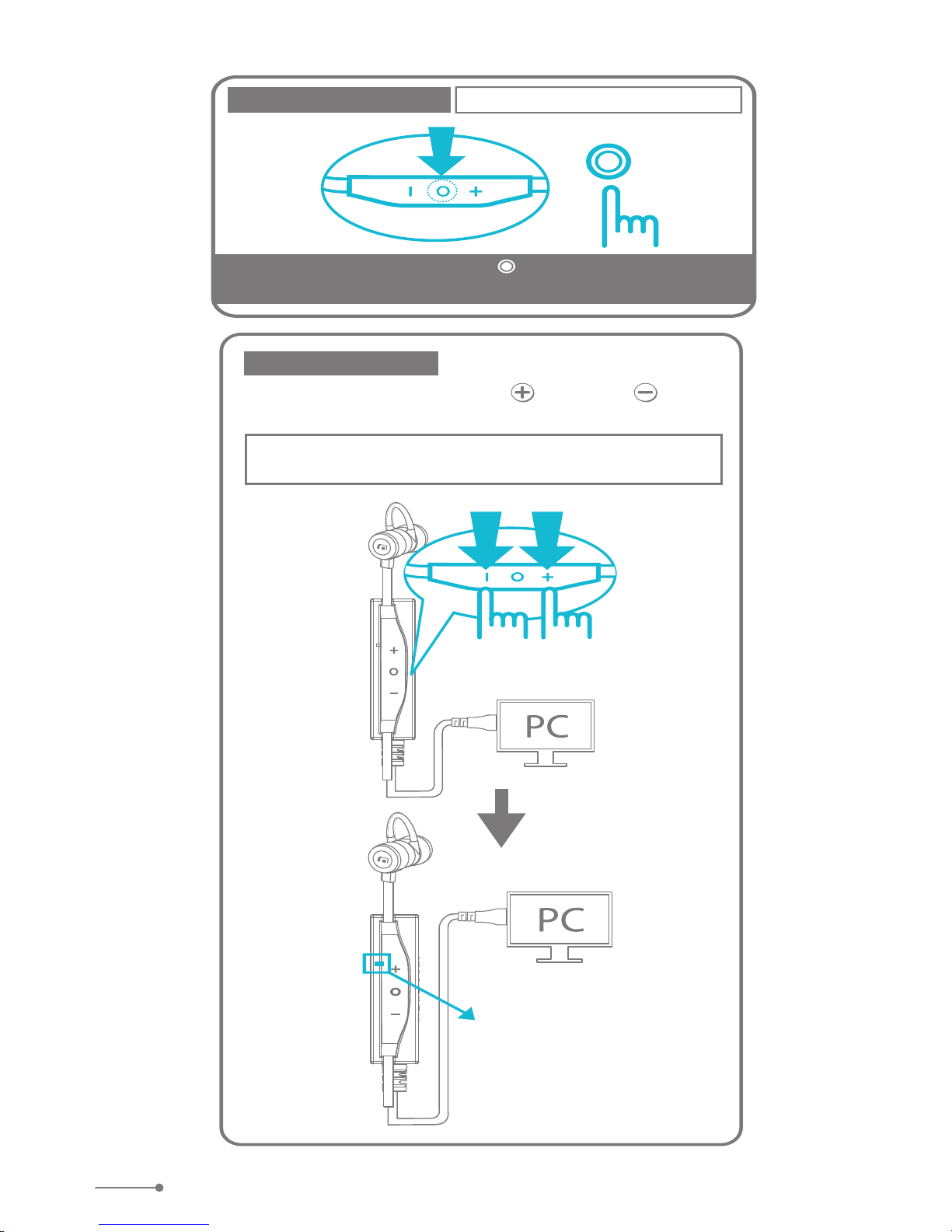

Caution : Be careful not to separate the earphone charging contact from the cradle, not to damage the earphone.

Firmware upgrade

During charging with PC USB, press ( ) button and ( ) button at the same time for a second, then, red LED blinks and turn off.

LED display

Press simultaneously for about 1 second.

1 seconds and hold pressed and release

Voice Memo

1 seconds and hold pressed and release

Press MFB ( ) button.

(Available with Android)

Page 16

4. Getting started with your MobiFren

* Before you use MobiFren Bluetooth earphone, you need to pair it with your mobile phone or Bluetooth enabled device.

- On first purchasing, the earphone enters into pairing mode automatically when the power is on. And blue LED is continuously on. (You need to pair with your mobile within 2 minutes.)

※ Entering into pairing mode with Bluetooth earphone

※ Pairing with mobile phone

1) Pairing on first purchasing

①

Install "MobiFren_SM" from Google play store or App store.

②

Press the first menu " Pair (Connect) headset ", then it goes

to Bluetooth setting.

③ Activate Bluetooth and search headset. ④

Select "GBH-S880" from the searched

devices,

then it pairs.

※ Pairing will be more easy with MobiFren_SM application.

① Activate Bluetooth function in your mobile phone according

to phone manual and

search GBH-S880 and select,

then,

it shows "Pairing".

(Some mobile phones need pass key(PIN), then, enter 0000.)

② If pairing is successful, it shows that " Connected to phone

and media audio" and blue LED glitters for 5 times. Now, it's

ready to use.

1. Pairing to your mobile phone

GBH-S880 are easy to use for everyone.

Way 1. Pairing with MobiFren App.

Way 2. Pairing with mobile phone setting

※ Entering into pairing mode with Bluetooth headset.

2) Pairing to other device

Page 17

① Deactivate the Bluetooth function of the connected device if there's connected device. ② Press MFB( ) button for 4 seconds to turn off. ③ Press MFB( ) button for 2 seconds, then, the head set turns on and enters into pairing mode.

※ Pairing with mobile phone

① Follow the pairing procedure of way 1 or way 2 on first purchasing. ② If the pairing is successful, it shows that " Connected to phone and media audio"and blue LED glitters for 5 times. Now, it's ready to use.

※ When the headset is power off, if you press MFB ( ) for 4 seconds, it goes to pairing mode.

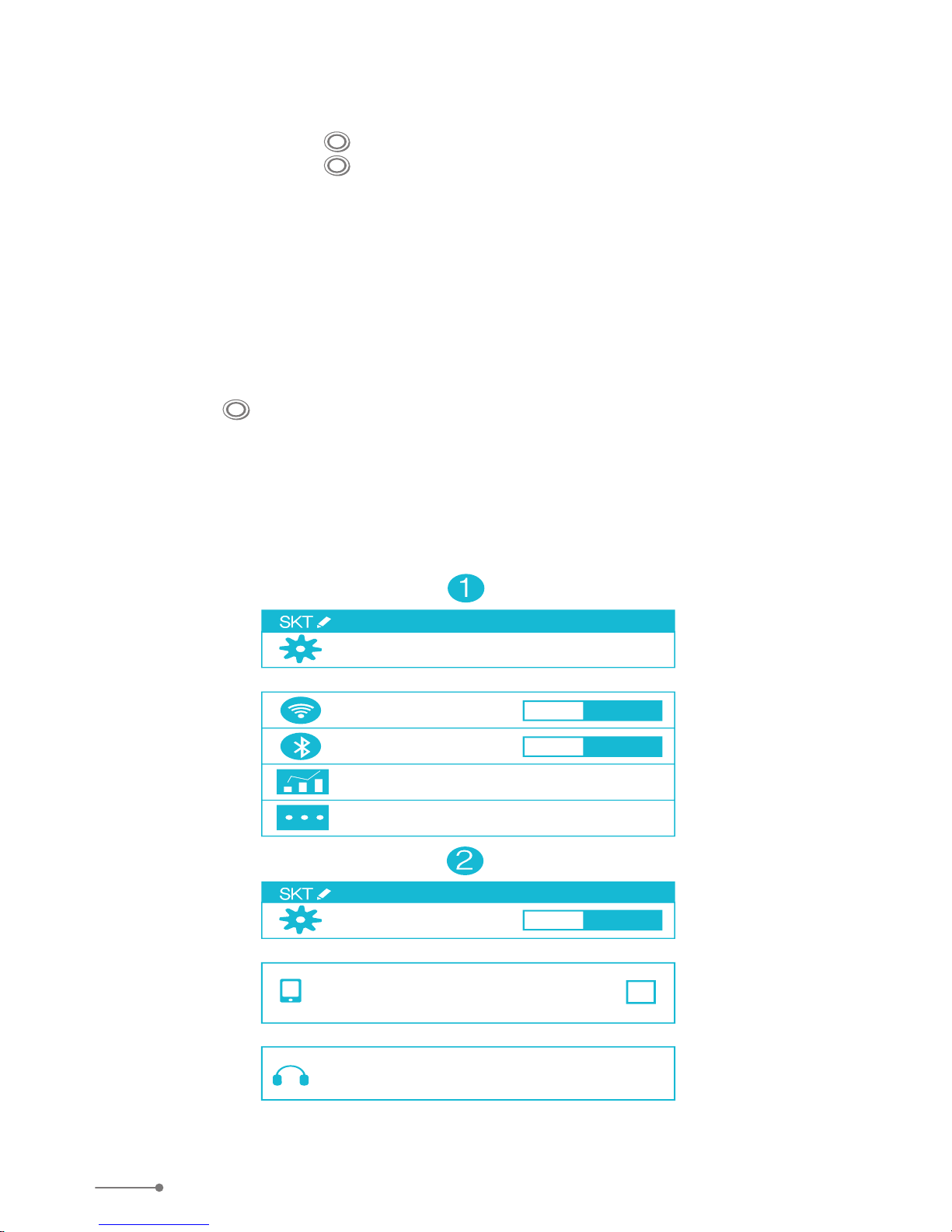

※ Useful tip (3 ways to go Bluetooth setting)

① Menu button ▶ Setting ▶ Bluetooth on main screen ② Drag down the screen and press Bluetooth icon. ③ Run MobiFren_SM app. and select the menu " Pair (Connect) headset"

Settings

Wi-Fi Bluetooth Data usage More settings

Wireless and network

Bluetooth

Available devices

GBH-S880

Bluetooth

SHV-E250S

Not visible to other Bluetooth devices

Pairing...

Page 18

※ Pairing process may be different from mobile phone makers. Please refer to mobile phone's manual.

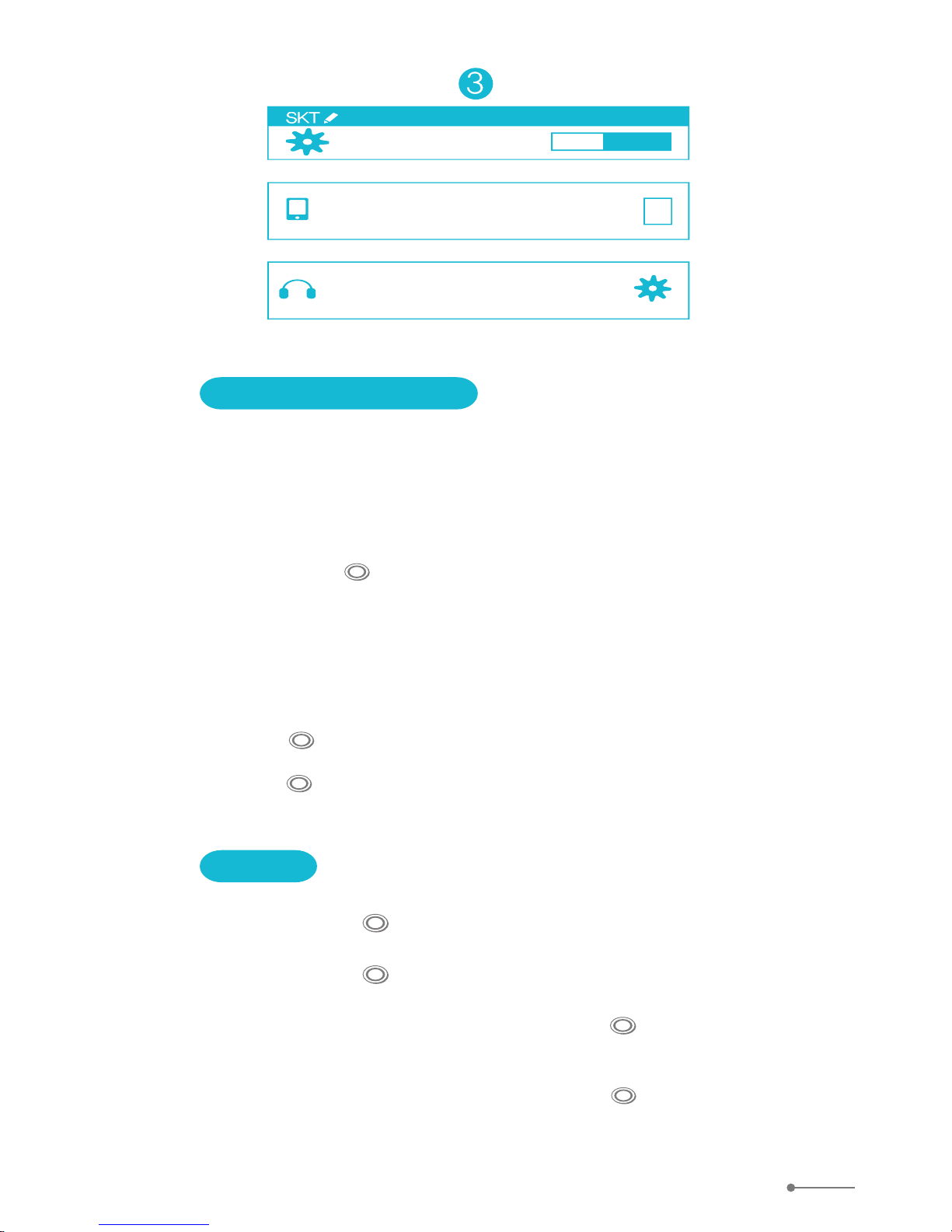

2. Multi point setting

1) Setting Multi point

- Please pair Bluetooth earphone to the first device according to the pairing process. (Refer to pairing process.)

- Turn off Bluetooth earphone.

- Press MFB( ) button for around 4 seconds till blue LED is continuously on.

- Please pair Bluetooth earphone to 2nd device acc ording to pairing process.

- Then, turn off Bluetooth earphone and turn on again, it will be connected 2 devices.

※ It's possible to pair up to 8 Bluetooth enabled devices and can use 2 devices simultaneously.

2) To use multi point

- At the status of connecting two devices, press MFB( ) to answer a call if there's incoming call.

- At the status of connecting two devices, press MFB( ) to listen the music that was played lately.

※ During multi point status, please refer that App related functions are not workable.

3. Call

1) Answering a call

- Press MFB( ) button to answer a call.

2) Ending a call

- Press MFB( ) button shortly to end a call.

My device

Available devices

GBH-S880

Bluetooth

SHV-E250S

Not visible to other Bluetooth devices

Connected to phone and media audio.

3) Rejecting a call

- During an incoming call, press MFB( )button for about 1 second.

4) Converting a call

- During call with mobile, press MFB( )button to convert to headset

(To call with mobile again, use your mobile phone menu.)

Page 19

5) Volume control

- With ( )/( ) button, you can control volume.

- During call, if you press ( )button for about 1 second, the microphone becomes mute.

- During mute, it will be released, if you press ( )button for about 1 second.

6) Microphone Mute

Press

buttons in order and press MFB( ) button. Then, purple LED glitters and headset will be initialized. Pair the headset again to use after factory reset.

4. Factory Reset

You can install firmware at our website, for improved or added functions.

5. Firmware Upgrade

※ Firmware upgrade is available at www.mobifren.com ※ Do not disconnect the headset from PC during

firmware upgrading. It may cause malfunction or damage to the headset.

※

After firmware upgrade, the headset becomes initialization

automatically.

During firmware upgrade, do not separate earphone from the cradle. It may cause out of order.

During charging in cradle, press ( ) and ( ) button simultaneously for a second. Then, red LED blinks and headset goes to firmware upgrade mode.

- This feature allows you to put a call on hold during conversation and answer a waiting call.

- Give the ( )a long press (press approximately 1 second) to put an active call on hold and answer a waiting call.

- Give the ( ) a long press to switch between two calls

- Just press ( )shortly to end a call.

7) Waiting a call and put a call on hold

Page 20

6 Playing music

7. Changing Music Mode

※ To enjoy the best audio quality, please set 70~80% from the max volume in your device.

- On first purchasing, the volume sets in level 8 of all 15 levels. (Please adjust with ( )/( ) button for volume. )

- Button details for playing music

Play / Pause : Press MFB( ) button shortly Stop : Give a MFB( ) button long press Volume up : Press ( ) button shortly Volume down : Press ( ) button shortly Next song : Give a ( ) button long press Previous song : Give a ( ) button long press

- While playing music, if you press ( ) button and( ) button at the same time for 1 second, the Music Mode changes forward direction.

And, if you press ( ) button and ( ) button at the same time for 1 second, the Music Mode changes backward direction.

※ There are several kinds of bit rate even though it's the same MP3 file. If the file source is higher bit rate(320K) for listening, you can feel the real worth for our Bluetooth earphone. And, if the speaker is not good even with good source, the sound quality will not be good, and if the speaker is good with inferior source, the sound quality can't touch to

the listener. The MobiFren earphone of optimized tuning supplies you high quality sound, but, we also recommend you to use high resolution source file (320K) to enjoy touching sound.

MobiFren SM Pro Reference Mode

A feast of high bass together with crystal clear highs

Bigboom Standard Mode

Natural sound tuned by a top mastering specialist

MobiFren Mode

Bass Boost Mode

Cinema Mode

B Mode

Sharp & Clean Mode

True bass with crystal clear highs

S Mode

Detailed & Spacious Mode

Extremely detailed highs and powerful bass stereophony

D Mode

Flat & Magnificent Mode

Flat highs & mid tone with magnificent scaled bass

F Mode

Bass Boost Mode

Powerful sound with ultra rich bass

Cinema Mode

Cinema surround sound

Wireless Hi Fi audio, the closest quality to Analogue

Music Mode

Page 21

- Message TTS (SMS/ Line/ SNS) (Available with Android)

- TTS caller ID

8. Using Android & iOS application

If you press ( ) or ( ) button shortly when

there's an incoming call, you can listen the caller's name via mobile phone speaker.

For more convenient and easy use of the headset, please download "MobiFren_SM" at Google play store or Apple App store. (Workable with iPhone 4S or higher)

After setting Message TTS, in automatic mode, it reads you message after the setting time, and in manual mode, you can hear message by using

headset button. (When you set this function, it goes to mobile phone's accessibility menu automatically, then, select MobiFren_SM in accessibility service. )

- Mobi Health

You can control Start/Stop and check walking steps, consumption calorie and walking distance with application like as pedometer. (It considers as a step, after you walk at least 7 steps for the beginning.)

Last Call (Direct call to the latest number)

(Available with Android )

If you press volume button shortly for 2 times, earphone reads you the latest call. You can move the call list by volume button. Press button to connect a call. It's useful when you drive or your mobile is not in hand.

Stop while playing TTS : TTS playing stop. While reading TTS message, press( ),( ) or ( ) button

to stop playing. Manual mode : It reads you message by pressing

headset button. Press ( ) and ( ) or ( )

button at the same time

to hear

message manually.

Page 22

- Hot call (Prompt call)

- Camera Remote control (Available with Android)

Press ( ) or ( ) button shortly to take a picture after running application.

※ It needs additional MobiFren camera application. Please install it after searching MobiFren at Google play store.

※ Recording during a call may not be workable for an old mobile phone models.

- Find mobile phone

If you can't remember well where you placed your mobile phone, press ( ) and( ) buttons at the same time for about 1 second to find out your mobile phone. Then, the mobile phone will ring.

- Anti Earphone loss / Anti Mobile Phone loss

Anti Earphone loss : When the earphone is disconnected with mobile

phone, the earphone alarms. Anti Mobile Phone loss : When the mobile phone and earphone is

disconnected during connection, earphone alarms its disconnection, to prevent any possibility of your mobile phone loss. You can stop alarm sound if you press any button of the earphone.

button

shortly for 2 times.

(In case of iPhone, it needs to press Call button in your mobile.)

-Present time notice

Press ( ) button for 2 times to hear the present time.

- Voice Memo (Android only)

It's useful to record voice memo by pressing( )button for 1 seconds and releasing during a call.

You can record it by pressing the same button during a call or not.

- Incoming call alarm via earphone (Android only)

Alarm sound increases gradually via earphone if there's incoming call. You can set On/Off in application and its default is Off. It's useful when your mobile is silent mode.

Page 23

< Available functions for Android or iOS app.>

App function Android

iOS

Battery gauge

Message TTS

Anti Mobile Phone loss

Hot call (Prompt call)

Anti Earphone loss

Camera remote control

Voice Memo

Incoming call alarm

via earphone

Factory reset

Caller ID TTS

Present time notice

Find mobile phone

Music Mode control

Mobi Health

Last call

(call to the latest

call number

Page 24

5. What does LED color mean?

Active on a call

Status LED indication

Standby

Battery is

running low

Charging

Fully charged

Pairing mode

Firmware upgrade

Blinks blue light every 8 second

LED OFF

(If press button, blue LED

blinks for 5 times)

Blinks red light

Red light ON

Blue light ON

Turn off after glittering for 2 times.

Page 25

6. FAQ & Troubleshooting

※I hear crackling noises

※I cannot hear anything

※I have problems with pairing even though my phone indicates otherwise.

- For the best audio quality, always locate your headset close to mobile phone.

- Increase the volume on the headset.

- Ensure that the headset is paired with the phone.

- Make sure that the phone is connected to the headset.

- If the headset fails to connect when you pressed MFB, try to connect again following the pairing procedure.

- Please delete the headset paired in your mobile and pair the headset again. Please refer to set up “Pairing mode” in Page 8.

※Will the MobiFren GBH-S880 work with other Bluetooth equipment?

- The MobiFren GBH-S880 is designed to work with Bluetooth mobile, computer or portable audio devices which are built in. It can also work with other Bluetooth devices that are compliant with Bluetooth version 1.1/ 1.2/ 2.0/2.1+EDR /3.0/4.0 and that support HSP, HFP, A2DP and AVRCP.

※Is the enclosed charging cable for only specified device?

- It’s compatible with all standardized micro USB charger, and in general, compatible with Android mobile phone charger.

※When you use the headset in the car, the handsfree can be affected

by the internal noise.

Page 26

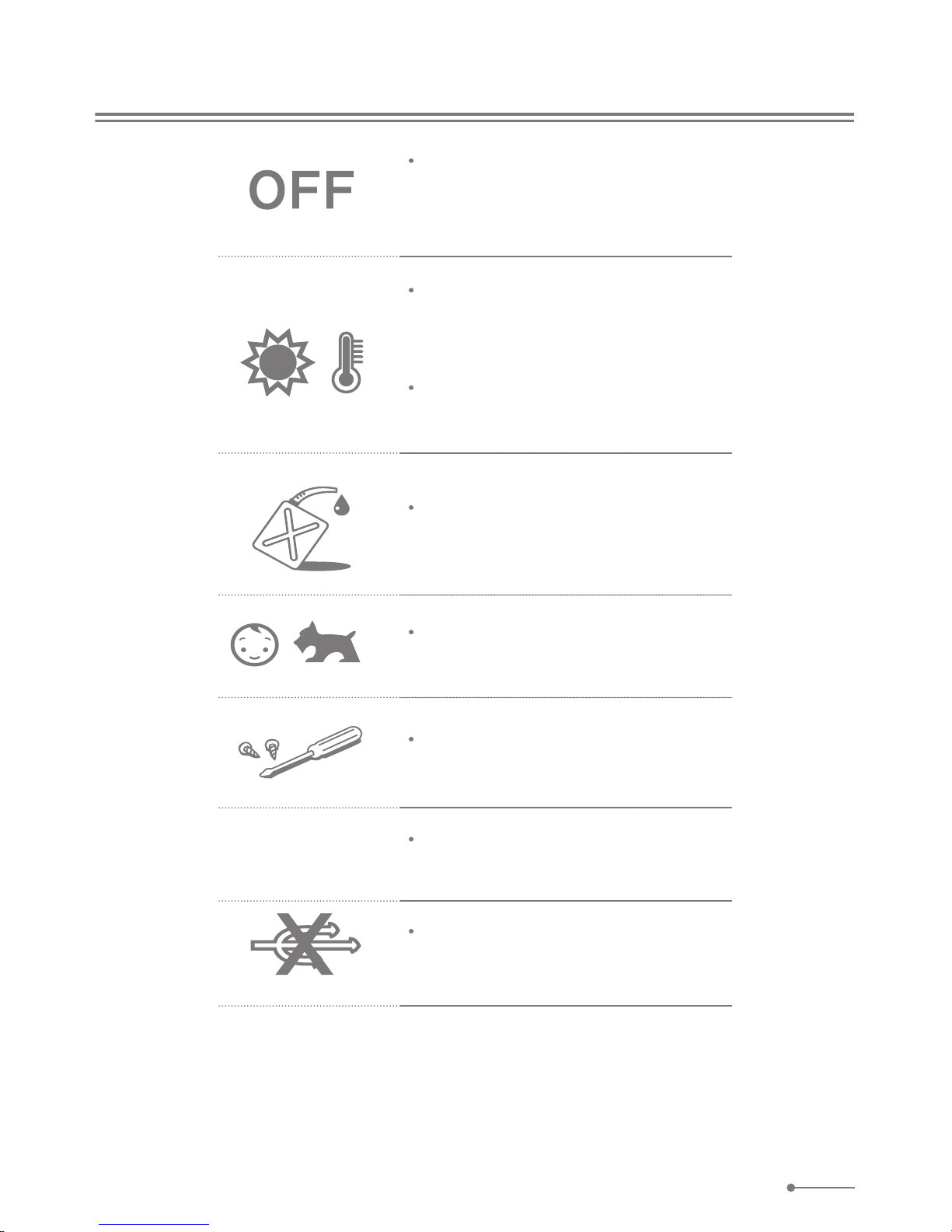

7. Handle MobiFren with care

Always store the MobiFren ear phone with the power off and protect safely when it’s not in use.

can affect the MobiFren’s battery life and may be the cause of malfunction.

High temperature may also degrade performance.

Do not expose the MobiFren earphone to rain or other liquids

Prevent baby, children or pets to bite or suck this headset

Please do not disassemble at user’s option

Please make sure to use certif ied charger. (Rated Voltage : 5V)

Please make sure not to separate from the charging cradle during firmware upgrade

5V, 110mA

Page 27

8. Certification and safety approvals

FCC ID : UZCGBH-S880

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encou raged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different

from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION : Changes or modifications not expressly approved

by the manufacturer responsible for compliance

could void the user’s authority to operate the equipment.

This device comply with part15 of FCC rules.

Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• this device must accept any interference received, including

interference that may cause undesired operation.

Page 28

9. Specifications

•Model

GBH-S880

•Talk time

•

Music play time

•

Standby time

•Charging time

•

Size

•

Weight

About 9 hrs

About 7.5 hrs

About 7 days

About 1hr 30mins

8.9mm (W) x 56mm (L) x

5.6mm (T) x

570mm (Cable)

Rechargeable Lithium Polymer

About 18g

•

Operation range

•

Supporting

Bluetooth profile

•

Bluetooth Version

Within 10m

Headset profile

Handsfree profile

A2DP

AVRCP

SPP

Ver. 4.0

※ Operation time may be variable, depending on

connected device or setting status.

Made in Korea

In accordance with the R & TTE Directive 1999 / 5 / EC of 09. March 1999

Page 29

10. Warranty

※ The conditions and our responsibilities under this warranty are as follows :

•The warranty is limited to the original purchaser.

•A copy of your receipt or other proof of purchase

is required.

•

The warranty is void if the serial number, date code

label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unautho rized third parties.

•The responsibility of MobiFren products shall be limited to the repair or replacement of the product at its sole discretion.

•

Any implied warranty on MobiFren products is limited

to one year from the date of purchase on all parts, including any cord and connector. But, battery warranty is limited to 6 months.

•Specifically exempt from any warranty are limited-life

consumable components subject to normal wear and

tear, such as microphone windscreens, ear cushions, decorative finishes, batteries, and other accessories.

•

MobiFren is not liable for any incidental or consequential

damages arising from the use or misuse of any MobiFren

product.

•

This warranty gives you specific rights and you may have

other rights which vary from area to area.

•Unless otherwise instructed in the User Manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on this unit, whether in or out of warranty. It must be returned to

the purchase point, factory or authorized service agency

for all such work.

•MobiFren will not take any responsibility for any loss or damage incurred in shipping. Any repair work on MobiFren products by unauthorized third parties voids any warranty.

" Contribute to our communities

with good technology and good product "

Page 30

Page 31

Page 32

ISO 9001 Quality Management System

Certified Company

MSIP-CRM-GTT-GBH-S880

www.mobifren.com

(Gupyeong Dong A & B dong), 88, Indong 52 Gil,

Gumi City, Gyeongbuk, Korea 730-300

TEL : 82-54-474-2220 FAX : 82-54-474-2251

3.7V

140mA

1177

earphone Charging cradle Charging cradle

: MADE IN KOREA : MADE IN KOREA

: MADE IN KOREA
