Quat troPlus
Mobile grab handles - the high-load variant.
Page 2
High carrying load variant: The mobile
vacuum grab handle QuattroPlus can be
fastened at the wall and across a corner; it
serves as horizontal training grab bar and as
relocating assistance. The QuattroPlus has
been patented in Europe and in the U.S.
and can be used also by heavier persons
because of its high load carrying capability.
QuattroPlus
Here at Mobeli you can still find them:
Experts who after consultation with our
technical development department to
develop a solution for your very special
requirements and who will usually also be
able to oer it to you in a short time. Usually
our QuattroPlus will be at the heart of a
custom design, but there is a multiplicity of
combination possibilities with almost all
components from the Mobeli system.
A name with substance: The Mobeli system.
The high degree of compatibility of the
individual grab handle components and the
ingeniously simple quick-locking system
provide for the possibility to construct whole
grab handle railings. We will be pleased to
advise you about suitable grab handle
combinations for continuous grab handle
railings and on the points you should pay
particular attention to.
For example you may be looking for the
correct Mobeli component system
combination for a grab handle railing,
e.g. assembled from TÜV-SÜD certified
telescopic grab bars with lengths up to
50”and with a nominal carrying load of
150 lbs. You have come to the right place.
A
3.7”10.9”
B
Mobeli building block system
Quat troPlus and the Mobeli building block system
2
Page 3

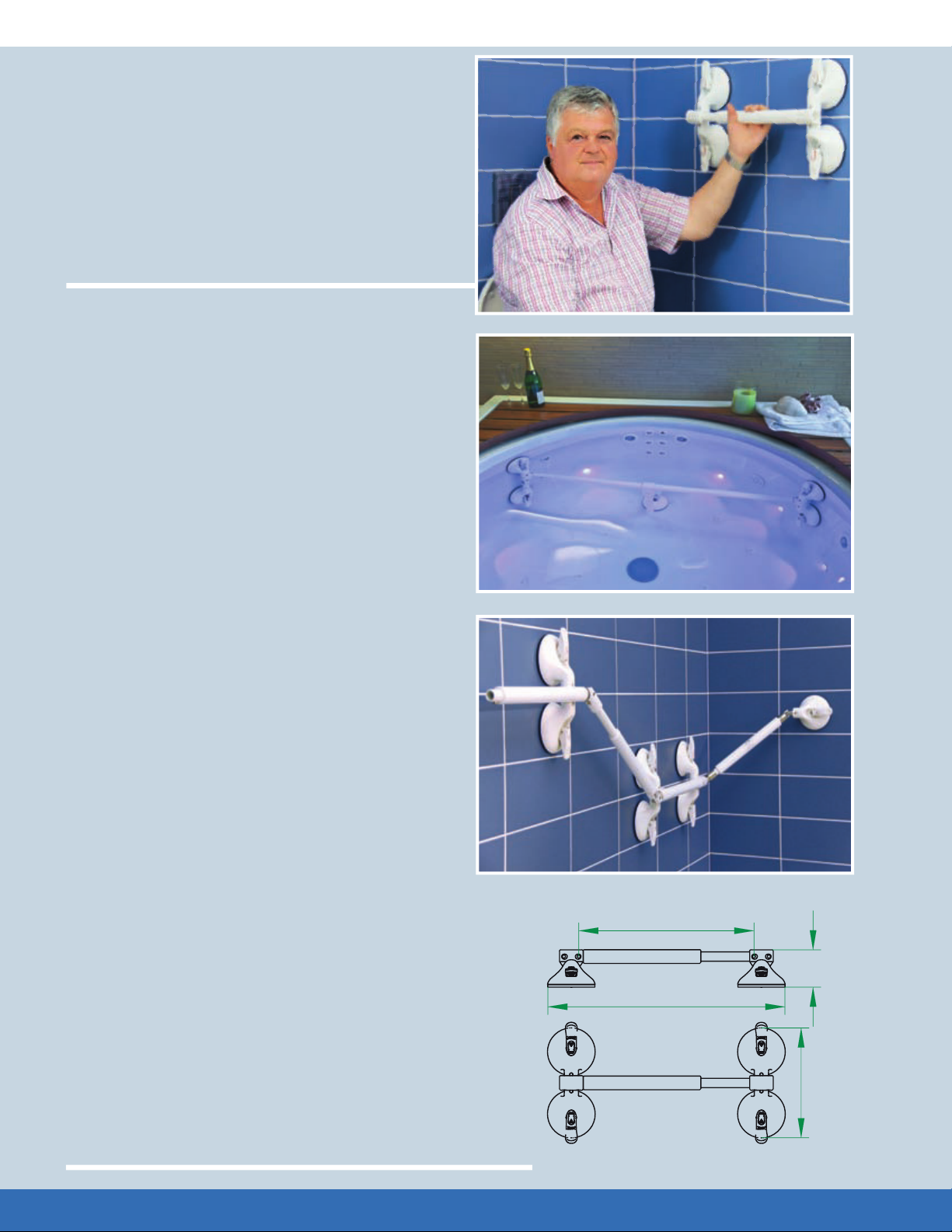

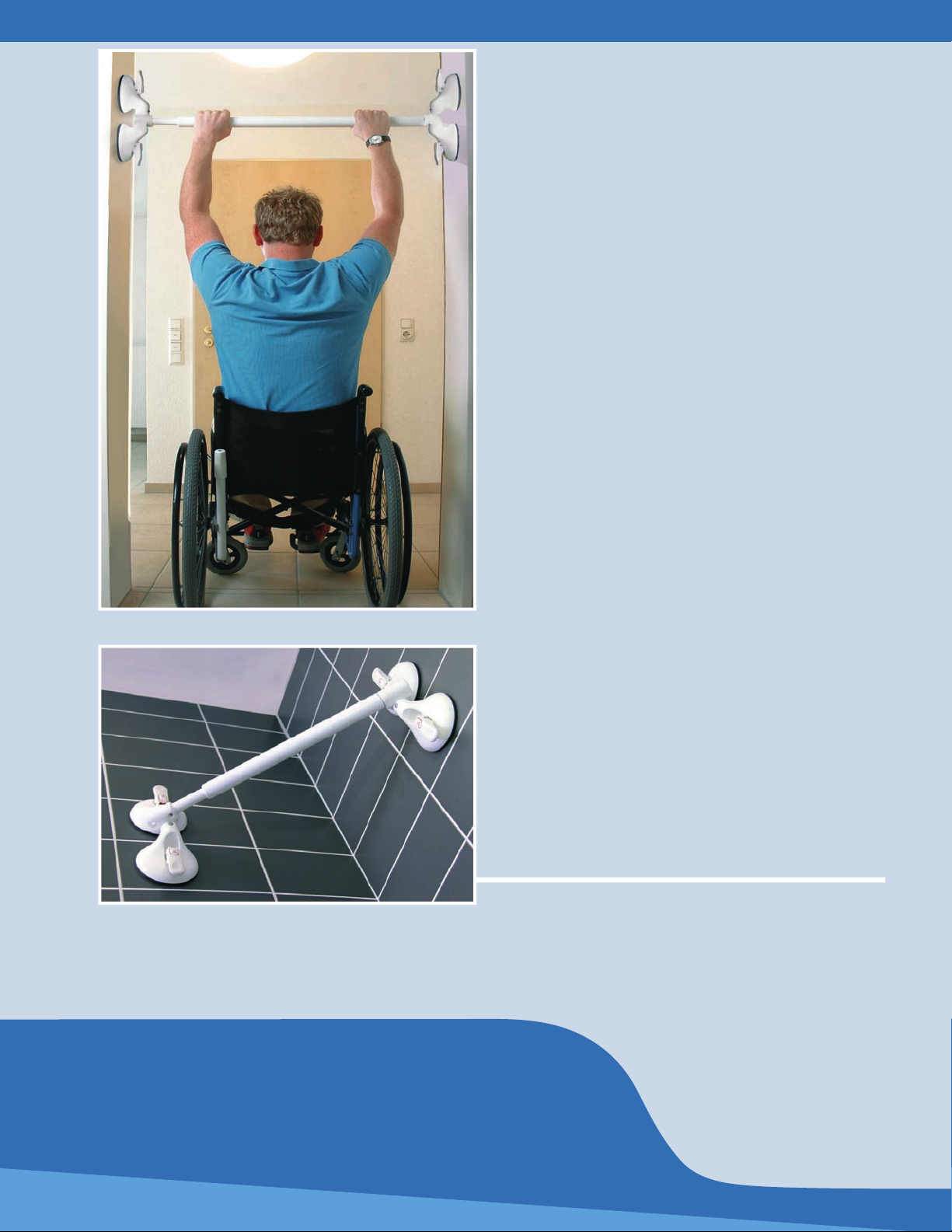

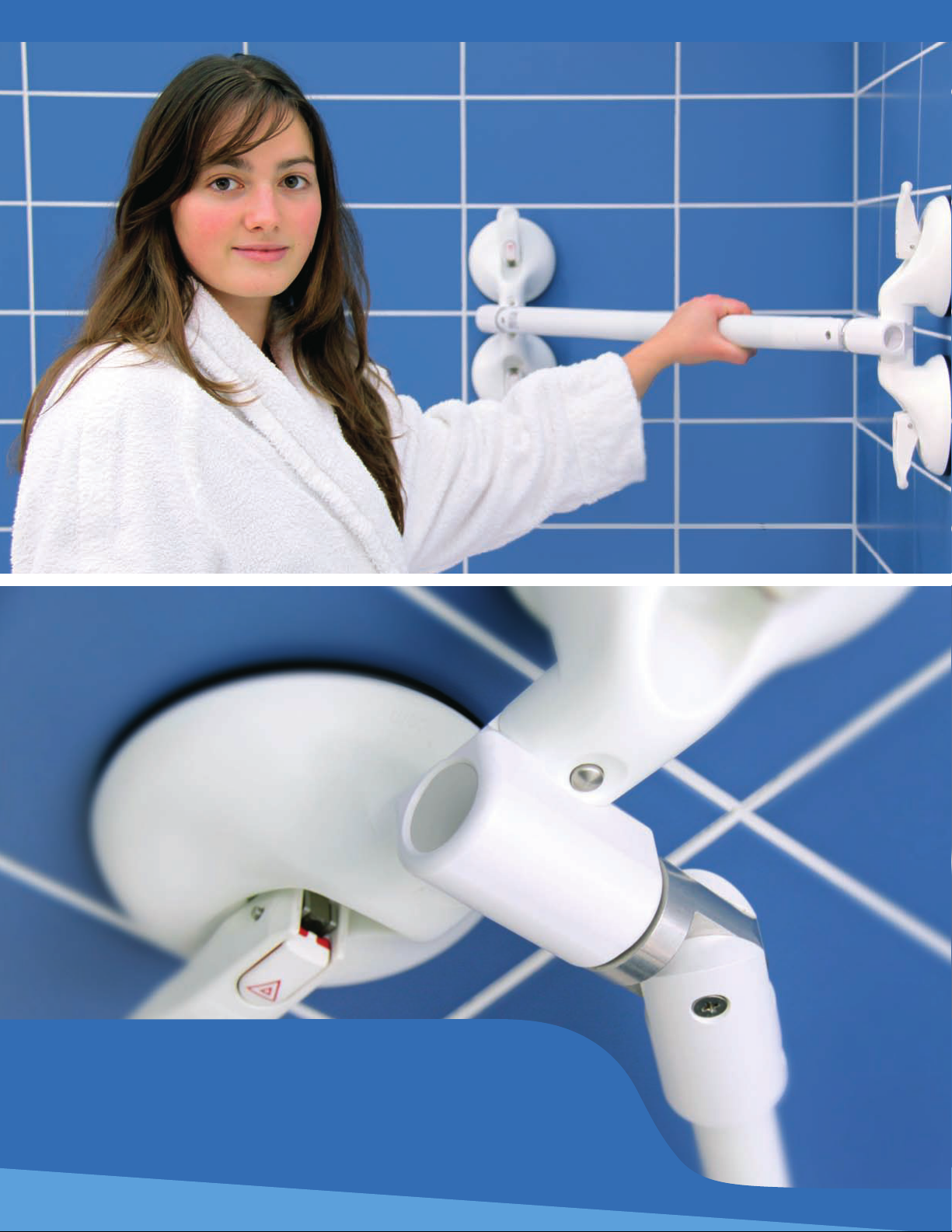

The QuattroPlus as a training grab bar.
Because of the integrated cardan joint it is
possible to fasten the QuattroPlus at the
door frame of a room. A precondition is a
pore-tight and smooth surface for
attachment, e.g., a metal frame. You only
have wooden doors? Inquire about our
self-adhesive stainless steel pads.
The QuattroPlus grab handle R1400244SU is
designed for door frame internal dimensions
from 30.8” to 35.5”. By using the diagonal
joint adapter these dimensions are extended
by 6.5”.
As a standard, the integrated cardan joint
makes it possible to attach the QuattroPlus
grab handle across a corner. If the grip is
attached across a corner in the shower, you
can pull yourself safely into the shower when
entering and hold on to it while taking your
shower.
Quat troPlus
The cardan joints integrated as a standard in
QuattroPlus make the QuattroPlus very
versatile. The nominal carrying load up to
275 lb. is thereby not impaired.
Integrated cardan joint
Mobile grab handles - ingeniously simple and safe.
3
Page 4

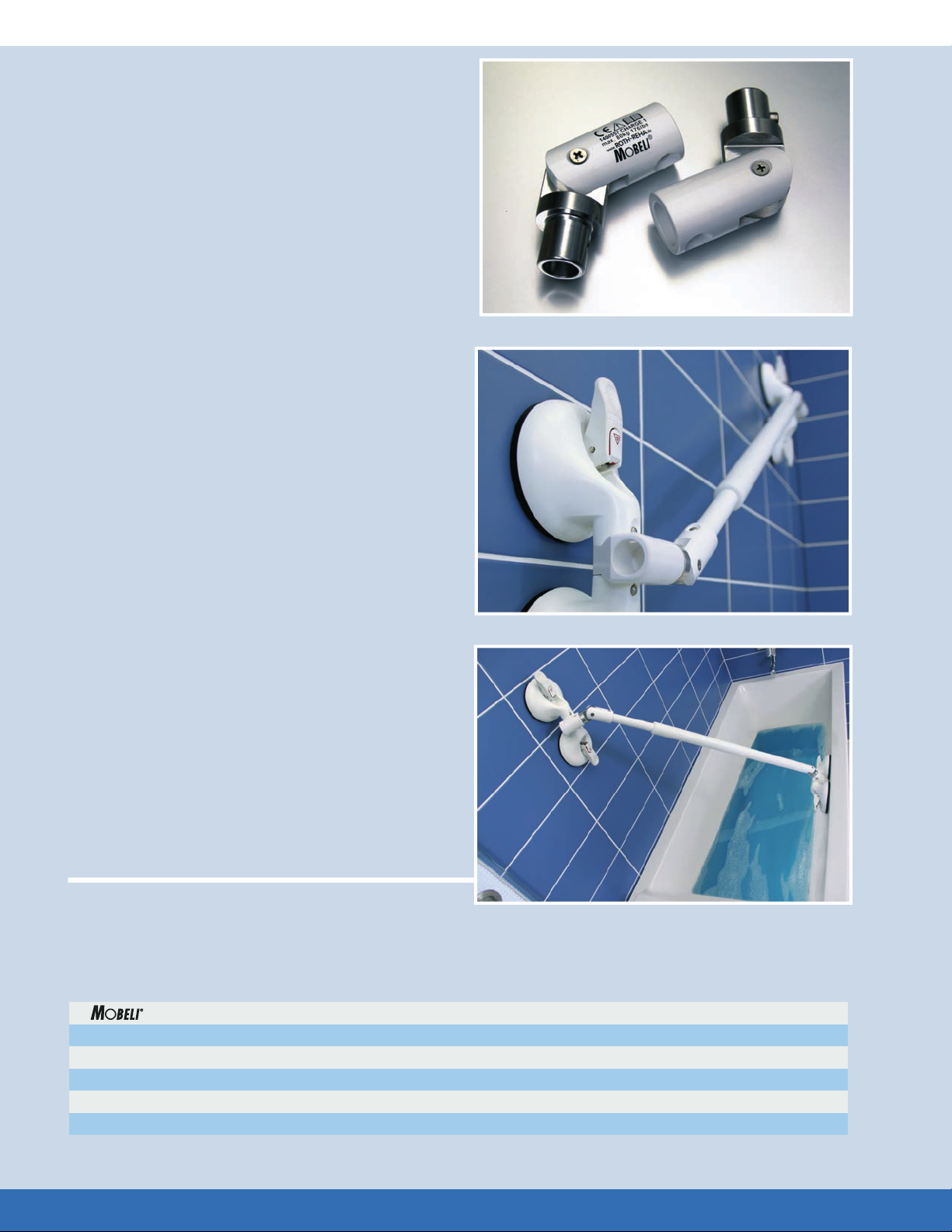

If the mounting surface is flat, pore-tight,
and firm, then the combination of diagonal
joint adapter and integrated cardan joint
makes nearly any arbitrary attachment
possible. In order to withstand the
enormous carrying loads that can operate
on the grip, the developers at Mobeli have
selected a special material combination:
aluminium and plastic - durable and
versatile.
The diagonal joint adapters specifically
developed for the QuattroPlus make it
possible to use the QuattroPlus in every
direction and up to a nominal carrying
load of 176 lb. You can find an explanation
of the term '‘nominal carrying load’ on the
Mobili brochure on our website.
By using the diagonal joint adapter set,
the total length of the grab handle is
extended by 6.5”.
Thanks to the diagonal joint adapter and
its integrated cardan joint, the QuattroPlus
can also be mounted diagonally over the
bathtub; that’s very helpful for getting in
and out.
Diagonal joint adapter
Grip length A Total length B Nominal load Order No.
QuattroPlus 7.8”-12.6” 14-18.9” 275.6 lb. R1400241SU
QuattroPlus 12.5”-17.3” 18.7”-24.37” 275.6 lb. R1400242SU
QuattroPlus 16.3”-21.2” 22.6”-27.49” 242.5 lb. R1400243SU
QuattroPlus 25”-30” 31.39”-36.27” 245.5 lb. R1400244SU
Diagonal joint adapter set for QuattroPower 176.4 lb. R1400557
* See the dimensions of A and B in the sketch on page 2
Quat troPlus 4
Page 5
QuattroPower Support
Power-System - reliable and versatile.
5
Page 6
QuattroPower Support

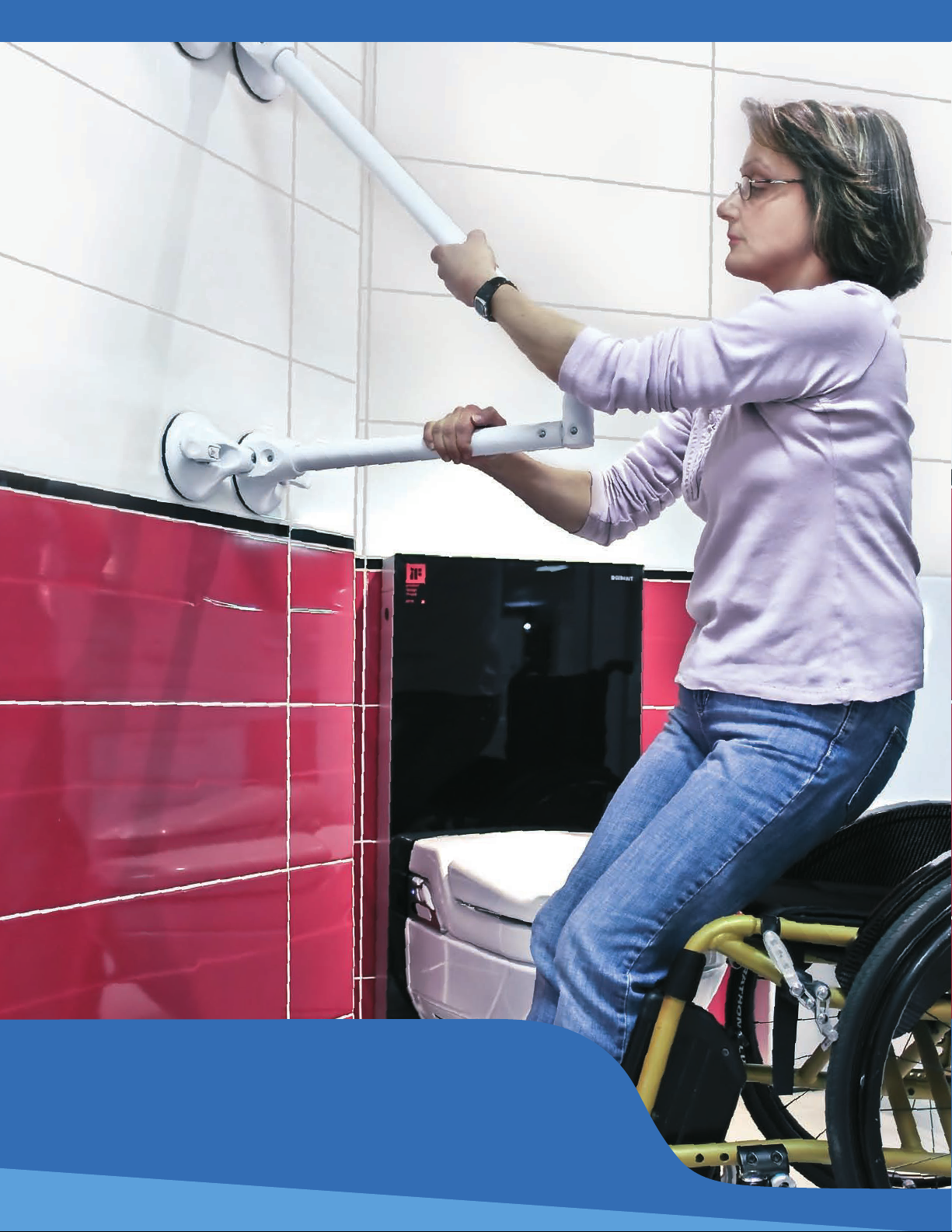

Quick and firm hold without drilling. Just
position the QuattroPower supporting system,
press down the vacuum tilting lever – ready.
You now have a reliable aid for getting up on
all smooth and pore-tight surfaces.
The supporting system (QP) QuattroPower
Support with its four suction pads distributes
the leverage forces acting on the wall.
Advantage: It can even be attached on tiled
cavity walls (e.g. sandwich plaster board
planking), thus eliminating the need for
expensive rebuilding to reinforce the walls so
that screw-on grab handles might be
attached. The QuattroPower Support
supporting systems have a nominal carrying
load of up to 176 lb.

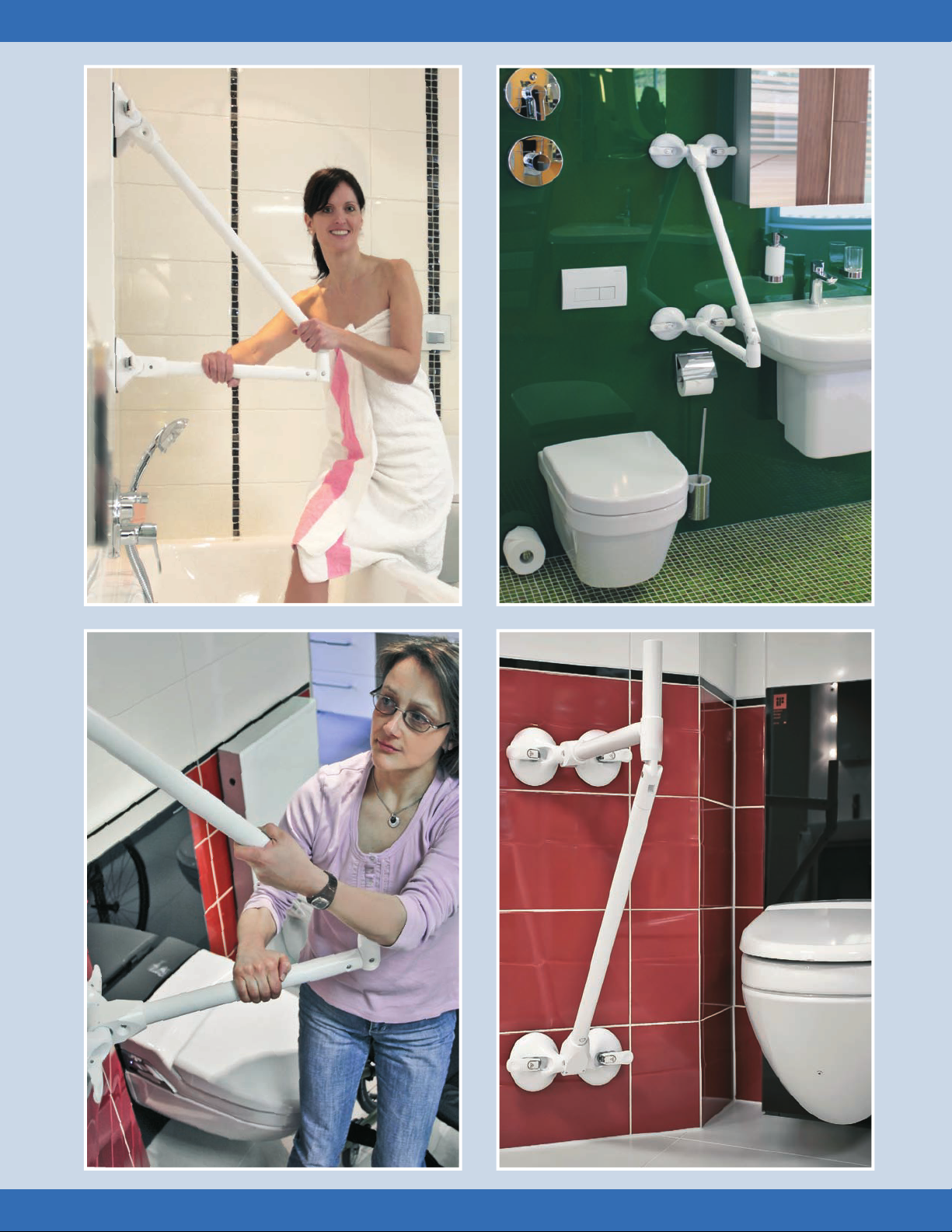

Very popular near a wall is the combination of a
QuattroPower supporting grip with a classical
Mobeli grab handle (fixed length or telescopic).
You have a round or mosaic tiled bath tub?
Versatile and adaptable, the Mobeli system can
oer a solution even in these cases. The
QuattroPower supporting grip, mounted
upward at the rear tile wall, provides you with
safe entry and exit.
QuattroPower supporting system 6
Page 7
7
Page 8

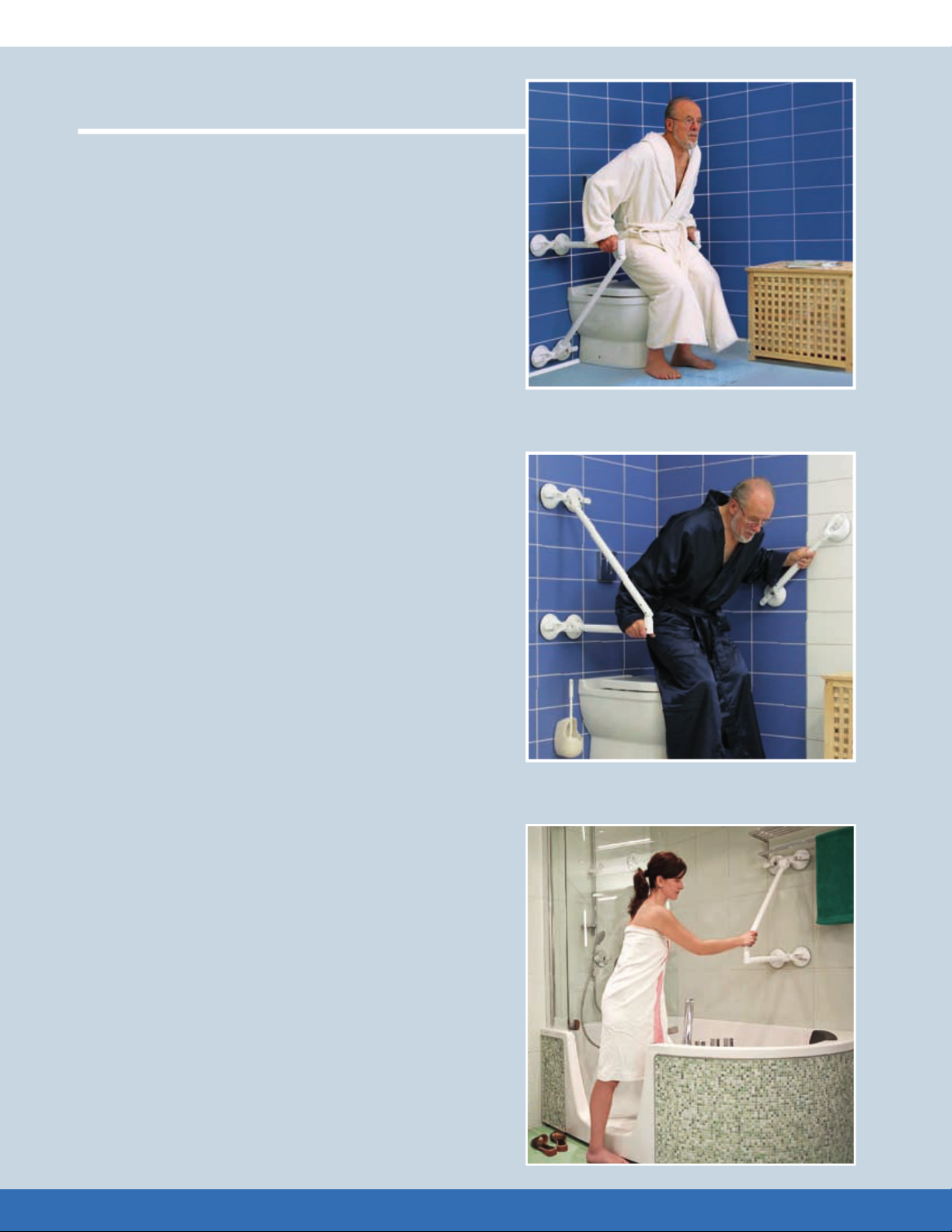

The toilet tissue holder for two rolls of
toilet paper can be simply and quickly
attached to the QuattroPower.
This handy accessory can also be clipped
onto nearly all other mobile grab handles
of the Mobeli system.
QuattroPower Support
Depending upon requirements and room
conditions, this supporting system can be
attached e.g., on both sides of the WC
upward and/or downward. An attachment
upward oers additional possibilities for
support or pulling up. Our QP supporting
systems oer a multitude of attachment
variants and permit use with partially
completed new tasks as, e.g., in
physiotherapy.
An additional grasp horn for the QP
Support facilitates getting up and can also
be used as a toilet tissue holder.
All grips of the QuattroPower supporting
565mm
system are equipped with swivelling
double joints and built-in safety brakes
that prevent an inadvertent lifting up and
yet enable folding up to the wall.
Well-suited for travelling. You can quickly
and simply disassemble the QP. It takes up
little space in your luggage and is quickly
mm05-+ 037
m
m
0
78
operational again when needed.
Space-saving minimal solution: You can
rebuild the QP to a simple grab handle
280mm
with four suction pads and attach it
directly at the wall or across a corner.
Grip length Nominal load Order No.
QuattroPower Support 22” 176 lb. R1400265SU
QuattroPower Support with grip horn 22” 176 lb. R1400266SU
Dual toilet paper holder R1400650
Quat troPower Support 8
Page 9
The Mobeli supporting system QattroPower
Tub can be attached inside and outside of
the bathtub. It is able to endure high pull and
vertical loads and even lateral loads of up to
110 lb. of nominal carrying load.
Good to know: The suction pads hold even
under water.
If you do not need the supporting system
any longer you can fold it up. A joint stopper
holds the lifted QuattroPower Tub in the
vertical position.
QuattroPower Tub
Power system - reliable and versatile.
9
Page 10

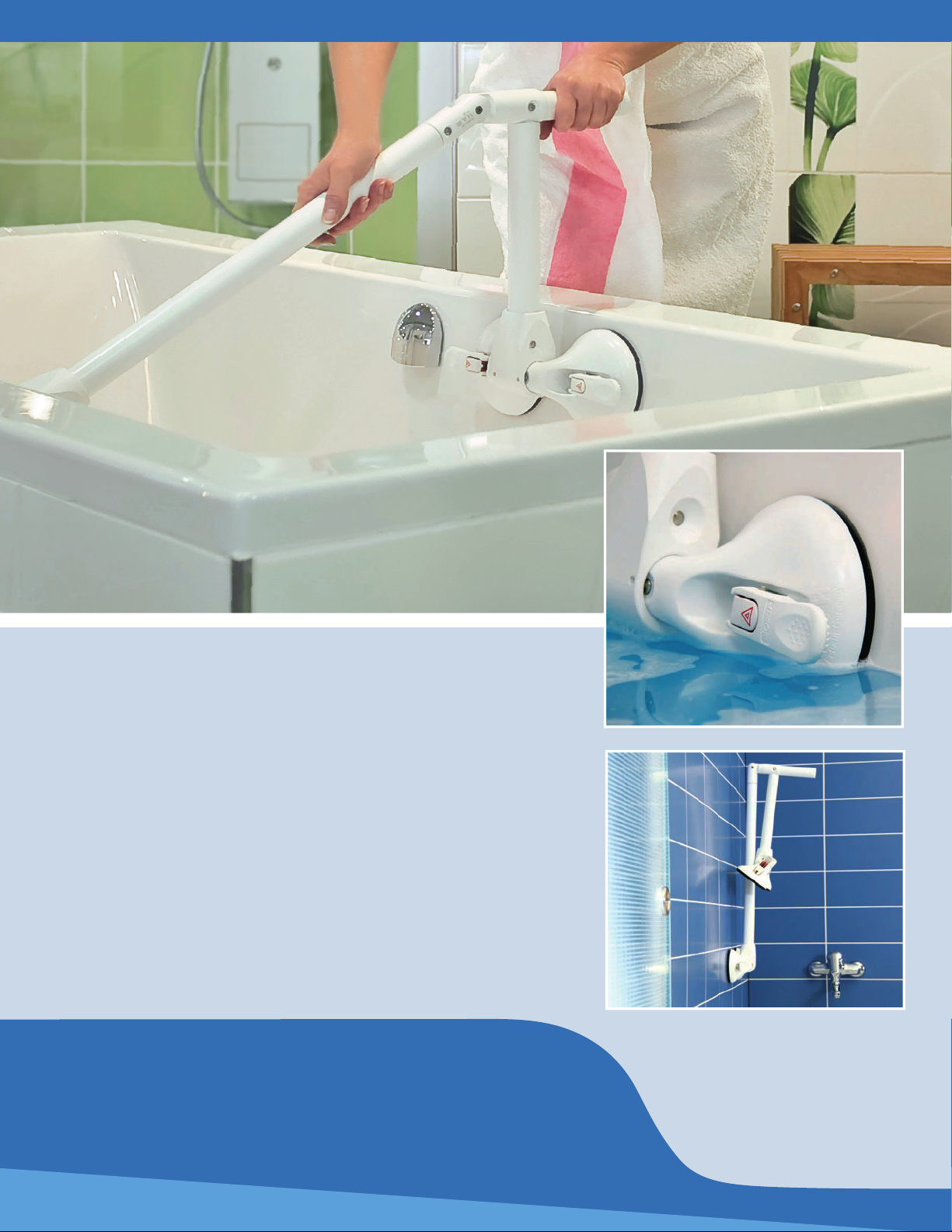

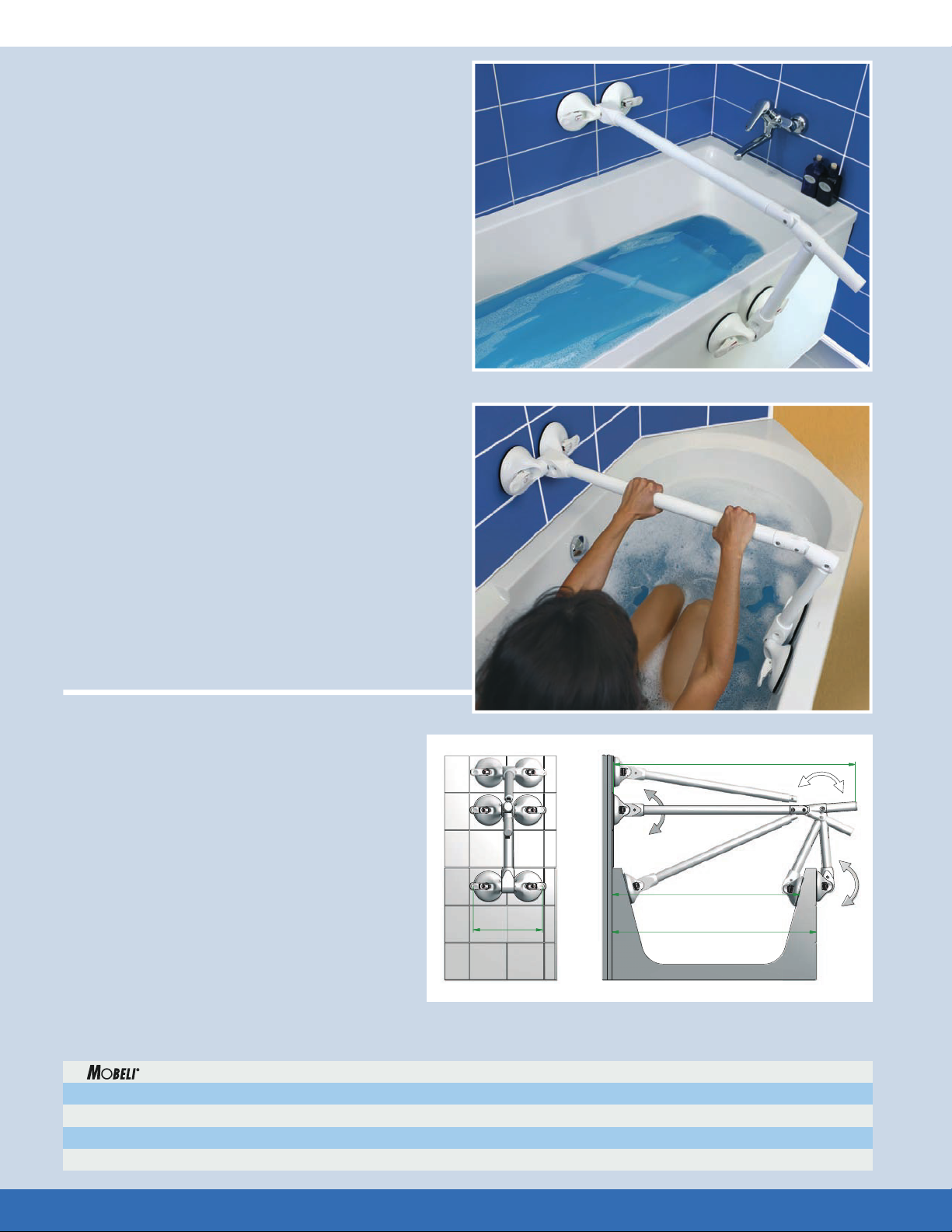

Optimized for the bathtub: The Mobeli
supporting system QuattroPower Tub is
excellently suited for getting into and out
of the bathtub. With this patented
supporting system you do not only get
safely into the bathtub but also safely out
of it again.
You can purchase the QP Tub either with
or without grip extension. The extension
enables broader and thus safer grasping; it
eciently utilizes your energy expenditure
and prevents rotating of the body when
stepping out.
With the QP Tub you have at your
disposition a reliable aid for placing on all
smooth and pore-tight surfaces.
Seize the grab bar with both hands before
entering or exiting the bathtub and release
it only when you sit safely or stand firmly.
Very flexible: The QuattroPower Tub can
be attached on the outside or on the inside
of your bathtub.
QuattroPower Tub
Optimal. The QuattroPower bathtub
systems can be swivelled at three
points and thus perfectly adapted to
the shape of your bathtub or your
bathroom facilities.
Note: The grips are available in two
dierent lengths. When ordering,
please take into consideration the
dimensions B and C of your bathtub.
If you have any questions concerning
dimensions or possible fields of
application of our supporting systems,
please ask our team of experts.
280
A
B
C
Dimension A Dimension B Dimension C Order No.
QuattroPower Tub (short) 28.8” 24.5”-33.15” 23.4”-28” R1400263SU
QuattroPower Tub (short)
QuattroPower Tub (long) 33.5” 28.8”-38.2” 27.3”-33.5” R1400261SU
QuattroPower Tub (long)
with grip extension
with grip extension
33.15” 24.5”-33.15” 23.4”-28” R1400264SU
38.2” 28.8”-38.2” 27.3”-33.5” R1400262SU
QuattroPower Tub 10
