Mobatime DSC Instruction Manual

INSTRUCTION MANUAL

In- and Outdoor Digital Clock DSC Series

Certification of the Producer

STANDARDS

The digital clock DSC has been developed and produced in accordance with the EU Standards 2006/95/ES (LVD), 2004/108/ES (EMC), 2011/65/EU (RoHS), 2002/96/EC (WEEE): Applied Standards: EN 60950-1/Cor. (2011) EN 55022 (2010), class B EN 55024 (2010) EN 50121-4/Cor. (2008)

References to the Instruction Manual

1. The information in this Instruction Manual can be changed at any time without notice. The current version is available for download on www.mobatime.com.

2. This Instruction Manual has been composed with the utmost care, in order to explain all details in respect of the operation of the product. Should you, nevertheless, have questions or discover errors

on this manual, please contact us.

3. We do not answer for direct or indirect damages, which could occur, when using this Manual.

4. Please read the instructions carefully and only start setting-up the product, after you have correctly understood all the information for the installation and operation.

5. The installation must only be carried out by skilled staff.

6. It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way

or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.

Table of contents

Description ..................................................................................................................................................... 5

1.1 Basic properties ........................................................................................................................................ 5

2 Installation ...................................................................................................................................................... 7

2.1 Single-sided clock up to DSC.320 ............................................................................................................ 7

2.2 Single-sided clock DSC.500 ..................................................................................................................... 7

2.3 Double-sided clock up to DSC.320 .......................................................................................................... 8

2.4 Mechanical drawing.................................................................................................................................. 9

2.4.1 Single-sided clock up to DSC.320 .................................................................................................... 9

2.4.2 Single-sided clock DSC.500 ............................................................................................................. 9

2.4.3 Double-sided clock up to DSC.320 ................................................................................................ 10

2.5 Connectors and control elements .......................................................................................................... 11

2.6 Function of the plug connectors ............................................................................................................. 12

2.7 Setting elements ..................................................................................................................................... 12

2.8 Connection of the cable ends ................................................................................................................. 13

2.9 Cables arrangement ............................................................................................................................... 13

3 Control of the clock using keyboard or pushbuttons .............................................................................. 14

3.1 Setting of time and date ......................................................................................................................... 14

3.2 Menu for the setting of the clock parameters ......................................................................................... 14

3.2.1 Submenu for user-specific setting of time constants for data switchover ...................................... 15

3.2.2 Submenu for setting of the user-specific time zone ....................................................................... 15

3.2.3 Submenu for network services configuration ................................................................................. 18

3.2.4 Manual setting of the IP address of the clock ................................................................................. 18

3.2.5 Manual setting of the subnet mask ................................................................................................. 19

3.2.6 Manual setting of default gateway IP address................................................................................ 19

3.2.7 Submenu for setting the multicast group address .......................................................................... 19

3.2.8 Submenu for the setting of the NTP unicast synchronization ........................................................ 20

4 Control of the clock using IR remote control ............................................................................................ 21

4.1 Setting of time and date ......................................................................................................................... 21

4.2 Menu for the setting of the clock parameters ......................................................................................... 22

4.2.1 Submenu for user-specific setting of time constants for data switchover ...................................... 23

4.2.2 Submenu for setting of the user-specific time zone ....................................................................... 23

4.2.3 Submenu for network services configuration ................................................................................. 25

4.2.4 Manual setting of the IP address of the clock ................................................................................. 26

4.2.5 Manual setting of the subnet mask ................................................................................................. 26

4.2.6 Manual setting of default gateway IP address................................................................................ 26

4.2.7 Submenu for setting the multicast group address .......................................................................... 27

4.2.8 Submenu for the setting of the NTP unicast synchronization ........................................................ 27

5 The clock menu table .................................................................................................................................. 28

6 Control of the stopwatch via keyboard ..................................................................................................... 31

6.1 The stopwatch menu .............................................................................................................................. 31

6.2 Setting of the initial time for counting down ........................................................................................... 31

7 Control of the stopwatch using IR remote control ................................................................................... 32

7.1 The stopwatch menu .............................................................................................................................. 32

7.2 Setting of initial time for counting down ................................................................................................. 33

7.3 Switching contact ................................................................................................................................... 33

8 Stopwatch menu table ................................................................................................................................. 34

9 Local time calculation ................................................................................................................................. 36

9.1 Basic setting – control according to source of synchronization ............................................................. 36

9.2 Calculation using MOBALine time zones ............................................................................................... 36

9.3 Calculation using Timezone-server MOBATIME ................................................................................... 36

9.4 Calculation using timezone entries preconfigured by MOBA-NMS software ......................................... 37

9.5 Calculation according to internal time zone table .................................................................................. 37

10 Non-network clock operation ..................................................................................................................... 38

10.1 Autonomous clock synchronized by DCF 77 receiver ........................................................................... 38

10.2 Autonomous clock synchronized by GPS4500 receiver ........................................................................ 38

10.3 Autonomous clock synchronized by internal GPS receiver ................................................................... 38

10.4 Slave clock controlled by synchronizing impulses ................................................................................. 39

10.4.1 Synchronization and time setting – P5 mode 1 and 3 .................................................................... 39

10.4.2 Synchronization only – P5 mode 2 and 4 ....................................................................................... 39

10.5 Slave clock controlled by MOBATIME serial code, MOBALine, Active DCF code or IRIG-B ................ 40

10.6 Slave clock controlled by IF482 over RS232 or RS485 ......................................................................... 40

10.7 Slave clock controlled by supervised RS485 ......................................................................................... 40

10.8 Cascaded connection of the DCF/GPS synchronised clock .................................................................. 40

10.9 Synchronization in WTD system ............................................................................................................ 40

10.10 Connecting the slave displays through RS485 ...................................................................................... 41

11 NTP clock operation .................................................................................................................................... 42

11.1 Unicast mode ......................................................................................................................................... 42

11.1.1 Network parameters assignation by DHCP .................................................................................... 42

11.1.2 Manual setting through setup menu ............................................................................................... 43

11.1.3 Manual setting through telnet ......................................................................................................... 43

11.1.4 SNMP ............................................................................................................................................. 44

11.2 Multicast mode ....................................................................................................................................... 44

12 WiFi clock operation .................................................................................................................................... 45

12.1 Parameters of default wireless network ................................................................................................. 45

12.2 Setting process ....................................................................................................................................... 45

13 Testing mode, parameter reset .................................................................................................................. 47

13.1 Synchronisation test ............................................................................................................................... 47

13.2 Parameter reset ...................................................................................................................................... 47

14 Update firmware ........................................................................................................................................... 48

14.1 Update firmware using RS232 ............................................................................................................... 48

14.2 Update firmware over Ethernet at NTP version ..................................................................................... 48

15 Time zone table ............................................................................................................................................ 49

16 Engineering data .......................................................................................................................................... 52

16.1 Standard design of the clock .................................................................................................................. 52

16.2 Voltage range and electric current consumption of the lines ................................................................. 53

17 Accessories .................................................................................................................................................. 54

17.1 Single sided clock ................................................................................................................................... 54

17.2 Double side clock ................................................................................................................................... 54

17.3 Optional accessories .............................................................................................................................. 54

18 Cleaning ........................................................................................................................................................ 55

Disposal of used batteries .......................................................................................................................... 55

20 Guarantee and maintenance ....................................................................................................................... 55

1 Description

General purpose digital clock, intended for outdoor use • The clock meets the requirements of the majority of conventional applications • 7-segment LED display of high luminance elliptical LEDs provide for excellent readability even on direct sunlight • Ten combinations of the height and the number of digits • Autonomous operation with internal TCXO • NTP multicast or unicast synchronization in Ethernet or WiFi network • Slave clock operation in wireless WTD system based on a transmitter which sends the time signal • Slave clock operation controlled by self-setting MOBALine code • Slave clock operation controlled by built-in RS 232, RS 485 or IRIG-B interface • LED display in red, pure green, amber, blue or white colour • Single or double sided clock • Clock frame made of powder coated aluminium profiles • Wall mounting for single sided clock • Ceiling suspension or wall bracket mounting for double as well as single sided clock

1.1 Basic properties

 digit height of 100, 180, 250, 320 or 500 mm, which corresponds to readability

distance of 40, 70, 100, 130, 200 m;

 digits in red, pure green, blue, white or amber colour;  manual or automatic adjustment of the luminosity of LED displays;  front side glass with dark filter and antiglare surface for improved readability;  single or double sided design, for wall mounting (for single-sided clock design,

only), or to be suspended or fixed to wall bracket;

 mounting on tiltable console for easy installation procedure;  clock frame made of powder coated aluminium profiles, RAL7040 colour

(light grey) as standard, any other RAL colour on request;

 adjustment of clock parameters using two pushbuttons inside the clock (behind

the cover) or through remote controller;

 autonomous TCXO time base, with the possibility of synchronization using the

following: DCF 77 radio signal, one-minute 24 V pulses, the MOBATIME serial code, MOBALine, RS 232, RS 485, IRIG-B or GPS;

 configuration / monitoring via MOBA-NMS is possible;  NTP multicast or unicast synchronization in Ethernet or WiFi network;  slave clock operation in wireless WTD system (868MHz) based on a transmitter

which broadcasts the time signal;

 mains powered 100-240VAC; DC powering on request;  protection degree IP 65;

The clock

 display of time values (either 12 or 24 hours time cycle), four-digit (HH:MM) or six

digit (HH:MM SS) format;

 possibility of leading zero suppression when displaying the time and date;  display of temperature in °C or °F – up to two sensors connectable;  alternating indication of time, date and temperature, with adjustable period of

each of the displayed data;

 possibility of setting up the time zone.

Stop watch

 counting up, starting from zero, up to 99 hours;  countdown from a set up value, with stop at zero, automatic restart or counting to

negative values;

 indication of intermediate times, “freezing“ of the display, cumulated interim time;  counting in steps of one minute, one second or 1/100 second;  control using the keyboard or IR remote control;  concurrently, possibility of changeover into the time/date display mode, or the

temperature indication

Accessories

 DCF 77 signal receiver  temperature sensor with protection degree IP 66  keyboard for stopwatch control, connected via 5 m cable  remote IR controller for clock set up and stopwatch control

On request

 internal relay – relay can switch for specified duration, when the stopwatch in the

countdown mode reach the zero

2 Installation

the connection to the 110/230 V AC power network can only be done by authorized personnel with appropriate qualification and training; connect the cables always in unpowered state – otherwise the risk of electric shock exist; producer is not responsible for breakdowns caused by unsuitable clock mounting on the bearing surface;

2.1 Single-sided clock up to DSC.320

 assemble the wall mounting console if delivered disassembled;  drill at least four anchoring holes into the wall, of a diameter adequate to

appropriate screws, use the mounting console as a template;

 mount the console on the wall and put it into a fully tilted out position;  shift the clock body into the flipped out console arms and fix it by tightening the

screws;

 dismantle the back cover of connectors on the clock body; the cover incorporates

gap with sealings for passage of cables in the inside of he clock;

 arrange all cables to appropriate length and connect them to the appropriate

terminals on the PCB; see the description of the connectors and observe the correct polarity where necessary;

 fix the cables with the holder in correct positions in order to maintain regular

spacing between the cables in the area of passing through sealing; use appropriate force to not to damage the cables insulation;

 configure the Line type jumper according to used synchronisation signal (applies

only for DCF, MOBALine, Serial MOBATIME code, polarized impulse line or IRIG-B);

 mount back the connector cover;  tilt the clock into vertical position and fix the position of the console;

2.2 Single-sided clock DSC.500

 drill at least four anchoring holes into the wall, of a diameter adequate to

appropriate screws. As a template for marking the position of the holes use the wall console (mounting frame);

 mount the console to the wall using appropriate screws and dowels with respect

to the wall material;

 loosen the hanging M10 allen screws on console in order to be cca 6mm of

thread visible;

 prepare the cables and fix them on the wall in order to be placed behind the small

rectangular cover equipped with the sealed slot;

 hang the display body onto the console in order to fit four hanging screws into the

pear-shaped holes;

 using special key unlock (turn by 90° clockwise) the two locks on the bottom of

the frame and open the front window. Use the support to keep the front window opened;

 tighten four hanging screws using the allen key, the display is then fixed on the

wall;

 dismount the small rectangular cover on the bottom part of backpanel, pull all

cables through the opening and fix them by the metal bar. Mount the cover back.

Make sure the cables are evenly distributed in the fixing bar and in the sealed slot;

 arrange and cut the cables to the appropriate length. Strip the wires and connect

them to corresponding board terminals. Observe the right polarity where necessary;

 configure the Line type jumper according to used synchronisation signal (applies

only for DCF, MOBALine, Serial MOBATIME code, polarized impulse line or IRIG-B);

 apply the power and check if the display works correctly;  close the front window and secure it using two locks (turn by 90° anti-clockwise)

on the bottom of the display body frame;

 dismount the mounting eyes and screw-in the delivered covering allen screws;

2.3 Double-sided clock up to DSC.320

 the double-sided clock consists of the displaying (SLAVE) part, control

(MASTER) part and the wall side mounting console, both parts are linked via one cable;

 the clock is delivered as a one unit (both parts mounted on the console);  if the console has the bottom cover, remove it (5x screw M4) first, bottom cover is

attached to the console by steel wire (captive cover);

 unscrew locking screws and put clock parts into fully tilted out positions;  dismantle the back connector cover on the MASTER part; the cover incorporates

gap with sealings for passage of cables into the clock;

 disconnect the MASTER-SLAVE connecting cable;  release four allen screws on back side of the clocks and take out the both clock

parts from the console;

 drill appropriate number of anchoring holes in the wall for 10-12 mm dia. wood

screws, use the mounting console as a template;

 push all incoming cables (power, temperature, synchronization) through the

upper tube of the console and through he oval hole, then mount the console on the wall;

 put both sides into a fully tilted out positions;  hang the SLAVE part on one side of the console and tighten the four screws on

the back side of the clock part;

 hang the MASTER part on second side of the console and tighten the four

screws on the back side of the clock part;

 connect the MASTER-SLAVE cable;  arrange all incoming cables to appropriate length and connect them to the

appropriate terminals on the PCB; see the description of the connectors and observe the correct polarity where necessary;

 fix the cables with the holder in correct positions in order to maintain regular

spacing between the cables in the area of passing through sealing; use appropriate force to not to damage the cables insulation;

 configure the Line type jumper according to used synchronisation signal (applies

only for DCF, MOBALine, Serial MOBATIME code, polarized impulse line or IRIG-B);

 mount back the connector cover;  tilt the clock parts into vertical position and fix them by locking screws;  mount back the bottom cover if delivered;

mounting eye (removable after montage)

Place for inserting of the key

mounting frame

2.4 Mechanical drawing

2.4.1 Single-sided clock up to DSC.320

2.4.2 Single-sided clock DSC.500

2.4.3 Double-sided clock up to DSC.320

2.5

Connectors and control elements

Note: The placement of the particular connectors and control elements is different for the

DSC.100 clocks.

 LINES, DC/DCF OUT – JP1  TEMP – JP2  CTRL – JP3  RS232 – JP4 (version SI)  RS485 – JP5 (version SI)  100 – 240VAC – JP6  LAN - JP7 (version NTP)  PROG – JP8  RELAY – JP27 (optional)

 Line type jumper – JP11  PB1, PB2 buttons  RESET button  TRE jumper – JP10 (version SI)  BATT jumper – JP12  jumper ISPE – JP9  LED indication of DCF signal  state LED  LED indication of powering  jumper DC Out / DCF Out – JP17

2.6 Function of the plug connectors

 LINES, DC/DCF OUT – JP1 time signal inputs: The DCF/GPS receiver,

polarized impulse line, MOBALine, MOBATIME

serial code, IRIG-B, power supply output: DC OUT 12–40 VDC or passive DCF current loop output

 TEMP – JP2 connection of the temperature sensor(s)  CTRL – JP3 connection of the keyboard  RS232 – JP4 (optional) connection of the RS232 serial line  RS485 – JP5 (optional) connection of the RS485 serial line  100 – 240VAC – JP6 powering 100 - 240 VAC voltage  LAN - JP7 (optional) RJ45 10BaseT/100TX (IEEE 802.3)

auto negotiation

 PROG – JP8 clock firmware programming  RELAY – JP27(optional) switching contact connection

2.7 Setting elements

 Line type jumper – JP11 for the setting of the slave line type

IRIG / AFNOR

DCF

MOBALine

(Un)polarized impulse line MOBATIME serial code Active DCF code

 PB1, PB2 control pushbuttons  RESET the RESET button  TRE jumper – JP10 (optional) RS485 terminating resistor enable  BATT jumper – JP12 backup battery connection  ISPE jumper – JP9 invoking the firmware programming mode  DCF LED indication of receiving the DCF signal  STATE LED state indication  POWER LED power indication  jumper DC Out / DCF Out – JP17 Output signal setting on pins 3, 4

of the JP1 connector

pin3 = DC Out + (12-40V) DC Out

pin4 = DC Out -

pin3 = (+)

passive DCF Out

pin4 = (-)

2.8 Connection of the cable ends

TEMP wire connection – 1 or 2 thermometers

CTRL wire connection

2.9 Cables arrangement

3 Control of the clock using keyboard or pushbuttons

The clock is adjusted and controlled using two pushbuttons located on the control PCB. If you use a keyboard for setting the stopwatch, then use the pushbuttons PB1 and PB2 for the clock setting.

Abbreviations used for the key strokes PB1L, PB2L pushing the pushbutton for more than 1 second

PB1S, PB2S pushing the pushbutton for less than 1 second Function of the pushbuttons in the “Clock“ mode PB1S time correction to the whole minute (±30 sec)

PB2S changeover of the displayed items

Time -> date -> temperature -> stopwatch -> time

PB1L entry into the time and date setting mode PB2L entry into the clock menu

3.1 Setting of time and date

The setting of time and calendar date takes place in following steps: year – days – months – hours – minutes. The entry into the time and date setting mode occurs by pushing the PB1L pushbutton.

The display shows the following:

The item to be adjusted

is now blinking.

Move to another item by pushing the PB1S pushbutton. After having adjusted the minutes and by pushing PB1S, the entered values are stored (the seconds are set to zero) and the operation of the clock resumes. The clock returns into normal working mode.

Function of the pushbuttons in the “Time and date setting“ mode.

PB1S advancement to another item to be set up PB2S increase of the item to be set up by 1 PB2L continuous increase of the current item

3.2 Menu for the setting of the clock parameters

The entry into the parameter setup menu is done by pushing the PB2L button.

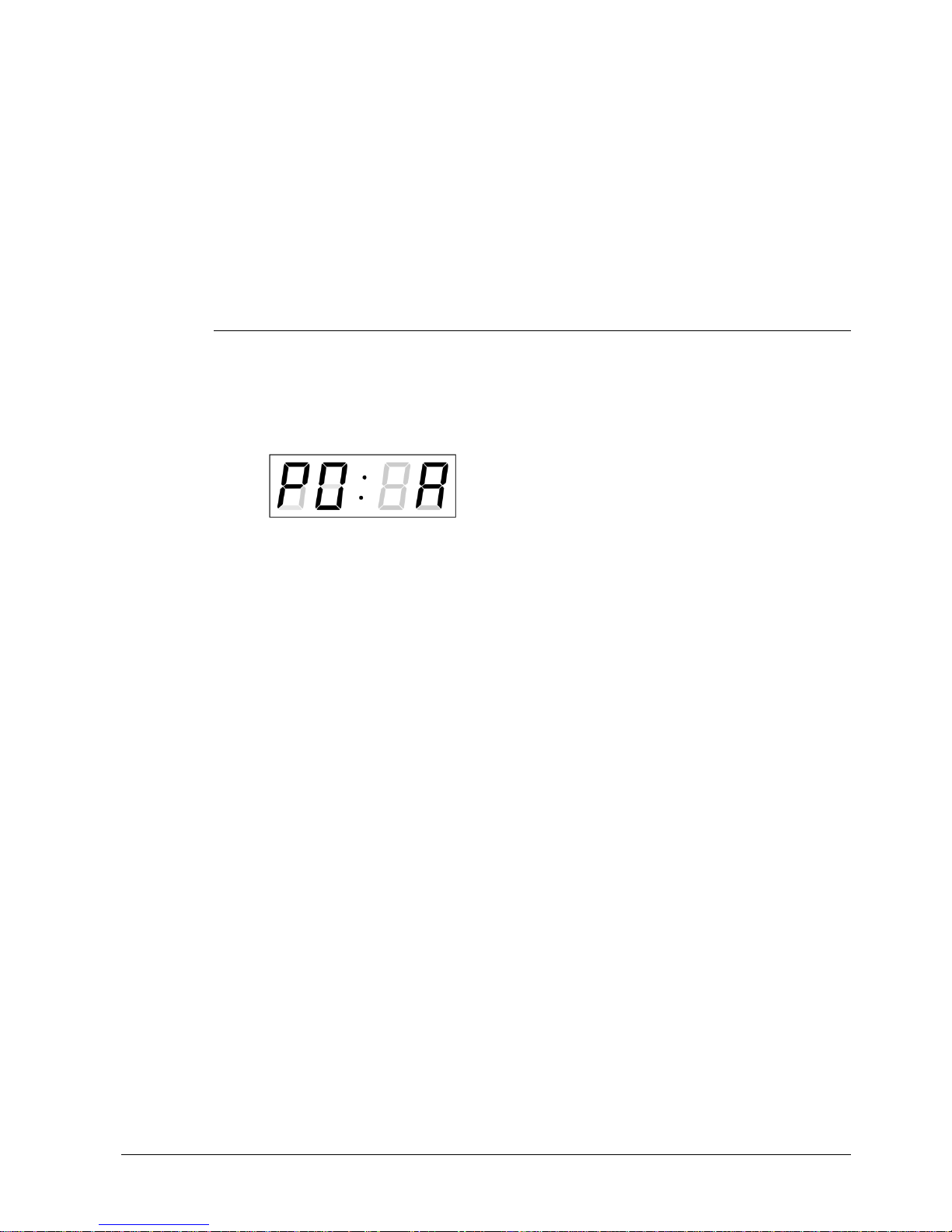

The display shows the following:

The item to be adjusted is now blinking

The options for the parameter setup are shown in the clock menu table (chapter 5).

Function of the pushbuttons in the setup menu mode PB1S storage of the current item and move to another menu item

PB1L storage of values and return into normal display mode, or entry

into the submenu, where it is permitted by the program

PB2S increase of the current item by 1 PB2L continuous increase of the current item

3.2.1 Submenu for user-specific setting of time constants for data switchover In menu item P2 (time constants for automatic switching over of values) set value

U, then by pushing the PB1L enter the submenu. The item to be set is blinking.

By pushing the PB2S button the adjusted value is increased in steps of 1, by pushing the PB2L button the value will be continuously increased.

The display shows the following:

Enter the time constant for the display of time in seconds. Push the PB1S button and enter the constant for date display in seconds.

Push the PB1S pushbutton.

The display shows the following:

Enter the time constant for the display of temperature in seconds. Push the PB1S pushbutton and enter the constant for stopwatch display in seconds.

By pushing the PB1L button are the entered values stored and the clock returns to the menu item P2.

3.2.2 Submenu for setting of the user-specific time zone

Choose the value U in the item P7 (time zone displaying) in the clock menu, then enter the submenu for setting the parameters of the user-specific time zone by pushing the PB1L pushbutton. The item to be set is blinking.

By pushing the PB2S button, the adjusted value is increased in steps of 1, by pushing the PB2L button, the value will be continuously increased.

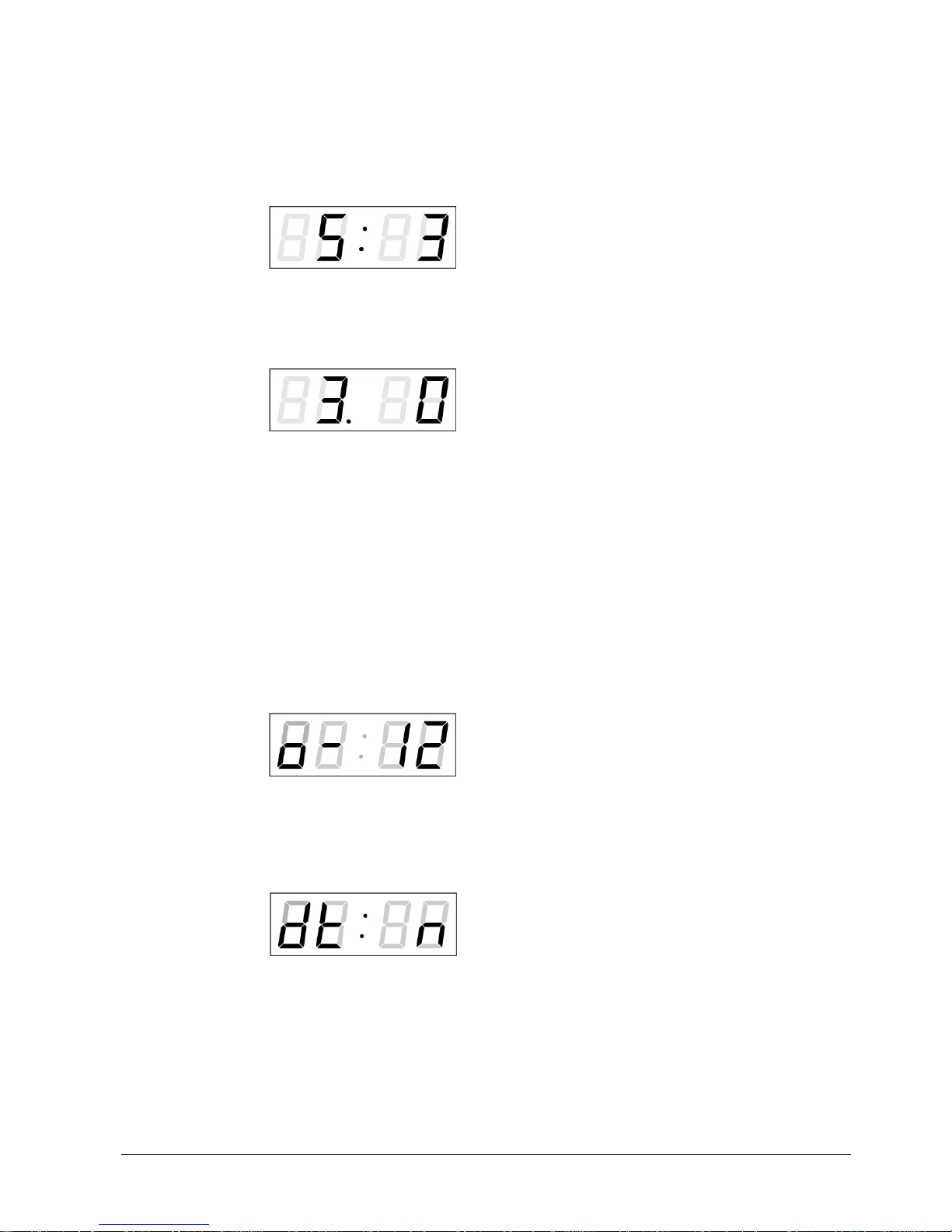

The display shows the following (example: -12 hours):

Enter the offset of the required time zone compared to UTC time within -12 to +12 hours. Decimal point means 0.5 hour.

Switch over to setting the way of setting daylight saving time (DST) by pushing

PB1S. The display shows the following:

Possibility:

n – no DST is used

F – DST defined by fixed date

C – DST defined by calculated date

DST defined by fixed date and time

If the value F is set in the item dt:, enter the submenu for entering fixed date and time by pushing PB1L.

The item to be set is blinking. By pushing the PB2S button, the adjusted value is increased in steps of 1, by pushing the PB2L button, the value will be continuously increased.

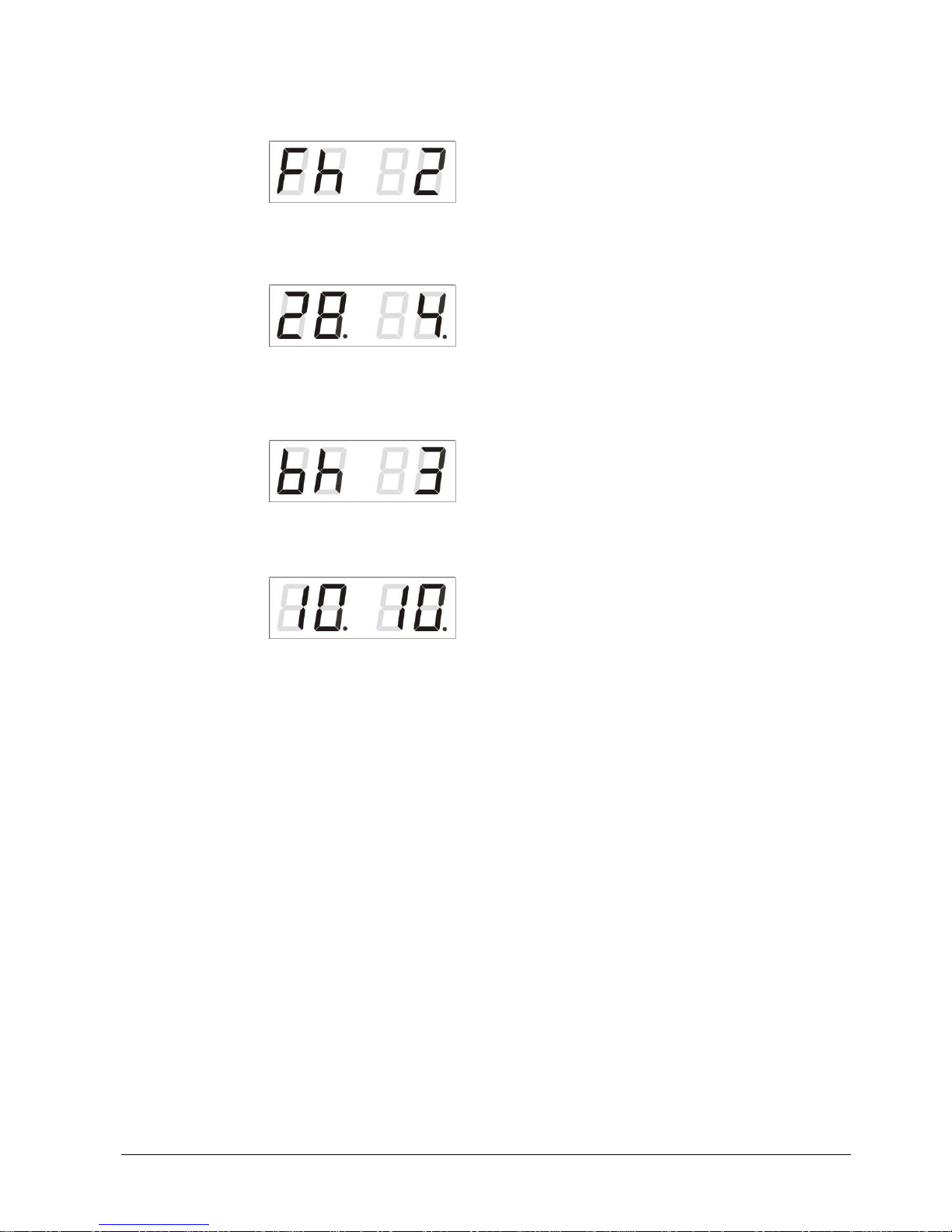

Symbols on the display: Fh change to summer time; entry of the hour at daylight saving begins

bh shift back; entry of the hour at daylight saving ends

The display shows the following:

Enter the hour at which the daylight saving time begins.

Push PB1S.

The display shows the following:

Enter the day of the month. Push PB1S. Enter the month in which the daylight saving time begins.

Push PB1S.

The display shows the following:

Adjust the hour at which the daylight saving time ends.

Push PB1S.

The display shows the following:

Enter the day of the month. Push PB1S. Enter the month in which the daylight

saving time ends.

The daylight saving time has been set to start on April 28

at 2 o’clock and

to end on October 10

at 3 o’clock in the example described above.

Save the setting by pushing PB1L and return to item dt:. Return to the clock menu item P7 with another push of the PB1L button.

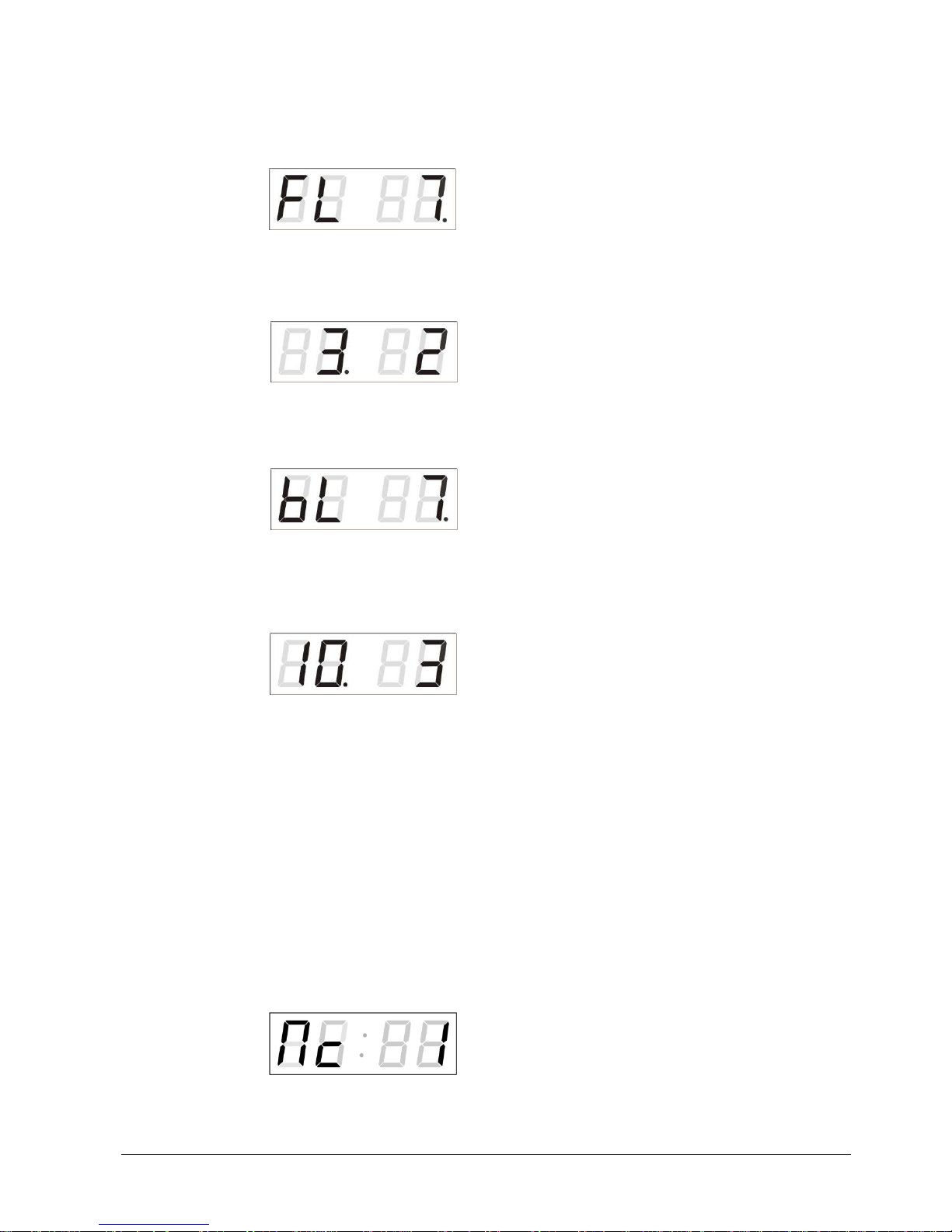

DST defined by calculated date

If the value C is set in item dt:, enter the submenu for the calculated date by pushing PB1L.

The item to be set is blinking. By pushing PB2S, the adjusted value is increased in steps of 1, by pushing the PB2L button, the value will be continuously increased.

Symbols in the display: F change to summer time

b setting the time back Scope of the setting:

Week 1. – 4.,L (the last one), P (last but one) and H (first after 15

day in the month) Day of the week 1. – 7. (Mo – Su) Month 1. – 12.

The display shows the following:

Enter the week in which the daylight saving time begins. Push PB1S. Enter the day of the week at which the daylight saving time begins.

Push PB1S.

The display shows the following:

Enter the month in which the daylight saving time begins. Push PB1S. Enter the hour at which the daylight saving time begins.

Push PB1S.

The display shows the following:

Enter the week in which the daylight

saving time ends. Push PB1S. Enter the day of the week at which the daylight saving time ends.

Push PB1S.

The display shows the following:

Enter the month in which the daylight saving time ends. Push PB1S. Enter the hour at which the daylight saving time ends.

The daylight saving time has been set to start on the last Sunday in March at 2 o’clock and to end on the last Sunday in October at 3 o’clock in the above described example.

Save the setting by pushing PB1L and return to the item dt:. Return to the clock menu item P7 with another push of the PB1L button.

3.2.3 Submenu for network services configuration

Choose the value 2 or 3 in the item P19 (network workmode selection) in the clock menu, then enter the submenu by pushing the PB1L pushbutton for configuring the network services (Multicast support in unicast workmode, SNMP service, Telnet service). The item to be set is blinking.

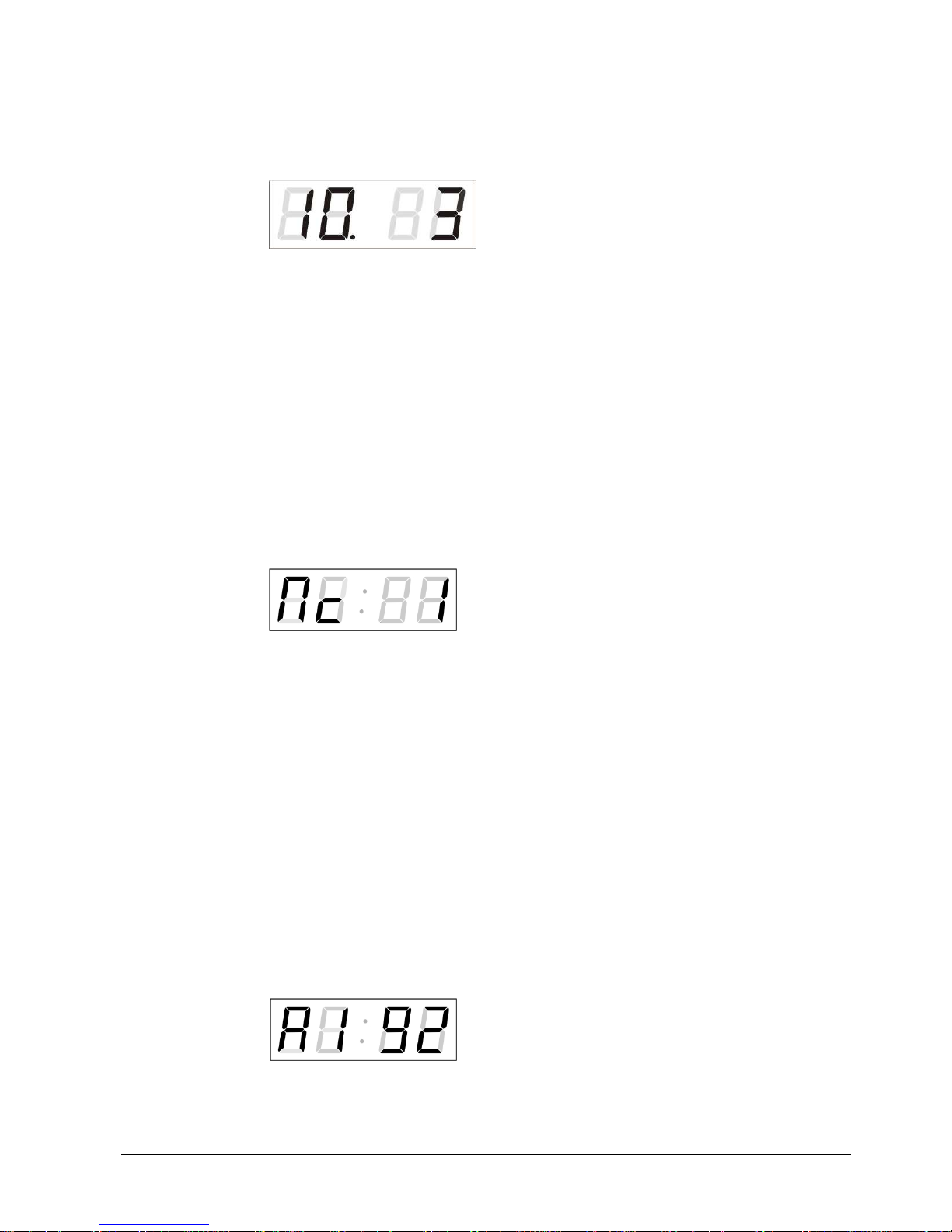

The display shows the following:

Set value 1 for enabling the multicast

support in the unicast workmode or value 0 for disabling it by pushing the PB2S.

Switch to the next parameter – SNMP communication support by pushing the PB1S. The display shows the Sn: 1. Set value 1 for enabling the SNMP support or value 0 for disabling it by pushing the PB2S.

Switch to the next parameter – Telnet support by pushing the PB1S. The display shows the tn: 1. Set value 1 for enabling the telnet support or value 0 for disabling it by pushing the PB2S.

By pushing

PB1L save the setting and return to item P19.

3.2.4 Manual setting of the IP address of the clock

Choose the item P20 in the main menu and push the PB1L button to enter the submenu for setting the IP address. The item to be set is blinking. By pushing PB2S, the adjusted digit value is increased in steps of 1, by pushing the PB2L button, the value will be continuously increased.

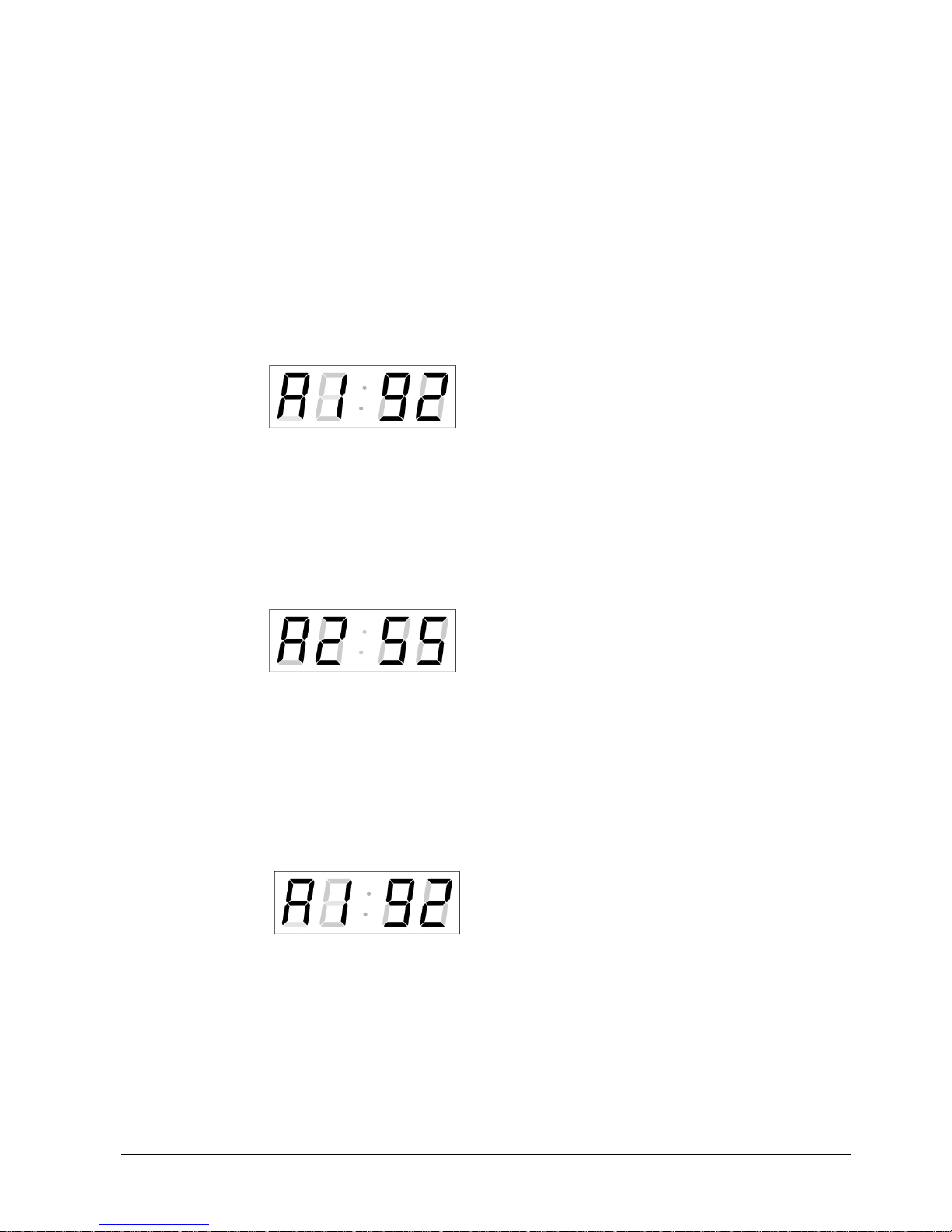

The display shows the following:

Enter the four octets of the IP address step by step. Switch to next digit or octet respectively by pushing the PB1S. Octets are marked by letters A, b, C and

By pushing the PB1L button, the entered values are stored and the clock returns to the menu item P20.

3.2.5 Manual setting of the subnet mask

Choose the item P21 in the main menu and push the PB1L button to enter the submenu for setting the subnet mask. The item to be set is blinking.

By pushing PB2S, the adjusted value is increased in steps of 1, by pushing the

PB2L button, the value will be continuously increased.

The display shows the following:

Enter the four octets of the subnet mask step by step. Switch to the next octet by pushing the PB1S button. Octets are marked by letters A, b, C and d.

By pushing the PB1L button, the entered values are stored and the clock returns to the menu item P21.

3.2.6 Manual setting of default gateway IP address

Choose item P22 in the main menu and push the PB1L button to enter the submenu for setting the default gateway IP address. The item to be set is blinking. By pushing PB2S the adjusted digit value is increased in steps of 1, by pushing the PB2L button the value will be continuously increased.

The display shows the following:

Enter the four octets of the gateway IP address step by step. Switch to the next digit or octet respectively by pushing the PB1S button. Octets are marked by letters A, b, C and d.

By pushing PB1L button are the entered values stored and the clock returns to the menu item P22.

3.2.7 Submenu for setting the multicast group address

Choose the menu item P23 and then enter the submenu by pushing the PB1L pushbutton for setting the multicast group address. The item to be set is blinking. By pushing the PB2S button, the adjusted digit value is increased in steps of 1; by pushing the PB2L button, a continuous increase of the value takes place.

The display shows the following:

Enter the four octets of the IP address step by

step. Switch to the next digit or octet respectively by pushing the PB1S button. Octets are marked by the letters A, b, C and d.

By pushing the PB1L button, the entered values are stored and the clock returns to the menu item P23.

3.2.8 Submenu for the setting of the NTP unicast synchronization

Choose the menu item P24 then enter the submenu by pushing the PB1L pushbutton for setting the parameters of the NTP unicast synchronization. The item to be set is blinking. By pushing the PB2S button, the adjusted digit value is increased in steps of 1; by pushing the PB2L button, the value will be continuously increased.

The display shows the following:

Set the four octets of the NTP server’s IP address step by step. Switch to the next digit or octet respectively by pushing the PB1S button. Octets are marked by letters A, b, C and d.

After the last octet setting, set the constant x which determines the interval of synchronization in seconds.

By pushing the PB1L button, the entered values are stored and the clock returns to the menu item P24.

Note: Through the setup menu is possible to set only one NTP server IP address. If more than one NTP server addresses were previously configured (using telnet or MOBA-NMS tool), after opening the P24 submenu the IP address of currently active NTP server is displayed. When the IP address was modified and the configuration is saved using the setup menu, the IP address is stored to the definition of the first NTP server, the other NTP server addresses are cleared including those defined by the NTP server domain names.

4 Control of the clock using IR remote control

A 2-digit address is assigned to the clock. With the IR remote control the clock can be locked. The setting of time, date and the clock parameters can only take place at clocks in an unlocked state.

Function of the pushbuttons in normal display mode

pushing F1 + entry of 2-digit address, unlock the clock with the using numerical pushbuttons corresponding address

holding down F1 button unlock all clocks within the reach of the IR beam of the remote control unit

holding down F2 button lock all clocks within the reach of the IR beam of the remote control unit holding down F3 button display the address of all locked clocks within the reach of the IR beam of the remote control

Function of the pushbuttons in the “Clock“ operation mode

SET entry into the time and date setting mode

The + button button brightness increase (not applicable when P0 is set to A) The - button button brightness decrease (not applicable when P0 is set to A)

CLOCK visualisation of time DATE visualisation of date TEMP visualisation of temperature TIMER visualisation of stopwatch MENU entry into the menu of setting of clock

parameters

CLR time correction to the whole minute (±30 sec)

4.1 Setting of time and date

The time and date values are adjusted in the following sequence: year – day – month – hours – minutes. By pushing the SET button enter the time and date setting mode.

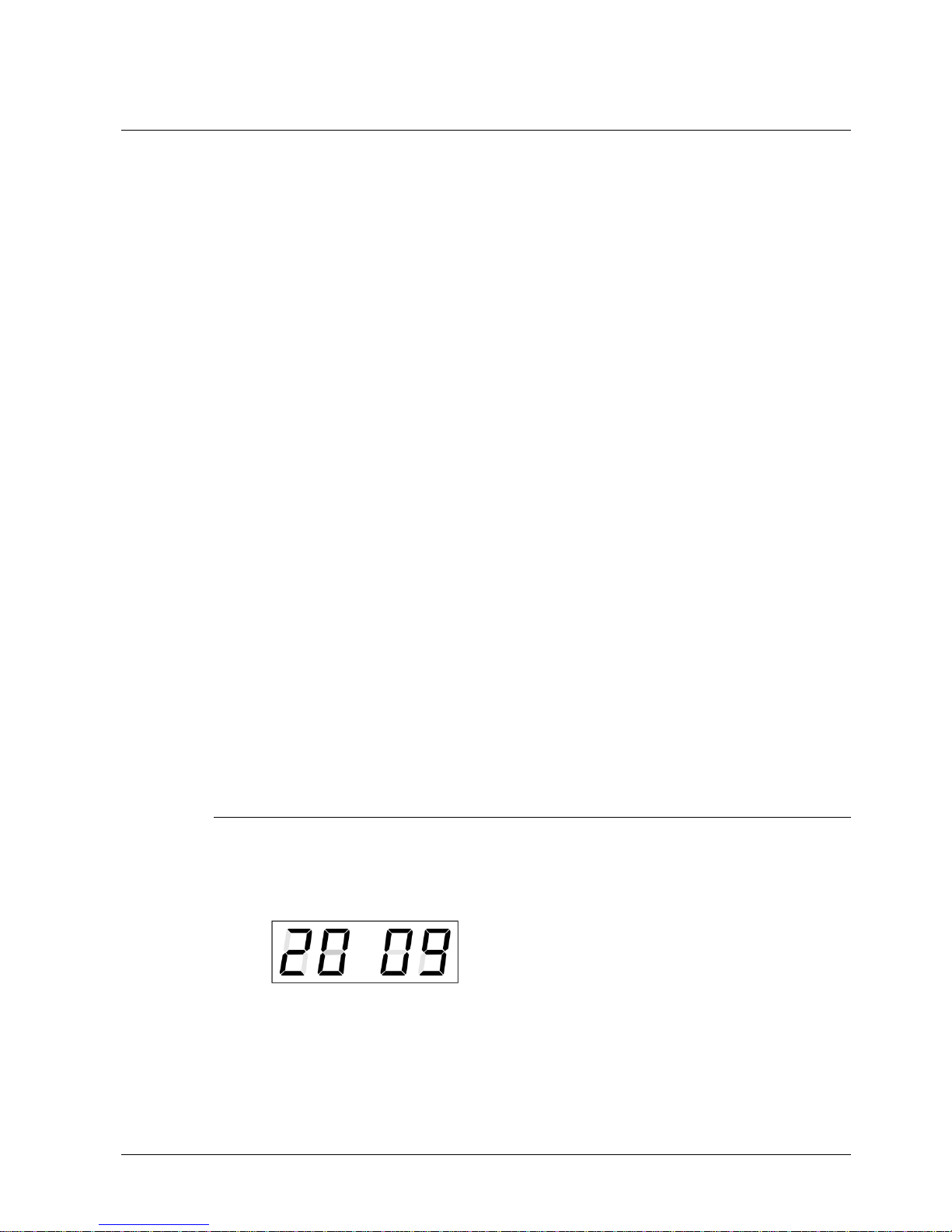

The display shows the following:

The item to be set is blinking.

After having set up the minutes the value is blinking. By pushing the OK button the value is stored (with seconds reset to zero) and the clock operation resumes. The clock returns into normal working mode.

Function of the pushbuttons in the “Time and date setting“ mode

The + pushbutton increase of the value adjusted, in steps of 1 The – pushbutton decrease of the value adjusted, in steps of 1 Holding down the + button continuous increase of the value set up

Holding down the – button continuous decrease of the value set up ESC return into normal display mode, without storage of the data

>> move to next parameter << move to previous parameter CLR entry of zero or minimum value OK storage of values set up and return into normal

working mode, followed with seconds reset Pushbuttons 0–9 entry of the corresponding numerical value

4.2 Menu for the setting of the clock parameters

The entry into the menu for the setting of the clock parameters is done be pushing the MENU button.

The display shows the following:

The item to be set is blinking.

The options for the parameters to be set up are shown in the menu table on page (chapter 5).

Function of the pushbuttons in the “MENU“ mode >> move to next menu item

<< move to previous menu item

The + button increase of the value adjusted, in steps of 1 The - button decrease of the current value, in steps of 1

Holding down the + button continuous increase of the value set up Holding down the – button continuous decrease of the value set up ESC return into the normal working mode, without storing the modified items OK storing of the modified items and return into the normal working mode SET enter the sub-menu, where it is possible

Pushbuttons 0–9 entry of the corresponding numerical value

Note: During entering the numbers in the octets

of the IP addresses the editing to the next digit moves automatically.

4.2.1 Submenu for user-specific setting of time constants for data switchover In menu item P2 (time constants for automatic switching over of values) set value

U, then by pushing the SET enter the submenu. The item to be set is blinking. The display shows the following:

Enter the constant for time display, in seconds. Push the >> button and enter the time constant for the display of date, in seconds.

Push SET,

The display shows the following:

Enter the time constant for the display of temperature, in seconds. Push the >> button and enter the time constant for the display of stopwatch, in seconds.

By pushing OK are the entered values stored and the clock returns to the menu item P2. By pushing ESC return to P2 item without storing.

4.2.2 Submenu for setting of the user-specific time zone

Choose the value U in the item P7 (time zone displaying) in clock menu, then by pushing the SET enter the submenu for setting the parameters of the userspecific time zone. The item to be set is blinking.

The display shows the following (example: -12 hours):

Enter the offset of the required time zone compared to UTC time within -12 to +12 hours. Decimal dot means 0,5 hour.

Switch over to setting the way of setting daylight saving time (DST) by pushing

>>. The display shows the following:

Options: n – no DST is used F – DST defined by fixed date C – DST defined by calculated date

Return to the clock menu item P7 by pushing the OK button. DST defined by entering fixed date and time

If the value F is set in item dt:, by pushing SET enter the submenu for entering fixed date and time. The item to be set is blinking.

Symbols on the display: Fh change to summer time; entry of the hour at daylight saving begins bh shift back; entry of the hour at daylight saving ends

The display shows the following:

Enter the hour at which the daylight saving time begins.

Push >>.

The display shows the following:

Enter the day of the month. Push >>. Enter the month in which the daylight saving time begins.

Push >>.

The display shows the following:

Enter the hour at which the daylight saving time ends.

Push >>.

The display shows the following:

Enter the day of the month. Push >>. Enter the hour at which the daylight saving time ends.

The daylight saving time has been set to start on April 28

at 2 o’clock and

end on October 10

at 3 o’clock in the above described example.

Save the setting and return to item dt: by pushing OK, return to the clock menu item P7 by another push of the OK button.

B. By entering calculated date

If the value C is set in item dt:, by pushing SET enter the submenu for the calculated date. The item to be set is blinking.

Symbols in the display: F change to summer time

b setting the time back

Scope of the setting:

Week 1. – 4.,L (the last one), P (last but one) and H (first after 15

day in the month) Days of the week 1. – 7. (Mo – Su) Month 1. – 12.

The display shows the following:

Enter the week in which the daylight saving time begins. Push >>. Enter the day of the week in which the daylight saving time begins.

Push >>.

The display shows the following:

Enter the month in which the daylight saving time begins. Push >>. Enter the hour in which the daylight saving time begins.

Push >>.

The display shows the following:

Enter the week in which the daylight saving time ends. Push >>. Enter day of the week in which the daylight saving time ends.

Push >>.

The display shows the following:

Enter the month in which the daylight saving time ends. Push >>. Enter the hour in which the daylight saving time ends.

The daylight saving time has been set to start on last Sunday in March at 2 o’clock and end on last Sunday in October at 3 o’clock in the above described example.

By pushing OK save the setting and return to item dt:. Another push of the OK button returns to the clock menu item P7.

4.2.3 Submenu for network services configuration

Choose the value 2 or 3 in the item P19 (network workmode selection) in the clock menu, then enter the submenu by pushing the SET for configuring the network services (Multicast support in unicast workmode, SNMP service, Telnet service). The item to be set is blinking.

The display shows the following:

Set value 1 for enabling the multicast

support in the unicast workmode or value 0 for disabling it.

Switch to the next parameter – SNMP communication support by pushing the >>. The display shows the Sn: 1. Set value 1 for enabling the SNMP support or value 0 for disabling it.

Switch to the next parameter – Telnet support by pushing the >>. The display shows the tn: 1. Set value 1 for enabling the telnet support or value 0 for disabling it.

By pushing OK, the entered values are stored and the clock returns to the menu item P19. By pushing ESC, the clock returns to P19 without saving.

4.2.4 Manual setting of the IP address of the clock

Choose the item P20 in the main menu and push the SET button to enter the submenu for setting the IP address. The item to be set is blinking.

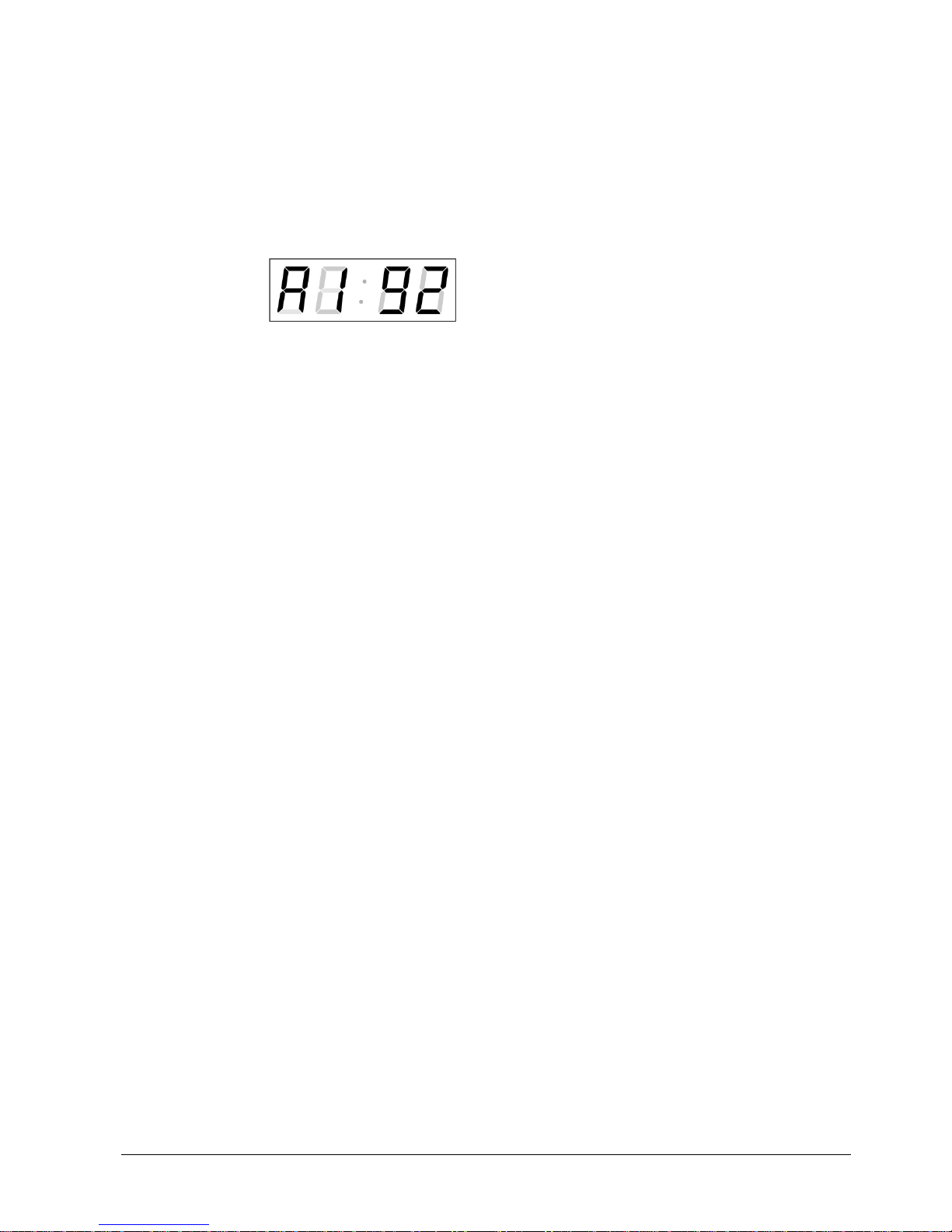

The display shows the following:

Enter four octets of the IP address step by step. Switch to another octet by pushing the << and >> buttons. Octets are marked by letters A, b, C and d.

By pushing OK, the entered values are stored and the clock returns to the menu item P20. By pushing ESC the clock returns to P20 without storing.

4.2.5 Manual setting of the subnet mask

Choose the item P21 in the main menu and push the SET button to enter the submenu for setting the subnet mask. The item to be set is blinking.

The display shows the following:

Enter the four octets of the subnet mask step by step. Switch to another octet by pushing the << and >> buttons. Octets are marked by letters A, b, C a d.

By pushing OK, the entered values are stored and the clock returns to the menu item P21. By pushing ESC, the clock returns to P21 without saving.

4.2.6 Manual setting of default gateway IP address

Choose the item P22 in the main menu and push the SET button to enter the submenu for setting the default gateway IP address, the item to be set is blinking.

The display shows the following:

Enter the four octets of the gateway IP address step by step. Switch to another octet by pushing the << and >> buttons. Octets are marked by letters A, b, C and d.

By pushing OK, the entered values are stored and the clock returns to the menu item P22. By pushing ESC, the clock returns to P22 without saving.

4.2.7 Submenu for setting the multicast group address

Choose the menu item P23 and then enter the submenu by pushing the SET

for

setting the multicast group address. The item to be set is blinking.

The display shows the following:

Enter the four octets of the IP address step by

step. Switch to the next digit or octet respectively by pushing the >> button. Octets are marked by the letters A, b, C and d.

By pushing OK, the entered values are stored and the clock returns to the menu item P23. By pushing ESC, the clock returns to P23 without saving.

4.2.8 Submenu for the setting of the NTP unicast synchronization

Choose the menu item P24 and then enter the submenu by pushing the SET for setting the parameters of the NTP unicast synchronization. The item to be set is blinking.

The display shows the following:

Set the four octets of the NTP server’s IP address step by step. Switch to the next digit or octet respectively by pushing the >> button. Octets are marked by letters A, b, C and d.

After the last octet setting, set the constant x which determines the interval of synchronization in seconds.

By pushing OK, the entered values are stored and the clock returns to the menu item P24. By pushing ESC, the clock returns to P24 without saving.

5 The clock menu table

Program item

Function Scope of the values

(default values are printed in bold)

P0 Display brightness 1-30, A (automatic adjustment, without the possibility of changing

in normal display mode)

P1 Time display format 24 h, 12 h

P2 Time constants for

automatic data switching over

1-6, U, 0

1 continuous display of time 2 continuous display of date 3 continuous display of temperature 4 continuous display of stop watch 5 display sequence: time 6 sec, date 3 sec. 6 display sequence: time 8 sec, date 3 sec, temperature 3 sec. U* time constants set up by user, in seconds for each specific

displayed data

0 automatic switching over disabled

P3 Time zone of

synchronization source

0 - 64, A (automatically)

P4 Type of

synchronization source

1 - 10, A (automatically)

auto detection, applicable for: DCF, the Mobatime serial code, MOBALine, WTD, IRIG-B, NTP or GPS

1 autonomous operation without synchronization 2 synchronization by DCF signal 3 the MOBATIME serial code 4 MOBALine 5 24 V DC impulses, at minute intervals 6 24 V DC impulses at half minute intervals 7 24 V DC impulses at second intervals 8 DCF-FSK, IRIG-B Standard, IRIG-B 123, IRIG-B DIEM,

AFNOR A, AFNOR C

9 RS232 10 RS485 11 Internal GPS receiver 12 Active DCF code

P5 Impulse line

processing mode

1-4 1 polarized impulses, synchronization and time adjustment 2 polarized impulses; time synchronization only 3 non-polarized impulses, synchronization and time adjustment 4 non-polarized impulses; time synchronization only

P6 Time zone for

MOBALine or Timezone-server MOBATIME

1-20, 0 (off) – for MOBALine synchronization or 1-15, 0 (off) – for NTP synchronization

P7 Time zone of

displayed time and date

0 - 64, A (automatically), U* (user time zone) U1-U7 (preconfigured time zone entry by MOBA-NMS)

P8 Clock address for IR

remote control and the serial protocols

1-99

0-31, L (listen only) at SI version 0-15 - at WTD version

P9 IR controller

autolock

1-60, U ("automatic lock" is OFF) Time in minutes for "automatic lock" since the last depression of button on the IR unit

P10 Time format display 1-2

1 time with leading zero 2 time without leading zero

P11 Date format display 1-2

1 date with leading zero 2 date without leading zero

P12 Temperature format

display

°C

°F

P13 Protocol for RS232

and RS485 communication

1 - IF482 2 - Supervised RS485 3 - DC master 4 - DC slave 5 - TP RS485 master 6 - TP RS485 listener

7 - DC2 slave 8 - TPHB RS485 master 9 - TPHB RS485 listener 10 - ITRON2000 11 - DC3 slave 12 -TPHP RS485 master 13 - TPHP RS485 listener

P14 Modulation speed

for RS232 and RS485

1-7 1 1 200 Baud 2 2 400 Baud 3 4 800 Baud

9 600 Baud 5 19 200 Baud 6 38 400 Baud 7 57 600 Baud

P 15 Transmission

parameters for RS232 and RS485

Number of data bits 8

P 16 Number of stop bits

P 17 Parity n no parity

o odd E even

P 18 Special operation

mode

normal mode 1 special mode 1 2 special mode 2

P19 Network operation

mode

1 NTP and PoE: multicast (without IP address)

WiFi: initial network MOBA – WIFI, IP address assigned by

DHCP 2* NTP and PoE: unicast – network param. defined manually

WiFi: wireless network defined by user, IP address set

manually

NTP and PoE: unicast – network param. defined by DHCP

WiFi: wireless network defined by user, IP address assigned

by DHCP

P20 IP address IP*

edit network parameters in manual setting mode or display

parameters assigned by DHCP

P21 Subnet mask Su* P22 Gateway Gt* P23

Multicast addr. Mc* setting of multicast group address

P24

Unicast NTP addr Uc* setting of NTP unicast server address

SW version r_._(e.g.: r1.15)

* possibility to enter the submenu. Items P19 to P24 available in NTP and WiFi variants only

6 Control of the stopwatch via keyboard

The operation of the stopwatch is controlled and the device is adjusted using three pushbuttons on the connected keyboard. The keyboard cable must be connected to the CTRL plug connector.

Abbreviations used for the key strokes PB1L, PB2L pushing of the pushbutton for a period of

more than 1 second

PB1S, PB2S, PB3S short-time pushing of the pushbutton

Function of the pushbuttons in the “Stopwatch“ mode PB2S indication switch over:

time - date - temperature - stopwatch - time

PB2L stopwatch menu PB3S, PB1S, PB1L according to the stopwatch mode setup

6.1 The stopwatch menu

The stopwatch menu is entered by long pushing of the PB2 pushbutton (stopwatch must be displayed). The parameter adjustment is to be performed according to the menu table (chapter 8).

Function of the pushbuttons in the “Stopwatch Menu“ mode PB1S move to another menu item

PB1L storage of the parameters; return to the

stopwatch display mode when counting up from zero; or entry into the initial time setting mode when counting down

PB2S increase of the current value, in steps of 1 PB2L continuous increase of current value

6.2 Setting of the initial time for counting down

When counting down is selected, the initial time setting mode is entered from the stopwatch MENU or directly from the “Stopwatch” display mode by pushing the PB1L button. The item to be set is blinking. By pushing the PB2S button is the adjusted value increased in steps of 1, by pushing the PB2L button will be the value continuously increased. By pushing PB1S move to the next item. By pushing the PB1L save the setting and return to “Stopwatch” display mode.

Enter the data in the following order depending on the item S2 setting (unit):

By pushing the PB1L button, the entered values are stored and the clock returns to the “Stopwatch” display mode.

Counting unit Data order

1/100 second <Minute>:<Second>.<Hundredths of

second> 1 second <Hours>:<Minutes>:<seconds>. 1 minute <Hours>:<Minutes> 1 day <Days>

7 Control of the stopwatch using IR remote control

A 2-digit address is assigned to the stopwatch. With the IR remote control the stopwatch can be locked. Controlling and the stopwatch parameter adjustment are only allowed in unlocked state.

Function of the pushbuttons in the “Stopwatch“ mode

pushing the F1 button + entry unlocking of a clock with the corresponding of 2-digit address using numerical address pushbuttons

holding down the F1 button unlocking of all clocks within the reach of the IR beam of the remote control

holding down the F2 button locking of all clocks within the reach of the IR beam of the remote control

holding down the F3 button display of the addresses of all locked clocks

within the reach of the IR beam of the remote control

CLOCK visualisation of time DATE visualisation of date TEMP visualisation of temperature TIMER visualisation of the stopwatch MENU entry into stopwatch parameter setup menu SET entry into setting initial time of counting down S/S, HOLD, RES function depends on the stopwatch operation

mode set

7.1 The stopwatch menu

The stopwatch menu is entered by pushing MENU button (stopwatch must be displayed). The parameter adjustment is shown in the stopwatch menu table (chapter 8).

Function of the pushbuttons in the “Stopwatch Menu“ operation mode >> storing the current value and transition

to another menu item << storing the current value and transition to previous menu item The + button increase of the adjusted value in steps of 1 The - button decrease of the adjusted value in steps of 1

Holding down the + button continuous increase of the item set up Holding down the - button continuous decrease of the item set up

ESC return into normal display mode, OK storage of the parameters; return into the

stopwatch display mode when counting up from zero; or entry into the initial time setting mode when counting down

7.2 Setting of initial time for counting down

Enter data in following order depending on the item S2 setting (counting unit):

By pushing the OK button, the entered values are stored and the clock returns to the “Stopwatch” display mode. By pushing ESC, the clock returns without storing.

7.3 Switching contact

When counting down mode is applied optional switching contact can be used, which switches at zero-crossing. It is possible to control an external device such as sound devices. There is normally open contact (NO), normally closed contact (NC) and common contact (COM) on the relay port (JP27) available.

Counting unit Data order

1/100 second <Minutes>:<Seconds>.< Hundredths

of second > 1 second <Hours>:<Minutes>:<Seconds>. 1 minute <Hours>:<Minutes> 1 day <Days>

8 Stopwatch menu table

Program

option

Function Scope of the values

(default values are printed in bold)

S0 Counting

direction

1 - 4

upwards

downwards from a time moment set in advance, with stop at zero

downwards from a time moment set in advance until zero, with automatic restart from a specified time moment

downwards from a set time moment, until zero, and keeping the cont into minus value

S1 Control of

intermediate time periods (correspondin g keyboard keys are listed in brackets)

1 – 4

S/S (PB3S)

Alternating START - STOP -„UNFREEZE“ of DISPLAY

(if it was frozen) HOLD (PB1S)

“Freezing” of displaying data with the counter

proceeding in the counting

RES (PB1L)

Setting the counter to zero in STOP operation

mode, for counting up, and return to a present

value in all other counting mode

S/S (TL3K)

Alternating START - STOP -„UNFREEZE“ of

DISPLAY

(if it was frozen)

HOLD (PB1S)

The first depression of this button causes the

display to freeze on the respective time

achieved and lets the counter running.

Further activation of the button shows the

intermediate time elapsed from the first

depression of the button.

RES (PB1L)

Reset of the counter in the STOP mode while

in counting up. Return to a preset value in

other counting modes.

S/S (PB3S)

count up from zero, or from a present value in

countdown mode. Next activation of the

button causes the display to freeze and to

resume the count from zero in counting up, or

from a preset value in countdown mode. HOLD (PB1S)

Unfreezing of the display, leaving the counter

to continue in counting RES (PB1L)

Counter reset (to zero), or return to a preset

time followed with counter stop

S/S (PB3S)

Triggering the counter

HOLD (PB1S)

Stopping the counter

RES (PB1L)

Resetting the counter or return to a preset

time, with counter stop

Counting unit

1 - 4

Counting in increments of 1/100 sec. (with 4-digit display the counting goes on until 59.99 sec., and then continues with displaying of minutes : seconds).

2 Counting in increments of 1 second (with 4-digit display the

counting goes on until 59 minutes and 59 seconds; and follows with displaying of hours : minutes).

3 Counting in 1 minute steps 4 Counting in periods after one day. A subtraction or an

addition always takes place around midnight. Capacity of counting up to 9999 days. When counting is stopped, the dot is displayed after the last digit.

S3 Contact

closing

1 – 30, 0 (function disabled)

Time period of contact closing for stopwatches passing through zero, while operating in countdown mode, starting from a preset time moment.

The stopwatch count range

Counting direction

Upwards Downwards

Counting unit Format

S0: 1

Max.

S0: 2;3

Min.

S0: 4

Min.

S0: 2;3;4

Max.

1/100 second MM:SS.HS

59:59.99 00:00.00 -9:59.99 59:59.99

1 second HH:MM:SS

99:59:59 00:00:00 -9:59:59 99:59:59

1 minute HH:MM

99:59 00:00 -9:59 99:59

1 day DDDD

9999 0000 0000 9999

9 Local time calculation

9.1 Basic setting – control according to source of synchronization

P3 A Time zone is taken over according to the source

of synchronization

P4 2 – 12, A Synchronization signal type

P6 0 Neither MOBALine time zone nor Timezone-

server are used

P7 A Display time and date according to source of

synchronization incl. daylight saving time

This setting is suitable for digital clocks synchronized by a DCF receiver or controlled by a master clock as slave clock in a time distribution system. The internal time zone table isn’t used.

9.2 Calculation using MOBALine time zones

This setting is suitable for digital clocks controlled by a master clock as a MOBALine slave clock in a time distribution system with possibility to display different MOBALine time zones

9.3 Calculation using Timezone-server MOBATIME

This setting is suitable for NTP digital clocks controlled by MOBATIME NTP servers which support the Timezone-server functionality.

P3 A Time zone is taken over according to the source of

synchronization. The UTC time calculation is based

on the MOBALine information. P4 4 MOBALine P6 1 - 20 Selection of the MOBALine time zone P7 A Display time and date according to chosen

MOBALine time zone, incl. daylight saving time

P3 A NTP protocol uses UTC time zone P4 A automatic P6 1 - 15 Selection of the Timezone-server time zone P7 A Display time and date according to chosen

Timezone-server time zone, incl. daylight saving

time

9.4 Calculation using timezone entries preconfigured by MOBA-NMS software

P3 A NTP protocol uses UTC time zone P4 A automatic P6 0 No timezone server is used P7 U1-U7 Display time and date according to chosen preconfigured

timezone entry, incl. daylight saving time

This setting is suitable for NTP digital clocks, where several user defined timezone entries should be used. The timezone enties are preconfigured by means of the MOBA-NMS software.

9.5 Calculation according to internal time zone table

This setting is suitable for autonomous digital clocks or in cases when the displayed time in another time zone than the one provided by the synchronization source is needed. Displayed time and date calculation is based on the internal time zone table or on the user–specific time zone parameters. See the chapter 15 with actual Time zone definition table.

P3 0 – 64 According to the time zone in which source of

synchronization works (e.g. value 2 for DCF in west Europe)

P4 1 – 12, A Autonomous operation or any type of the

synchronizing signal

P6 0 Neither MOBALine time zone nor Timezone-

server are used

P7 0 – 64, U Display time and date by calculation from the

UTC time according to chosen time zone, incl. daylight saving time

10 Non-network clock operation

Configure the jumper JP11 according to table (chapter 2.7.) if the source of synchronization is DCF signal, Mobatime serial code, polarized impulse line, MOBALine or IRIG-B. Choose the item P4 in main MENU (chapter 5) and set the type of synchronization. The auto detection mode (P4:A), when the type of synchronization signal is set automatically, is applicable for DCF signal, Mobatime serial code, MOBALine, IRIG-B and WTD. The permanently lit colon during the time display signalizes the clock is synchronized by the synchronisation source.

10.1 Autonomous clock synchronized by DCF 77 receiver

 Set value A in items P3, P4 and P7 in the main MENU (chapter 5).  Connect the DCF 77 receiver to the LINES connector (IN+, IN- terminals)

using a twin-wire cable.

 The maximum wire length depends on its diameter (app.100 - 300 m).  In case the connection is correct and the input signal is at high level, the LED

on the receiver is flashing periodically once a second, with 1 pulse left out at the 59th second.

 In case the polarity is incorrect, the LED does not flash. In such a case,

interchange the two wires.

 Install the receiver at a place with high-level radio signal. Don’t install the

receiver near sources of interfering signals, such as the personal computers, TV sets or other types of power consumers (the digital clock itself generates interfering signals too).

 Position the receiver with its transparent cover (DCF 450) or the arrow on the

cover (DCF 4500) facing the transmitter (located in Frankfurt, Germany). Presuming the good quality DCF 77 signal the synchronisation takes place in approx. 3 to 4 minutes. In case of poor quality of the signal (mainly during the day time) the first time setting is to be done manually. The red LED of the receiver displays a working connection by flashing once a second without flickering.

10.2 Autonomous clock synchronized by GPS4500 receiver

 Set value A in items P3, P4 and the desired time-zone in the P7 item in the

main MENU (chapter 5).

 Using jumper JP17 set the power supply output (DC OUT) on pins 3, 4 of the

JP1 connector.

 Connect GPS receiver to the LINES connector (IN+, IN- terminals for the

signal and P3+, P4- terminals for antenna powering) using a four-wire cable. Please note the correct polarity of the wires – see the GPS user manual.

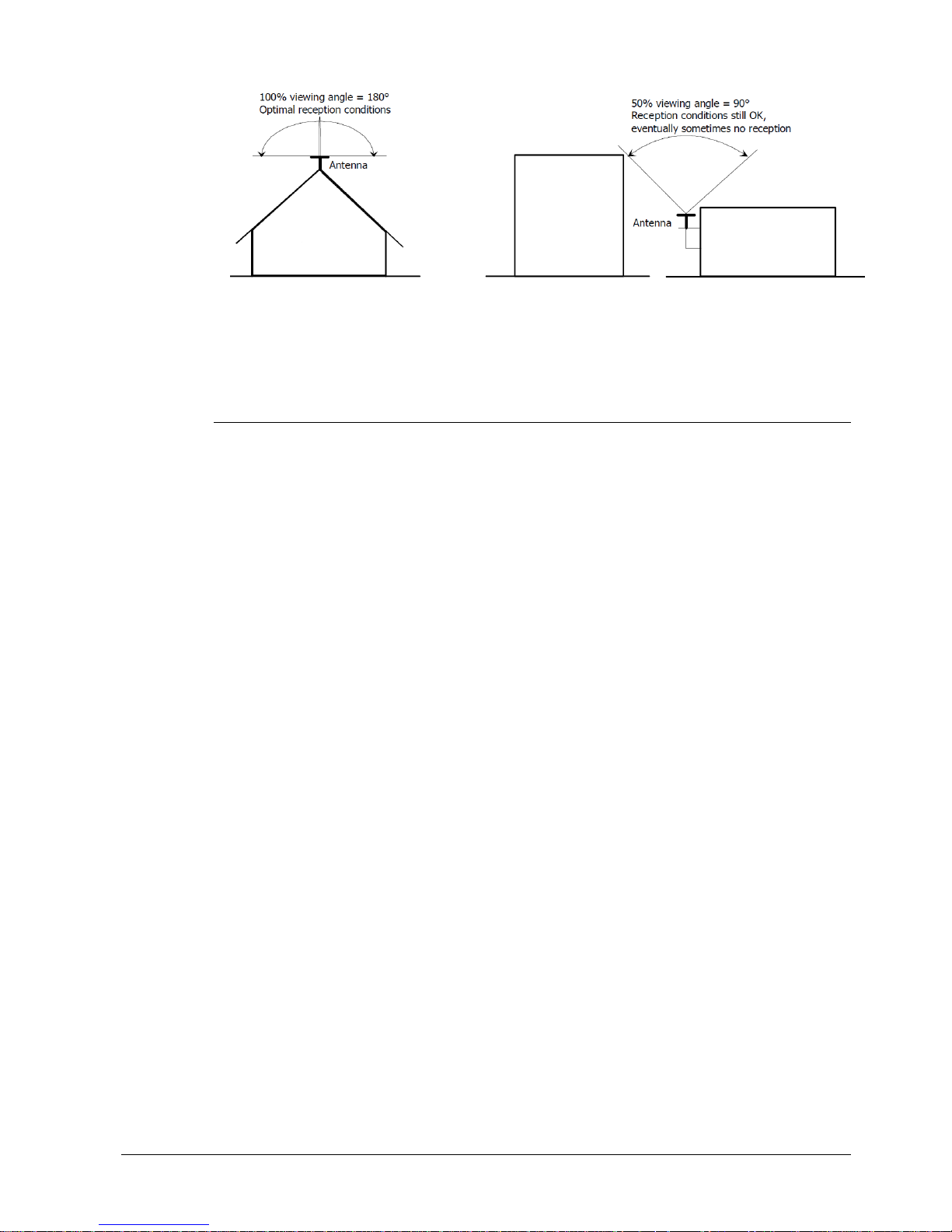

 For the correct placing of the receiver please follow the GPS user manual.  Presuming the good position of the GPS receiver the synchronisation takes

place in approx.10 to 20 minutes.

10.3 Autonomous clock synchronized by internal GPS receiver

 Set value A in items P3 and P4 and the desired time-zone in the P7 item in

the main MENU (chapter 5).

 Connect the GPS antenna cable to dedicated SMA connector.  Place the GPS antenna according to following recommendation

 Presuming the good position of the GPS antenna the synchronisation takes

place in approx. 6 to 8 minutes.

 Reception of the GPS data is indicated by blinking GPS LED on the PCB.

10.4 Slave clock controlled by synchronizing impulses

On digital clock connected in time distribution system controlled by synchronizing impulses choose the item P4 in the main menu and set it according type impulse lines (one minute, half minute, second pulses) and in item P5 choose mode of processing impulse line (polarized / unpolarized impulses, synchronization and time setting / synchronization only). Set the value A in items P3 and P7.

10.4.1 Synchronization and time setting – P5 mode 1 and 3

Clocks are set according to the slave line time on the Master clock.

 Stop the slave line on Master clock.  Set all slave clocks on the same time. Set the current date on the digital

clock. The clocks stand still and the colon flashes in 2 second interval.

 Set the time of the slave line to the same time as on slave clocks.  Run the slave line on Master clock.  After receiving each impulse is displayed time increased by one minute

(or by 30 seconds or 1 second respectively)  After the expiration of run-out time the slave clocks are synchronized by the

time information generated by the master clock, the colon flashes constantly.

 In case of the line fault the clock displays the right time information based on

its own quartz time base. When the normal operation of the line resumes, the slave clock adjusts itself to the time equal to the master clock.

10.4.2 Synchronization only – P5 mode 2 and 4

The clock time-base is synchronized by incoming pulses in normal operation of the slave line.

 Set current date and time on the slave clocks according the master clock

time with accuracy of ±30 seconds (or ±15 seconds, or ±0,5 second respectively).

 The colon flashes in 2 second interval.  After 2-3 minutes are the clocks synchronized with the master clock. The

colon is permanently lit during the time display.

 In case of the line fault the clock displays the right time information based on

its own quartz time base. When the normal operation of the line resumes, the clock synchronizes with the incoming pulses.

10.5 Slave clock controlled by MOBATIME serial code, MOBALine, Active DCF code or IRIG-B

 After the connection of the digital clock to the signal source, time and date

are adjusted automatically, following the receipt of valid time information.

 In case of Active DCF code set the menu item P4 to value 12, otherwise use

the value A.

 The time setting with using the MOBATIME serial code or Active DCF code

takes place within at least 3 to 4 minutes, for MOBALine and IRIG-B within 6 to 15 seconds.

10.6 Slave clock controlled by IF482 over RS232 or RS485

 After the connection of the digital clock to the line, time and date are

adjusted automatically, following the receipt of valid time information.

 Synchronisation takes place within at least 5 minutes.

10.7 Slave clock controlled by supervised RS485

Supervised RS485 line available on the DTS.480x timeservers offers exact time synchronization as well as monitoring the correct function of connected slave clocks.

 If the DC clock should be monitored set in menu item P8 unique address in

the range 1 to 32. The value "L" means that the clocks are synchronized only (without monitoring).

 It is necessary to register the clock under the used address in DTS.  The time synchronization starts within a few tens of seconds after start-up.  Failure of slave clock function is signalized by an alarm in DTS.  On the RS485 line you can use the jumper TRE - JP10 to connect the

termination resistor 120R between the signals A and B for the correct termination of RS485.

10.8 Cascaded connection of the DCF/GPS synchronised clock

 Connect the DCF 77 receiver to the LINES connector (IN+, IN- terminals)

using a twin-wire cable.

 Set the passive DCF OUT output 3, 4 of the JP1 connector using the jumper

JP17.

 When using the GPS receiver, the external power supply is needed -

parameters 12-24 VDC – min. 5VA.

 Interconnect the cascaded clock using a twin-wire cable from the LINES

connector (P3+, P4- terminals) to the LINES connector (IN+, IN- terminals) of the next clock.

 In case the connection is correct and the input signal is at a high level, the

LED on the receiver and the green LED in the clock is flashing periodically once a second, with 1 pulse left out at the 59th second.

10.9 Synchronization in WTD system

 The items P3, P4 and P7 are set to value A by the production.  Set the P8 item to the address of the WTD-T transmitter.

 The colon is permanently lit after successful signal receiving from WTD-T

transmitter.

10.10 Connecting the slave displays through RS485

The clock equipped with the SI interface allows connecting up to 32 slave displays, which show the same information as the main display. The RS485 (JP5) interface is used for the connection. Two signals (A, B) and the ground connection GND (from the JP4) are used. For the signals A and B it is recommended to use the twisted pair (pay attention for the same polarity by all displays), another twisted pair is used for the GND connection.

If the overall length of the RS485 bus is longer than ca 500m, enabling the TRE – JP10 is recommended in the last clock.

 In the clock serving as the master display, set the P13 to value 3 (DC

master)

 In the slave displays set the P13 to value 4 (DC slave)  Items P14 – P17 are set automatically to 9600 baud, 8 bits, even parity, 1

stop-bit.

In case of communication problems it is possible to lower the communication speed. The modification of the items P14-P17 is necessary to proceed in all connected displays identically.

11 NTP clock operation

11.1 Unicast mode

The clock is synchronized to UTC (Universal Time Coordinated) from a NTP server (up to four NTP server IP addresses configurable) and must have assigned its own IP address.The clock requests in defined intervals the actual time from the NTP server. If the server is not available, the clock tries to contact the other defined servers in cyclic way until the valid response from the NTP server is received.

This operating mode supports the monitoring and configuration of the movement via the network connection by means of the Telnet, SNMP or the MOBA-NMS software tool. For supervision and configuration with MOBA-NMS the clock’s IP address can be used or the multicast group address having last octet cleared to zero (presuming the multicast is not disabled).

It is necessary to set apropriate time-zone for correct displaying of local time and date – see the chapter 9 for details.

Default network parameters:

IP address 0.0.0.0 subnet mask 0.0.0.0 default gateway 0.0.0.0 NTP server address 1 0.0.0.0 NTP server address 2 0.0.0.0 NTP server address 3 0.0.0.0 NTP server address 4 0.0.0.0 NTP request time [s] 10 DNS server 0.0.0.0 SNMP manager 1 0.0.0.0 SNMP manager 2 0.0.0.0 multicast config address 239.192.54.0 alive notification interval [min] 30 configuration port number 65532 time zone client port number 65534 DHCP enabled SNMP enabled Multicast support enabled Telnet enabled

11.1.1 Network parameters assignation by DHCP

The menu item P19 must be set to value 3 (default). Network parameters are automatically obtained from a DHCP server. The following DHCP options will be evaluated automatically: [50] IP address [3] Gateway address [1] Subnet mask [42] List with up to four NTP server addresses [42] Time zone server address (usually same as NTP server address) [234] SNMP manager address [43] or [224] Additional options (refer to document BE-800793) The network administrator must configure the DHCP options accordingly. Assigned parameters can be checked in the submenu of items P20 to P22.

11.1.2 Manual setting through setup menu The menu item P19 must be set to value 2.

 See chapter 4.2.4 for setting the clock’s IP address in the item P20 submenu  See chapter 4.2.5 for setting the subnet mask in the item P21 submenu  See chapter 4.2.6 for setting the gateway in the item P22 submenu  See chapter 4.2.7 for setting the multicast group address in the item P23

submenu

11.1.3 See chapter 4.2.8 for setting the unicast NTP server address in the item P24

submenu. Manual setting through telnet

The menu item P19 must be set to value 1 or 2. To establish the first connection through telnet, the following procedure is needed because the initial IP address of the clock is 0.0.0.0:  assign a new IP address to the clock’s MAC address (marked on the product

label) by windows command arp -s <IP address> <MAC address> example: arp -s 192.168.0.190 00-16-91-FE-90-00

 reset the clock or power-cycle it and do the following within 2 minutes  the IP address is temporarily matched to the clock (only valid when the

current IP address is 0.0.0.0) by windows command ping <IP address> , the clock should answer the two last ECHO requests at least

example: ping 192.168.0.190

 do the following within 30 seconds after the ping

connect to the clock and make the needed settings (see lower) by windows command telnet <IP address> or use the Hyperterminal application

Setting parameters over telnet:

 request for entering the password appears after connection (default

password is 718084)

 the information about software and hardware version followed by the MAC

address is displayed after entering the correct password

 inserted commands must be confirmed by pushing the Enter key, use the

Backspace key for correcting typing errors

 command help or ? displays help with a command list  command reset resets the clock (changes are written to Flash)  command conf -p displays current parameters from setup menu  command conf –n displays current network parameters  command conf -? displays help for command conf parameters

example: conf -i 192.168.0.190 sets the clock’s IP address to 192.168.0.190

 it is necessary to end telnet connection by command exit

Windows 7 note: The telnet is not activated in Windows 7 by default. For activating it go to the “Control Panel” in “Start menu”, click on “Uninstall a program (link)” in “Control Panel”, click on “Turn Windows features on or off (link)” in “Programs and Features”, click in “Windows Features” box and find the “Telnet Client” check box. Allow the system to install the appropriate files – should take only a few seconds. The administrator rights are necessary for this operation.Hyperterminal note: The Hyperterminal application can be used as an alternative to telnet. It is necessary to activate the “Send line ends with line feeds” and “Echo typed characters locally” in the Properties -> Settings -> ASCII setup window.

11.1.4 SNMP

The DSC clock supports SNMP version 2c notifications and parameter reading and setting by means of SNMP GET and SET commands. This allows to integrate the clock to a network management system. The DSC clock (SNMP agent) can send alarm notifications and alive notifications to a SNMP manager. The IP address of the SNMP manager can be provided to the clock by DHCP, Telnet, SNMP or the MOBA-NMS. The structure of supported parameters is defined in a MIB file (refer to document TE-800728 for details). In addition the clock supports the “system” node parameters defined by MIB-2 (RFC-1213) Alarm notifications are asynchronous messages and are used to inform the manager about the appearance / disappearance of alarms. Alive notifications are sent out periodically to report availability and state of the clock. The interval time can be configured.

SNMP community strings:

read community romobatime read / write community rwmobatime notification (trap) community trapmobatime

11.2 Multicast mode

The clock is synchronized to UTC (Universal Time Coordinated) from a NTP server. The clock receives NTP multicast packets transmitted by the NTP server in a specified time cycle. This type of synchronization requires no clock’s own IP address and is therefore suitable for an easy commissioning of the large systems of slave clocks. Further this mode supports monitoring and parameter configuration by means of MOBA-NMS software.

For supervision and configuration with MOBA-NMS the multicast group address can be used or the multicast group address having last octet cleared to zero. The Multicast operating mode signifies only a minimum amount of configuration work for a network administrator.

It is necessary to set apropriate time-zone for correct displaying of local time and date – see the chapter 9 for details.

Default network parameters:

multicast group address 239.192.54.1 multicast config address 239.192.54.0 configuration port number 65532 time zone client port number 65534

The menu item P19 must be set to value 1. See chapter 4.2.7 for setting the multicast group address in the item P23 submenu.

12 WiFi clock operation

In the item P19, choose if the clock will be connected to default wireless network MOBA-WIFI, where network parameters (IP address, subnet mask and gateway) will be set automatically (DHCP), or to wireless network set by user via telnet, where network parameters could be set manually (telnet, clock menu) or automatically (DHCP). If the DHCP is used, the parameters assigned by the server can be checked in the items P20 to P22 submenus.

12.1 Parameters of default wireless network

Net name (SSID): MOBA-WIFI Used coding: WPA Coding key: hgfedcba DHCP: allowed

12.2 Setting process

 set WiFi router to parameters of default wireless network  in the item P20 submenus display assign IP address  by windows command telnet <IP address> connect to the clock and make

needed setting (see lower) example: telnet 192.168.0.190

Setting the network parameters using telnet

 it is necessary to push ENTER key after connection  the request for the password appears (initial password is 718084)  the software and hardware version displays if password entering was

successful

 inserted commands can be send off using Enter key, the Backspace key

serves for correction of the typing errors

 command help or ? displays help with command’s list  command reset makes clock reset (setting modifications are written to data

flash)

 command conf –p displays current setting of the menu parameters  command conf –n displays current network parameters, MAC address and

wireless network parameters

 command conf –? displays help for command conf parameters  it is necessary to end telnet by command exit  After expiration of two minutes timeout after telnet ending there is another

two minute period, when the telnet is not functional. The clock is then performing the NTP time synchronisation. This period also takes place at the beginning of every hour.

Example of setting network parameters using telnet:

 command conf –l mobatime set network name of new wireless network  command conf –w 4 set version of used coding on WPA2 for new wireless

network

 command conf –d abcdefg set the security key for new

wireless network

 command conf –u 192.168.0.130 set IP address of NTP server on

192.168.0.130  command conf –p19:02 set the clock for connecting to the new initiated wireless

network with manually preset network parameters

 command conf –i 192.168.0.190 set clock IP address to 192.168.0.190  command conf –s 255.255.255.0 set subnet mask of the clock on 255.255.255.0  command conf –g 192.168.0.254 set gateway of the clock on 192.168.0.254  command exit ends telnet and writes changes into Flash

13 Testing mode, parameter reset

13.1 Synchronisation test

The synchronisation signal receive process can be displayed in special testing mode. This can be useful for example when the problems with the DCF signal receipt appear.

Display description during synchronisation test mode:

Two digits on the left side show the current DCF bit number (goes up from 0 to

58). Third digit show the type of current DCF bit (0 or 1). The last digit shows the number of successfully received DCF telegrams. The colon indicates that the DCF bit is currently received. The dot behind the last digit signalizes synchronised clock.

Entering the synchronisation test mode:

 Enter the clock menu, move to the software version item by several pushes

of the PB1S on the control PCB or >> on IR.

 Keep pushing both buttons on control PCB simultaneously or button DISP on

IR until the display shows C0:00

 Use the PB2 or + button on IR to set the value behind the colon to 03  Keep pushing simultaneously both clock PCB buttons or the DISP button on

IR, until the display shows synchronisation information

13.2 Parameter reset

If necessary, the clock parameters can be set to factory defaults by the following procedure.

Activating the parameter reset:

 Enter the clock menu, move to the software version item by several pushes

of the PB1S on the control PCB or >> on IR.

 Keep pushing both buttons on control PCB simultaneously or button DISP on

IR until the display shows C0:00

 Using the PB2 or + button on IR set the value behind the colon to 04  Keep pushing simultaneously both clock PCB buttons or the DISP button on

IR, until the display shows FAC1 and clock makes reset

14 Update firmware

14.1 Update firmware using RS232

 Switch-off the clock.  Install and run the Flash Magic software.  Open the configuration file „LPC2366 dc3.fms“ over the File -> Open

Settings menu

 Set used COM Port and open file firmware „DSC_<version>.hex“ (e.g.

DSC_NTP_POE_v349.hex) using the Browse key

 Connect the programmer to serial COM Port of computer (the USB-RS232

converter can be used) and connect the power supply to the jack on the programmer.

 Install the jumper ISPE (JP9).  Connect the programmer to connector PROG (JP8), LED POWER placed on

the clock lights up.

 Click the Start button to run programming, after completion a “Finished”

message will be displayed in the bottom part of the widow

 Disconnect the programmer and remove the ISPE jumper.  Firmware version can be checked in the last item of clock menu.

14.2 Update firmware over Ethernet at NTP version

 Create a folder on the computer disk and copy "tftpd32.ini", "tftpd32.chm"

and "tftpd32.exe" in it. Copy the file of new firmware "dc3app.bin" as well.

 Run "tftpd32.exe" let only TFTP Server in the window Settings -> Global

Settings set, don’t change other settings.

 By the Browse key open choice of active directory and find the one which

contains the given firmware

 Connect to the clock by the windows command telnet <ip clock address>

example: telnet 192.168.0.190

 The page of telnet requesting will appear, after the password entered

identification of current software version and clock MAC address displays.

 Enter the command fu in telnet window for start the automatic update clock

firmware from the "dc3app.bin" file.

 Information about sending file and its progress displays in the tftpd32

programme window after the command entering. Connection to telnet is ended automatically.

 Wait about 1 minute after end of sending. Connect the telnet to clock again.  After entering the password, check if the firmware version is correct, if it isn’t,

it is necessary to repeat the whole procedure.

 Close the telnet window and end the program tftpd32 with the command exit.

15 Time zone table

Time zone entries in the standard season table (version 10.1).

Time zone

City / State UTC

Offset

DST

Change

Standard → DST DST → Standard

UTC (GMT),

Monrovia, Casablanca

0 No

London, Dublin,

Edinburgh, Lisbon

0 Yes Last Sun. Mar. (01:00) Last Sun. Oct. (02:00)

Brussels, Amsterdam,

Berlin, Bern,

Copenhagen, Madrid,

Oslo, Paris, Rome,

Stockholm, Vienna,

Belgrade, Bratislava,

Budapest, Ljubljana,

Prague, Sarajevo,

Warsaw, Zagreb

+1 Yes Last Sun. Mar. (02:00) Last Sun. Oct. (03:00)

Athens, Istanbul, Helsinki,

Riga, Tallinn, Sofia,

Vilnius

+2 Yes Last Sun. Mar. (03:00) Last Sun. Oct. (04:00)

04 Bucharest, Romania +2 Yes Last Sun. Mar. (03:00) Last Sun. Oct. (04:00) 05

Pretoria, Harare,

Kaliningrad

+2 No

06 Amman +2 Yes Last Thu. Mar. (23:59) Last Fri. Oct. (01:00) 07 UTC (GMT) 0 No 08

Kuwait City, Minsk,

Moscow, St. Petersburg,

Volgograd

+3 No

09 Praia, Cape Verde -1 No 10 UTC (GMT) 0 No 11

Abu Dhabi, Muscat,

Tbilisi, Samara

+4 No

12 Kabul +4.5 No 13 Adamstown (Pitcairn Is.) -8 No 14

Tashkent, Islamabad,

Karachi, Yekaterinburg

+5 No

Mumbai, Calcutta,

Madras,

New Delhi, Colombo

+5.5 No

Astana, Thimphu, Dhaka,

Novosibirsk

+6 No

Bangkok, Hanoi, Jakarta,

Krasnoyarsk

+7 No

Beijing, Chongqing, Hong

kong, Singapore, Taipei,

Urumqi, Irkutsk

+8 No

Tokyo, Osaka, Sapporo,

Seoul, Yakutsk

+9 No

20 Gambier Island -9 No 21 South Australia: Adelaide +9.5 Yes 1st Sun. Oct (02:00) 1st Sun. Apr. (03:00) 22 Northern Territory: Darwin +9.5 No 23

Brisbane, Guam,

Port Moresby, Magadan,

Vladivostok

+10 No

Sydney, Canberra,

Melbourne, Tasmania:

Hobart

+10 Yes 1

Sun. Oct. (02.00) 1st Sun. Apr. (03:00)

25 UTC (GMT) 0 No 26 UTC (GMT) 0 No 27

Honiara (Solomon Is.),

Noumea (New

Caledonia),

+11 No

28 Auckland, Wellington +12 Yes Last Sun. Sep. (02:00) 1st Sun. Apr. (03:00) 29

Majuro (Marshall Is.), ,

Anadyr

+12 No

30 Azores -1 Yes Last Sun. Mar. (00:00) Last Sun. Oct. (01:00) 31 Middle Atlantic -2 No 32 Brasilia -3 Yes 3rd Sun. Oct. (00:00) 3rd Sun. Feb. (00:00) 33 Buenos Aires, Santiago -3 No 34 Newfoundland, Labrador -3.5 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00) 35 Atlantic Time (Canada) -4 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00) 36 La Paz -4 No 37 Bogota, Lima, Quito,

Easter Island, Chile

-5 No

New York, Eastern Time

(US & Canada)

-5 Yes 2

Sun. Mar. (02:00) 1st Sun. Nov. (02:00)

Chicago, Central Time

(US & Canada)

-6 Yes 2

Sun. Mar. (02:00) 1st Sun. Nov. (02:00)

40 Tegucigalpa, Honduras -6 No 41 Phoenix, Arizona -7 No 42 Denver, Mountain Time -7 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00) 43 Los Angeles, Pacific Time -8 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00) 44 Anchorage, Alaska (US) -9 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00) 45 Honolulu, Hawaii (US) -10 No 46 Midway Islands (US) -11 No 47 Mexico City, Mexico -6 Yes 1st Sun. Apr. (02:00) Last Sun. Oct. (02:00) 48 Adak (Aleutian Is.) -10 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00) 49 UTC (GMT) 0 No 50 UTC (GMT) 0 No 51 UTC (GMT) 0 No 52 UTC (GMT) 0 No 53 UTC (GMT) 0 No 54 Scoresbysund, Greenland -1 Yes Last Sun. Mar. (00:00) Last Sun. Oct. (01:00) 55

Nuuk,

Qaanaaq,Greenland

-3 Yes Last Sat. Mar. (22:00) Last Sat. Oct. (23:00)

56 Qaanaaq, Greenland -4 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00) 57 Western Australia: Perth +8 No 58 Caracas -4.5 No 59 CET standard time +1 No 60 Santiago, Chile -4 Yes 2nd Sun. Oct. (00:00) 2nd Sun. Mar. (00:00)

61 Chile, Easter Island -6 Yes 2nd Sat. Oct. (22:00) 2nd Sat. Mar. (22:00) 62 Baku +4 Yes Last Sun. Mar. (04:00) Last Sun. Oct. (05:00) 63 UTC (GMT) 0 No 64 UTC (GMT) 0 No

In countries where the DST switch date changes annually (e.g. Iran, Israel), the time zone has to be defined manually in the user time zone table (entries 80 – 99).

Legend:

UTC: Universal Time Coordinate, equivalent to GMT DST: Daylight Saving Time DST Change: Daylight Saving Time changeover Standard  DST: Time change from Standard time (Winter time) to Summer time DST  Standard: Time change from Summer time to Standard time (Winter time)

Example:

last Sun. Mar. (02:00) Switch over on the penultimate Sunday in March at 02.00 hours local time.

16 Engineering data

16.1 Standard design of the clock

Specifications

DSC.100.4

DSC.100x.6

DSC.180.4

DSC.180x.6

DSC.250.4

DSC.250x.6

DSC.320.4

DSC.320x.6

DSC.500.4

DSC.500x.6

Display

digit height [mm]

100 100 180 180 250 250 320 320 500 500

number of digits

4 6 4 6 4 6 4 6 4 6

Time display format

HH : MM



HH : MM : SS



Date display format

DD. MM.



DD. MM. YY



Powering

100-240V~, 50-60 Hz

         

24 V= ± 20% on request

Power consumption [VA]

single-sided 20 30 30 40 45 65 70 100 70 100

double-sided 40 60 60 80 90 130 140 200 140 200

Timekeeping in ambient temperature

-25 ÷ +60 °C

running reserve 6 years

accuracy without synchronization

±0,3 sec/day

Accuracy of temp. measurement

range -25 ÷ +80 °C

±0,5 °C

range -50 ÷ +125 °C

±2,0 °C

Environment

temperature -25 ÷ +60 °C

humidity 0 - 95% (without condensation)

protection degree

IP 65

Weight [kg]

single-sided N.N version

6 8 10 13,5 17 24,5 21,5 30,5 52,5 75

single-sided N.S version

8,5 11,5 14 19,5 24 32 30,5 42 75 98

single-sided N.B version

8,5 12 14,5 19,5 24 32,5 31 42,5 75,5 98,5

double-sided D.S version

13,5 19 23 31,5 39,5 54 50,5 69,5 122 164,5

double-sided D.B version

13,5 19 23,5 31,5 40 54,5 50,5 70 122,5 165

Dimensions [mm] (W x H x D)

single-sided N.N version

530x191

x 85

750x191

x 85

840x260

x 85

1220x260

x 85

1250x350

x 85

1740x350

x 90

1410x410

x 90

2090x410

x 90

2200x640

x 105

3250x640

x 105

single-sided N.S version

530x300

x 100

750x300

x 100

840x360

x 100

1220x360

x 100

1250x450

x 100

1740x450

x 105

1410x510

x 105

2090x510

x 115

2200x790

x 115

3250x790

x 115

single-sided N.B version

580x191

x 100

800x191

x 100

900x260

x 100

1280x260

x 100

1320x350

x 100

1810x350

x 105

1490x410

x 105

2170x410

x 115

2300x640

x 115

3350x640

x 115

double-sided D.S version

530x300

x 165

750x300

x 165

840x360

x 165

1220x360

x 165

1250x450

x 165

1740x450

x 170

1410x510

x 170

2090x510

x 180

2200x790

x 180

3250x790

x 180

double-sided D.B version

580x191

x 165

800x191

x 165

900x260

x 165

1280x260

x 165

1320x350

x 165

1810x350

x 170

1490x410

x 170

2170x410

x 180

2300x640

x 180

3350x640

x 180

Note:

 dimensions of clock versions N.S and D.S are including ceiling suspensions

100 mm height (for model DSC.500.N.S and DSC.500.D.S 150 mm height)

 dimensions of clock versions N.B and D.B are including standard wall

bracket

 weights of clock versions N.S, N.B, D.S and D.B are including standard

ceiling suspensions or wall bracket

16.2 Voltage range and electric current consumption of the lines

Type of slave line Voltage range Electric current consumption

MOBALine 5 – 30 VAC 6 – 34 uA MIN, CODE +- 12 – 30 V 10 – 18 mA MIN, CODE (on request) +- 30 – 60 V 10 – 18 mA IRIG B 20 mVpp – 2 Vpp 20 uA – 2 mA

17 Accessories

17.1 Single sided clock

 Instruction manual 1 pc  IR remote control unit 1 pc  Wood screws for fixing the console 4 (6) pcs

inclusive dowels

17.2 Double side clock

 Instruction manual 1 pc  IR remote control unit 1 pc  Wood screws for fixing the suspension 4 (8) pcs

including dowels

17.3 Optional accessories

 AD 450 radiosignal receiver  AD 10 radiosignal receiver (high selectivity)  GPS 4500 receiver  magnetic GPS antenna for internal GPS receiver with cable 5m  TP 3m - temperature sensor, IP 66, with cable 3 m  TP 30m - temperature sensor, IP 66, with cable 30 m  TP RS485 - temperature sensor with RS 485 interface, power supply

12 VDC, without cable (max. length 1200m)

 TP LAN - temperature sensor with Ethernet interface, power supply 5 VDC,

cable between sensor and interface 3 m

 SK - keyboard for stopwatch control, cable 5 m  REL - internal relay

18 Cleaning

Clean surface of clock only. Use soft rags and antistatic detergents. Don’t use synthetics.

19 Disposal of used batteries

The user is lawfully obligated to return unusable batteries. Disposal of used batteries through household waste is prohibited! Batteries which contain dangerous substances are labelled with a picture of a crossed out trash bin. The symbol means that this product may not be disposed through household waste. Below the symbol, the dangerous substance is indicated with an abbreviation: Cd = Cadmium, Hg = Quicksilver, Pb = Lead. Unusable batteries can be returned free of charge at appropriate collection points of your waste disposal company or at shops that sell batteries. By doing so, you fulfil your legal responsibilities and help protect the environment.

20 Guarantee and maintenance

 The device is intended for a normal operational environment according to the

corresponding norm.

 The following circumstances are excluded from the guarantee:

- inappropriate handling or interventions

- chemical influences

- mechanical defects

- external environmental influences (natural catastrophes)

 Repairs during and after the guarantee period are assured by the manufacturer.

Mobatime DSC Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
