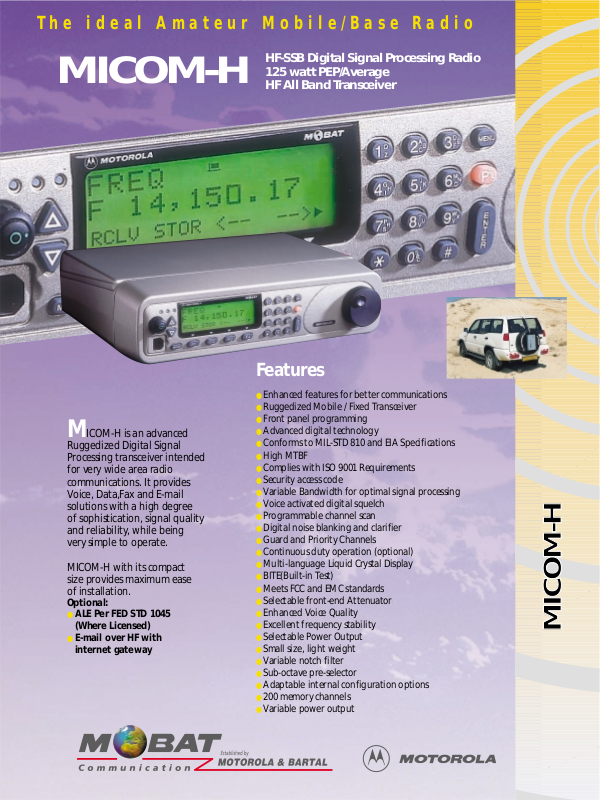

The ideal Amateur Mobile/Base Radio
HF-SSB Digital Signal Processing Radio
MICOM-H
125 watt PEP/Average
HF All Band T ransceiver
M

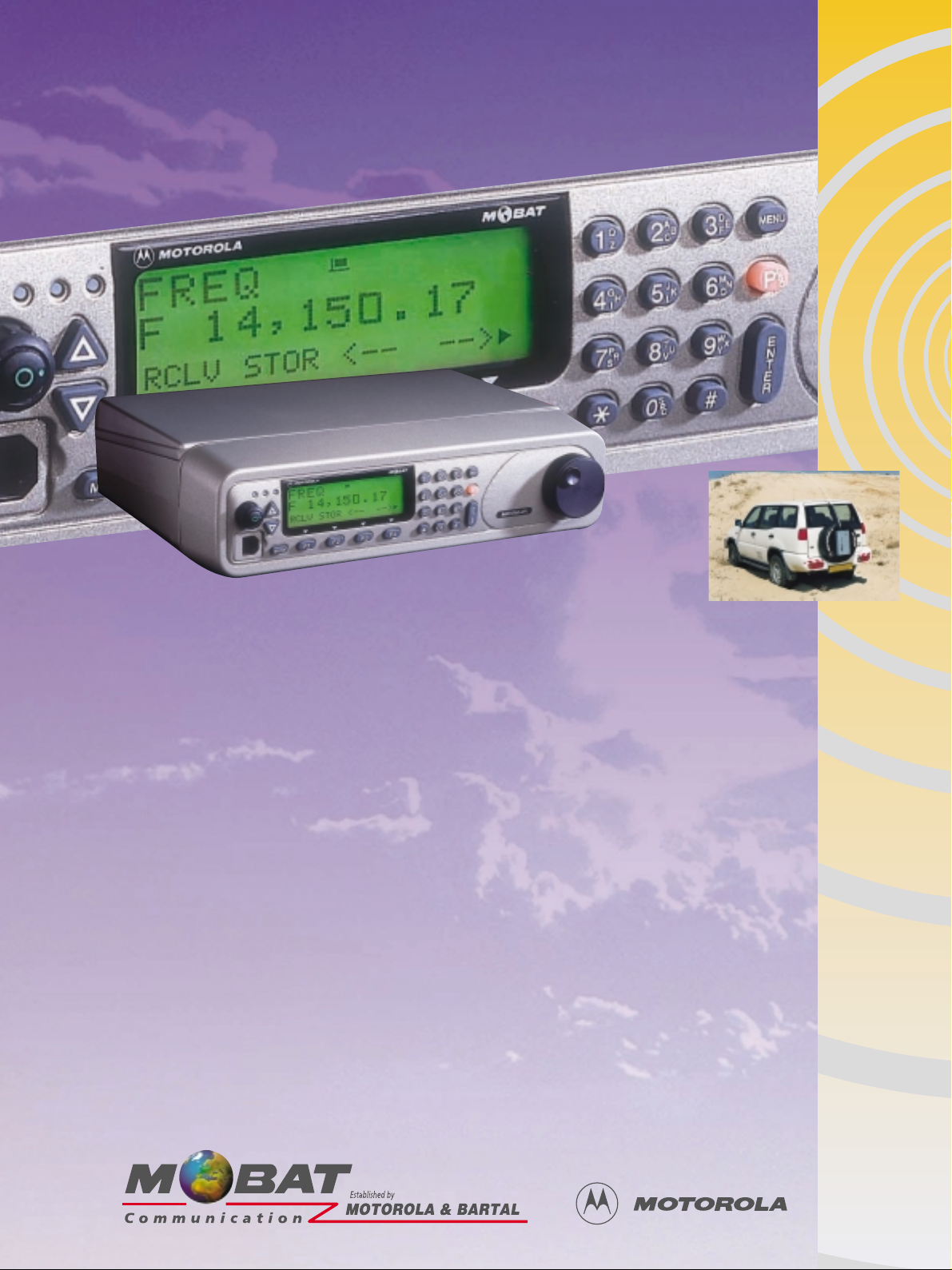

ICOM-H is an advanced
Ruggedized Digital Signal
Processing transceiver intended
for very wide area radio
communications. It provides
Voice, Data,Fax and E-mail
solutions with a high degree
of sophistication, signal quality
and reliability, while being
very simple to operate.
MICOM-H with its compact
size provides maximum ease
of installation.
Optional:
●
ALE Per FED STD 1045
(Where Licensed)
●
E-mail over HF with
internet gateway
Features
●
Enhanced features for better communications
●
Ruggedized Mobile / Fixed Transceiver
●
Front panel programming
●
Advanced digital technology
●
Conforms to MIL-STD 810 and EIA Specifications
●
High MTBF
●
Complies with ISO 9001 Requirements
●
Security access code
●
Variable Bandwidth for optimal signal processing
●
Voice activated digital squelch
●
Programmable channel scan
●
Digital noise blanking and clarifier
●
Guard and Priority Channels
●
Continuous duty operation (optional)
●
Multi-language Liquid Crystal Display
●
BITE(Built-in Test)
●
Meets FCC and EMC standards
●
Selectable front-end Attenuator
●
Enhanced Voice Quality
●
Excellent frequency stability
●
Selectable Power Output
●
Small size, light weight
●
Variable notch filter
●
Sub-octave pre-selector
●
Adaptable internal configuration options
●
200 memory channels
●
Variable power output
MICOM-H
Page 2
MICOM-H
HF-SSB Digital Signal
Proccessing radio
125 watt PEP/Average
GENERAL RECEIVER
Model Number: M82AMN0KV5-K
Frequency Range: Receiver: 100kHz-30.000 MHz
Number of Channels: 200: User programmable; Simplex or Half Duplex
Scanning: 5 groups with up to 100 channels per group
Frequency Stability: 0.6 PPM, (0.1 PPM optional)
Frequency Drift (Aging): 1 PPM per year
Synthesizer Lock Time: 10 msec max.
Frequency Resolution: 10 Hz
Audio Bandwidths @ -6dB: Voice: 350 to 2700 Hz
Operating Temp. Range:
Current Drain Receive Transmit
@ 13.8 VDC Squelched Full Audio Voice 2 Tone 1 Tone
Dimensions
and Weights
Humidity: 95% @ 50°C
Operating Voltage: 13.8V DC ± 20% Neg. Ground
Transmit: 1.800-1.999999 MHz,
3.500-3.999999 MHz
7.000-7.300 MHz, 10.100-10.150 MHz,
14.000-14.350 MHz,18.068-18.168 MHz,
21.000-21.450 MHz, 24.890-24.990 MHz,
28.000-29.700 MHz
CW: 650 to 1150 Hz
Low speed data: 1450 to 1950 Hz
High speed data*: 350 to 3300 Hz
-30° to +60°C
2.2A 3A 14A 23A 28A
Height Width Depth Weight
mm/inch mm/inch mm/inch Kg Lb
92 / 3.7 302 /11.9 270 /10.7 5.7 12.5
Power Supply/Charger Desk Mic Heand Mic Speaker
Sensitivity (SINAD) SSB: 0.5
1/2 Rated Power Sensitivity: 1 µ
Undesired Sideband Rejection: -55 dB @ -1 kHz
Intermodulation Rejection: -80 dB
Cross Modulation Rejection: -100 dB @ 100 kHz
Audio Power @ Speaker: 5W @ 2.5% distortion
RGC Time Constants
Receiver Tuning Adjustments:
Preselector Sections: Sub-octave (1.6 MHz to 30 MHz range)
Antenna Input Protection: 20 kV maximum transient,
(Voice) (0.3 µv Typical. Note 1)
Selectivity: -6 dB @ 350 to 2700 Hz
Image Rejection: -80 dB
IF Rejection: -85 dB
Spurious Rejection: -80 dB
Desensitization: -100 dB @ 100 kHz
Reciprocal Mixing: -100 dB @ 100 kHz
RGC Range: 5µv 1V (2 dB change in output level)
Voice: Attack time 10 msec
Data: Attack time 10 msec
Squelch: Constant SINAD (digital)
Clarifier Range: ± 200 Hz in 10 Hz steps
µv for 10 dB SINAD
0.1-1.6 MHz – reduced performance
v for 2.5W audio @ speaker
-60 dB @ -1 kHz, +4 kHz
Release time 1500 msec
Release time 10 msec
None
100V RMS for 2 minutes
Output Power: 125W P.E.P. and average
Reduced Power Levels: 25W, 62W, 100W (RSS Programmable)
Audio Bandwidth Ripple: 3 dB
Intermodulation: -31 dB/P.E.P. (-35 dB/P.E.P. Typical. Note 1)
Harmonic Emissions: -64 dB/P.E.P. (-70 dB/P.E.P. Typical. Note 1)
Spurious Emissions: -64 dB/P.E.P. (-70 dB/P.E.P. Typical. Note 1)
Carrier Suppression: -50 dB/P.E.P.
Undesired Sideband
Suppression: -55 dB/P.E.P.
Audio Distortion: 2.5%
1/2 Power Mic. Sensitivity: 25 to 125 mV (RMS)/600 ohms
Hum & Ripple: -50 dB
Inband Noise: -60 dB (30 Hz BW)
Tx/Rx Switching Time: 10 msec
Tx Tuning Adjustments: None
Note 1: Values noted as typical are valid over 90% or more of the frequency range.
OPTIONS
●
TRANSMITTER
RS232 Remote Contol Interface
●
Linear Amplifier Interface
●
Phone Patch Interface
●
Data/Fax Modem interface
●
MicomNet-Internet gateway
●
ALE
Specifications subject to change without notice.
●
Interlink Interface
●
24 VDC Operation
●
RSS for PC
MILITARY & INDUSTRIAL STANDARDS
MICOM-H meets the following US military and industrial standard requirements
for adverse environmental conditions (without the need of external shock mounts)
Environmental US Military US Military US Military
Condition STD 810C STD 810D STD 810E
Vibration Method 514.2 Method 514.3 Method 514.4
Shock 516.2 516.3 516.4
Rain 506.1 506.2 506.3
Dust 510.1 510.2 510.3
Salt Fog 509.1 509.2 509.3
The MICOM-H also meets the EIA-RS152B for shock, vibration and applicable
test procedures, US FCC for channel occupancy, spurious, interference and
frequency tolerance. It is manufactured according to the demanding standards
of ISO 9000 and EMC (Electromagnetic Compatibility).
FCC Information; Emissions: J3E, R3E, H3E, J2A, J2B, B8C
FCC Applicable Parts of Rules: 15, 80, 90
FCC Type Acceptance Number: ABZ9QCC1635
With High Stability Option: ABZ9QCC1634
MAJOR ACCESSORIES
●
●
Phone Patch
●
Interlink (FM-HF repeater)
●
Automatic Antenna Tuner
●
Continuous Duty Kit
●
AC Power Supply
●
Micom Tel
Antennas and Grounding kit
●
Data/Fax Modem
●
CW Key & Headphones
●
Mobile Mounting kit
Motorola - U.S.
Federal Government Markets Division
7230 Parkway Drive, Hanover, MD 21076
Tel: 410-712-6211
Fax: 410-712-6208
E-mail: [email protected]
USA Sales Office
MOBAT/T.G.Inc. PO.Box 270238
St. Louis, MO 63126
Tel: 636-343-8801, Fax; 636-343-8853
Toll Free: 1-877-343-8801
E-mail: [email protected]
Royal Communications International
12271 Stonemill Drive
Poway. CA 92064
Tel: 858-271-8583
Fax: 858-271-8593
E-mail: [email protected]
MOBAT Communication Ltd.
6 Ha’amal St. P.O.B. 1250
Ind.Zone Bat-Yam 59112, Israel.
Tel: 972-3-551-5955
Fax: 972-3-552-0579
E-mail: [email protected]
www.mobat.com
Motorola - Latin America
Markets Division
8000 West Sunrise Blvd.,
Plantation, FL 33322
Tel: 954-723-8602
Fax: 954-723-8560
E-mail: [email protected]
Motorola - Asia-Pacific Ltd.
Innovation Centre -level 7
12 Ang Mo Kio St. 64, Ang Mo Kio Ind, Park 3
Singapore 569088
Tel: (65) 481-7200
Fax: (65) 481-9282
E-mail: [email protected]
www.mot.com/hfssb
