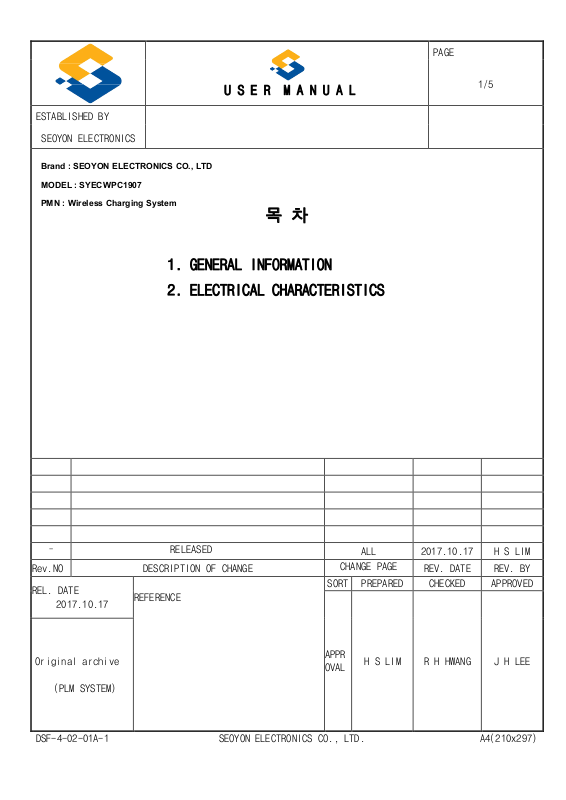

PAGE
ESTABLISHED BY
SEOYON ELECTRONICS
Brand :
MODEL : SYECWPC1907
PMN : Wireless Charging System
SEOYON ELECTRONICS CO., LTD
U S E R M A N U A L
목 차
1. GENERAL INFORMATION
2. ELECTRICAL CHARACTERISTICS
1/5
-
Rev.NO
REL. DATE
2017.10.17
Original archive
(PLM SYSTEM)
DSF-4-02-01A-1 SEOYON ELECTRONICS CO., LTD. A4(210x297)
REFERENCE
RELEASED
DESCRIPTION OF CHANGE
ALL 2017.10.17
CHANGE PAGE
SORT PREPARED CHECKED APPROVED
APPR
OVAL
H S LIM R H HWANG J H LEE
REV. DATE REV. BY
H S LIM
U S E R M A N U A L
SPEC NO SHT/SHTS 2/5
Document Change History
Date
Ver
.
Editor Chap. Description CR#
U S E R M A N U A L
Contents list page
1. GENERAL INFORMATION ........................................................................................................................ 3
1.1. Description of WPC UNIT ........................................................................... 3
1.2. System configulation diagram ..................................................................... 4
1.3. System overview ...................................................................................... 4
2. ELECTRICAL CHARACTERISTICS ................................................................. 5
2.1. Operating characteristics of MP .................................................................. 5
2.2. UNIT Inout/Output Interface.
SPEC NO SHT/SHTS 3/5
1. GENERAL INFORMATION
.1. Description of WPC UNIT
WPC UNIT provides the following functions.
• MAX 15W Wireless Charging
•
Wireless Charging : 115kHz
Picture 1: System configuration
U S E R M A N U A L
SPEC NO SHT/SHTS 4/5
1.2 System overview
Wireless charging controller <LP, MP> - System for charging mobile phone wirelessly in
vehicle using electromagnetic induction between coils
① After inputting IGN1 power, the reception coil (cell phone RX Coil)
② Confirmation of non-mobile NFC mounting via NFC Multi Tagging <MP + NFC>
③ (TX side charging pad: wireless charger side) Current flows in the transmission coil
④ The magnetic field generated by the current of the transmission coil is guided to the
receiving coil and induction current is generated in the receiving coil
⑤ The charging current starts to be charged through PMIC (Power module IC) of mobile phone
U S E R M A N U A L
SPEC NO SHT/SHTS 5/5
2 ELECTRICAL CHARACTERISTICS
2.1 OPERATING CHARACTERISTICS OF MP
Item Specification
Rated Supply Voltage DC 12V
Operating Voltage DC 9 ~ 16V
Operating Temperature - 30 ~ + 75℃
Storage temperature range - 40 ~ + 85℃
MP<WPC> Frequency
Standby Current Below than 1mA
Table 1: Electrical characteristics of MP
2.2 UNIT Input/Output Interface
115kHz
Pin No. Description Reference
1 GND
2 GND
3 WC_AMBER_IND_OUT
4 WC_GREEN_IND_OUT
5 B_CAN_LOW
6 B_CAN_HIGH
7 NC
8 AUTH_CAN_LOW
9 AUTH_CAN_HIGH
10 NC
11 IGN1
12 BAT+
FCC warning statement:
15.19
λ. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
15.21
- Any changes or modifications not expressly approved by the party responsible for compliance could void the
authority to operate equipment.
- This device and its antenna must not be co-located or operating in conjunction with any other antenna or
transmitter.
- End-users and installers must be provided with antenna installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.
FCC/ IC RF Radiation Exposure Statement:
This equipment complies with FCC/ ISED RF radiation exposure limits set forth for an uncontrolled environment
for body-worn configuration in direct contact to the phantom.
This device complies with FCC/ ISED radiation exposure limits set forth for an uncontrolled environment.
IC warning statement:
RSS-Gen Issue 5.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of
the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1.L’appareil ne doit pas produire de brouillage;
2.L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
Co-located
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or
transmitter.
