MOBASE ELECTRONICS SYECSMK1608 User Manual

INFORMATION DOCUMENT NO.

RELATING TO SRRC TYPE-APPROVAL

AS SEPARATE TECHNICAL UNIT

CONTENTS LIST

Information Document (10 sheets:

including this sheet)

Attachment 1 - System diagram (6 sheet)

Attachment 2 - Drawing of the smk (9 sheets)

SEOYON ELECTRONICS Co.,Ltd.

- 11. May. 2016 -

Page 1 of 29

Title :

Information Document

NO. :
Date : 11. May. 2016

0. GENERAL

0.1. Make

SEOYON ELECTRONICS Co.,Ltd.

0.2. Model No.:SYECSMK1608

- SMART KEY SYSTEM : 설계지원파트 작성

0.3. Name and address of manufacturer

SEOYON ELECTRONICS Co.,Ltd.
424, Sinwon-ro, Danwon-gu, Ansan-Si, Kyonggi-Do, Korea.

0.4. Address of assembly plant

SEOYON ELECTRONICS Co.,Ltd.
424, Sinwon-ro, Danwon-gu, Ansan-Si, Kyonggi-Do, Korea.

Page 2 of 29

Information Document

Title :

Information Document

NO. :
Date : 11. May. 2016

1. PRODUCT SPECIFICATION

1.1 Scope of passive entry control, passive start control in SMART Key system.

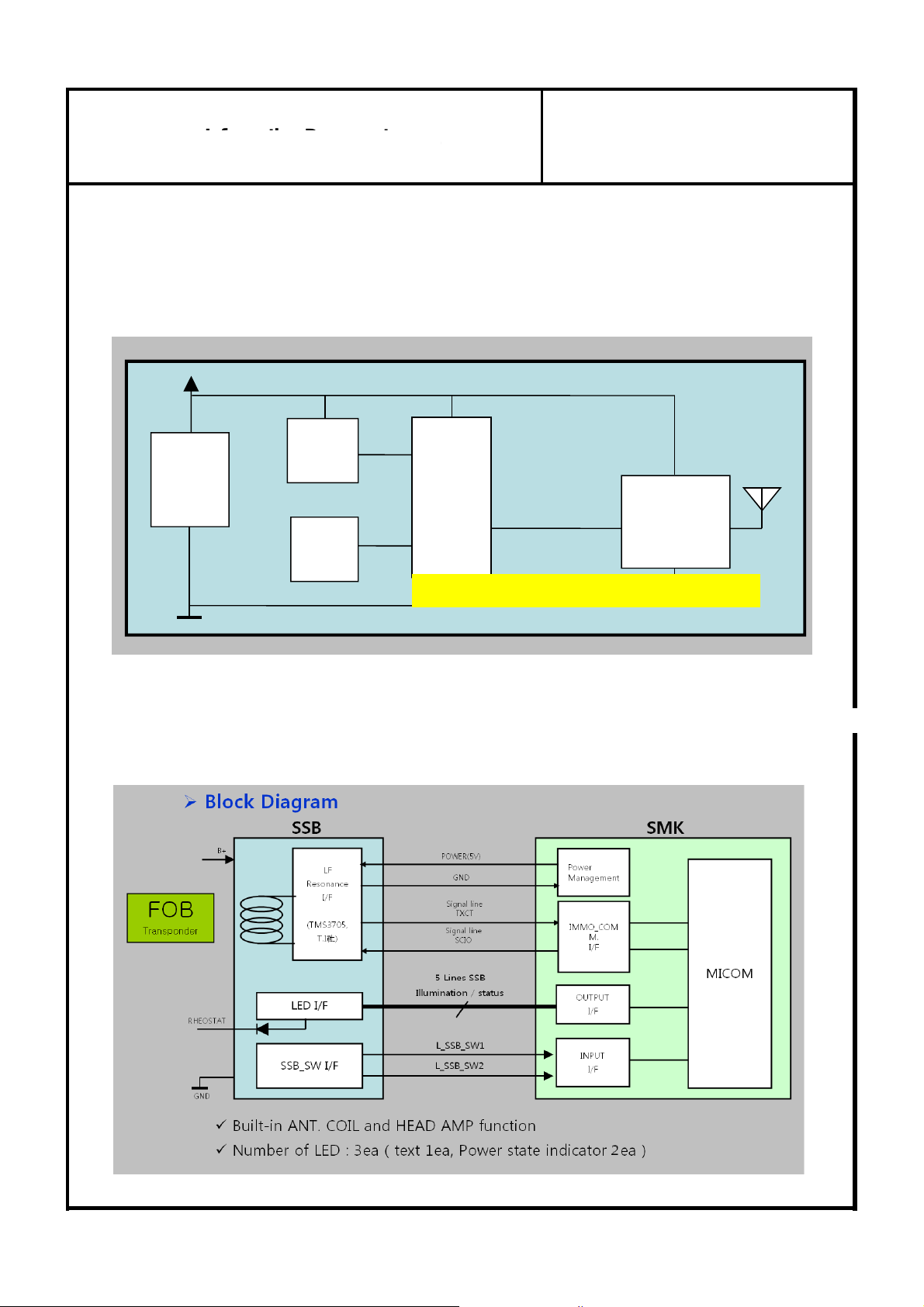

1.1.1 SMK UNIT : It is an ECU to control the whole smart key system. It has functions
such

as passive entry control, passive start control

RKE functions. It also has the TP for emergency authentication for passive start

2.2.3 SSB : It is a button to control engine start including power transition according to each
terminal status

2.2.4 ESCL : It is the abbreviation of "Electrical Steering Column Lock" and fully controlled by
SMK. It has two hall sensors to detect unlock, lock position firmly.

2.3 Specification

2.3.3 SMK UNIT

FOB KEY

Page 3 of 29

1.1.2

1.2.2

Item

Specification

Operating voltage range

DC 9 ~ 16V

Operating voltage range

-35 ~+75℃

Storage temperature range

-40 ~+85℃

Power Consumption

Dark Current, Max 4mA

Item

Specification

Operating Voltage

DC 2.5 ~ 3.2V

Operating Temperature

- 10 ~ +60℃

Storage temperature range

- 40 ~ + 85℃(W/O Battery)

Modulation

FM

Frequency

433.92MHz

Code

Rolling code(Hopping algorithm)
