Page 1
Title : NO.
Model No.
- Transmitter :
3BT -
4BT -
Information Document
Date

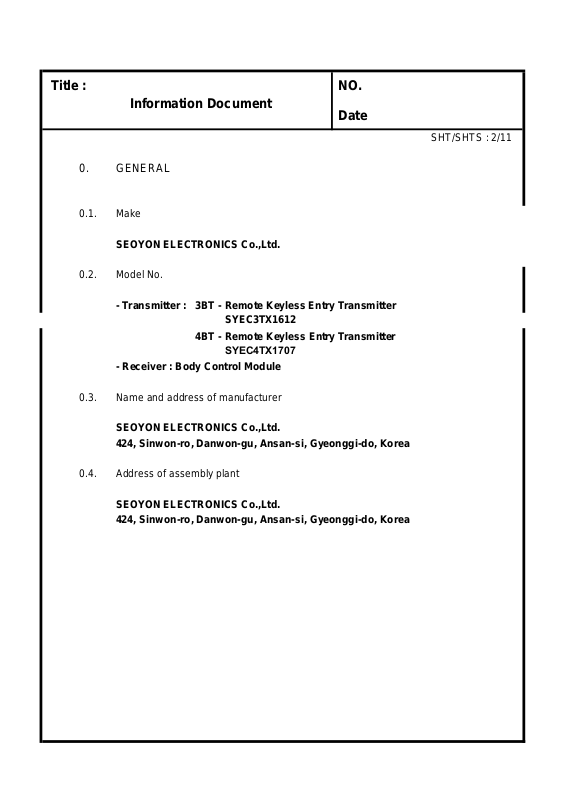

0. GENERAL
0.1. Make
SEOYON ELECTRONICS Co., Ltd.
0.2.
Remote Keyless Entry Transmitter
SYEC3TX1612
Remote Keyless Entry Transmitter
SYEC4TX1707
SHT/SHTS : 2/11
- Receiver : Body Control Module
0.3. Name and address of manufact ur er
SEOYON ELECTRONICS Co., Ltd.
424, Sinwon-ro, Danwon-gu, Ansan-si, Gyeonggi-do, Korea
0.4. Address of assembly plant
SEOYON ELECTRONICS Co., Ltd.
424, Sinwon-ro, Danwon-gu, Ansan-si, Gyeonggi-do, Korea
Page 2
Title : NO.
Item
(in alarm setting condition)
ITEM
Battery life
2 Year(10Times/Day)(Lithium 3V 1EA)
Electric field strength
10mW (433.92MHz)
Code
Rolling Code(Hopping Algorithm)
Information Document
Date
2. PRODUCT SPECIFICATION
2.1 Scope of RKE, Body Control Module
2.1.1 Folding TX KEY : It has the RKE func t ions.
Data is transmitted with radio frequency
2.1.2 BCM(RX) : ECU is control the whole BCM funtion with RKE
2.2 SPECIFICATIONS
SHT/SHTS : 3/11
2.2.1 Transmitter
Rated supply voltage DC 3V
Operating voltage range DC 2.5 ~ 3.2V
Operating temperature range
Storage temperature range
2.2.2 RECEIVER
Operating Temperature
SPECIFICATION
- 10 ~ + 60℃ with Battery
- 40 ~ + 85℃ without Battery
Modulation FSK
Frequency 433.92MHz
Specification
DC 12V Rated Supply Voltage
DC 9 ~ 16V Operating Voltage
- 30 ~ + 80℃
Max Humidity 95%
Below than 5.5mA
Standby Current
Page 3
Title : NO.
TRANSMITTER's button is pushed.
TRANSMITTER sends the code by radio frequency.
RECEIVER gets the code and decodes it.
RECEIVER judges the code whether it is right code or not.
RECEIVER checks door lock or unlock, tr unk state.
RECEIVER drives the actuator.
If LOCK or UNLOCK button is pushed f or less t han 1 s ec, then
If TRUNK button is pushed for m or e than 1 sec, then
If PANIC button is pushed for more than 1 sec, thed
Danger of explosion if battery is incorrect ly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according t o t he m anufacturer's instructions.
Information Document
Date
2.3 Operating summary
-RKE
①
②
③
④
⑤
⑥
2.3.1 LOCK & UNLOCK
SHT/SHTS : 4/11
①
TRANSMITTER sends t h e LOCK or UNLOCK DATA.
②
TRANSMITTER sends t h e TRUNK DATA.
③
TRANSMITTER sends the PANIC DATA.
2.4 Caution
①
②
③
Page 4
Title : NO.
if press button on the transm it ter, RF signal is transmitted and turns on t he LED
ANTENNA
Information Document
Information Document
Information Document
3. USER MANUAL
3.1 ITEM : Body Control Module
3.2 SYSTEM CONSTRUCTIO N
Information Document
Date
- This system is BCM and inculdes RKE.
- RKE in BCM system is intended for auto door lock or unlock or TRUNK in vehicle.
- This BCM system is to be installde on motor vehicles as *OE item.
*OE : Original Equipment.
*BCM : Body Control Module
*RKE : Remote Keyless Entry.
SHT/SHTS : 5/11
3.2.1 SYSTEM IN VEHICLE
Radio Frequency
(433.92MHz)
3.2.2 SYSTEM FOR TEST
Radio Frequency
(433.92MHz)
ANTENNA
BATTERY
BCM
BATTERY
BCM
①
* It shows the status of operation t hr ough the LED used.
Page 5
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the
following two conditions :
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
“CAUTION : Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human contact during normal
operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the
FCC radio frequency exposure limit.
"ATTENTION: L'exposition aux rayonnements à fréquence radioélectrique.
Antenne doit être montée de telle manière à minimiser le risque de contact humain pendant l'utilisation
normale. L'antenne ne doit pas être contacté pendant le fonctionnement pour éviter la possibilité de
dépasser la limite de l'exposition aux fréquences radio de la FCC.
Page 6
IC Information
This device complies with Industry Canada license-exempt RSS standard(s). Operation in subject to The
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes:
1) l’appareil ne doit pas produire de brouillage;
2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
