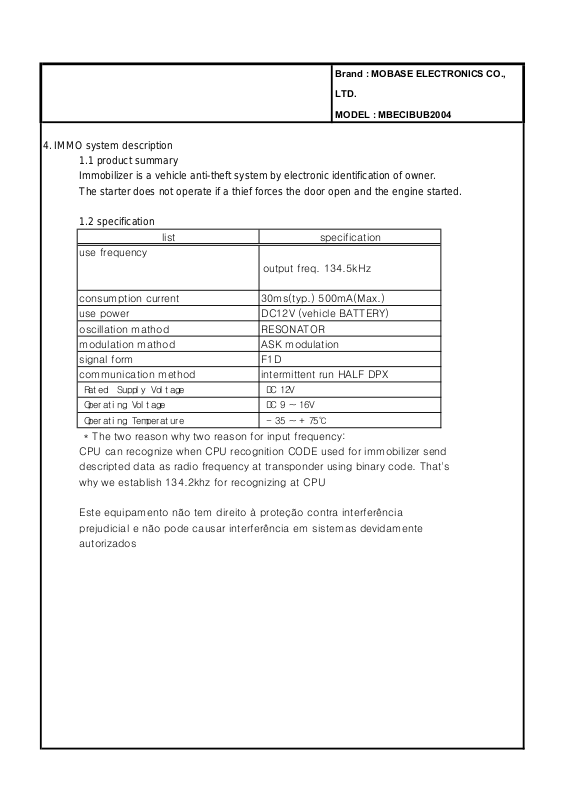

4. IMMO system description
1.1 product summary
Immobilizer is a vehicle anti-theft system by electronic identif ication of owner.
The starter does not operate if a thief forces t he door open and the engine started.
1.2 specification
list specific
use frequency
Brand : MOBASE ELECTRONICS CO.,
LTD.
MODEL : MBECIBUB2004
ation
output freq. 134.5kHz
consumption c
urrent 30ms(typ.) 500mA(Max.)
use power DC12V (vehicle BATTERY)
oscillation mathod RESONATOR
modulation mathod
ASK modulation
signal form F1D
communication method intermittent run HALF DPX
Rat ed Suppl y Vol t age DC 12V
Oper at i ng Vol t age DC 9 ~ 16V
Oper at i ng Temper at ur e - 35 ~ + 75℃
* The two reason why two reason for input frequency:
CPU can recognize when CPU recognition CODE used for immobilizer send
descripted data as radio frequency at transponder using binary code. That's
why we establish 134.2khz for recognizing at CPU
Este equipamento não tem direito à proteção contra interferência
prejudicial e não pode causar interferência em sistemas devidamente
autorizados
FCC warning statement:
15.19
λ. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
15.21
- Any changes or modifications not expressly approved by the party responsible for compliance could void the
authority to operate equipment.
- This device and its antenna must not be co-located or operating in conjunction with any other antenna or
transmitter.
- End-users and installers must be provided with antenna installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.
FCC/ IC RF Radiation Exposure Statement:
This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 10cm between the
radiator & your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements FCC/ISED établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 10cm de
distance entre la source de rayonnement et votre corps.
IC warning statement:
RSS-Gen Issue 5
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux
CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
Co-located
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or
transmitter.
1.經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變
更頻率、加大功率或變更原設計之特性及功能。
2.低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，
應立即
停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業
之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電
機設備之干擾。
