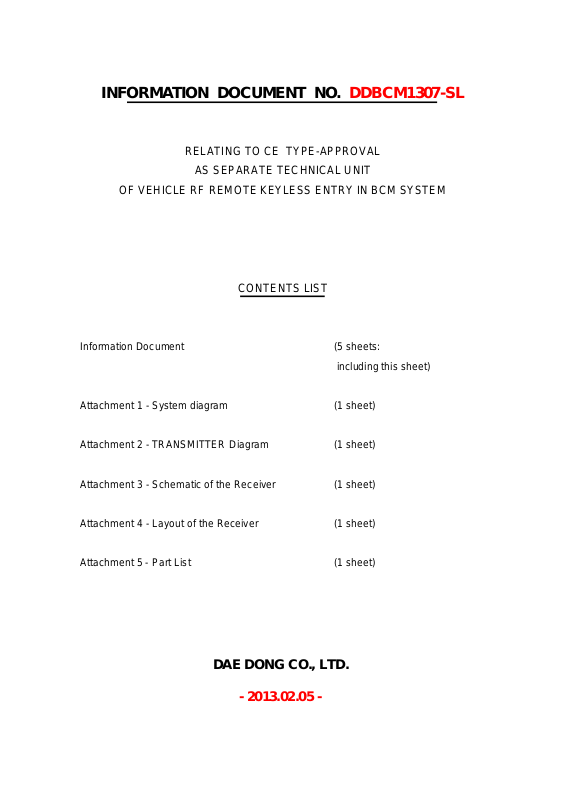

INFORM ATION DOCUMENT NO. DDBCM1307-SL
RELATING TO CE TYPE-APPROVAL
AS SEPARATE TECHNICAL UNIT
OF VEHICLE RF REMOTE KEYLESS ENTRY IN BCM SYSTEM
CONTENTS LIST
Information Document (5 sheets:
including this sheet)
Attachment 1 - System diagram (1 sheet)
Attachment 2 - TRANSMITTER Diagram (1 sheet)
Attachment 3 - Schematic of the Receiver (1 sheet)
Attachment 4 - Layout of the Receiver (1 sheet)
Attachment 5 - Part List (1 sheet)
DAE DONG CO., LTD.
- 2013.02.05 -
Title : NO.
Information Document
Date
0. GENERAL
0.1. Make
DAE DONG Co.,Ltd.
0.2. Model No.
: DDBCM1307-SL
0.3. Name and address of manufacturer
DAE DONG Co.,Ltd.
424, Sinwon-ro, Wonsi-dong, Danwon-gu Ansan-si, Gyeonggi-do, Korea
0.4. Address of assembly plant
DAE DONG Co.,Ltd.
424, Sinwon-ro, Wonsi-dong, Danwon-gu Ansan-si, Gyeonggi-do, Korea
Title : NO.
Information
Information Document
Date
2. PRODUCT SPECIFICATION
2.1 Remote Keyless Entry System
2.1.1 KEY PART : TRANSMITTER is inside of the REMOTE KEY, and it
sends the ROLLING CODE to the RECEIVER by Radio Frequency.
2.1.2 RECEIVER : It receives the ROLLING CODE and decodes that,
thereafter RECEIVER drives the actuator.
2.2 SPECIFICATIONS
2.2.1 TRANSMITTER
Rated supply voltage DC 3V
Operating voltage range DC 2.5 ~ 3.2V
Operating temperature r ange
Storage temperature range
Modulati on FSK
Frequency 315.00MHz
Electric field strength 10mW (315.00MHz)
Battery life 2 Year(10Ti mes/Day)(Lithium 3V 1EA )
2.2.2 RECEIVER
Rated Supply Voltage
Operating Temperature
Max Hum idity 95%
Standby Current
ITEM
Code Rolli ng Code( Hopping Algori thm)
Item
SPECIFICATION
-20 ~+60℃
-30 ~ 80℃
Specification
DC 12V
DC 9 ~ 16V Operating V oltage
- 30 ~ + 80℃
Below than 5.5mA
(in alarm setting condition)
Title : NO.
Information Document
Information Document
Date
2.3 Operating summary
① TRANSMITTER's button is pushed.
② TRANSMITTER sends the code by radio frequency.
③ RECEIVER gets the code and decodes it.
④ RECEIVER judges the code whether it is right code or not.
⑤ RECEIVER checks door lock or unlock Tail-Gate state.
⑥ RECEIVER drives the actuator.
2.3.1 LOCK & UNLOCK
① If LOCK or UNLOCK button is pushed for less than 1 sec, then
TRANSMITTER sends the LOCK or UNLOCK DATA.
② If TAIL-GATE button is pushed for more than 1 sec, then
TRANSMITTER sends the TAIL-GATE DATA.
2.4 Caution
① Danger of explosion if battery is incorrectly replaced.
② Replace only with the same or equivalent type recommended by the manufacturer.
③ Dispose of used batteries according to the manufacturer's instructions.
Title : NO.
Information Document
Information Document
Information Document
Information Document
Date
3. USER MANUAL
3.1 NAME : BCM system
- This system is BCM and inculdes RKE.
- RKE in BCM system is intended for auto door lock or unlock or TAIL-GATE in vehicle.
- This BCM system is to be installde on motor vehicles as *OE item.
*OE : Original Equipment.
*BCM : Body Control Module.
*RKE : Remote Keyless Entry.
3.2 SYSTEM CONSTRUCTION
3.2.1 SYSTEM IN VEHICLE
ANTENNA
ROLLING CODE
(315.00MHz)
BATTERY
RECEIVER
DOOR
ACTUATOR
3.2.2 SYSTEM FOR TEST
ANTENNA
ROLLING CODE
(315.00MHz)
BATTERY
RECEIVER
LOCK or UNLOCK or TAIL-GATE DATA
lamp
* Through the use of lamp, operating state is displayed by lamp.
lamp 'ON' means that actuator is operated by door lock or unlock or tail-gate output signal.
