MOBASE ELECTRONICS DDBCM1306 TFL User Manual

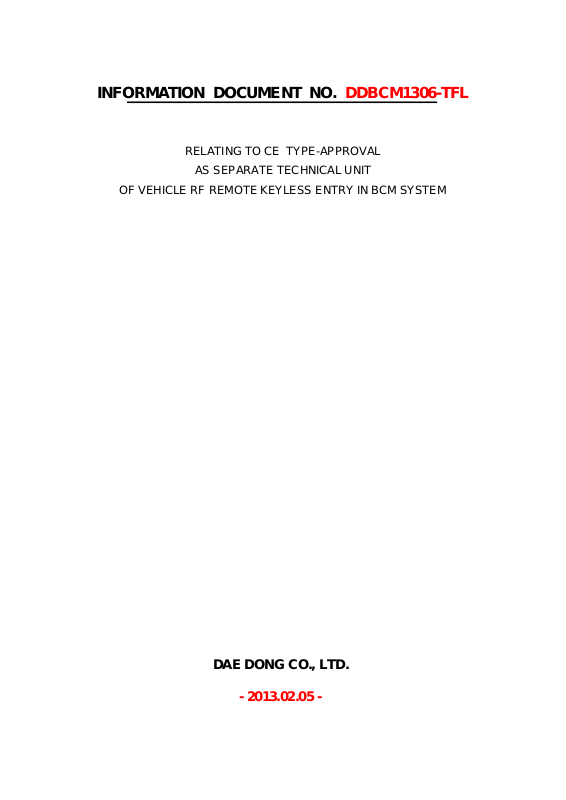

INFORM ATION DOCUMENT NO. DDBCM1306-TFL
RELATING TO CE TYPE-APPROVAL
AS SEPARATE TECHNICAL UNIT
OF VEHICLE RF REMOTE KEYLESS ENTRY IN BCM SYSTEM
DAE DONG CO., LTD.
- 2013.02.05 -
Title : NO.
Information Document
Date
0.1. Make
DAE DONG Co.,Ltd.
0.2. Model No.
- Receiver : DDBCM1306-TFL
0.3. Name and address of manufacturer
DAE DONG Co.,Ltd. 424, Sinwon-ro, Danwon-gu, Ansan-si, Gyeonggi-do, Korea
0.4. Address of assembly plant
DAE DONG Co.,Ltd. 424, Sinwon-ro, Danwon-gu, Ansan-si, Gyeonggi-do, Korea
Title : NO.
Information
Information Document
Date
2. PRODUCT SPECIFICATION
2.1 Remote Keyless Entry System
2.1.1 RECEIVER : It receives the ROLLING CODE and decodes that, thereafter RECEIVER drives the actuator.
2.2 SPECIFICATIONS
2.2.2 RECEIVER
Operating Temperature
Item
Max Hum idity 95%
Standby Current
(in alarm setting condition)
Specification
DC 12V Rated Supply Voltage
DC 9 ~ 16V Operating V oltage
- 30 ~ + 80
Below than 5.5mA
Title : NO.
Information Document
Information Document
Date
2.3 Operating summary
TRANSMITTER's button is pushed. TRANSMITTER sends the code by radio frequency. RECEIVER gets the code and decodes it. RECEIVER judges the code whether it is right code or not. RECEIVER checks door lock or unlock Tail-Gate state.
RECEIVER drives the actuator.

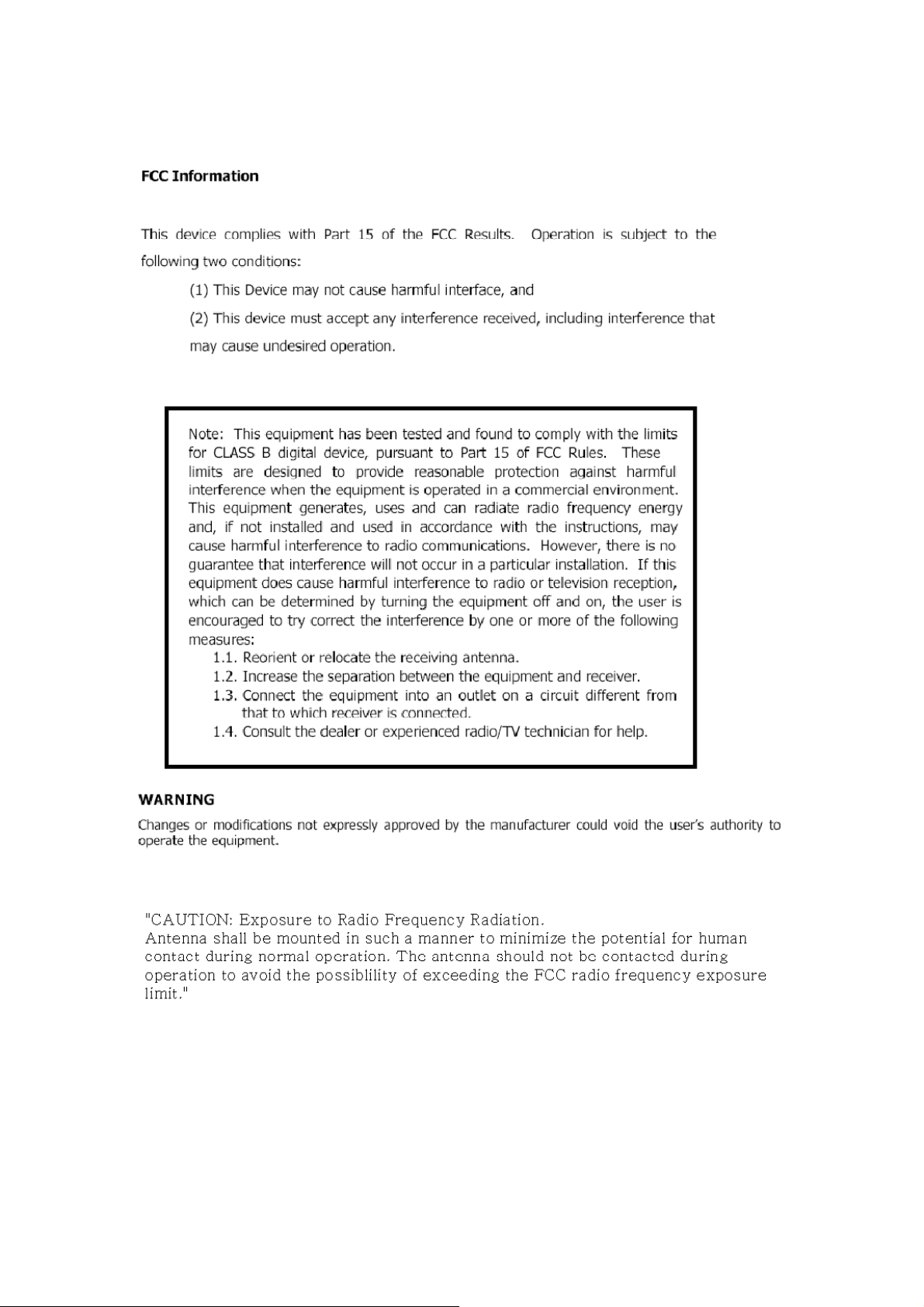

2.4 Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Title : NO.
Information Document
Information Document
Information Document
Information Document
Date
3. USER MANUAL
3.1 NAME : BCM system
- This system is BCM and inculdes RKE.
- RKE in BCM system is intended for auto door lock or unlock or TAIL-GATE in vehicle.
- This BCM system is to be installde on motor vehicles as *OE item. *OE : Original Equipment. *BCM : Body Control Module. *RKE : Remote Keyless Entry.
3.2 SYSTEM CONSTRUCTION
3.2.1 SYSTEM IN VEHICLE
ANTENNA
ROLLING CODE (315.00MHz)
BATTERY
RECEIVER
DOOR ACTUATOR
3.2.2 SYSTEM FOR TEST
ANTENNA
ROLLING CODE (315.00MHz)
BATTERY
RECEIVER
LOCK or UNLOCK or TAIL-GATE DATA
lamp
* Through the use of lamp, operating state is displayed by lamp. lamp 'ON' means that actuator is operated by door lock or unlock or tail-gate output signal.
