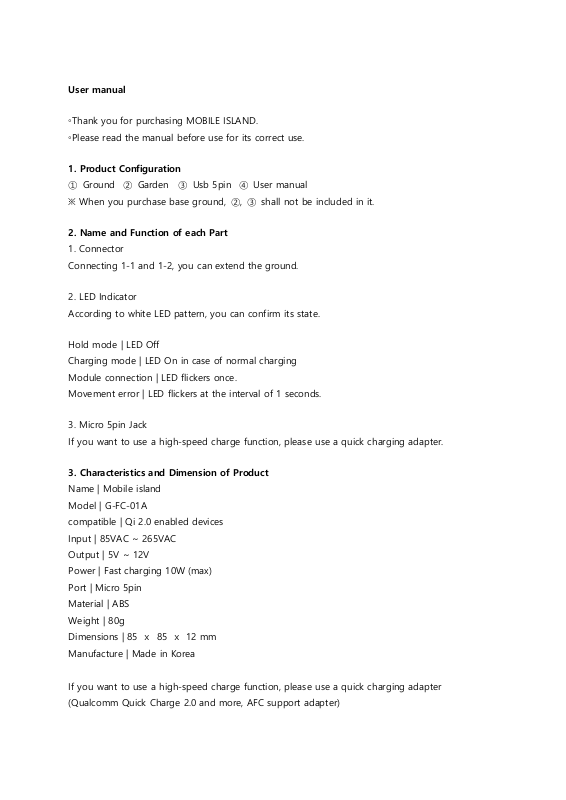

User manual
◦Thank you for purchasing MOBILE ISLAND.
◦Please read the manual before use for its correct use.
1. Product Configuration
① Ground ② Garden ③ Usb 5pin ④ User manual
※ When you purchase base ground, ②, ③ shall not be included in it.
2. Name and Function of each Part
1. Connector
Connecting 1-1 and 1-2, you can extend the ground.
2. LED Indicator
According to white LED pattern, you can confirm its state.
Hold mode | LED Off
Charging mode | LED On in case of normal charging
Module connection | LED flickers once.
Movement error | LED flickers at the interval of 1 seconds.
3. Micro 5pin Jack
If you want to use a high-speed charge function, please use a quick charging adapter.
3. Characteristics and Dimension of Product
Name | Mobile island
Model | G-FC-01A
compatible | Qi 2.0 enabled devices
Input | 85VAC ~ 265VAC
Output | 5V ~ 12V
Power | Fast charging 10W (max)
Port | Micro 5pin
Material | ABS
Weight | 80g
Dimensions | 85 ｘ 85 ｘ 12 mm
Manufacture | Made in Korea
If you want to use a high-speed charge function, please use a quick charging adapter
(Qualcomm Quick Charge 2.0 and more, AFC support adapter)
Page 2
KC and FCC mark
Social Name | moa company
Product Name | Ground
Model Name | G-FC-01A
Manufacturer | moa company
Manufacturing Country | Republic of Korea
Manufacturing Date | XXX.XX.20XX
Identification Code | R-R-Moc-G-FC-01A
A / S Number | 0507-1306-4650
FCC ID | 2ARMSGFC01A
4. Precautions for the safety of use
◦Please read all the following contents for the safe use.
Please use it only with its designated power.
For strange noise, smoke, smell, damage, etc, please unplug it immediately and ask for its
purchaser and service center.
Don’t let it be exposed to rain or humidity.
Don’t install it near a heat source such as radiator, heater and stove.
Don’t throw it in the fire nor give it a strong impact.
Don’t disassemble, repair or remodel it in person as it has a risk of fire and electric shock.
Don’t touch it with a wet hand for the electric shock.
Put it out of children’s reach.
Don’t insert the conductive thing in the product.
Don’t use the magnetic part of charger for the other use beside its attachment between chargers.
Don’t put it in a place with a direct light or a enclosed place with high temperature, but inside
well-ventilated.
If the user transformed the product provisionally, it shall be excluded from its free repair service.
If some foreign substance is applied on the product, don’t use chemical products(such as alcohol
and benzene) but clean it with soft cloth.
Don’t put any metal substance(such as coin and key) on the charger.
Only when the product to charge and the center of charger is well arranged, it could make the
maximum charging efficiency.
In a silent environment, the bell sound of charger can be sound to the minimum, and this is not
the failure.
Page 3
5. Q & A
Q. Does it provide a high-speed charging?
A. Both iPhone(7.5w) and Android phone(10w) provide a high-speed charging function. Before
use, verify if the adapter has Qualcomm Quick Charger 2.0 and more and AFC indicated. Specially,
multiport multiple adapter and Apple’s bundle adapter has its speed a little slow.
Q. I’m worried of its heating problem.
A. MOBILE ISLAND has a heating safety design. If the charger temperature is more 60° C, OTP
function(Over Temperature Protection) interrupts the power temporarily and protects the user.
Q. How many grounds can be attached?
A. MOBILE ISLAND can use 3 with 1 base ground and 2 grounds at a high-speed charging. Being
possible to attach more, its efficiency can be lowered or it cannot be charged. Therefore, it is
recommended to use until 3.
Q. The wireless charging is not possible.
A. Please check if the type of smart phone provides a wireless charging function.
If the smart phone provides a wireless charging
1) Eliminate the metal and magnetic object behind the smart phone.
2) If it persists not to be charged, turn the smart phone and wireless charger off and on.
6. Provision of guarantee
◦This product guarantees the followings.
This product was manufactured through a strict quality management and inspection.
In case of requesting A/S, please present its guarantee. If not presenting the guarantee, the free
repair cannot be provided.
The guarantee shall not be reissued, so please keep it valuably.
When the product produces a failure, please consult to its selling shop or service center.
1. Free Repair
This product can be freely repaired for 5 months. The manufacturing defect or failure generated
during its normal use can be freely repaired during the term of guarantee from its purchase date.
Within the term of guarantee, if the product was provisionally disassembled or failed by
consumer’s mistake, it shall be repaired with payment.
2. Exchange of Defective Product
In case that the product is initially defective, take it with its receipt to its selling shop within 7
days from its reception date for its exchange. If you lost the receipt or its product value was
Page 4
damaged by opening it, it may not be exchanged and returned in 7 days, and in this case, it shall
be repaired with product A/S according to the A/S rule of this company.
3. Reception of A/S
On consultation, if you give a detailed explanation, a quick measure is possible. Please mention
the requirement for the product guarantee to send it.
Service Center | Kakao Plus Friend ＠Mobileisland
4. Shipment of Product
Requesting A/S, please send it through the designated delivery company, and the parcial service
on delivery shall not be received but returned. Sending the product by the other mean not the
designated delivery company, the client shall be responsible of its cost. The shuttle transportation
cost generated by A/S in the country from the foreign country shall be charged to the client.
After receiving the product defect notification, its own test shall be made, and if having no defect,
it shall be returned by the parcial service cost on delivery, so please confirm it before requesting
the repair. If the product has defect in 2 weeks after its purchase, the delivery cost shall be
returned in a box with product.
7. Product Guarantee
Model Name:
Name
Telephone Number
Address
Symptom
Selling Shop
Purchasing Date
8. FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions :
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to g provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
Page 5
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technical for help.
9. User’s Caution Statement
Any changes or modifications to the equipment not expressly approved by the party responsible
for compliance could void user’s authority to operate the equipment.
Toute changé ou modifications non expressément approuvés parla partie responsable de la
conformité pourraient annuler l'utilisateur `autorité de faire fonctionner cet équipement.
The antenna(s) used for this device must be installed to provide a separation distance of
a least 20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter.
