MLS Angel 3G, iQ9610 Quick Manual

Quick Guide

When you switch on your phone for the first time, press key
number (3) and hold to activate. At the initial screen, touch
any icon to access the relative application.
To move back to the home screen, touch the home screen
key. To move back , tap on the back icon . To open the ac­tive application management screen, touch the tab .

4

1

9

2

3

10

5

6

8

7

6

1

4

2

3

5

10

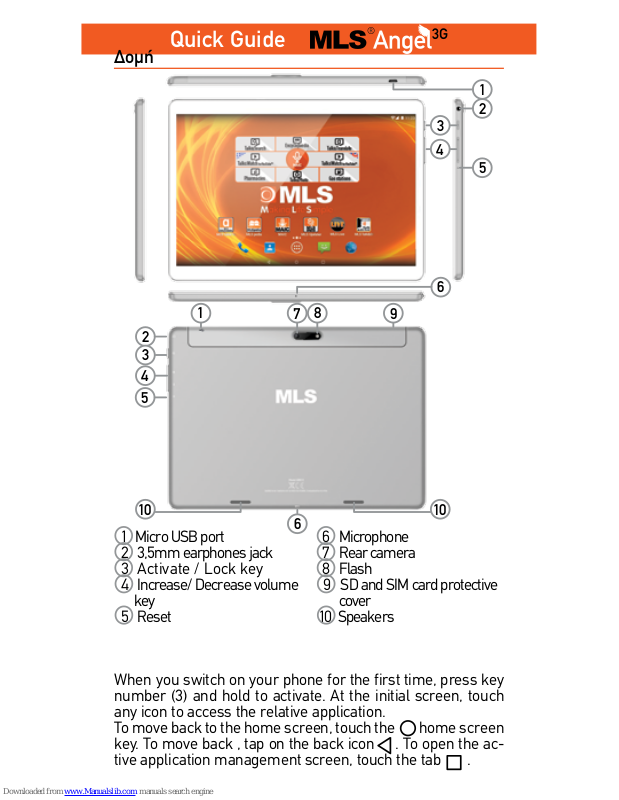

1 Micro USB port
2 3,5mm earphones jack
3 Activate / Lock key
4 Increase/ Decrease volume

key

5 Reset

6 Microphone
7 Rear camera
8 Flash
9 SD and SIM card protective

cover

10 Speakers

Δομή

3G

Insert SIM and SD cards

To remove the protective cover of the cards, pull it up­ward by placing your finger on the appropriate niche 3 as
shown in the picture below.

Place the SIM card in the corresponding slot 1 as shown
in the picture below.
Place the SD card in the corresponding slot 2 as shown
in the picture below.

TECHNICAL SPECIFICATIONS

Model MLS Angel 3G (iQ9610)

Processor 1.3GHz MTK 6580 32-bit (QuadCore)

Operating System Android™ 5.1 (Lollipop)

Memory 32GB ROM, 2GB RAM

Dimensions 228χ162χ10 mm

Weight 510 gr. (battery included)

Screen 9,6 inches, IPS (800*1280 WXGA), 16700000 colors

Network 3G/HSPA+ (21.1Mbps DL/5.7 Mbps UP) GSM:

850/900/1800/1900 MHz, WCDMA: 2100 MHz

Connectivity Bluetooth: V4.0, BLE supported, Wifi: 802.11
b/g/n, Sound outlet: 3,5mm, Micro Usb outlet, Radio

Sensors Acceleration

GPS internal GPS antenna

Camera Front camera 3,2Mp, Rear camera 8Mp, with Auto

focus, flash(LED) in rear camera

Video recording FHD 720p
Video playbackHD 720p

Battery Battery Type Li-Poly 5000mAh, Up 15 hours talking

time, 250 hours standby time, Non detachable

Memory card microSD / microSDHC / microSDXC (up to 128
GB)

Color Silver

Accessories Charger, USB cable, Quick device guide - Tech-

nocal specifications, Android Quick Guide, MAIC quick guide,
Terms of Warranty.

Sim mini SIM

Product Warranty 12 months

CE

© 2003-2018 MLS.

All rights reserved.

The business names and logos MLS and MAIC are

trademarks owned by MLS Innovation inc, registered in

Greece and in other countries.

Android is trademark owned by Google Inc.

With the present, the manufacturer MLS Innovation inc
declares that the device is in compliance with all essen­tial demand and other relative clauses of the directive
1999/5/EC.

A copy of the Compliance Declaration can be found at the MLS
website: http://www.mlsshop.gr/content/diloseis-symmorfosis
