Page 1
The H-500 Haze Machine is completely been different from in a traditional smoke, would never take
O
1
S
OFF
N
6
1
255
VOLUME
DMX
DOWN
UP
FUR
DIDSW
DMX-512
DMX
CIRCUITRY
CONTROL
POWER
POWER
INPUTER
ON/OFF
ENTER
place the breakdown of "wall up the heater ", " pump out of order", the function is superior, quality
dependable, life span long, the science and technology content is high. Machine need not heat, as long
as keep power supply can spray very thin very even fog continually., have to use appropriative "HAZE"
fog liquid, as long as machine continuously power supply, air of fog will stop over forever, will not spread
out.
Information
No heat up time
Circuitry Control
Remote Control
Tank Capacity: 5L
Weight: 35kg

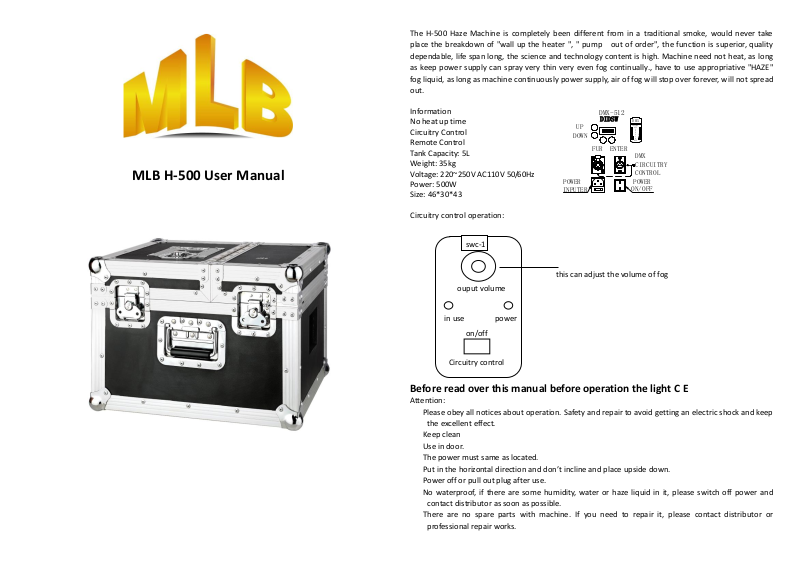

MLB H-500 User Manual
Voltage: 220~250V AC110V 50/60Hz
Power: 500W
Size: 46*30*43
Circuitry control operation:
swc-1
this can adjust the volume of fog
ouput volume
in use power
on/off
Circuitry control
Before read over this manual before operation the light C E
Attention:
Please obey all notices about operation. Safety and repair to avoid getting an electric shock and keep
the excellent effect.
Keep clean
Use in door.
The power must same as located.
Put in the horizontal direction and don’t incline and place upside down.
Power off or pull out plug after use.
No waterproof, if there are some humidity, water or haze liquid in it, please switch off power and
contact distributor as soon as possible.
There are no spare parts with machine. If you need to repair it, please contact distributor or
professional repair works.
Page 2
Avoid fire
Only for adults operate. Equip it over the touch of children and pay more attention during
operation.
Don’t spray it to people directly and far away fire.
Avoid explode:
Don’t add tinder liquid such as oil, gas, perfume and etc. in haze machine.
Pay more attention to all notices sign and operation instructions on all machines.
Please use the haze liquid recommended by distributors. Bad quality fog liquid may get blast or
spray oil.
Often check whether there has enough fog liquid.
Get out all haze liquid before transport or post.
Don’t eat haze liquid otherwise to see the doctor immediately. Use clean water to wash skin
and eyes once haze liquid touches them.
Remove package and check:
1. Open carton to check whether all necessary spare parts include accord the specification list.
Please contact distributor if there are something missed.
2. Check the appearance of machine and power line to see whether they have some obvious
damage. Please contact distributor once you find something and stop to use fog machine.
Installation:
1. Take away all pack material especially the spray mouth.
2. Set in the horizontal direction and open the cover of liquid can.
3. Add haze liquid in the machine and screw the cover of liquid can. Bad haze liquid will
damage haze machine.
4. Plug the plug of remote console in the socket of the back of machine.
Operation:
1. Connect the power line to the power socket with earth line. Turn the switch at “On”, and
then it can jet right away.
2. According to “circuitry control operation” to adjust the volume of the fog.
3. Can set the machine at a high place (with hanger) or on the ground. Do not spray fog to
people directly and the lean angle should less than 15。.
4. Often check whether there has enough haze liquid in machine. The operation will make big
damage to the machine if there has no haze liquid.
Repair:
Please clean the haze machine timely to avoid the damage of spare parts and decrease the
repair charge.
Don’t make thehaze machine be dirty. Screw the cover of liquid can after add haze liquid.
After about 40 hours continually use, please use 80% distilled water and 20% vinegar to clean the
dirty in refractory pipe.
Disassemble the spray mouth and use vinegar to clean it to keep expedite before jeting.
Reequip the spray mouth after cool and add haze liquid for next use.
Others:
Clean timely to extend the lifespan of machine.
Use dry cloths to clean machine and keep dry while store.
