INSTALLATION & MAINTENANCE MANUAL
TPR14LED
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the
end user for future reference and maintenance.
These instructions should be used to aid installation of the following product:
TPR14LED
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring
Regulations (BS7671) and current Building Regulations. If in any doubt, consult a
qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not
exceed the rating of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location
for installation
• This product is Class II double insulated
• This product is IP65 rated
Page 3
INSTALLATION
Note - If this product is being used in conjunction with an external PIR or sensor, please
confirm with the manufacturer of the sensors that they are compatible with LED luminaires.
• Provide power to the required point of installation (refer to BS7671 for correct cabling
methods). Suitable IP rated junction boxes should be used where required
• Remove the diffuser by unfastening the three screws on the front

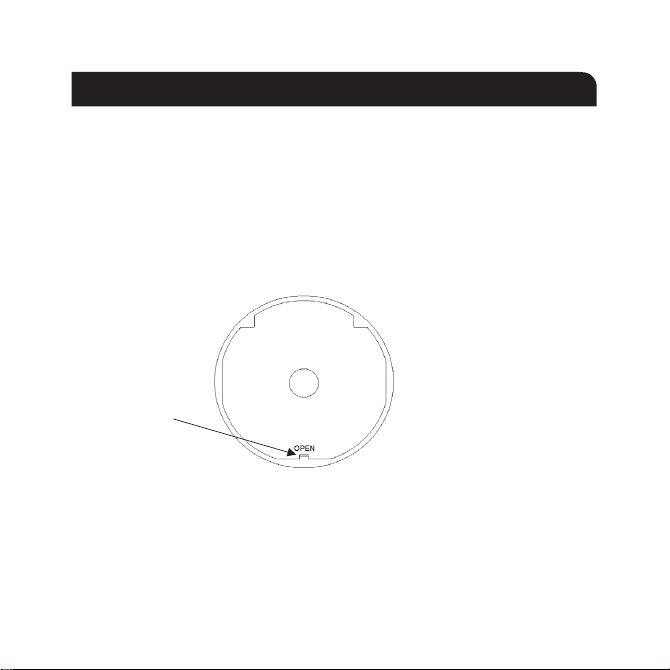

• Open the hinged LED plate by releasing the tab labelled “OPEN” (see Fig. 1)
Fig. 1
• Drill the fixing holes in the rear of the fitting. Mark the location of the fixing holes and drill
ensuring not to infringe with any gas/water pipes or electrical cables

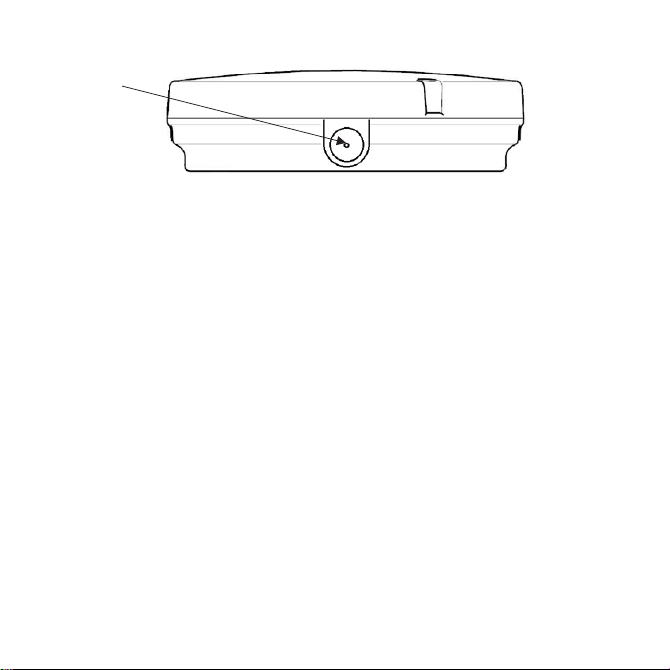

• Feed the mains cable through the rubber grommet to retain IP rating, or alternatively, drill
out one of the two 20mm drilling guides on the sides of the fitting (see Fig. 2)
Page 4
Fig. 2
• Secure the baseplate to the surface using the fixings provided
• Connect the luminaire to the mains supply ensuring the correct polarity is observed: L -
Live (brown), N - Neutral (blue)
• Close the hinged gear tray until the tab clicks into position
• Reattach the diffuser and secure with the three screws ensuring the seal is in place and
not damaged
• Switch on and check for correct operation
Page 5
WARNING
For non-emergency versions:
GENERAL
This product contains a light source of energy efficiency class D to Regulation (EU) No. 2019/2015.

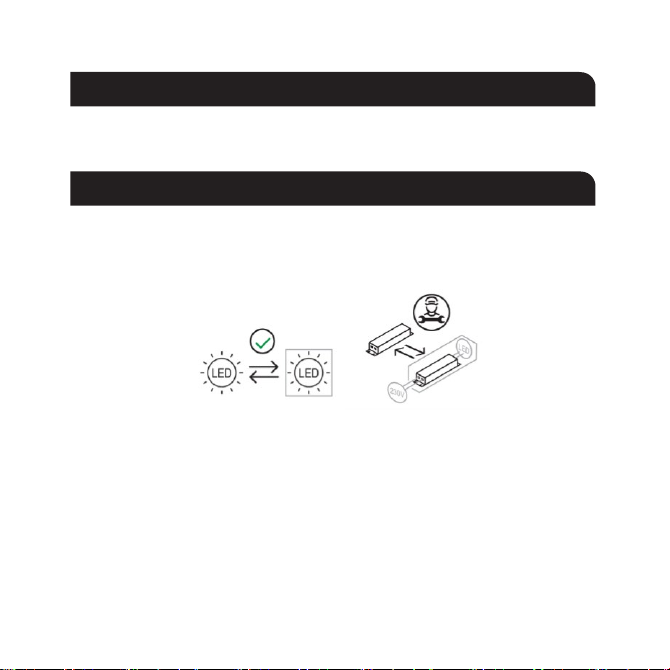

This product contains an LED light source which can be replaced by the end user and a control gear which can
be replaced by a professional.
This product must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
This product contains a light source of energy efficiency class E to Regulation (EU) No.
2019/2015.
This product contains an LED light source which can be replaced by the end user and a
control gear which can be replaced by a professional.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which
may damage the product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please
see website for dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life.
Check local authorities for where facilities exist.
Page 6
WARRANTY
INTERNATIONAL
CONTACT DETAILS
INTERNATIONAL
CONTACT DETAILS
This product has a warranty of 3 years from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper
use, or removal of the batch code will invalidate the warranty. If this product should fail
within its warranty period, it should be returned to the place of purchase for a free of
charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML
Accessories reserve the right to alter product specification without prior notice.
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
02
INTERNATIONAL
CONTACT DETAILS
DCOCT21_V2
