Page 1
INSTALLATION & MAINTENANCE MANUAL
T8LB14 / T8LB15 / T8LB16
T8LB24 / T8LB25 / T8LB26
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following products:
T8LB14 / T8LB15 / T8LB16 / T8LB24 / T8LB25 / T8LB26
Part code LED tube size Length (ft) Length (mm)
T8LB14 T8 4 1225
T8LB15 T8 5 1525
T8LB16 T8 6 1778
T8LB24 T8 4 1225
T8LB25 T8 5 1525
T8LB26 T8 6 1778
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• This product is for indoor use only
• This product is Class I and must be earthed
• This product is IP20 rated
Page 3
INSTALLATION
T8LB series
Part code
LED tube size
Length (ft)
Length (mm)
T8LB14
T8 4 1225
T8LB15
T8 5 1525
T8LB16
T8 6 1778
T8LB24
T8 4 1225
T8LB25
T8 5 1525
T8LB26
T8 6 1778
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• This product is for indoor use only
• This product is Class I and must be earthed
• This product is IP20 rated
• Provide power to the required point of installation
• Unfasten the two screws (see Fig. 1) and remove the cover plate
Centre mounting clip
Remove screws
LED tube size
Length (ft)
Length (mm)
T8 4 1225
T8 5 1525
T8 6 1778
T8 4 1225
T8 5 1525
T8 6 1778
and current Building Regulations. If in any doubt, consult a qualified electrician
circuit cable, fuse or circuit breaker
Centre mounting clip
Remove screws
NOTE: This fitting is designed and wired for self-ballasted LED T8 tubes requiring 240V AC input voltage (not
for use with fluorescent tubes).
• Provide power to the required point of installation
• Unfasten the two screws (see Fig. 1) and remove the cover plate

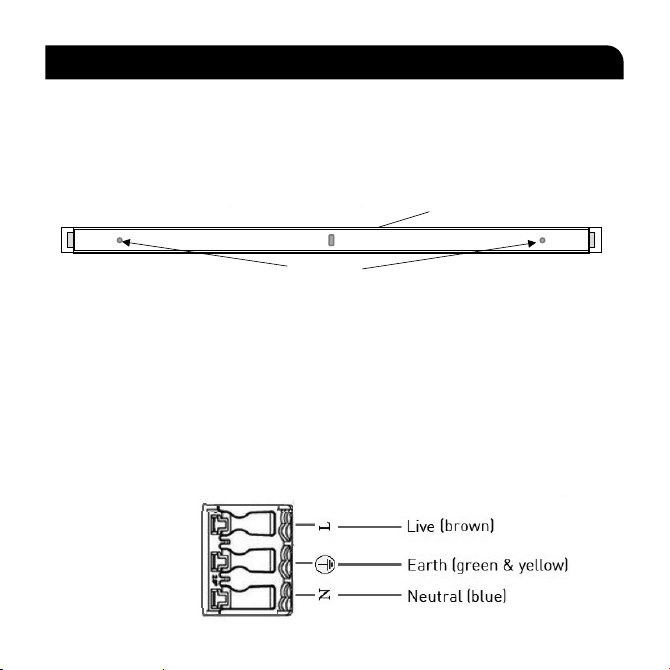

Fig. 1 (single fitting shown)
• Mark the location of the fixing holes and drill the holes ensuring not to infringe with any gas/water pipes or
electrical cables. The fitting can also be mounted over conduit boxes, the distance between fixing centres is
600mm
• Feed the mains cable into the luminaire either through the rear, or by drilling the end cap and using a 20mm
compression gland (not included)
• Secure the luminaire to the surface
• Ensuring correct polarity is observed, carefully wire as shown in Fig. 2
Fig. 2
Page 4
• Fit the T8 lampholders into place at either end of the fitting
• Fit the centre mounting clip onto the cover plate (see Fig. 1, T8LB16 and T8LB26 only) and refit the cover
plate securing with the two screws
• Fit a suitable T8 LED lamp
• Switch on and check for correct operation
GENERAL
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
fitting.
This product is dimmable dependent on lamp type.
The unit should be recycled in the correct manner when it reaches the end of its life. Check local authorities for
where facilities exist.
WARRANTY
This product has a warranty of 1 year from date of purchase. Failure to install this product in accordance with
the current edition of the IEE Wiring Regulations, improper use, or removal of the batch codes will invalidate the
warranty. If this product should fail within its warranty period, it should be returned to the place of purchase for
a free of charge replacement. ML Accessories does not accept responsibility for any installation costs associated
with the replacement product. Your statutory rights are not affected. ML Accessories reserve the right to alter
product specification without prior notice.
Page 5
INTERNATIONAL
INTERNATIONAL
CONTACT DETAILS
INTERNATIONAL
CONTACT DETAILS
CONTACT DETAILS
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
52
DCJUL21_V2
