INSTALLATION & MAINTENANCE MANUAL
T8BLED15EM1 / T8BLED16EM1
T8BLED25EM1 / T8BLED26EM1
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following products:
T8BLED15EM1 / T8BLED16EM1 / T8BLED25EM1 / T8BLED26EM1
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• This product is for indoor use only
• This product is Class I and must be earthed
• This product is IP20 rated
INSTALLATION
Note - If this product is being used in conjunction with an external PIR or sensor, please confirm with the
manufacturer of the sensors that they are compatible with LED luminaires.
• Provide power to the required point of installation
• Remove the two end caps with the aid of a flat-head screwdriver
• Single luminaire: squeeze the sides of the fitting together to separate the LED plate from the housing

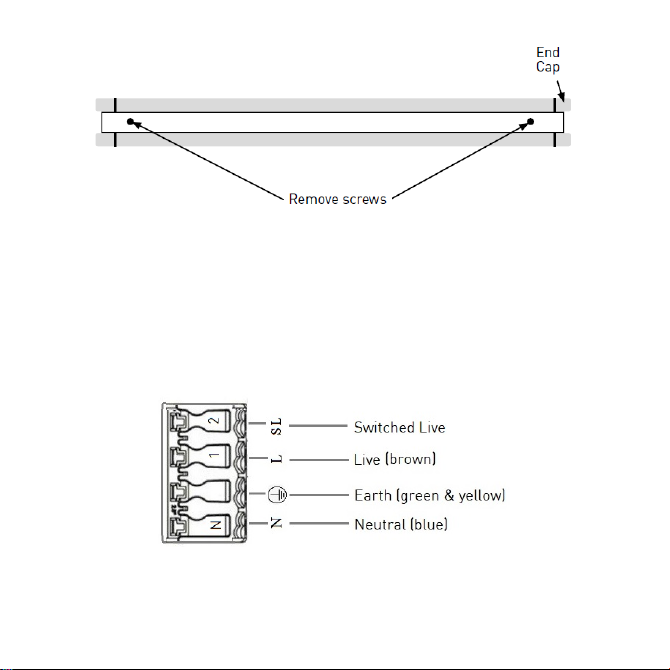

• Twin luminaire: remove the two screws (see Fig. 1) and slide the LED plate away from the housing
Page 3
INSTALLATION & MAINTENANCE MANUAL
Fig. 1
• Mark the location of the fixing holes and drill the holes ensuring not to infringe with any gas / water pipes or
electrical cables. The fitting can also be mounted over conduit boxes, the distance between fixing centres is
60cm
• Feed the mains cable into the luminaire either through the rear, or by drilling the end cap and using a 20mm
compression gland (not included)
• Secure the luminaire to the surface
• Ensuring correct polarity is observed, carefully wire as shown in Fig. 2
Fig. 2
Page 4
• Check the earth tab connection is in place and reconnect if required
• Check the earth tab connection is in place and reconnect if required
• Ensure the battery is connected via the plug and socket
• Refasten the cover
• Switch on and check for correct operation, ensuring the green indicator LED is illuminated
• We recommend, on commissioning the installation, a minimum charge period of 24 hours before
carrying out an emergency duration test
• Ensure the battery is connected via the plug and socket
• Refasten the cover
• Switch on and check for correct operation, ensuring the green indicator LED is illuminated
• We recommend, on commissioning the installation, a minimum charge period of 24 hours before carrying
out an emergency duration test
Note: this fitting shuts off power to the Lithium Ion battery periodically to prevent overcharging. Therefore, the
green LED indicator has been set up to indicate that the emergency inverter is in good condition, not to indicate
that the battery is charging. The installer must ensure the battery is connected.
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
This product contains a light source of energy efficiency class D (T8BLED15EM1, T8BLED25EM1,
T8BLED26EM1) / E ( T8BLED16EM1) to Regulation (EU) No. 2019/2015

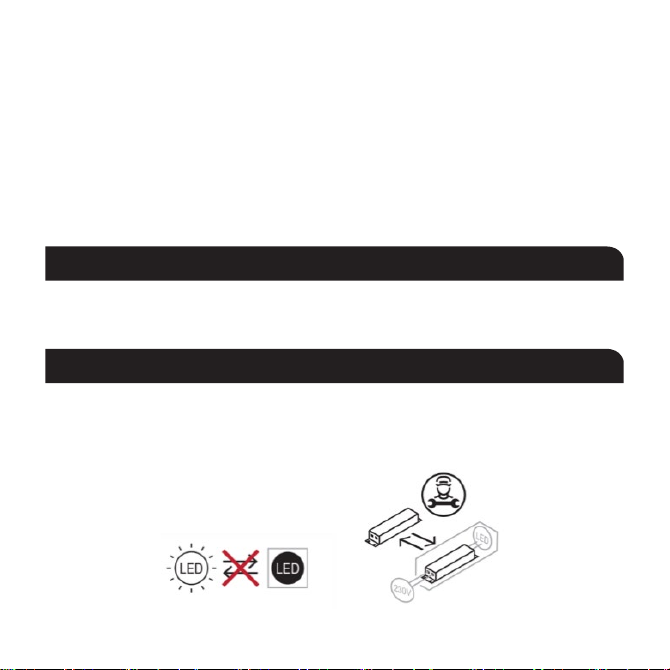

This product contains a non-replaceable LED light source and a control gear which can be replaced by a
professional.
Page 5
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please see website for
dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
The batteries in this luminaire are Lithium Ion and must be disposed of correctly. Please contact the local
authorities for the disposal of this toxic waste.
WARRANTY
This product has a warranty of 5 years (excluding battery) from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal
of the batch code will invalidate the warranty. If this product should fail within its warranty period, it should
be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept
responsibility for any installation costs associated with the replacement product. Your statutory rights are not
affected. ML Accessories reserve the right to alter product specification without prior notice.
Page 6
TESTING FOR EMERGENCY LUMINAIRES
Recommended routine test procedure in accordance with BS5266
• Daily check – check LED charge indicator is illuminated
• Monthly functional test - simulate a mains supply failure for approx. 30 seconds by operation of key switch
or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is
illuminated
• Annual three hour duration test - simulate a mains supply failure for three hour continuous test by operation
of key switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge
indicator is illuminated

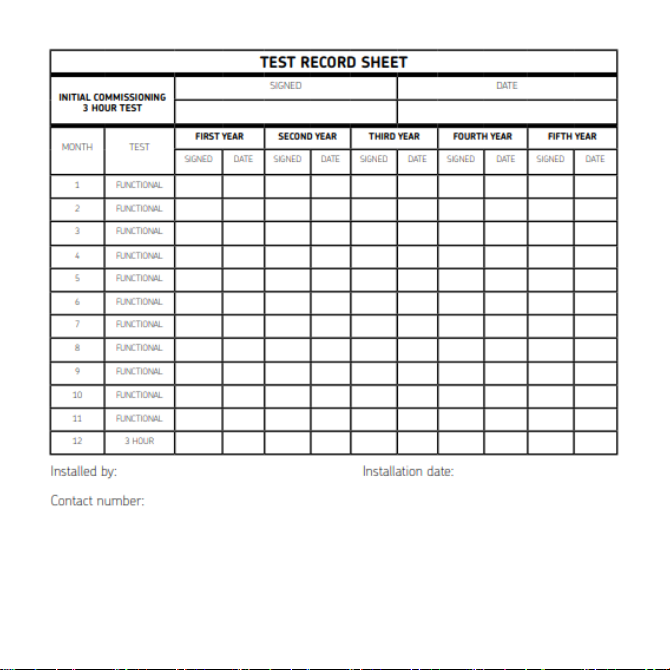

• If the luminaire fails any of the above tests, please contact a qualified electrician. See below for test record
sheet
