INSTALLATION & MAINTENANCE MANUAL
SUR5LED
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the
end user for future reference and maintenance.
These instructions should be used to aid installation of the following product:
SUR5LED
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring
Regulations (BS7671) and current Building Regulations. If in any doubt, consult a
qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed
the rating of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location
for installation
• This product is for indoor use only
• This product is Class I and must be earthed
• This product series is IP20 rated
Page 3
INSTALLATION
Note - If this luminaire is being used in conjunction with an external PIR or sensor, please
confirm with the manufacturer of the sensors that they are compatible with LED luminaires
• Provide power to the required point of installation

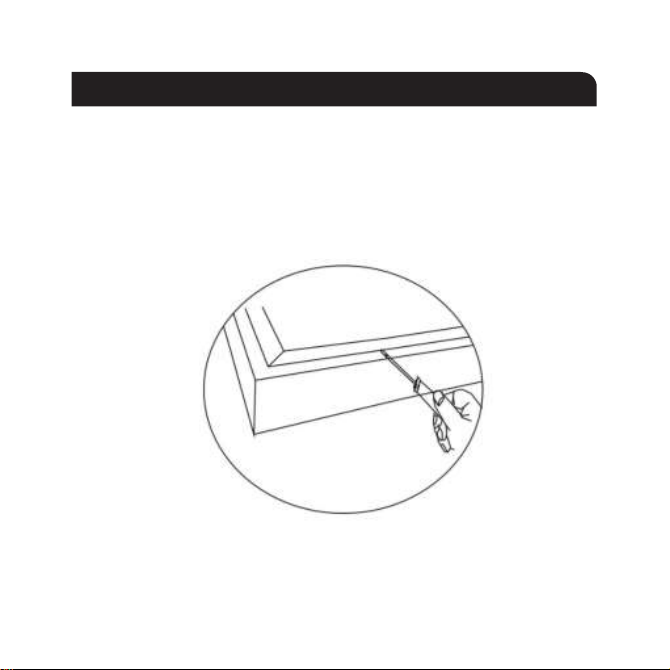

• Remove the diffuser by inserting a small plastic flat-headed tool into the frame (see Fig. 1)
Fig. 1
• Using the luminaire as a template, mark the location for, and drill the fixing holes ensuring
not to infringe with any gas/water pipes or electrical cables

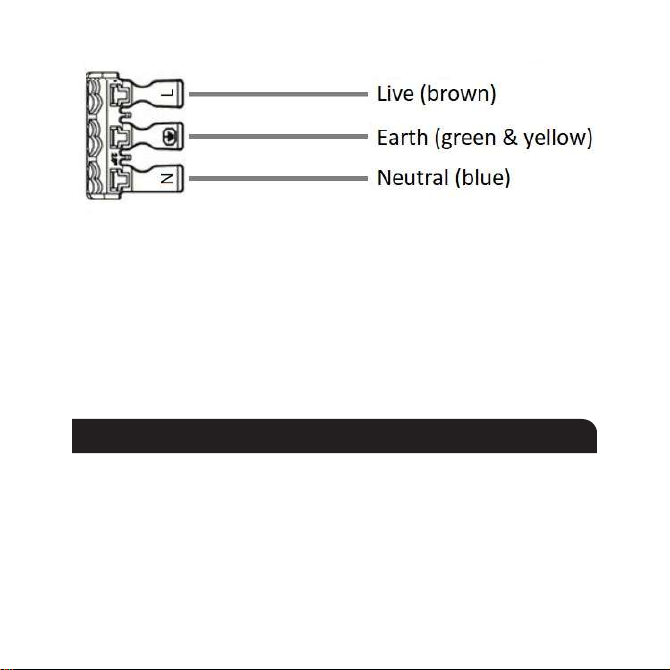

• Ensuring correct polarity is observed, carefully wire as shown in Fig. 2
Page 4
Fig. 2
• Secure the mains cable under the cable clamp
• Re-fit the diffuser ensuring that the earth fly-lead is connected, and the plastic strings are
attached to the body and diffuser
• Switch on and check for correct operation
WARNING
This luminaire must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed.
Page 5
GENERAL
This product is for indoor use only
This product contains a light source of energy efficiency class D to Regulation (EU) No.
2019/2015.

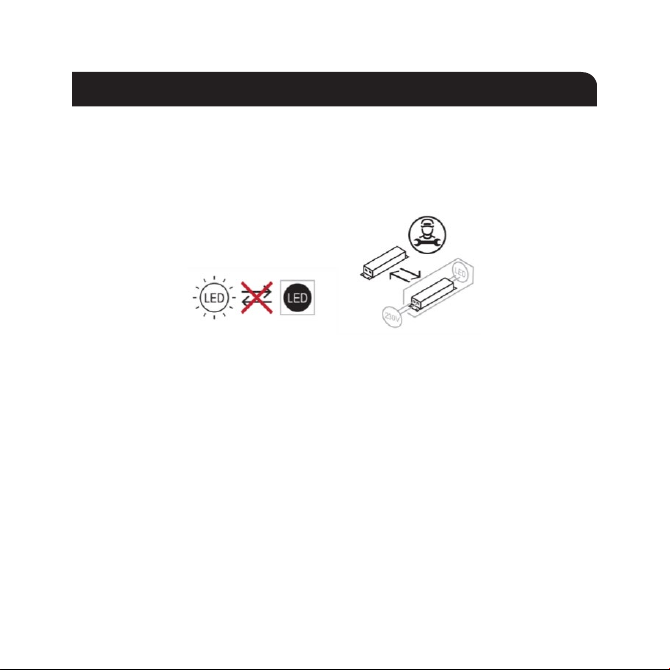

This product contains a non-replaceable LED light source and a control gear which can be
replaced by a professional.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which
may damage the product.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please
see website for dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life.
Check local authorities for where facilities exist.
Page 6
WARRANTY
INTERNATIONAL
CONTACT DETAILS
INTERNATIONAL
CONTACT DETAILS
This product has a warranty of 5 years from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper
use, or removal of the batch code will invalidate the warranty. If this product should fail
within its warranty period, it should be returned to the place of purchase for a free of
charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML
Accessories reserve the right to alter product specification without prior notice.
-20~
50°C
TA
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
INTERNATIONAL
CONTACT DETAILS
52
AVAUG21_V2
