WIRING ACCESSORIES
WARNING
1-WAY SWITCH
2-WAY SWITCH
INTERMEDIATE SWITCH
13A 2G SWITCHED SOCKET
13A 1G
SHAVER SOCKET
LIVE NEUTRAL
EARTH
13A 1G SOCKET
13A 2G SOCKET
13A 1G SOCKET
5A 1G SOCKET
2-WAY DIMMER
3-POLE FAN SWITCH
DIMMER SWITCH
LIVE NEUTRAL
SWITCHED
LIVE
NEUTRAL
EARTH
TO FAN
COM
COM
COM
L1L1L1
to be added to
switched live
These instructions should be read carefully and
retained after installation by the end user for
future reference and maintenance.
SAFETY
• This product must be installed in accordance
with the latest edition of the IEE Wiring
Regulations (BS7671) and current Building
Regulations. If in any doubt, consult a
qualified electrician
• Please isolate mains prior to installation
or maintenance
• Check the total load on the circuit (including
when this product is fitted) does not exceed
the rating of the circuit cable, fuse or
circuit breaker
• Do not overload this accessory or subject it to
conditions outside its rating
• Please note the IP (Ingress Protection) rating
of this product when deciding the location
for installation
WARRANTY Knightsbridge Wiring Accessories have a mechanical warranty of 15 years from date of purchase with the exception of dimmers, USB chargers
and speaker products, which have a 2 year warranty. Failure to install this product in accordance with the current edition of the IEE Wiring Regulations (BS
7671), improper use, or removal of the batch code will invalidate the warranty. If this product should fail within its warranty period it should be returned
to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation costs associated with the
replacement product. Your statutory rights are not affected. ML Accessories reserve the right to alter product specification without prior notice.
INSTALLATION
• Always ensure the wall surface is flat and smooth

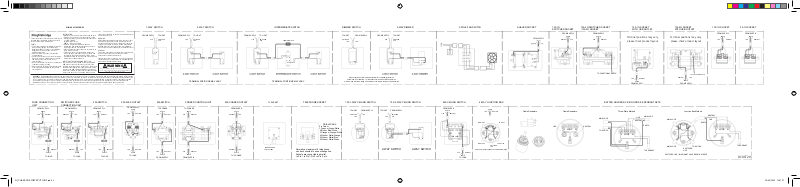

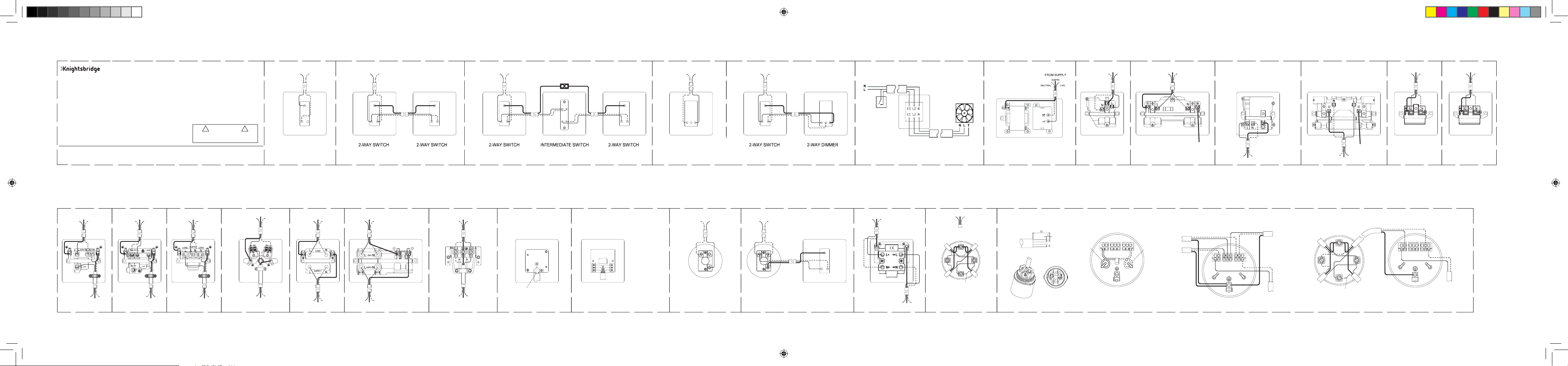

• Connect the accessory as per the diagram in this
manual, ensuring the correct polarity is observed:
L – LIVE – Brown
N – NEUTRAL – Blue
EARTH – Green and yellow
• All earth connections must be made and
maintained. Use green/yellow sleeving on earth
conductors that are not insulated
• Check all electrical connections are secure with no
loose strands of cable
• Fit the unit into a suitable wall box taking care
not to compress, damage or trap any cables, and
secure with the screws provided. If using metal
mounting boxes with four lugs, remove the top and
bottom lugs or bend fully back
OUTLETS WITH USB CHARGING FUNCTION
These products are designed for charging portable
USB devices only, and contain a short circuit and
overload protection feature. If there is no power from
the USB socket unplug the connected device. Check
to ensure the USB socket and USB device have not
come into contact with water, liquid or debris and the
cable to the device is not damaged. With no device
connected to the USB socket it will automatically reset
and be ready for use
WARNING
USB or Bluetooth products, dimmers, shaver sockets
and products with LED or neon indicators must be
disconnected from the circuit if subjected to any high
voltage or insulation resistance testing. Irreparable
damage will occur if this instruction is not followed.
Please note this kind of damage will void the warranty
GENERAL
This product should be recycled in the correct manner
when it reaches the end of its life. Check local
authorities for where facilities exist.
Clean with a soft dry cloth only, do not use aggressive
cleaning products or solvents which may damage the
product and invalidate the warranty
! !
This unit should NOT be subject to any insulation resistance
testing, failure to follow this instruction could cause damage
to the USB circuit and void the warranty
.
FROM SUPPLY TO LIGHT FROM SUPPLY TO LIGHTFROM SUPPLY TO LIGHT
LIVE
SWITCHED
LIVE
L
COM
L1
L2
LIVE
SWITCHED
LIVE
L
COM
L1
L2
L
COM
L1
L2
LIVE
SWITCHED
LIVE
L
COM
L1
L2
TERMINAL POSITIONS MAY VARY TERMINAL POSITIONS MAY VARY
TERMINAL BLOCK
L1
L2
L1
L2
L
COM
L1
L2
FROM SUPPLYTO LIGHT
SWITCHED
LIVE
LIVE
L1 L2
COM
Please check with LED lamp manufacturer for compatibility Ensure a
mixed load is not selected, i.e. incandescent mixed with LED Consider the
minimum and maximum range of the dimmer according to the type of load installed
FROM SUPPLY TO LIGHT
LIVE
L
COM
L1
L2
SWITCHED
LIVE
L1 L2
COM
SWITCHED SOCKET
FROM SUPPLY
EARTH
LIVENEUTRAL
/13A 2G SOCKET
FROM SUPPLY
LIVE NEUTRAL
EARTH
TO FUNCTIONAL EARTH
WITH USB OUTLET
Terminal positions may vary,
please check product layout
NEUTRAL
LIVE
EARTH
FROM SUPPLY
WITH USB OUTLET
Terminal positions may vary,
please check product layout
LIVE
EARTH
FROM SUPPLY
TO FUNCTIONAL EARTH
NEUTRAL
FROM SUPPLY
EARTH
LIVE NEUTRAL
FROM SUPPLY
EARTH
LIVE NEUTRAL
FUSE CONNECTION
UNIT
FROM SUPPLY
EARTH
LIVENEUTRAL
LIVE
EARTH
TO LOAD
NEUTRAL
SWITCHED FUSE
CONNECTION UNIT
FROM SUPPLY
EARTH
LIVENEUTRAL
NEUTRAL
EARTH
TO LOAD
20A SWITCH
FROM SUPPLY
EARTH
LIVE NEUTRAL
NEUTRAL
LIVE
LIVE
EARTH
TO LOAD
20A FLEX OUTLET
FROM SUPPLY
EARTH
LIVENEUTRAL
N
L
NEUTRAL
LIVE
EARTH
TO LOAD
45A SWITCH
TO COOKER
EARTH
LIVE NEUTRAL
NEUTRAL
LIVE
EARTH
FROM SUPPLY
COOKER CONTROL UNIT
TO COOKER
EARTH
LIVENEUTRAL
NEUTRAL
LIVE
EARTH
FROM SUPPLY
45A COOKER OUTLET
FROM SUPPLY
EARTH
LIVENEUTRAL
LIVENEUTRAL
EARTH
TO COOKER
TV SOCKET
SCREEN UNDER
CABLE CLAMP
TELEPHONE SOCKET
Colour Code
Pin Colour
1 Green or Green/White
2 Blue or Blue/White
3 Orange or Orange/White
1
2
3
Normally a maximum of 5 telephones
can be connected to one exchange line.
Sockets are connected in parallel,
i.e Pin 1 to Pin 1;Pin 2 to Pin 2: etc.
6
4 White or White/Orange
5
5 White or White/Blue
4
6 White or White/Green
10A 1-WAY CEILING SWITCH
FROM SUPPLYTO LIGHT
LIVE
LIVE
L1 L2
COM
SWITCHED
10A 2-WAY CEILING SWITCH
FROM SUPPLYTO LIGHT
SWITCHED
LIVE
LIVE
L1 L2
COM
LCOM
L1
L2
2-WAY SWITCH 2-WAY SWITCH
45A CEILING SWITCH
FROM SUPPLY
EARTH
LIVE NEUTRAL
LIVE
TO LOAD
EARTH
4-WAY JUNCTION BOX
MAIN LOOP
MAIN LOOP
SWITCHED LIVE (BLUE) MUST HAVE BROWN SLEEVE
NEUTRAL
EARTH
NEUTRALLIVE
SWITCHED
LIVE
TO LIGHT
TO SWTICH
Cable Restraints Cable Restraints
LIVE
LOOP
NEUTRAL
NL
BATTEN HOLDERS, CEILING ROSE & PENDANT SETS
Three-Plate Method
MAIN LOOP
MAIN LOOP
TO SWTICH
LOOP
LIVE
NEUTRAL
EARTH
NL
TO PENDANT
Junction Box Method
MAIN LOOP
EARTH
MAIN LOOP
SWITCHED
LIVE
TO SWTICH
SWITCHED LIVE (BLUE) MUST HAVE BROWN SLEEVE
NEUTRAL
LIVE
LOOP
NL
TO PENDANT
DCOCT20
