INSTALLATION & MAINTENANCE MANUAL
PRCLEDEM / PRCLEDEM4
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following products:
PRCLEDEM / PRCLEDEM4
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• This product is for indoor use only
• This product is Class I and must be earthed
• This product is IP20 rated
INSTALLATION
Note - If this product is being used in conjunction with an external PIR or sensor, please confirm with the
manufacturer of the sensors that they are compatible with LED luminaires.
• Provide power to the required point of installation

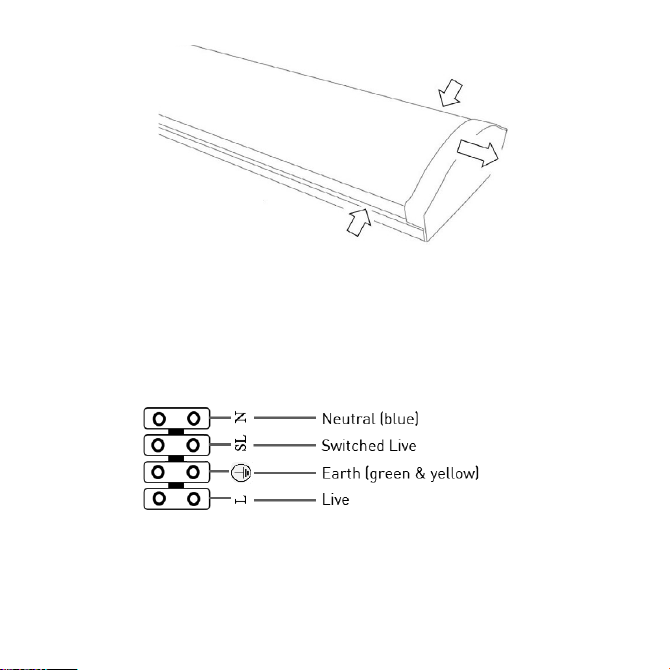

• With the aid of a flat-head screwdriver, remove the end caps, squeeze the sides of the diffuser, and pull the
diffuser away from the base (see Fig. 1)
Page 3
INSTALLATION & MAINTENANCE MANUAL
(BS7671) and current Building Regulations. If in any dou bt, consult a qualified electrician
the circuit cable, fuse or circuit breaker
diffuser away from the base (see Fig. 1)
Fig. 1
• Mark the location of the fixing holes and drill the holes ensuring not to infringe with any gas / water pipes or
electrical cables
• Feed the mains cable into the fitting, and secure to the surface
• Connect the luminaire to the mains supply ensuring the correct polarity is observed:
L - Live, SL - Switched Live (brown), E - Earth (green/yellow), N - Neutral (blue) (see Fig. 2)
Fig. 2
• Ensure the battery is connected
• Refit the diffuser and end caps
• Switch on and check for correct operation, ensuring the green indicator LED is illuminated
• We recommend, on commissioning the installation, a minimum charge period of 24 hours before carrying
out an emergency duration test
Page 4
• If the batteries have been left in a discharged state for an extended period, we recommend that one or more
Fig. 2
• Refit the diffuser and end caps
• Switch on and check for correct operation
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
This product contains a light source of energy efficiency class TBC to Regulation (EU) No 2019/2015.

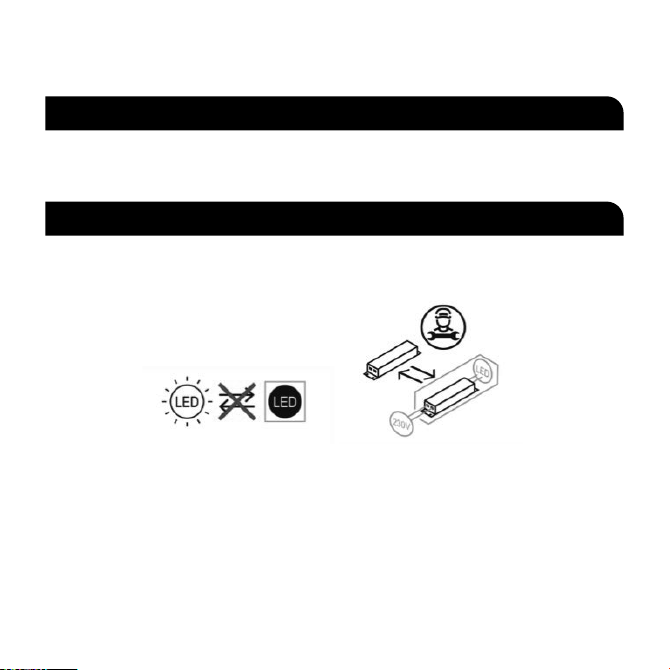

This product contains a non-replaceable LED light source and a control gear which can be replaced by a
professional
charge and discharge cycles are completed which should help to restore the battery capacity
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
This product contains a light source of energy efficiency class D to Regulation (EU) No 2019/2015.
This product contains a non-replaceable LED light source and a control gear which can be replaced by a
professional
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please see website for
dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
The batteries in this luminaire are Nickel Cadmium and must be disposed of correctly. Please contact the local
authorities for the disposal of this toxic waste.
Page 5
WARRANTY
This product has a warranty of 5 years (excluding battery) from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal
of the batch code will invalidate the warranty. If this product should fail within its warranty period, it should
be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept
responsibility for any installation costs associated with the replacement product. Your statutory rights are not
affected. ML Accessories reserve the right to alter product specification without prior notice.
Page 6
• Monthly functional test - simulate a mains supply failure for approx. 30 seconds by operation of key switch
or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is
illuminated
• Annual three hour duration test - simulate a mains supply failure for three hour continuous test by operation
of key switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge
indicator is illuminated
• If the luminaire fails any of the above tests, please contact a qualified electrician. See below for test record
sheet
Page 7
INTERNATIONAL
CONTACT DETAILS
INTERNATIONAL
CONTACT DETAILS
TESTING FOR EMERGENCY LUMINAIRES
Recommended routine test procedure in accordance with BS5266
• Daily check – check LED charge indicator is illuminated
• Monthly functional test - simulate a mains supply failure for approx. 30 seconds by operation of key switch
or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is
illuminated
• Annual three hour duration test - simulate a mains supply failure for three hour continuous test by operation
of key switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge
indicator is illuminated
• If the luminaire fails any of the above tests, please contact a qualified electrician. See below for test record

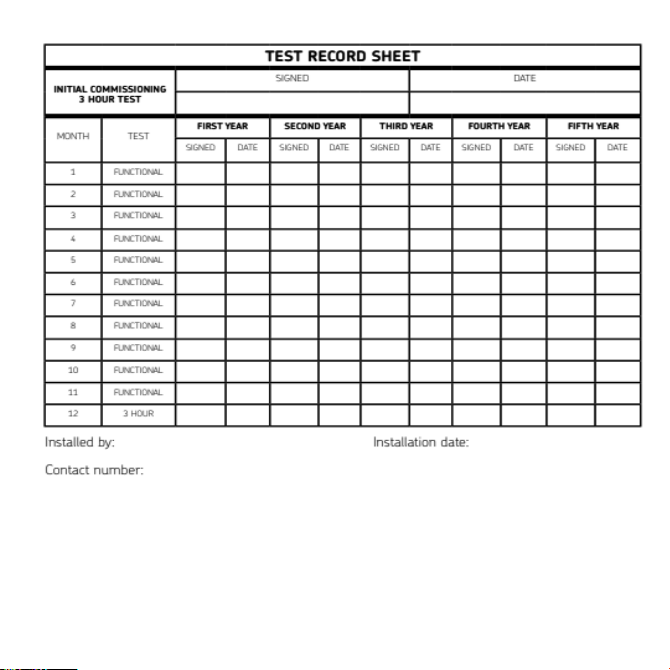

sheet
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
52
INTERNATIONAL
CONTACT DETAILS
DCJUL21_V5
